Flaring Tool Automatic 3/16 & 1/4 000103

Automatic Flaring Tool

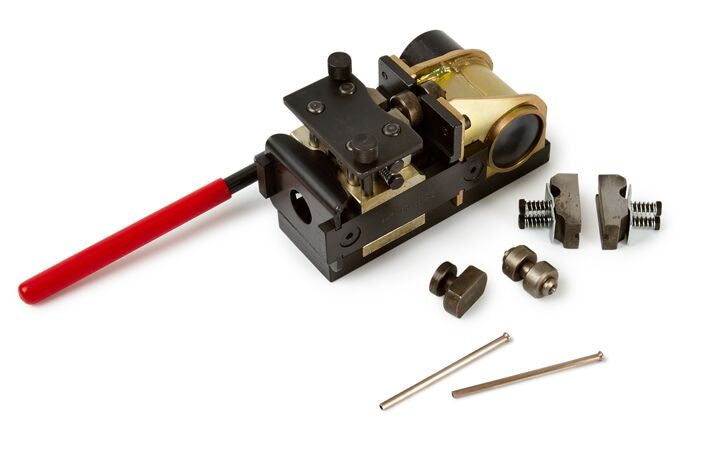

OAKES 000103 Bench-Mounted Automatic Flaring Tool

When you are fabricating brake lines on a daily basis, speed and repeatability are what keep the job profitable. Cheap, hand-held screw-type flaring tools have their place for quick under-car repairs, but for serious workshop throughput, they are too slow and prone to pipe slippage. The OAKES 000103 Automatic Flaring Tool is engineered specifically to solve this bottleneck, producing perfect, consistent flares in under 10 seconds.

The standout feature of this tool is its unique automatic mechanism. It automatically aligns, clamps, and releases the pipe in one smooth action. This completely removes the guesswork of setting the pipe height in the die, preventing split flares or lopsided shoulders. Built with a heavy-duty steel body, this tool is designed to be bolted directly to your workbench using the supplied hardware, providing a rock-solid platform. If bench space is tight, it can also be clamped securely in a standard workshop vice.

This kit comes equipped to handle 3/16" and 1/4" SAE flares—the most common sizes found on automotive brake systems. While standard copper pipe is easy enough to flare, modern workshops frequently use Copper Nickel (Kunifer/NiCopp) for its superior corrosion resistance and fatigue strength. Kunifer is significantly harder to work with, but the mechanical leverage and robust clamping power of the OAKES 000103 handle it without breaking a sweat or slipping.

For specialist workshops, the tool's capability can be expanded. By pairing it with the optional ADAPTA kit, you can produce the specific high-pressure flares required for Citroën and Rolls-Royce hydraulic systems. Additional punch and clamp sets are also available to cover pipe sizes from 5/16" to 1/2" and metric sizes from 3.5mm to 12mm.

Key Workshop Benefits:

• 10-Second Cycle Time: The fastest flaring tool on the market for high-volume pipe production.
• Automatic Clamping: Eliminates manual pipe alignment errors and prevents pipe slippage, even on hard Kunifer tubing.
• Solid Mounting Options: Supplied with bolts for permanent bench mounting, but easily adapted for vice use.
• Professional Build: Heavy-duty steel construction designed to withstand daily trade abuse.
• Expandable System: Standard 3/16" and 1/4" SAE setup can be upgraded for DIN, Citroën, Rolls-Royce, and larger pipe diameters.

Part Number: 000103

The 000103 Automatic Flaring Tool is the fastest in our range. This tool will perform best when bolted down to a bench with the bolts supplied, but still can be used in a vice. The tool features a unique method for automatically lining up, clamping and releasing the flared pipe. Capable of producing pipes in less than 10 seconds, this tool will appeal to the serious pipe manufacturer. In addition to the standard SAE and DIN flares, the Automatic can be used to make the special flares used by Citroen and Rolls-Royce when combined with the ADAPTA kit. Additional clamp and punch sets are available from 5/16" to 1/2" and 3.5mm to 12mm.

Part Number: 000103

Demonstration Video

Copper pipes are more traditional and easier to work with however Copper Nickel (aka CuNI, Kunifer, cupro-nickel or NiCopp) is more resistant to corrosion and has a higher fatigue strength.
