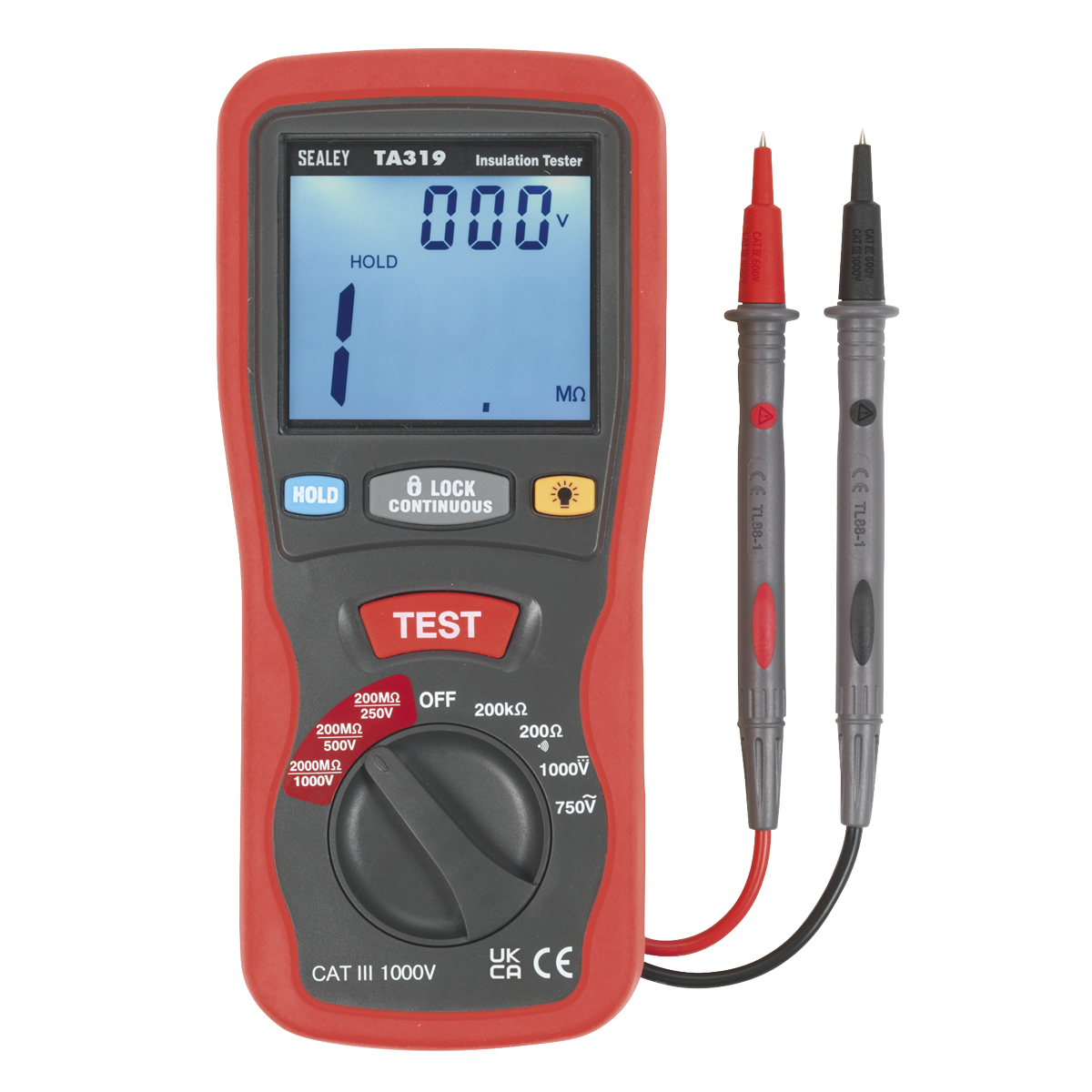

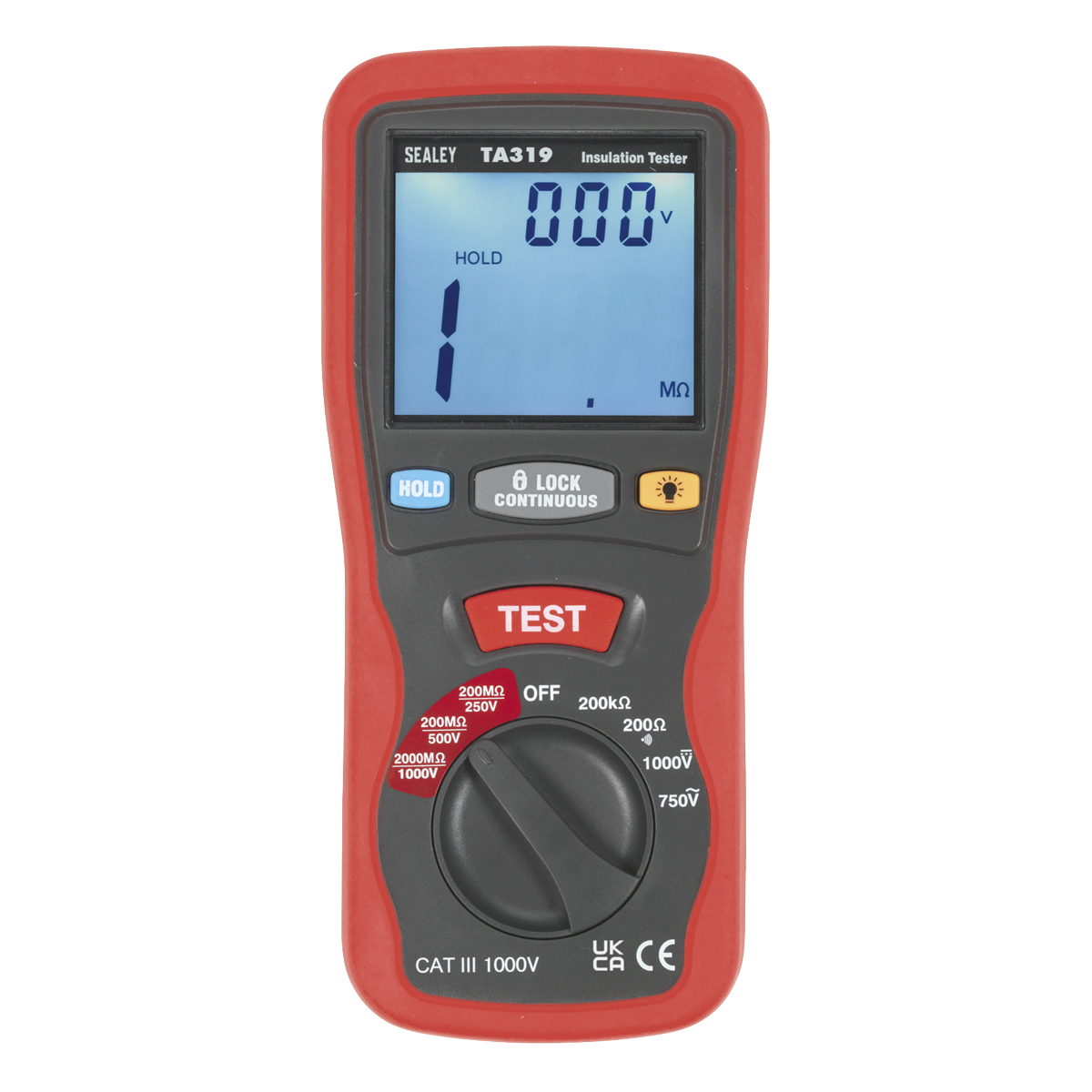

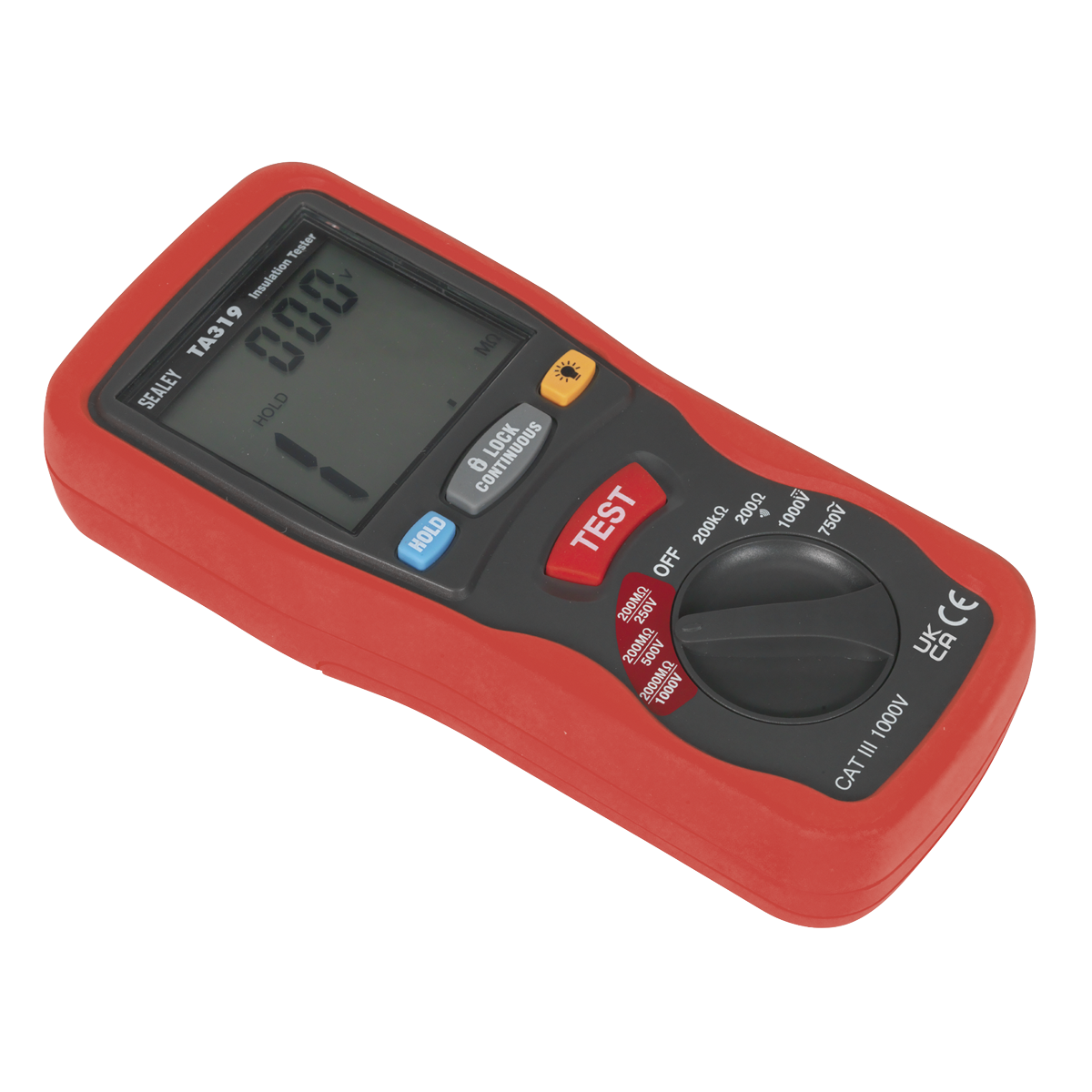

Sealey Digital Insulation Tester TA319

Name: Sealey Digital Insulation Tester TA319
SKU: SEALEY-TA319
Price: 220.25 GBP
Availability: InStock

£220.25 GBP

~~£275.94 GBP~~ £220.25 GBP

Reduced by £55.69 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

Specially designed for testing insulation on high voltage cables. Suitable for hybrid and electric vehicles. Supplied with test leads, batteries and storage case. Conforms to EN61010 CAT III (1000V).

• Specially designed for testing insulation on high voltage cables.
• Suitable for hybrid and electric vehicles.

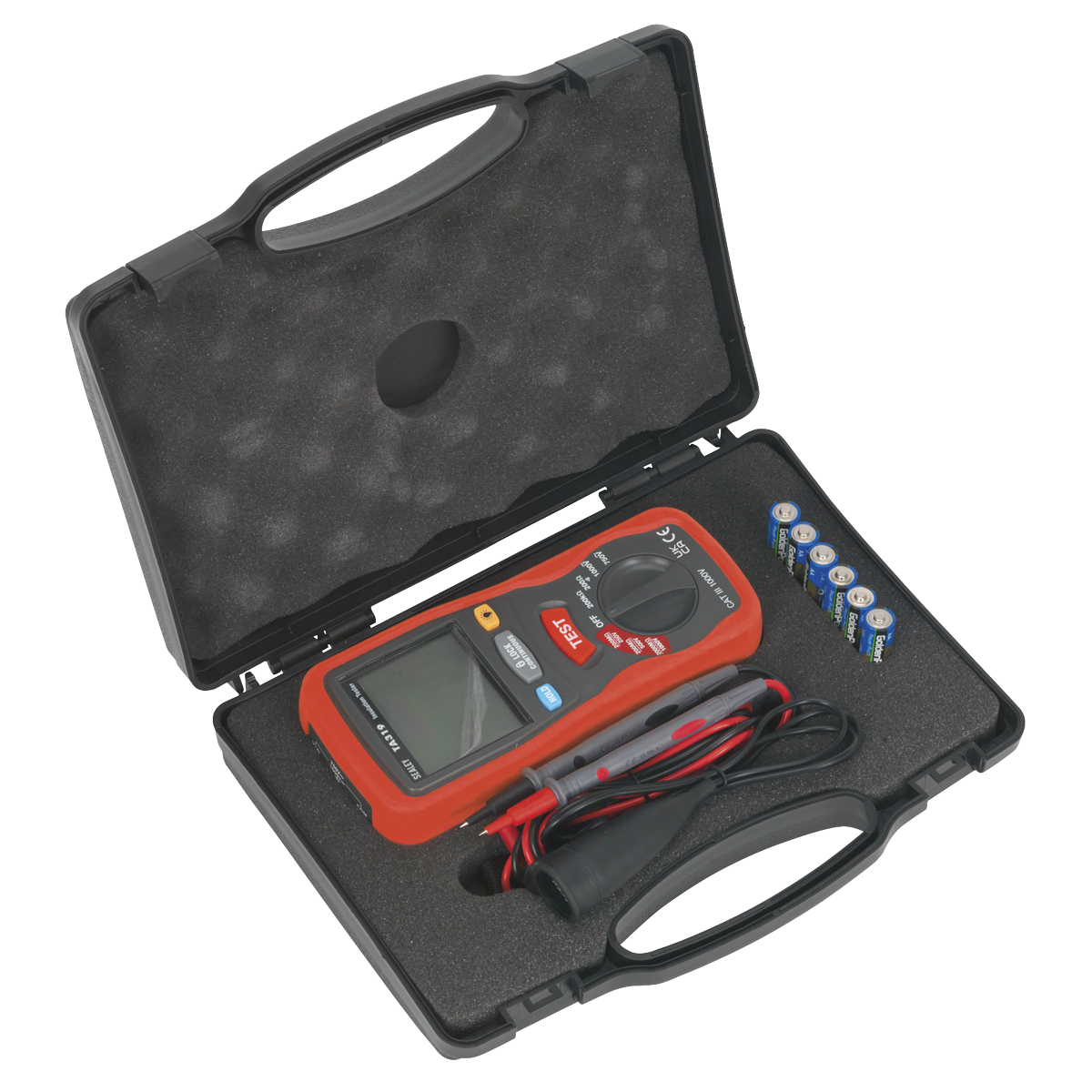

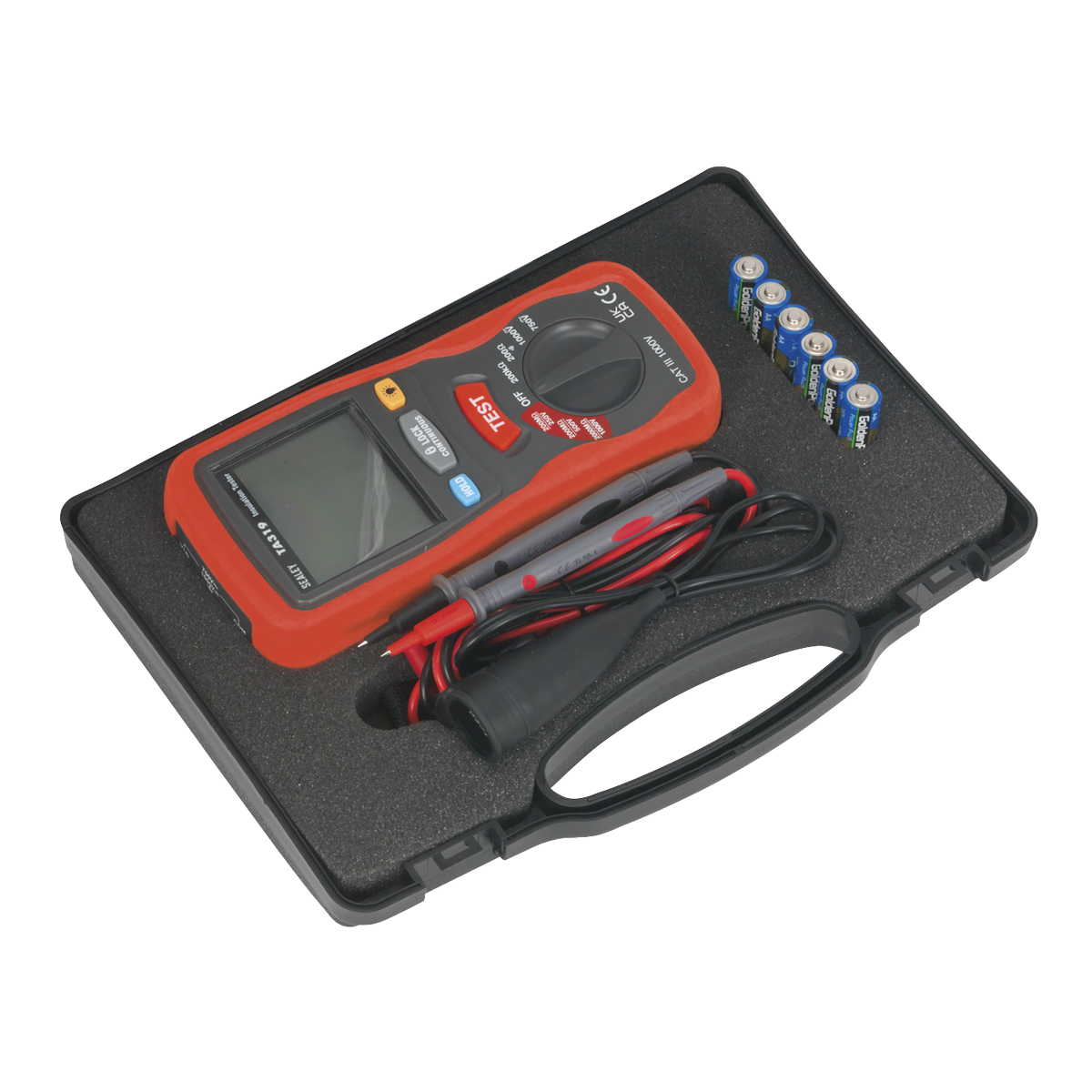

• Supplied with test leads, batteries and storage case.
• Conforms to EN61010 CAT III (1000V).

Specifications

Model No	TA319
Brand:	Sealey
Nett Weight:	1.29kg
Voltage AC:	Range; 750V, Max Resolution; 1V, Accuracy; (±1.2% ± 10-digits)
Voltage DC:	Range; 1000V, Max Resolution; 1V, Accuracy; (±0.8% ± 3-digits)
Resistance:	Range; 200Ω, 2000Ω, Max Resolution; 0.1Ω, 1Ω, Accuracy; (±1% ± 2-digits)
Insulation Resistance:	Range; 200MΩ, 2000MΩ, Max Resolution; 100kΩ-1MΩ, Accuracy; (±3.5% ± 5-digits)
Test Voltage:	250V/200MΩ, 500V/200MΩ, 1000V/2000MΩ
Continuity Test:	Active Sound Level; ≤40Ω, Test Current; ≤200mA
Operating Temperature:	0ºC to +40ºC, (<80%R.H)
Storage Temperature:	-10ºC to +60ºC, (<70%R.H)
Batteries:	6 x 1.5V (supplied)
