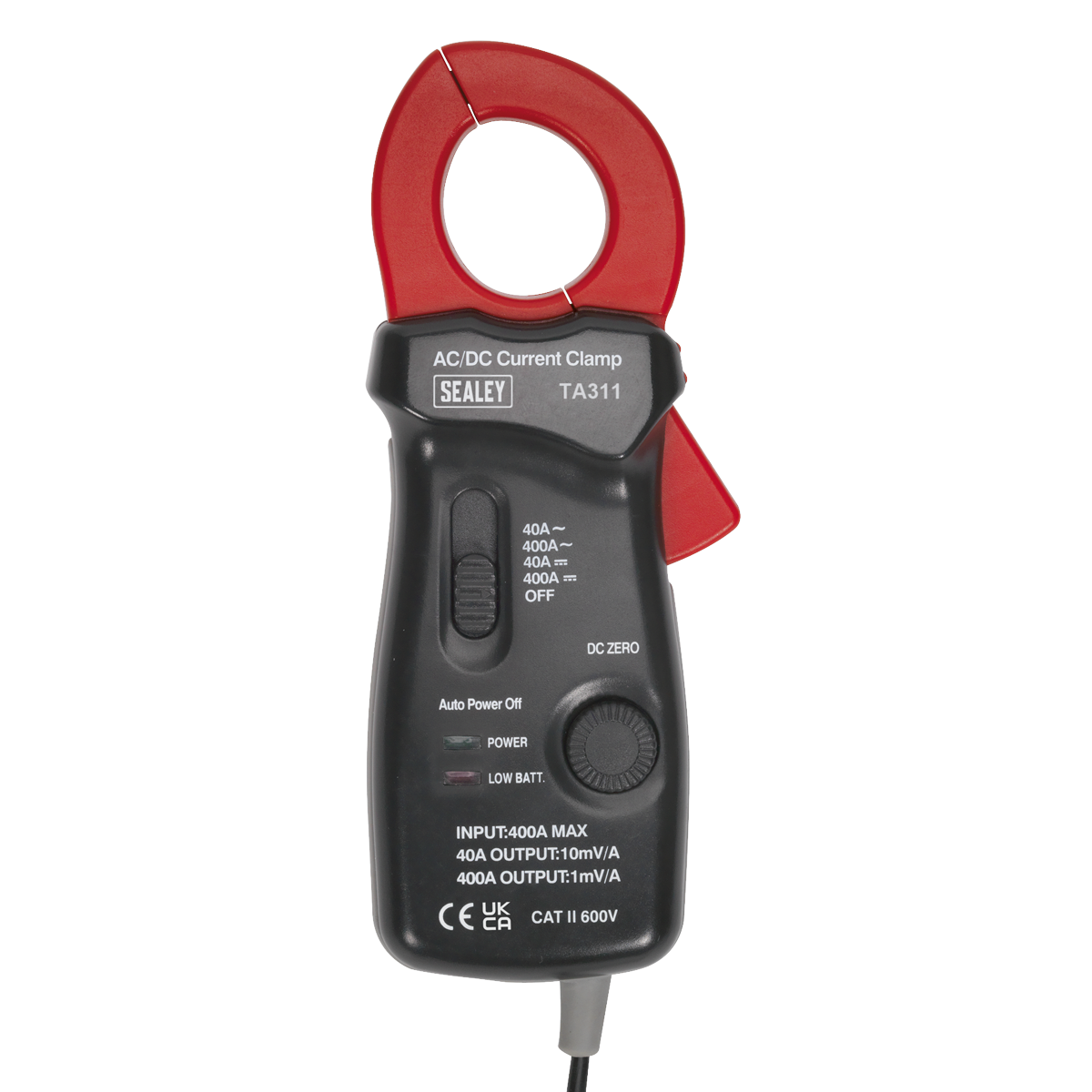

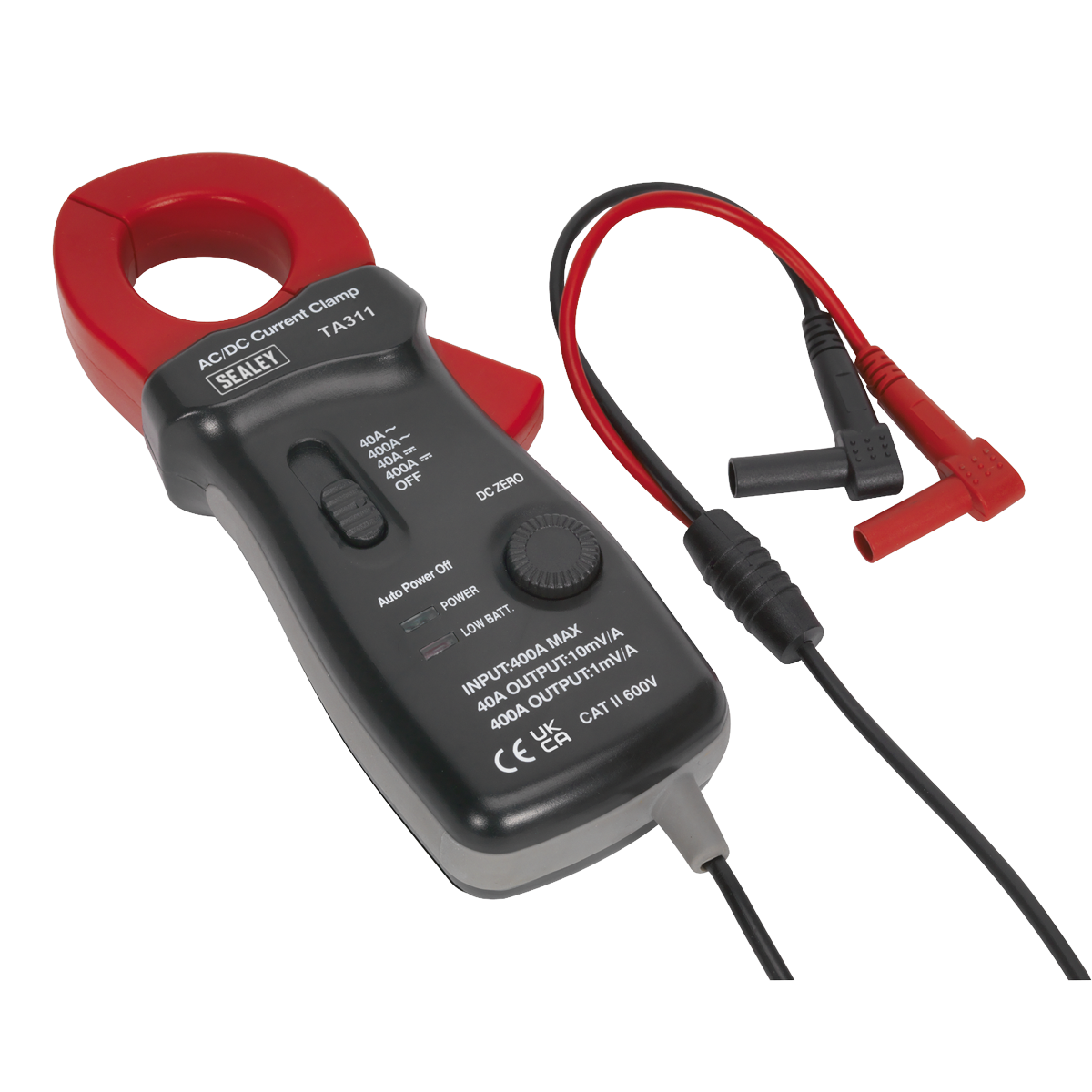

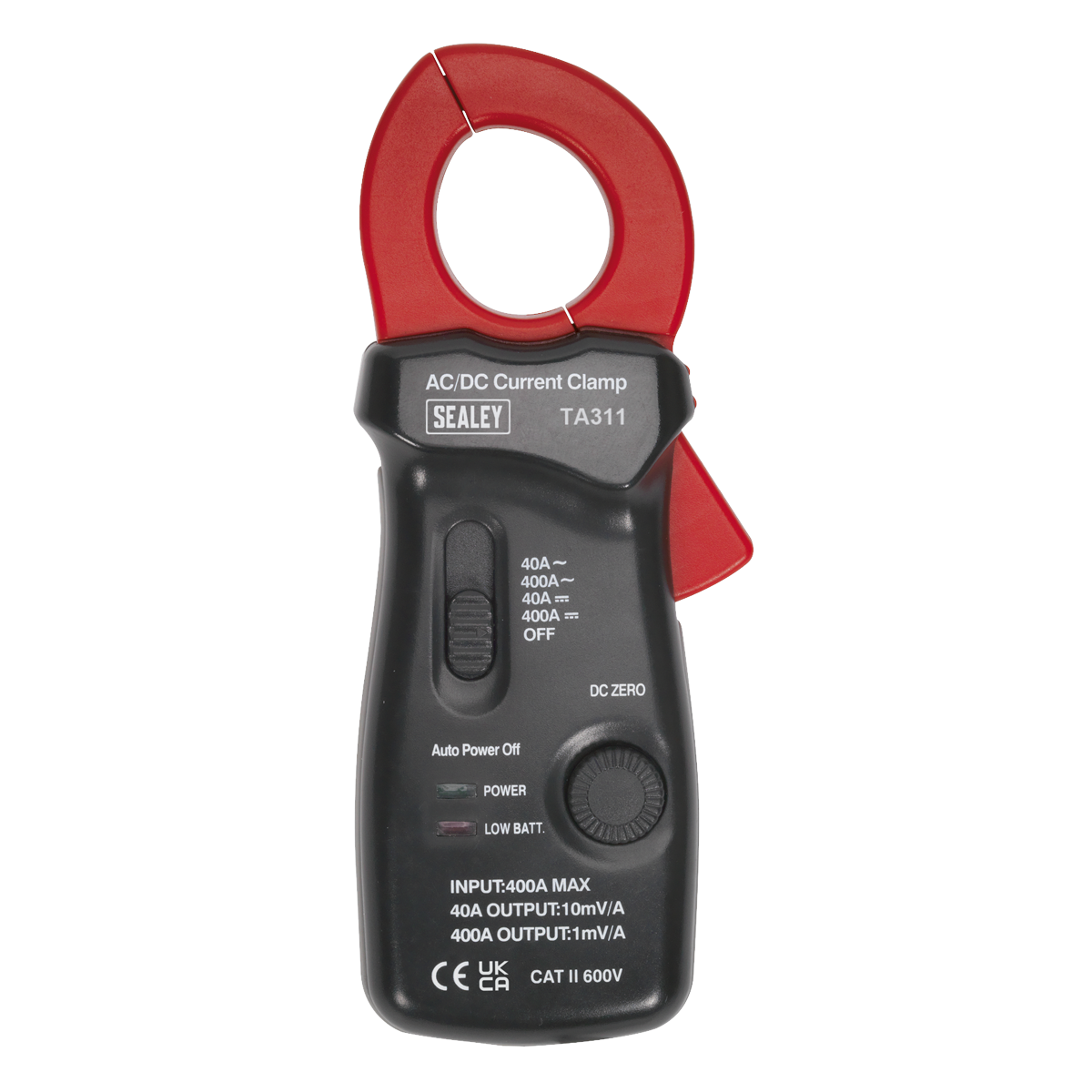

Sealey Current Clamp AC/DC 40A/400A 28mm TA311

Name: Sealey Current Clamp AC/DC 40A/400A 28mm TA311
SKU: SEALEY-TA311
Price: 94.42 GBP
Availability: InStock

£94.42 GBP

~~£112.74 GBP~~ £94.42 GBP

Reduced Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Designed for use with a standard multimeter and measures current draw from vehicle components in situ. Suitable for measuring both AC and DC current, without breaking into the circuit. Fitted with 4mm banana connectors and supplied in storage pouch. Powered by 9V battery (supplied). Can also be used with an oscilloscope using a suitable BNC conversion adaptor.

• Designed for use with a standard multimeter and measures current draw from vehicle components in situ.
• Suitable for measuring both AC and DC current, without breaking into the circuit, with a 40A and 400A setting for accurate measurement.
• Features a Ø28mm clamp ideal for testing wire bundles.
• Fitted with 4mm banana connectors and supplied in storage pouch.
• Powered by 9V battery (supplied).
• Can also be used with an oscilloscope using a suitable BNC conversion adaptor.

Specifications

Model No	TA311
Brand:	Sealey
Nett Weight:	0.36kg
TA311 Captured Conductor Size:	Ø20mm maximum
Low Battery Indicator:	LED red
Operating Temperature:	0°C to 50°C.
Storage Temperature:	-15°C to 50°C.
Battery Type:	9V DC
Typical Battery Life:	80hrs (alkaline)
Weight:	240g
TA311 Dimensions (H x W x D):	175mm x 70mm x 38mm
Output Connection:	Banana plugs (red & black)
40A (output: 10mV/A):	DC or rms AC for 200mV or 400mV range of the multimeter.
400A (output: 1mV/A):	DC or rms AC for 400mV range of the multimeter.
