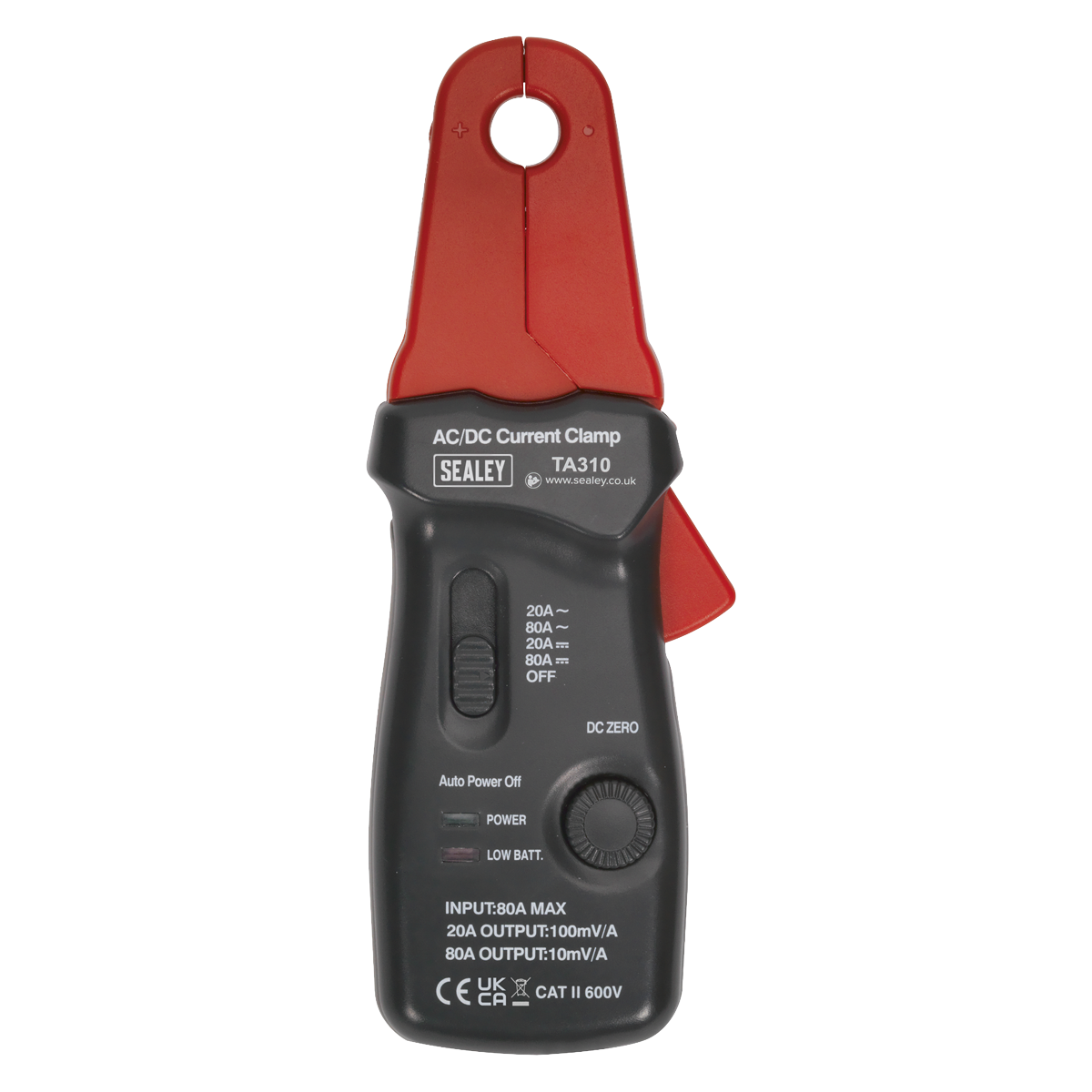

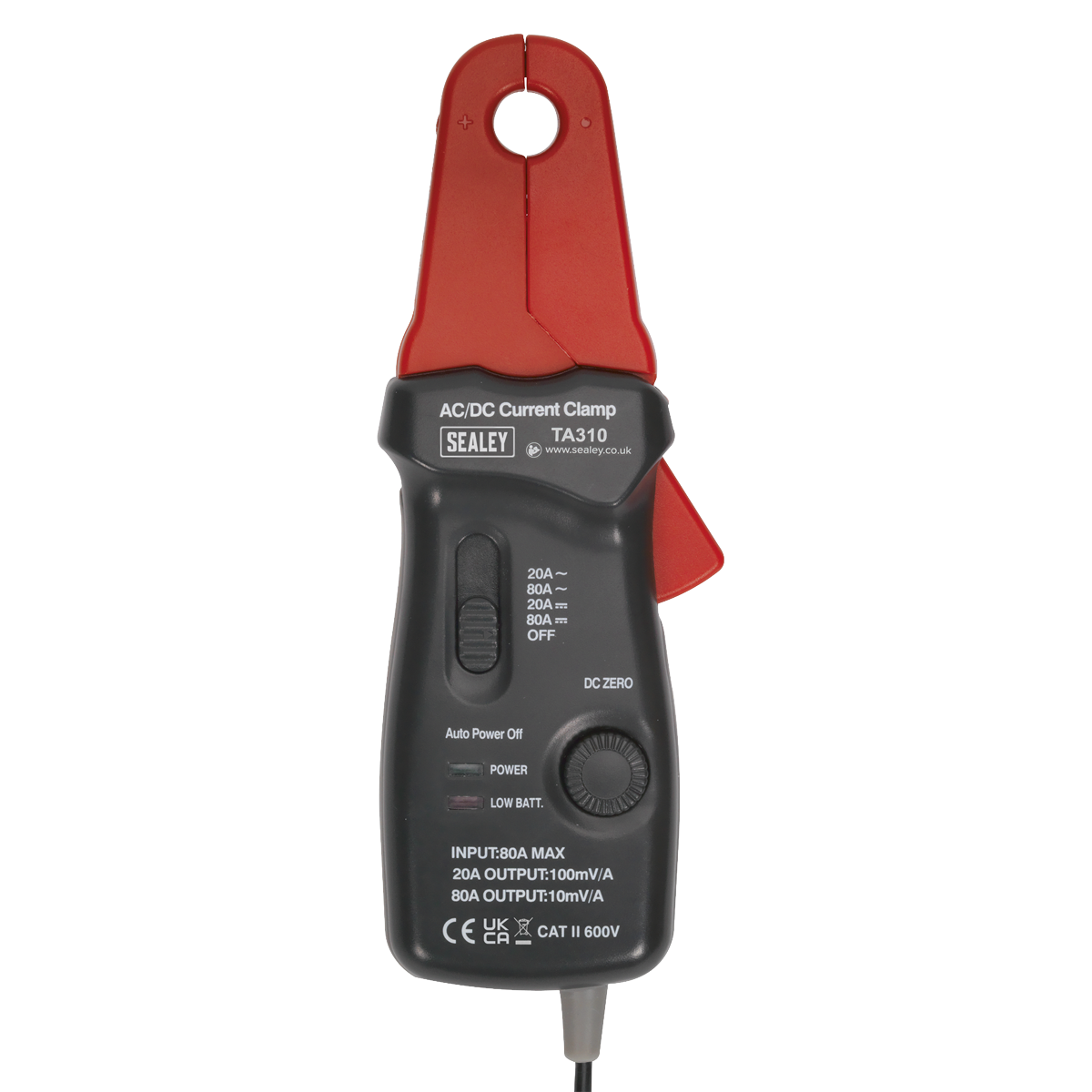

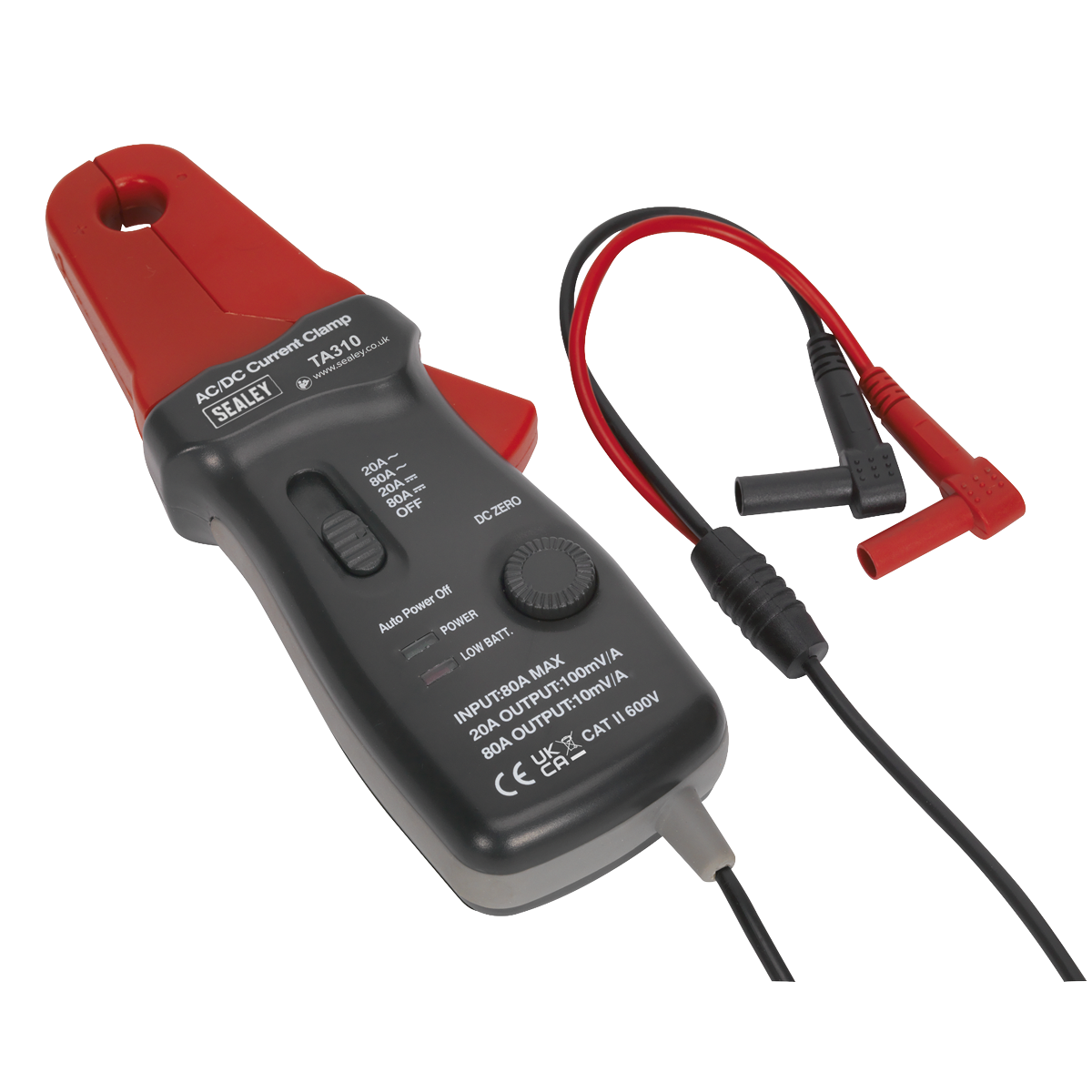

Sealey Current Clamp AC/DC 20A/80A 12mm TA310

Name: Sealey Current Clamp AC/DC 20A/80A 12mm TA310
SKU: SEALEY-TA310
Price: 88.06 GBP
Availability: InStock

£88.06 GBP

~~£119.94 GBP~~ £88.06 GBP

Reduced by £31.88 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

Designed for use with a standard multimeter and measures current draw from vehicle components in situ. Suitable for measuring both AC and DC current, without breaking into the circuit. Fitted with 4mm banana connectors and supplied in storage pouch. Powered by 9V battery (supplied). Can also be used with an oscilloscope using a suitable BNC conversion adaptor.

• Designed for use with a standard multimeter and measures current draw from vehicle components in situ.
• Suitable for measuring both AC and DC current, without breaking into the circuit, with a 20A and 80A setting for accurate measurement.
• Features a Ø12mm clamp ideal for testing individual wires.
• Fitted with 4mm banana connectors and supplied in storage pouch.
• Powered by 9V battery (supplied).
• Can also be used with an oscilloscope using a suitable BNC conversion adaptor.

Specifications

Model No	TA310
Brand:	Sealey
Nett Weight:	0.31kg
TA310 Captured Conductor Size:	Ø8mm maximum
Low Battery Indicator:	LED red
Operating Temperature:	0°C to 50°C.
Storage Temperature:	-15°C to 50°C.
Battery Type:	9V DC
Typical Battery Life:	80hrs (alkaline)
Weight:	240g
TA310 Dimensions (H x W x D):	190mm x 70mm x 38mm
Output Connection:	Banana plugs (red & black)
20A (output: 100mV/A=1mV/10mA):	<2A use DC or rms AC for 200mV range of the multimeter,>2A use DC or rms AC for 2V range of the multimeter.
80A (output: 10mV/A):	DC or rms AC for 200mV range of the multimeter.
