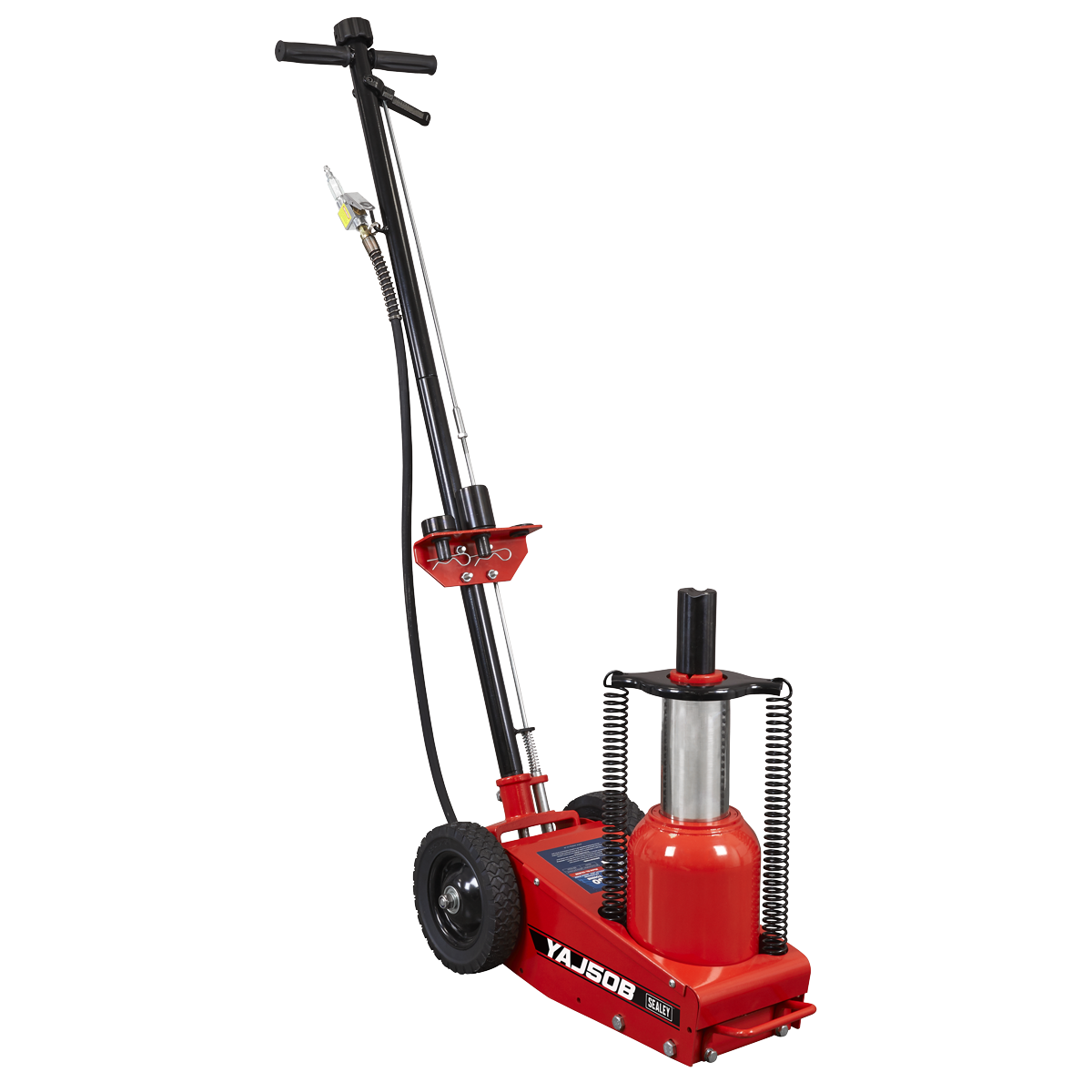

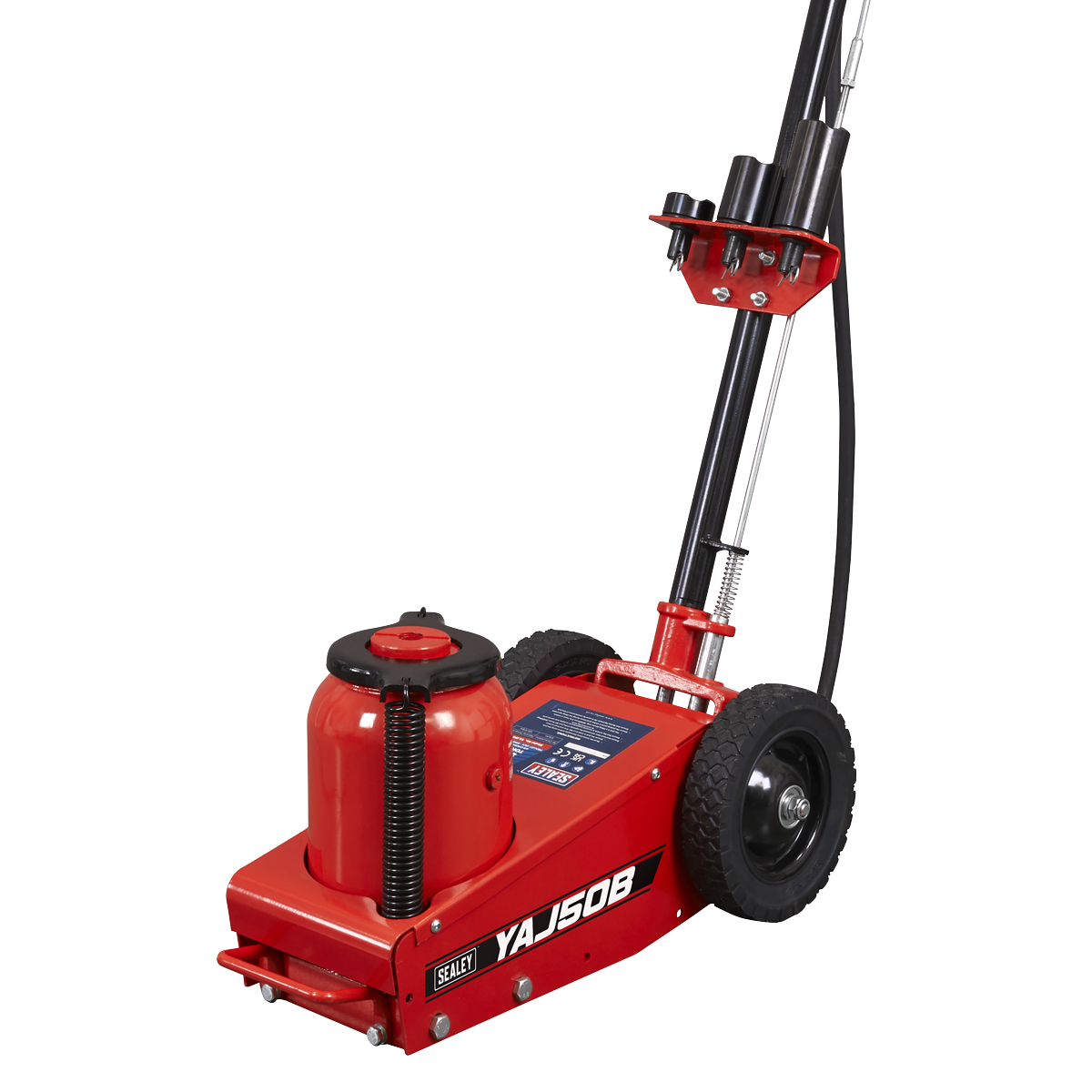

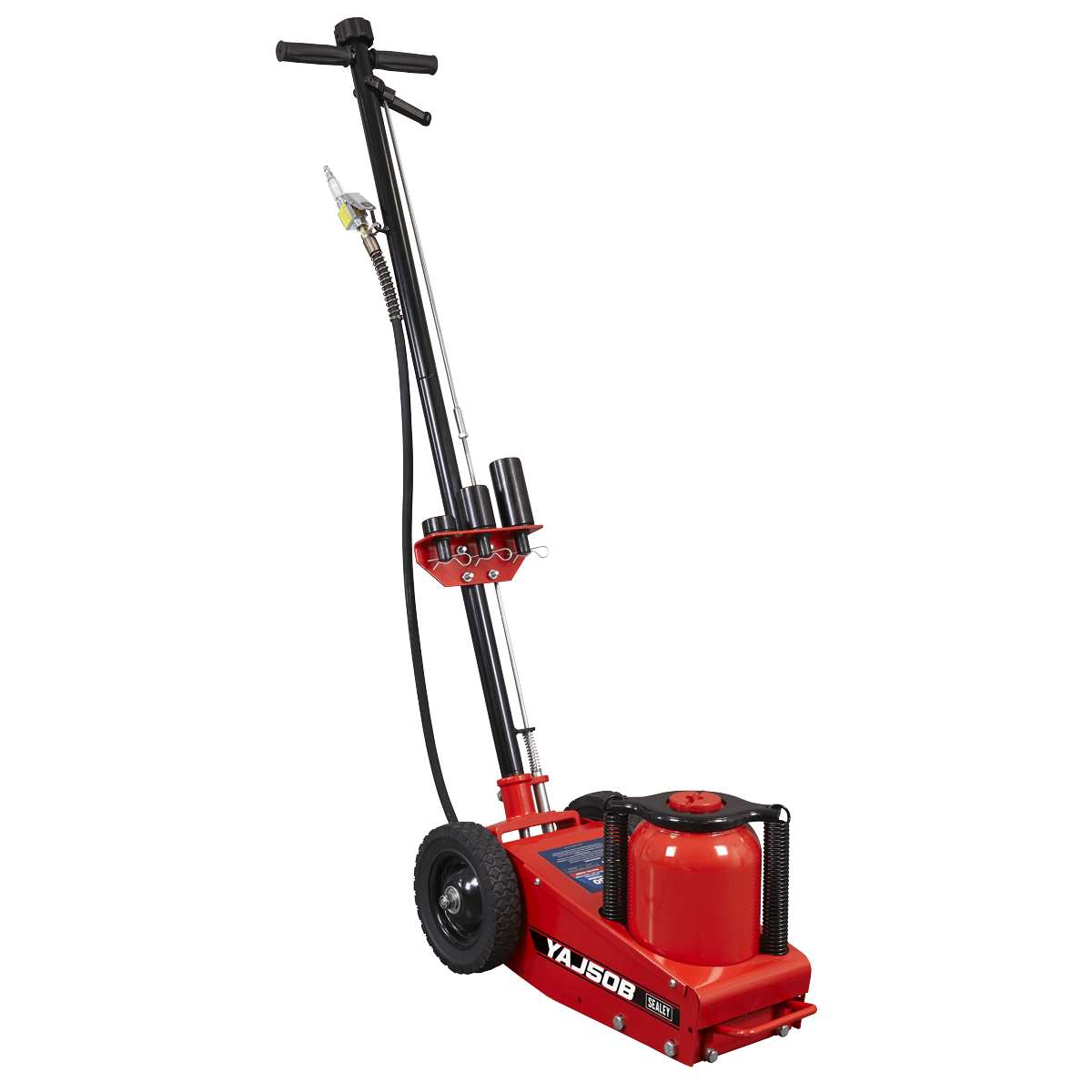

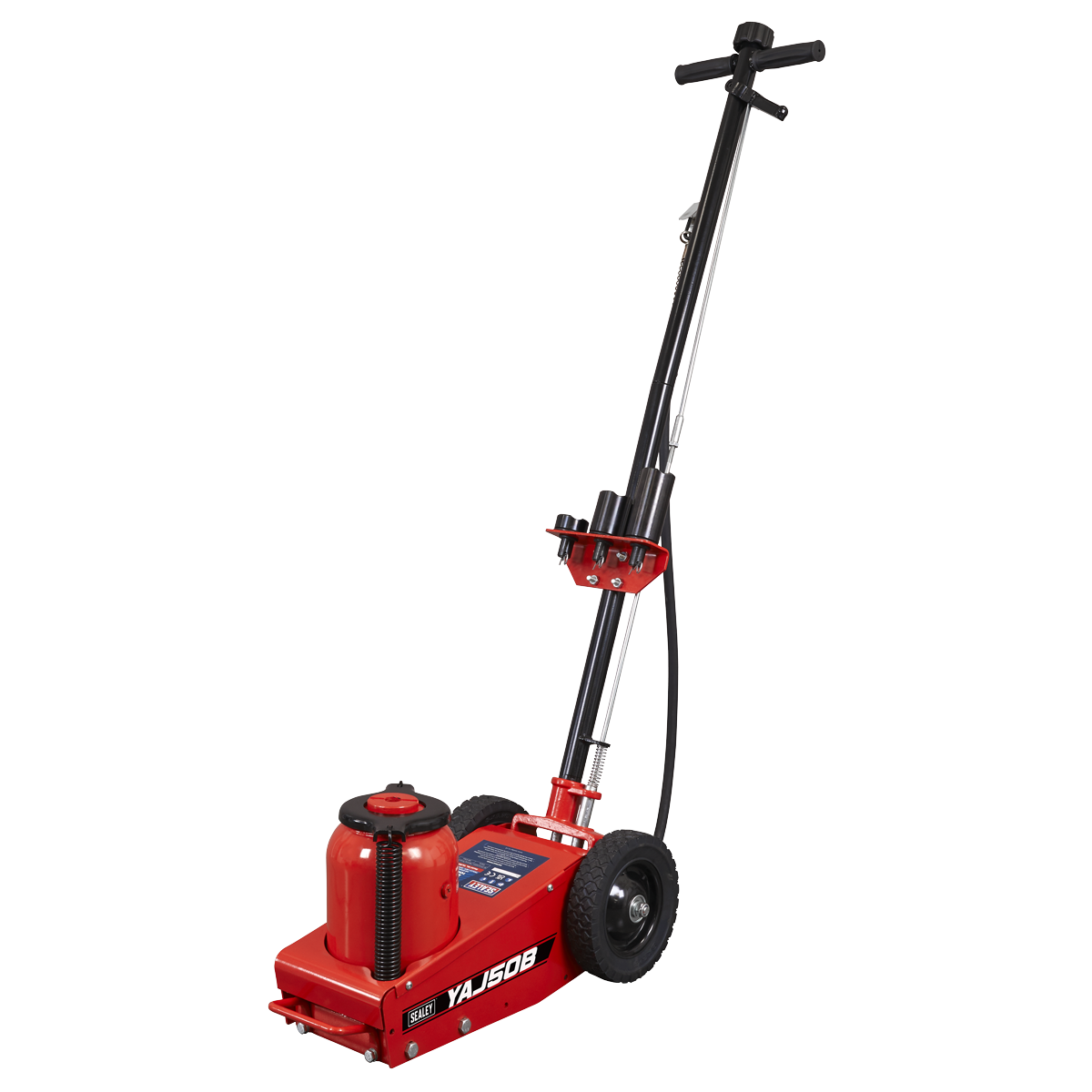

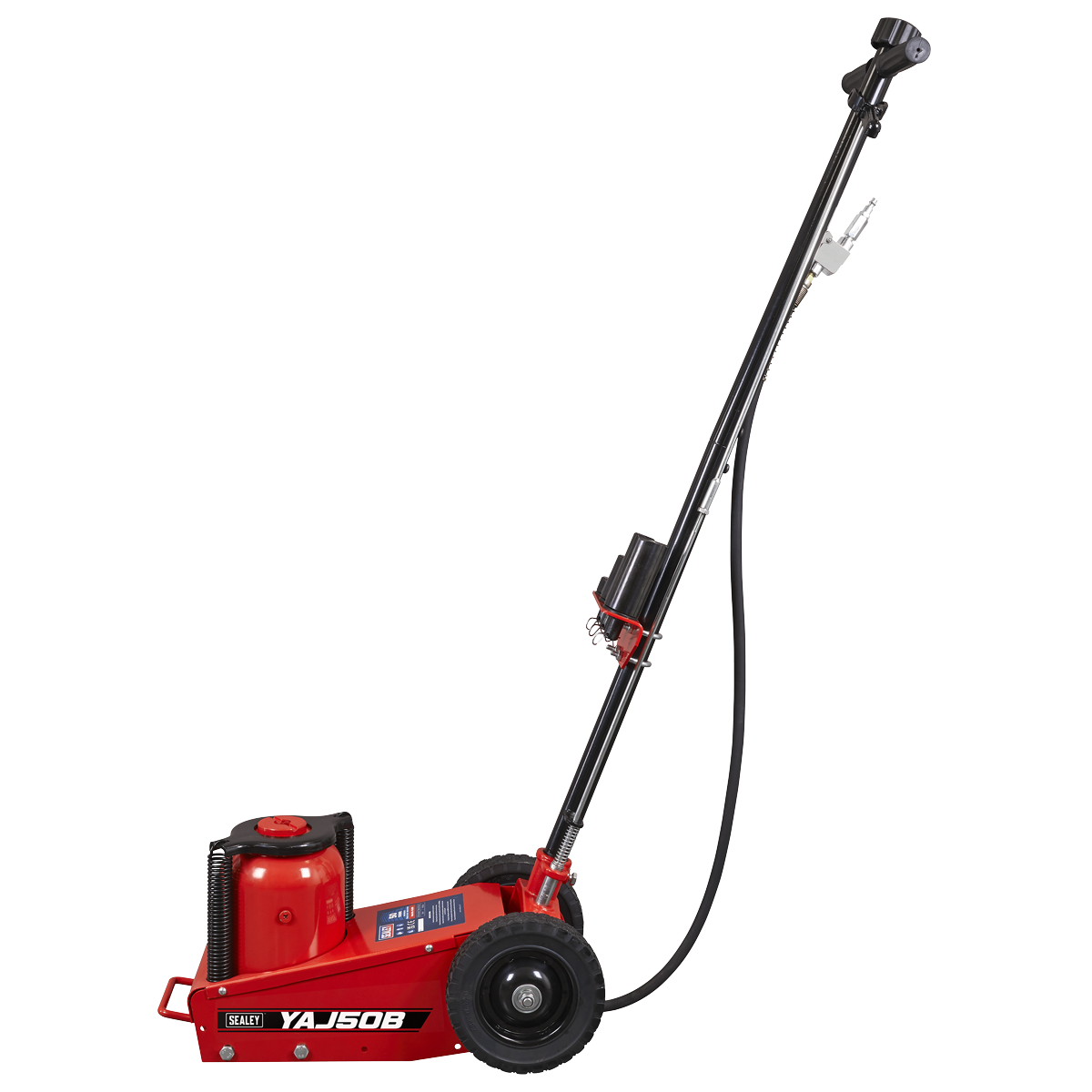

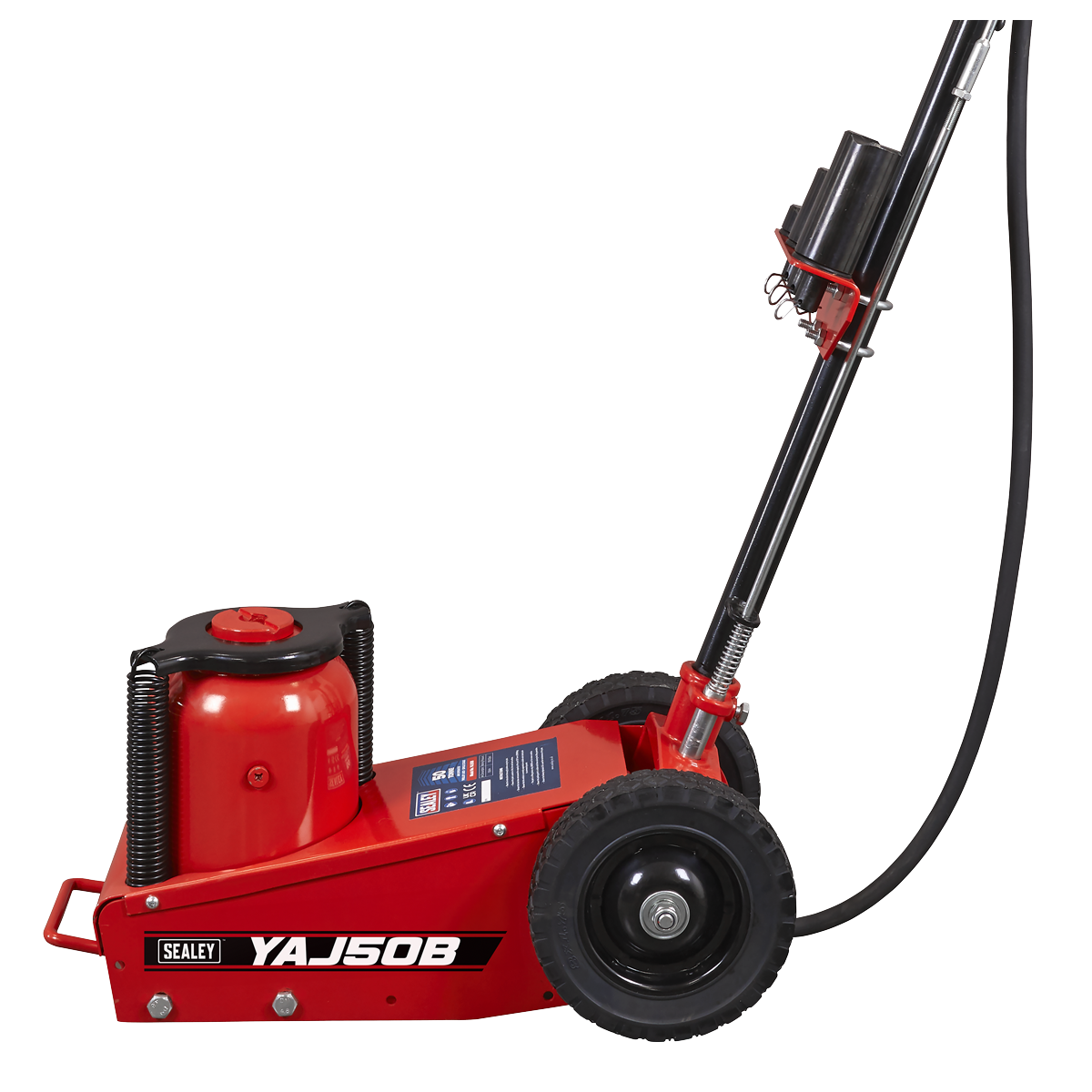

Sealey Air Operated Single Stage Trolley Jack 50 Tonne YAJ50B

Name: Sealey Air Operated Single Stage Trolley Jack 50 Tonne YAJ50B
SKU: SEALEY-YAJ50B
Price: 797.18 GBP
Availability: InStock

£797.18 GBP

~~£923.94 GBP~~ £797.18 GBP

Reduced by £126.76 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

Ideal for workshop or roadside use, this jack takes the effort out of lifting heavy plant, tractors and commercial vehicles. For extra safety, features dead man’s handle and multi-position locking handle. Supplied with extensions that close the gap between the saddle of the jack and the jacking point. See table for detailed specification.

• HEAVY-DUTY HYDRAULICS - Powerful and reliable, ideal for workshop or roadside use.
• AIR OPERATED - Takes the effort out of lifting heavy plant, tractors and commercial vehicles.
• SAFETY LOCK - Dead man’s control and sectional pump handle for manual operation, when air is unavailable.
• JACKING POINT EXTENSIONS - Supplied with 20/60/100mm extensions to close the gap between the saddle of the jack and the jacking point.
• LOWERING SYSTEM - Automatic dual spring controlled.
• OVERLOAD SAFETY VALVE - Safety valve fitted to prevent damage to the unit.

Specifications

Model No	YAJ50B
Air Consumption:	9.5cfm
Brand:	Sealey
Capacity:	50 Tonne
Chassis Length:	595mm
Extensions:	20/60/100mm
Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne):	650/50mm
Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne):	595mm
Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne):	625mm
Minimum Saddle Height:	288mm
Nett Weight:	52.9kg
Piston Stroke:	155mm
Screw Extension:	107mm
Working Pressure:	109-123psi
