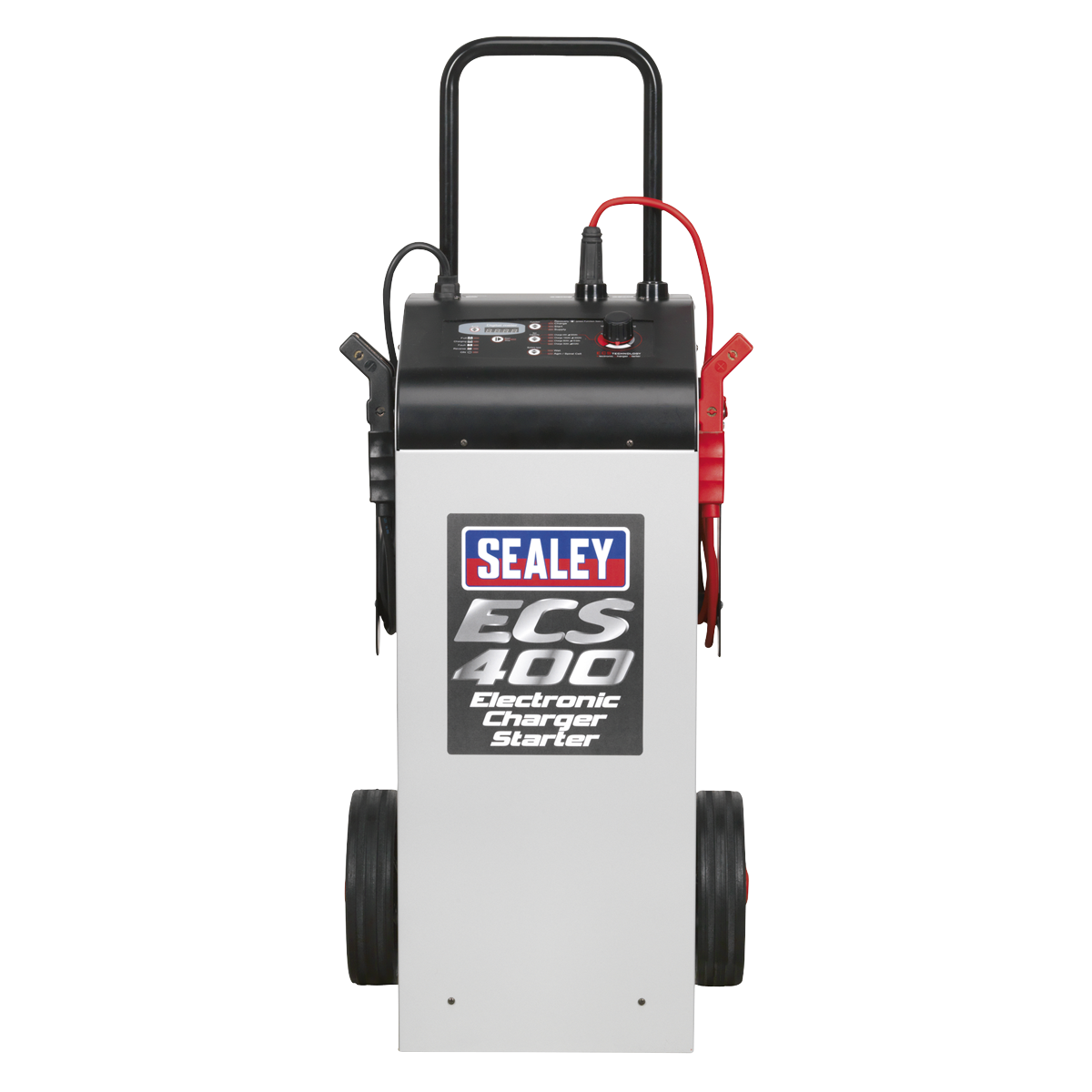

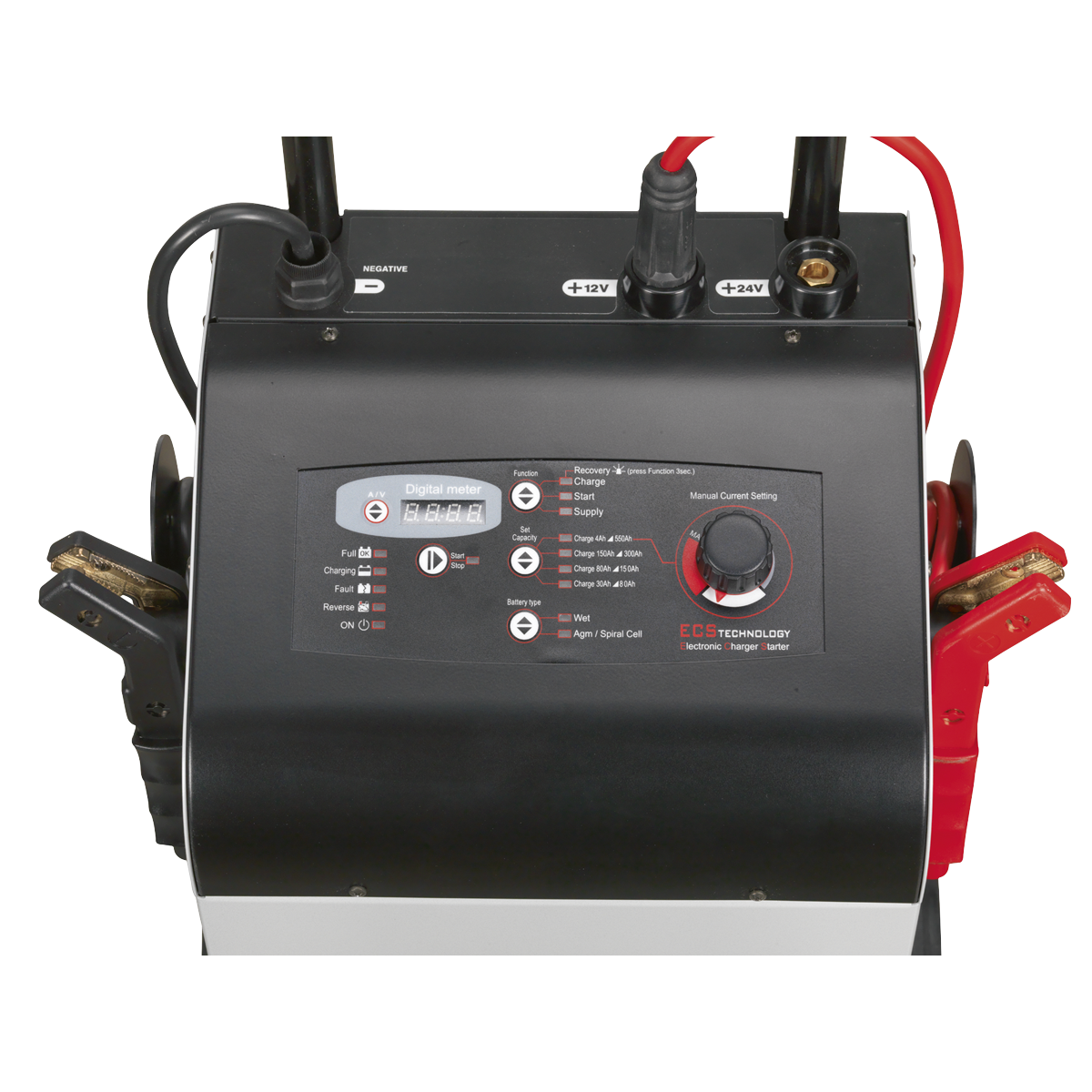

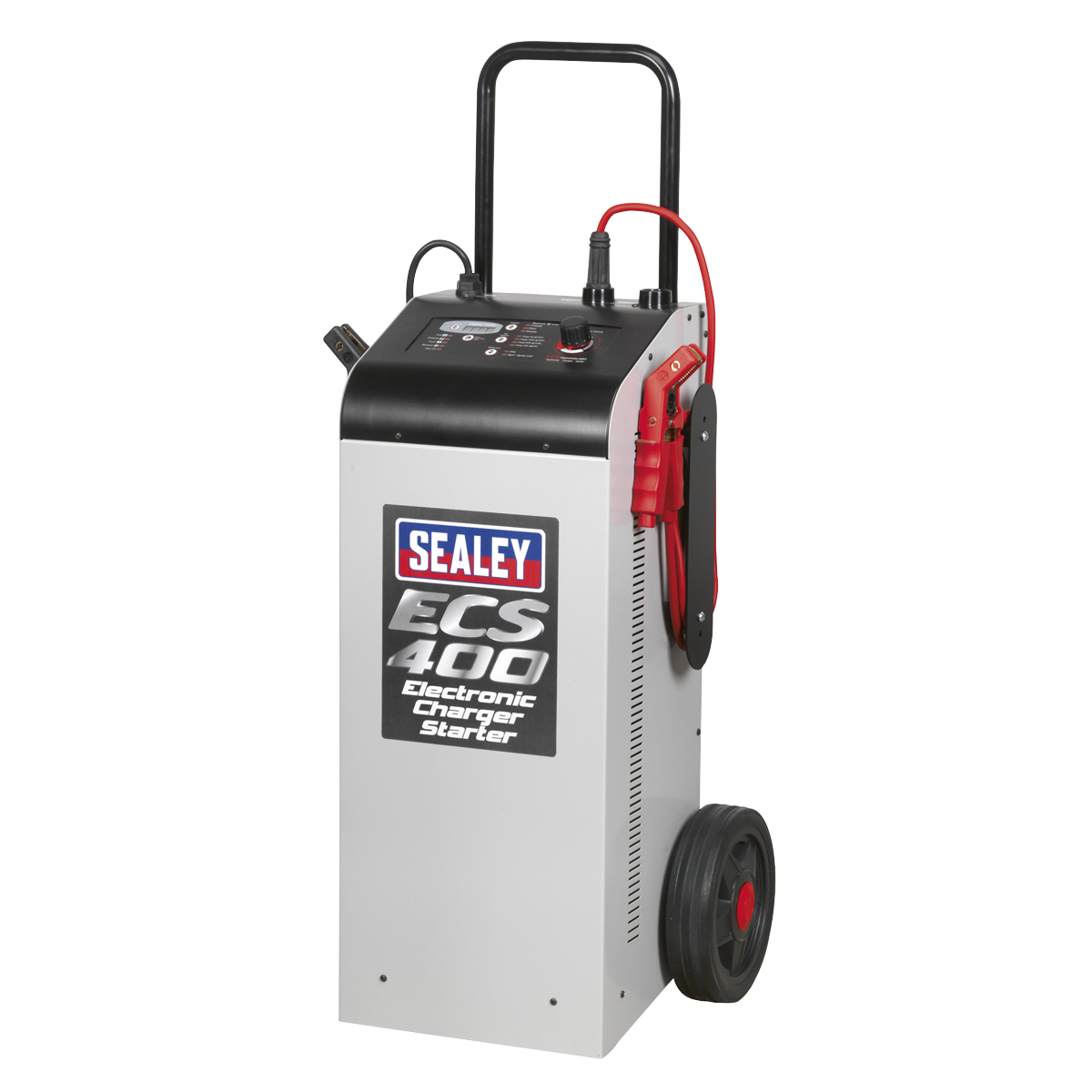

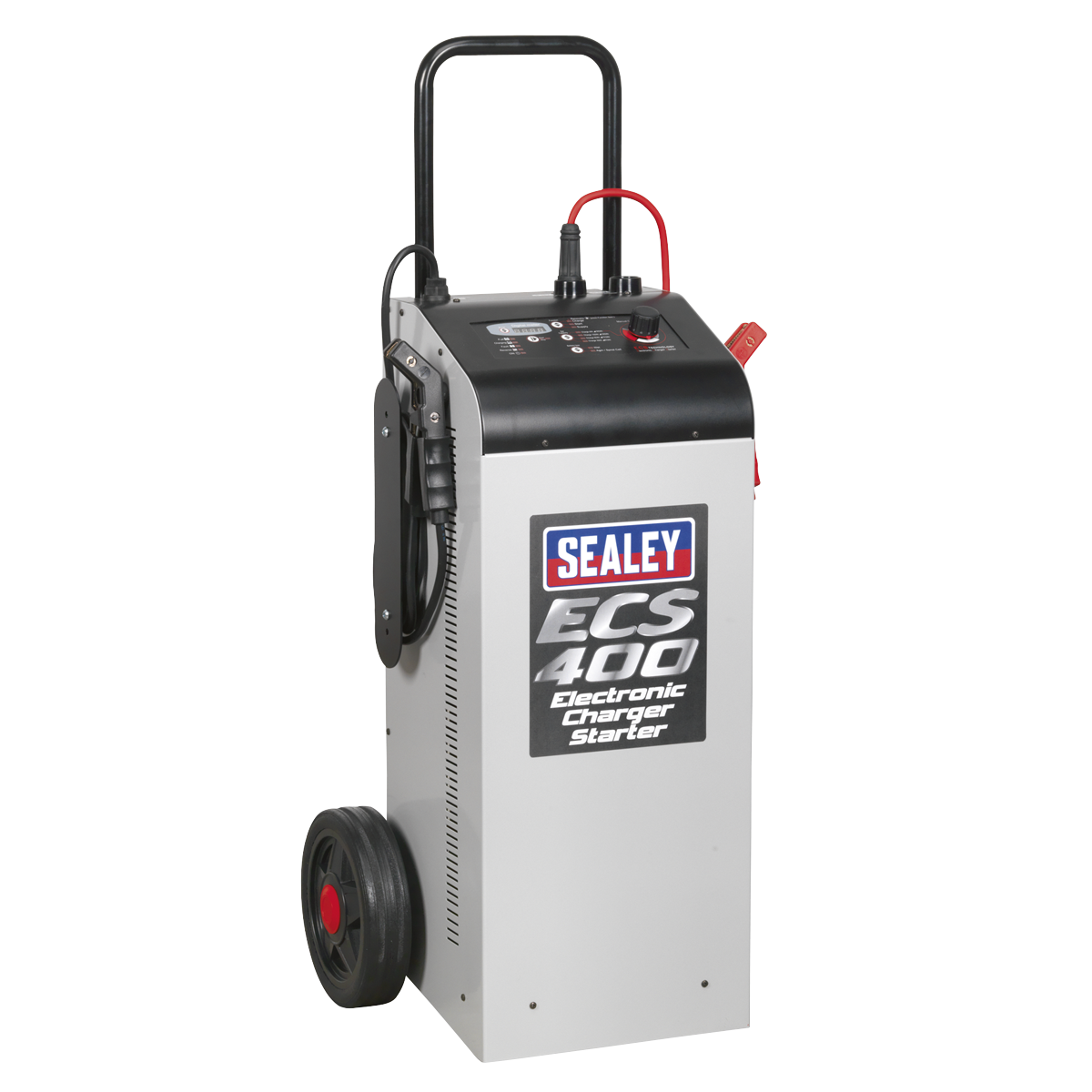

Fully electronic, microprocessor controlled battery starter/charger designed to meet the requirements of modern battery technology. Suitable for EFB and AGM/GEL (stop/start), Lead Acid, Lead Calcium and Silver Calcium batteries found on electric and hybrid vehicles. Features up to ten analysis and charge phases, including trickle/maintenance and suitable for 12V and 24V electrical systems. Instant visual check of battery condition, charge current, voltage and charging rate via LED read-out. Stabilised charging current allows improved charging efficiency and reduced charging times using ECS (Electronic Control Systems) technology. Includes circuitry to provide surge and spike protection during charging and starting, preventing damage to vital systems such as ABS, airbag sensors, ignition and music systems. Features power supply mode, providing support for the battery to prevent it from being drained during prolonged electronic diagnostic checks and software updates.
• SUITABLE FOR MOST BATTERY TYPES - Suitable for EFB and AGM/GEL (stop/start), Lead Acid, Lead Calcium and Silver Calcium batteries. • WIDE BATTEY RANGE - Battery Range: 4-550Ah. • TEN CHARGE PHASES - Up to ten analysis and charge phases, including trickle/maintenance. • EFFICEINT AND FAST - Stabilised charging current allows improved charging efficiency and reduced charging times using ECS (Electronic Control Systems) technology. • SAFETY FEATURES - Safety features include surge and spike protection during charging and starting. • BATTERY SUPPORT UNIT - BSU mode provides support for the battery during prolonged electronic diagnostic checks. • 2 YEAR GUARANTEE*.
Specifications
Model No
ECS400
Brand:
Sealey
Cable & Clamp Length:
2m
Nett Weight:
24.5kg
Output:
12/24V
Output Charge Peak(EN):
75A(50A)
Output Start Peak(EN)*:
400A(300A)
Battery Range:
4-550Ah
Input Charge:
1.5kW - 6.5A
Input Start:
10kW - 43A
Charging Rates:
3 x Preset + 1 x Variable to Maximum Current
Supply:
230V - 32A
BSU Supply:
30A - 13.5V
Polarity Protection:
Fuse (2 x 100A)
Fuse:
120/802131 (Pack of 10), 120/122452 (single)
Note:
*Performance dependent on connection to an adequate, good clean electric supply.
