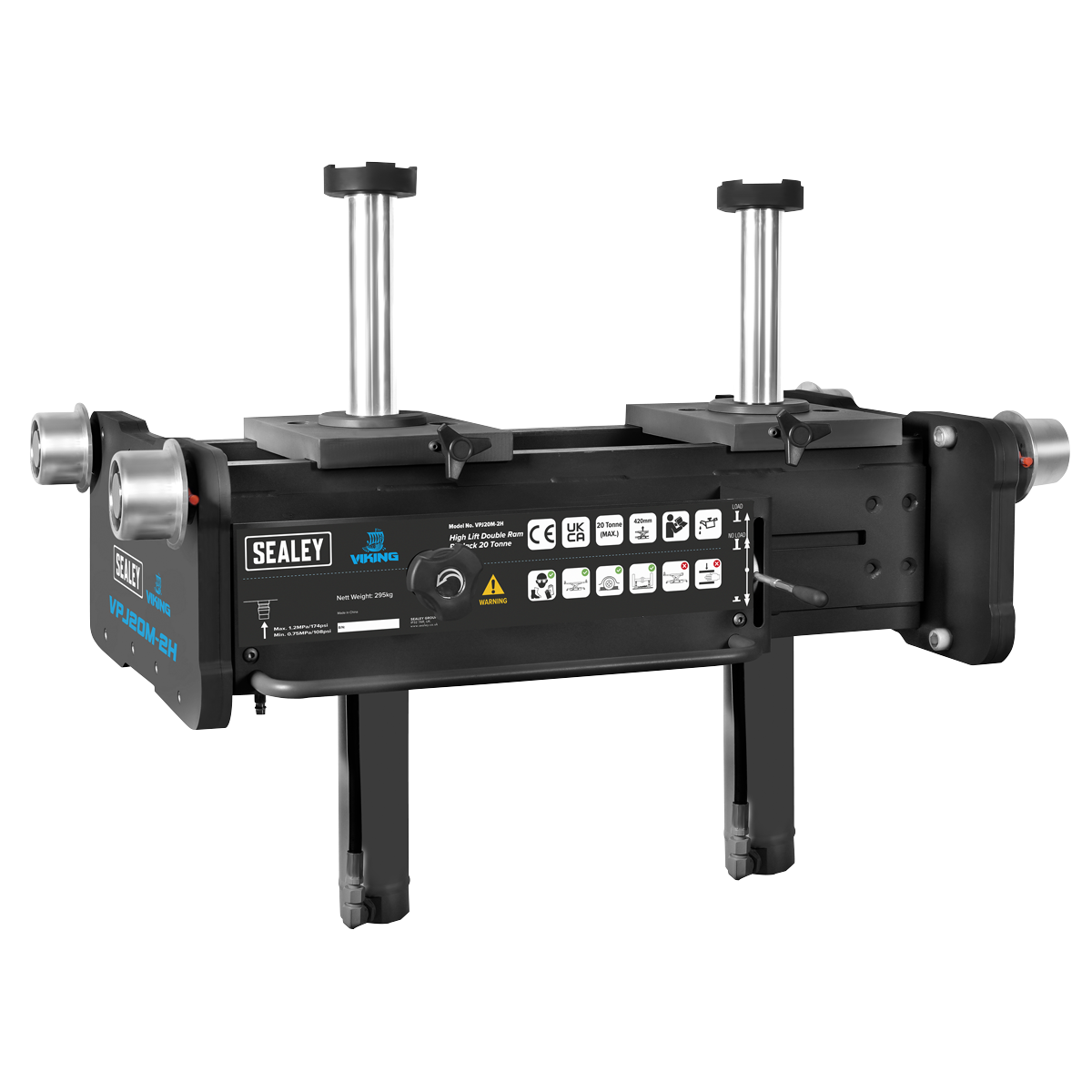

Viking Pit Jack 20 Tonne Double Ram High Lift VPJ20M-2H

Name: Viking Pit Jack 20 Tonne Double Ram High Lift VPJ20M-2H
SKU: VIKING-VPJ20M-2H
Price: 4703.84 GBP
Availability: InStock

£4,703.84 GBP

~~£5,399.94 GBP~~ £4,703.84 GBP

Reduced by £696.10 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

Fitted with leaf spring support bearings for easy glide transversing the ram. Full 420mm lifting stroke for high axled vehicles. Shut off valves allow twin or single ram lifts. Air operation takes the effort out of lifting heavy plant, tractors and commercial vehicles. Rocket lift feature brings the saddle into contact with the jacking point quickly and slows once under load for a controlled lift. Fitted with deadman controls and a limited descent control valve. Manufactured to suit pit widths between 920-1220mm. Large handle for moving the frame, air coupling and water separator and spare parts tray/tool tray with rubber mat insert.

• EASY GLIDE - Fitted with leaf spring support bearings for easy glide transversing the ram.
• HIGH LIFT - Full 420mm lifting stroke for high axled vehicles.
• INDEPENDENT RAM LIFT - Shut off valves allow twin or single ram lifts.
• PNEUMATIC CONTROL - Air operation takes the effort out of lifting heavy plant, tractors and commercial vehicles.
• QUICK LIFT - Rocket lift feature brings the saddle into contact with the jacking point quickly and slows once under load for a controlled lift.
• SAFE DESCENT - Fitted with deadman controls and a limited descent control valve.
• ADJUSTABLE FIT - Manufactured to suit pit widths between 920 - 1220mm.
• CONVENIENCE - Large handle for moving the frame, air coupling and water separator and spare parts tray/tool tray with rubber mat insert.
• 3 YEAR GUARANTEE*.

Specifications

Model No	VPJ20M-2H
Beam Lift:	420mm
Brand:	Viking
Capacity:	20 Tonne
Load Arm Reach:	N/A
Nett Weight:	295kg

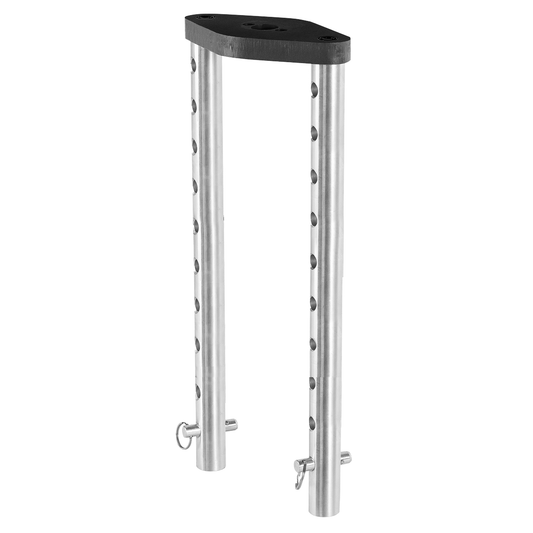

Optional Accessories:	VPJ20MCBA - Twin Ram Cross Beam Adaptor, VJP20M2CBA - Twin Ram Cross Beam Adaptor Extendable, VPJ-VA - V-Adaptor, VJP-UA - U-Adaptor, VPJ-A7 - Extension For Pit Jacks 100mm, VPJ-A8 - Extension For Pit Jacks 200mm, VPJ20S-2HSS - Integrated Safety Stand.
Support Arm Reach:	N/A
