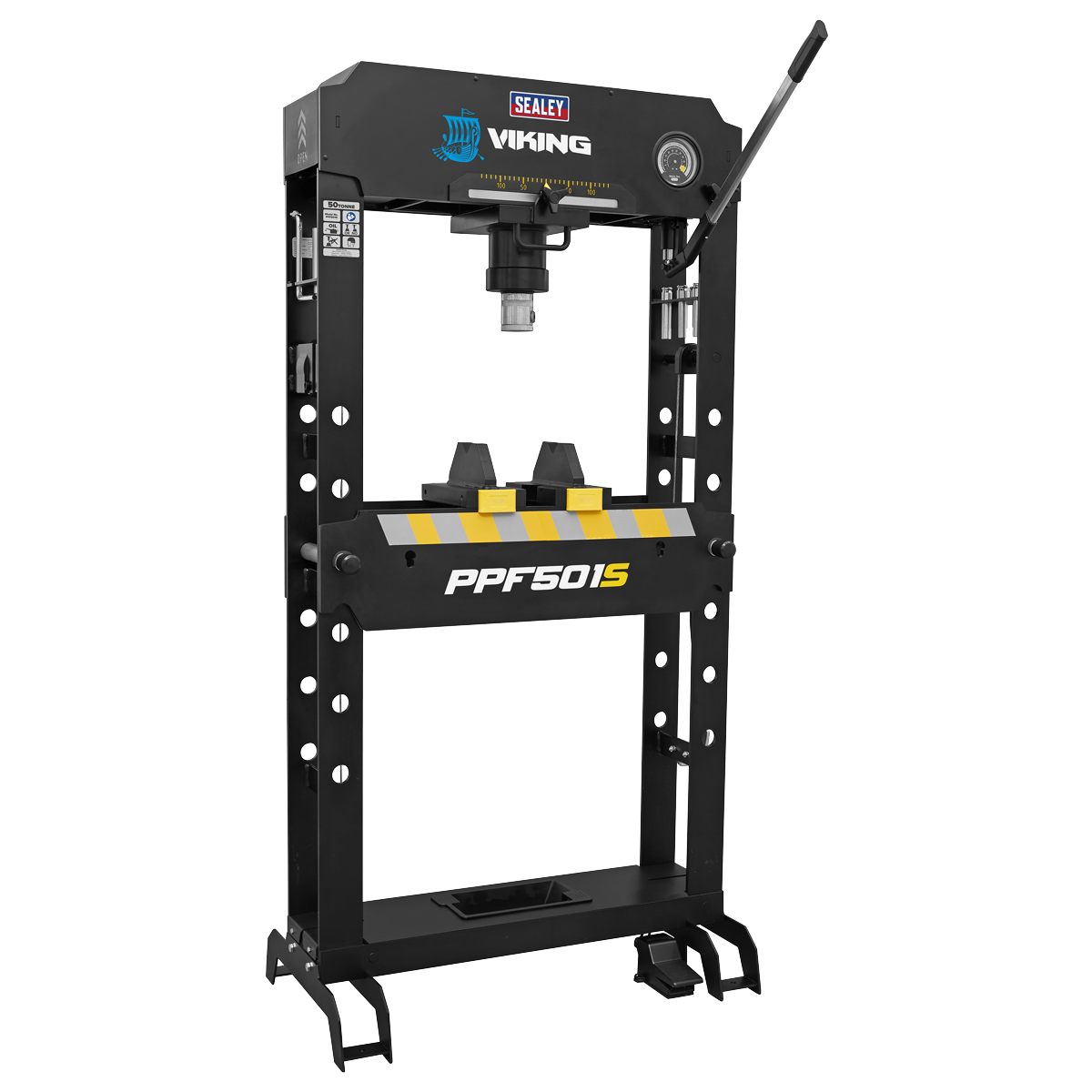

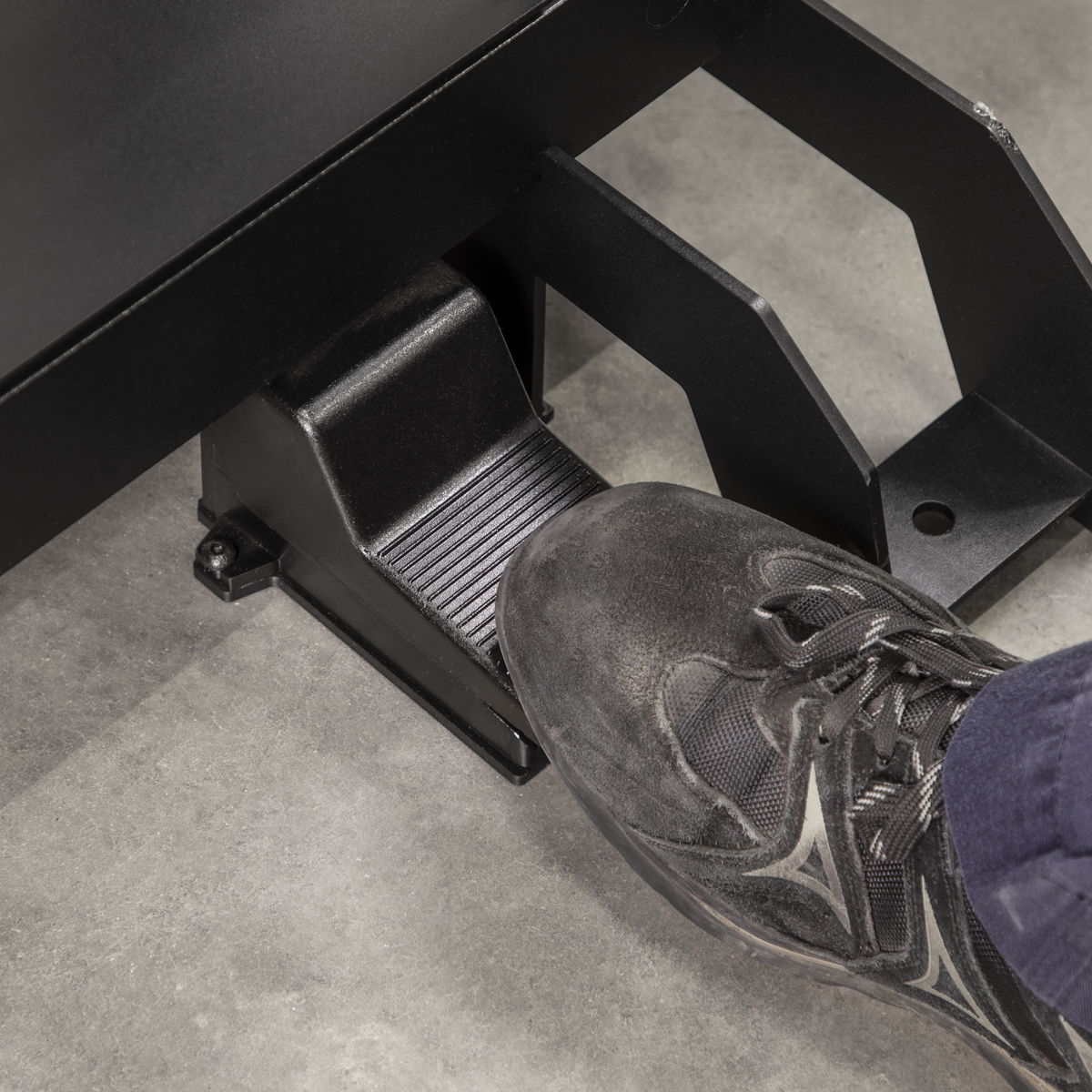

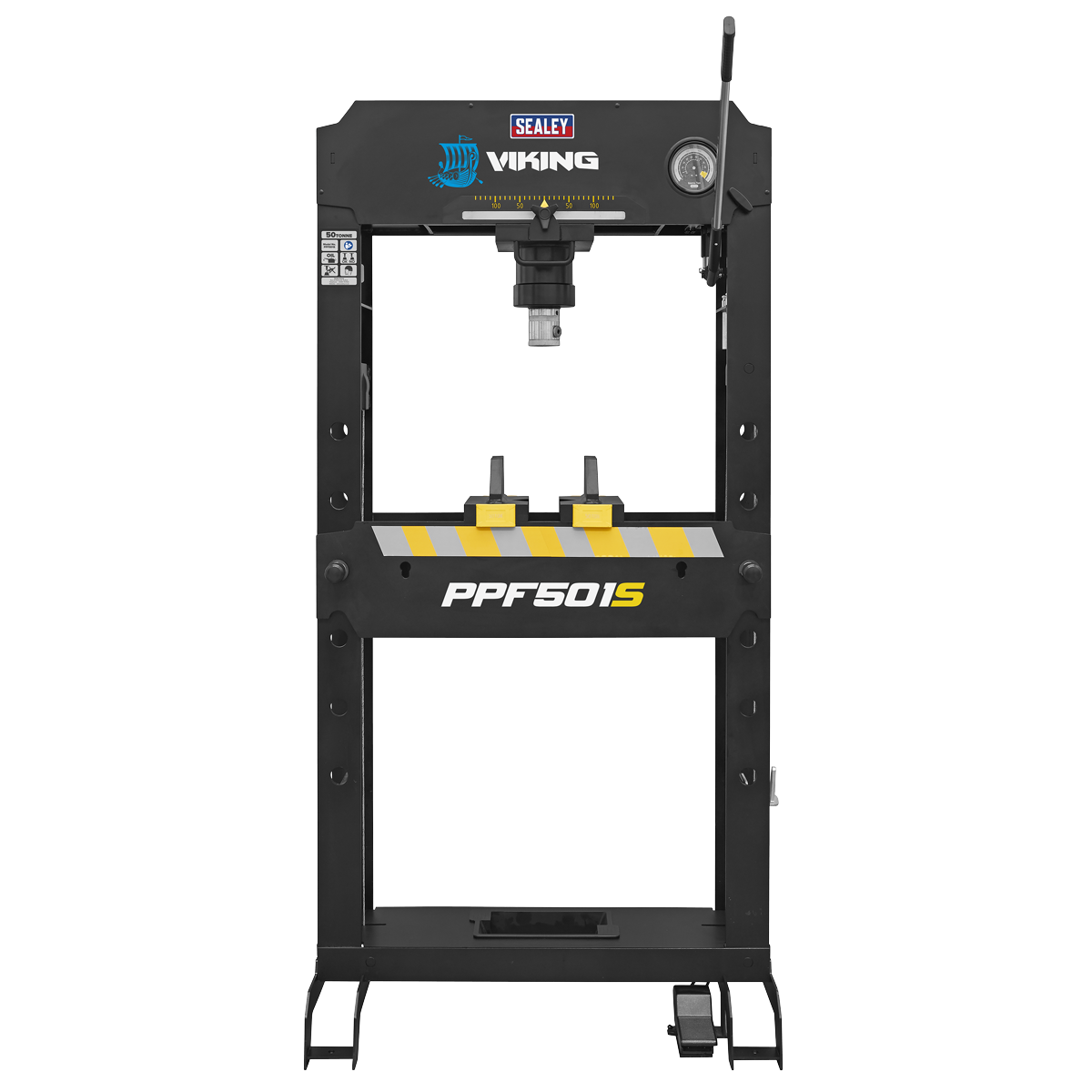

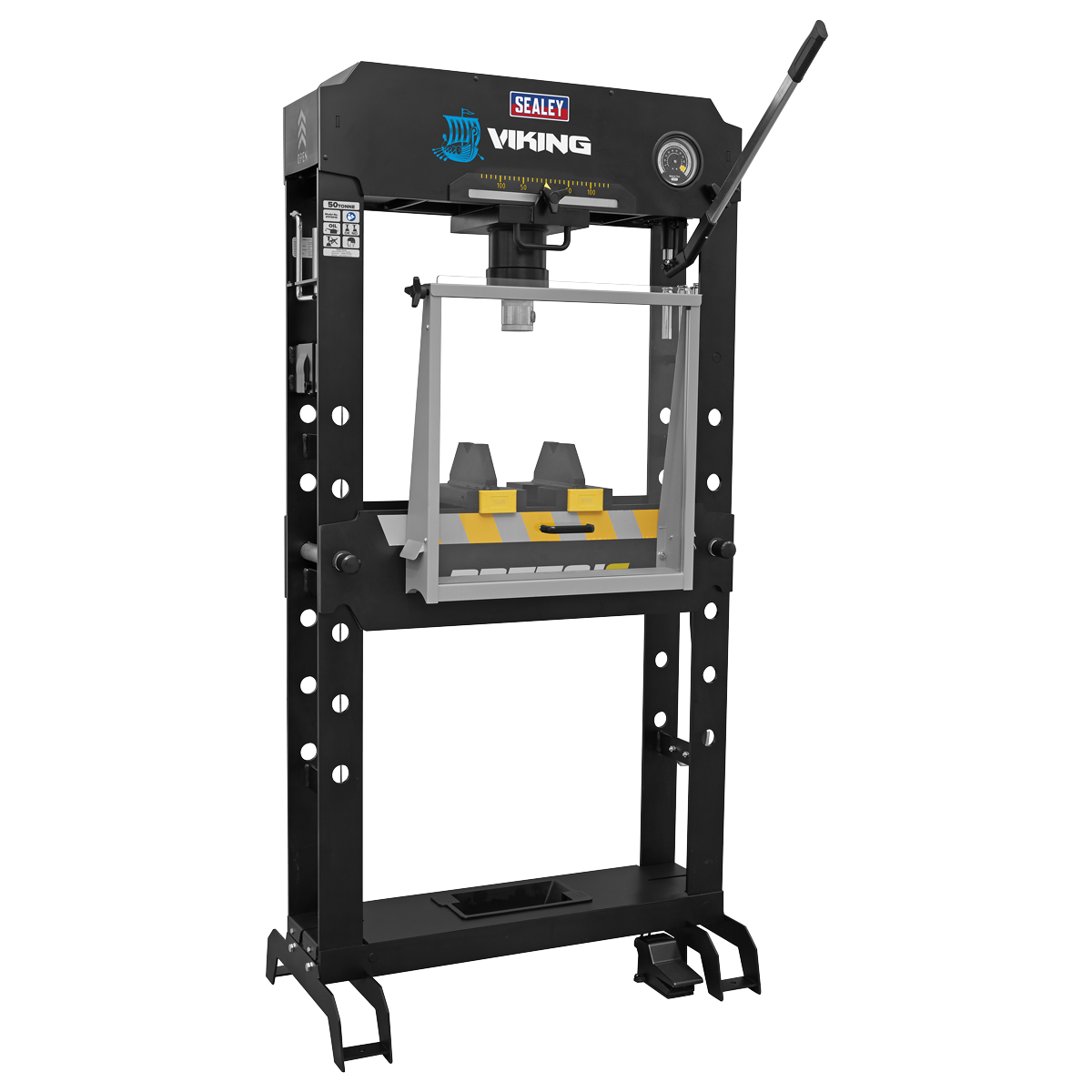

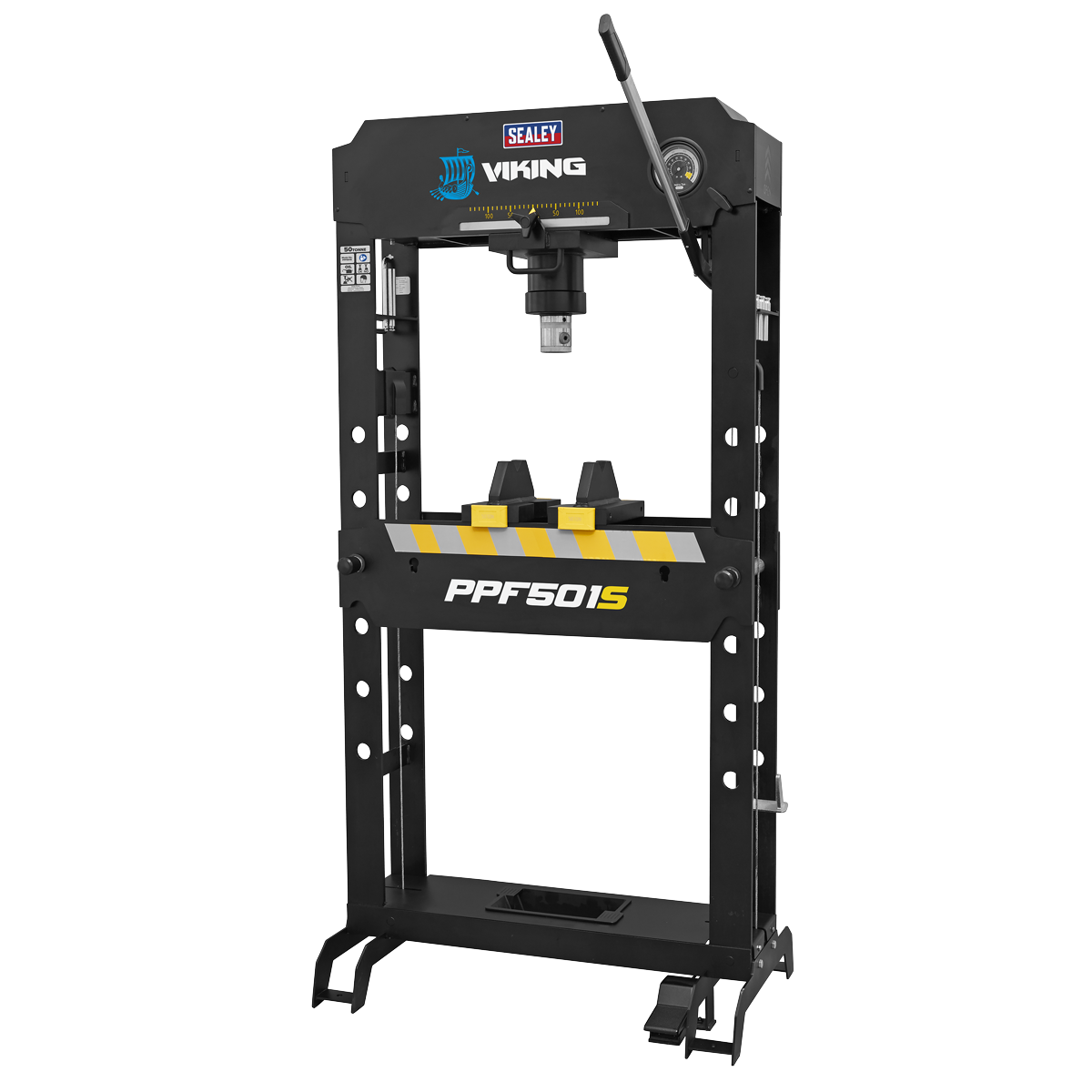

Viking Floor Type Air/Hydraulic Press with Sliding Ram and Foot Pedal 50 Tonne PPF501S

Name: Viking Floor Type Air/Hydraulic Press with Sliding Ram and Foot Pedal 50 Tonne PPF501S
SKU: VIKING-PPF501S
Price: 3072.58 GBP
Availability: InStock

£3,072.58 GBP

~~£3,719.94 GBP~~ £3,072.58 GBP

Reduced by £647.36 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

PROMOTION SALE!

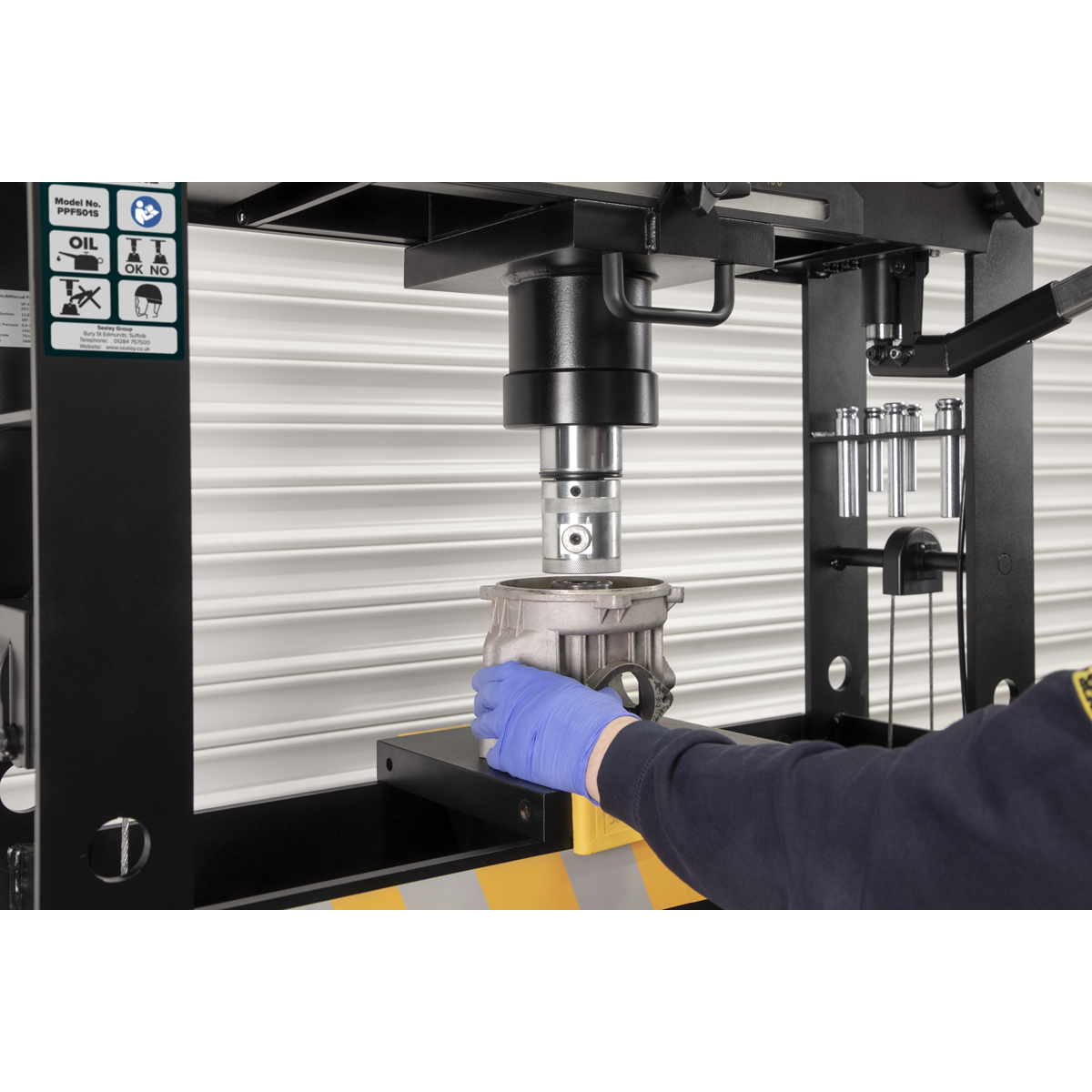

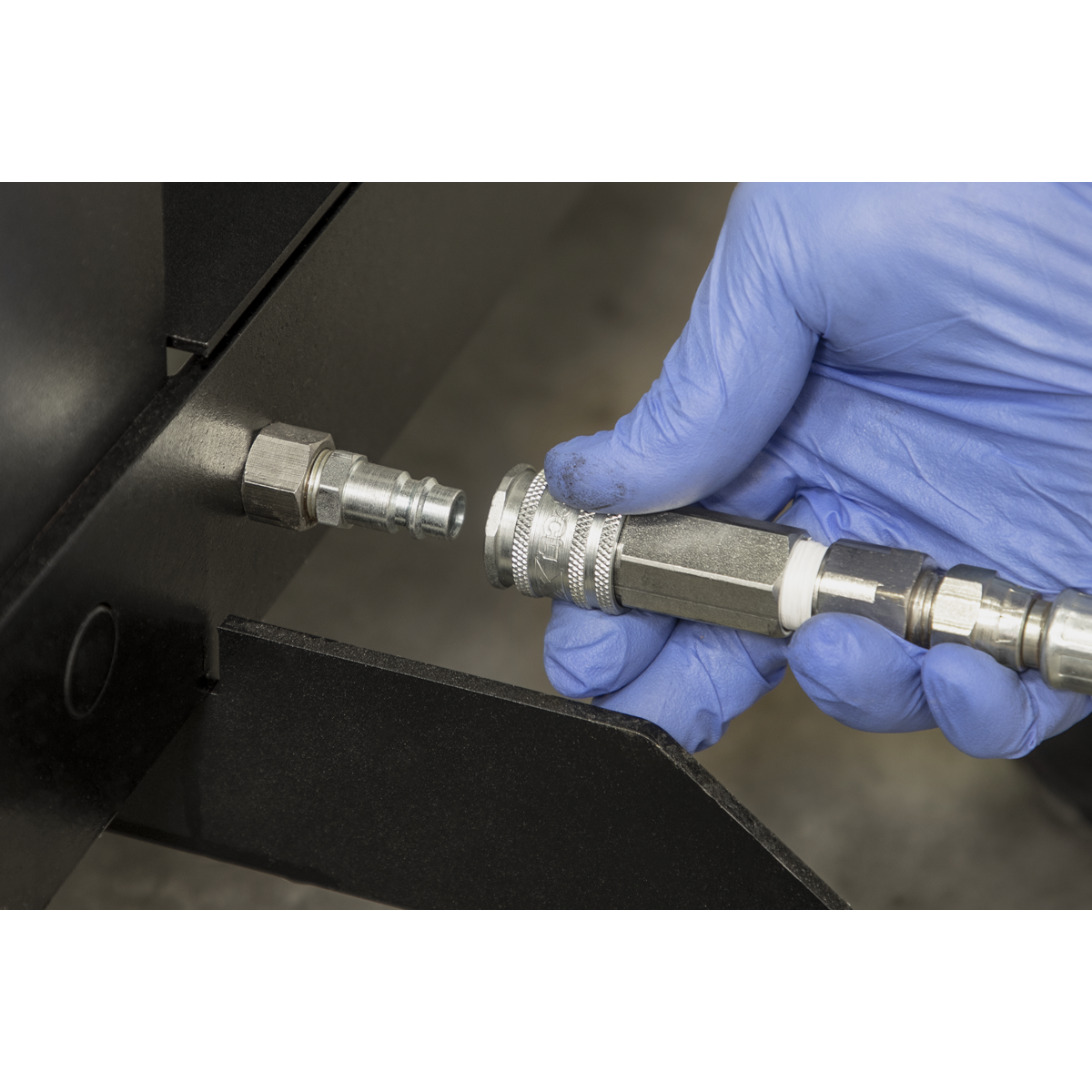

Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit. Screw adjustable ram and adjustable work area with removable tray. Sliding hydraulic ram assembly giving 280mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Winch assisted press table adjustment. Storage for press pins included in frame. Supplied with press pins, flat pressing plate/V-blocks. This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

• Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.

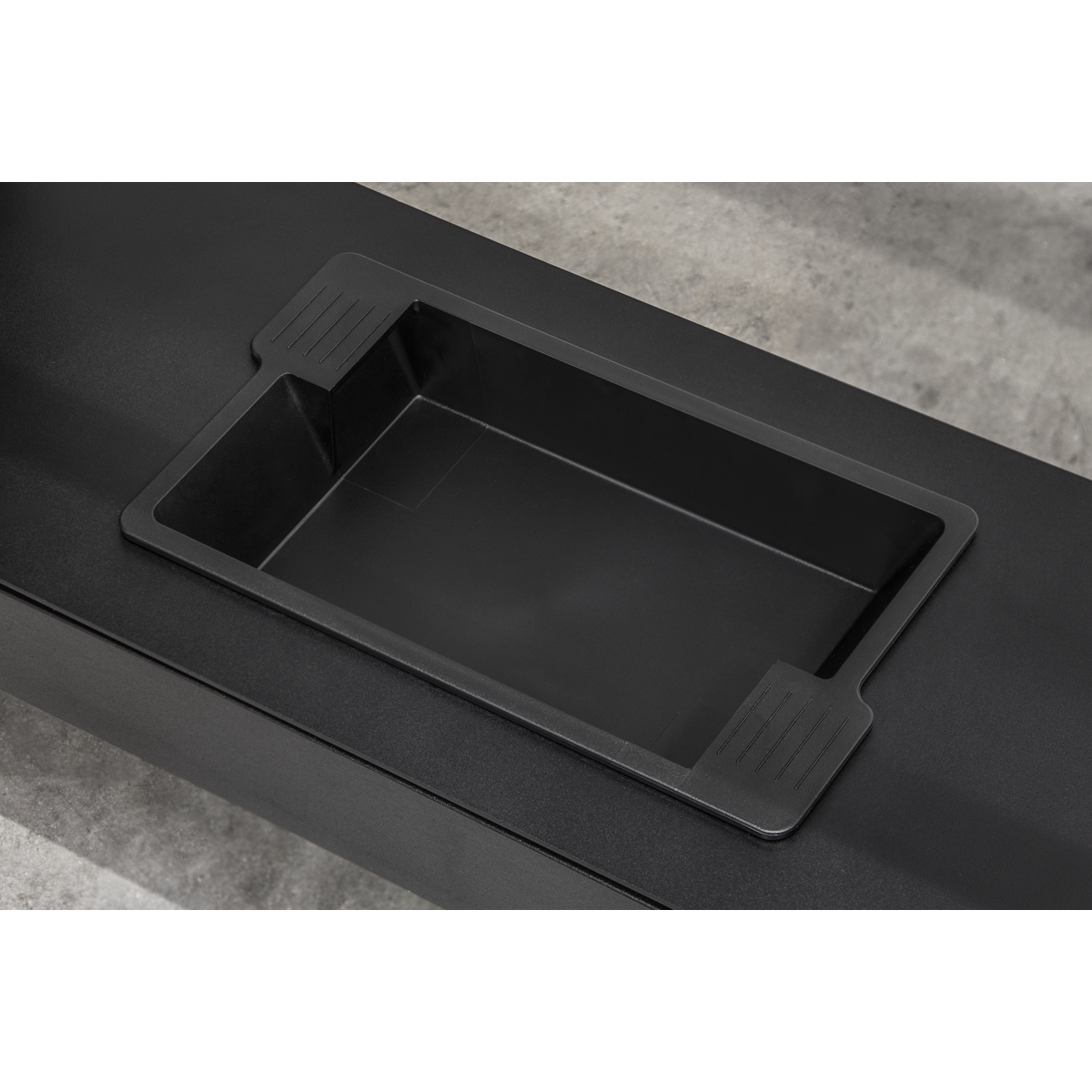

• Screw adjustable ram and adjustable work area with removable tray.
• Sliding hydraulic ram assembly giving 280mm of lateral travel for off-centre pressing applications.

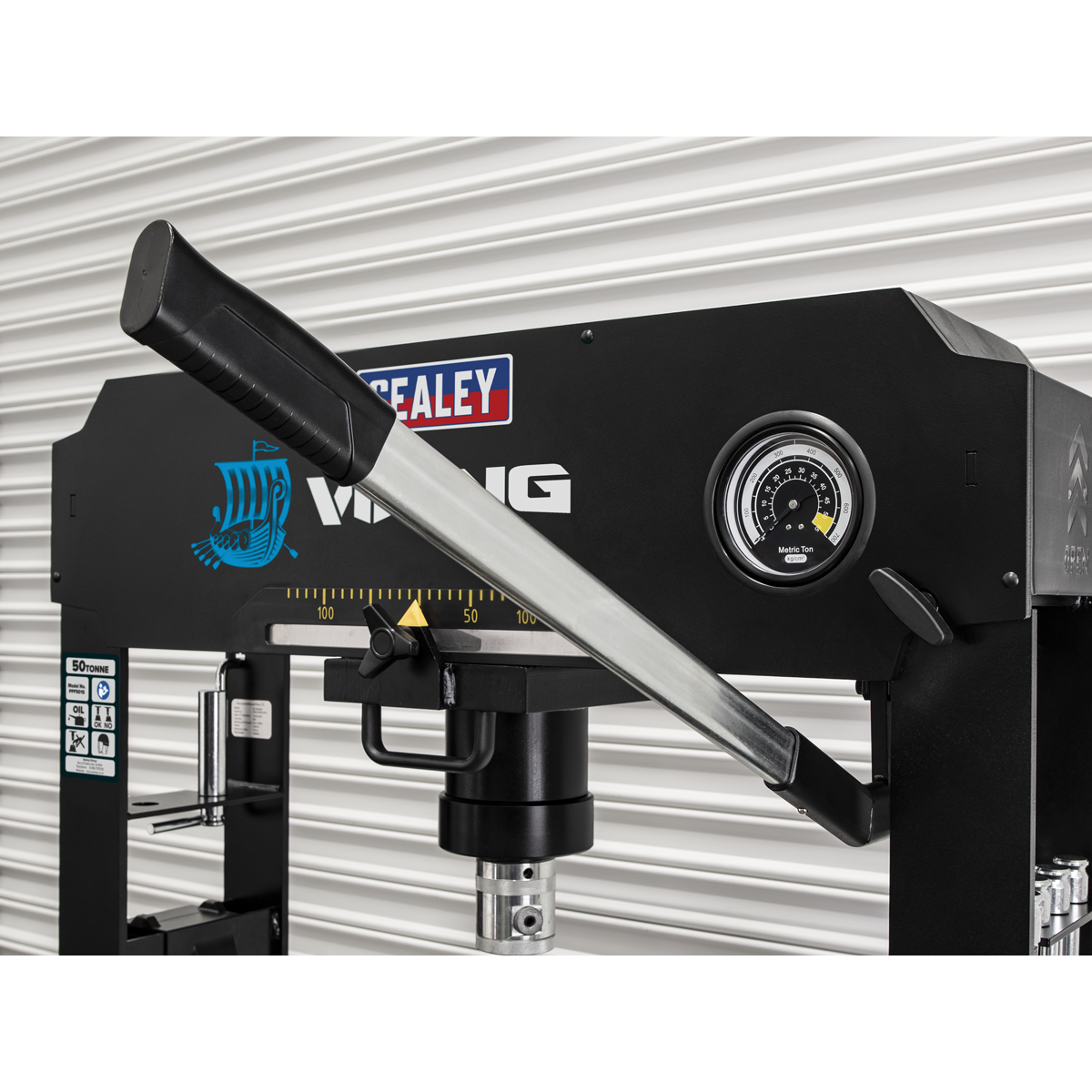

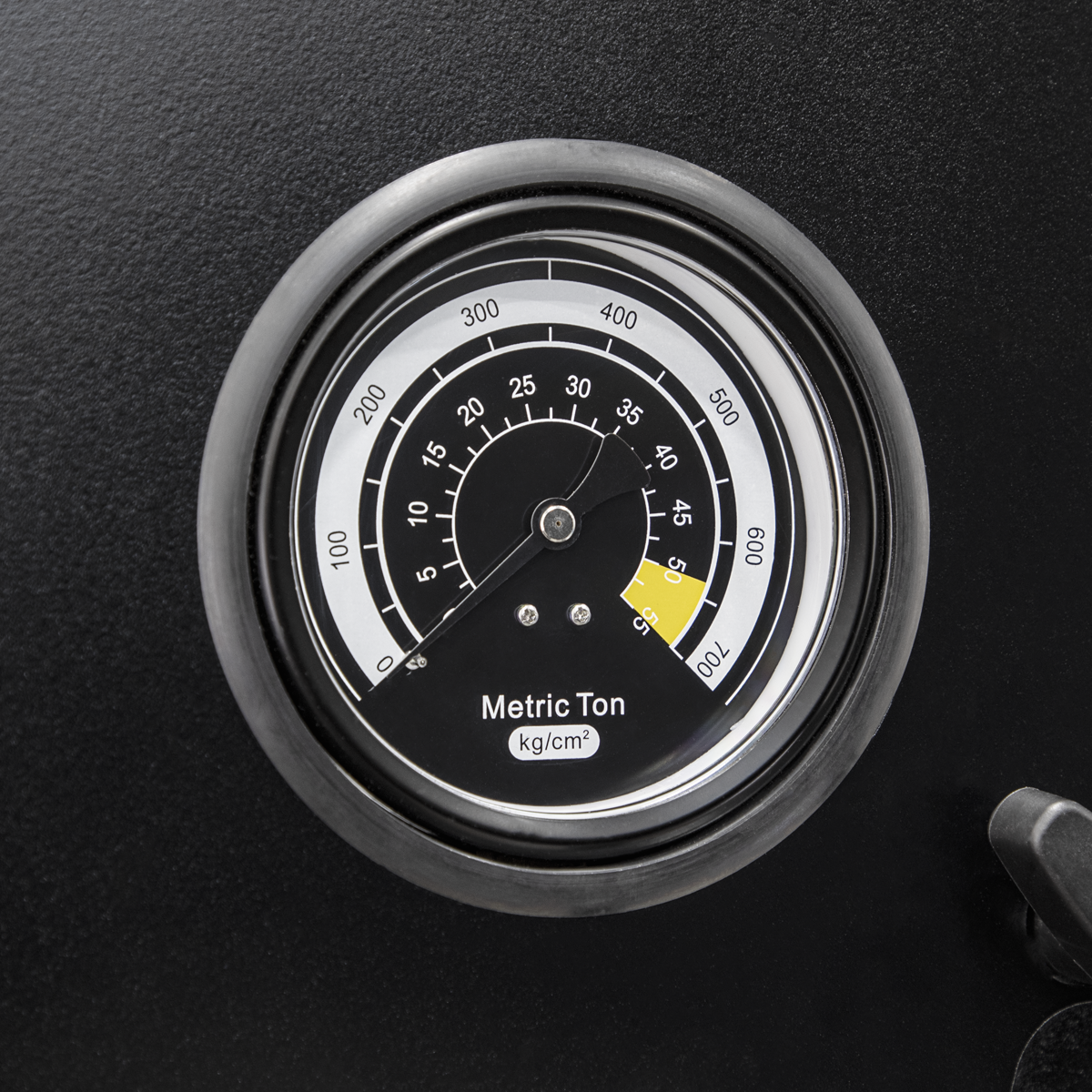

• Frame head fitted with ram pressure gauge.

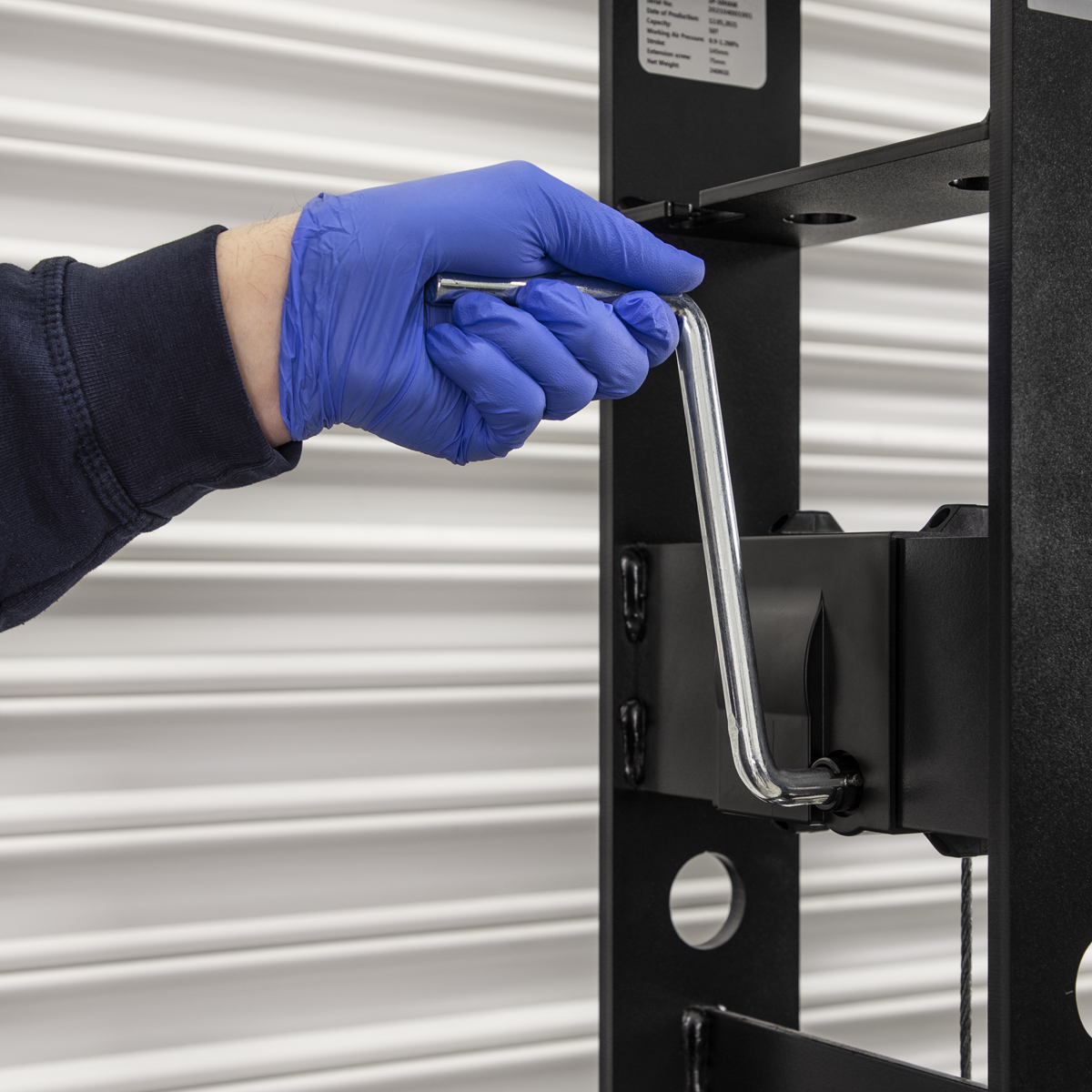

• Winch assisted press table adjustment.

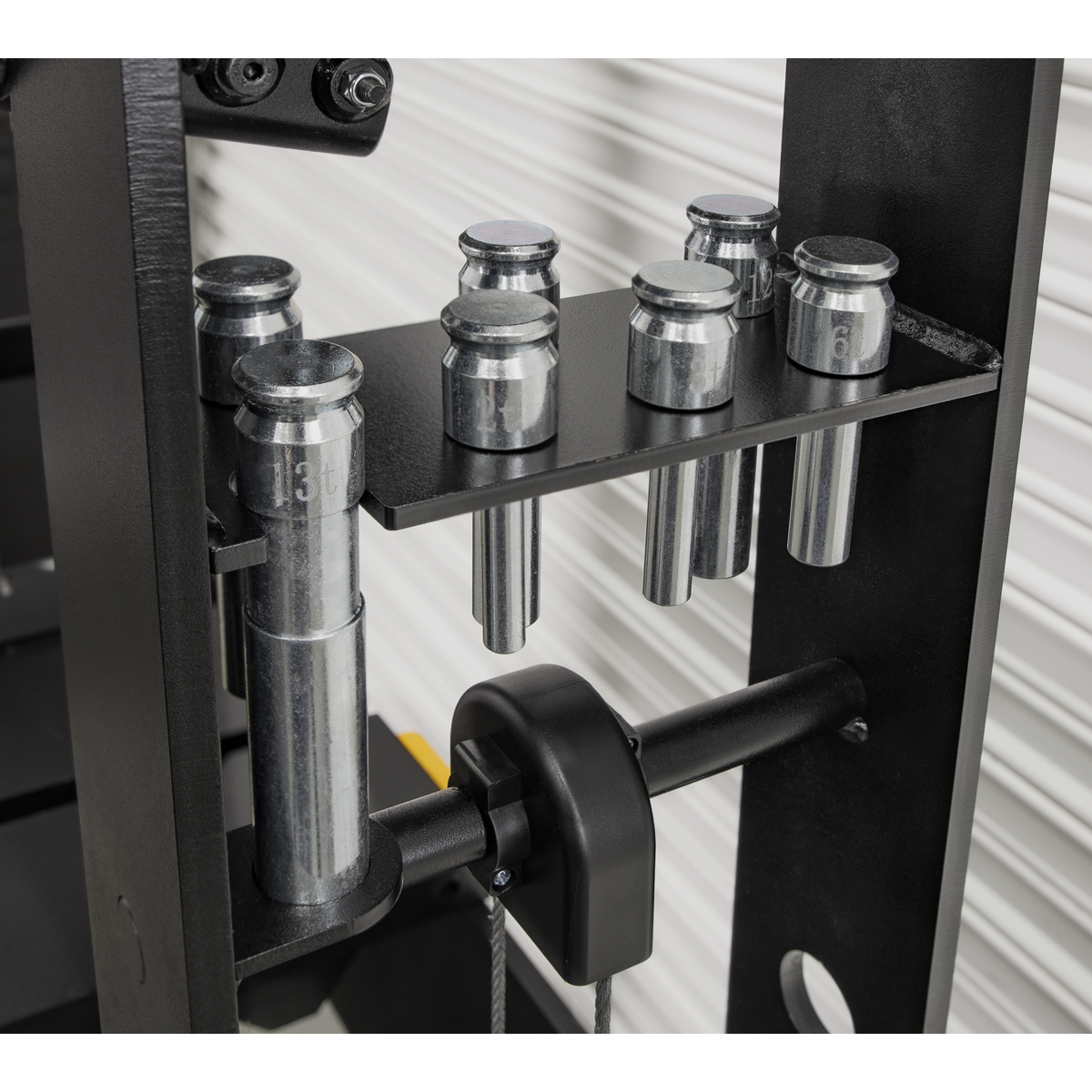

• Storage for press pins included in frame.

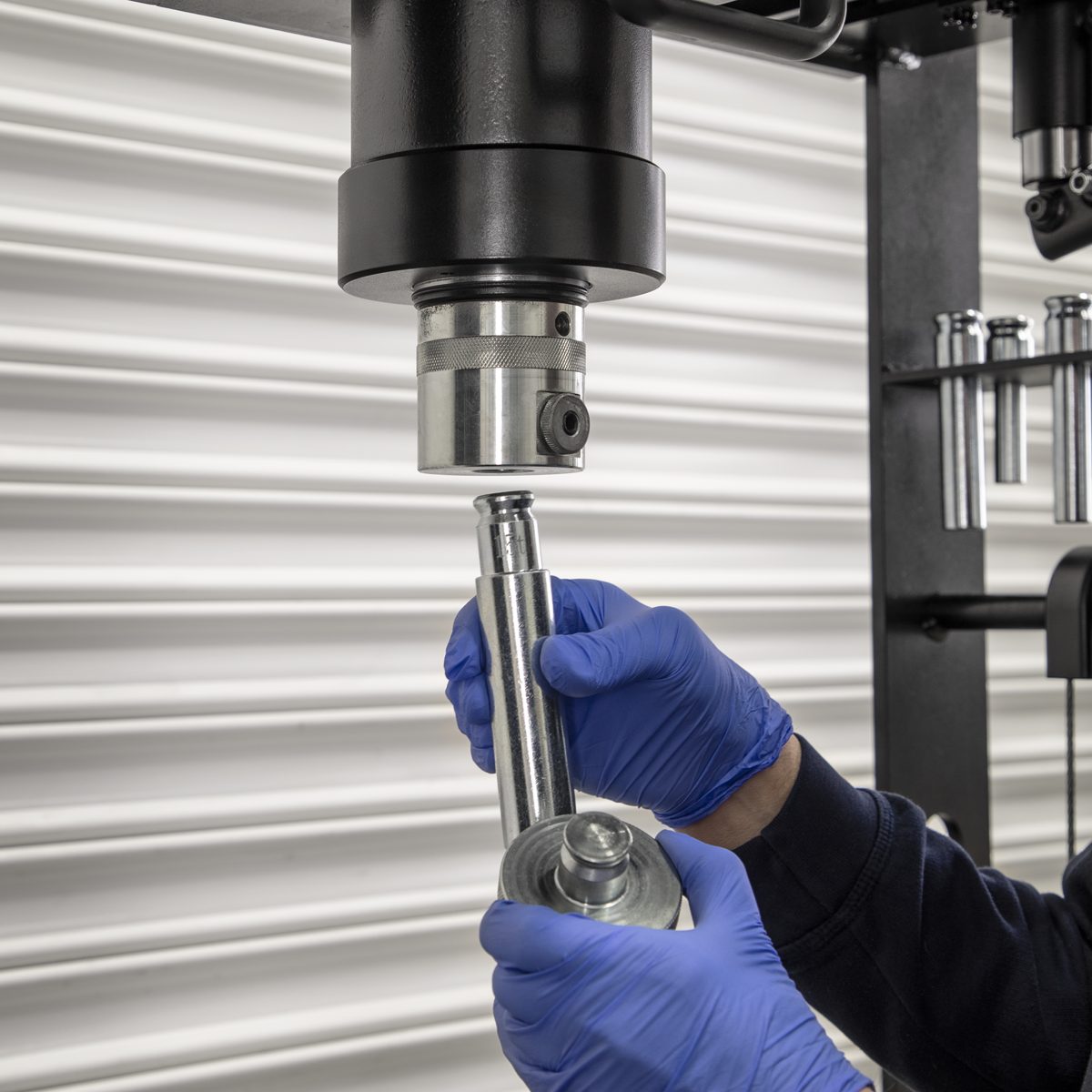

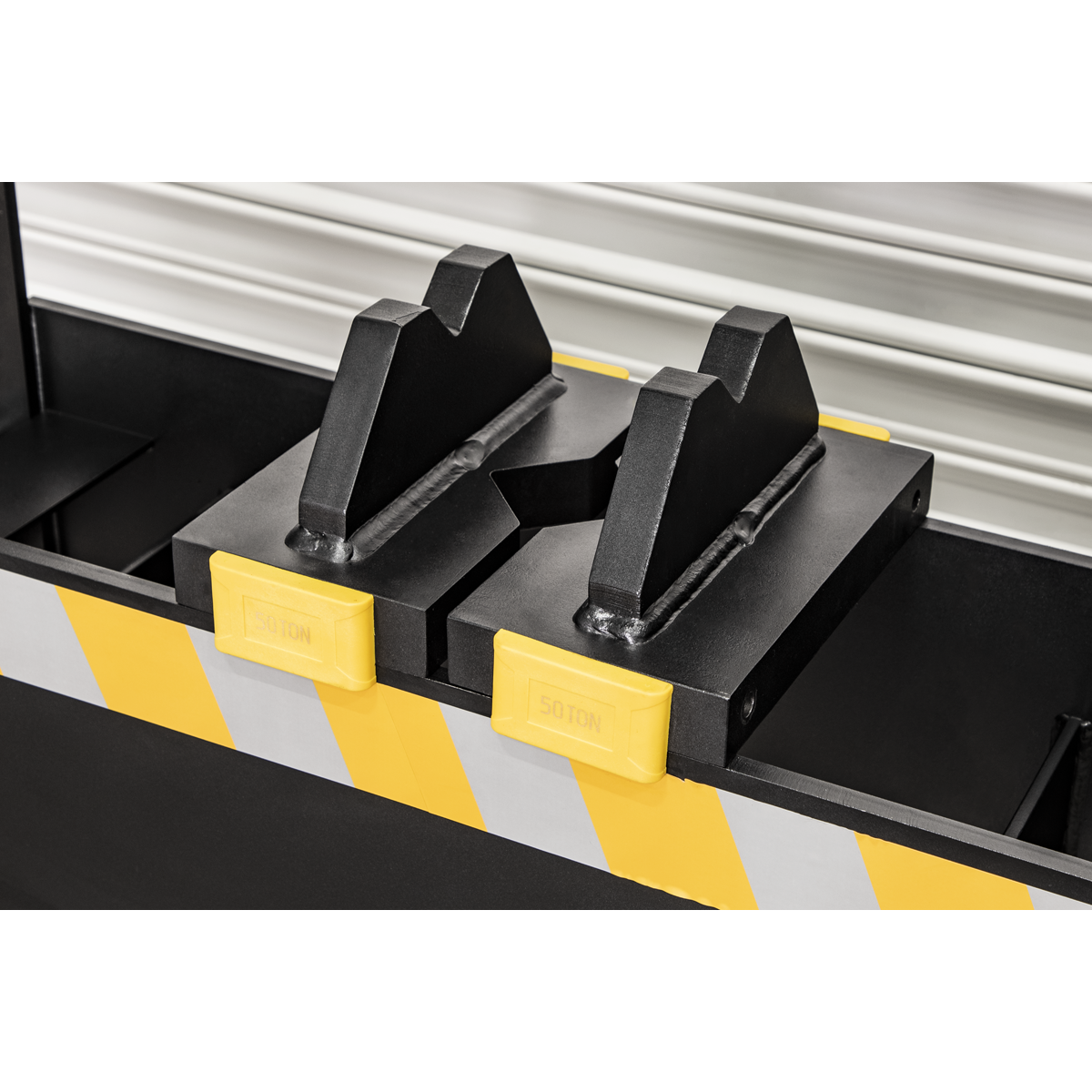

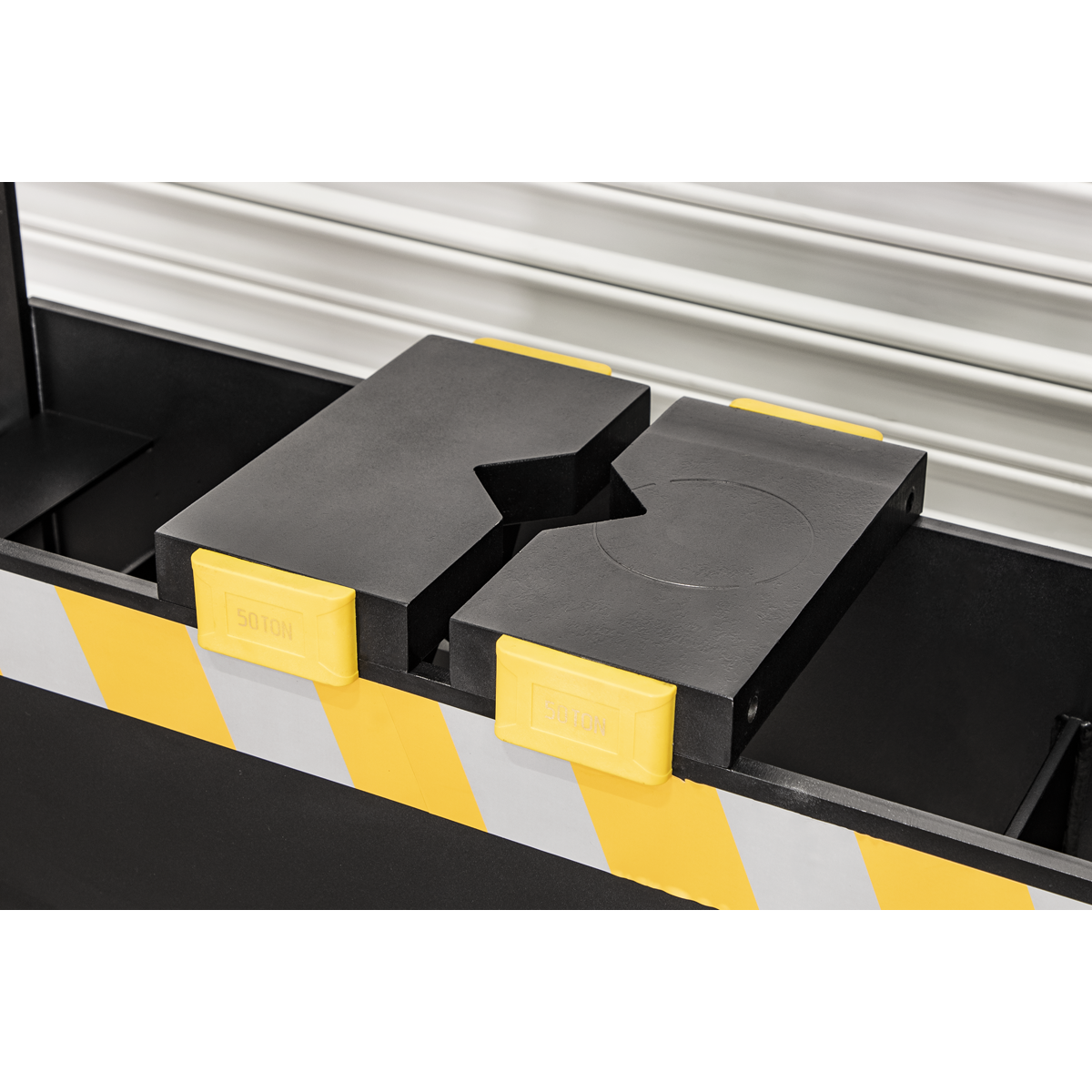

• Supplied with press pins, flat pressing plate/V-blocks.
• 5 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

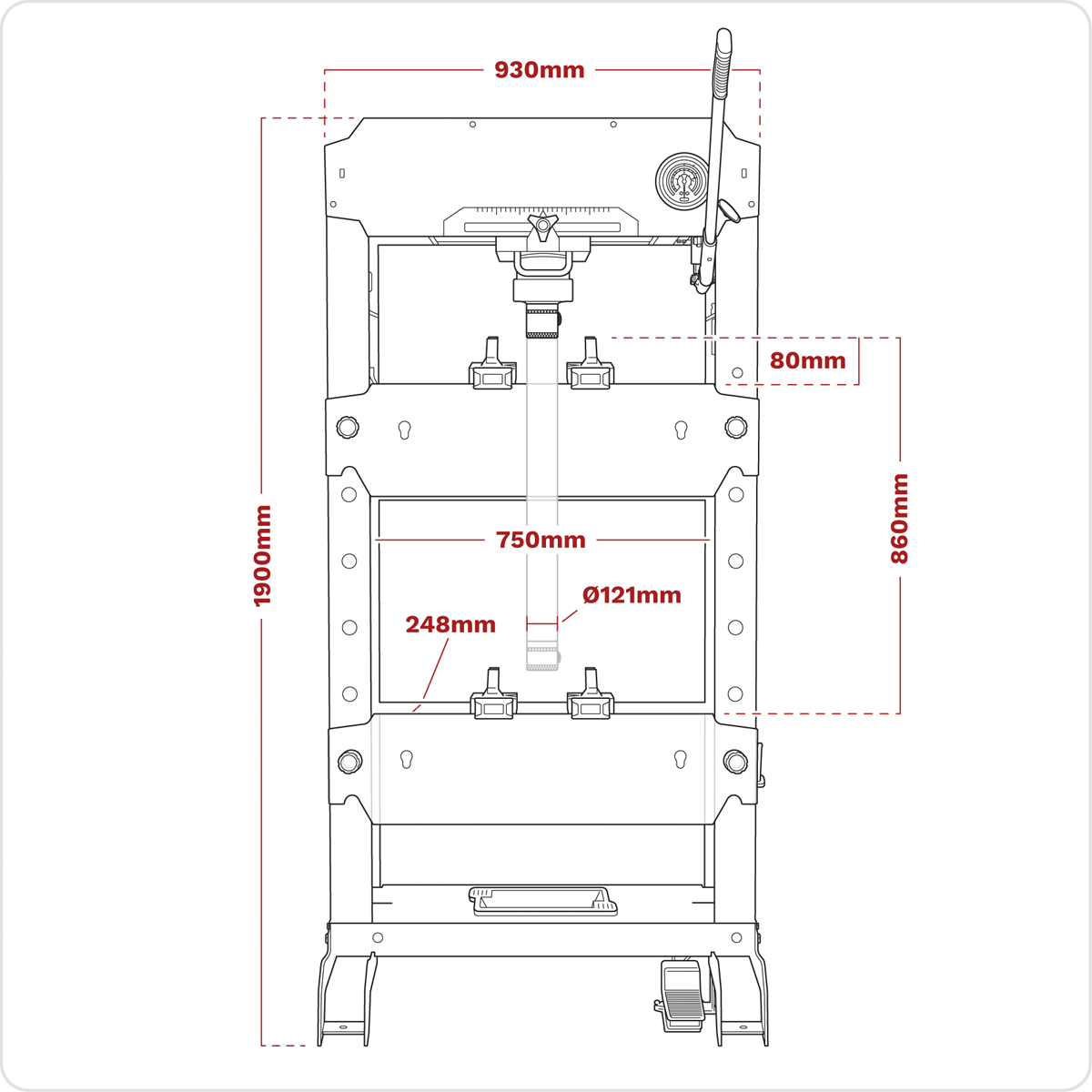

Specifications

Model No	PPF501S
Air Consumption:	4.5cfm
Bench or Floor Mounting:	Floor
Brand:	Viking
Capacity:	50 Tonne
Gauge Included:	Yes
Lateral Ram Travel:	280mm
Maximum Height - Ram to Table:	780mm
Minimum Height - Ram to Table:	80mm
Nett Weight:	249.2kg
Operating Table Width:	750mm
Overall Height:	1900mm
Ram Diameter:	Ø123.6mm
Ram Stroke:	220mm
Screw Extension:	75mm
Table Aperture:	224mm
Type:	Floor
Working Table Depth:	248mm
Working Table Width:	930mm
