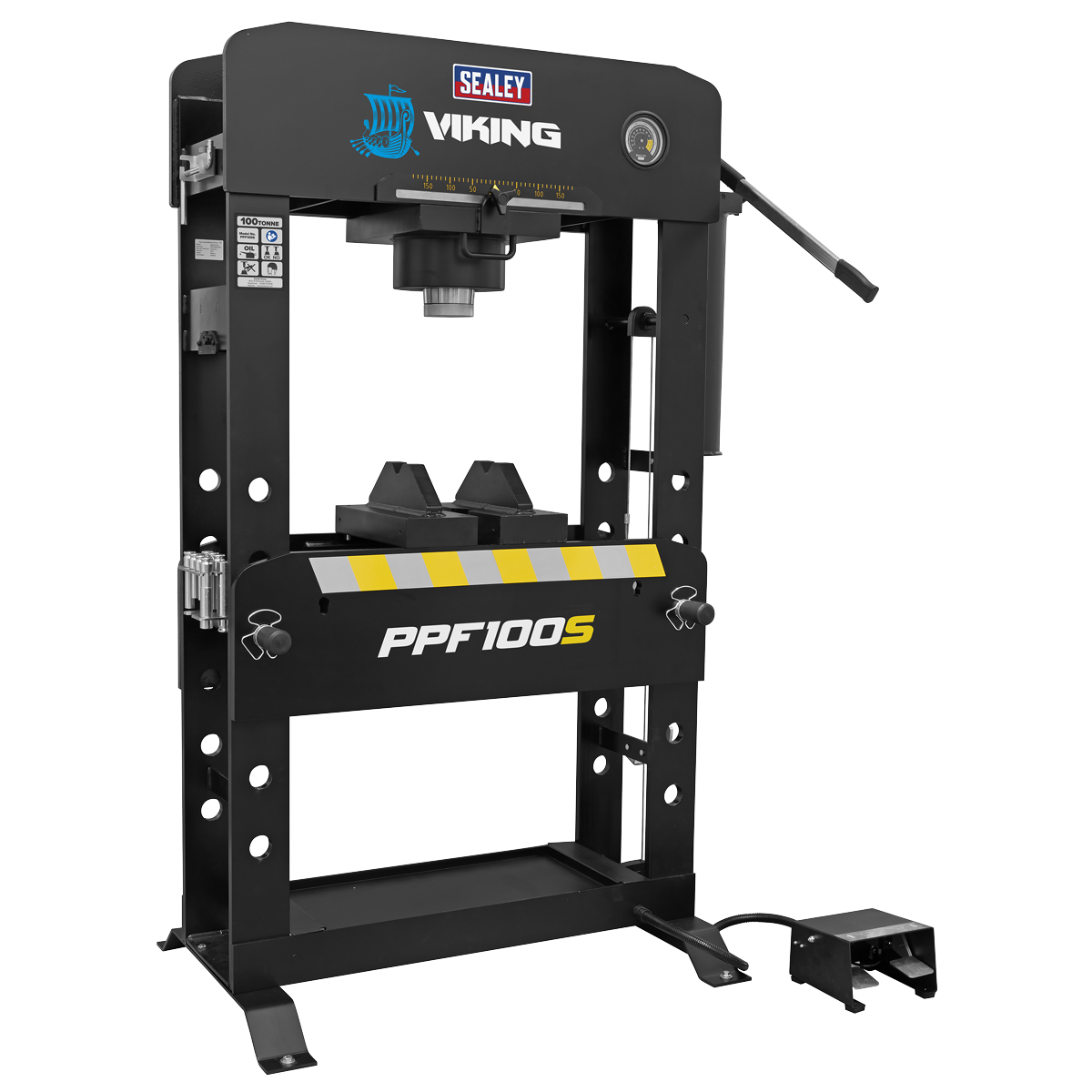

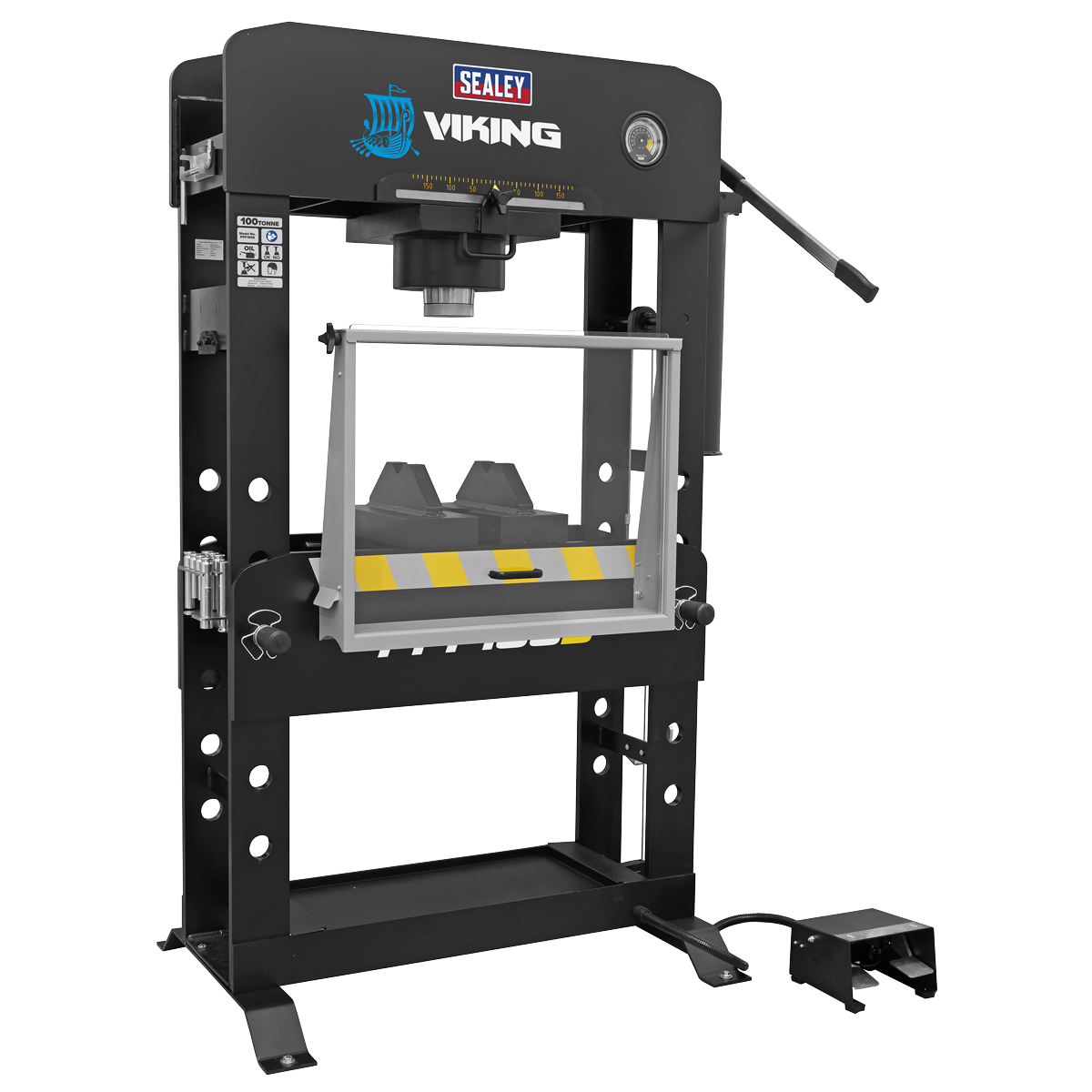

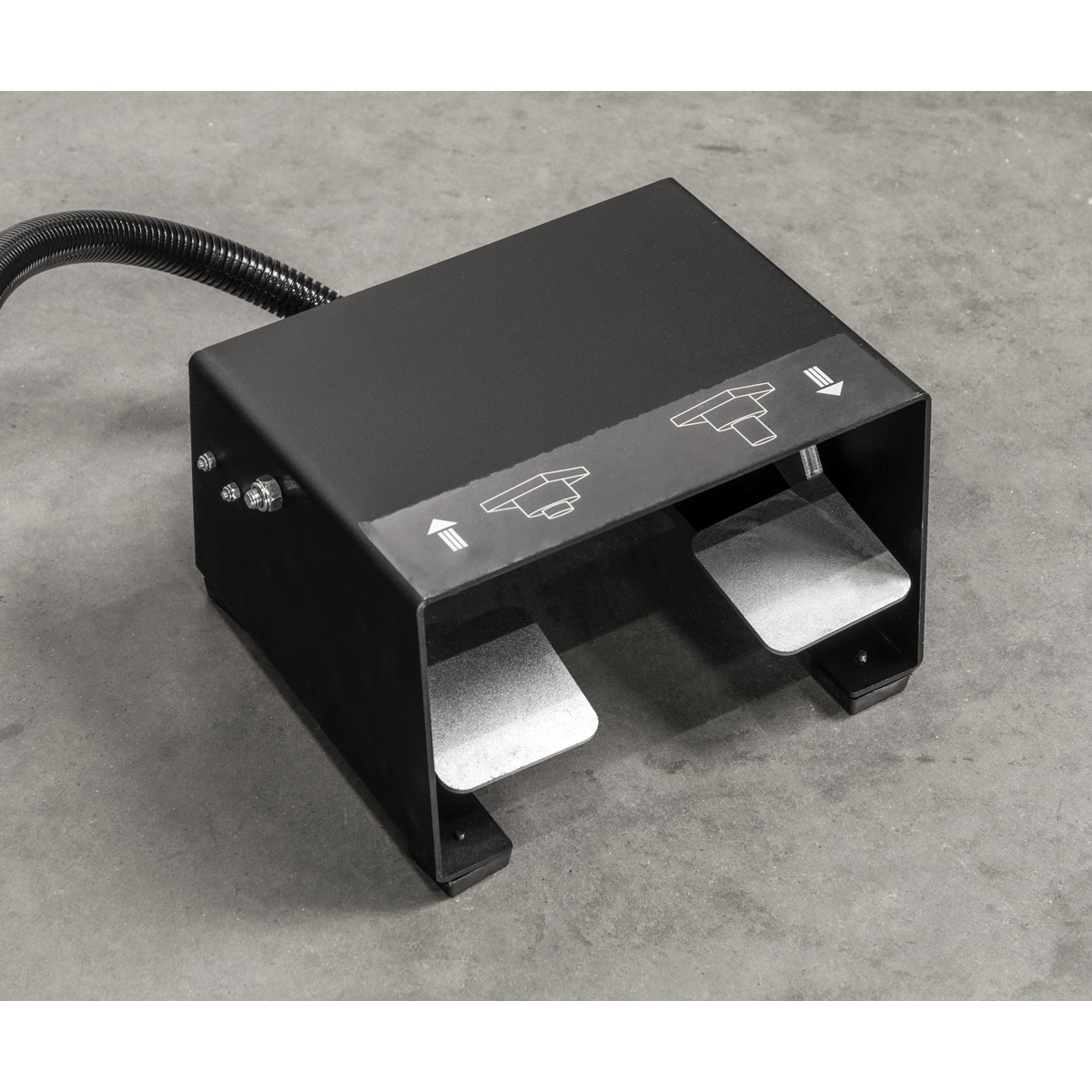

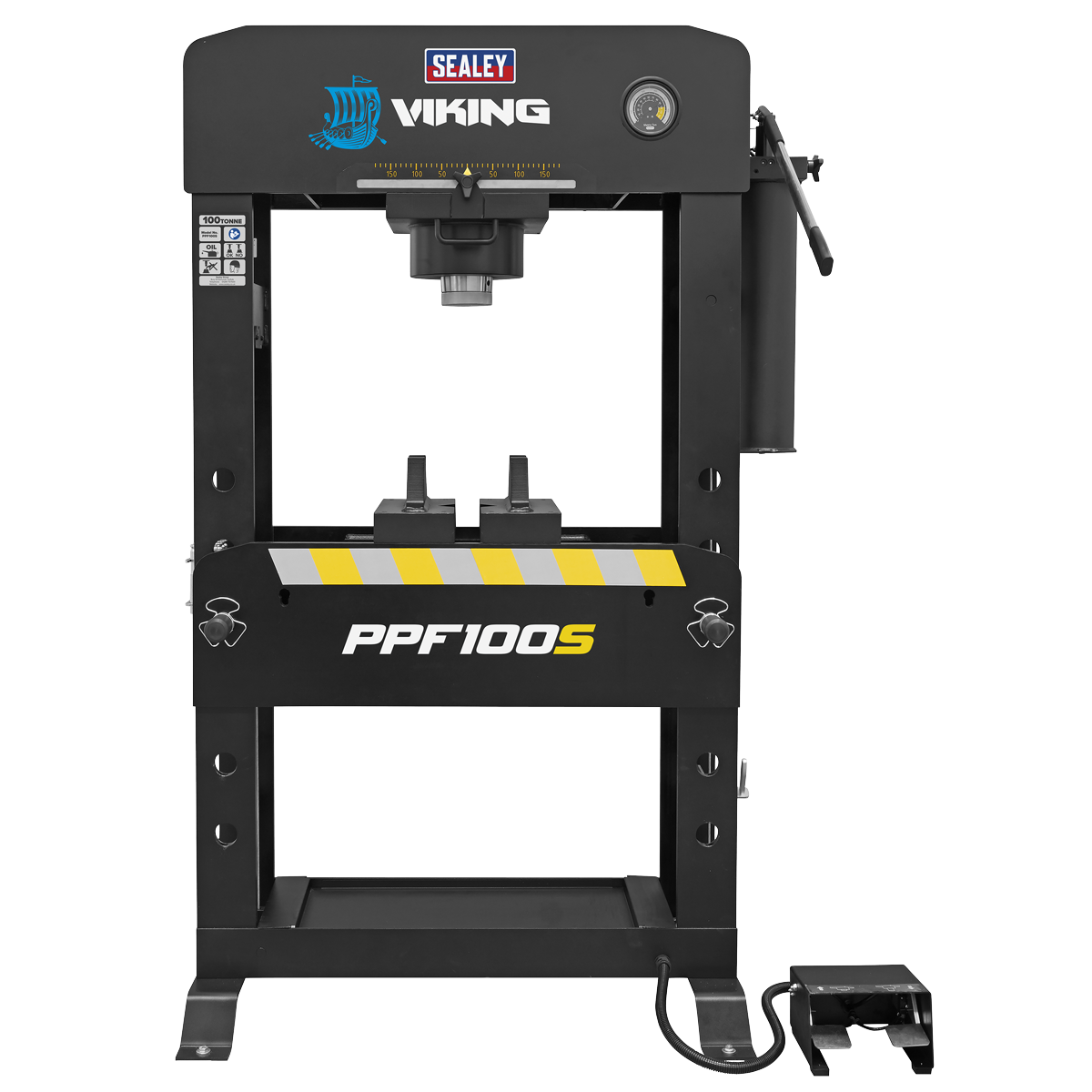

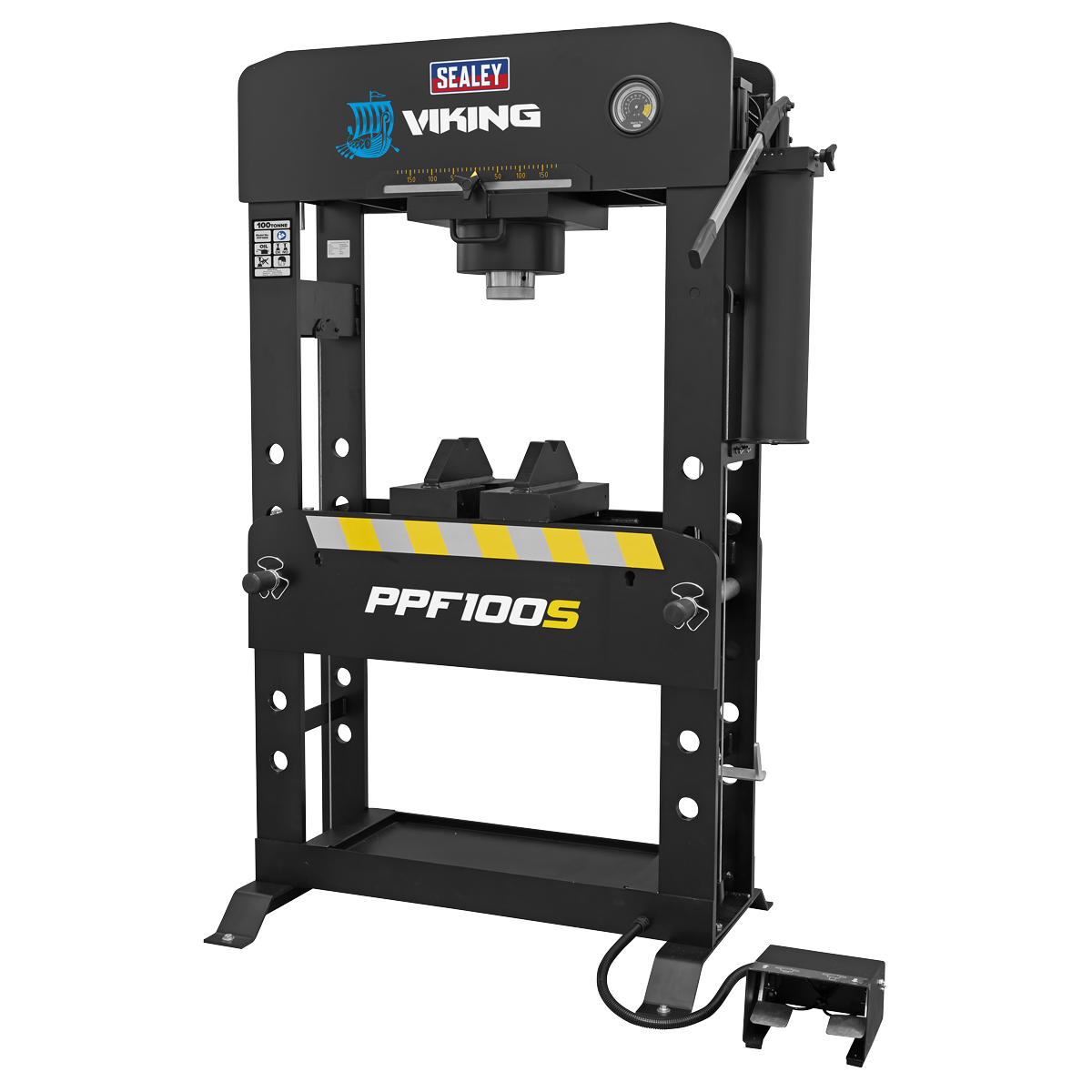

Viking Floor Type Air/Hydraulic Press with Sliding Ram & Foot Pedal 100 Tonne PPF100S

Name: Viking Floor Type Air/Hydraulic Press with Sliding Ram & Foot Pedal 100 Tonne PPF100S
SKU: VIKING-PPF100S
Price: 5149.12 GBP
Availability: InStock

£5,149.12 GBP

~~£6,239.94 GBP~~ £5,149.12 GBP

Reduced by £1,090.82 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

PROMOTION SALE!

Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit. Adjustable work area with removable tray. Sliding hydraulic ram assembly giving 360mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Winch assisted press table adjustment. Storage for press pins included in frame (pins not included). Supplied with flat pressing plate/V-blocks. This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

• Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.
• Adjustable work area with removable tray.
• Sliding hydraulic ram assembly giving 360mm of lateral travel for off-centre pressing applications.

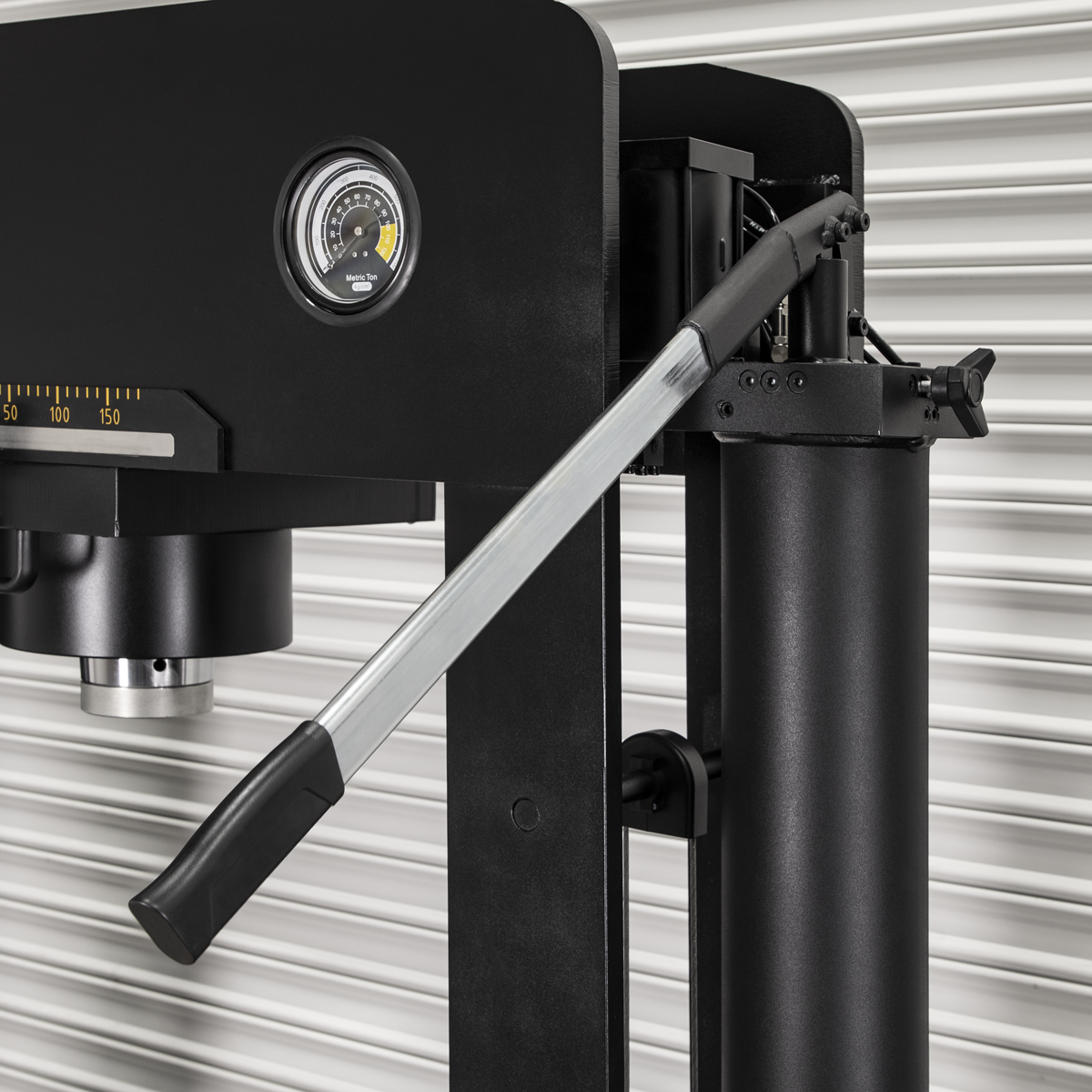

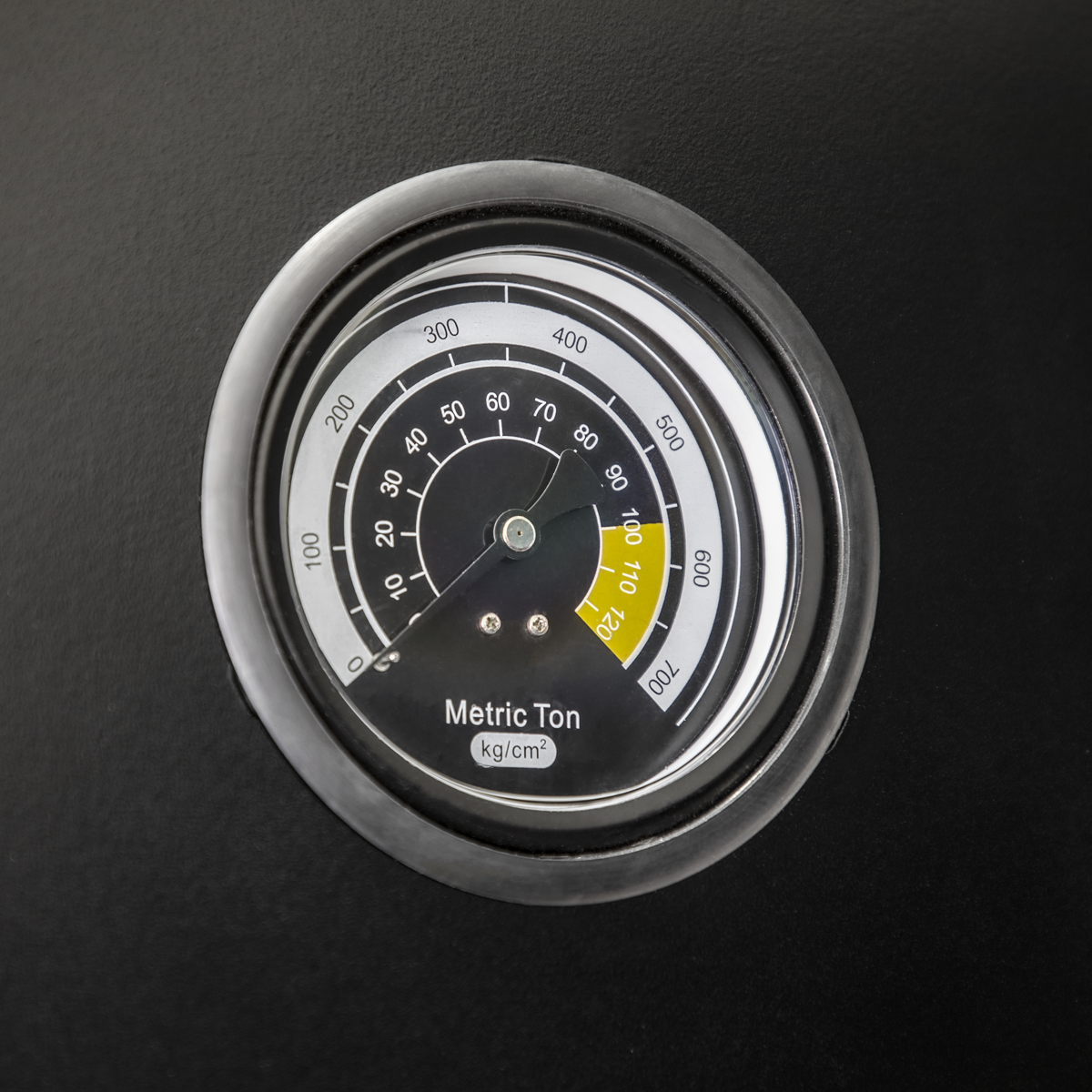

• Frame head fitted with ram pressure gauge.

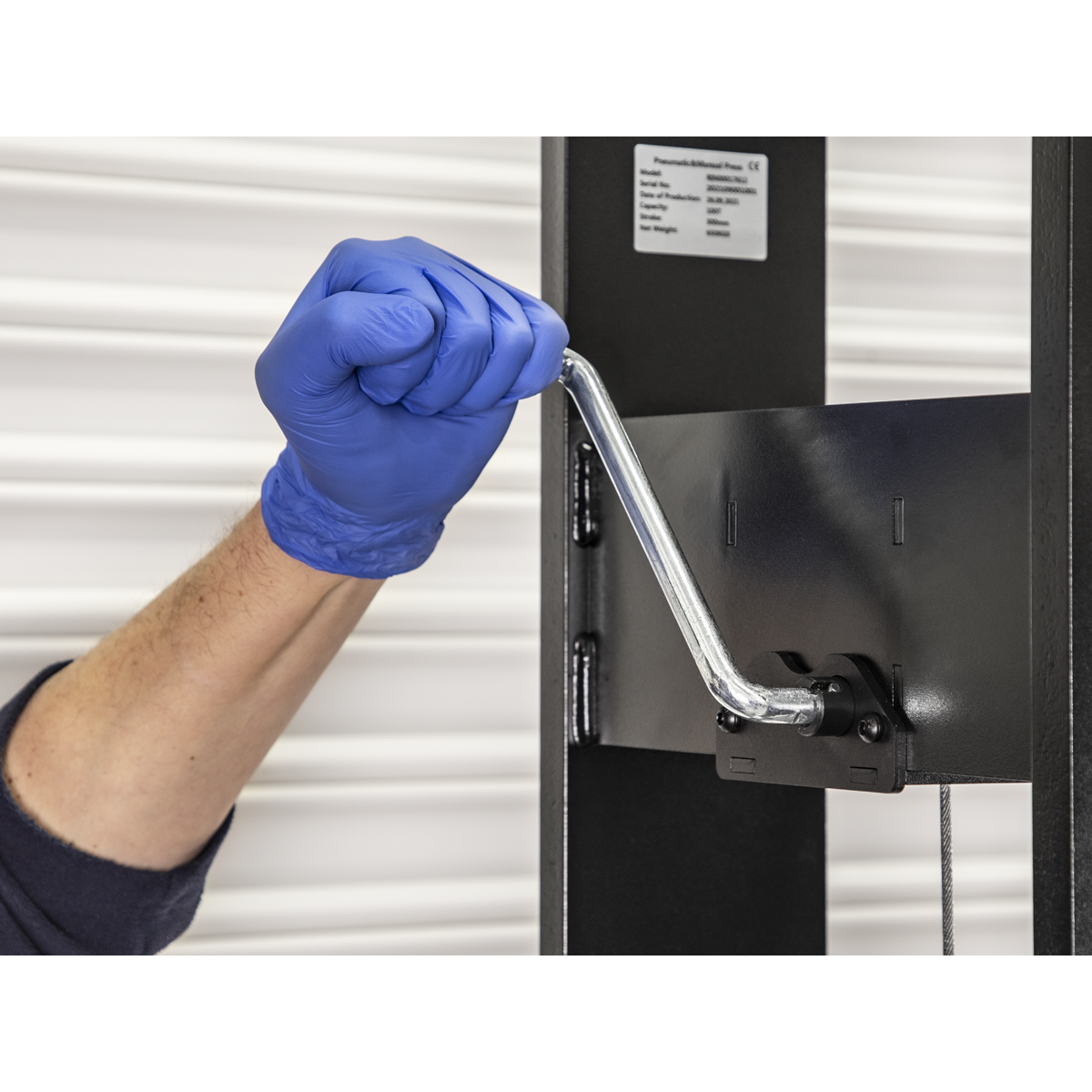

• Winch assisted press table adjustment.

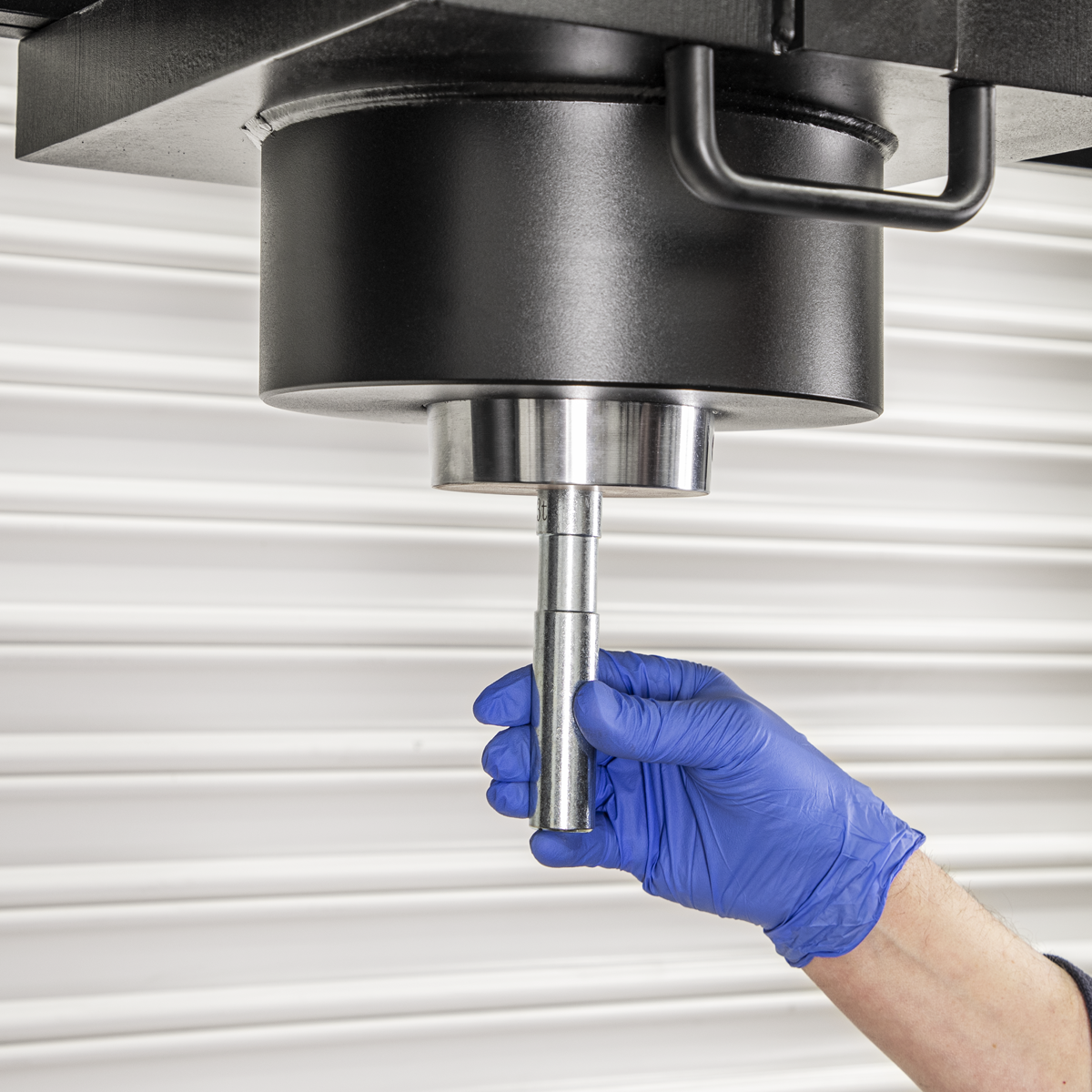

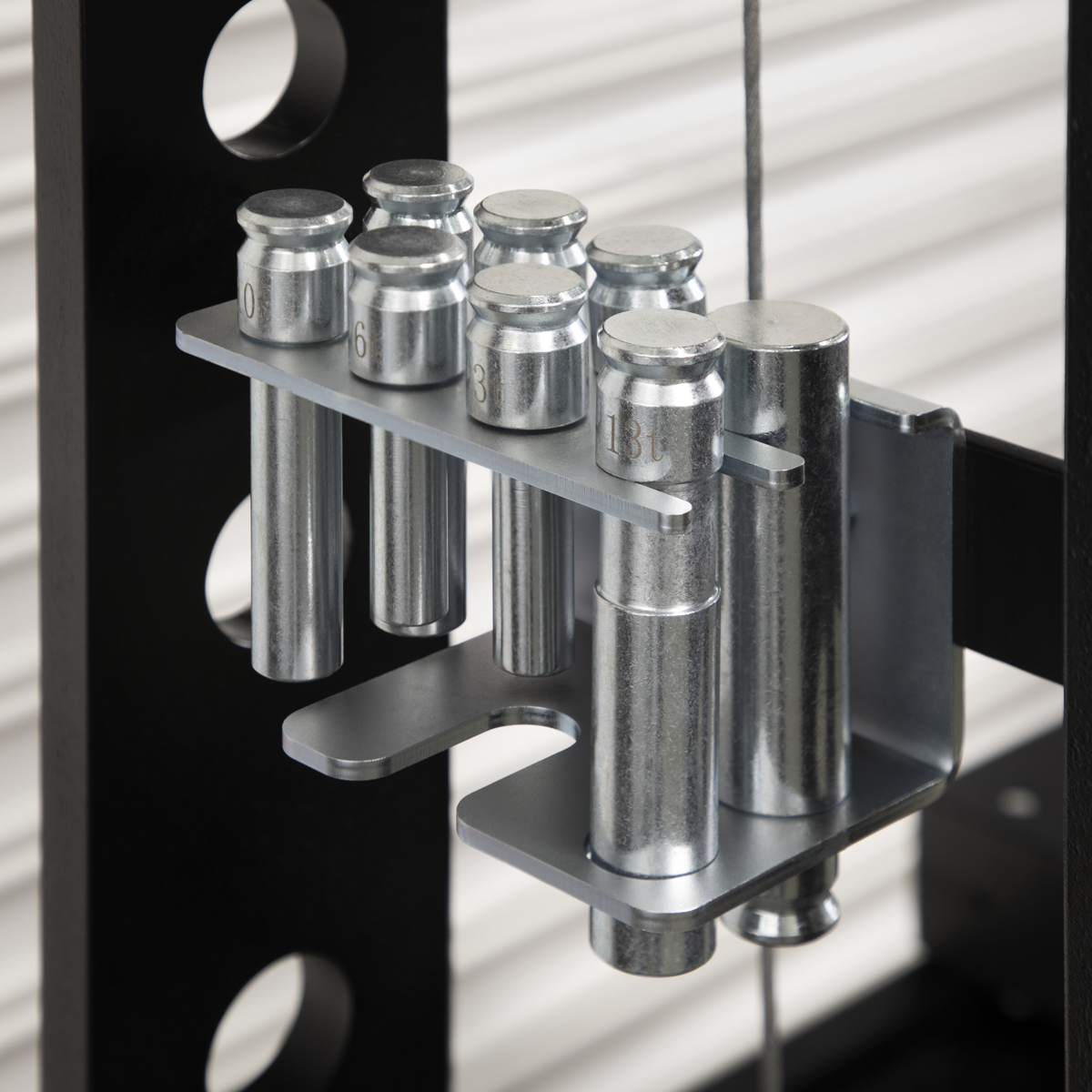

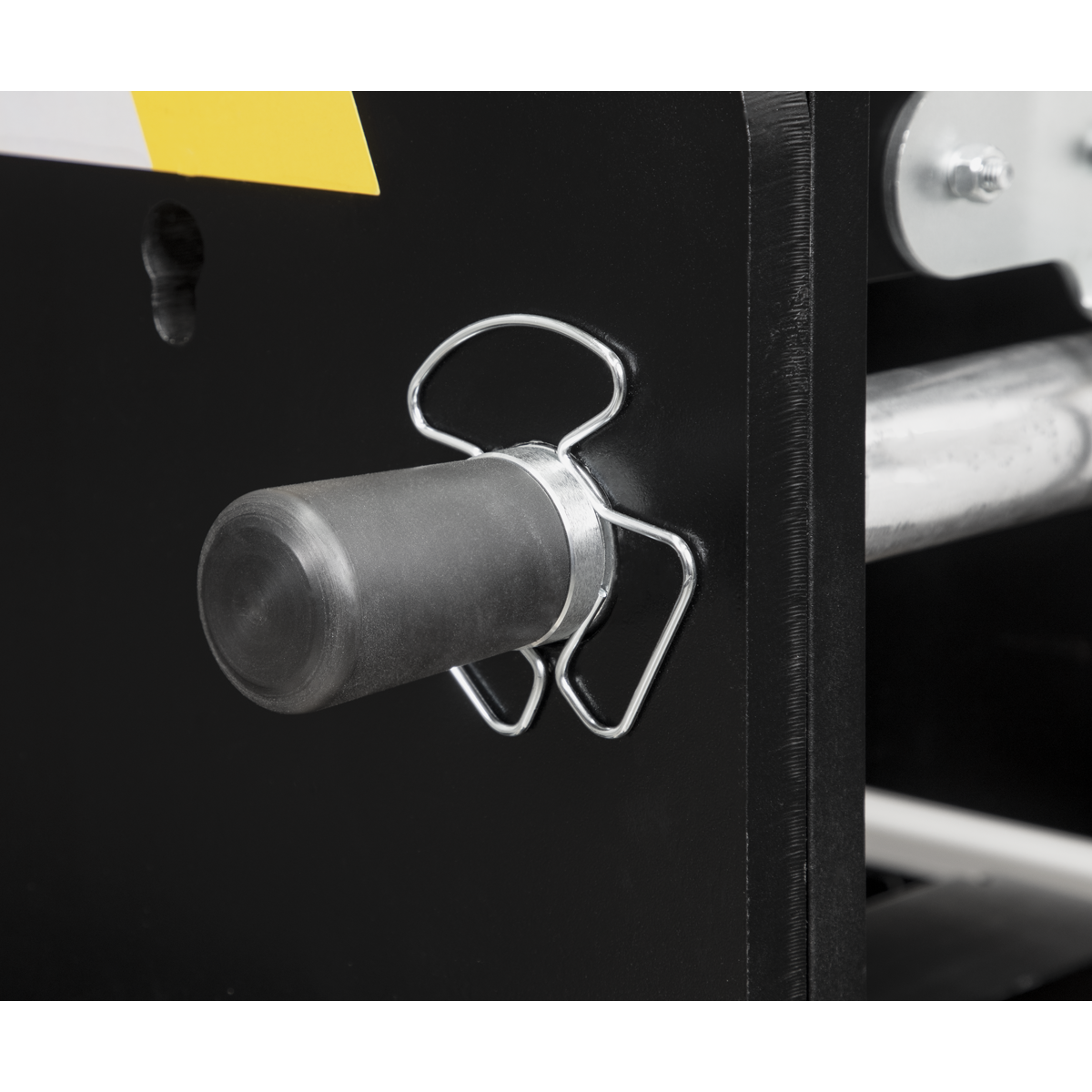

• Storage for press pins included in frame (pins not included).

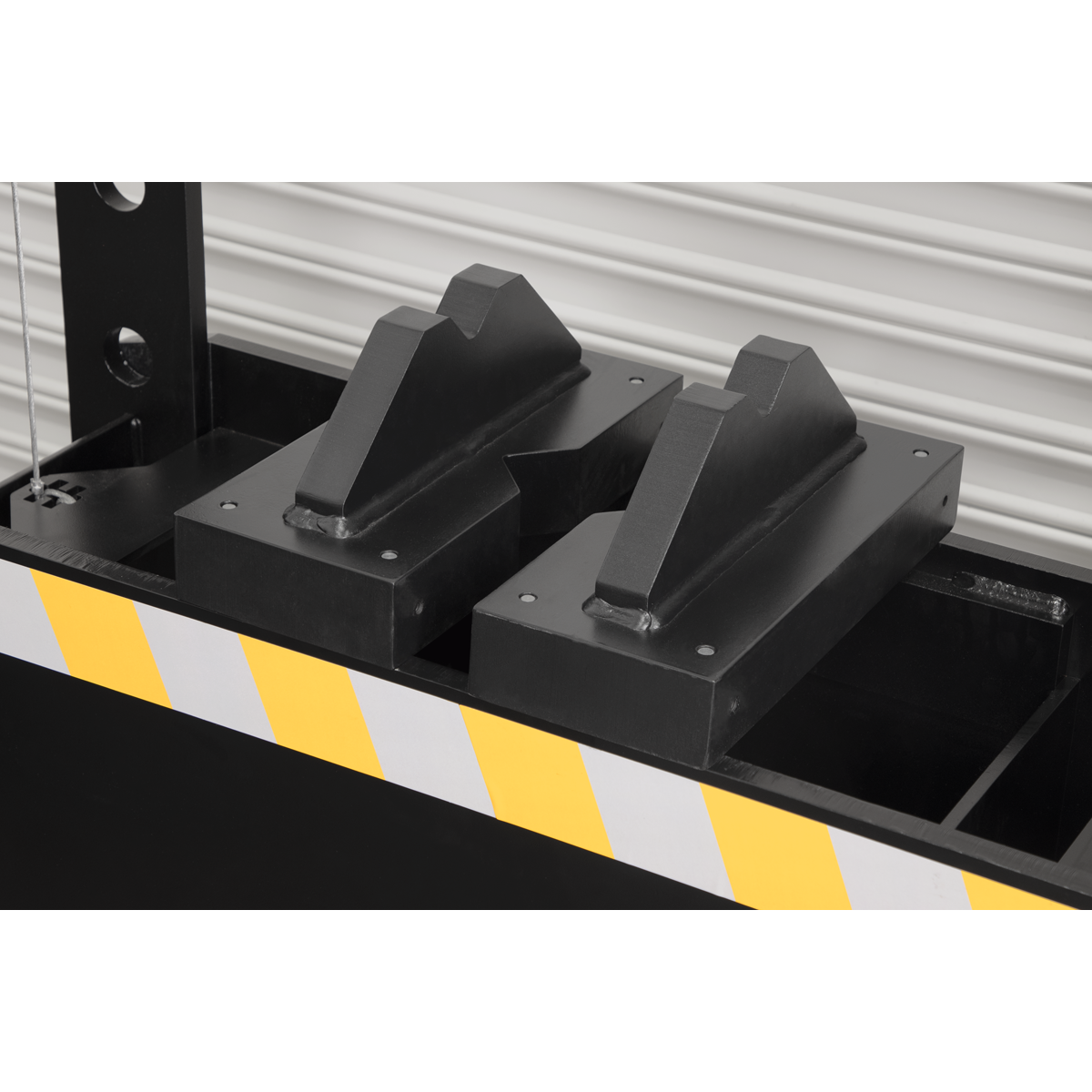

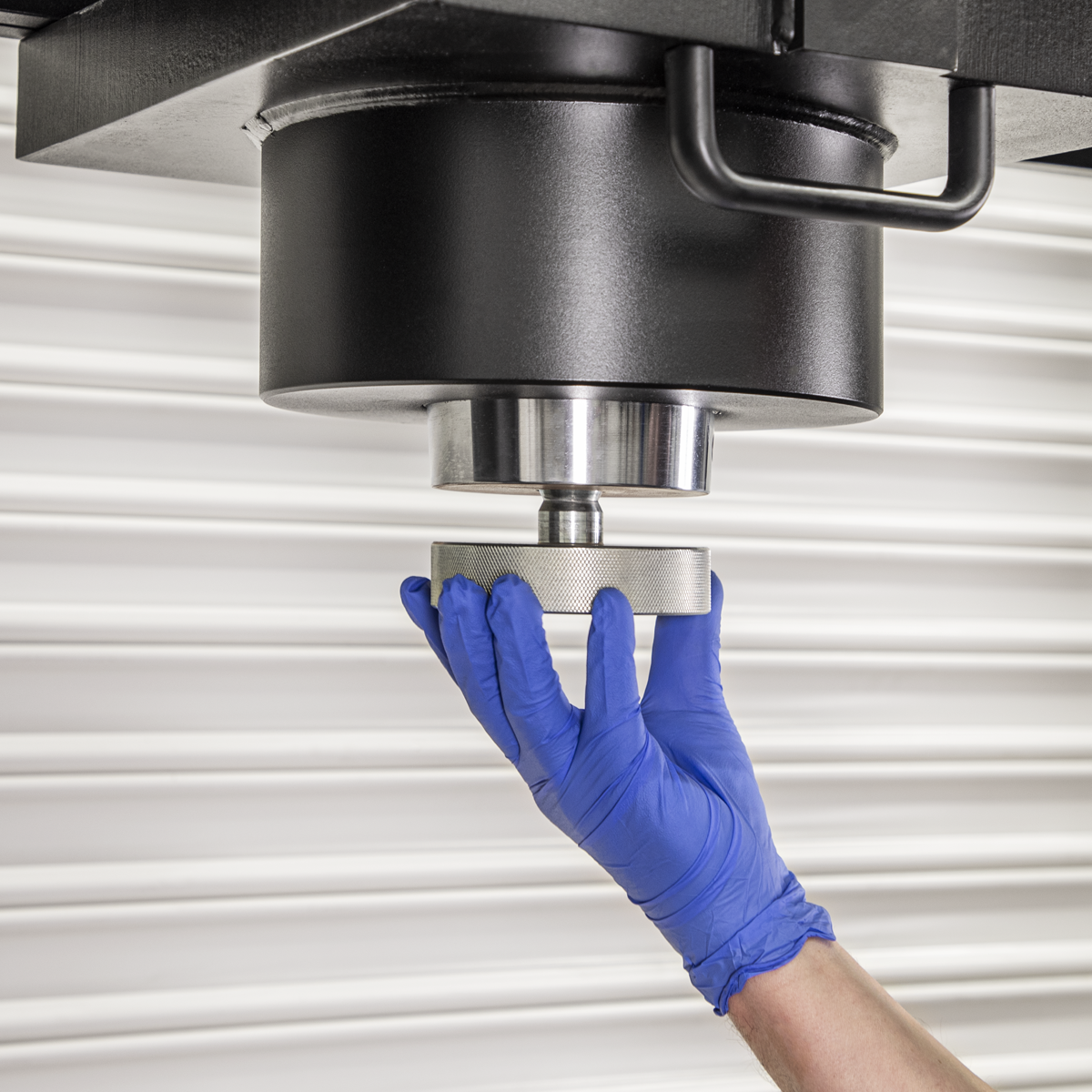

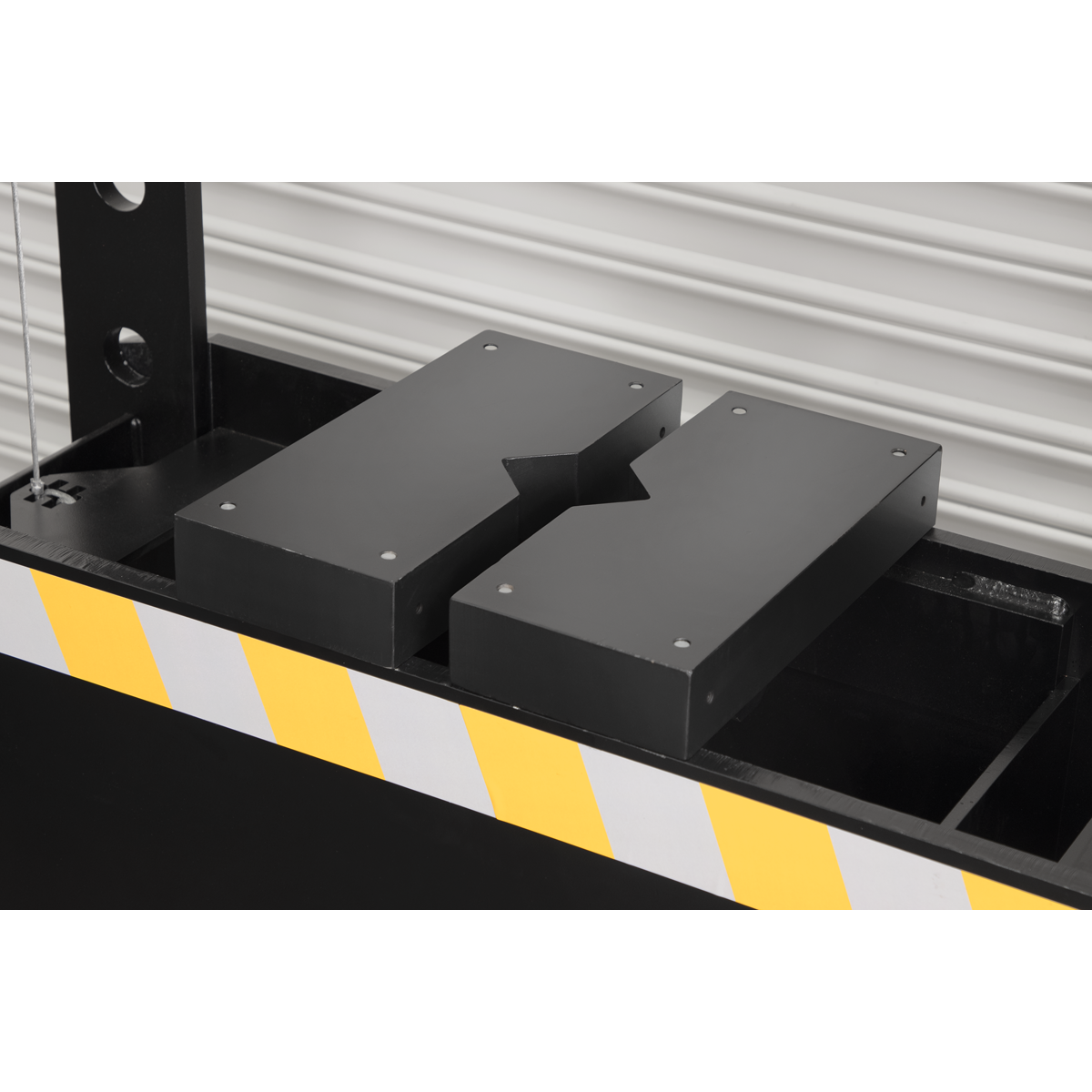

• Supplied with flat pressing plate/V-blocks.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• A forklift must be available at the delivery point to unload this item.
• 5 Year guarantee*.

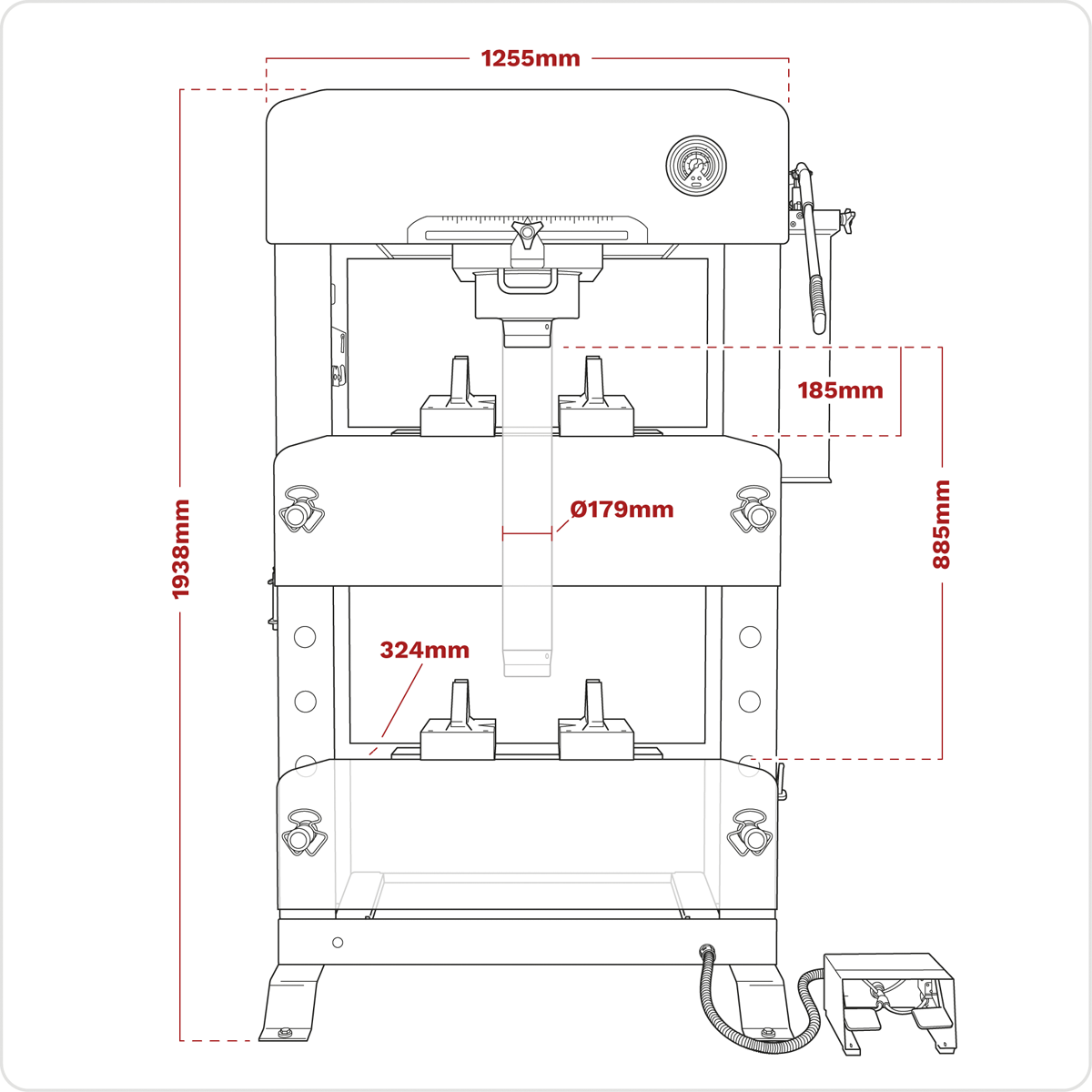

Specifications

Model No	PPF100S
Air Consumption:	6.5cfm
Bench or Floor Mounting:	Floor
Brand:	Viking
Capacity:	100 Tonne
Gauge Included:	Yes
Lateral Ram Travel:	360mm
Maximum Height - Ram to Table:	885mm
Minimum Height - Ram to Table:	185mm
Nett Weight:	682kg
Operating Table Width:	850mm
Overall Height:	1938mm
Ram Diameter:	Ø179mm
Ram Stroke:	300mm
Screw Extension:	n/a
Table Aperture:	324mm
Type:	Air/Hydraulic
Working Table Depth:	364mm
Working Table Width:	1090mm
