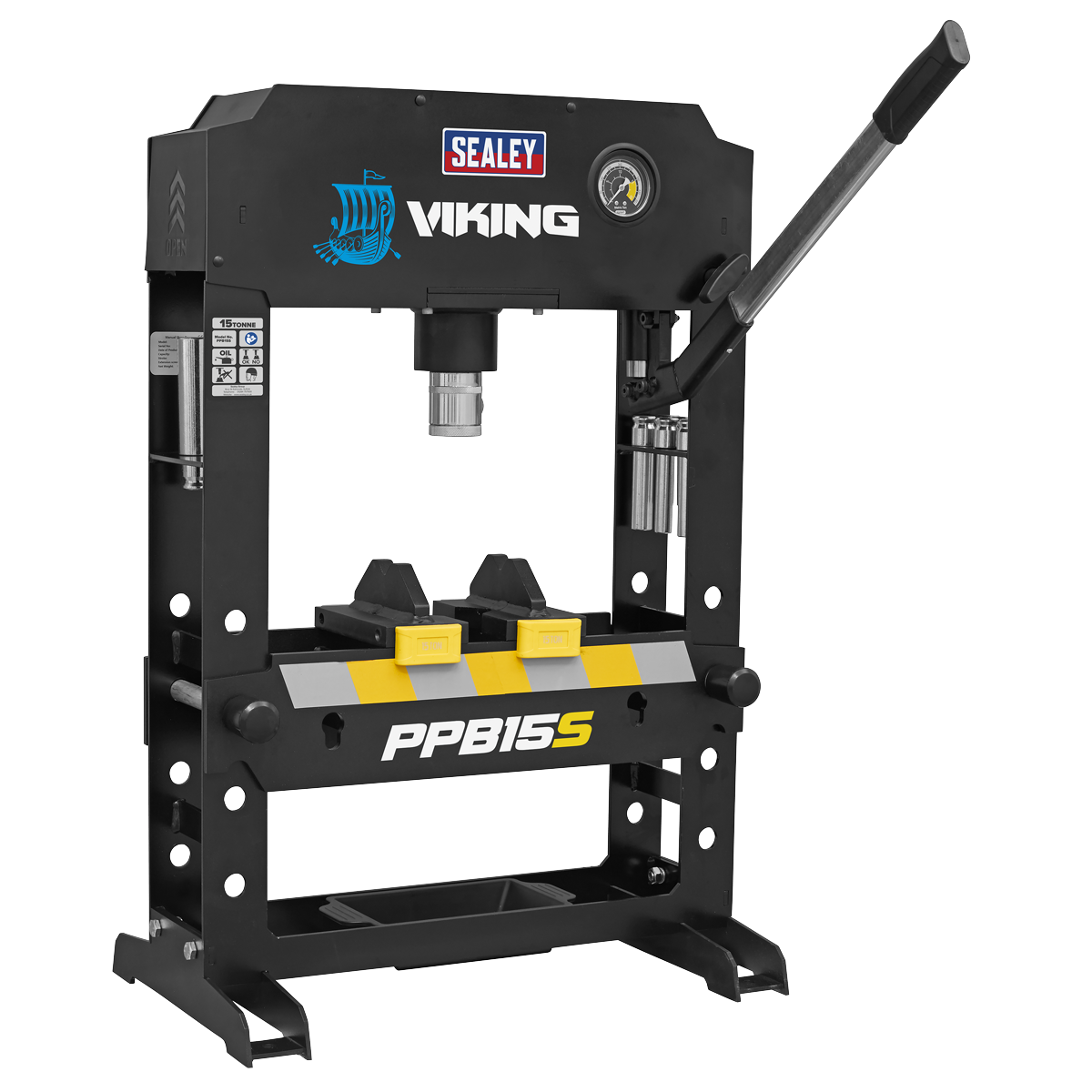

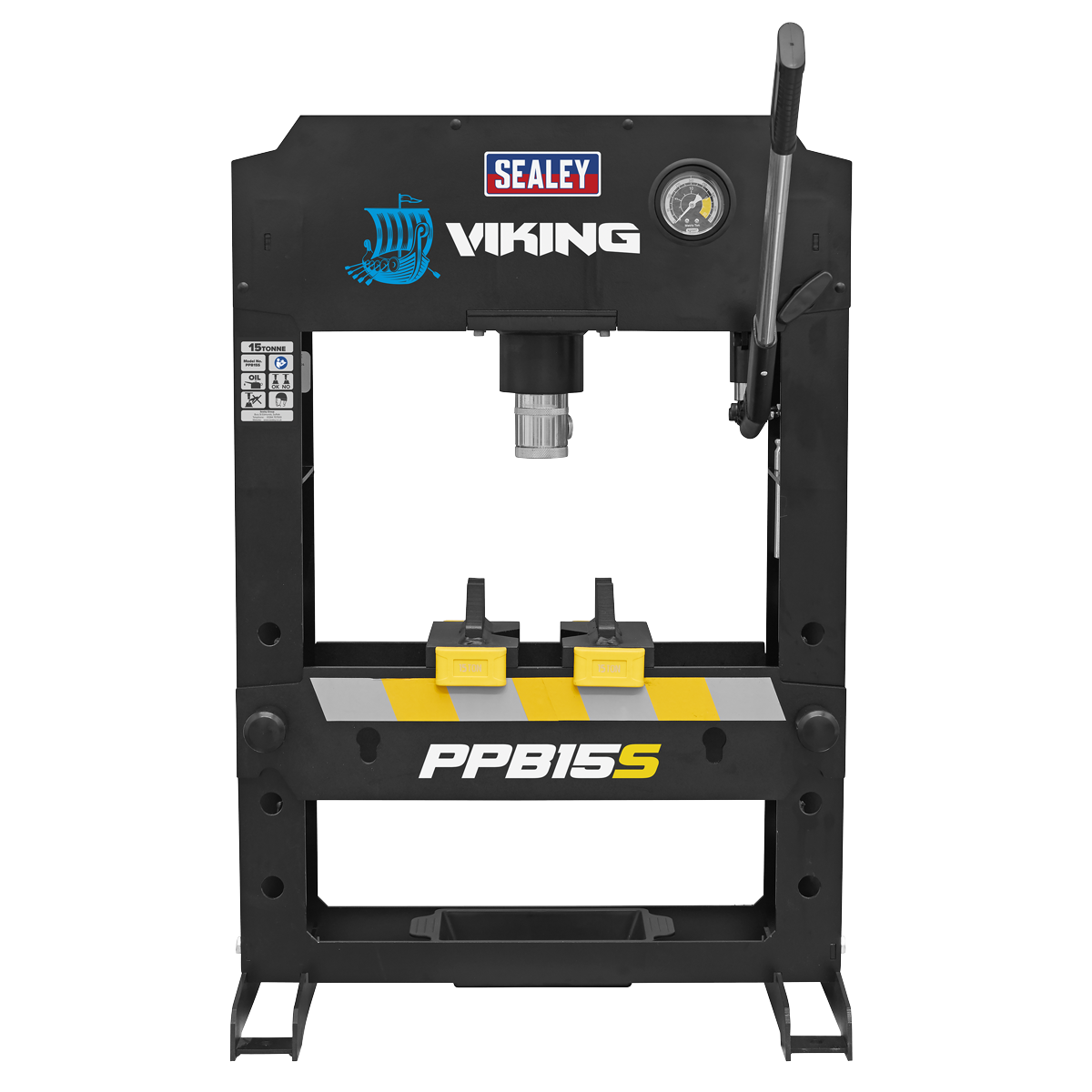

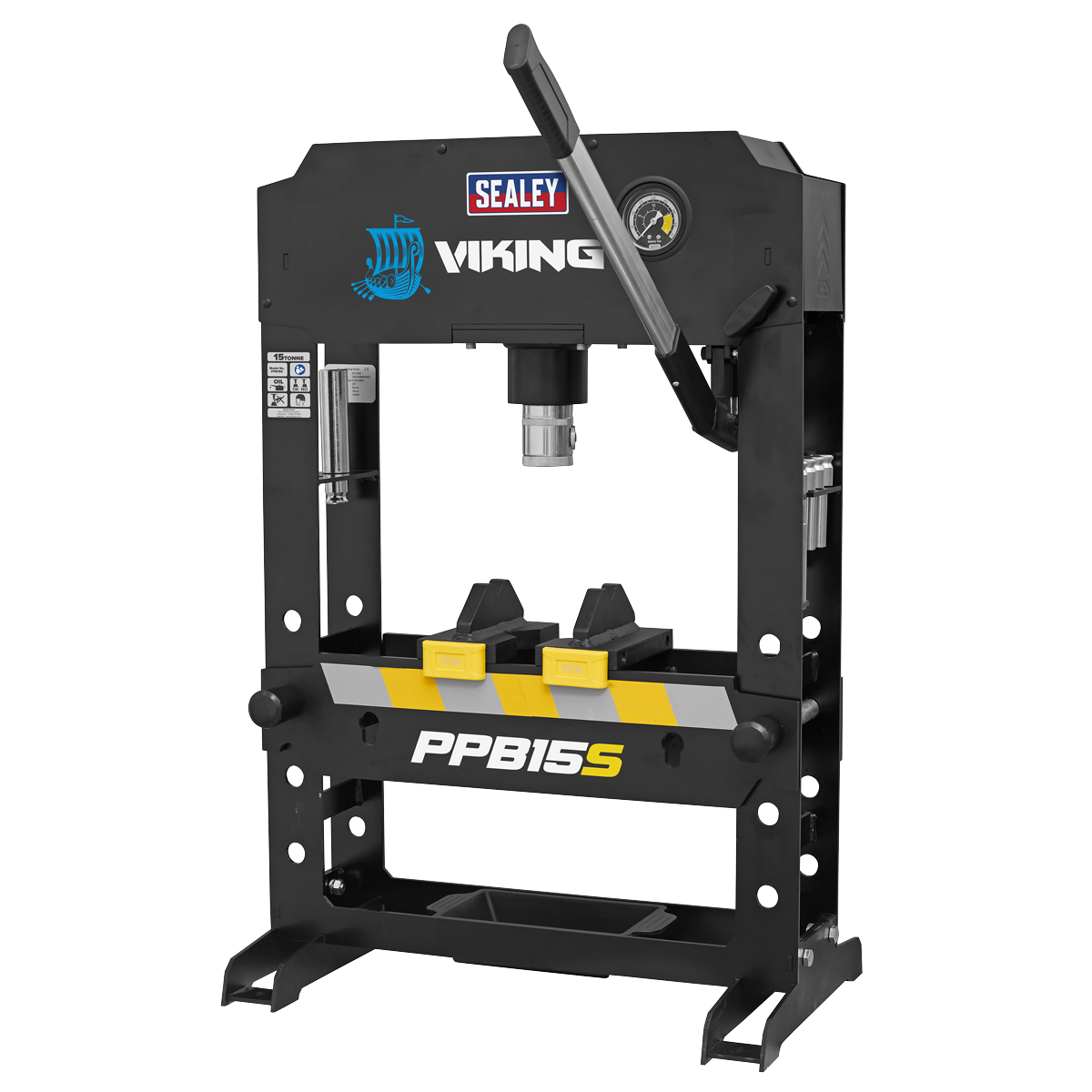

Viking Viking Bench Type Hydraulic Press 15 Tonne PPB15S

Name: Viking Viking Bench Type Hydraulic Press 15 Tonne PPB15S
SKU: VIKING-PPB15S
Price: 738.48 GBP
Availability: InStock

£738.48 GBP

~~£815.94 GBP~~ £738.48 GBP

Reduced Sold out

Taxes included. Shipping calculated at checkout.

Quantity

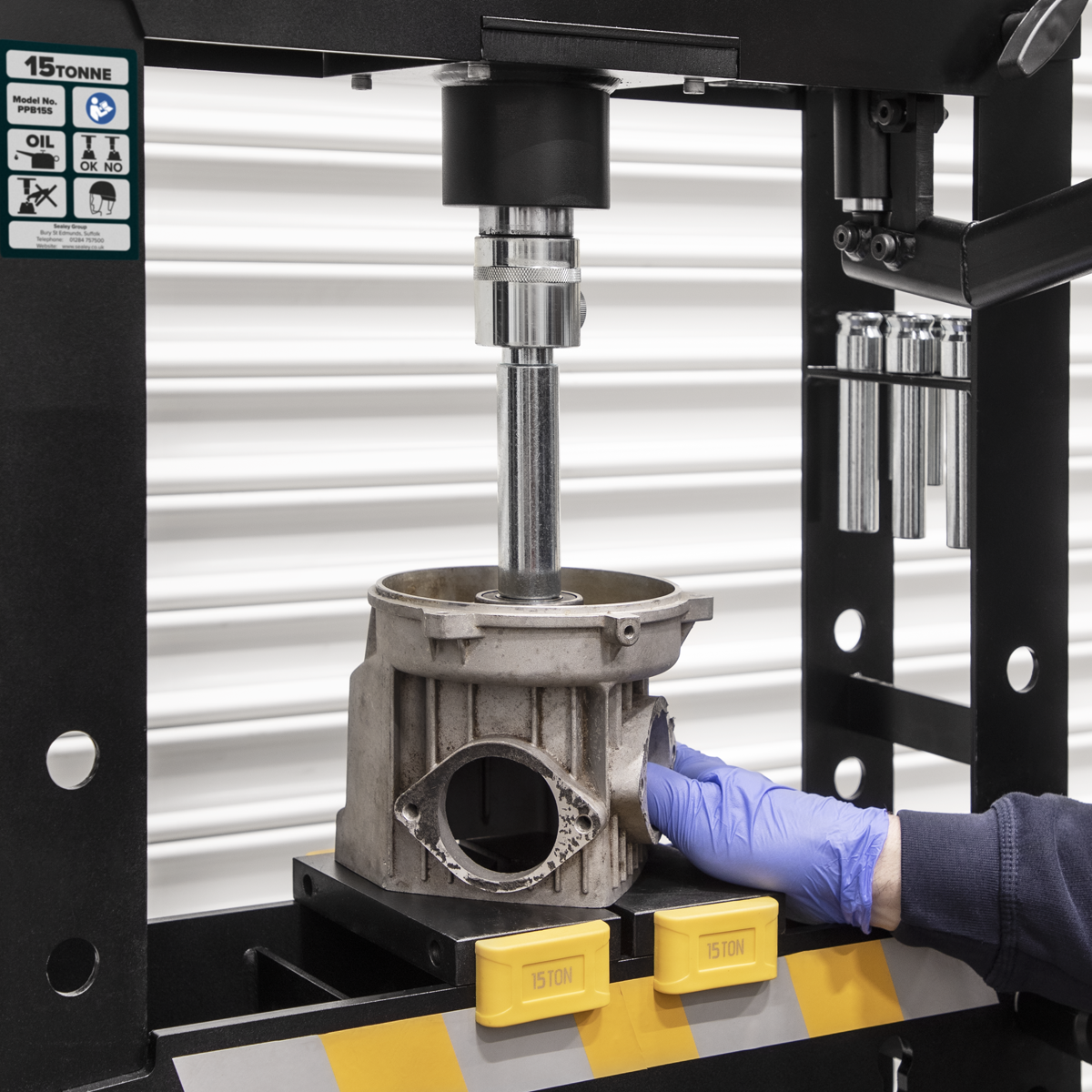

Heavy-duty steel frame construction with handle operated hydraulic pump unit. Screw adjustable ram and adjustable work area with removable tray. Frame head fitted with ram pressure gauge. Storage for press pins included in frame. Supplied with press pins, flat pressing plate/V-blocks.

• Heavy-duty steel frame construction with handle operated hydraulic pump unit.

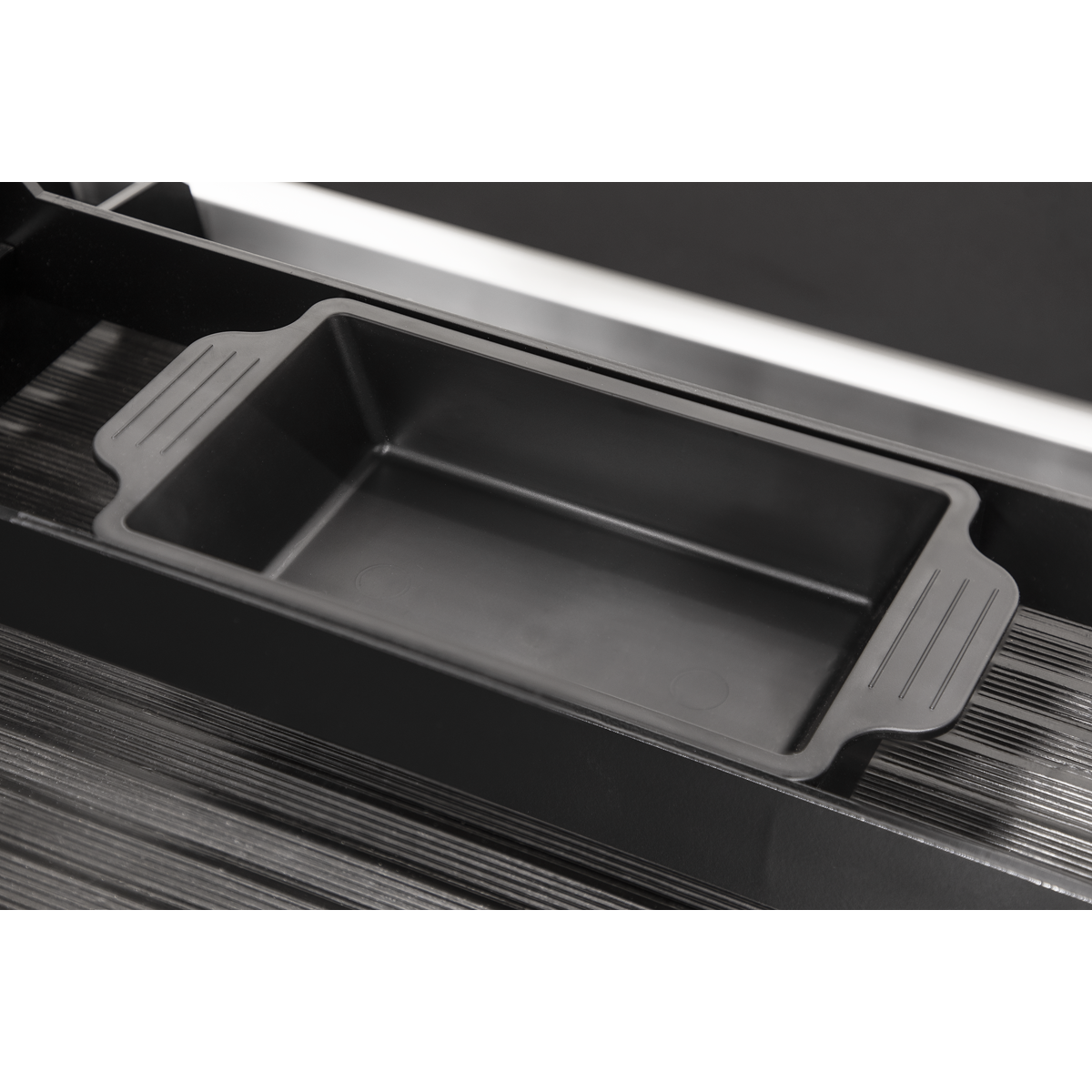

• Screw adjustable ram and adjustable work area with removable tray.

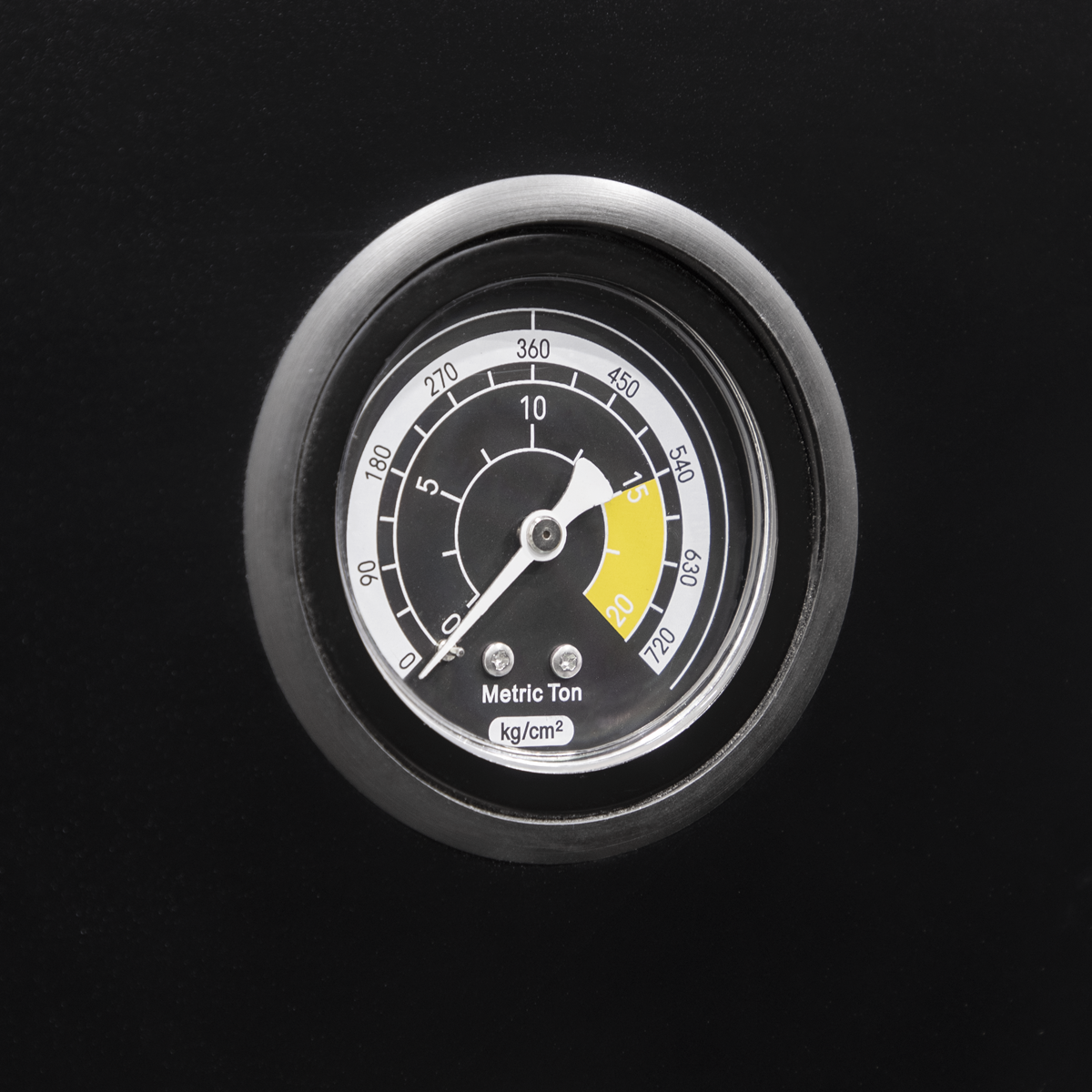

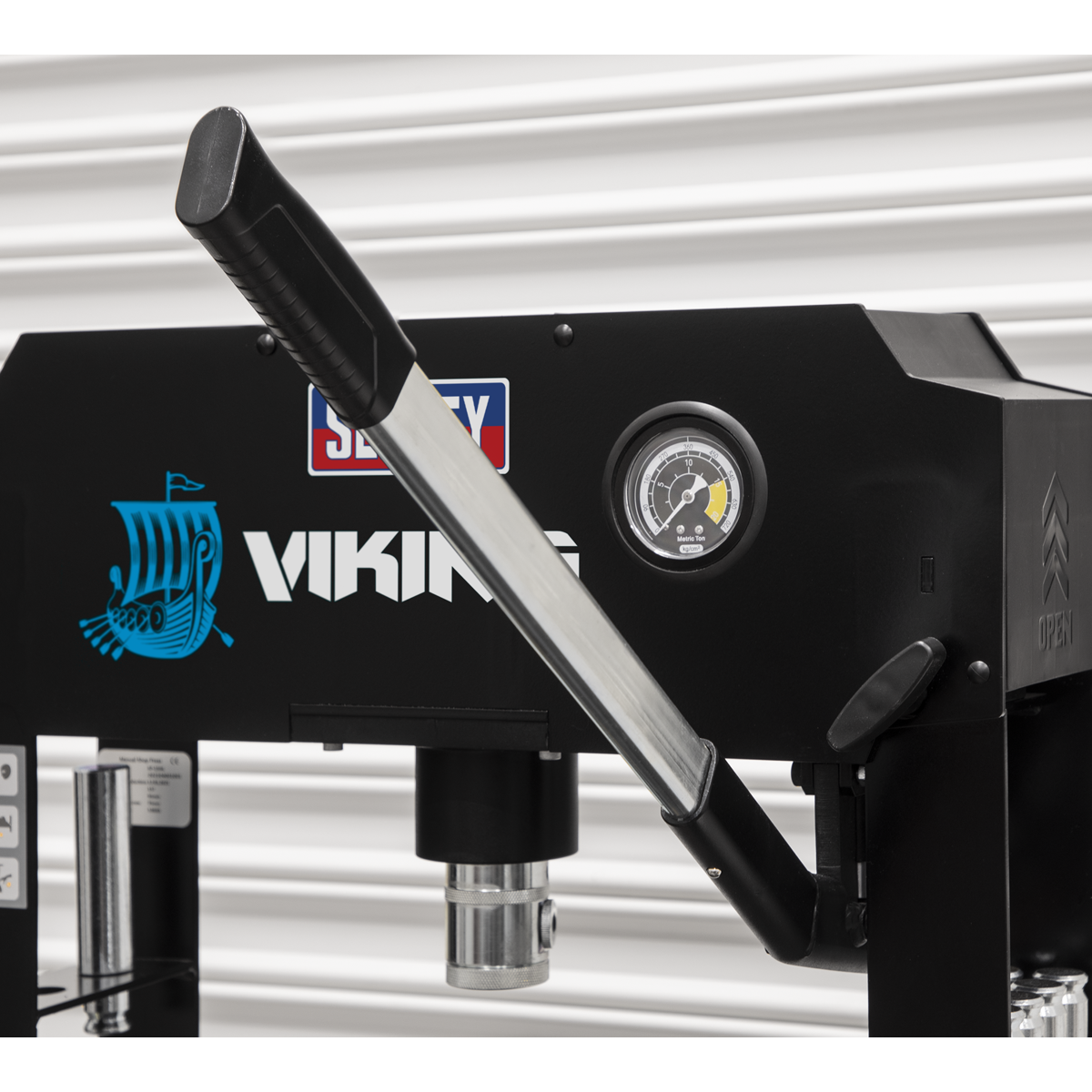

• Frame head fitted with ram pressure gauge.

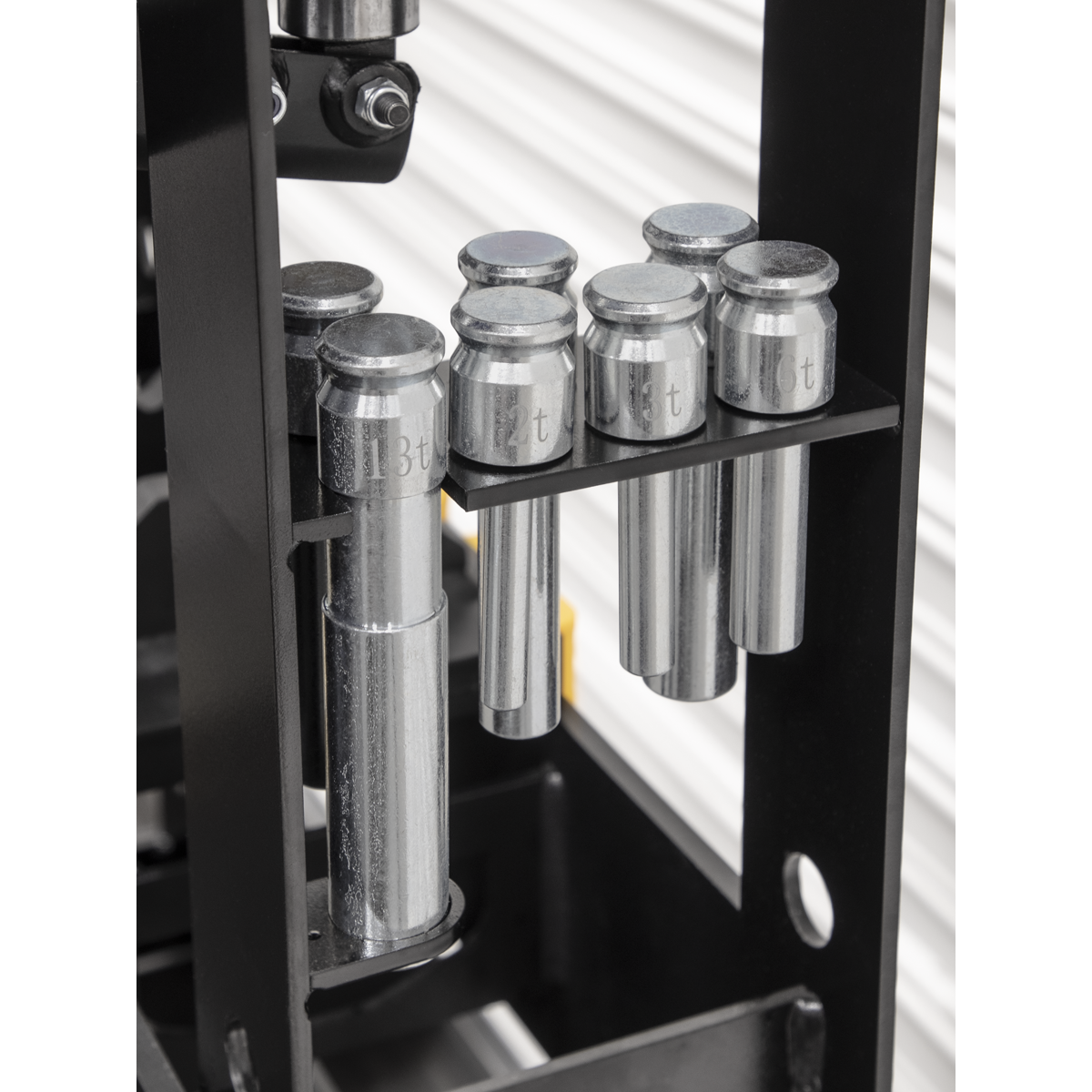

• Storage for press pins included in frame.

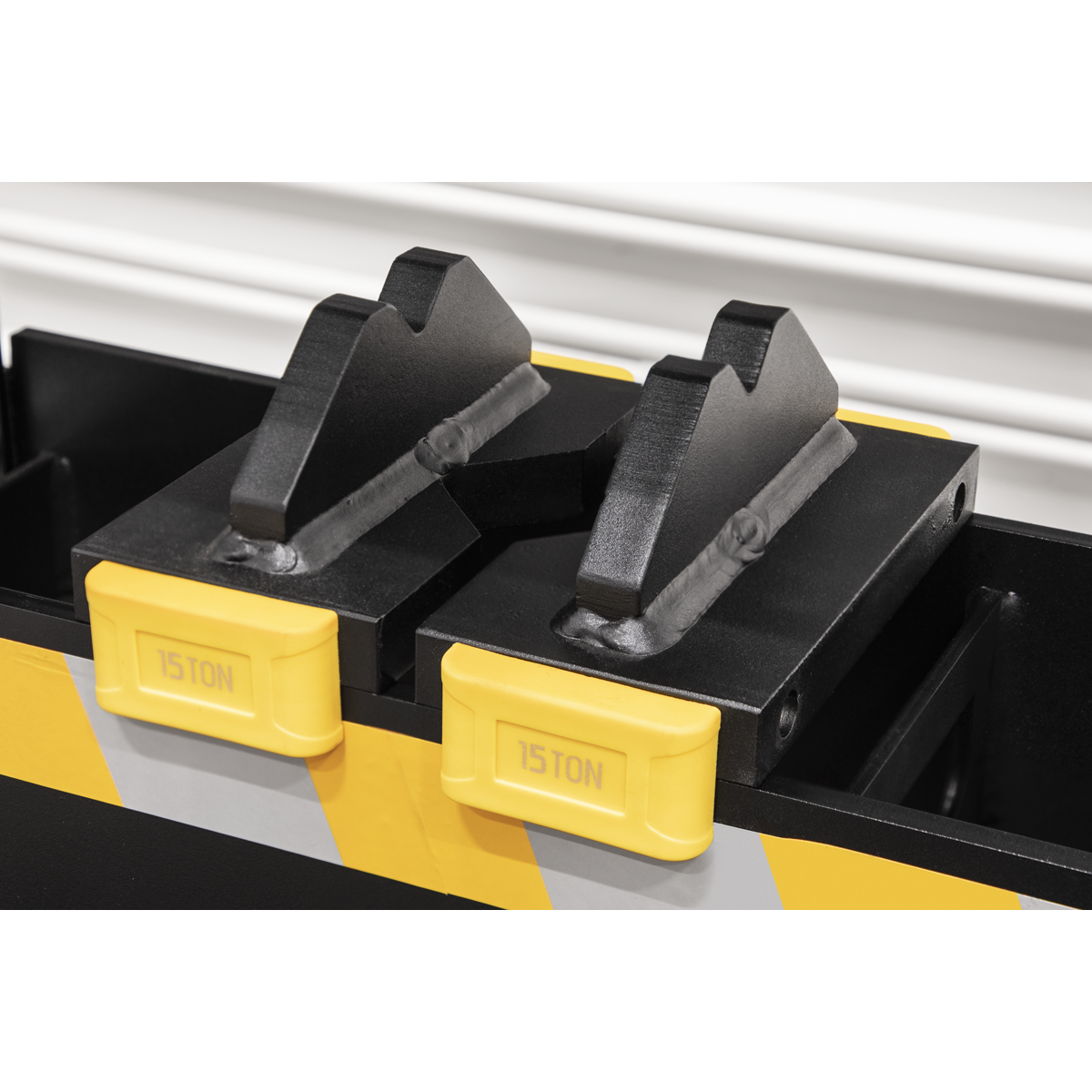

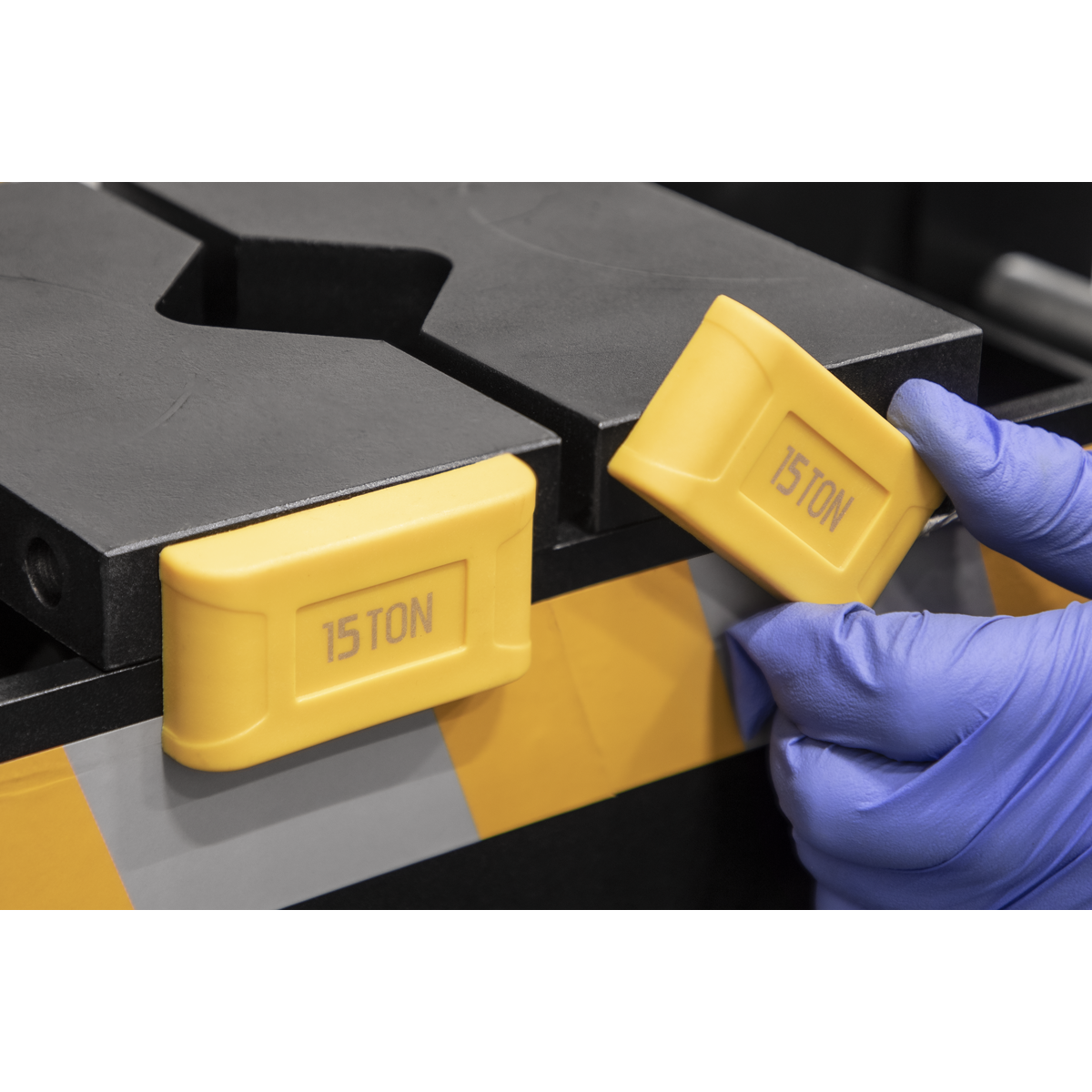

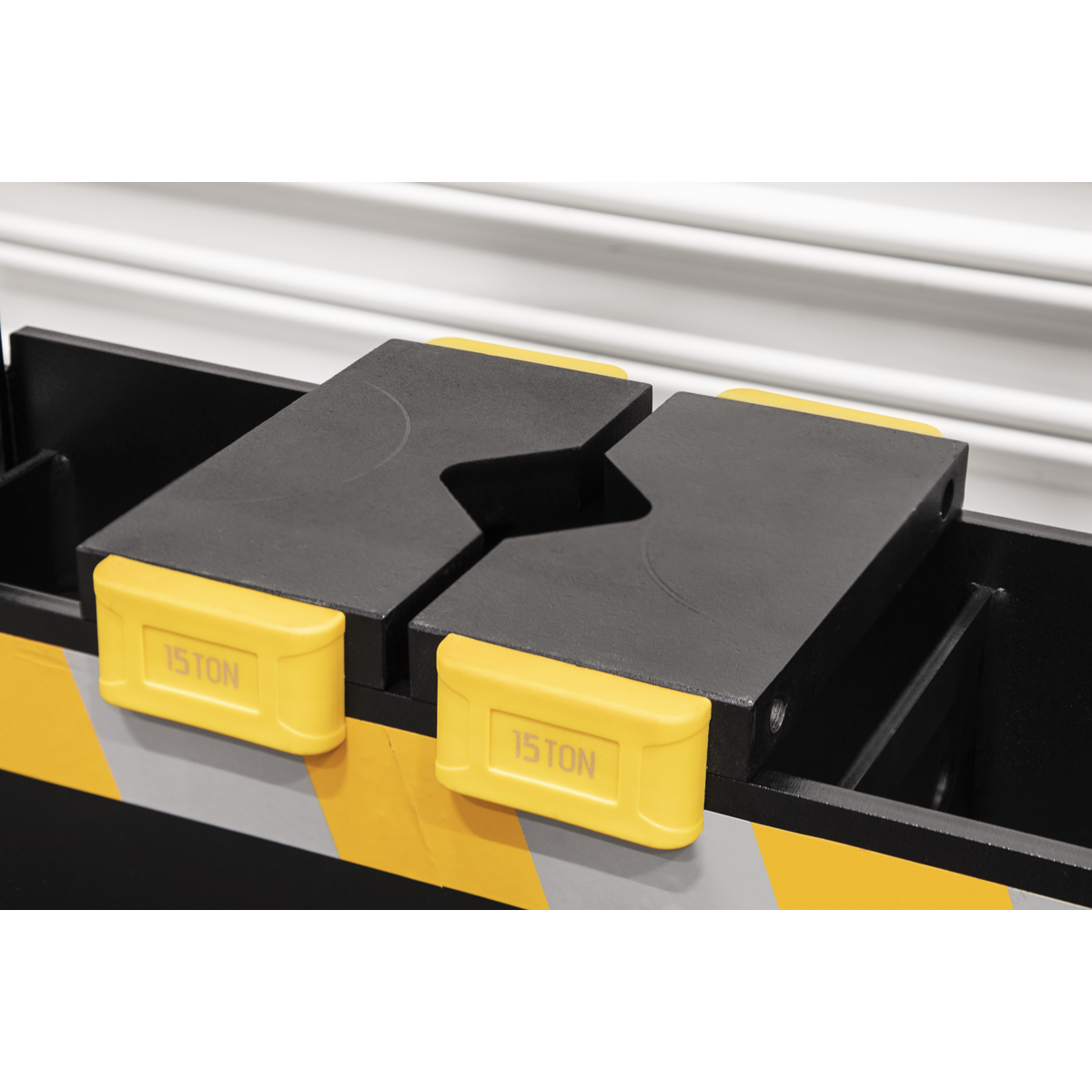

• Supplied with press pins, flat pressing plate/V-blocks.
• 5 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

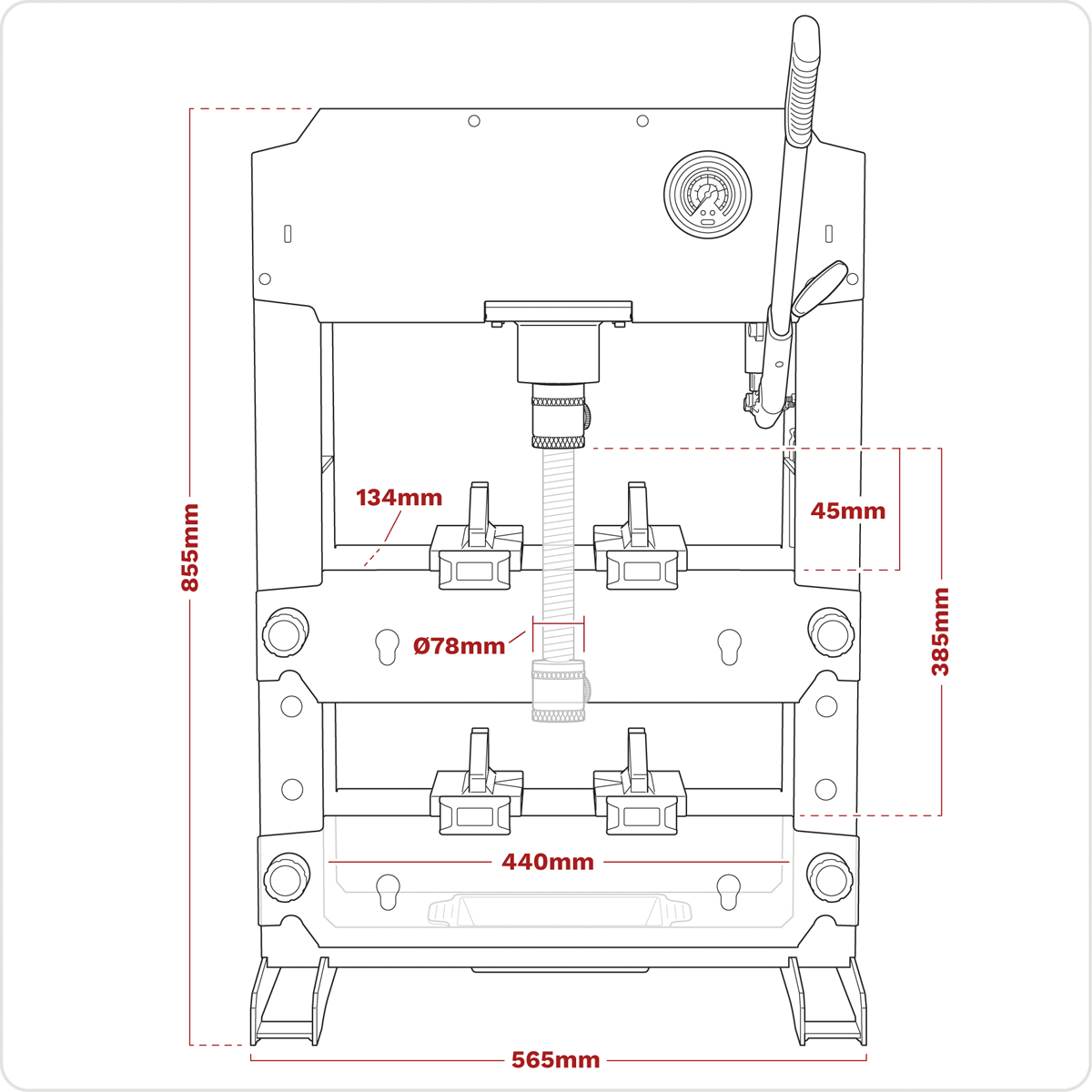

Specifications

Model No	PPB15S
Bench or Floor Mounting:	Bench
Brand:	Viking
Capacity:	15 Tonne
Gauge Included:	Yes
Lateral Ram Travel:	n/a
Maximum Height - Ram to Table:	347mm
Minimum Height - Ram to Table:	55mm
Nett Weight:	56.3kg
Operating Table Width:	440mm
Overall Height:	855mm
Ram Diameter:	Ø79.2mm
Ram Stroke:	170mm
Screw Extension:	75mm
Table Aperture:	147mm
Type:	Bench Type
Working Table Depth:	163mm
Working Table Width:	565mm
