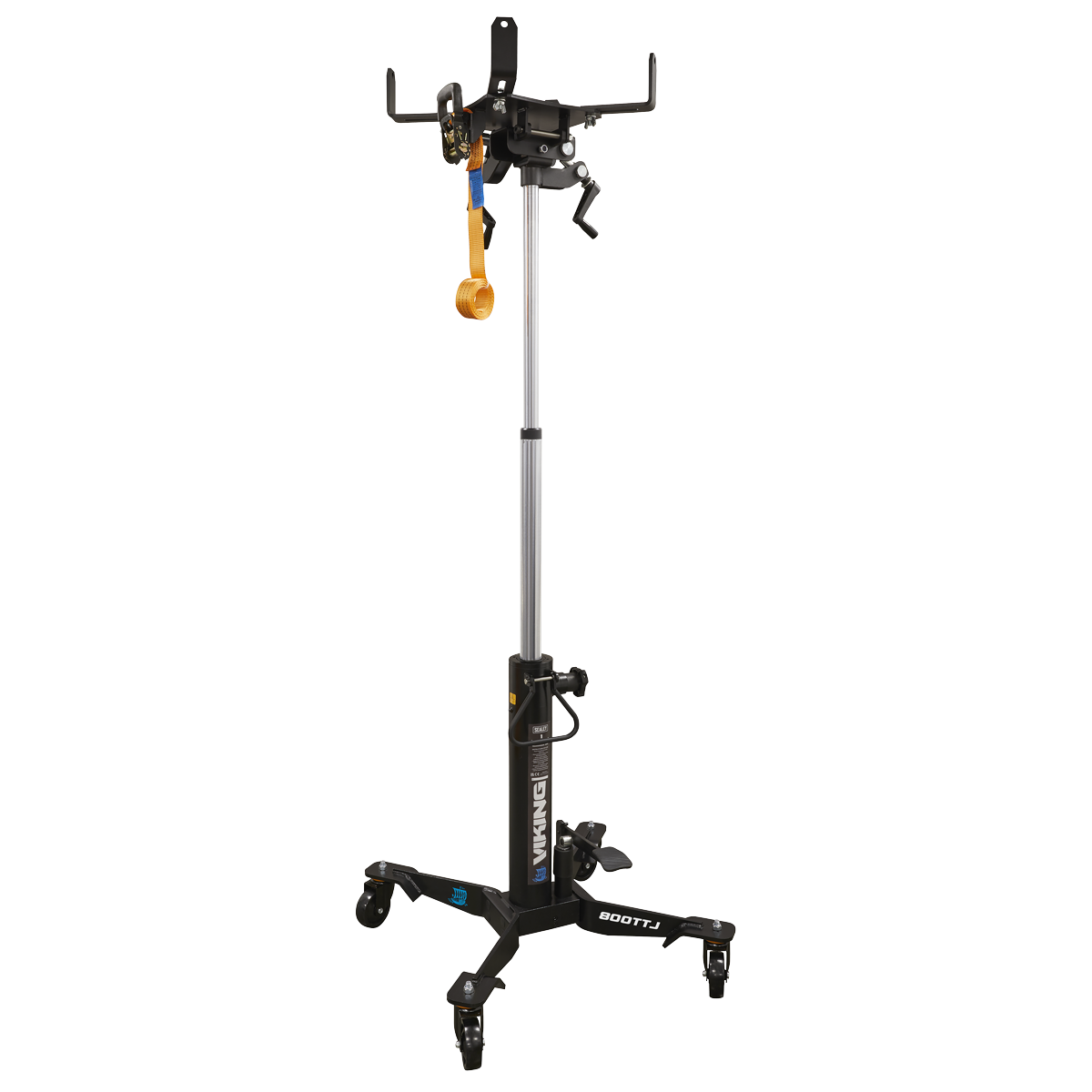

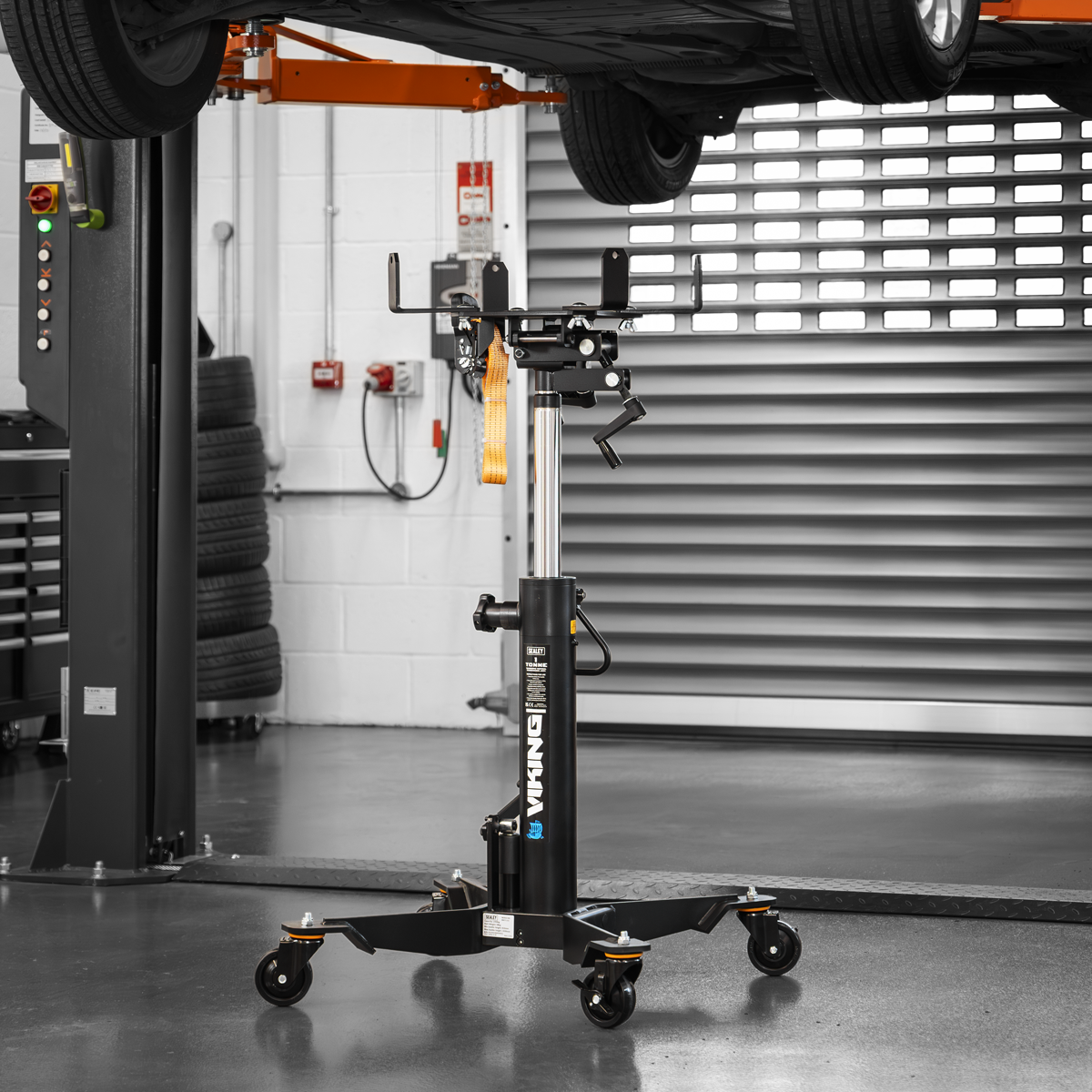

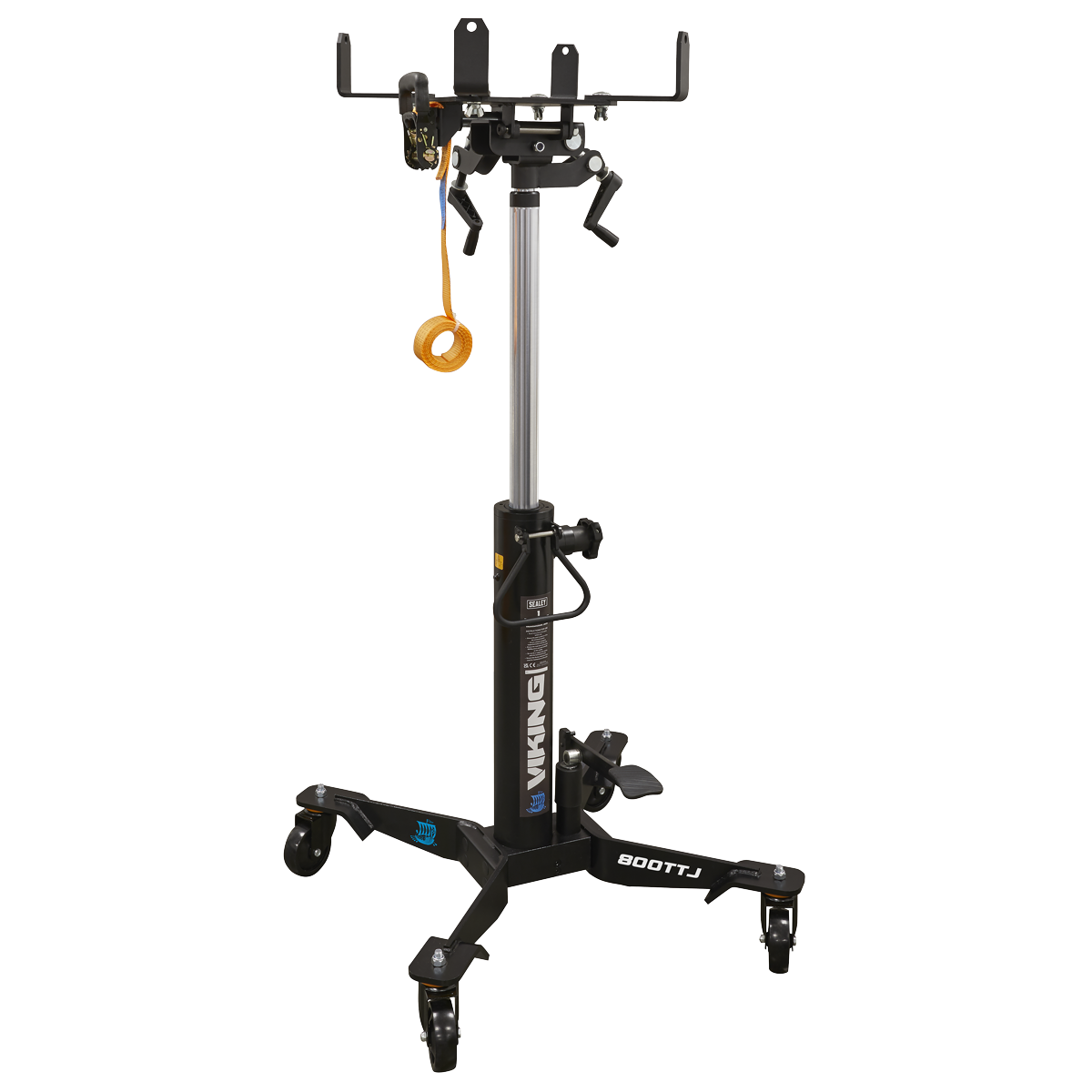

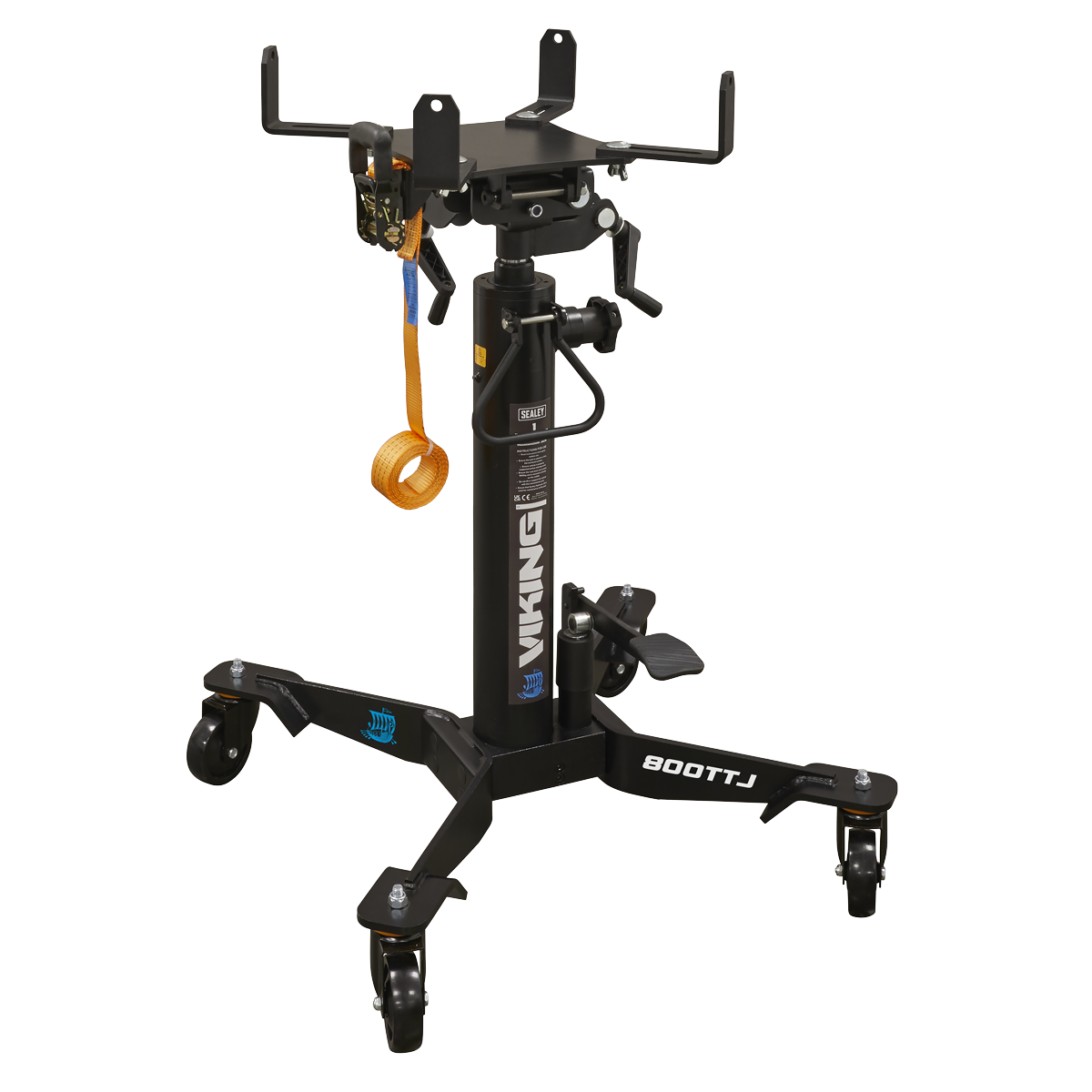

Viking 800TTJ Telescopic Vertical Transmission Jack 1 Tonne

Twin axis saddle adjustors allow the gearbox support to be angled in any direction. A 2-stage telescopic piston for reduced clearance lifts. A harden chrome plated piston rod. Foot pedal operation keeps hands-free. Spring loaded dead man's safety release control reduces the risk of inadvertent lowering. Four heavy duty castors, with non-marking nylon wheels, on a sturdy base, make for easy manoeuvrability.

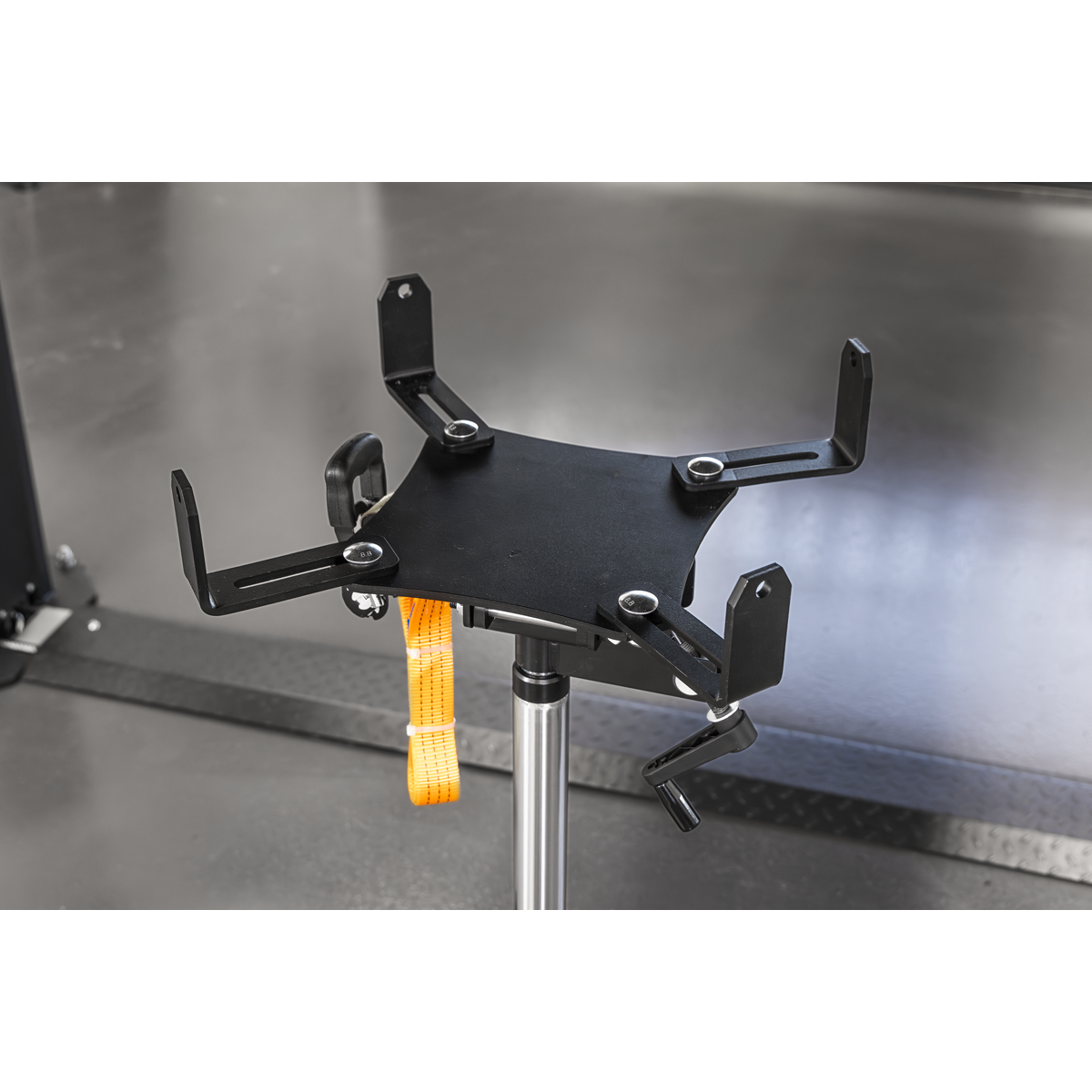

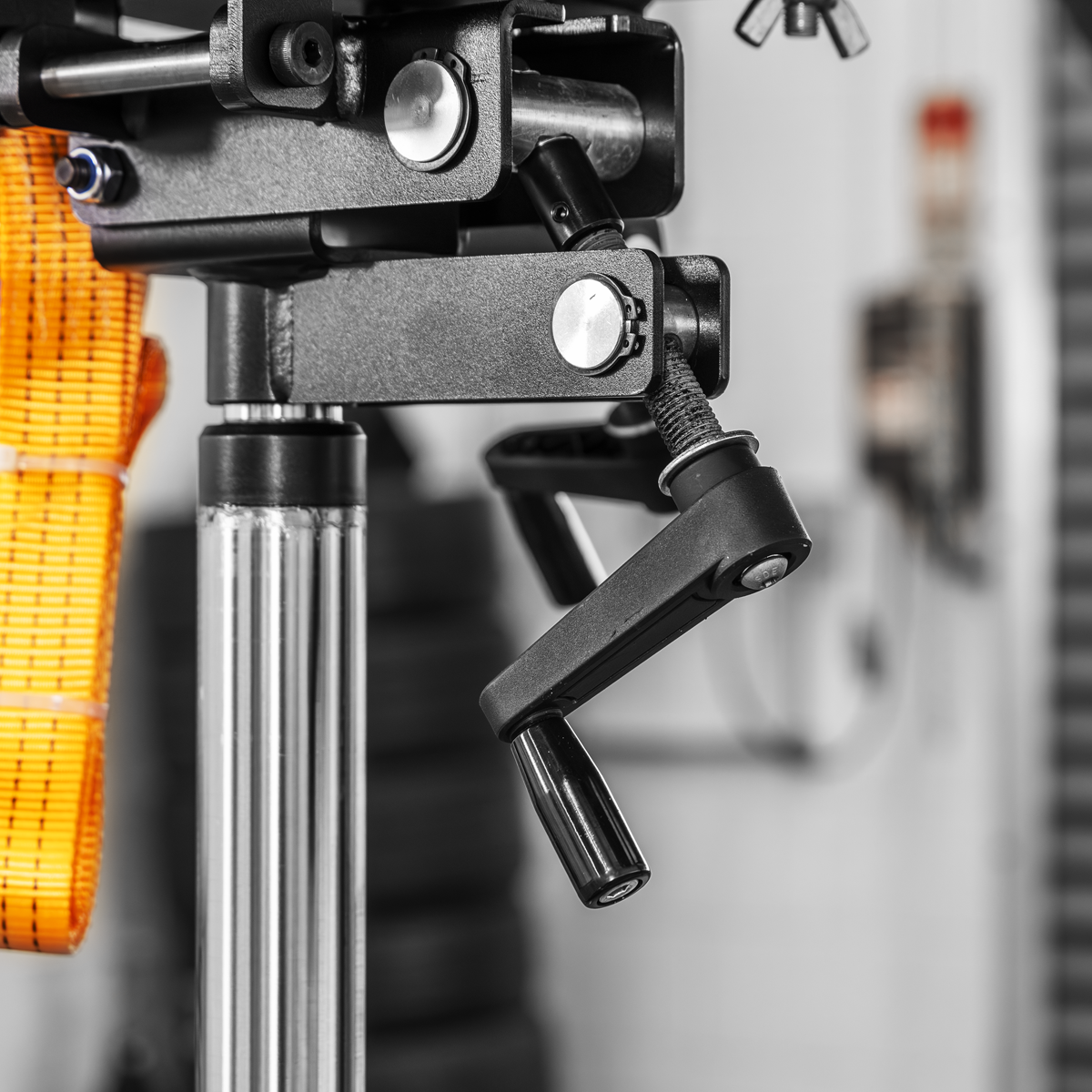

• TWIN AXIS SADDLE ADJUSTORS - The gearbox support can be angled in any direction.
• TELESCOPIC PISTON - 2-Stage model for reduced clearance lifts.
• HARD CHROME - A harden chrome plated piston rod.

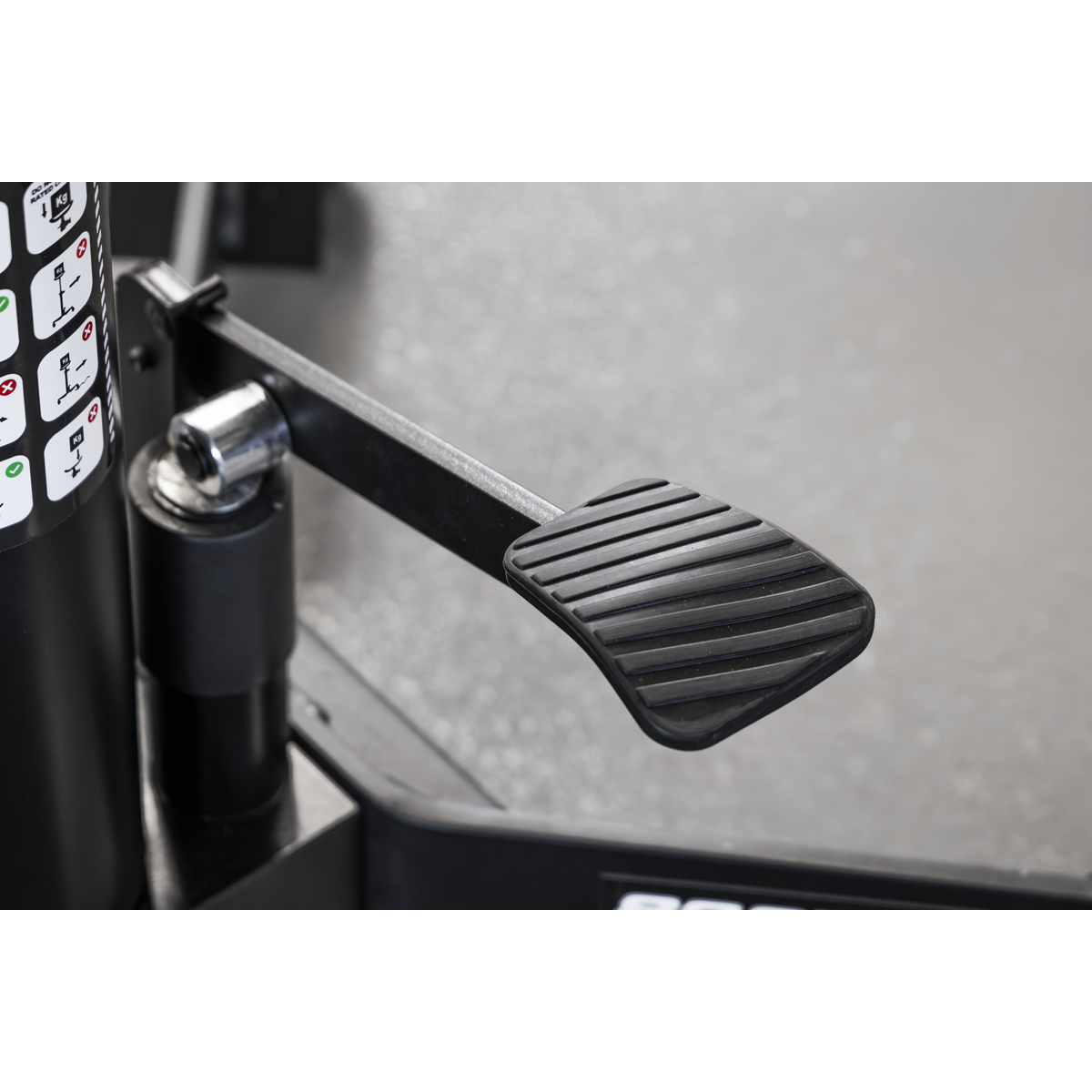

• HANDS-FREE - Foot pedal operation keeps hands-free.

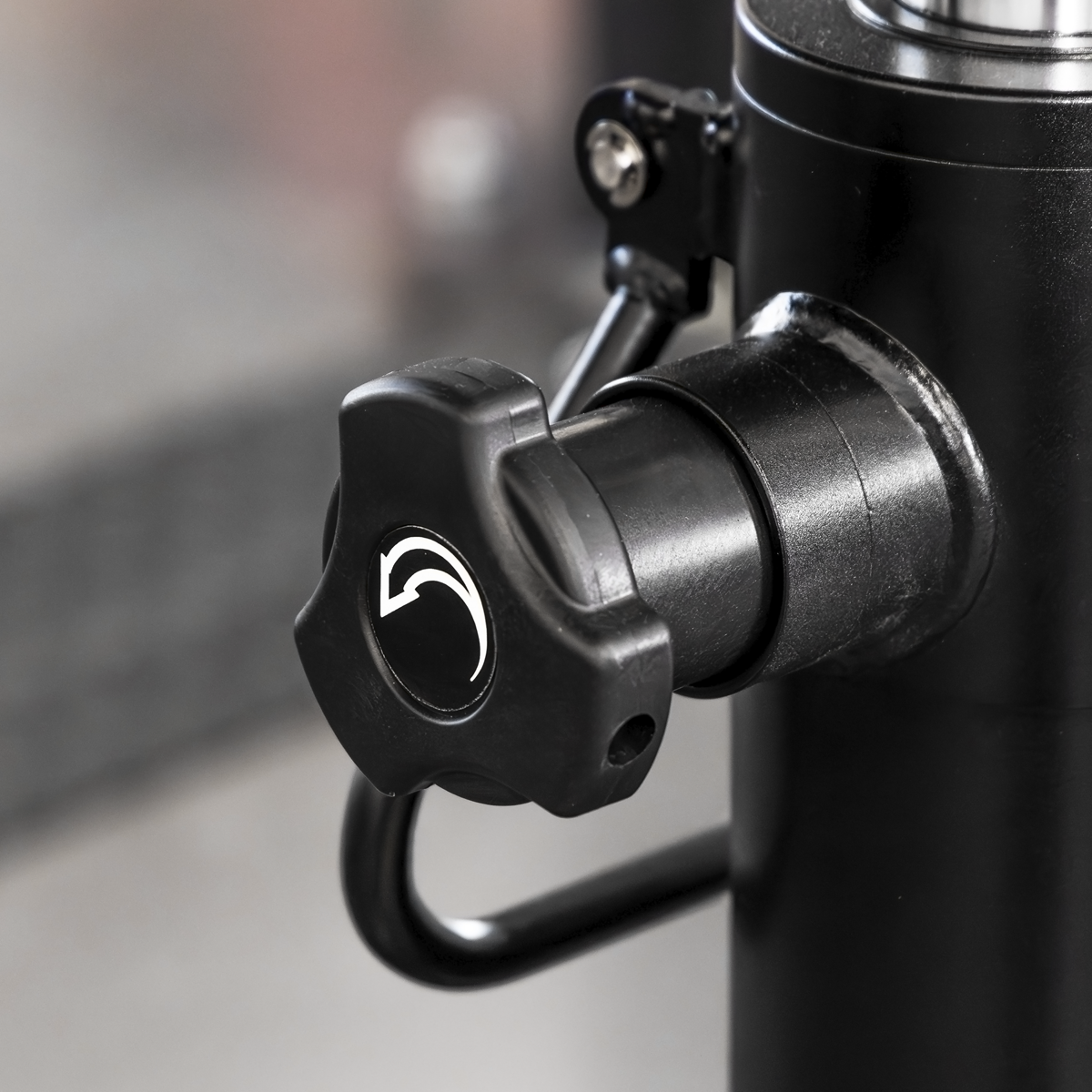

• DEAD MAN'S RELEASE CONTROL - Spring loaded dead man's safety release control, reduces the risk of inadvertent lowering.

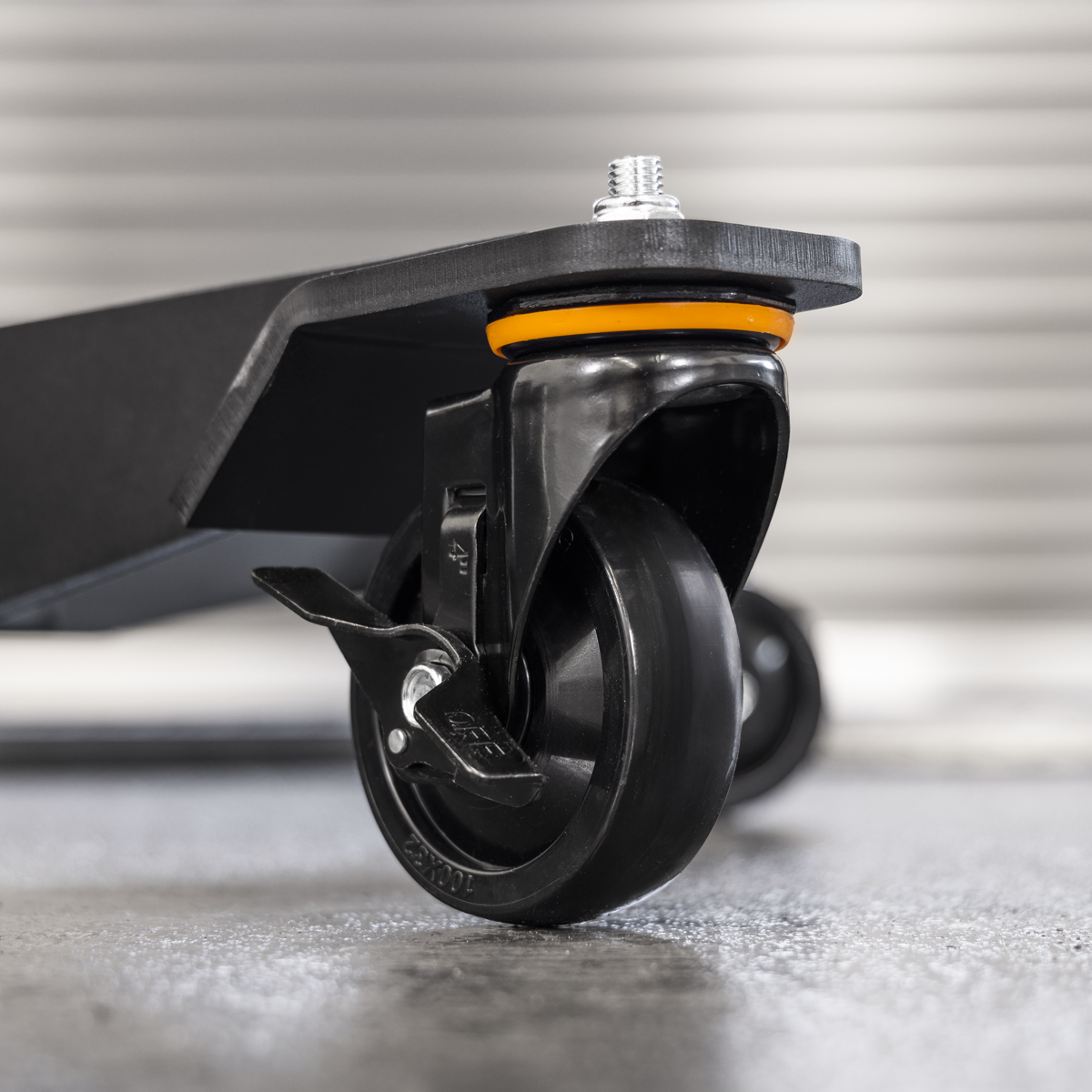

• HEAVY DUTY CASTORS - Four heavy duty castors, non-marking nylon wheels, on a sturdy base, make for easy manoeuvrability.

Specifications

Model No	800TTJ
Base Size:	600 x 600mm
Brand:	Viking
Capacity:	1000kg
Fixed/Adjustable Saddle:	Adjustable
Maximum Saddle Height:	1930mm
Minimum Saddle Height:	910mm
Nett Weight:	58kg
Pump Strokes to Maximum Height:	n/a
Ram Extensions:	2
Saddle Adjustment - Left-to-Right:	n/a
Saddle Tilt - Backward:	10°
Saddle Tilt - Forward:	10°
