Sealey Air/Hydraulic Floor Type Press 20 Tonne YK20FAH

Name: Sealey Air/Hydraulic Floor Type Press 20 Tonne YK20FAH
SKU: SEALEY-YK20FAH
Price: 666.91 GBP
Availability: InStock

£666.91 GBP

~~£707.94 GBP~~ £666.91 GBP

Reduced Sold out

Taxes included. Shipping calculated at checkout.

Quantity

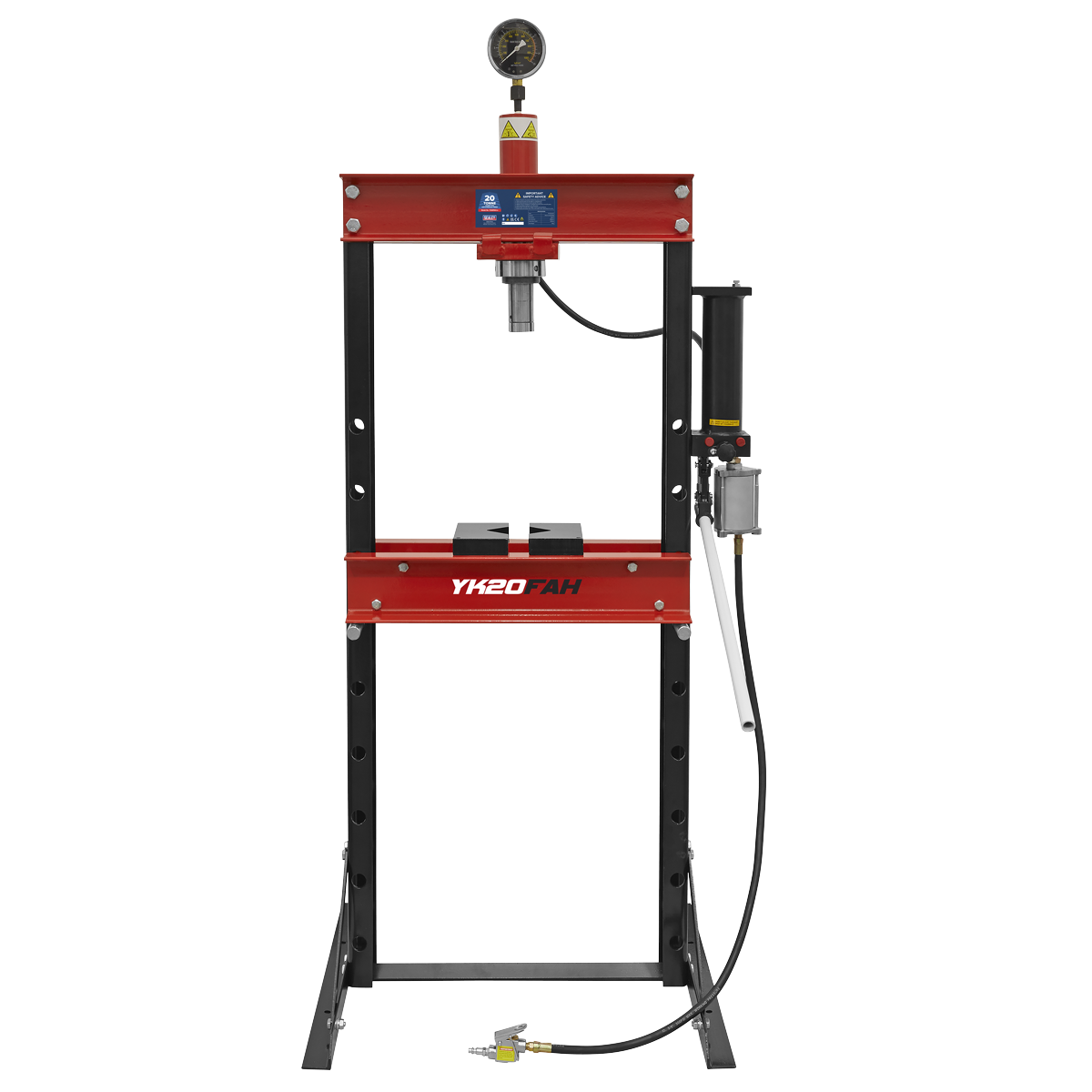

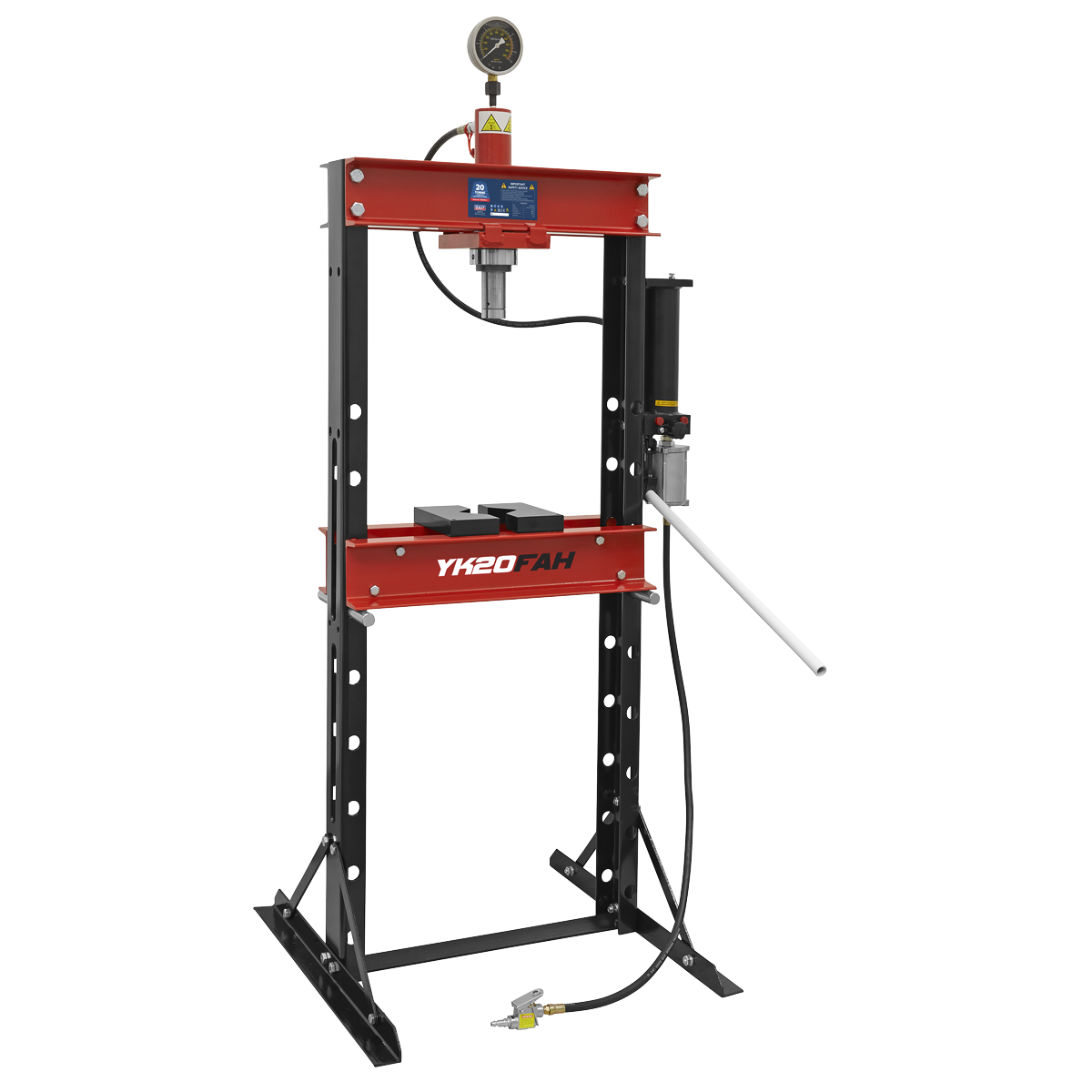

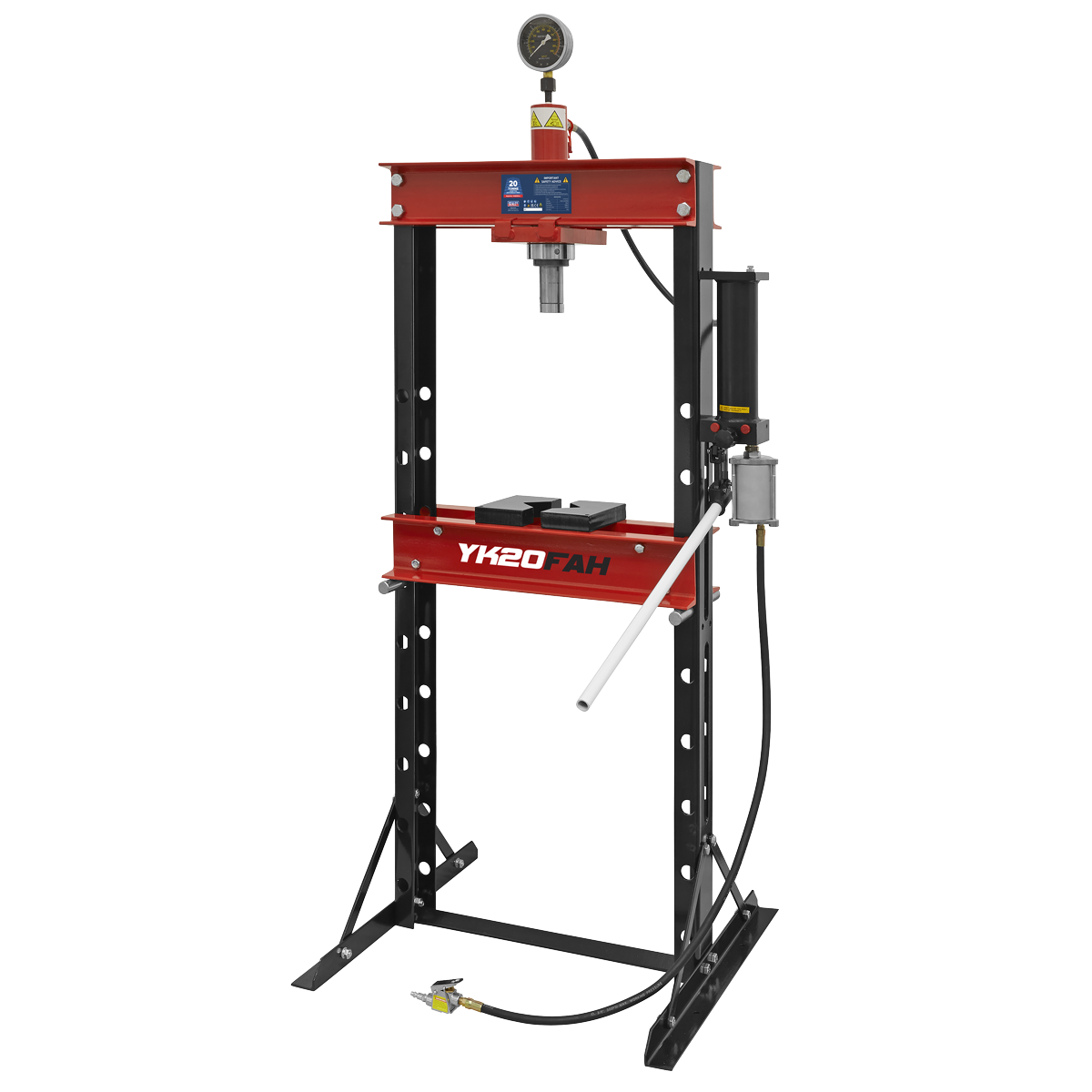

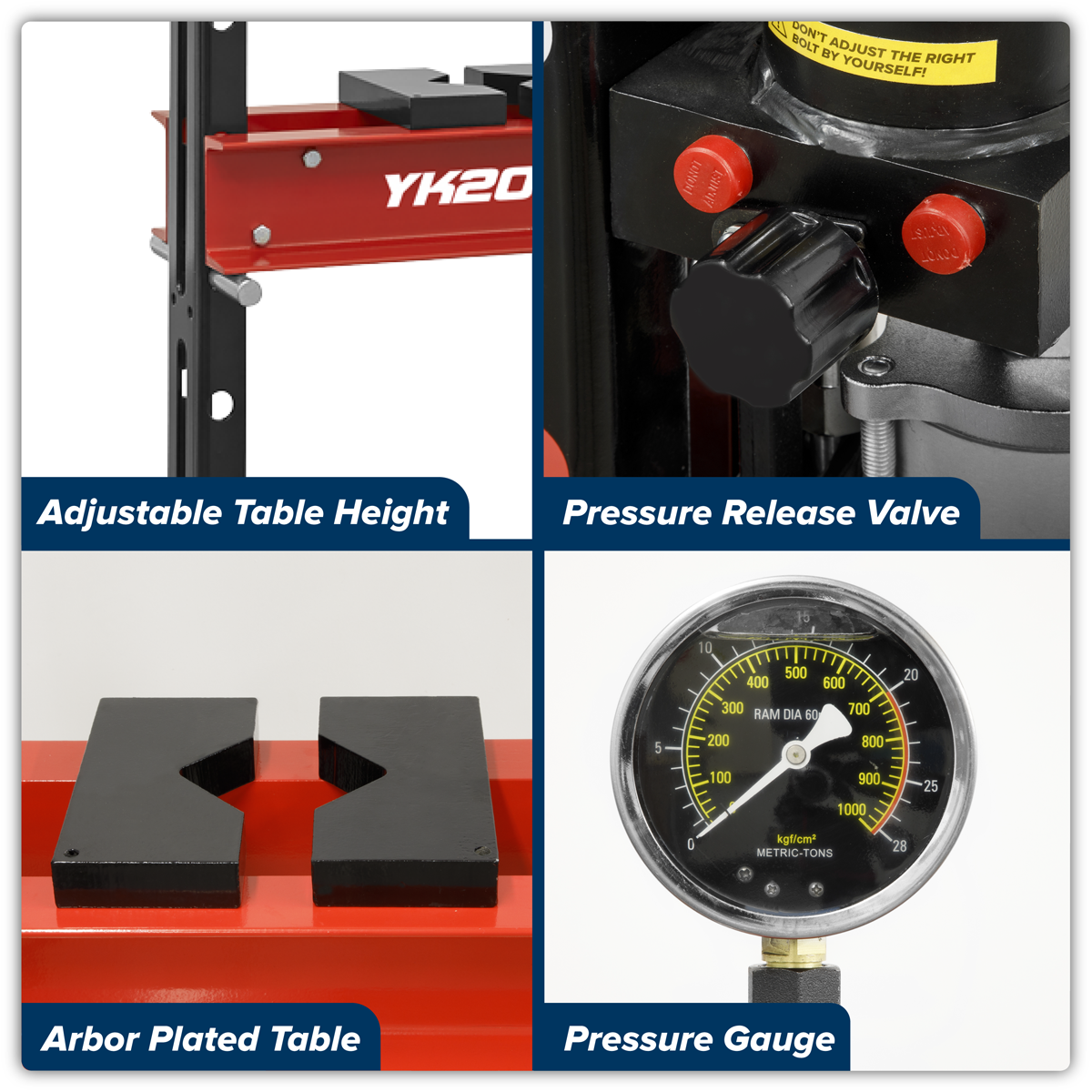

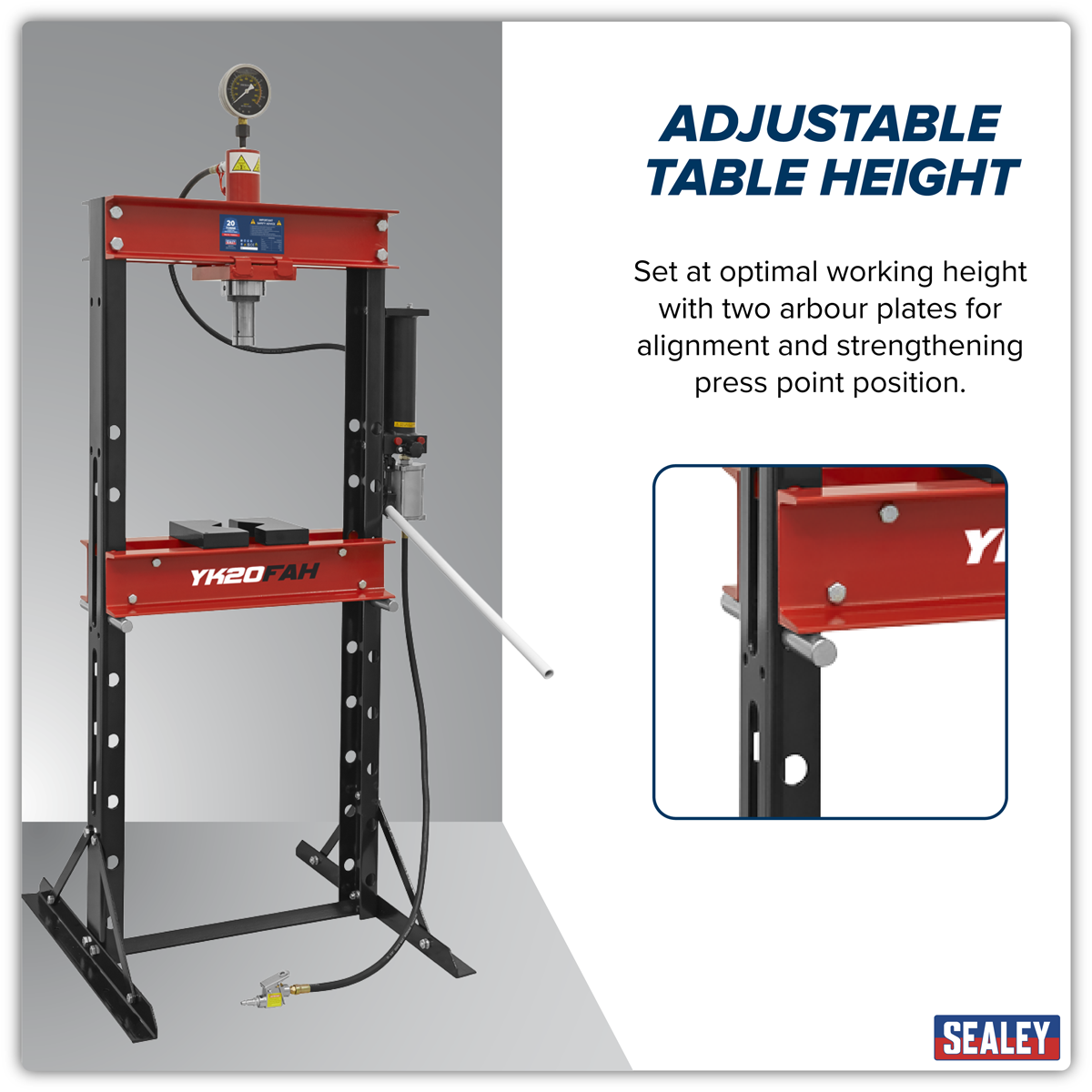

Steel frame construction with side mounted, air motor powering hydraulic pump unit. Sliding hydraulic ram assembly giving 403mm of lateral travel for off-centre pressing applications. Fitted with ram pressure gauge and supplied with flat pressing plate/V-blocks.

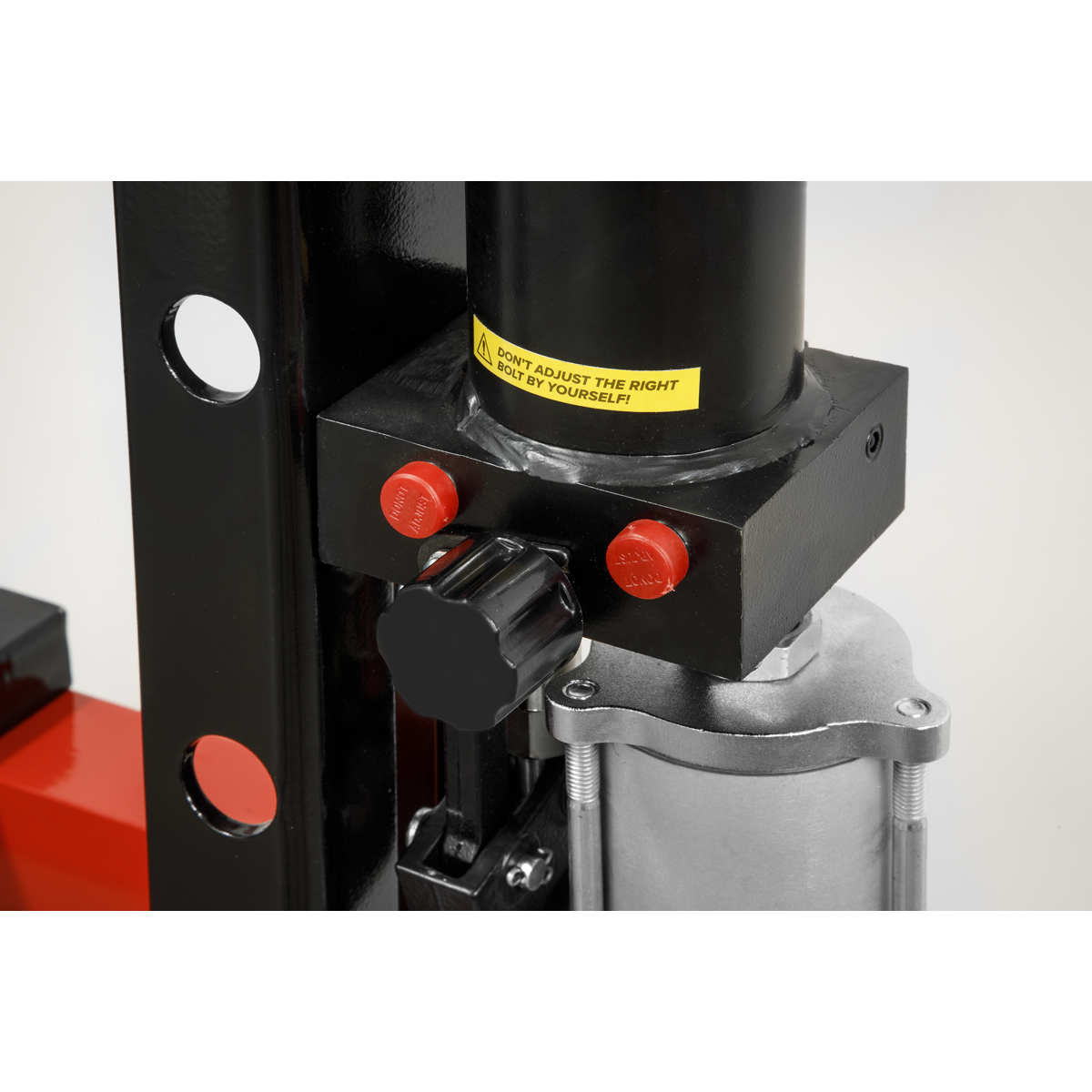

• Steel frame construction with side mounted air motor powering hydraulic pump unit.
• Sliding hydraulic ram assembly giving 403mm of lateral travel for off-centre pressing applications.

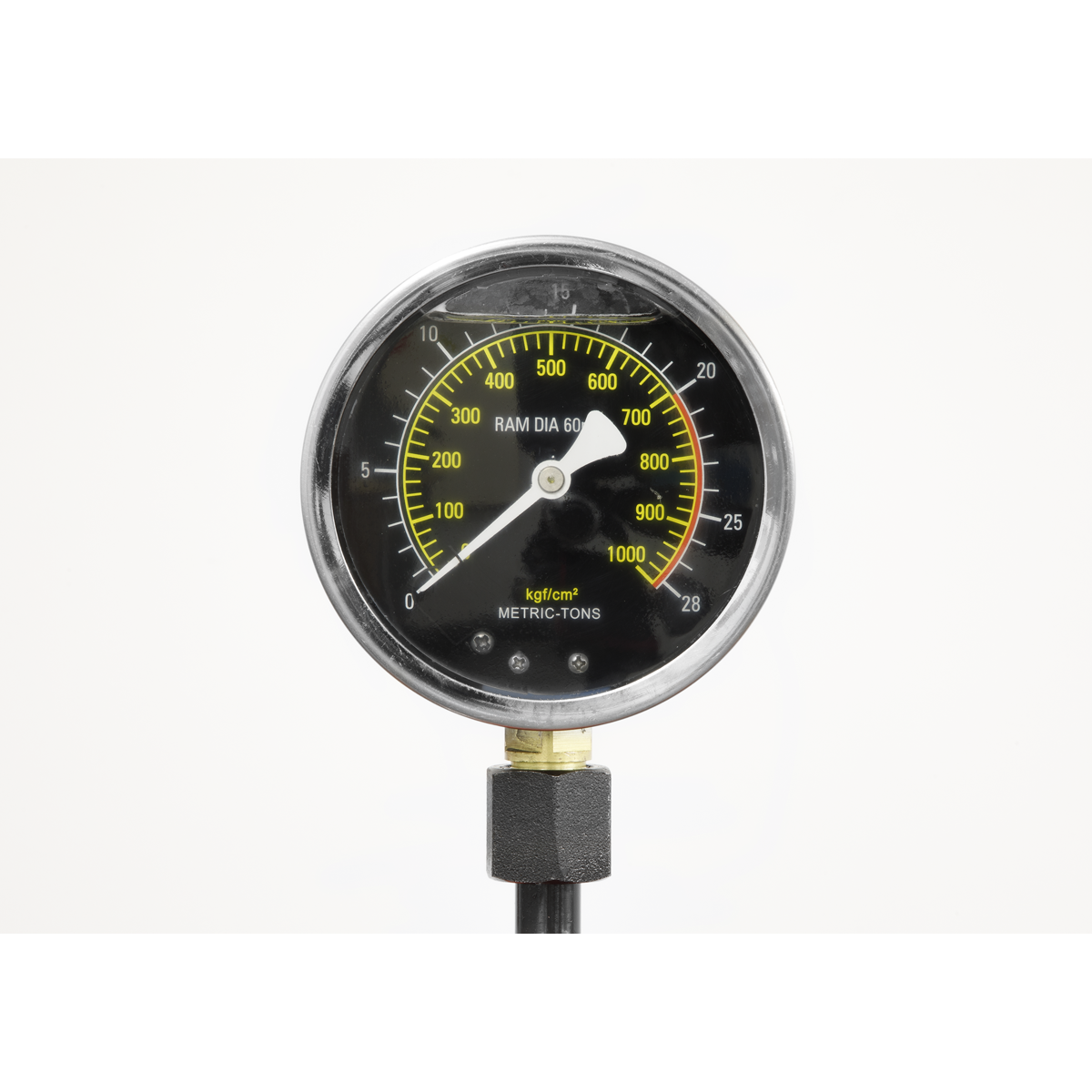

• Fitted with ram pressure gauge.

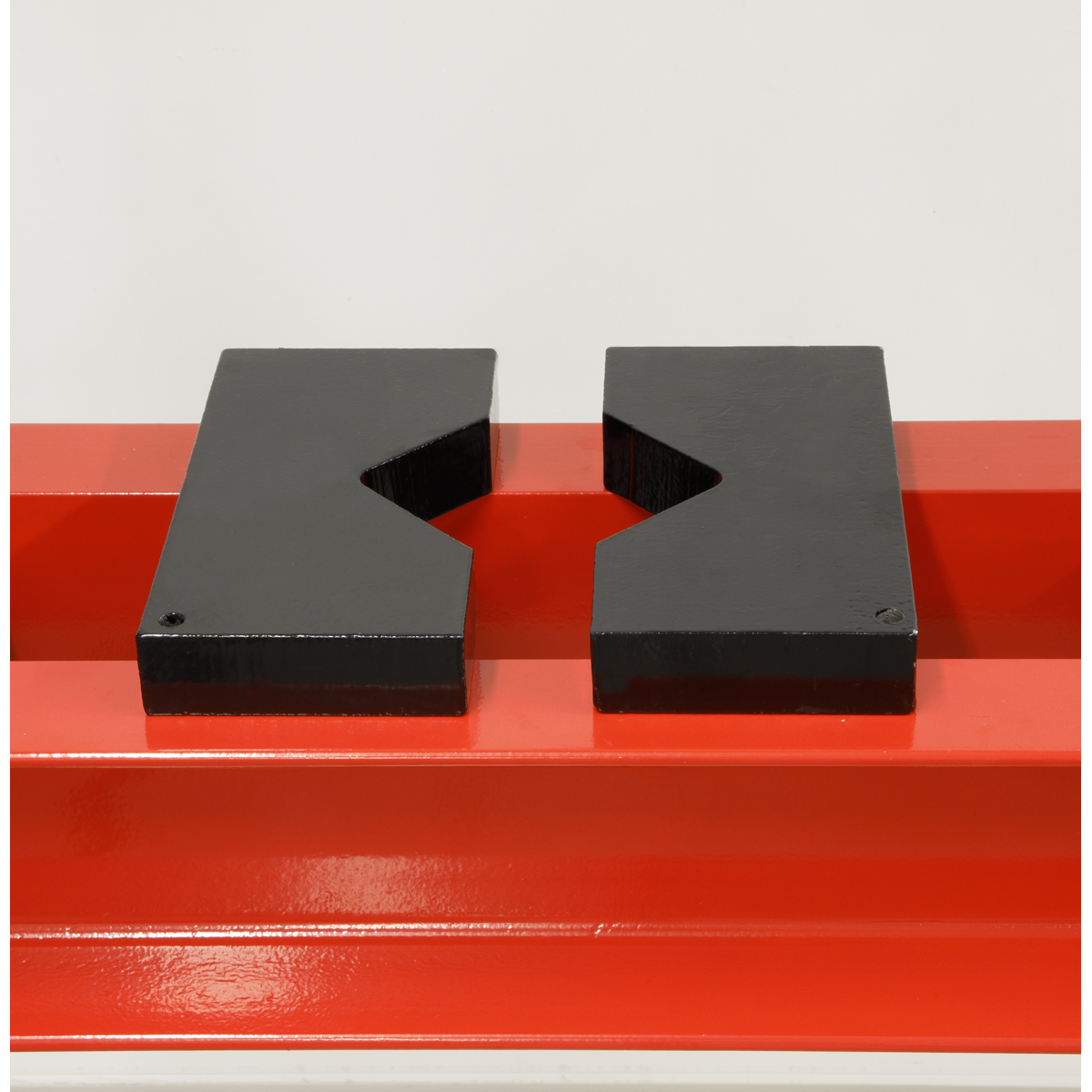

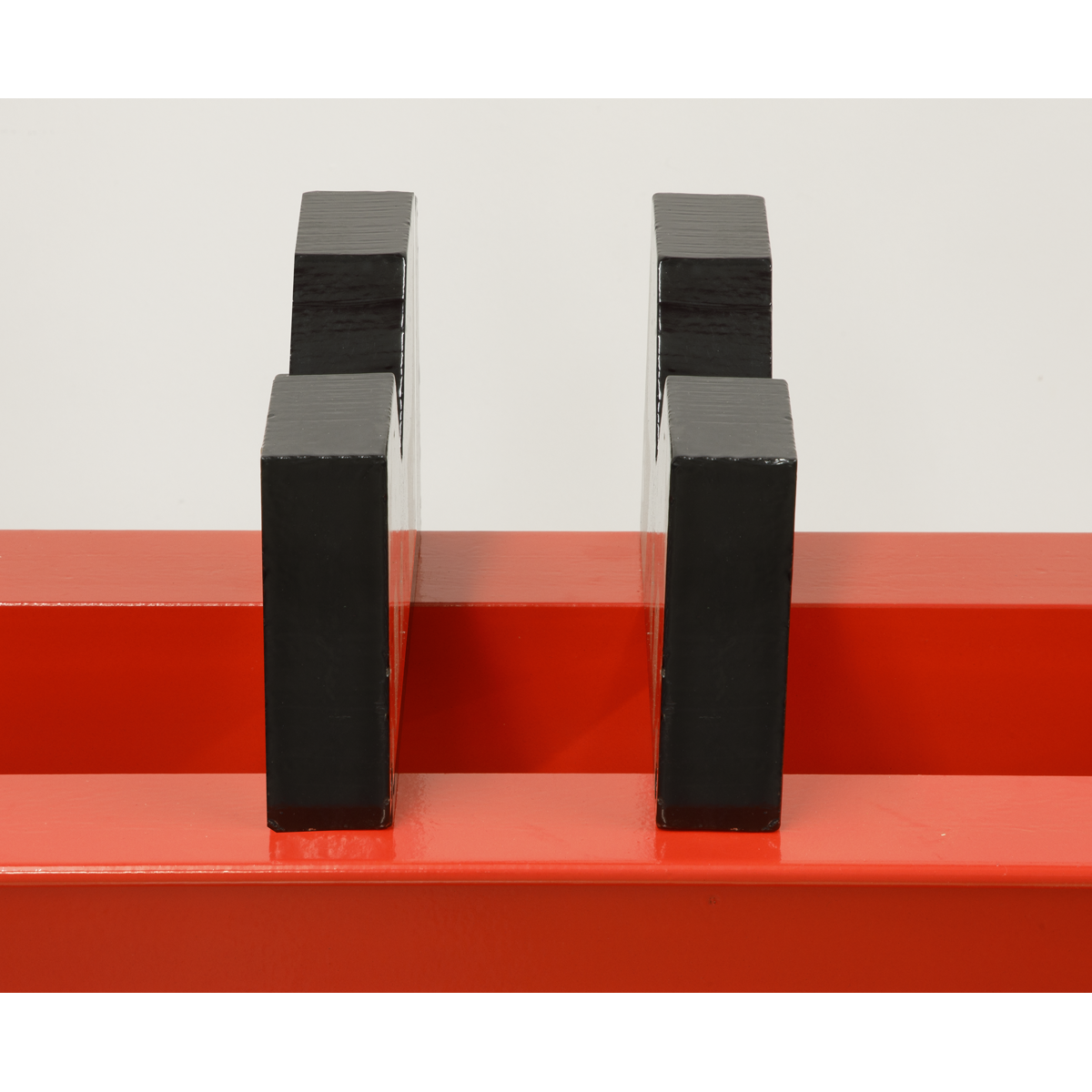

• Supplied with flat pressing plate/V-blocks.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

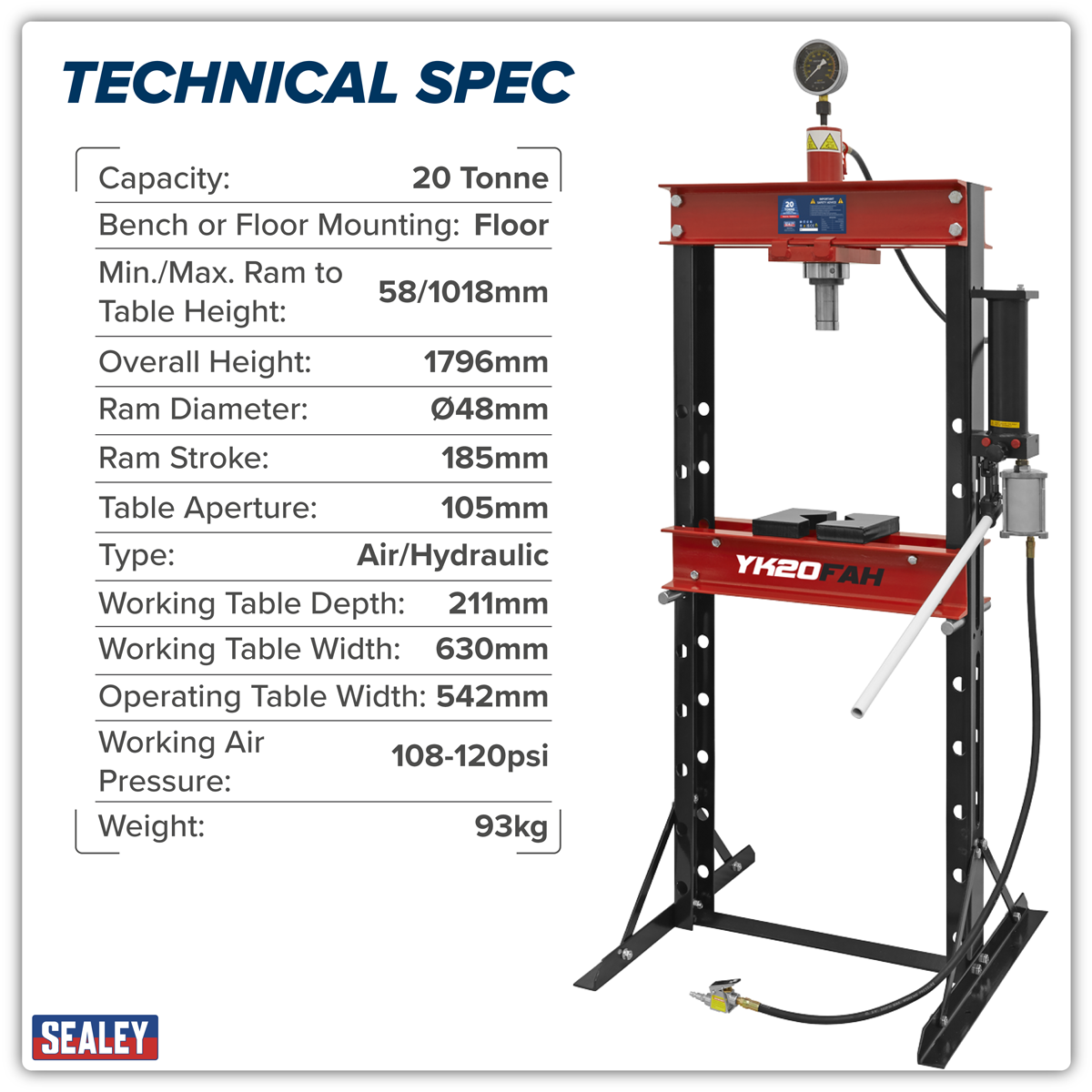

Specifications

Model No	YK20FAH
Air Consumption:	7.06cfm
Bench or Floor Mounting:	Floor
Brand:	Sealey
Capacity:	20 Tonne
Gauge Included:	Yes
Lateral Ram Travel:	403mm
Maximum Height - Ram to Table:	1018mm
Minimum Height - Ram to Table:	58mm
Nett Weight:	93kg
Operating Table Width:	542mm
Optional Accessories:	YKPP8 - Press Pin Set
Overall Height:	1796mm
Ram Diameter:	Ø48mm
Ram Stroke:	185mm
Table Aperture:	105mm
Type:	Air/Hydraulic
Working Table Depth:	211mm
Working Table Width:	630mm
