Sealey Diesel Engine Timing Tool Kit for PSA Ford Volvo 14D/15D/16D HDi/TDCi - …

Name: Sealey Diesel Engine Timing Tool Kit for PSA Ford Volvo 14D/15D/16D HDi/TDCi - …
SKU: SEALEY-VSE5846
Price: 19.27 GBP
Availability: InStock

£19.27 GBP

~~£17.94 GBP~~ £19.27 GBP

Reduced by £-1.33 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

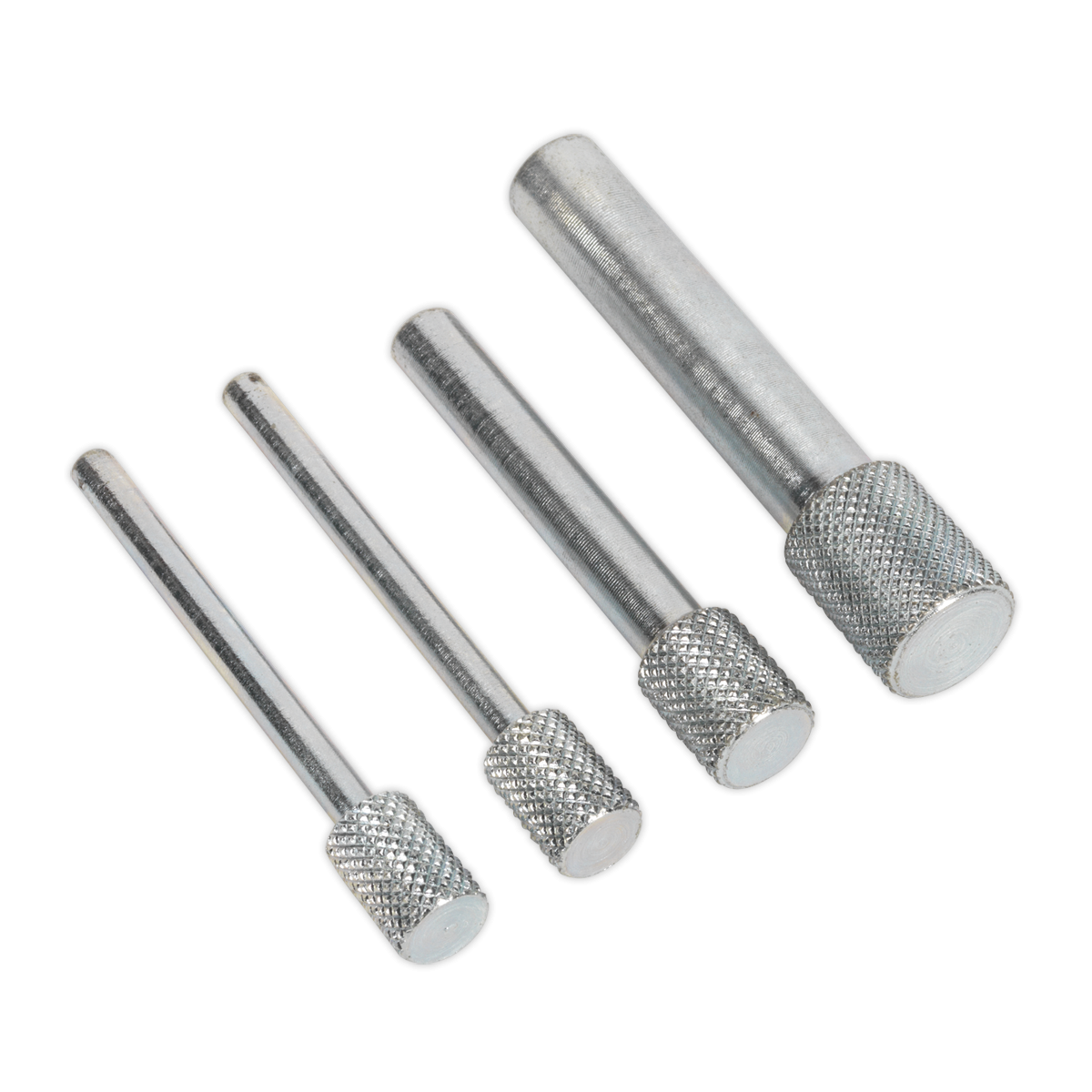

Set of locking pins for timing belt replacement on Ford 1.5, PSA 1.4 (DV4) and 1.6 (DV6) diesel engines fitted in Citroen, Peugeot, Ford, Mazda, Suzuki, Toyota and Volvo models. These timing pins lock and hold the camshaft, crankshaft, flywheel and HP pump in the timed position.

• Set of locking pins for timing belt replacement on Ford 1.5, PSA 1.4 (DV4) and 1.6 (DV6) diesel engines fitted in Citroen, Peugeot, Ford, Mazda, Suzuki, Toyota and Volvo models.
• OEM Tools, 0194-A, 0194-B, 0194-C

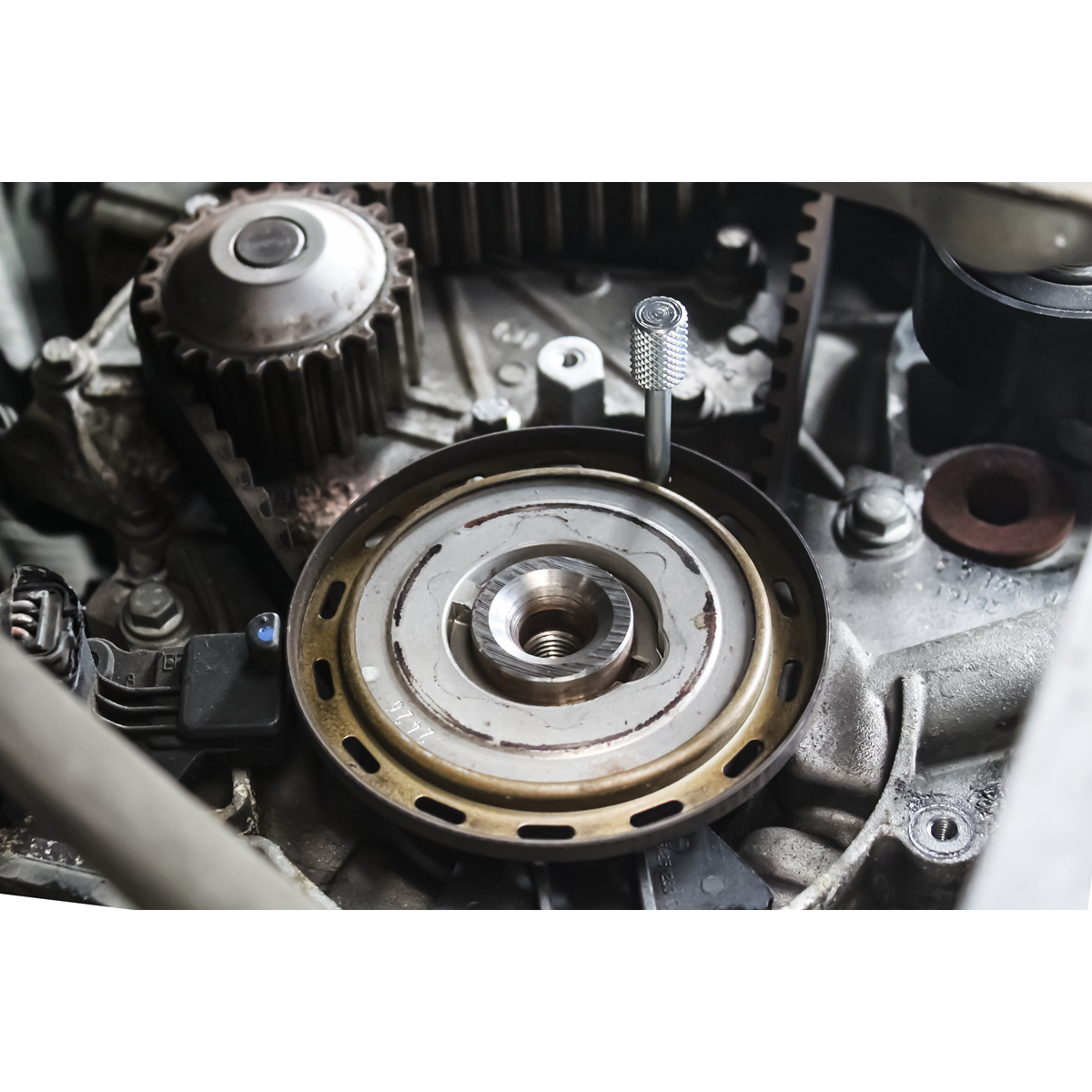

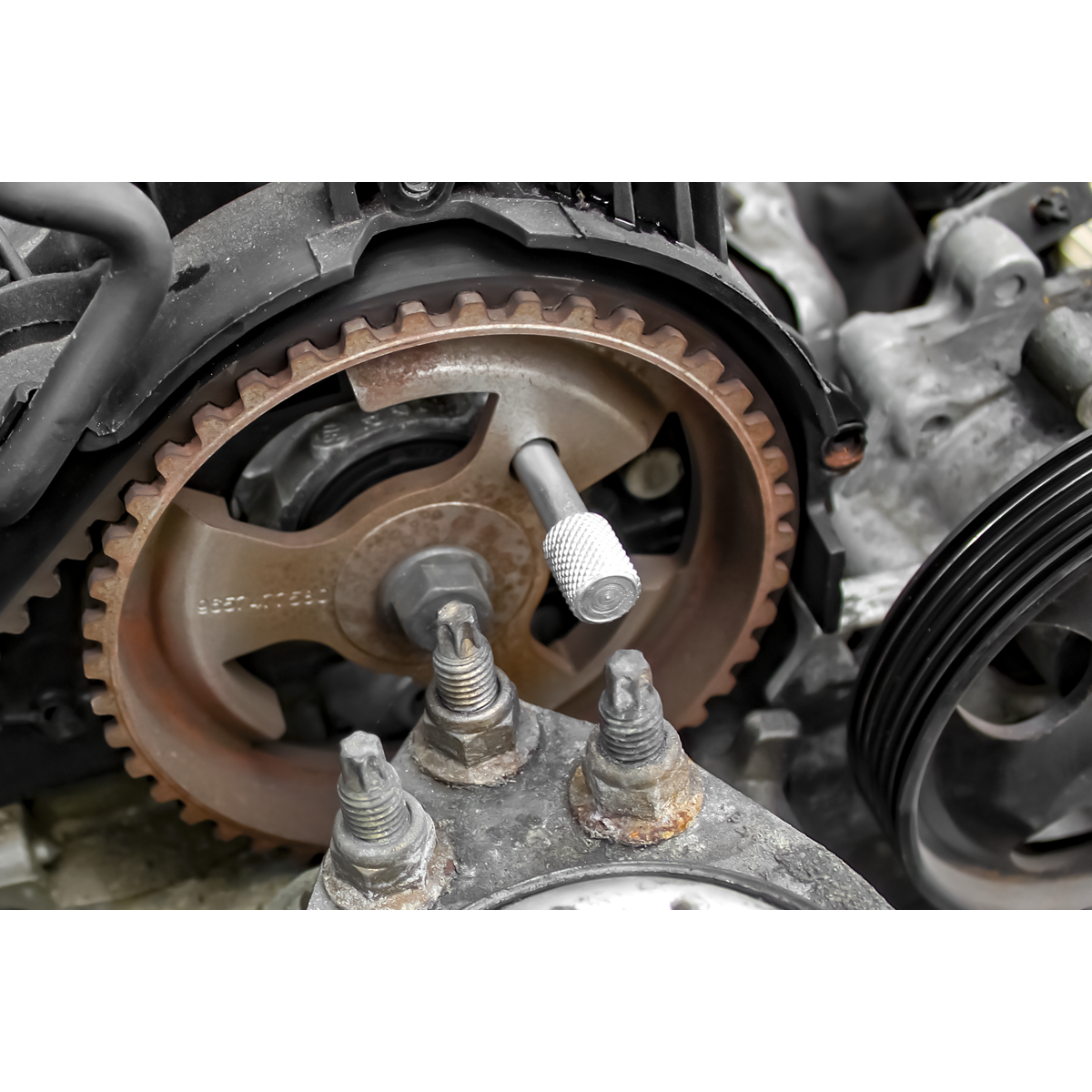

• These timing pins lock and hold the camshaft, crankshaft, flywheel and HP pump in the timed position.

Specifications

Model No	VSE5846
Applications:
Citroen:	Berlingo I/II (05-11), Berlingo III (08-18), Berlingo IV (14-19), C1 (05-10), C2 (03-10), C3 I/II (02-10), C3 III (10-18), C III IV (16-18), C3 Picasso (09-12), C3 Pluriel (04-10), DS3 (09-12), C4 (04-11), C4 II (11-18), C4 Picasso/Grand Picasso (06-18), C5 II (04-08), C5 III (07-12), DS4 (11-12), Nemo (08-10), Xsara II (04-08), Xsara Picasso (04-10)
Ford:	B-Max (12-18), C-Max (07-15), EcoSport (13-18), Fiesta (02-21), Focus (04-18), Focus C-Max (03-18), Fusion (04-11), Grand C-Max (10-18), Tourneo Courier (14-16)
Mazda:	2 (02-10), 3 (04-12), 5 (10-12)
Peugeot:	107 (05-10), 1007 (05-10), 206 (01-12), 206+ (10-13), 206CC (05-07), 207 (06-13), 207CC (07-15), 208 (12-18), 2008 (12-17), 307 (01-08), 308 (07-18), 308CC (09-17), 3008 (09-18), 407 (04-11), 4008 (12-15), 508 (11-18), 5008 (09-18), Bipper (08-10), Expert (10-12), Partner I/II (05-11), Partner III (08-18), Rifter (18-19). Traveller (16-20)
Suzuki:	Liana (04-08), SX4 (07-11)
Toyota:	Aygo (05-10)
Volvo:	C30 (06-13), S40 (04-12), S60 (11-15), S80 (09-15), V40 (12-15), V50 (04-12), V60 (11-15), V70 (11-15)
Brand:	Sealey
Engine Codes:
1.4D:	F6JA, F6JB
1.4D D-4D:	ZWZ-TV
1.4D DDiS:	(DV4)8HY
1.4D HDi:	DV4C(8HR), DV4TD(8HT), DV4TD(8HW), DV4TD(8HX), DV4TD(8HZ), DV4TED(8HS), DV4TED4(8HX), DV4TED4(8HY), DVTED4(8HV)
1.4D TDCi:	F6JA, F6JB, F6JC, F6JD, KVJA
1.5D TDCi:	ENUG, UGCA, UGJC, XUJA, XUJB, XUJC, XUJF, XUJG, XUJH, XUJK, XUJL, XUJN, XUJM, XWDA, XWDB, XWDC, XWDD, XWDE, XWJB, XWJC, XXDA, XXDB, XXDC, XXDD
1.6D:	Y6, MZ-CD(Y6)
1.6D DDiS:	DV6(9HX)
1.6D eDrive:	D4162T, D4164T
1.6D eHDi:	DV6C(9HR), DV6FC(BHW), DV6FC(BHX), DV6FC(BHY), DV6FC(BHZ), DV6FDU(BHV), DV6FCU(BHX), DV6FDU(BHS)
1.6D HDi:	DV6(9HR), DV6ATED(9HX), DV6ATED(9HY), DV6ATED4(9HX), DV6AUTED4(9HX), DV6BTED4(9HT), DV6BTED4(9HW), DV6BUTED4(9HT), DV6C(9HL), DV6C(9HR), DV6C9(HR), DV6CATED(9HX), DV6D(9HP), DV6DTED(9HJ), DV6DTED(9HP), DV6ETED(9HN), DV6DTED(9HF), DV6FD (BHY), DV6FE (BHW), DV6TED(9HP), DV6TED4(9HV), DV6TED4(9HW), DV6TED4(9HX), DV6TED4(9HY), DV6TED4(9HZ), DV6TED4B, DV6TED4B(9HV), DV6TED4BU(9HS), DV6UTED4(9HU), DV6UTED4(9HX), DVTED4(9HV)
1.6D TDCi:	G8DA, G8DB, G8DD, G8DE, G8DF, GPDA, GPDC, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, MTDA, NGDA, T1DA, T1DB, T3DA, T3DB, T3JA, T3JB, TZJA, TZJB, UBJA
1.6D TDCI ECOnetic:	G8DD, GPDA, HHJD, TZJA, TZJB
2.0D HDi:	DW10FC(AHH), DW10FD(AHX)
Nett Weight:	0.15kg
OEM Tools:
Flywheel Locking Pin (VSE5846.01):	303-734 (21-262) (Ford), 49JE02-020 (Mazda), 0194-C (PSA), 09910-05410 (Suzuki), 999-7169 (Volvo)
Camshaft/HP Fuel Pump Locking Pins (VSE5846.02):	11-0-790 (BMW), 303-735 (212-263) (Ford), 49JE02-021 (Mazda), 0194-B (PSA), 09910-05410 Suzuki, 999-7122 (Volvo)
Crankshaft Locking Pin (VSE5846.03):	11-0-300 (BMW), 303-732 (21-260) (Ford), 49JE02-018 (Mazda), 0194-A (PSA), 09910-05410 (Suzuki), 999-7121 (Volvo)
