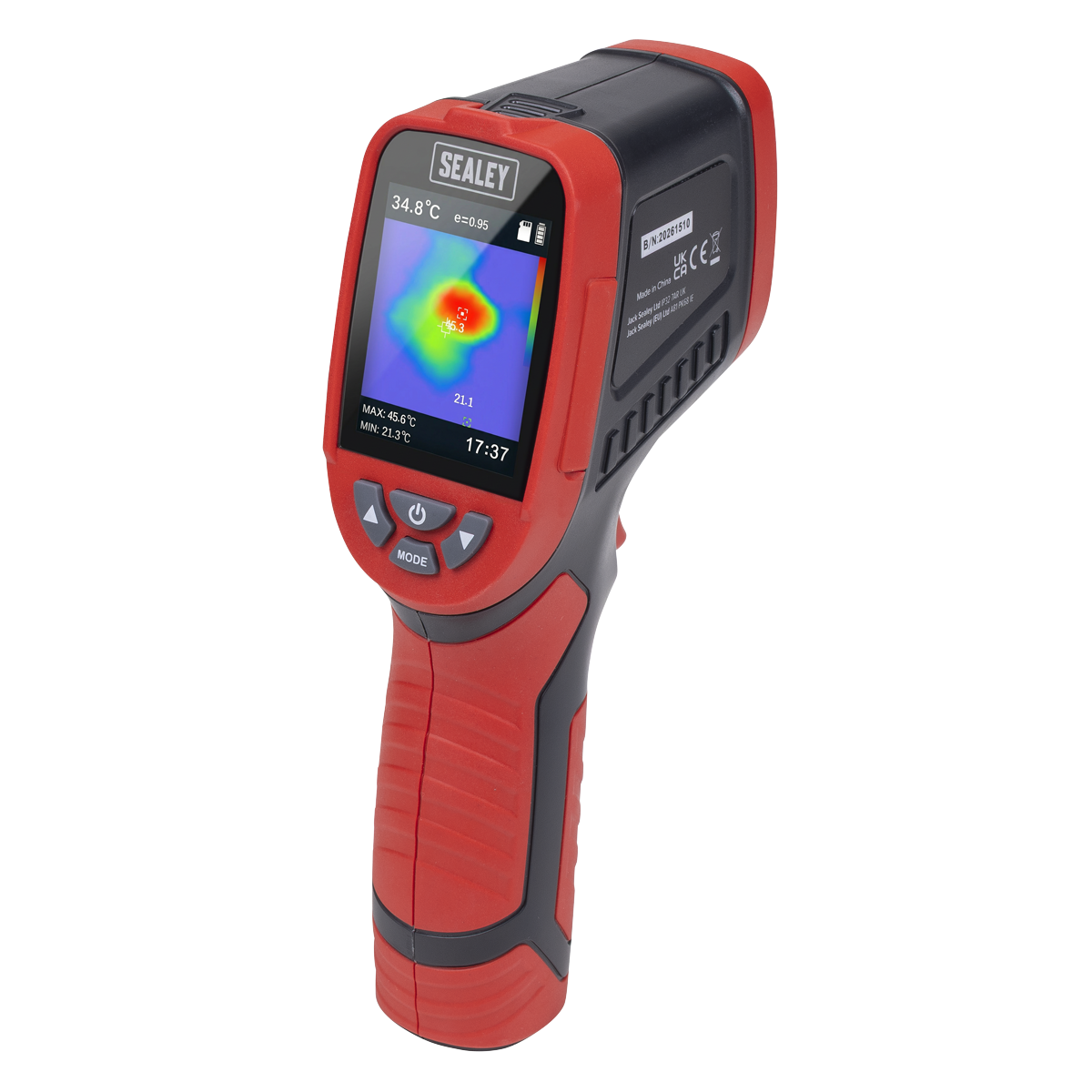

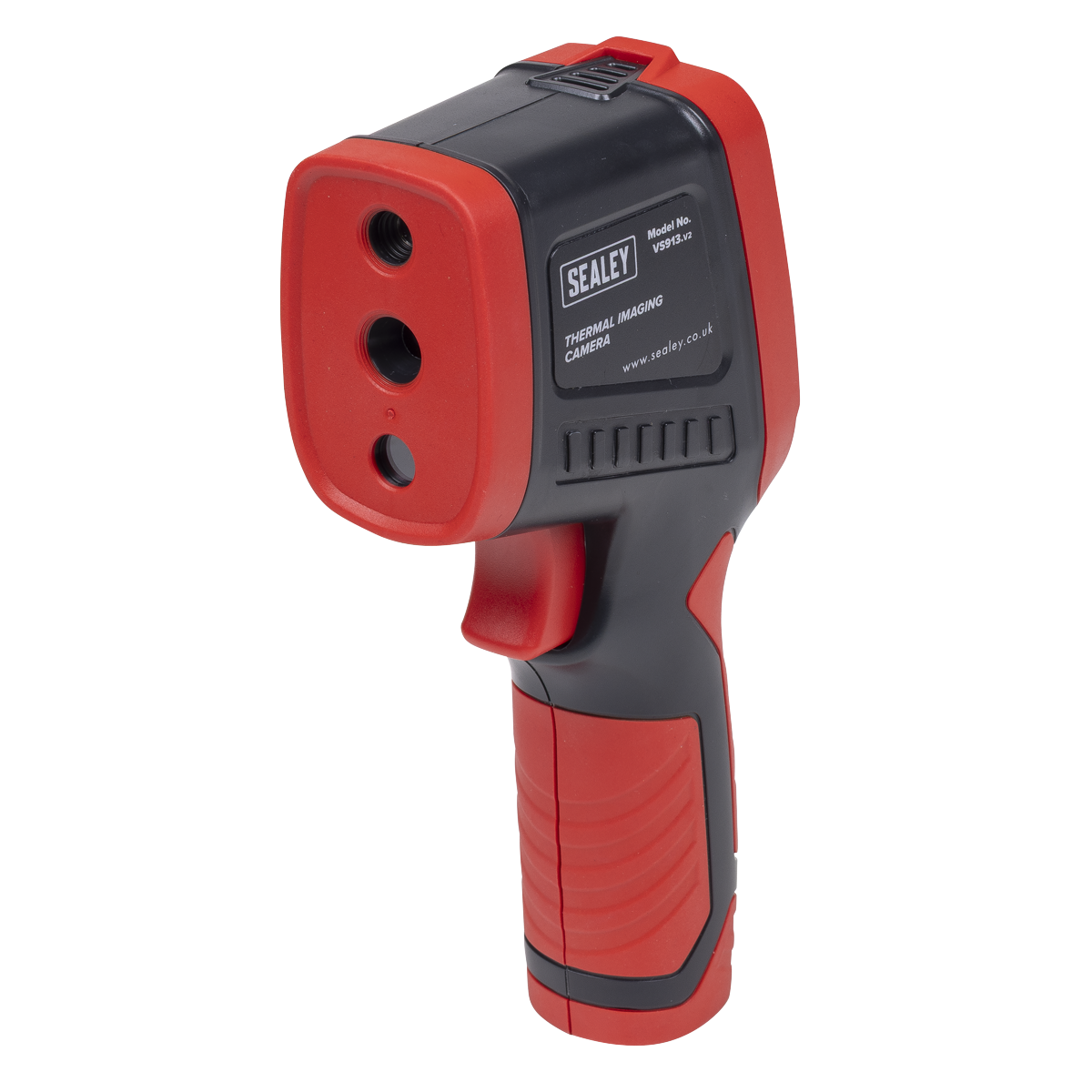

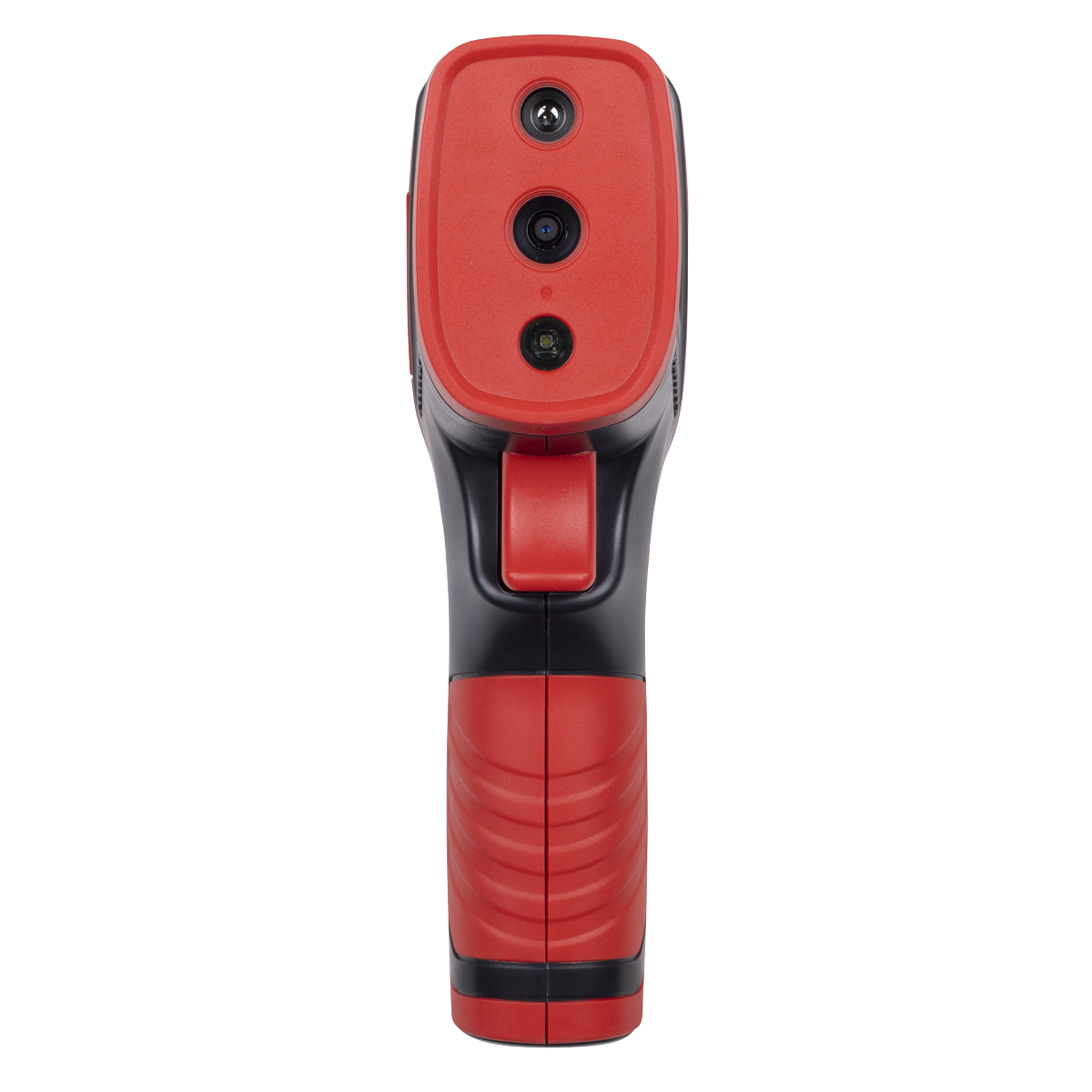

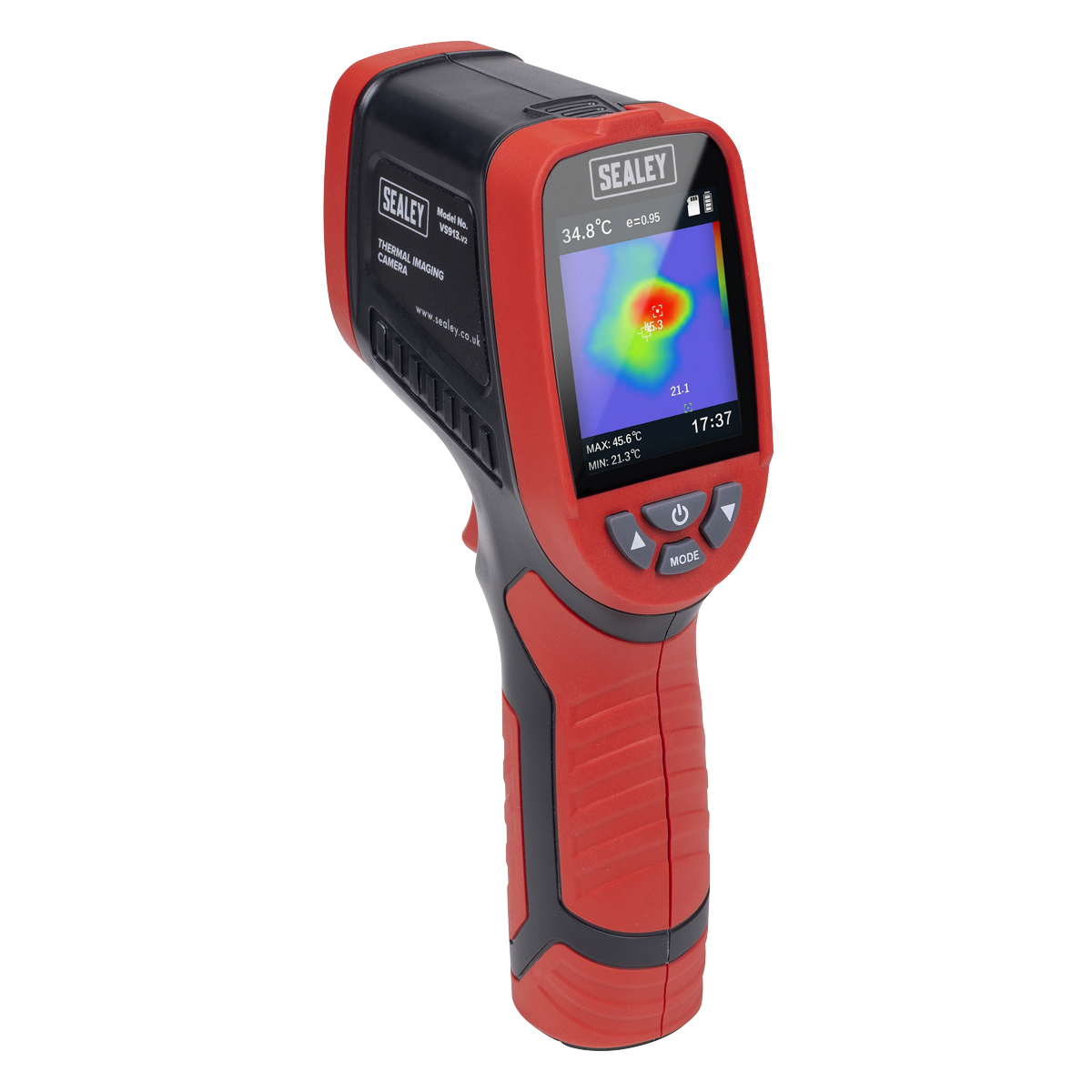

Sealey Thermal Imaging Camera VS913

Name: Sealey Thermal Imaging Camera VS913
SKU: SEALEY-VS913
Price: 245.57 GBP
Availability: InStock

£245.57 GBP

~~£311.94 GBP~~ £245.57 GBP

Reduced by £66.37 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

Thermal imaging camera identifies high and low temperature zones with precision. Heat-mapped colour palettes display temperature gradients for fast diagnostics. On-screen cursor pinpoints minimum and maximum temperature variations. Ideal for automotive, building, electrical and HVAC inspections. Clear 60mm screen delivers sharp thermal imaging for accurate diagnostics. Operates via four AA batteries (supplied) or mains power (USB-C cable supplied). Micro SD card enables image and data capture for review and reporting (supplied). Supplied in a storage case.

• ACCURATE TEMPERATURE DETECTION – Thermal imaging camera identifies high and low temperature zones with precision.

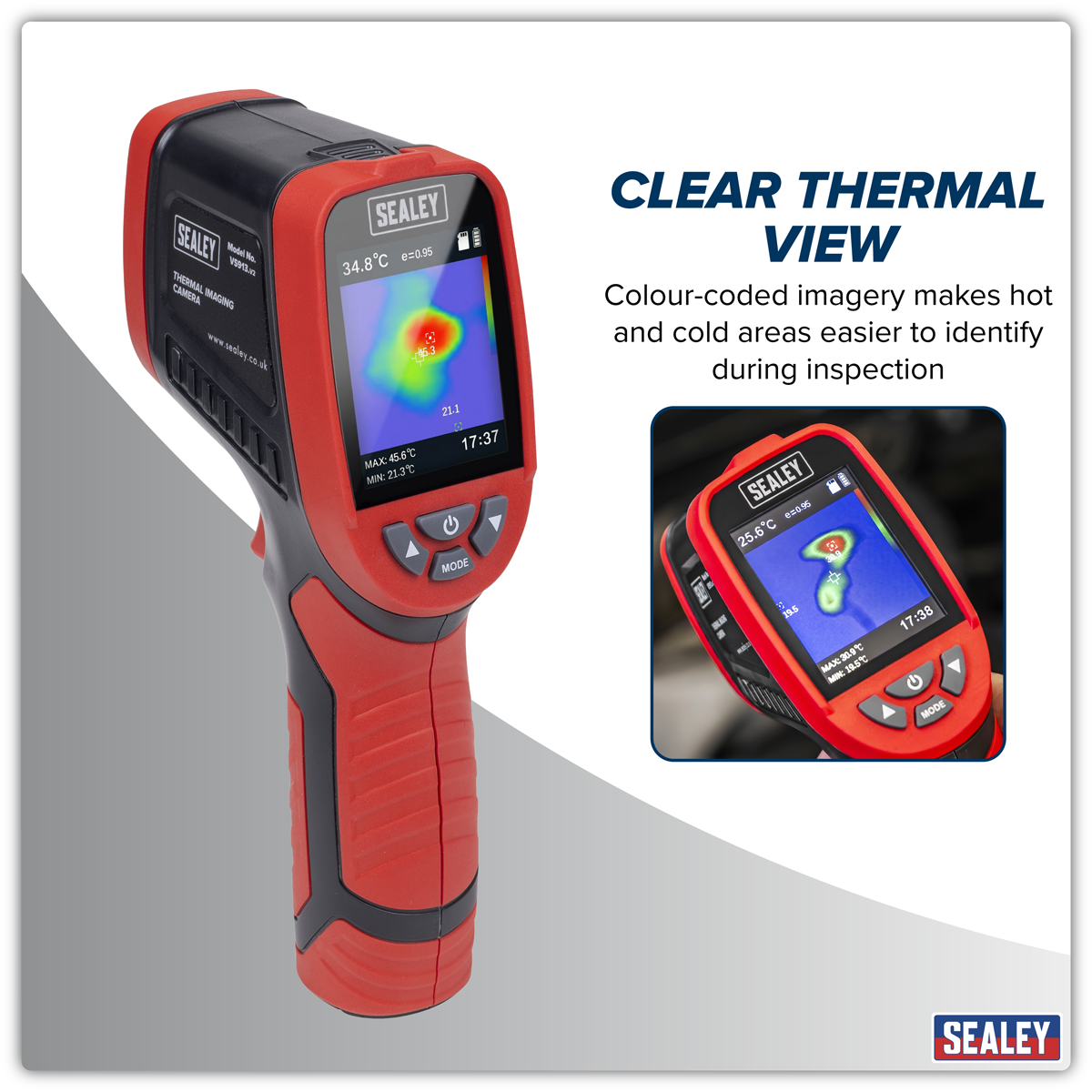

• CLEAR HEAT VISUALISATION – Heat-mapped colour palettes display temperature gradients for fast diagnostics.

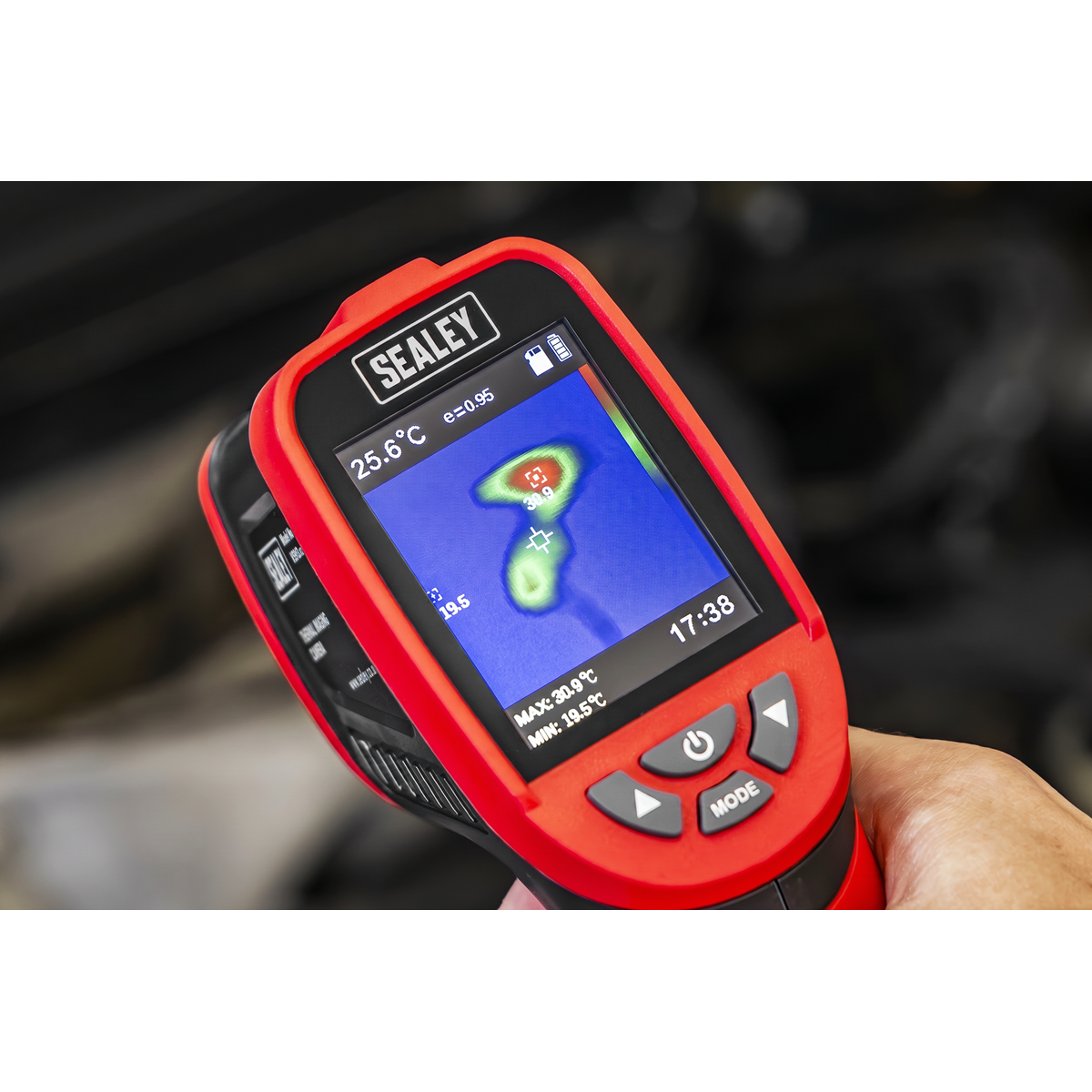

• PRECISE TEMPERATURE TRACKING – On-screen cursor pinpoints minimum and maximum temperature variations.

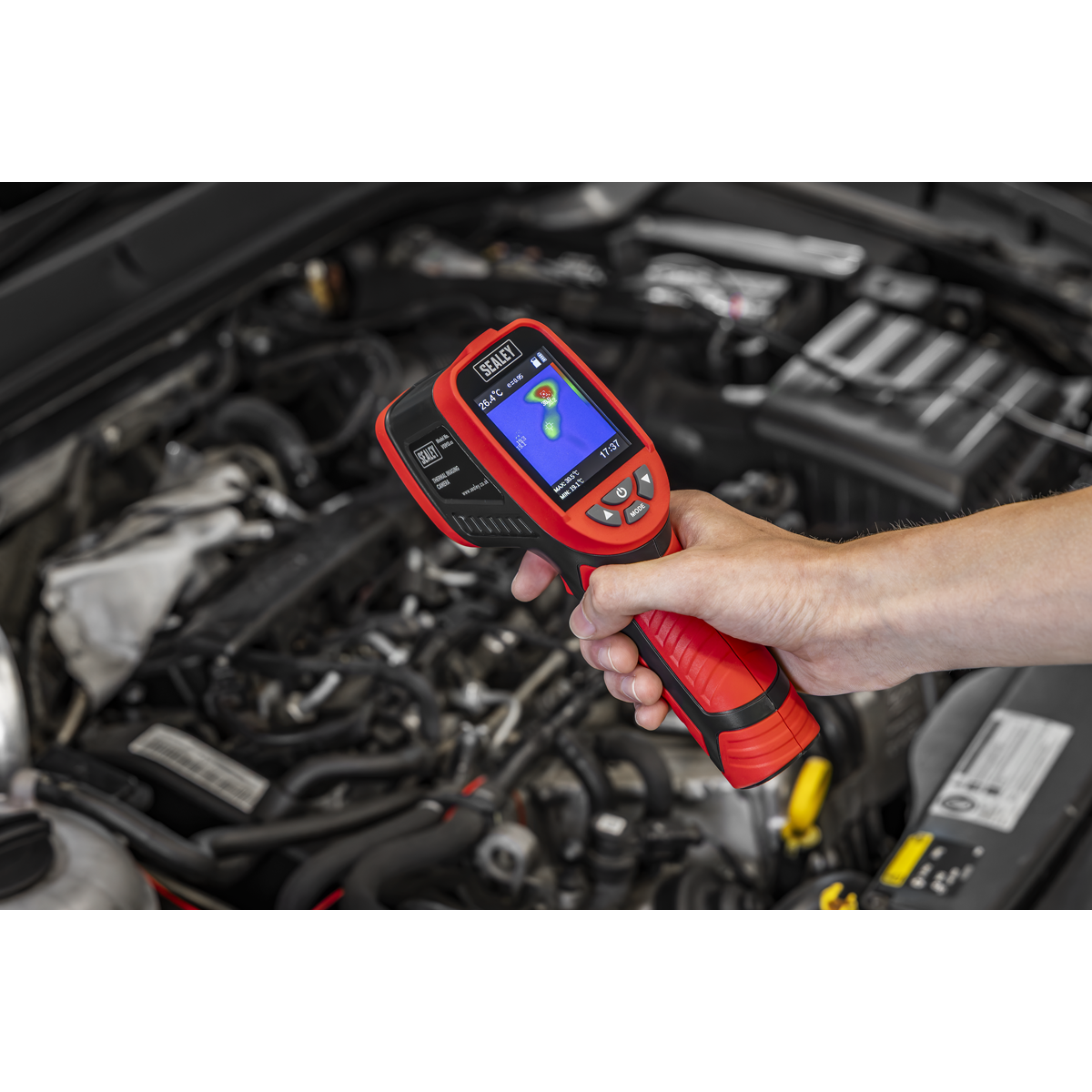

• MULTI-INDUSTRY APPLICATION – Ideal for automotive, building, electrical and HVAC inspections.

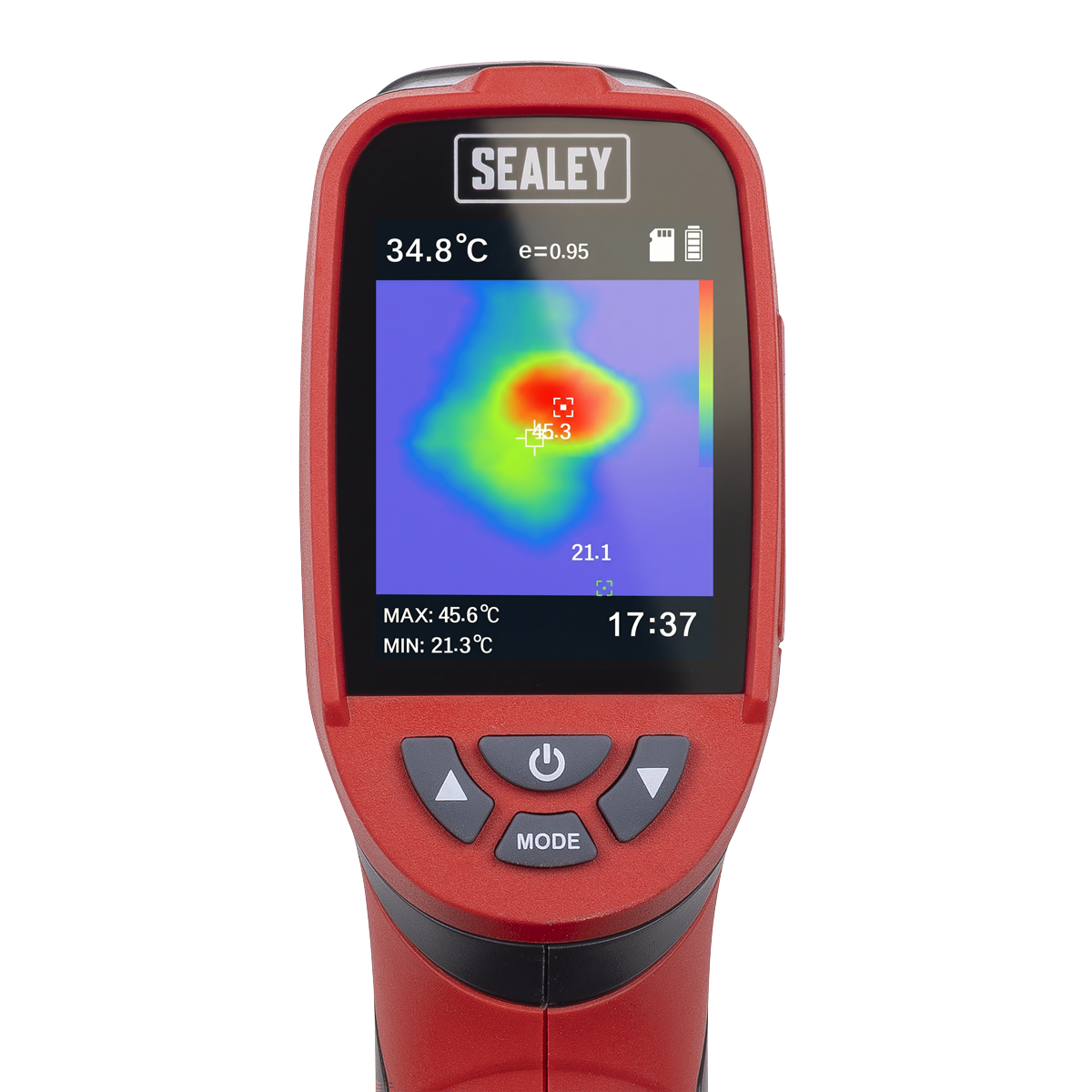

• CLEAR VISUAL FEEDBACK – 60mm screen delivers sharp thermal imaging for accurate diagnostics.

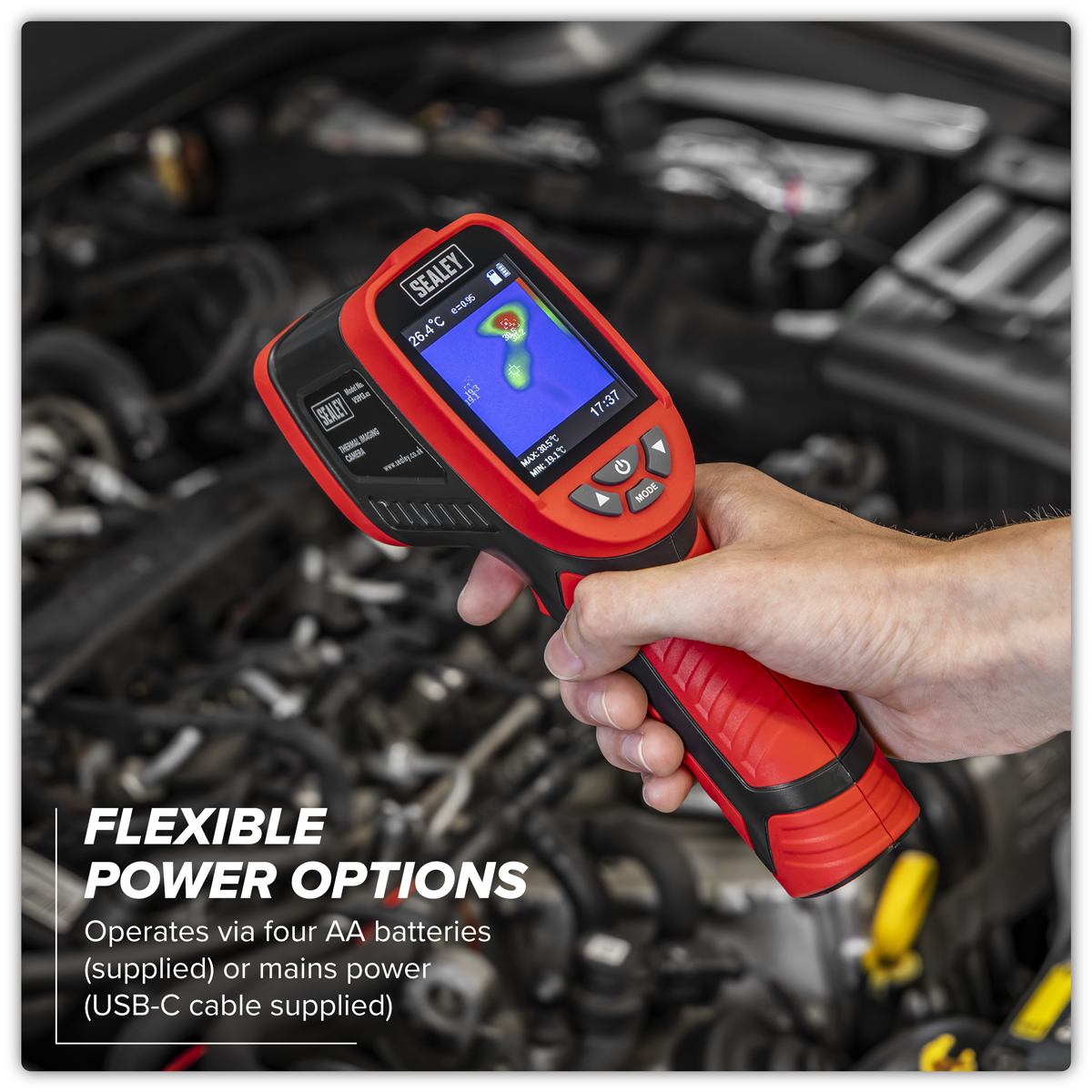

• FLEXIBLE POWER OPTIONS – Operates via four AA batteries (supplied) or mains power (USB-C cable supplied)
• DATA STORAGE INCLUDED – Micro SD card enables image and data capture for review and reporting (supplied).

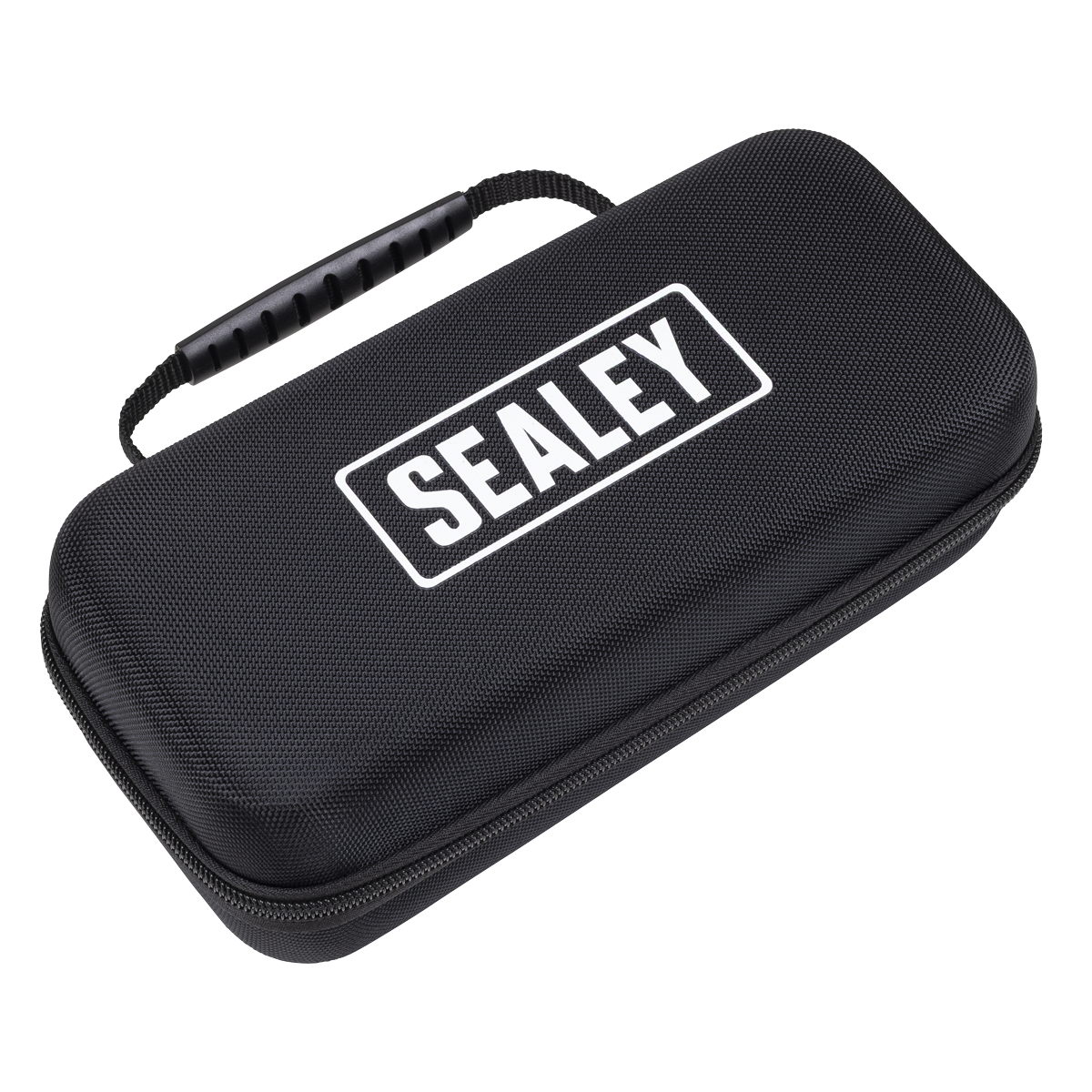

• PROTECTED PORTABILITY – Supplied in a robust storage case for safe transport and storage.

Specifications

Model No	VS913
Battery Run Time:	12hrs
Brand:	Sealey
Colour Palette:	Rainbow, Iron Red, Ink Color, Black & White, Ocean Blue
Emissivity:	0.1 to 1 Adjustable
Field of Vision:	32° x 32°
Image Mix (Camera to Thermal):	0%, 25%, 50%, 75%, 100%
Memory Capacity:	8GB SD Memory Card (Supplied) Supporting up to 16GB
Nett Weight:	0.32kg
Power Source:	4 x AA (supplied)
Resolution:	Infrared Image 33 x 33 (1089 Pixels)-Camera Image 3 Mega Pixels
Accuracy:	>0°C ±2% or reading ±2°C/3.6°F; <0°C; ±3°C/5.4°F
Auto-Power-Off:	Selectable: 3min/5min/10min
Display Screen:	60mm TFT Colour Display
File Format:	BMP
Focus Mode:	Fixed
Image Capture Frequency:	9Hz
Storage:	8g Standard 8GB MIcro SD card, supporting up to 16GB
Storage Conditions:	-30°C to 60°C/-22°F to 140°F; 10 to 85%RH (non-condensing)
Power Supply:	4 x LR6 AA Batteries or Type-C USB power supply
Thermal Sensitiviity:	0.15°C/0.27°F
Visual Image Resolution:	3 Megapixel
Screen Size:	60mm
Wavelength Range:	8-14um
Working Conditions:	-5°C to 40°C/23°F to 104°F; 10 to 85%RH (non-condensing)
Temperature Range:	-20°C to 480°C (-4°F - 896°F)
