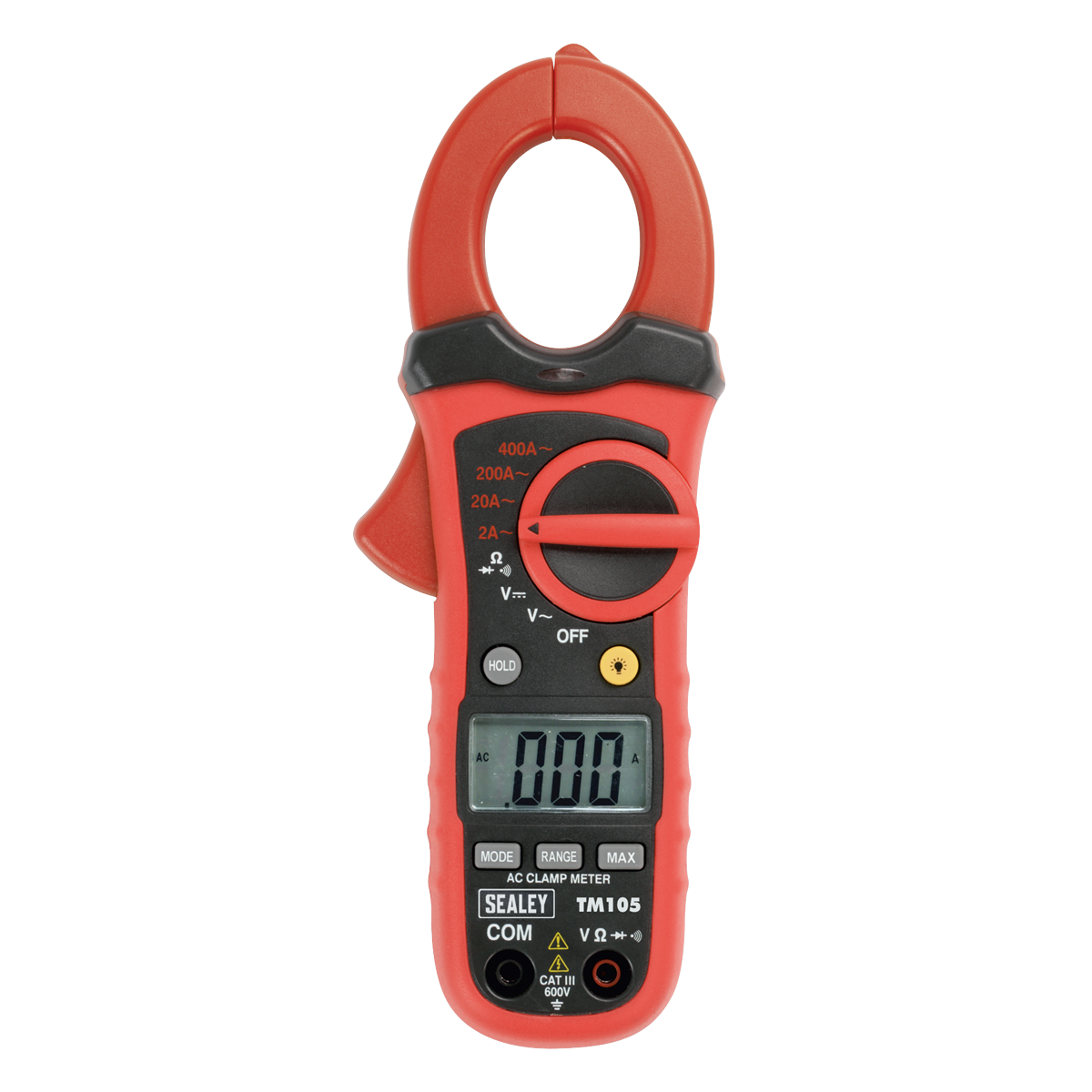

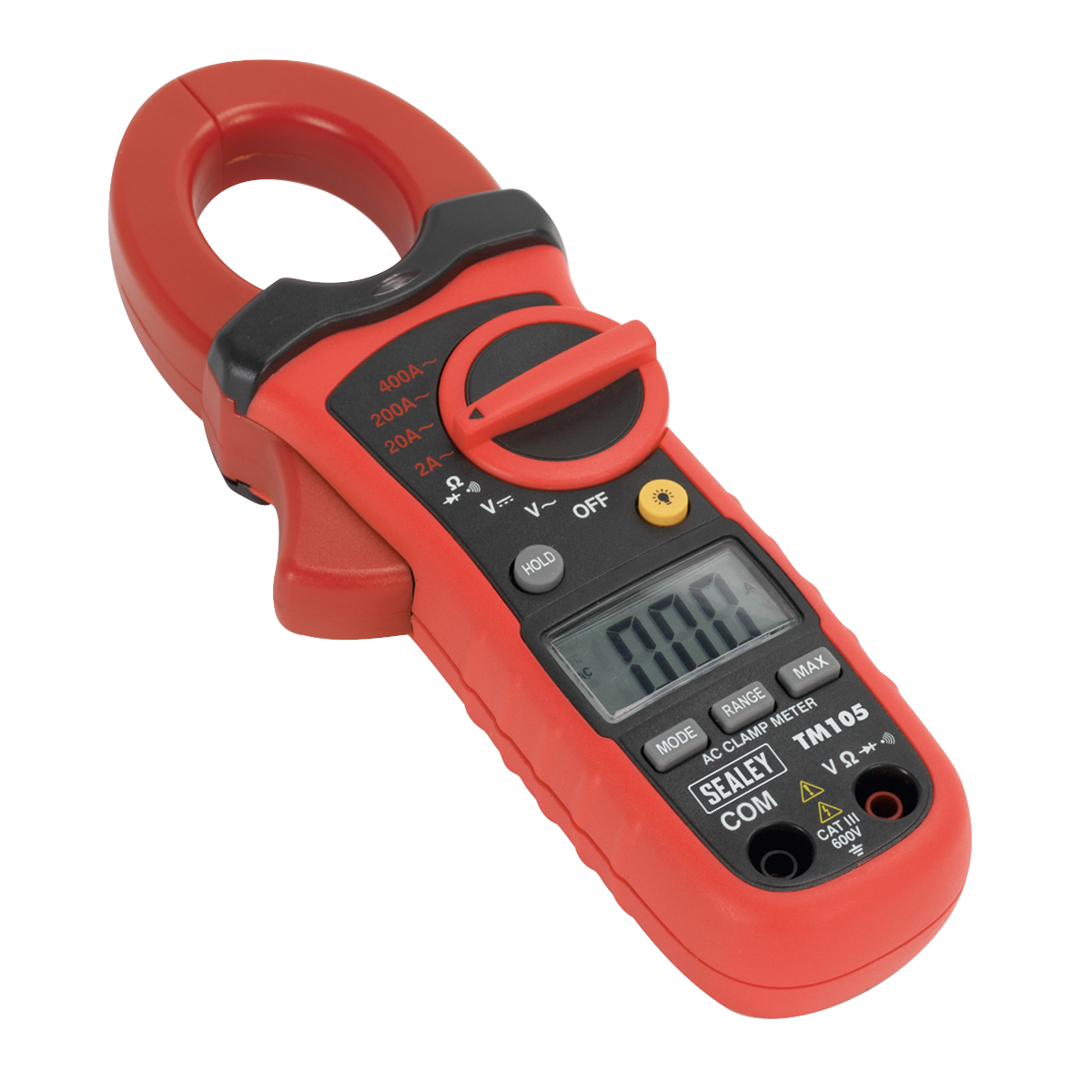

Sealey 6-Function Professional Auto-Ranging Digital Clamp Meter NCVD TM105

Name: Sealey 6-Function Professional Auto-Ranging Digital Clamp Meter NCVD TM105
SKU: SEALEY-TM105
Price: 75.24 GBP
Availability: InStock

£75.24 GBP

~~£98.34 GBP~~ £75.24 GBP

Reduced by £23.10 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

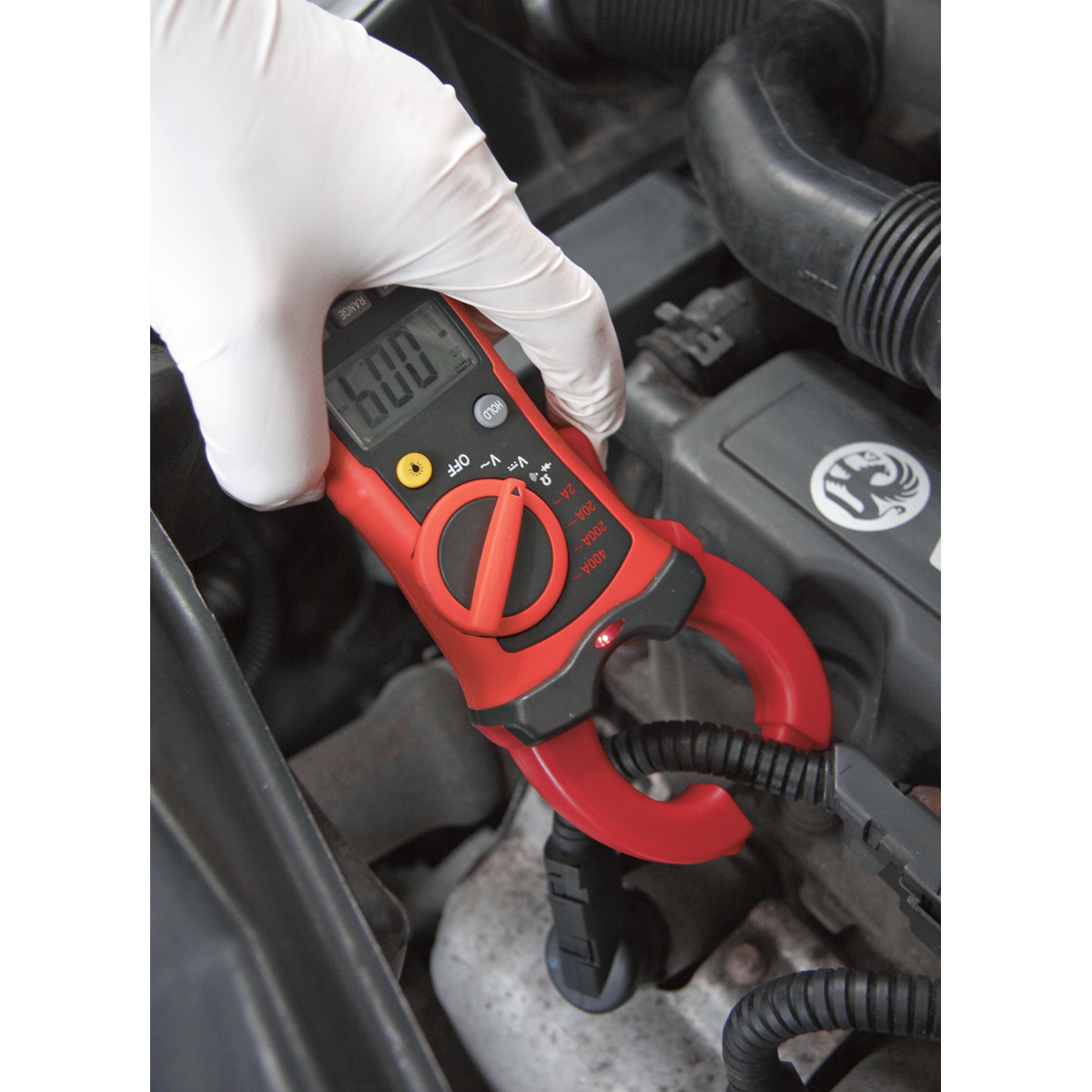

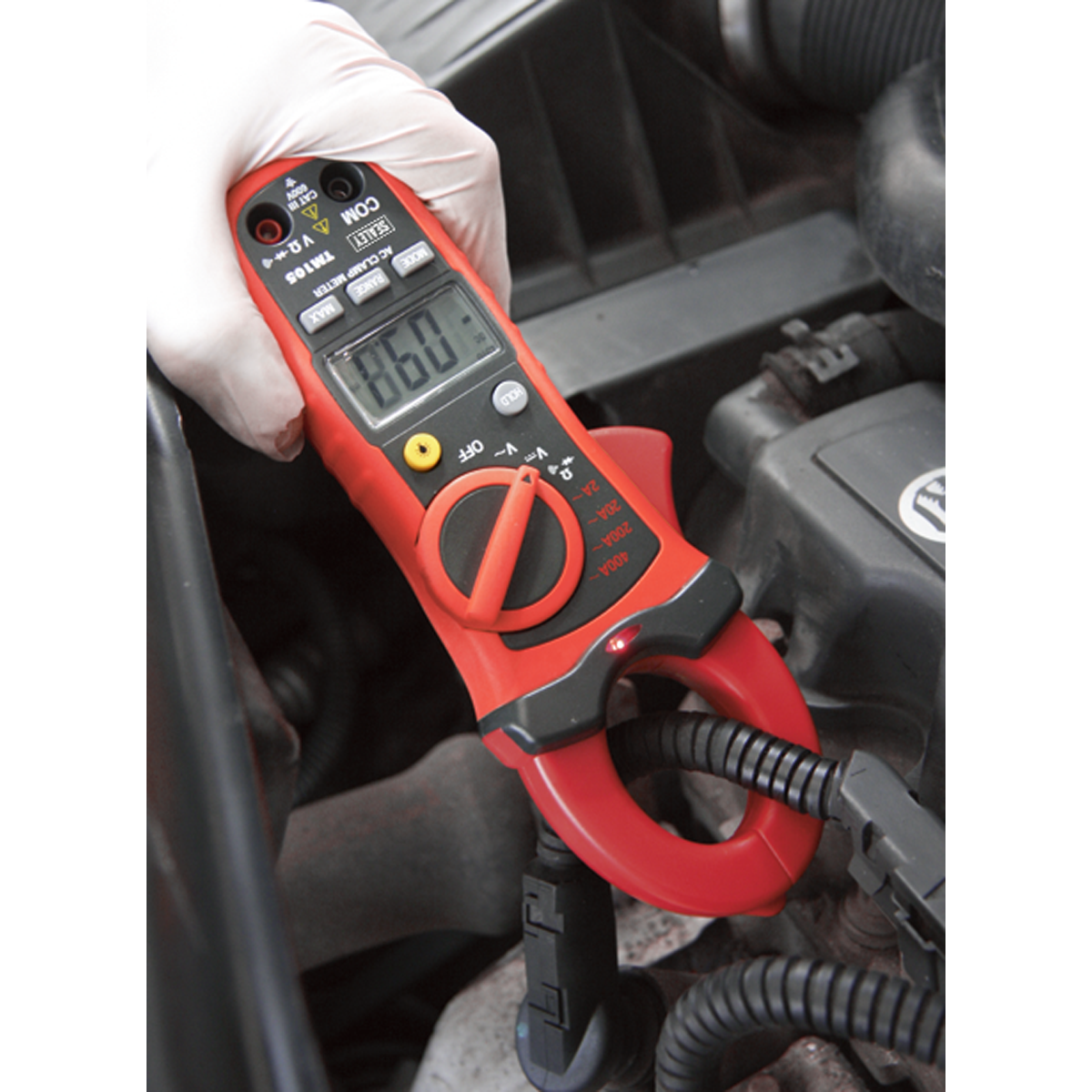

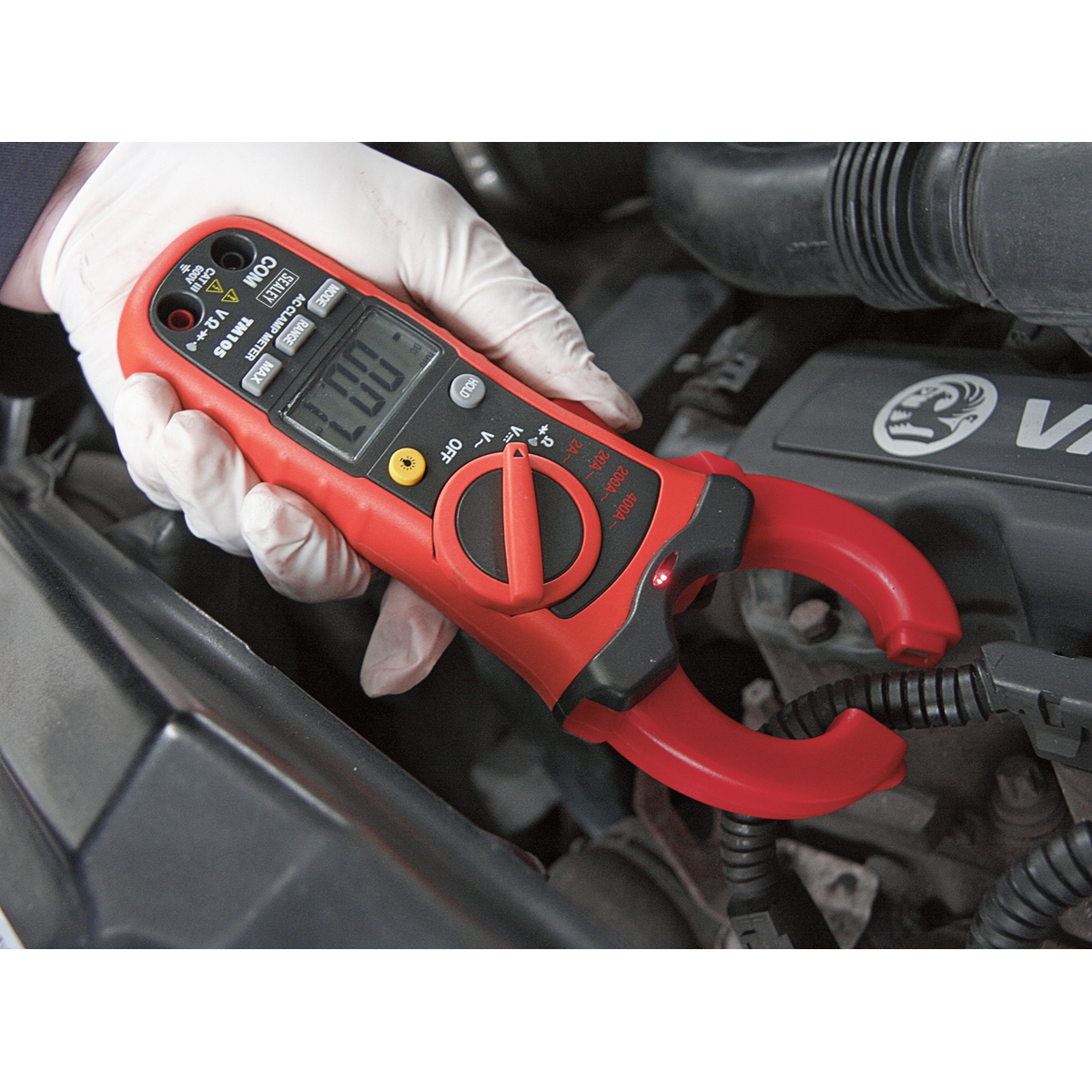

High precision clamp meter. Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use. Features non-contact AC voltage detection function while controls are laid out to enable use with one-hand. Includes data and maximum hold functions. Double moulded housing with soft grip case, large display for ease of use and 30mm clamp. Supplied in zipped pouch with carry strap.

Measures:
• AC and DC Voltage
• AC Current
• Resistance
• Diode Test
• Audible Continuity
• Non-Contact Voltage Detection (NCVD)

• High precision clamp meter.
• Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use.
• Features non-contact AC voltage detection function while controls are laid out to enable use with one-hand.
• Includes data and maximum hold functions.
• Double moulded housing with soft grip case and large display for ease of use.
• 30mm Clamp.
• Supplied in zipped pouch with carry strap.

Specifications

Model No	TM105
Brand:	Sealey
Nett Weight:	345g
AC Voltage (Accuracy):	200mV (±1.5%), 2V, 20V, 200V (±1.8%), 600V (±2.5%)
DC Voltage (Accuracy):	0-200mV (±0.8%), 2V, 20V, 200V (±1.5%), 600V (±2%)
AC Current (Accuracy):	2A, 20A, 200A (±2.5%), 400A (±3%)
DC Current (Accuracy):	No
Resistance (Accuracy):	0-200Ω (±1%), 2kΩ, 20kΩ, 200kΩ (±1.5%), 2MΩ (±2.5%), 20MΩ (±3.5%)
Capacitance (Accuracy):	No
Temperature (Accuracy):	No
Frequency (Accuracy):	No
Duty Cycle:	No
Continuity Audible:	Yes
Diode Test:	Yes
Transistor Test:	No
Hi-Impact Rubber Case:	No
Digits x Height:	3.5 x 14mm
Low Battery Indicator:	Yes
Battery (Supplied):	1 x 9V
Jaw Opening:	32mm
Information:	Data-Hold, Auto-Power-Off, Non-Contact Voltage Detection
Size (L x W x D):	197 x 70 x 40mm
Weight:	345g
Conformity:	EN 61010-1
