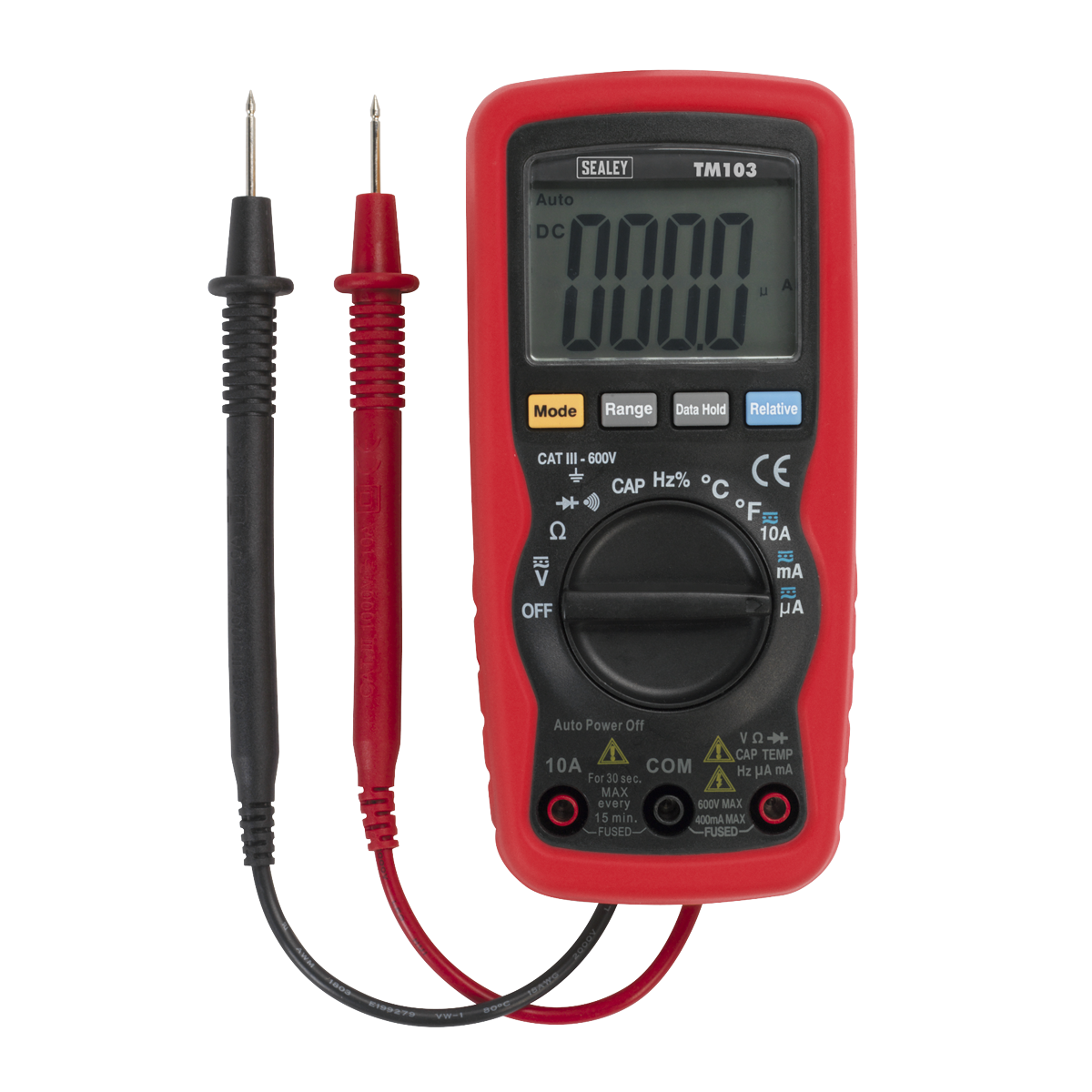

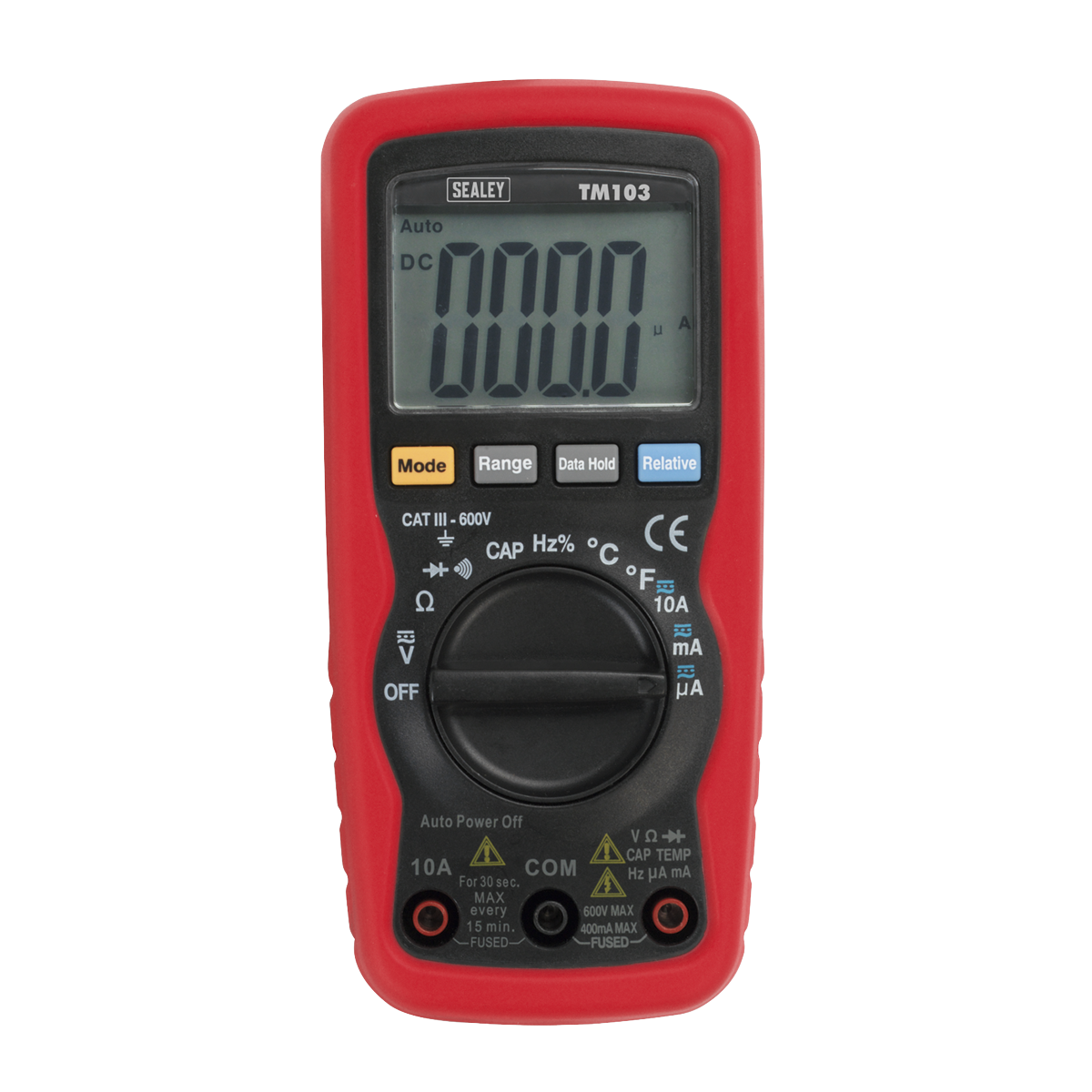

Sealey 11-Function Professional Auto-Ranging Digital Multimeter TM103

Name: Sealey 11-Function Professional Auto-Ranging Digital Multimeter TM103
SKU: SEALEY-TM103
Price: 76.18 GBP
Availability: InStock

£76.18 GBP

~~£111.54 GBP~~ £76.18 GBP

Reduced by £35.36 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

High precision auto-ranging multimeter. Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use. Features temperature measurement capability, max./data-hold, and auto-power-off function. Double moulded housing with soft grip case and large display for ease of use. Practical probe and lead storage and integral upright stand for use on the workbench. Supplied in zipped pouch with carry strap.

Measures:
• Frequency
• Duty Cycle
• AC and DC Voltage
• AC and DC Current
• Resistance
• Diode Test
• Audible Continuity
• Temperature
• Capacitance

• High precision auto-ranging multimeter.
• Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use.
• Features temperature measurement capability, max/data-hold, and auto-power-off function.
• Double moulded housing with soft grip case and large display for ease of use.
• Practical probe and lead storage and integral upright stand for use on the workbench.
• Supplied in zipped pouch with carry strap.

Specifications

Model No	TM103
Brand:	Sealey
Nett Weight:	255g
AC Voltage (Accuracy):	400mV (±1.5%), 4V (±1.2%), 40V, 400V (±1.5%), 600V (±2%)
DC Voltage (Accuracy):	0-400mV (±0.5%), 4V, 40V, 400V (±1.2%), 600V (±1.5%)
AC Current (Accuracy):	400µA (±1.5%), 4000µA, 40mA, 400mA (±1.8%), 10A (±3%)
DC Current (Accuracy):	400µa (±1%), 4000µa, 40mA, 400mA (±1.5%), 10A (±2.5%)
Resistance (Accuracy):	0-400Ω (±1.2%), 4kΩ (±1%), 40kΩ, 400kΩ, 4MΩ (±1.2%), 40MΩ (±2%)
Capacitance (Accuracy):	4nF, 40nF (±5%), 400nF, 4µF, 40µF (±3%), 100µF (±5%)
Temperature (Accuracy):	-20ºC to 760ºC (±3%), -4 to 1400ºF (±5%)
Frequency (Accuracy):	9.999Hz to 9.999MHz
Duty Cycle:	0.1%-99.9% (±1.2%)
Continuity Audible:	Yes
Diode Test:	Yes
Transistor Test:	No
Hi-Impact Rubber Case:	Yes
Digits x Height:	2.1 x 24.5mm
Low Battery Indicator:	Yes
Battery (Supplied):	1 x 9V
Information:	Data-Hold & Auto-Power-Off
Size (L x W x D):	150 x 70 x 48mm
Weight:	255g
Conformity:	EN 61010-1
