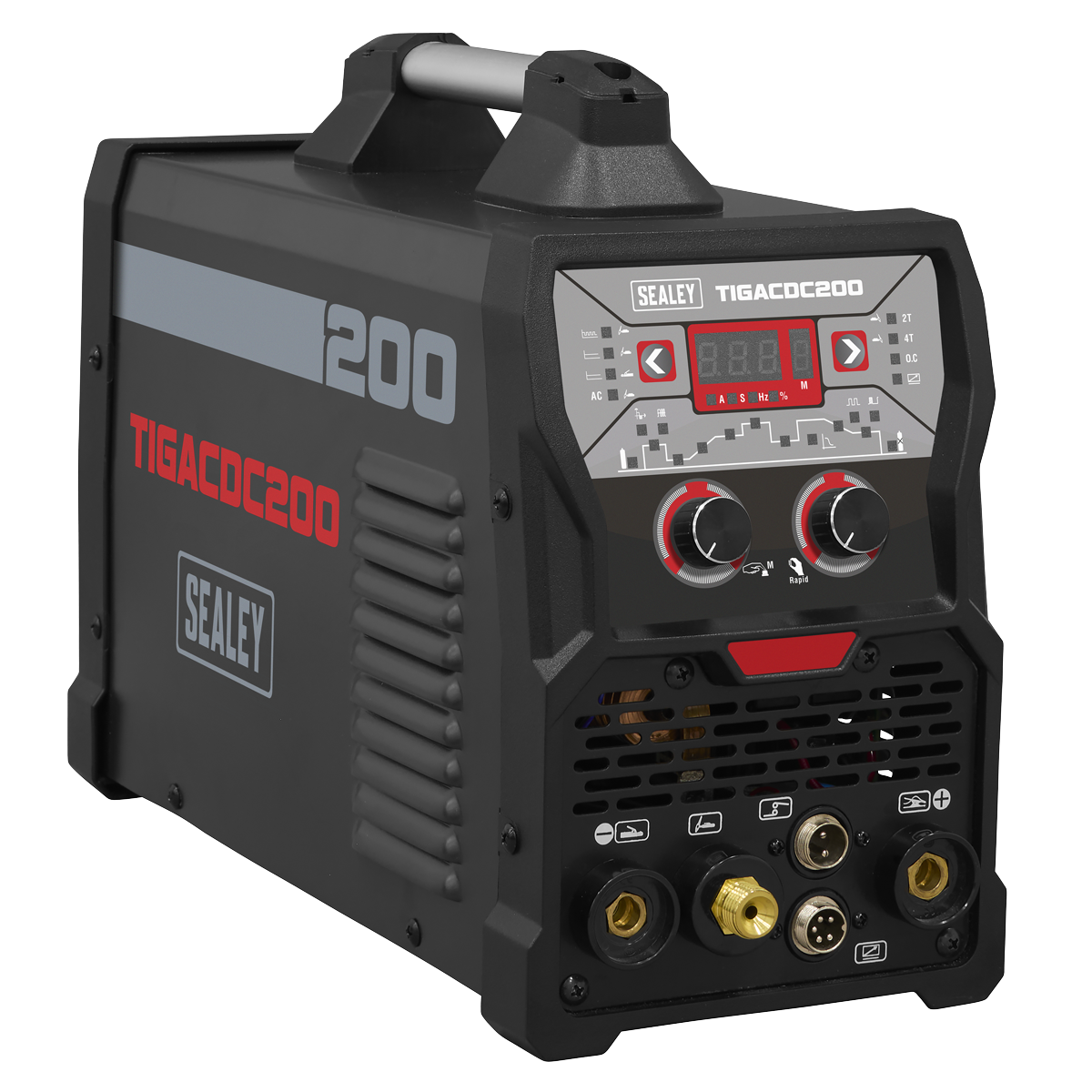

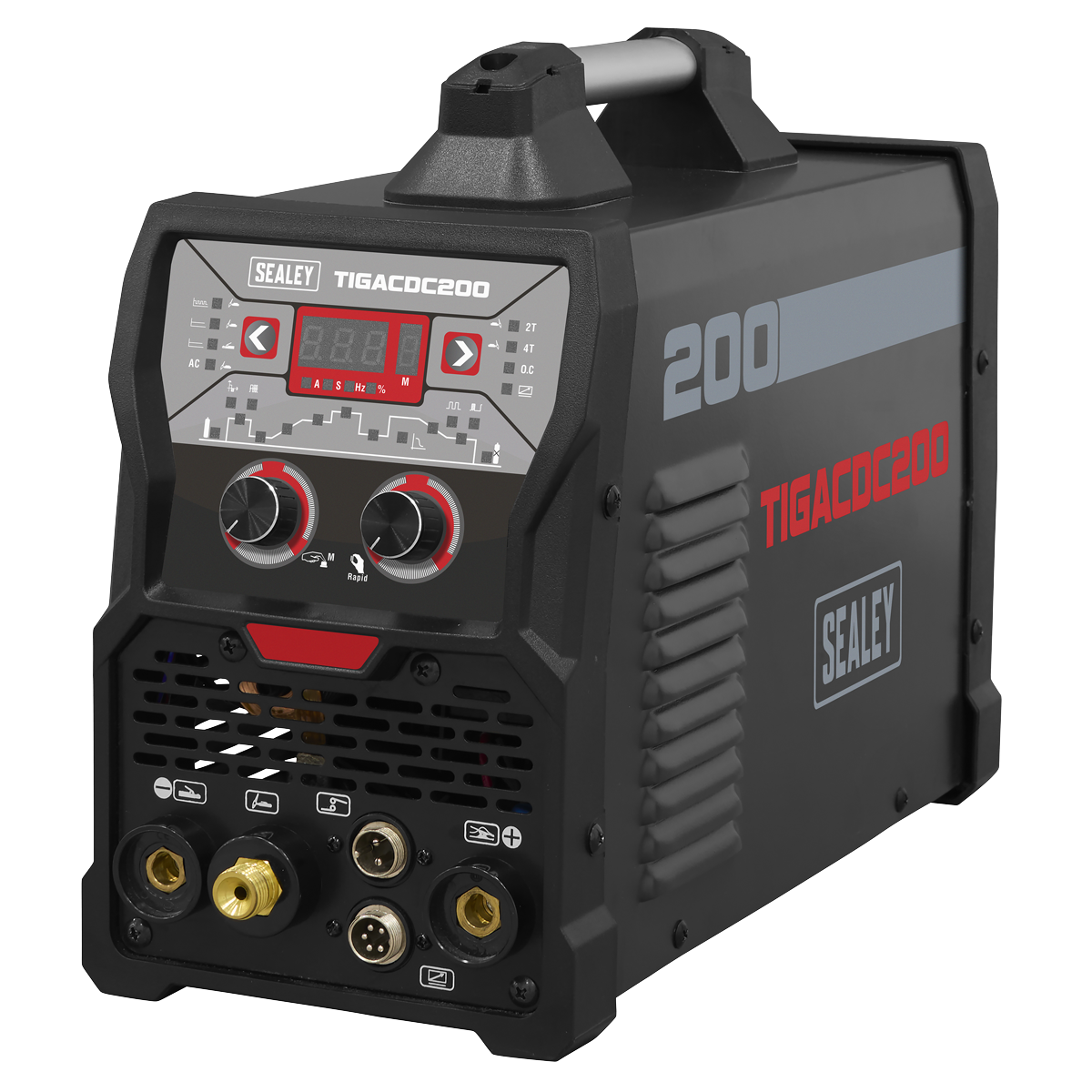

Sealey 200A TIG/MMA AC/DC Pulse Inverter Welder 230V TIGACDC200

Name: Sealey 200A TIG/MMA AC/DC Pulse Inverter Welder 230V TIGACDC200
SKU: SEALEY-TIGACDC200
Price: 755.27 GBP
Availability: InStock

£755.27 GBP

~~£839.94 GBP~~ £755.27 GBP

Reduced Sold out

Taxes included. Shipping calculated at checkout.

Quantity

More stock due 26th December 2025

IGBT Inverter technology fitted with fan-cooled AC/DC power supply suitable for both TIG and MMA/ARC welding applications up to 200A. Suitable for welding a variety of metals including aluminium, magnesium, stainless steel, steel, copper, nickel and titanium. 20-Stage parameter adjustment program to suit welder's requirements. Weighing 8.5kg this welder is highly portable allowing the welder to be taken to the job at hand making it ideal for the mobile technician. Features hot start, anti-stick, forced air cooling, thermal cut-out protection and quick release switch on the torch for control of gas, saving on consumption. Suitable for MMA/ARC welding using the lift start method for better weld quality. Supplied with earth clamp, TIG torch and accessories, electrode holder and foot pedal for when greater control is required.

• IGBT INVERTER TECHNOLOGY - IGBT Inverter technology fitted with fan-cooled AC/DC power supply suitable for both TIG and MMA/ARC welding applications up to 200A.
• SUITABLE FOR WELDING A VARTIETY OF METALS - Suitable for welding a variety of metals including aluminium, magnesium, stainless steel, steel, copper, nickel and titanium.

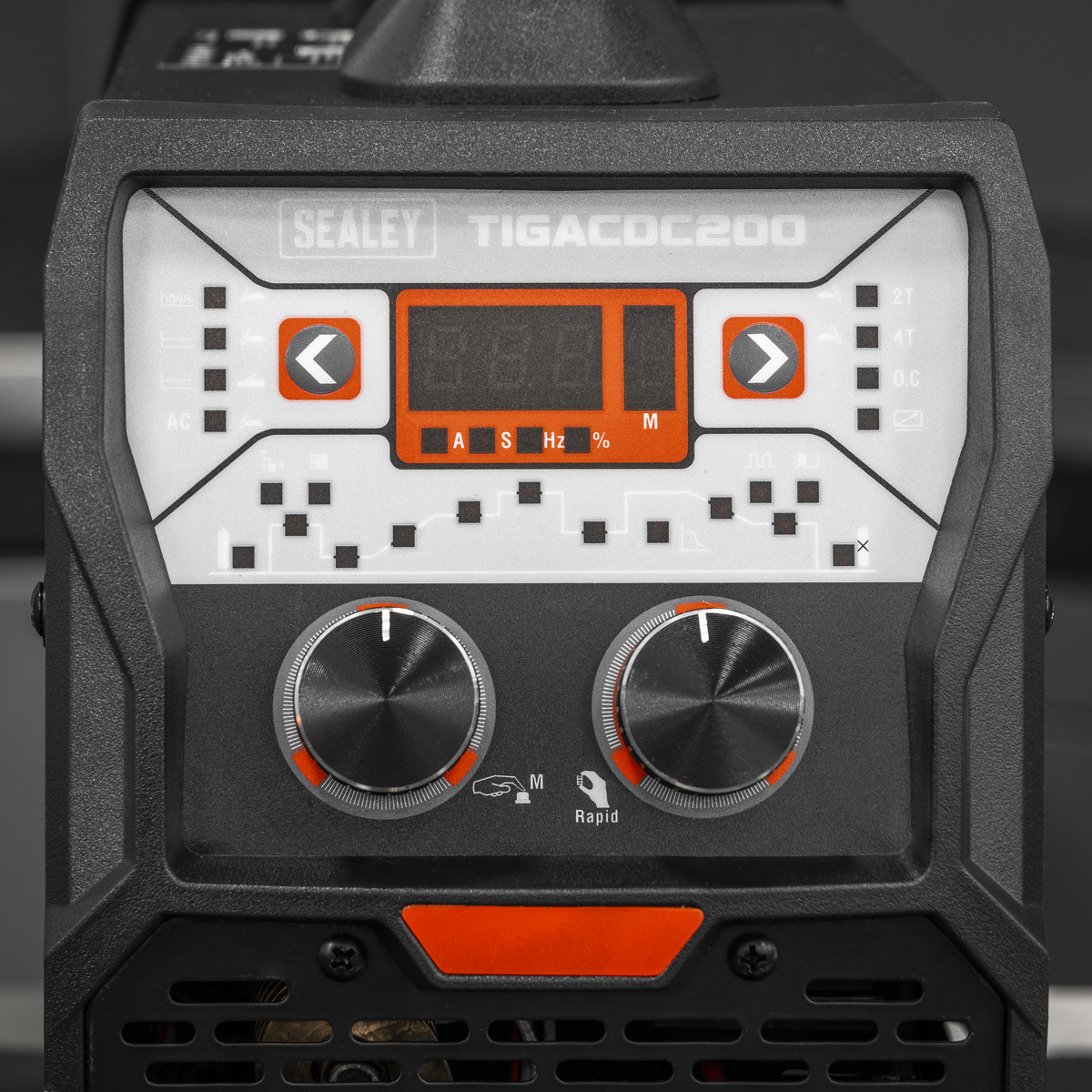

• MULTI-STAGE INVERTER - 20-stage parameter adjustment program to suit welder's requirements.
• LIGHTWEIGHT AND PORTABLE – Weighing 8.5kg this welder is highly portable allowing the welder to be taken to the job at hand making it ideal for the mobile technician.

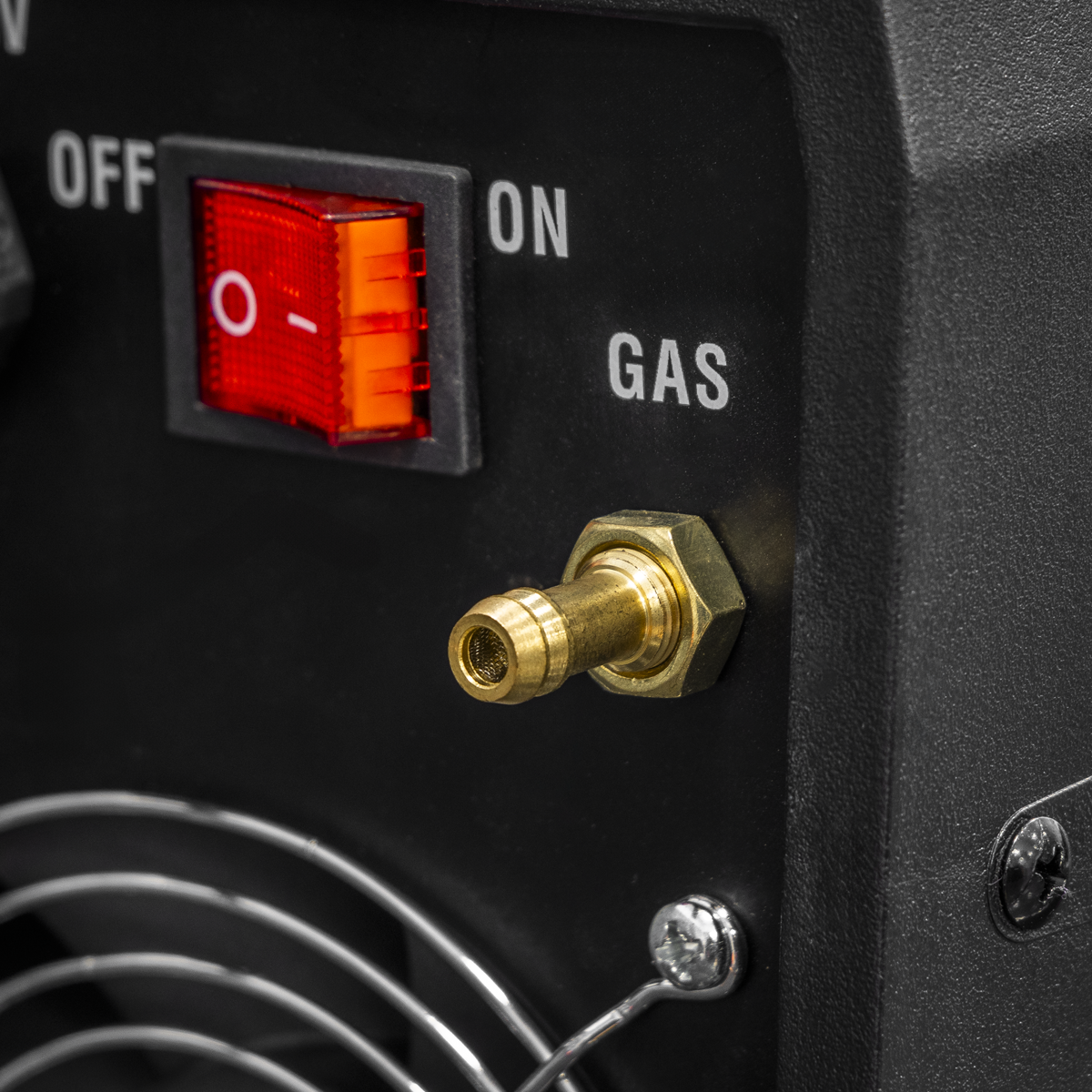

• FEATURING – Features hot start, anti-stick, forced air cooling, thermal cut-out protection and quick release switch on the torch for control of gas, saving on consumption.
• LIFT START - Suitable for MMA/ARC welding using the lift start method for better weld quality.

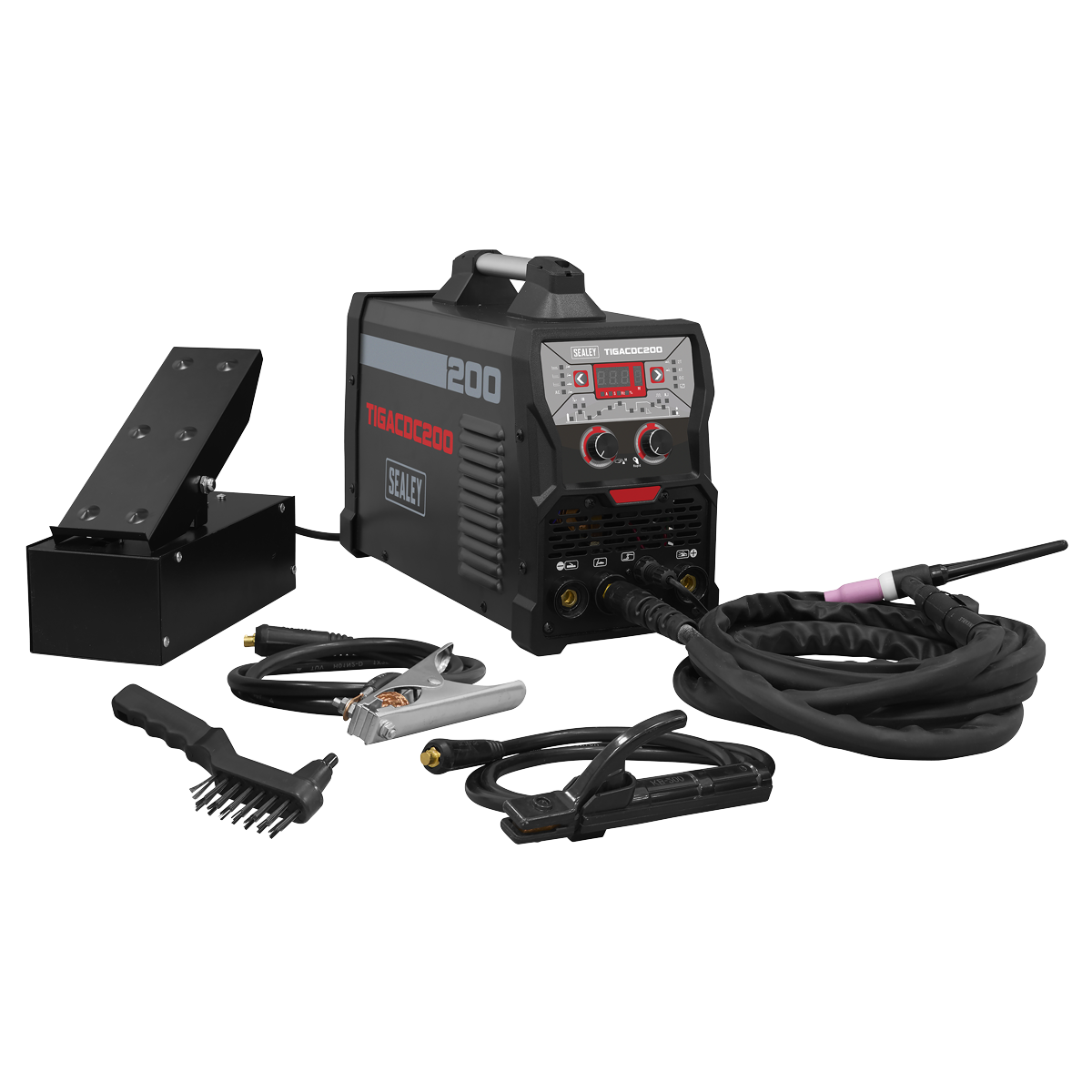

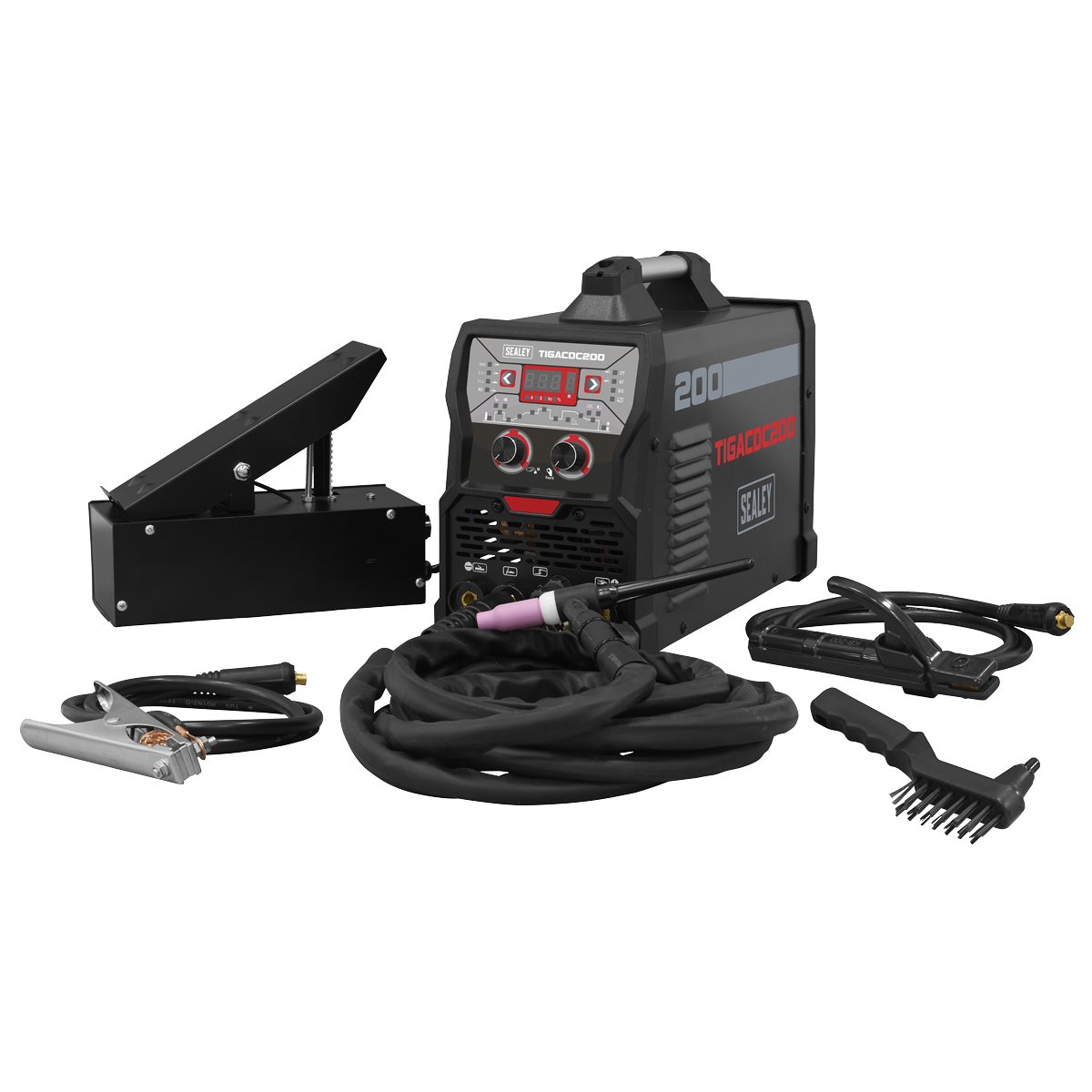

• ACCESSORIES SUPPLIED - Supplied with earth clamp, TIG torch and accessories, electrode holder and foot pedal.

Specifications

Model No	TIGACDC200
Brand:	Sealey
Nett Weight:	8.5kg
Power Output:	10-200A
Duty Cycle:	AC - 100% @ 110A, 60% @ 141A, 30% @ 200A DC - 100% @ 93A, 60% @ 120A, 30% @170A
Electrode Capacity:	Ø1.6-4mm
Absorbed Power:	5.4KW
Supply:	230V*
Insulation Class:	F
Protection:	IP21S
Note:	*to achieve maxiumum power a 32A supply may be required.
