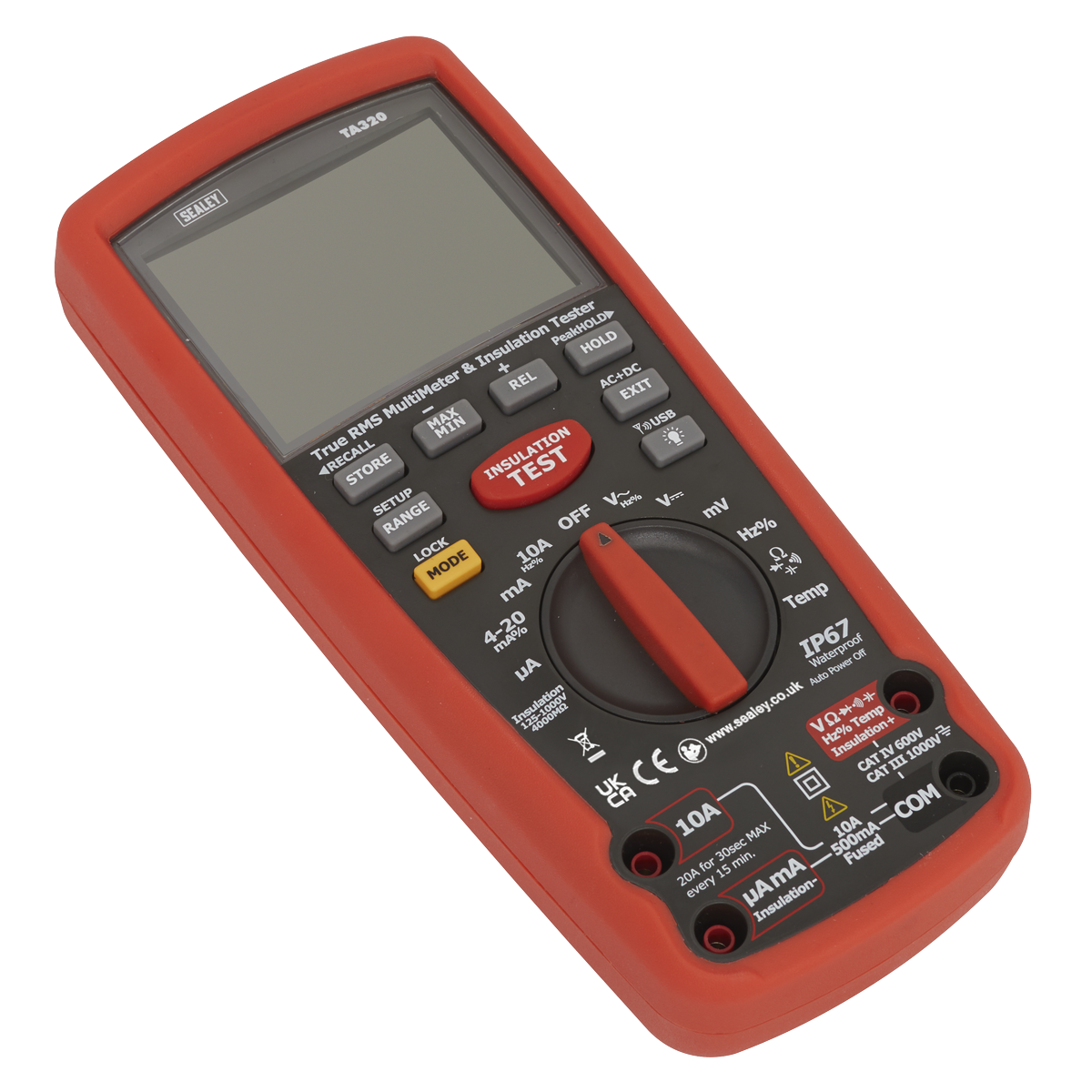

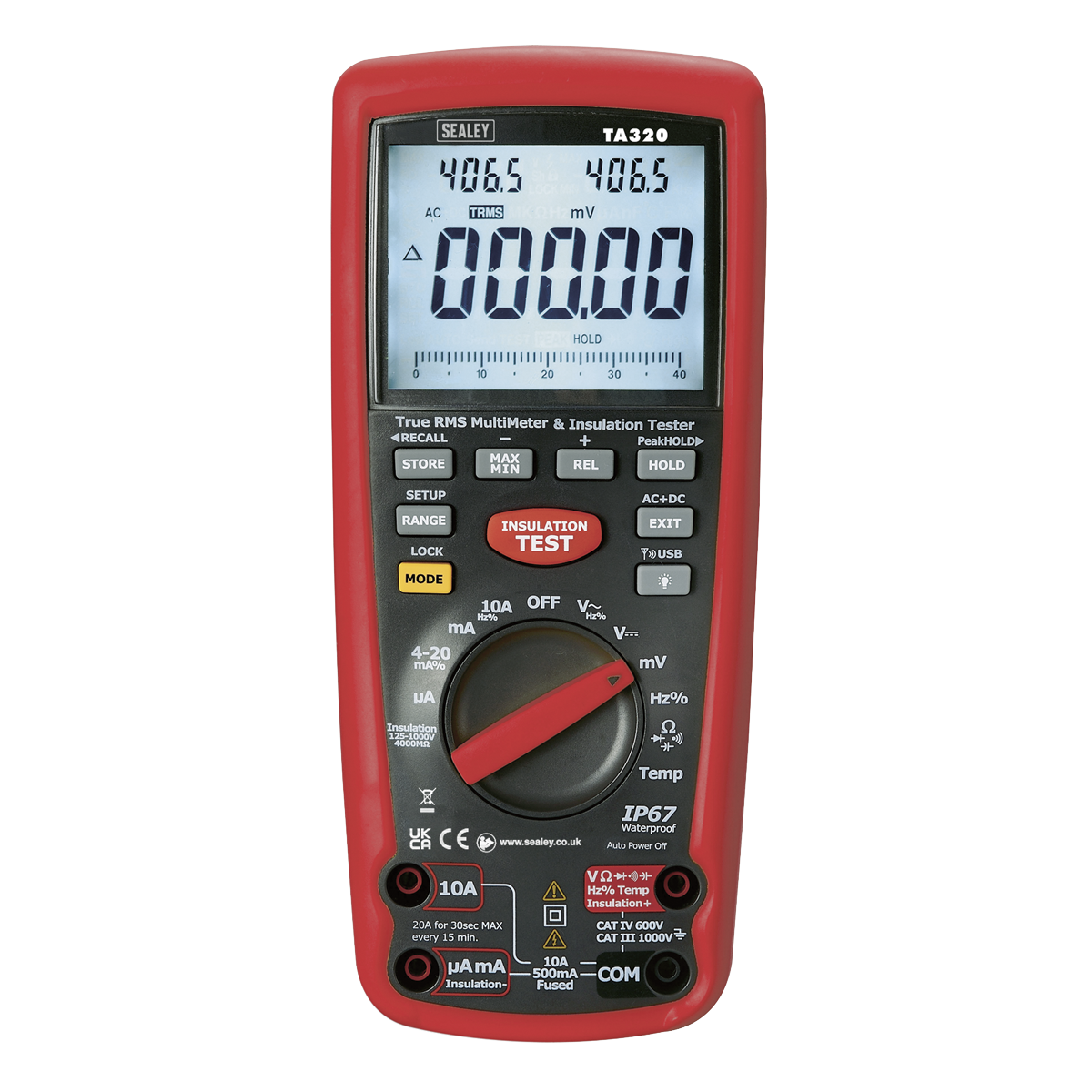

    Sealey Digital Automotive Multimeter/Insulation Tester for Hybrid/Electric Vehicles TA320

    Sealey Digital Automotive Multimeter/Insulation Tester for Hybrid/Electric Vehicles TA320

    £368.90 GBP
    £515.94 GBP £368.90 GBP
    Reduced Sold out
    Taxes included. Shipping calculated at checkout.
    Specially designed for hybrid vehicles and conforms to EN61010 CAT III (1000V) and CAT IV (600V). Unlike other multimeters this unit has an insulation test function that allows testing of the insulation of the high voltage cables and motor generator units found on hybrid vehicles. Can be used as a stand-alone device or linked wirelessly with a USB interface to a PC or laptop enabling results to be graphed, saved or printed. Supplied with high voltage probes, thermocouple soft storage bag and wireless USB cable. The unit also has the usual functions expected on a high quality multimeter including true RMS (Root-Mean-Square) and IP67 waterproof rating.

    • Specially designed for hybrid vehicles and conforms to EN61010 CAT III (1000V) and CAT IV (600V).

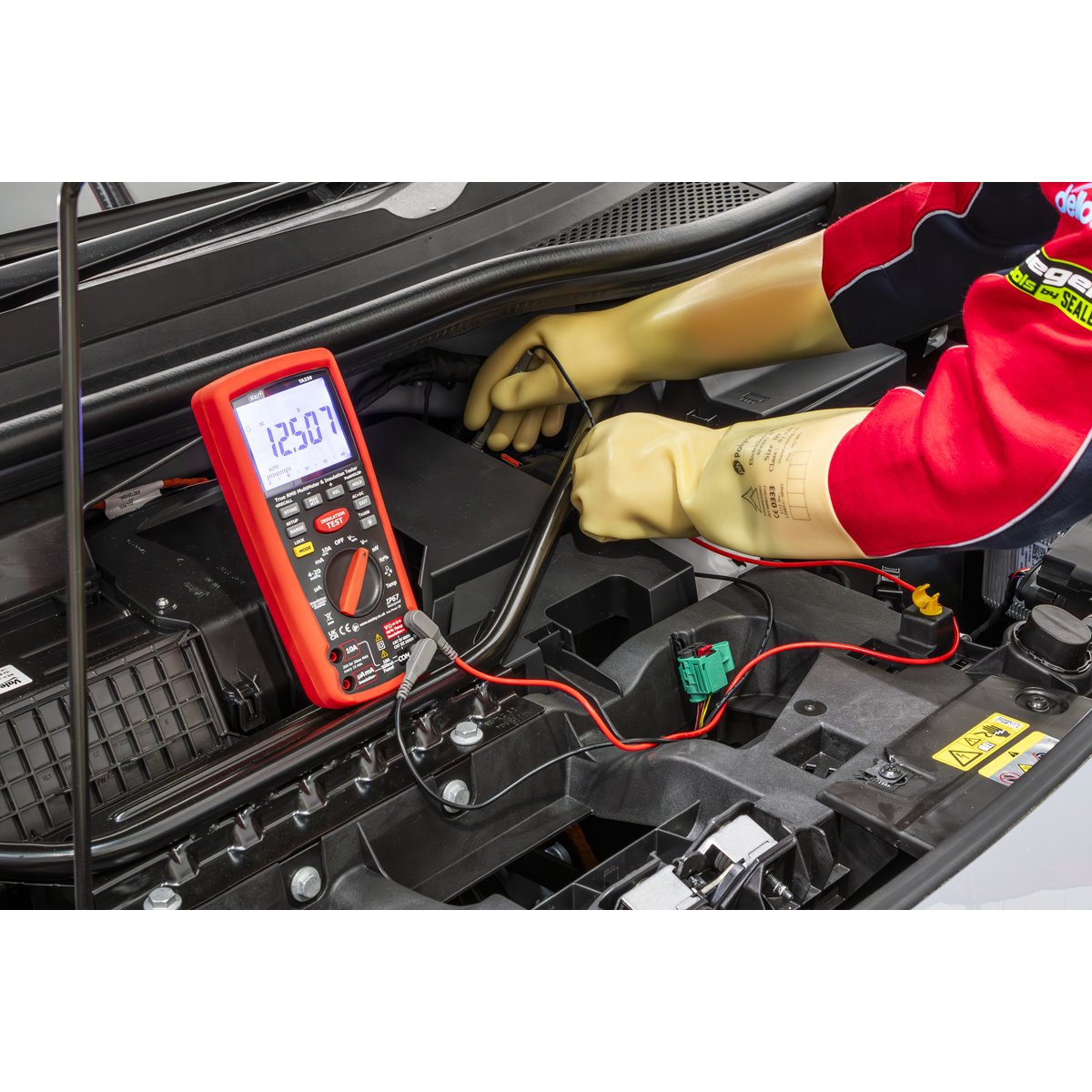

    • Unlike other multimeters this unit has an insulation test function that allows testing of the insulation of the high voltage cables and motor generator units found on hybrid vehicles.
    • Can be used as a stand-alone device or linked wirelessly with a USB interface to a PC or laptop enabling results to be graphed, saved or printed.

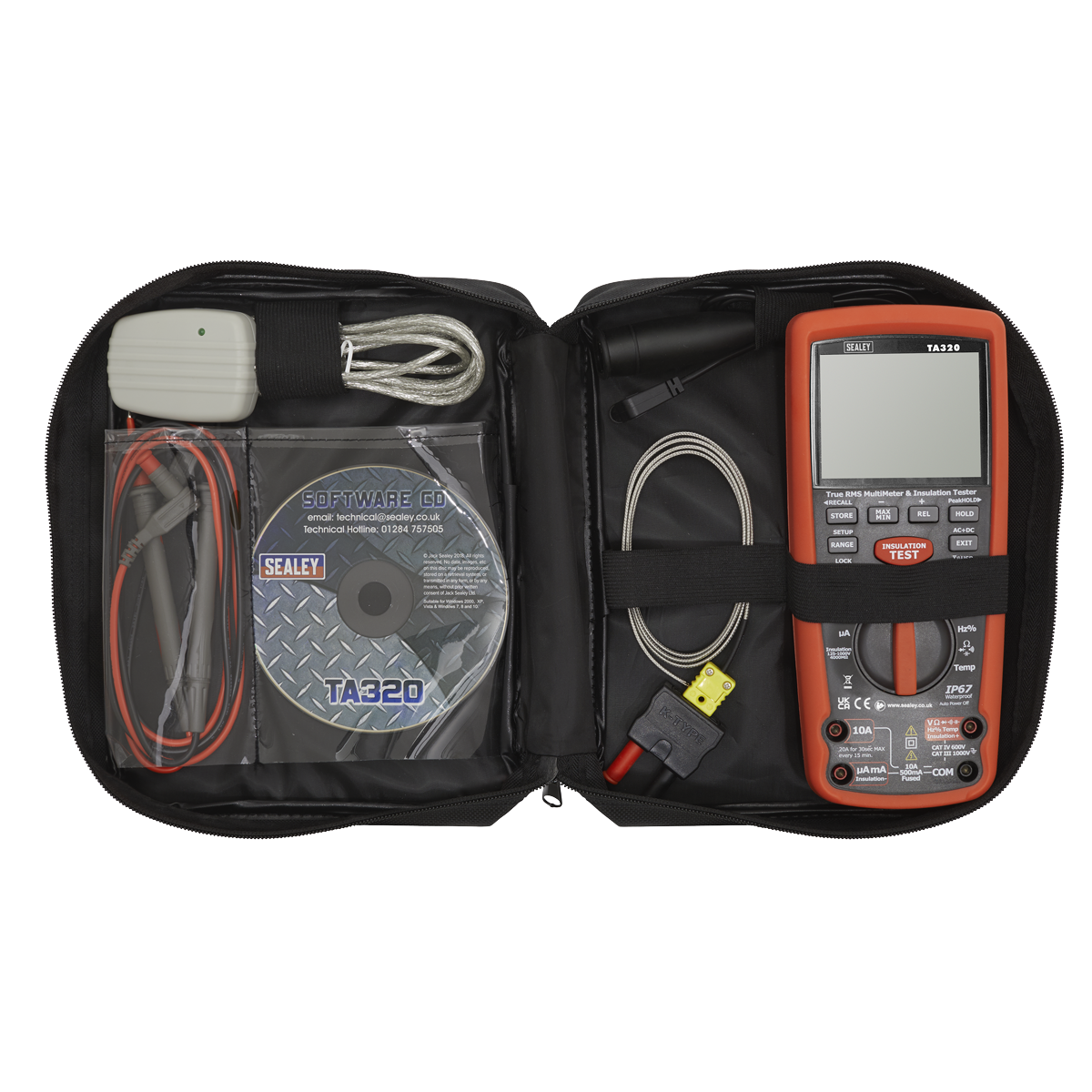

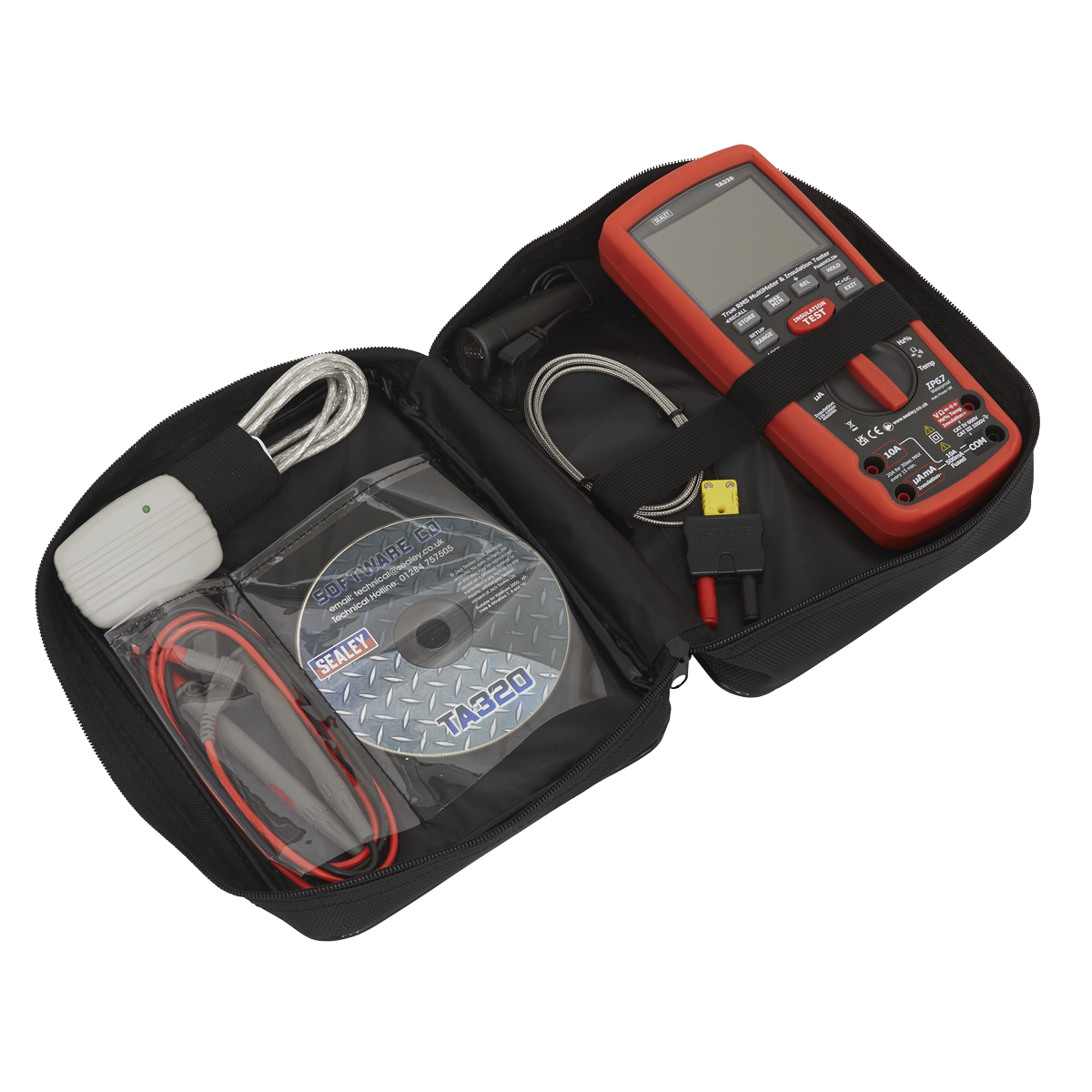

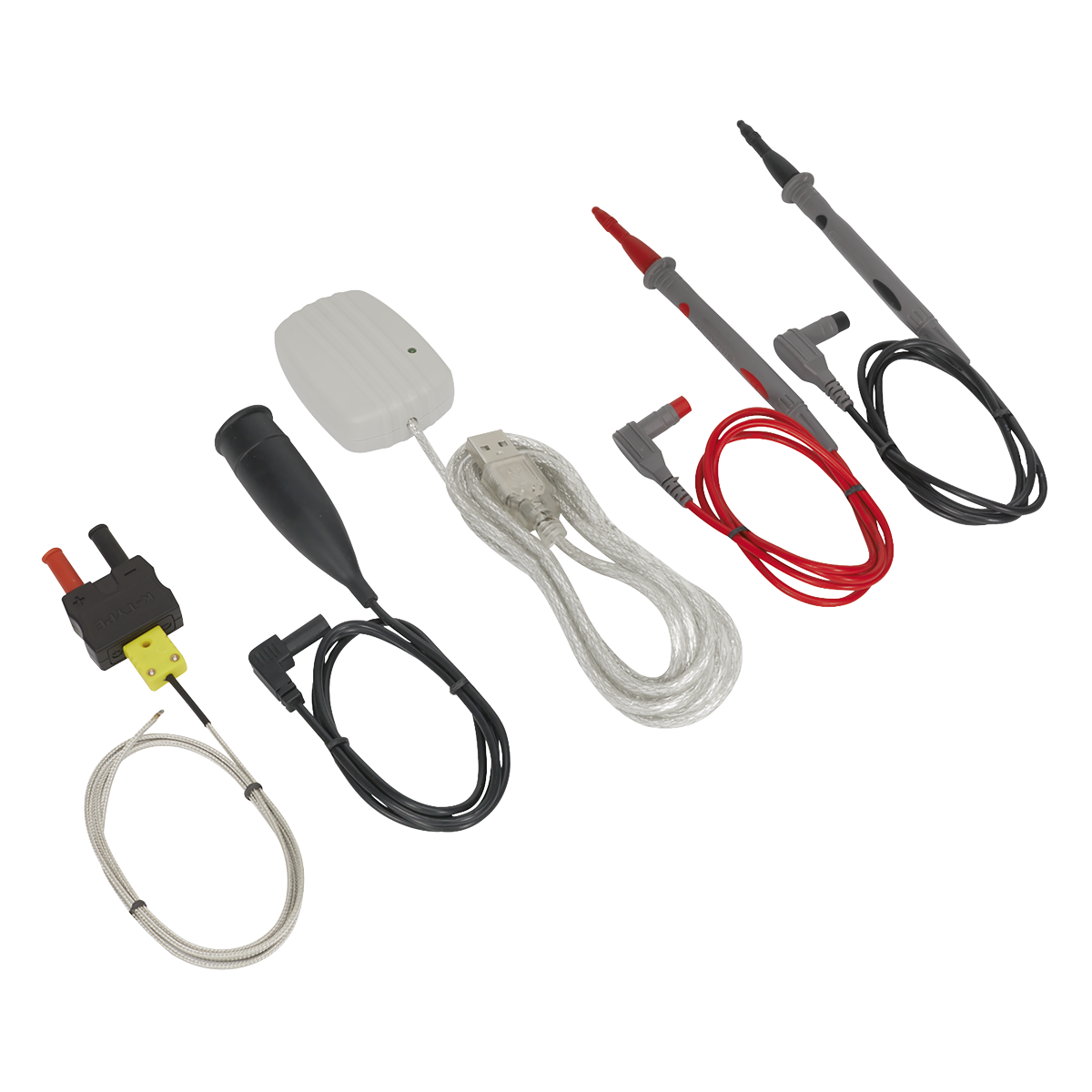

    • Supplied with high voltage probes, thermocouple soft storage bag and wireless USB cable.
    • The unit also has the usual functions expected on a high quality multimeter including true RMS (Root-Mean-Square) and IP67 waterproof rating.

    Specifications

    Model No TA320
    Brand: Sealey
    Nett Weight: 700g
    Tach (rpm): No
    Dwell: No
    AC Voltage: 400mV, 4V, 40V, 400V, 1000V
    DC Voltage: 400mV, 4V, 40V, 400V, 1000V
    AC Current: 400µA, 4000µA, 40mA, 400mA, 10A
    DC Current: 400µA, 4000µA, 40mA, 400mA, 10A
    Capacitance: 40nF, 400nF, 4µF, 40µF, 400µF, 4000µF, 40mF
    Frequency: 40Hz-10kHz
    Duty Cycle: 0.1-99.9%
    Pulse Width: 100µs-100ms
    Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
    Continuity: <35Ω
    Temperature: -50 to +1000°C, -58 to +1832°F
    IR Temperature: No
    Insulation Test: 125V, 250V, 500V, 1000V
    Diode Check: Yes
    Transistor Test: No
    Back Light: Yes
    Bar-Graph Display: Yes
    Display Hold: Yes
    Auto-Ranging: Yes
    Inductive Coupler: No
    PC Interface: Yes
    Digits Height: 20mm
    Auto Power Off: Yes
    Low Battery Indicator: Yes
    Batteries (Supplied): 6 x 1.5V AA
    Hi-Impact Case: Yes
    Size (L x W x D): 220 x 95 x 56mm
    Weight: 700g
    PC Compatibility: Windows 2000, XP, Vista, Win7
