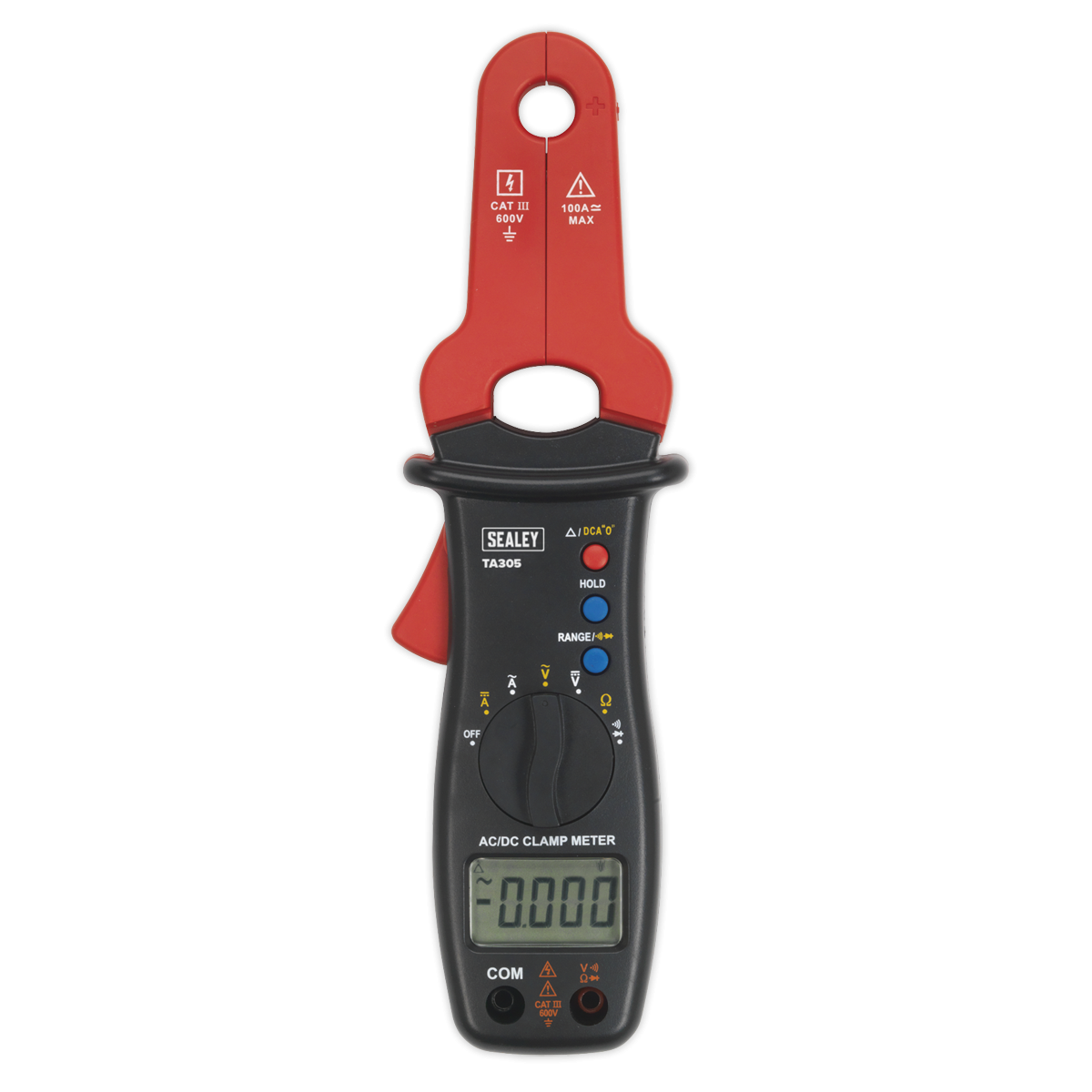

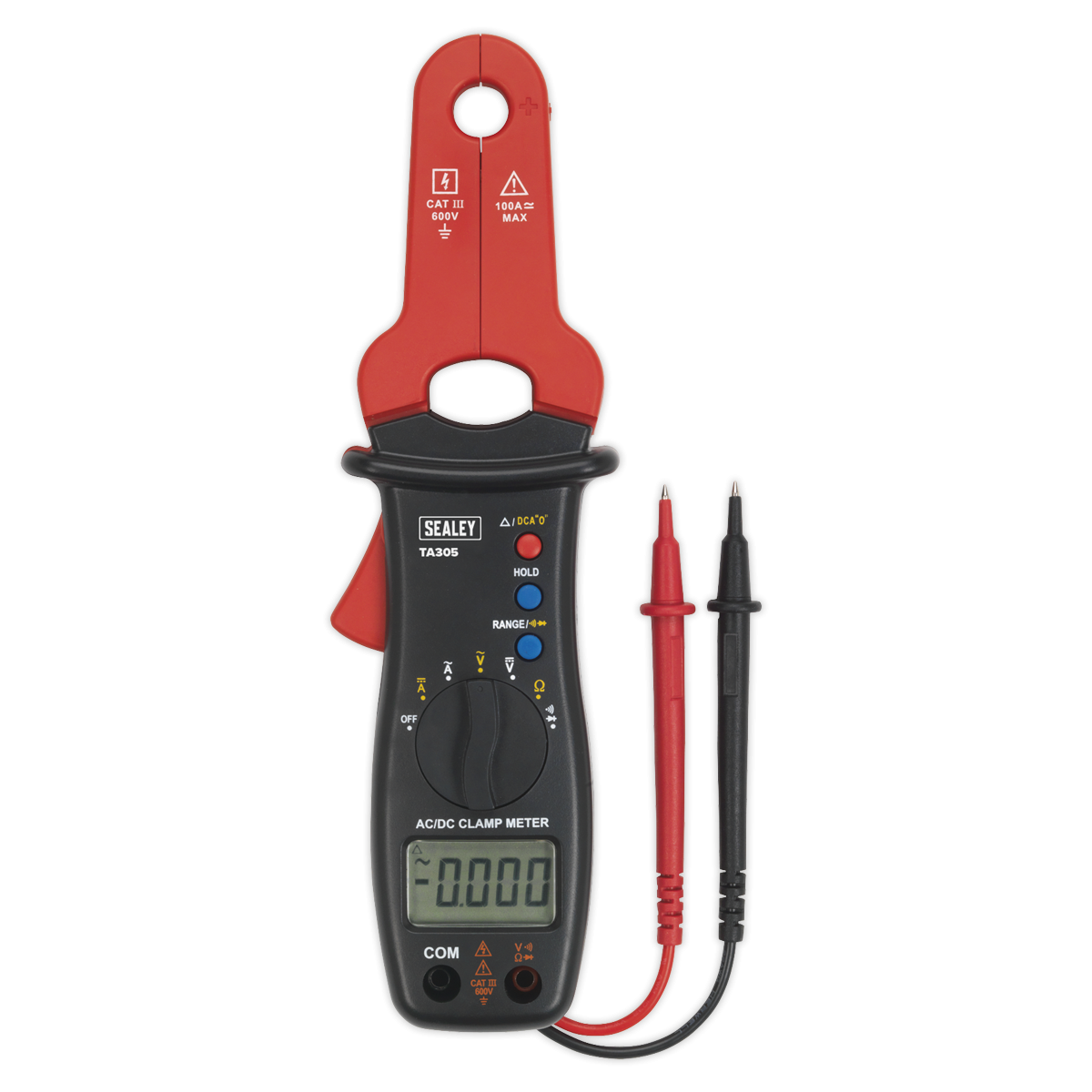

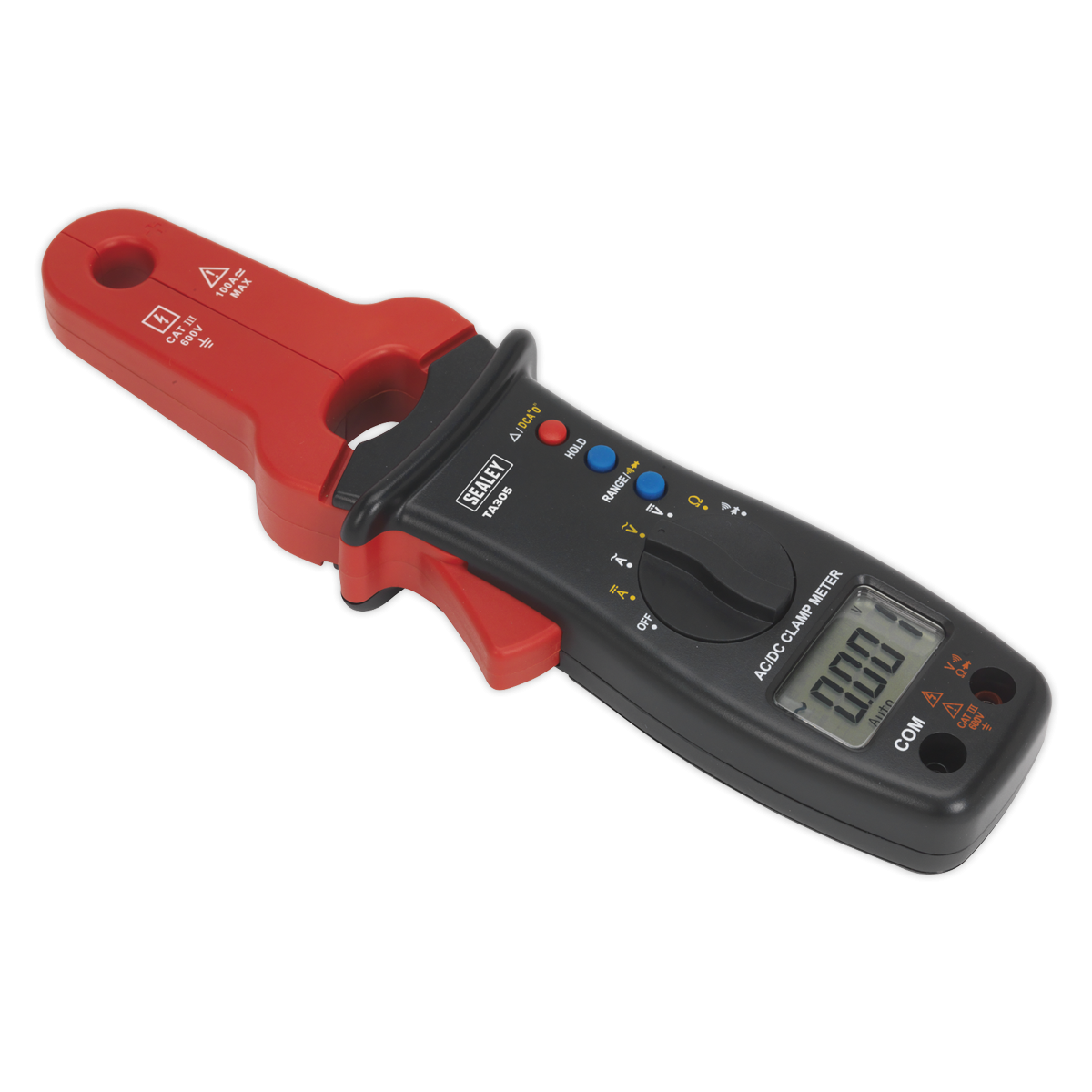

    Sealey Clamp Meter & Multimeter AC/DC TA305

    Sealey Clamp Meter & Multimeter AC/DC TA305

    £104.95 GBP
    £131.94 GBP £104.95 GBP
    Reduced Sold out
    Taxes included. Shipping calculated at checkout.
    Designed for the automotive electrician and conforms to EN 61010 CAT III 600V. Ideal for measuring current draw from vehicle components in situ. Features 10mm clamp. Supplied in pouch.

    Measures:
    • AC/DC Voltage
    • AC/DC Current
    • Resistance
    • Audible Continuity
    • Diode Test.

    • Designed for the automotive electrician and conforms to EN 61010 CAT III 600V.

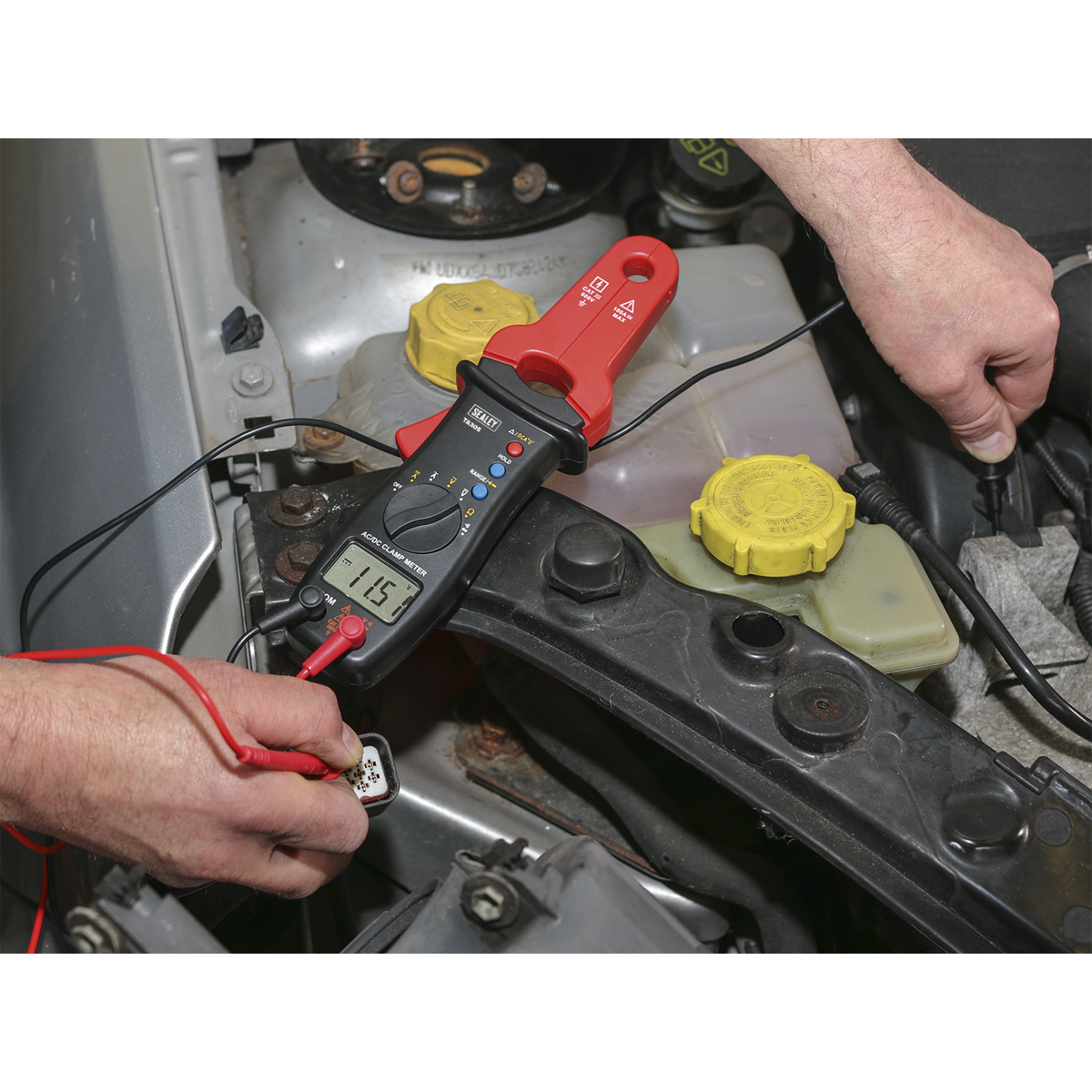

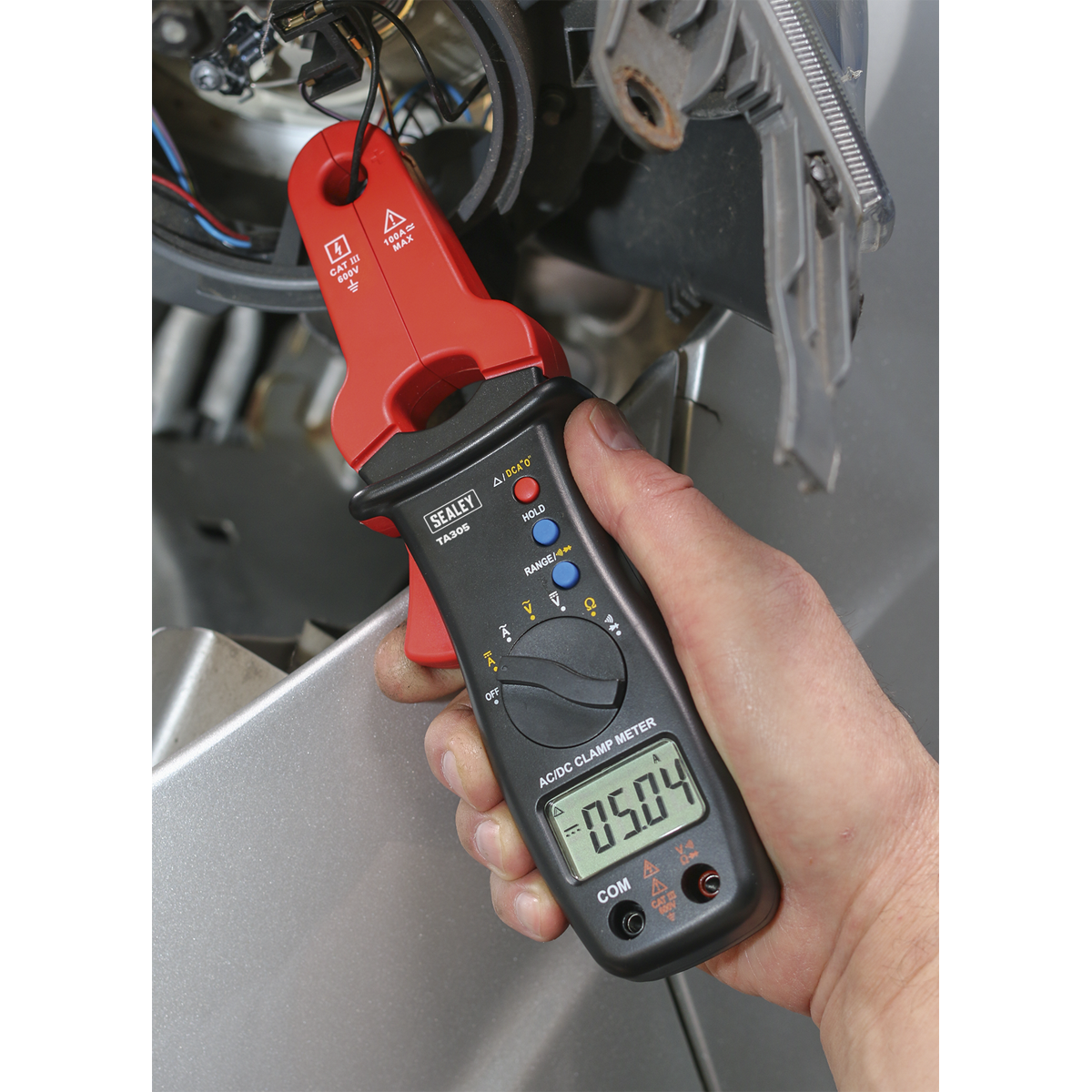

    • Ideal for measuring current draw from vehicle components in situ.
    • Features 10mm clamp.
    • Supplied in pouch.

    Specifications

    Model No TA305
    Brand: Sealey
    Nett Weight: 185g
    Jaw Opening Capacity: 10mm
    Maximum Measurable Conductor: Ø10mm
    Tach (rpm): No
    Dwell: No
    AC Voltage (Accuracy): 400mV, 4V (±1.2%), 40V, 400V, 600V (±1.5%)
    DC Voltage (Accuracy): 400mV (±0.8%), 4V, 40V, 400V, 600V (±1.0%)
    AC Current (Accuracy): 40A, 100A (±2.5%)
    DC Current (Accuracy): 40A, 100A (±2.5%)
    Capacitance: No
    Input Impedance: 10MΩ
    Frequency Range: 40Hz-400Hz
    Duty Cycle: No
    Pulse Width: No
    Resistance: 400Ω (±1.2%), 4kΩ, 40kΩ, 400kΩ (±1.0%), 4MΩ (±1.2%), 40MΩ (±1.5%)
    Continuity: <50Ω
    Temperature: No
    IR Temperature: No
    Insulation Test: No
    Diode Test: Yes
    Transistor Test: No
    Back Light: No
    Bar Graph Display: No
    Data Hold: Yes
    Auto-Ranging: Yes
    Inductive Coupler: No
    PC Interface: No
    Digits Height: 11mm
    Auto Power Off: Yes
    Low Battery Indicator: Yes
    Batteries (Supplied): 2 x 1.5V
    Hi-Impact Case: No
    Size (L x W x D): 226 x 71 x 38mm
    Weight: 185g
