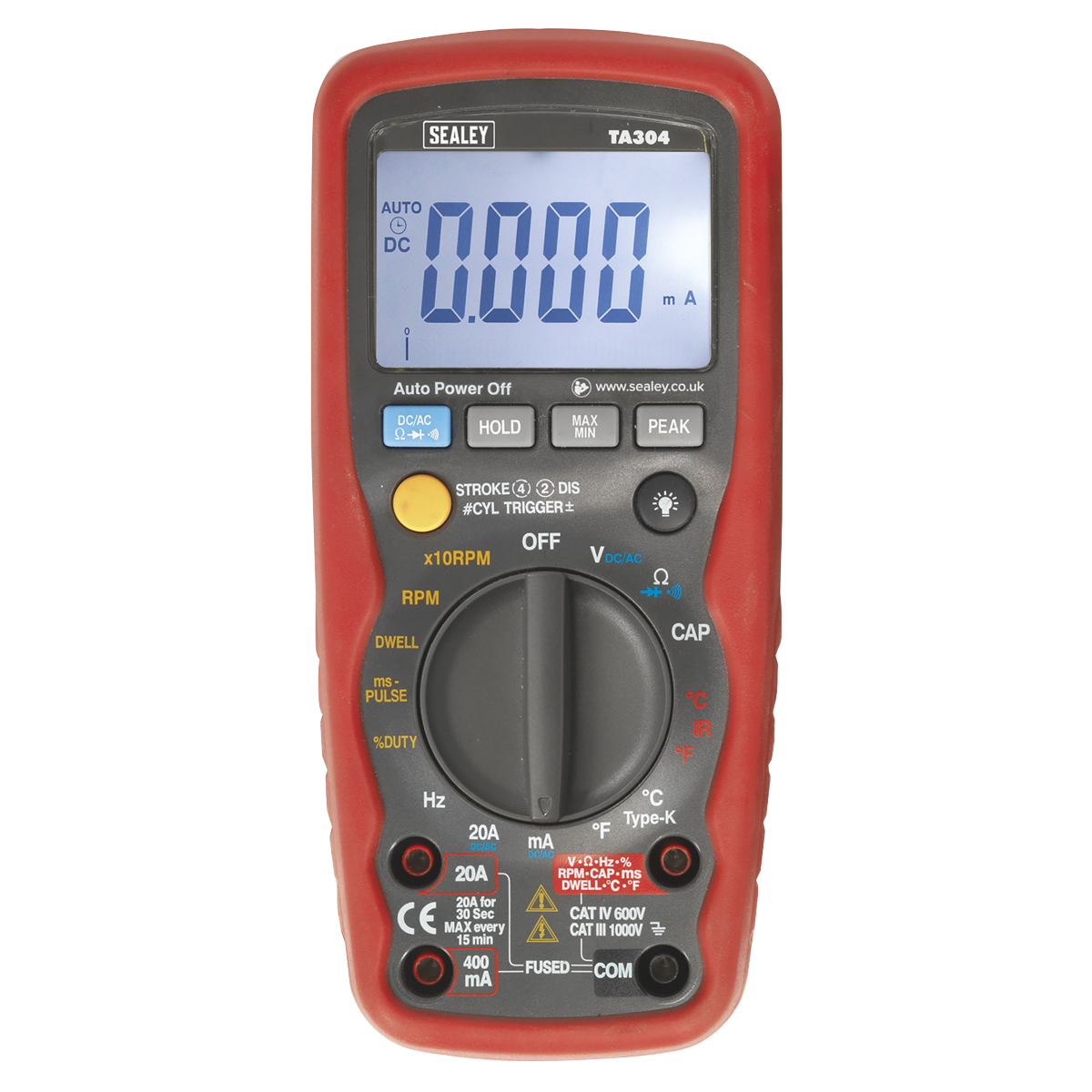

15-Function, auto-ranging automotive diagnostic multimeter with IR thermometer attachment. Combination digital/bar graph display gives accurate indication of component outputs. Large, easy-to-read high contrast display with bright, white back light. Workshop-tough, durable case with integral stand and auto-power shut-off. High-speed processing circuitry reads standard automotive parameters including duty cycle and pulse width making this tool ideal for testing fuel injection systems. Features auto-ranging and data-hold functions with overload protection on all ranges. Includes relative functions including min./max. and peak hold. Supplied with inductive coupler, infrared temperature probe, test probes and thermocouple in storage case.

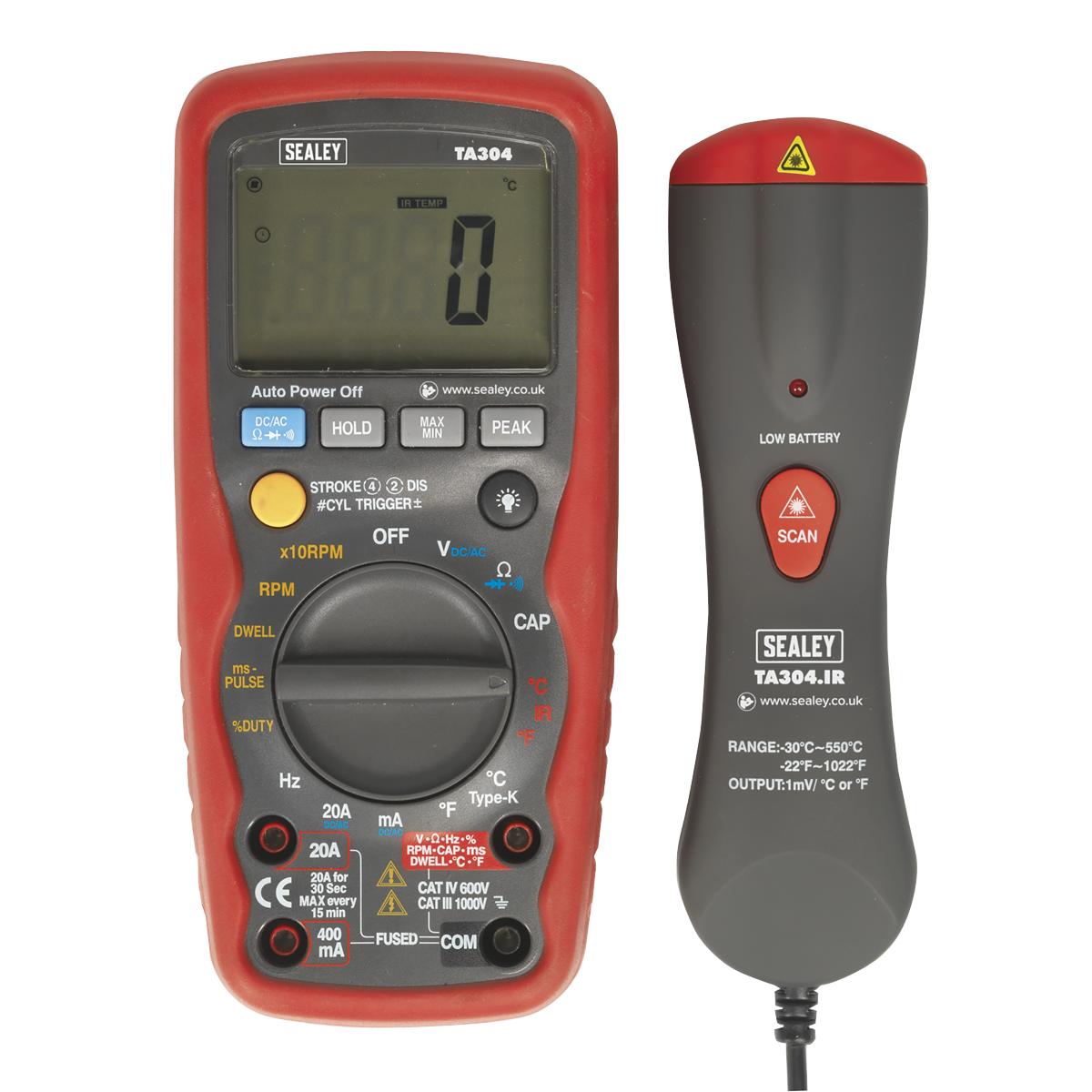

• 15-Function, auto-ranging automotive diagnostic multimeter with infrared thermometer attachment.
• Combination digital/bar graph display gives accurate indication of component outputs.
• Large, easy-to-read high contrast display with bright, white back light.
• Workshop-tough, durable case with integral stand and auto power shut-off.

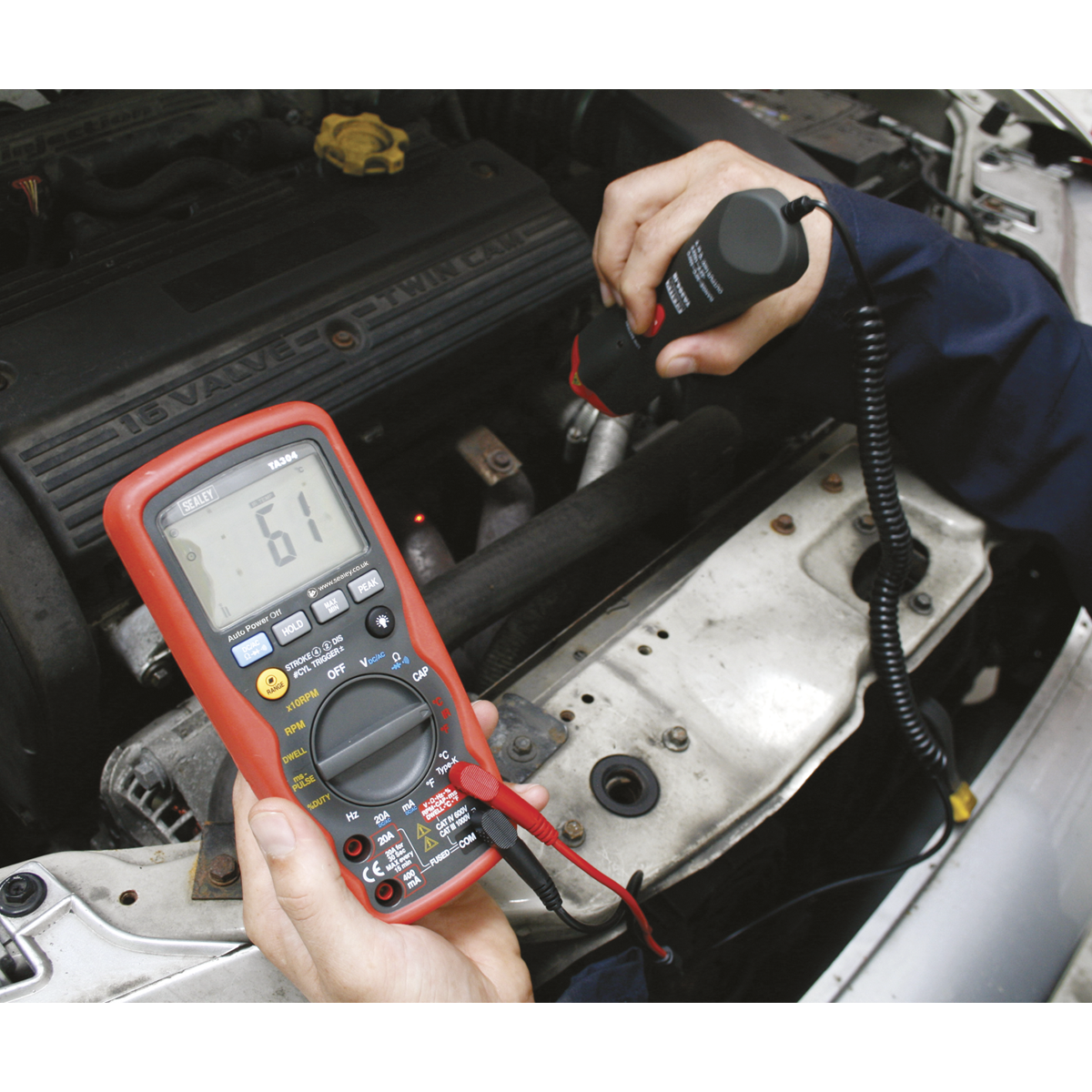

• High-speed processing circuitry reads standard automotive parameters including duty cycle and pulse width making this tool ideal for testing fuel injection systems.
Features auto-ranging and data-hold functions with overload protection on all ranges.
• Includes relative functions including min./max. and peak hold.

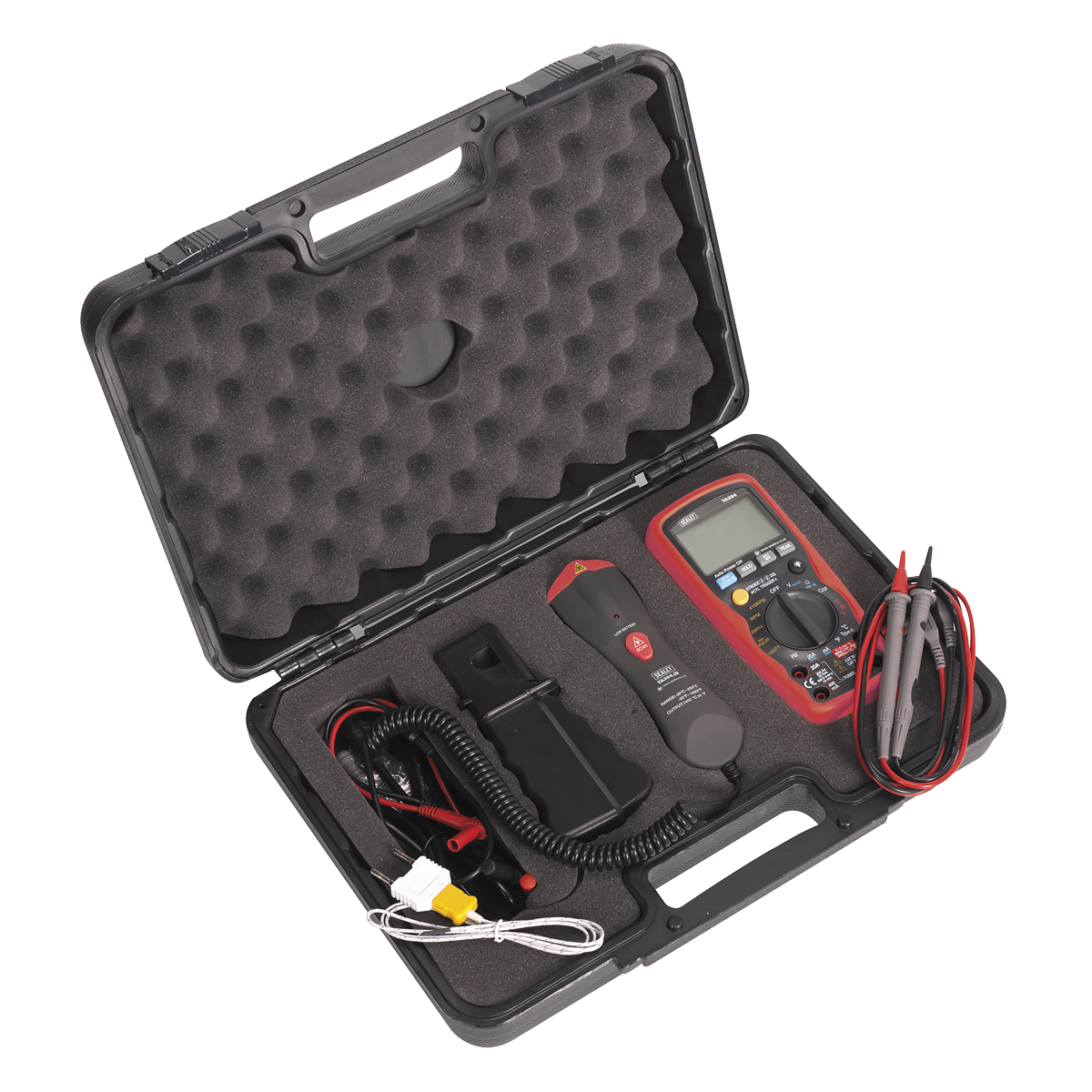

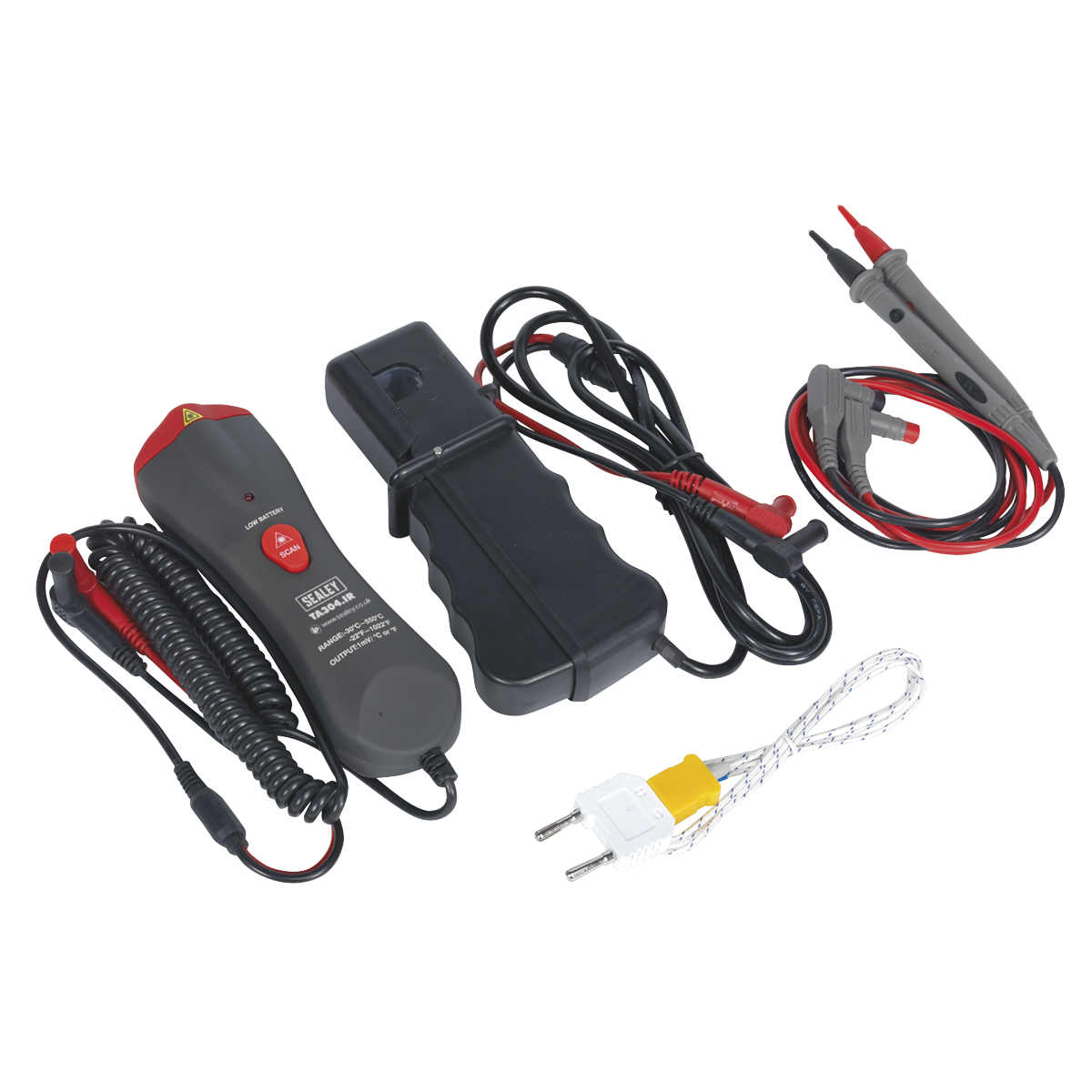

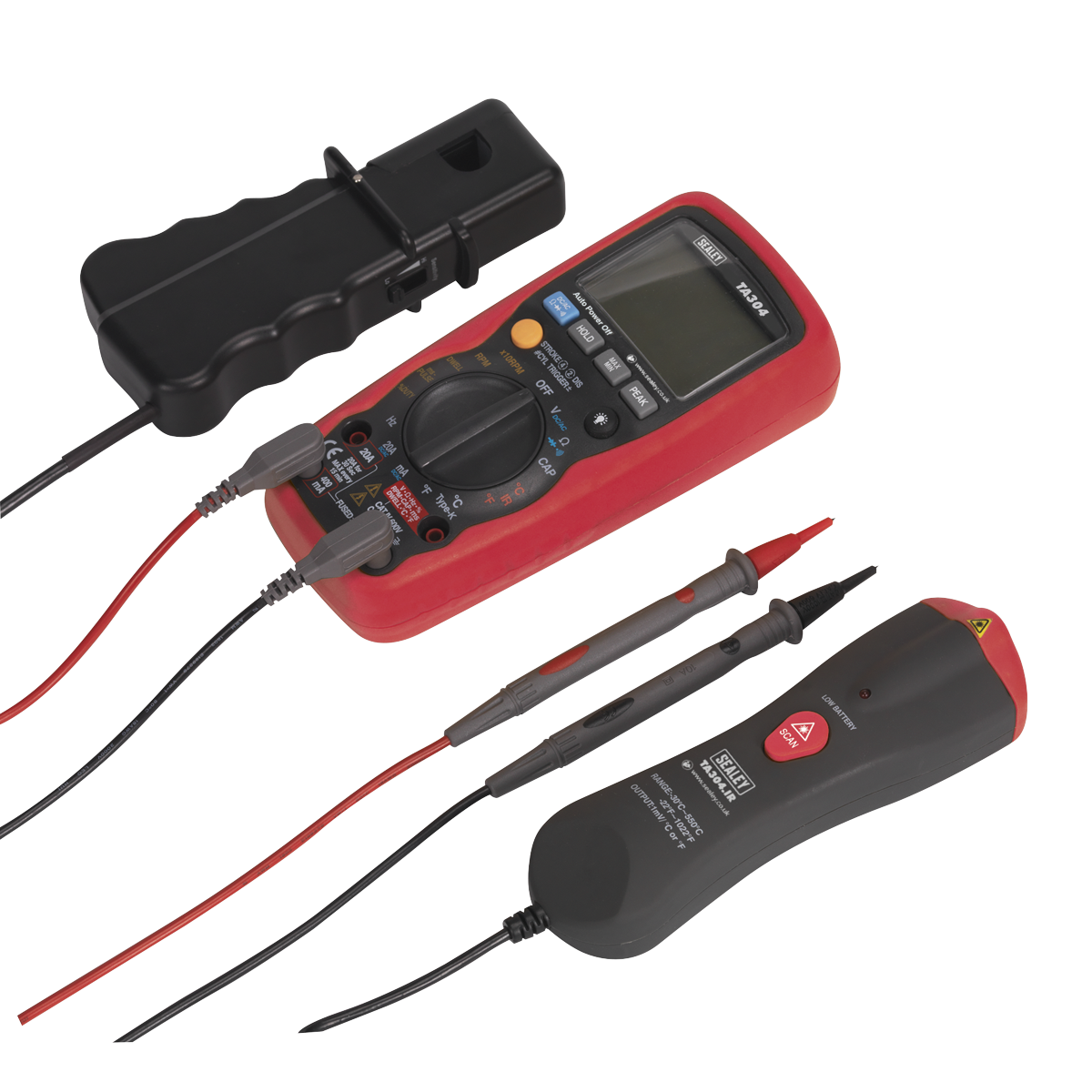

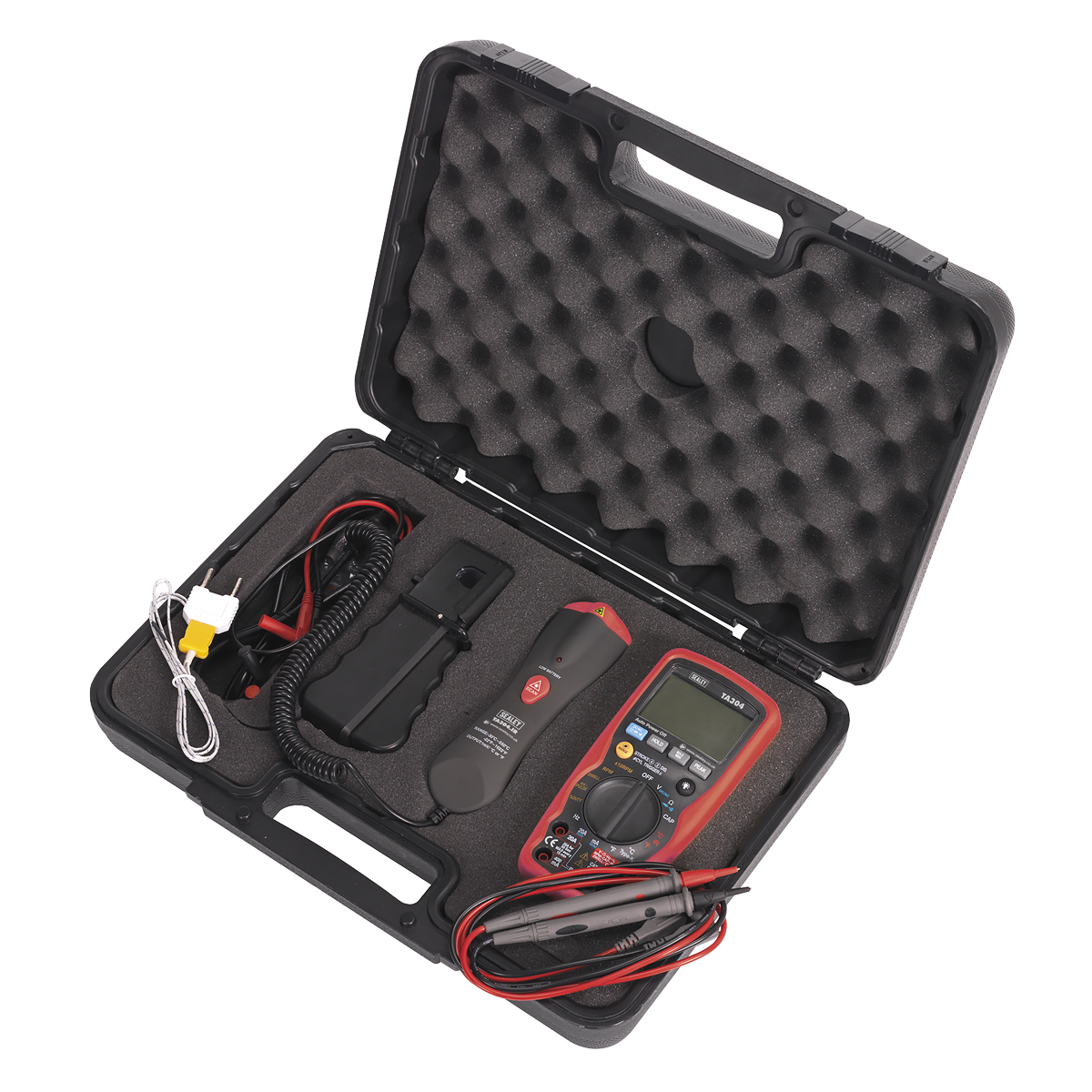

• Supplied with inductive coupler, infrared temperature probe, test probes and thermocouple in storage case.

Specifications

Model No	TA304
Brand:	Sealey
Nett Weight:	360g
Tach (rpm):	2-10Cyl, 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm
Dwell:	4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
AC Voltage:	400mV, 4V, 40V, 400V, 700V (Auto-Ranging)
DC Voltage:	400mV, 4V, 40V, 400V, 1000V (Auto-Ranging)
AC Current:	400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging)
DC Current:	400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging)
Capacitance:	40nF, 400nF, 4µF, 40µF, 400µF, 4mF, 40mF (Auto-Ranging)
Frequency:	0.001Hz-9.99MHz (Auto-Ranging)
Duty Cycle:	0.1-99.9%
Pulse Width:	0.1-10ms
Resistance:	400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
Continuity:	<30Ω Continuity Buzzer 2kHz
Temperature:	-20 to +760°C, -4 to +1400°F
IR Temperature:	-20 to +280°C, -4 to +536°F
Diode Check:	Yes
Transistor Test:	No
Back Light:	Yes
Bar Graph Display:	Yes
Display Hold:	Yes
Auto-Ranging:	Yes
Inductive Coupler:	Yes
PC Interface:	No
Digits Height:	20mm
Auto Power Off:	Yes
Low Battery Indicator:	Yes
Batteries (supplied):	9V (PP3)
Hi-Impact Case:	Yes
Size (L x W x D):	182 x 82 x 55mm
