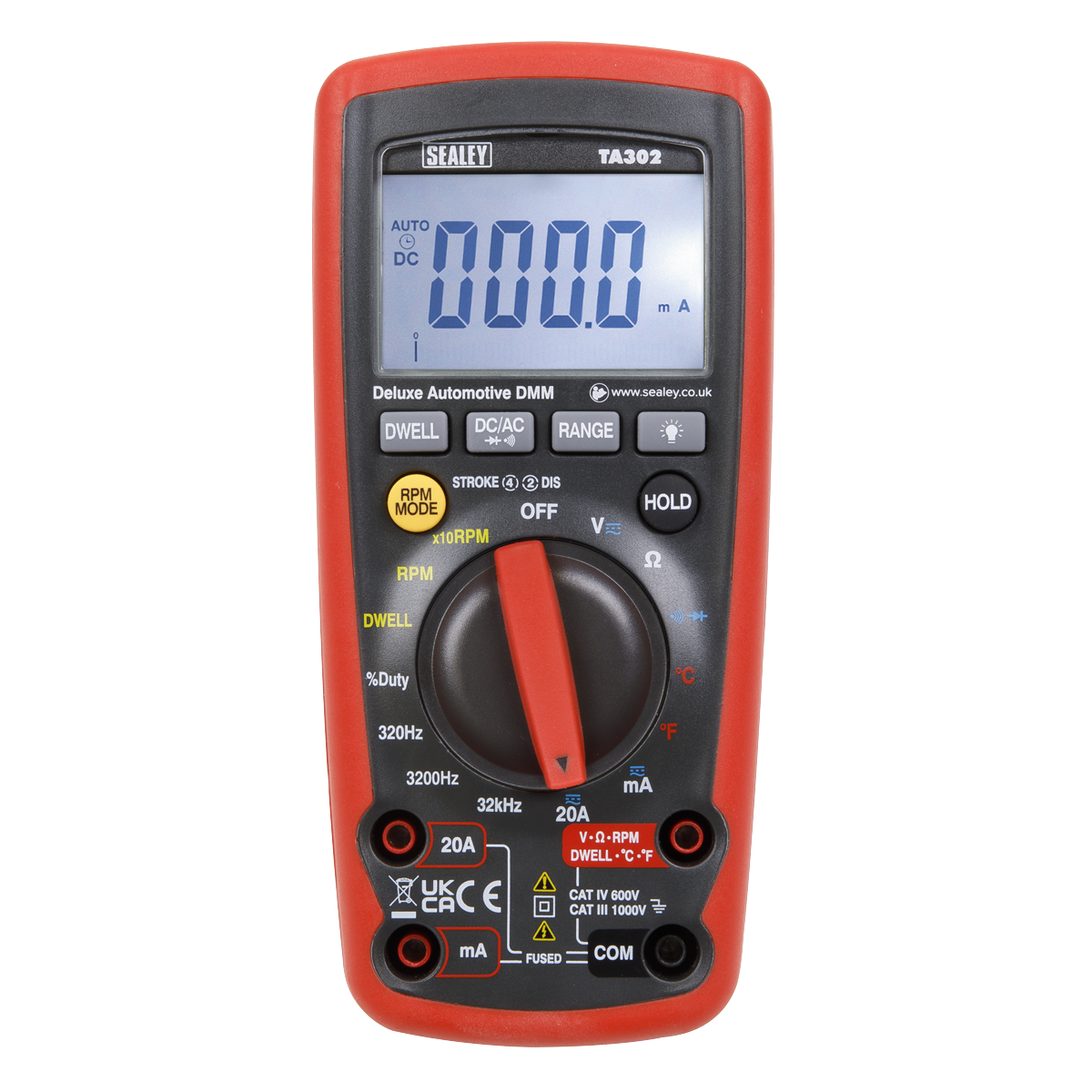

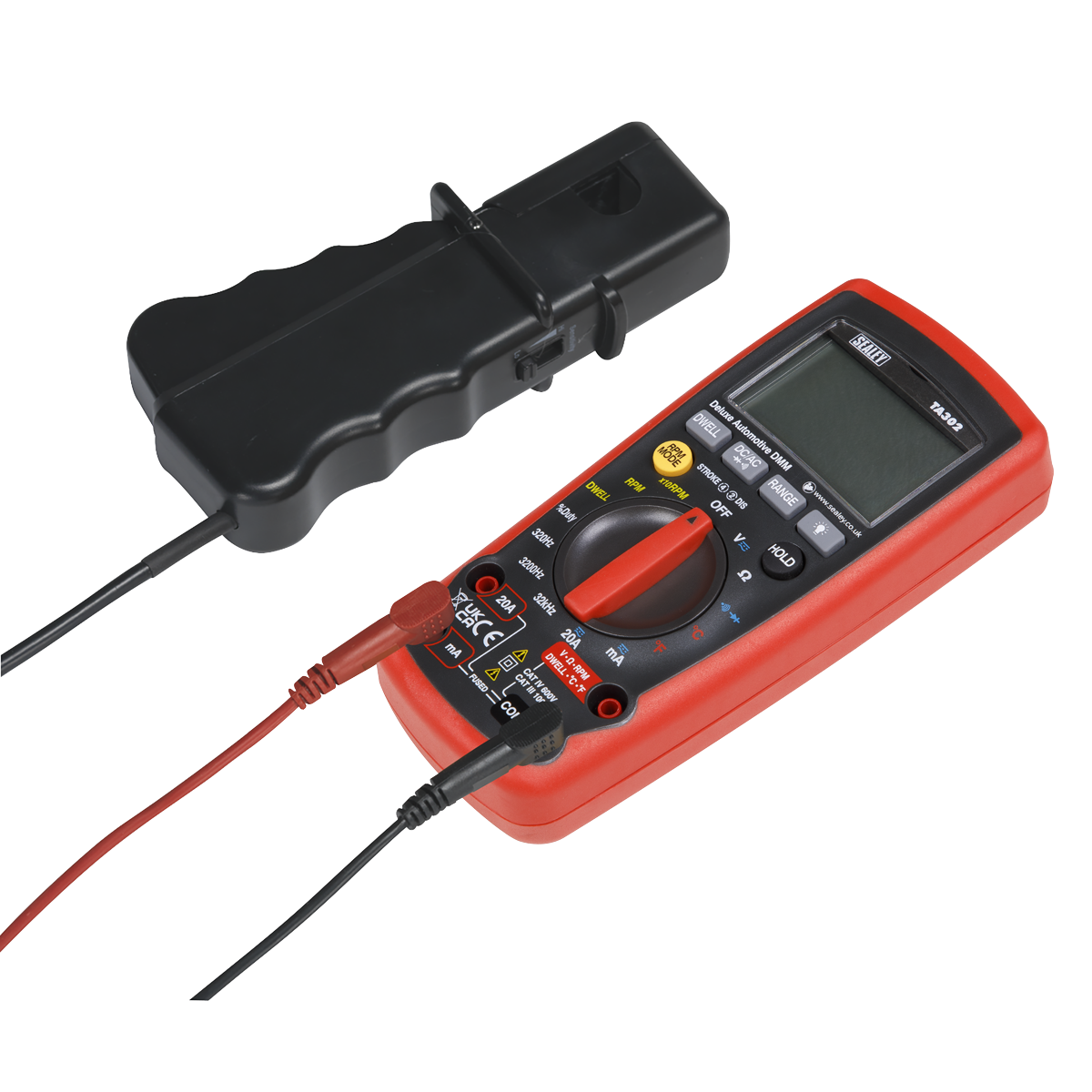

Sealey 12-Function Digital Automotive Multimeter with Inductive Coupler TA302

Name: Sealey 12-Function Digital Automotive Multimeter with Inductive Coupler TA302
SKU: SEALEY-TA302
Price: 95.94 GBP
Availability: InStock

£95.94 GBP

~~£119.94 GBP~~ £95.94 GBP

Reduced Sold out

Taxes included. Shipping calculated at checkout.

Quantity

PROMOTION SALE!

12-Function, auto-ranging automotive diagnostic multimeter. Combination digital/bar graph display gives accurate indication of component outputs. Large, easy-to-read high contrast display with bright, white back light. Workshop-tough, durable case with integral stand. Reads standard automotive parameters including duty cycle. Features auto-ranging and data-hold functions with overload protection on all ranges. Supplied with inductive coupler, test probes and thermocouple.

• 12-Function, auto-ranging automotive diagnostic multimeter.
• Combination digital/bar graph display gives accurate indication of component outputs.
• Large, easy-to-read high contrast display with bright, white back light.
• Workshop-tough, durable case with integral stand.
• Reads standard automotive parameters including duty cycle.
• Features auto-ranging and data-hold functions with overload protection on all ranges.

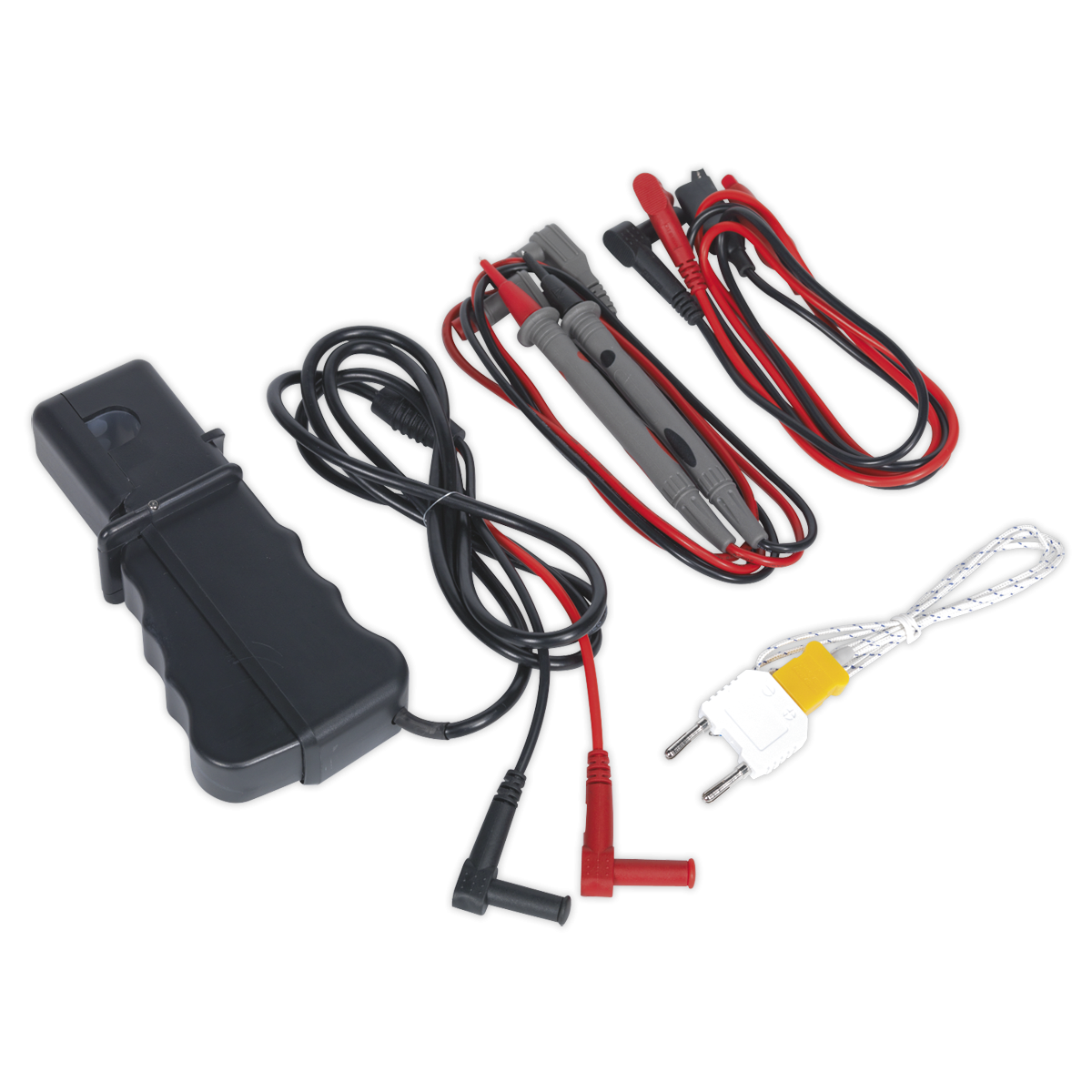

• Supplied with inductive coupler, test probes and thermocouple.

Specifications

Model No	TA302
Brand:	Sealey
Nett Weight:	366g
Tach (rpm):	4-8cyl, 2 & 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm
Dwell:	4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
AC Voltage:	3.2V, 32V, 320V, 600V (Auto-Ranging)
DC Voltage:	320mV, 3.2V, 32V, 320V, 600V (Auto-Ranging)
AC Current:	320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging)
DC Current:	320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging)
Capacitance:	No
Frequency:	320Hz, 3200Hz, 32kHz (Auto-Ranging)
Duty Cycle:	0.1-99.9%
Pulse Width:	No
Resistance:	320Ω, 3.2kΩ, 32kΩ, 320kΩ, 3.2MΩ, 32MΩ (Auto-Ranging)
Continuity:	<35Ω Continuity Buzzer 2kHz
Temperature:	-20 to +760°C, -4 to +1400°F
IR Temperature:	No
Diode Check:	Yes
Transistor Test:	No
Back Light:	Yes
Bar Graph Display:	Yes
Display Hold:	Yes
Auto-Ranging:	Yes
Inductive Coupler:	Yes
PC Interface:	No
Digits Height:	18mm
Auto Power Off:	n/a
Low Battery Indicator:	Yes
Batteries (supplied):	9V (PP3)
Hi-Impact Case:	Yes
Size (L x W x D):	167 x 79 x 50mm
Weight:	366g
