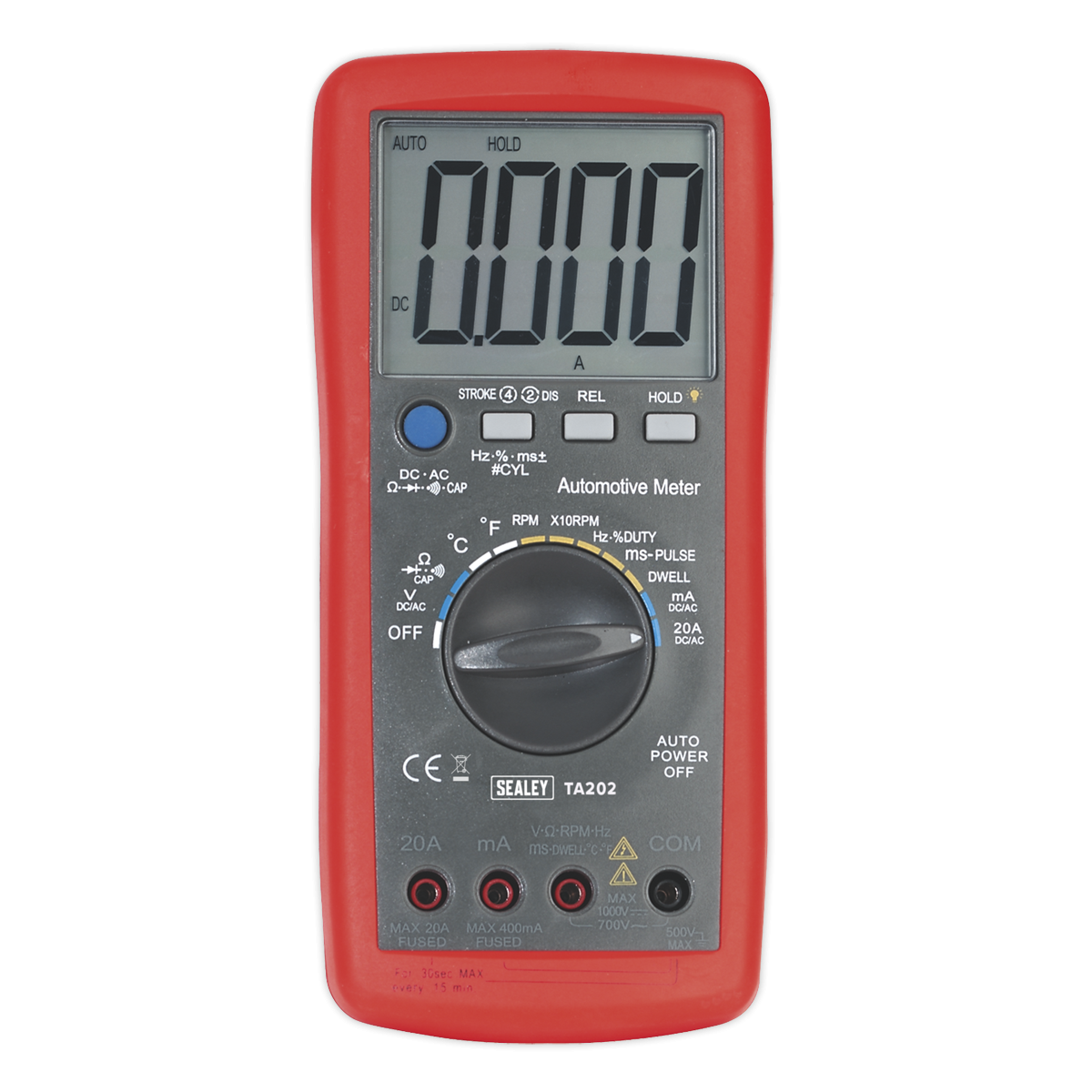

    Sealey 14-Function Digital Automotive Multimeter with Inductive Coupler TA202

    Sealey 14-Function Digital Automotive Multimeter with Inductive Coupler TA202

    £110.92 GBP
    £128.34 GBP £110.92 GBP
    Reduced Sold out
    Taxes included. Shipping calculated at checkout.
    Extra-large, high-contrast LCD display with 36mm high digital read-out and back light. Durable case and integral stand suitable for the toughest workshop conditions. Features millisecond pulse-width function for accurate measurement of fuel injection systems. Includes auto-ranging, data-hold and auto-power-off. Supplied with inductive coupler (IC), test probes, thermocouple and storage case.

    • Extra-large, high-contrast LCD display with 36mm high digital read-out and back light.
    • Durable case and integral stand suitable for the toughest workshop conditions.
    • Features millisecond pulse-width function for accurate measurement of fuel injection systems.
    • Includes auto-ranging, data-hold and auto-power-off.
    • Suitable for AC and DC circuits.

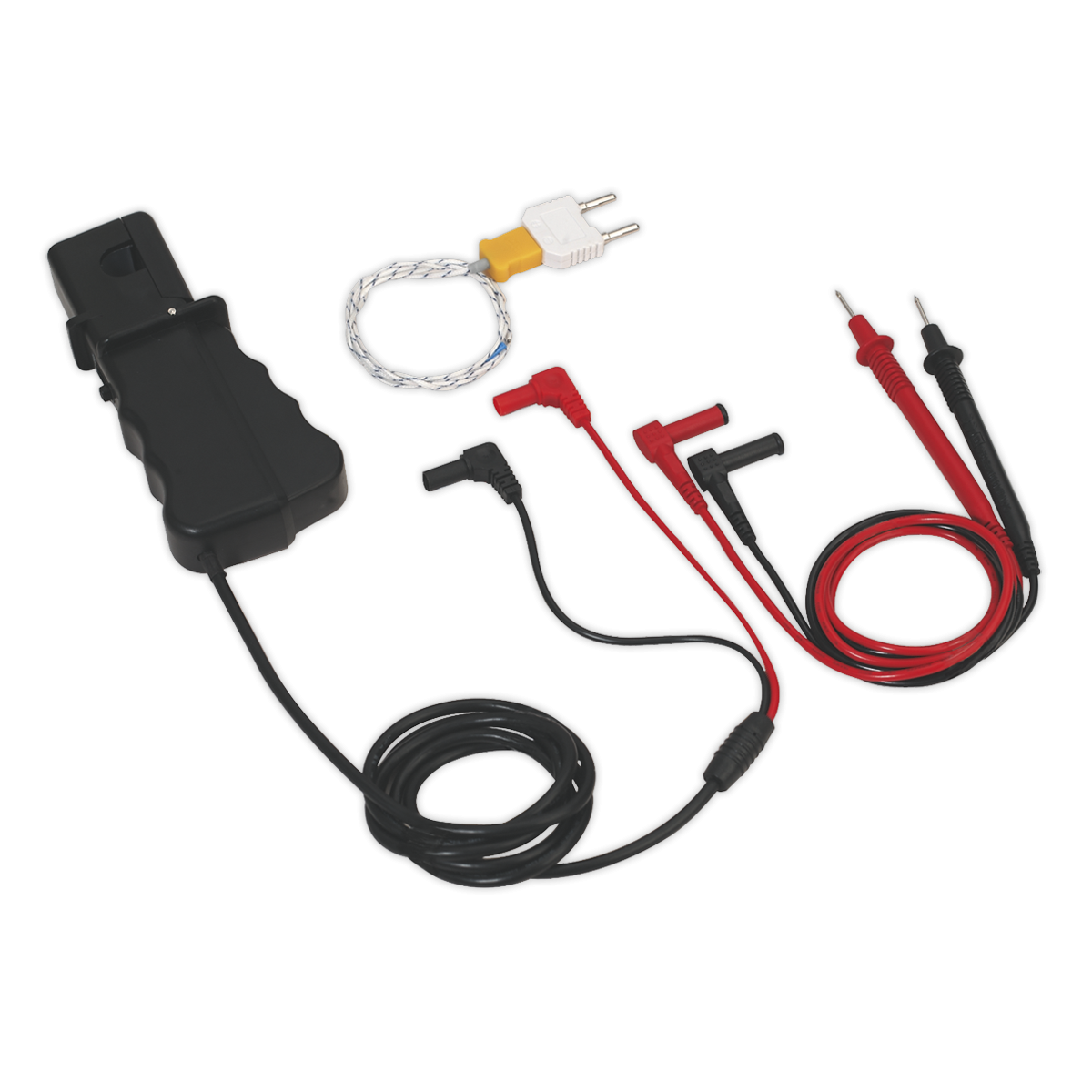

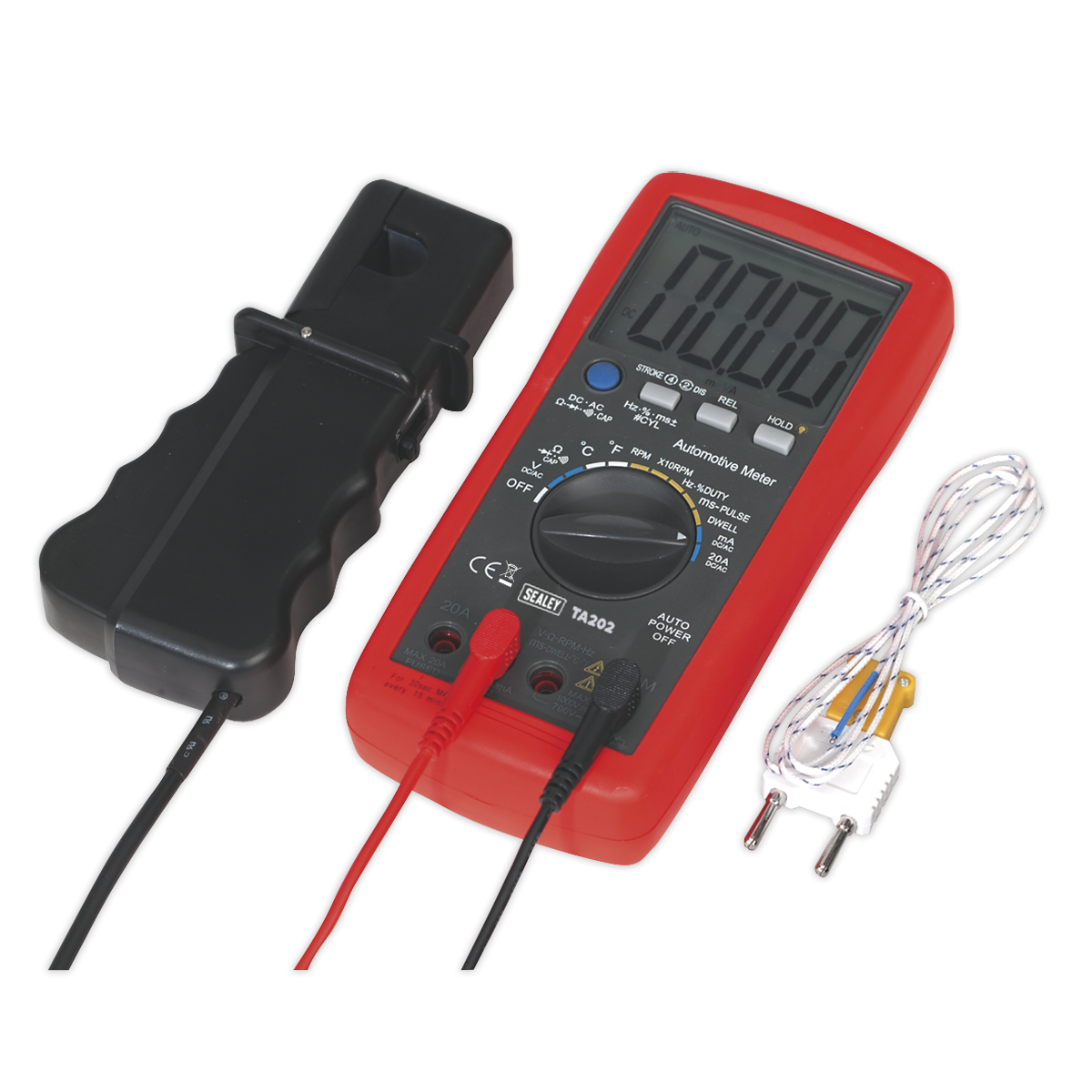

    • Supplied with inductive coupler (IC), test probes, thermocouple and storage case.

    Specifications

    Model No TA202
    Brand: Sealey
    Nett Weight: 394g
    Tach (rpm): 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm
    Dwell: 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
    AC Voltage: 400mV, 4V, 40V, 400V, 700V (Auto-Ranging, except 400mV)
    DC Voltage: 400mV, 4V, 40V, 400V, 1000V (Auto-Ranging)
    AC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA)
    DC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA)
    Capacitance: 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging)
    Frequency: 5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 500kHz, 10MHz (Auto-Ranging)
    Duty Cycle: 0.1-99.9%
    Pulse Width: 1-10ms
    Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
    Continuity: <150Ω
    Temperature: -20 to +760°C/-4 to +1400°F
    IR Temperature: No
    Diode Check: Yes (Typical Test Current 0.3mA)
    Transistor Test: No
    Back Light: Yes
    Bar Graph Display: No
    Display Hold: Yes
    Auto-Ranging: Yes
    Inductive Coupler: Yes
    PC Interface: No
    Digits Height: 36mm
    Auto Power Off: Yes
    Low Battery Indicator: Yes
    Batteries (supplied): 9V (PP3)
    Hi-Impact Case: Yes
    Size (L x W x D): 195 x 92 x 36mm
    Weight: 394g
