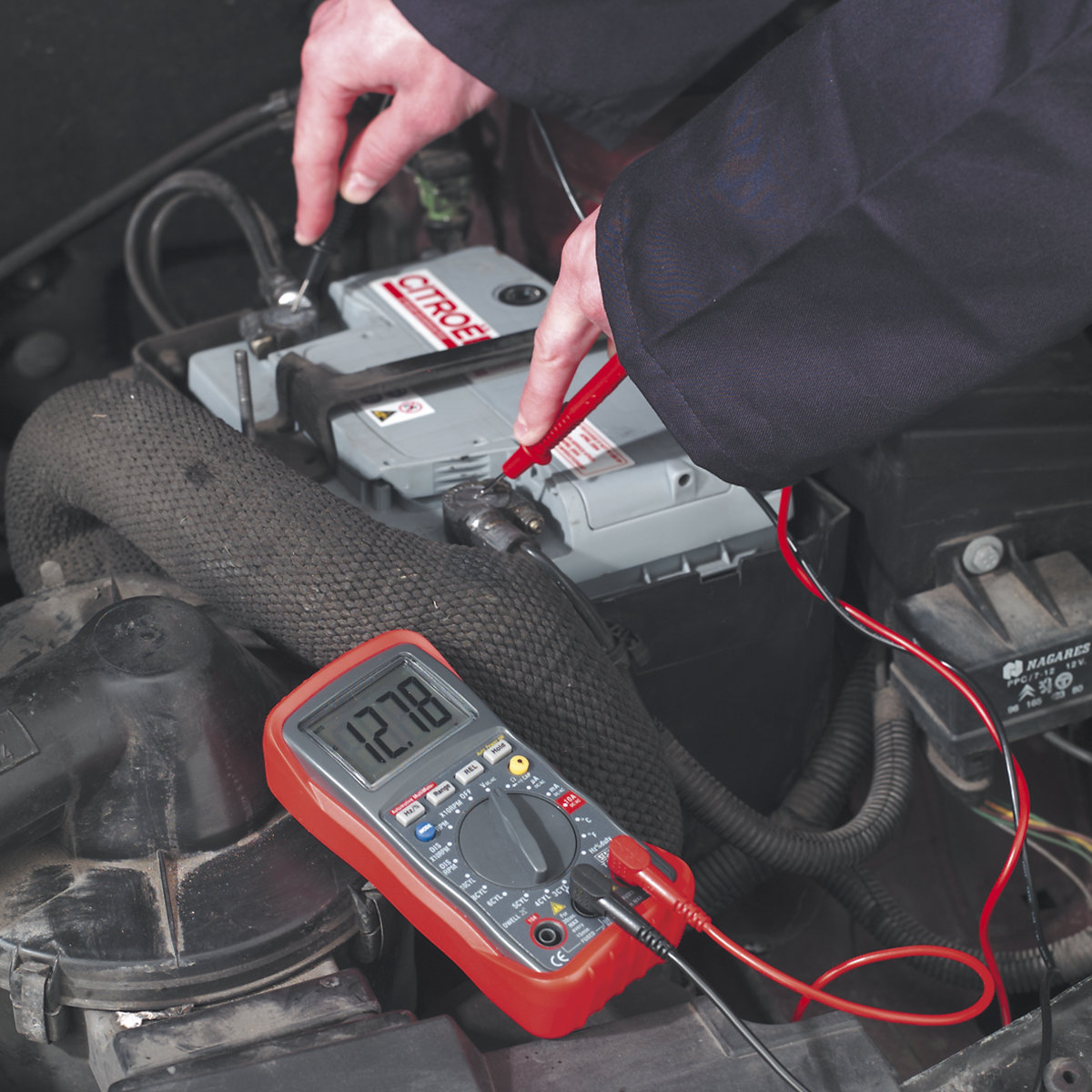

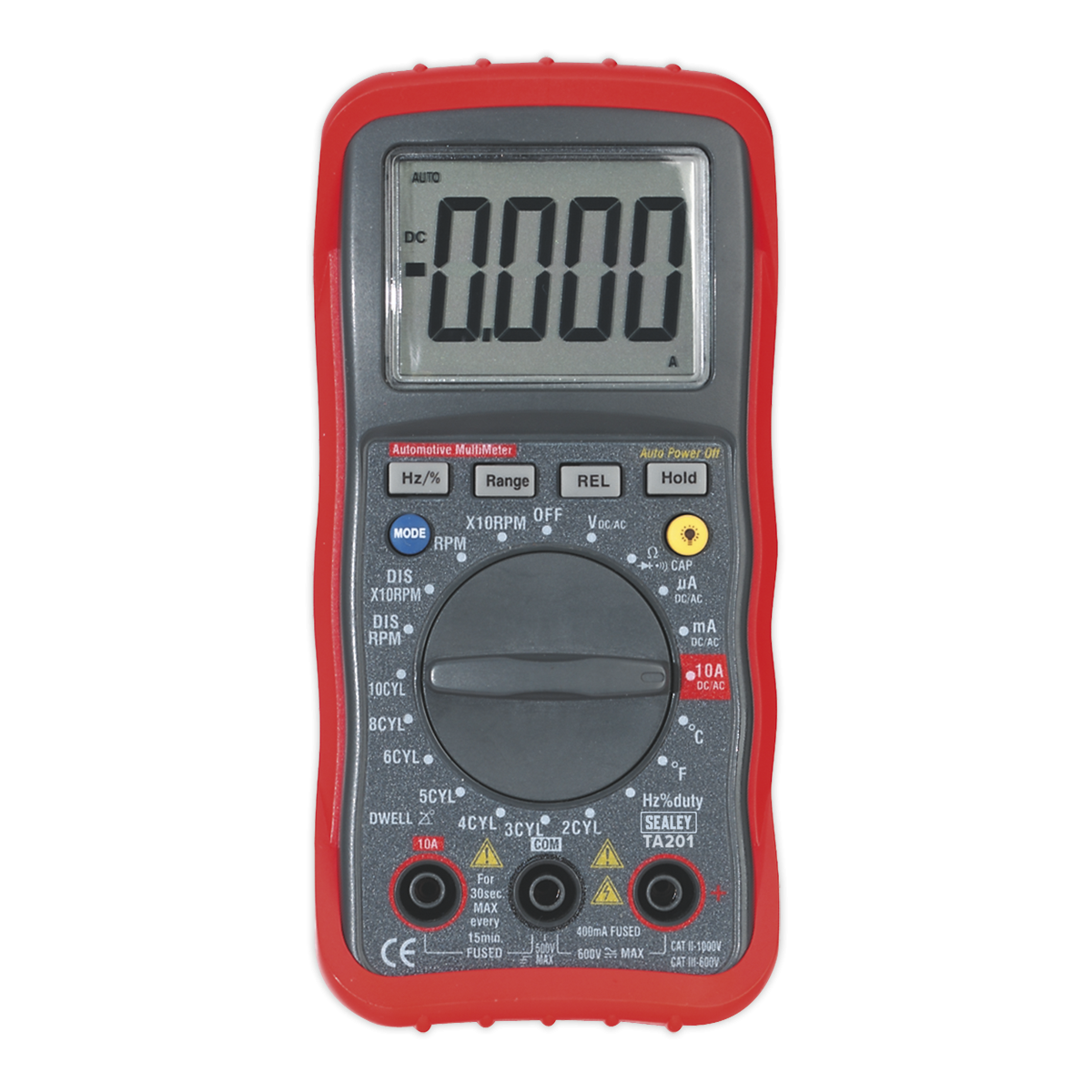

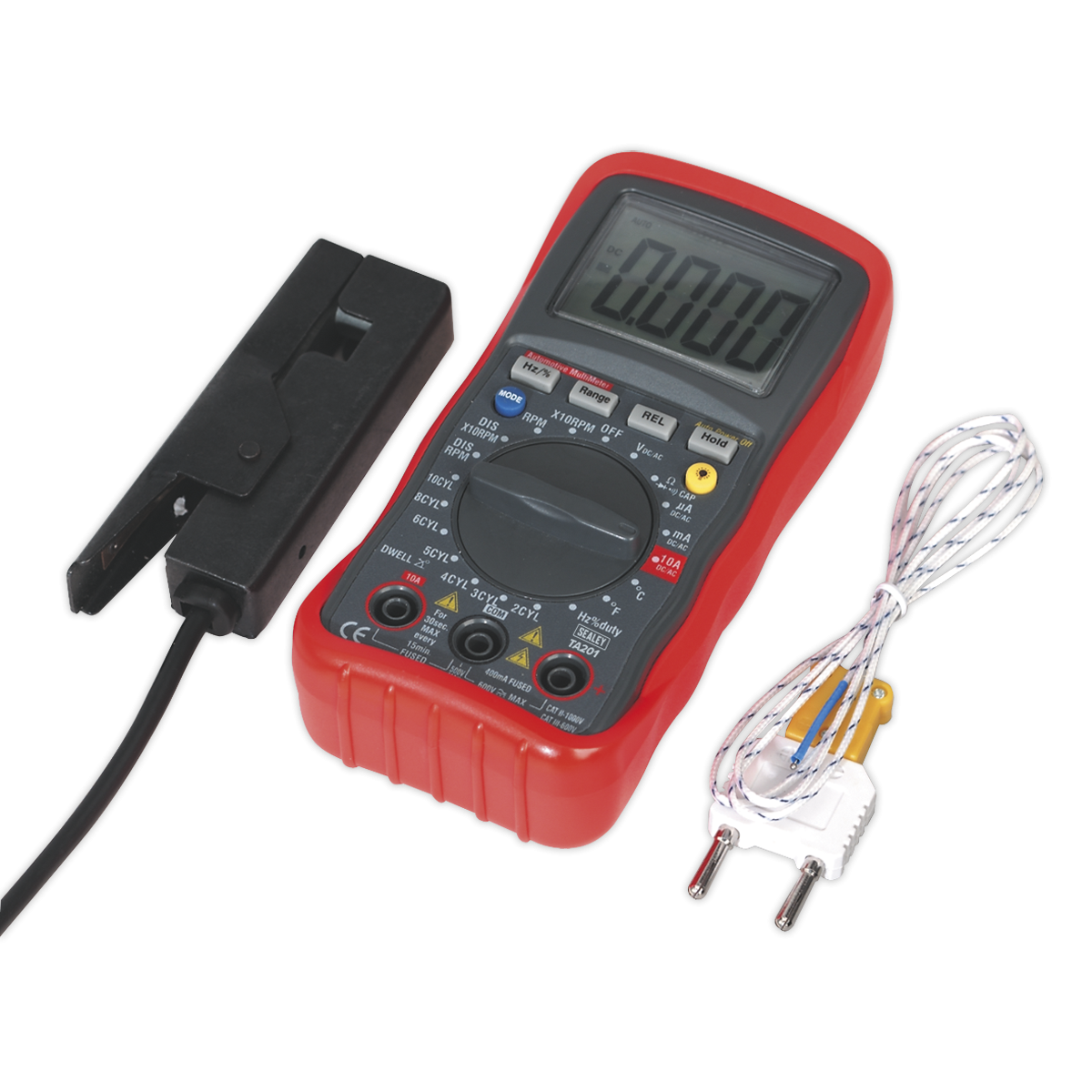

Compact size meter with 4-digit 22mm, high-contrast LCD display and back light. Features auto-ranging, data-hold and auto-power-off functions. Includes inductive coupler (IC) for fast reading of engine rpm. Supplied with probe, crocodile clip and thermocouple leads for easy hook-up.
• Compact size meter with 4-digit 22mm, high-contrast LCD display and back light.
• Features auto-ranging, data-hold and auto-power-off functions.

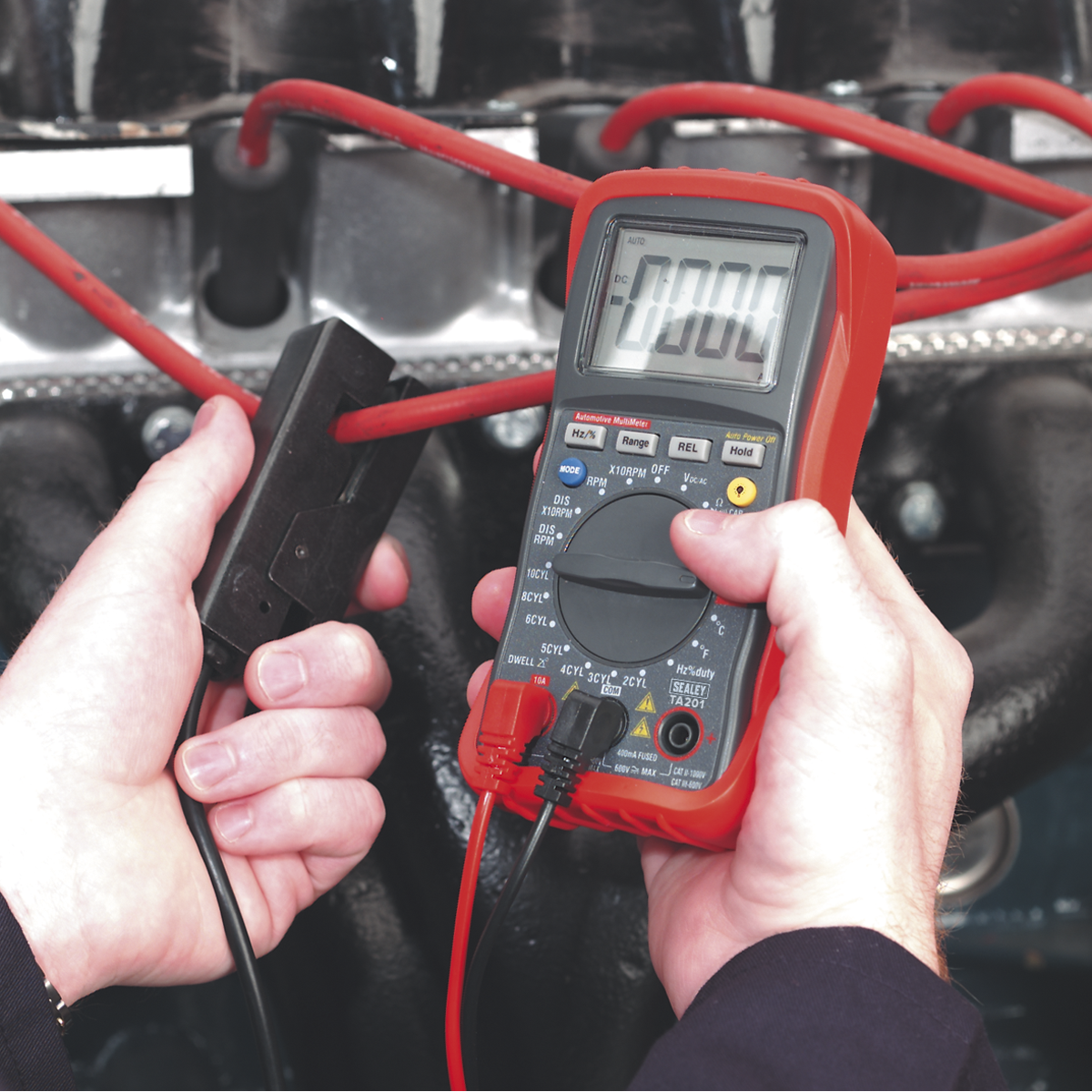

• Includes inductive coupler for fast reading of engine rpm.

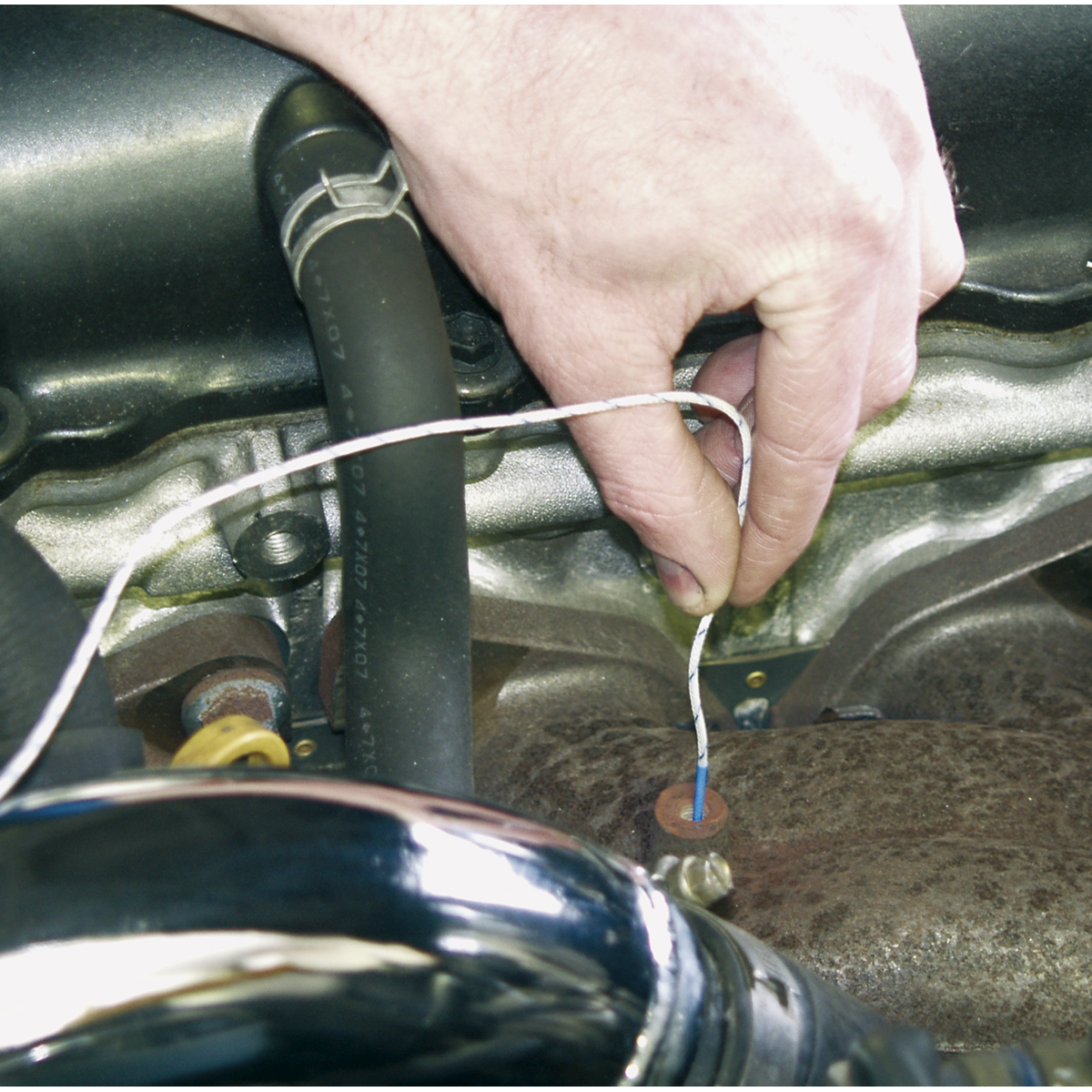

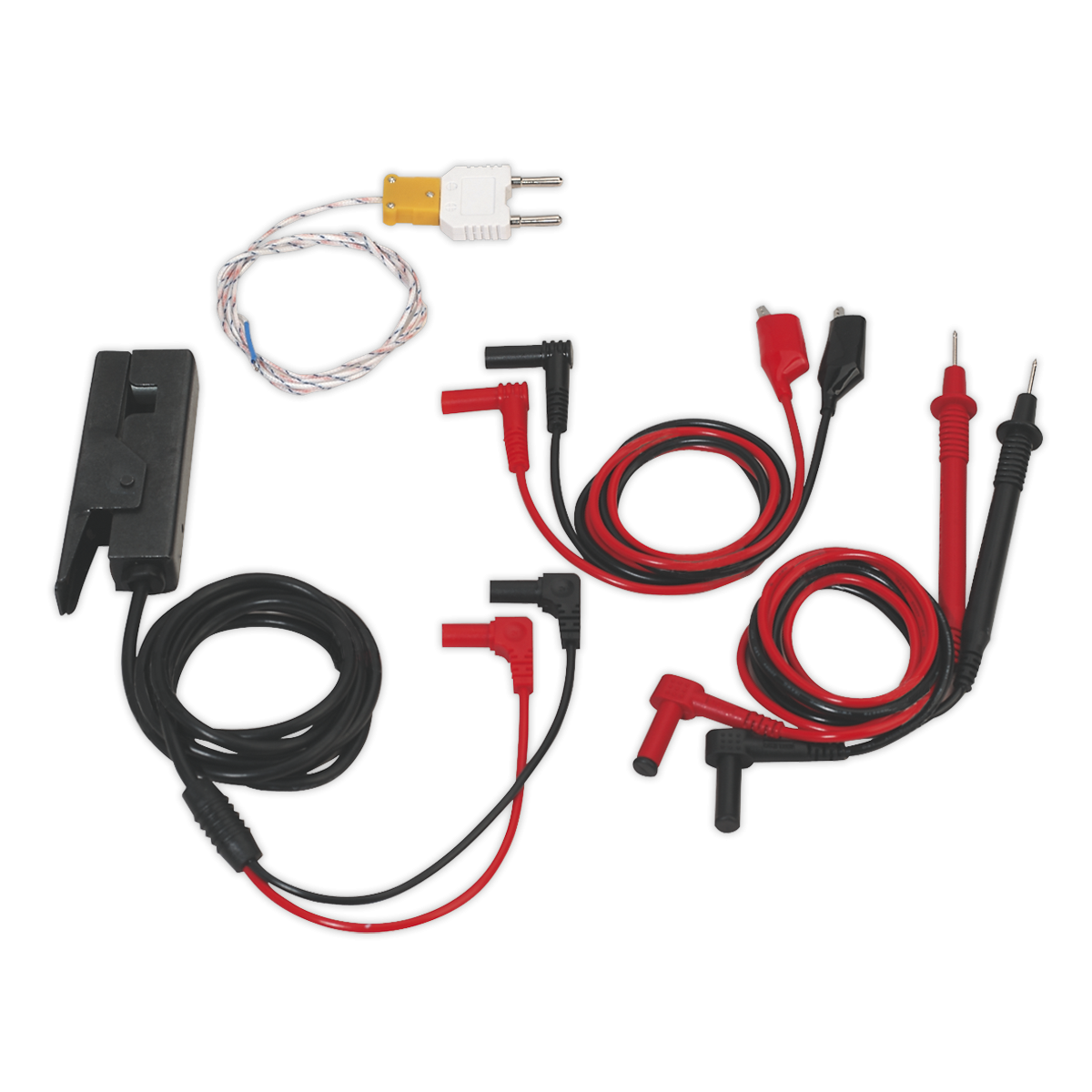

• Supplied with probe, crocodile clip and thermocouple leads for easy hook-up.
| Model No |
TA201 |
| Brand: |
Sealey |
| Nett Weight: |
330g |
| Tach (rpm): |
4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm |
| Dwell: |
2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36° |
| AC Voltage: |
400mV, 4V, 40V, 400V, 600V (Auto-Ranging, except 400mV) |
| DC Voltage: |
400mV, 4V, 40V, 400V, 600V (Auto-Ranging) |
| AC Current: |
400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA) |
| DC Current: |
400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA) |
| Capacitance: |
40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging) |
| Frequency: |
4V Range; 5Hz-10kHz, 40 & 400V Ranges; 5Hz-200kHz, 600V Range; 50Hz-1kHz, 400mA Range; 5Hz-5kHz, 10A Range; 5Hz-1kHz |
| Duty Cycle: |
0.1-99.9% |
| Pulse Width: |
No |
| Resistance: |
400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging) |
| Continuity: |
<150Ω |
| Temperature: |
-20 to +760°C/-4 to +1400°F |
| IR Temperature: |
No |
| Diode Check: |
Yes (Typical Test Current 0.3mA) |
| Transistor Test: |
No |
| Back Light: |
Yes |
| Bar Graph Display: |
No |
| Display Hold: |
Yes |
| Auto-Ranging: |
Yes |
| Inductive Coupler: |
Yes |
| PC Interface: |
No |
| Digits Height: |
22mm |
| Auto Power Off: |
Yes |
| Low Battery Indicator: |
Yes |
| Batteries (supplied): |
9V (PP3) |
| Hi-Impact Case: |
Yes |
| Size (L x W x D): |
146 x 66.2 x 41.5mm |
| Weight: |
330g |
