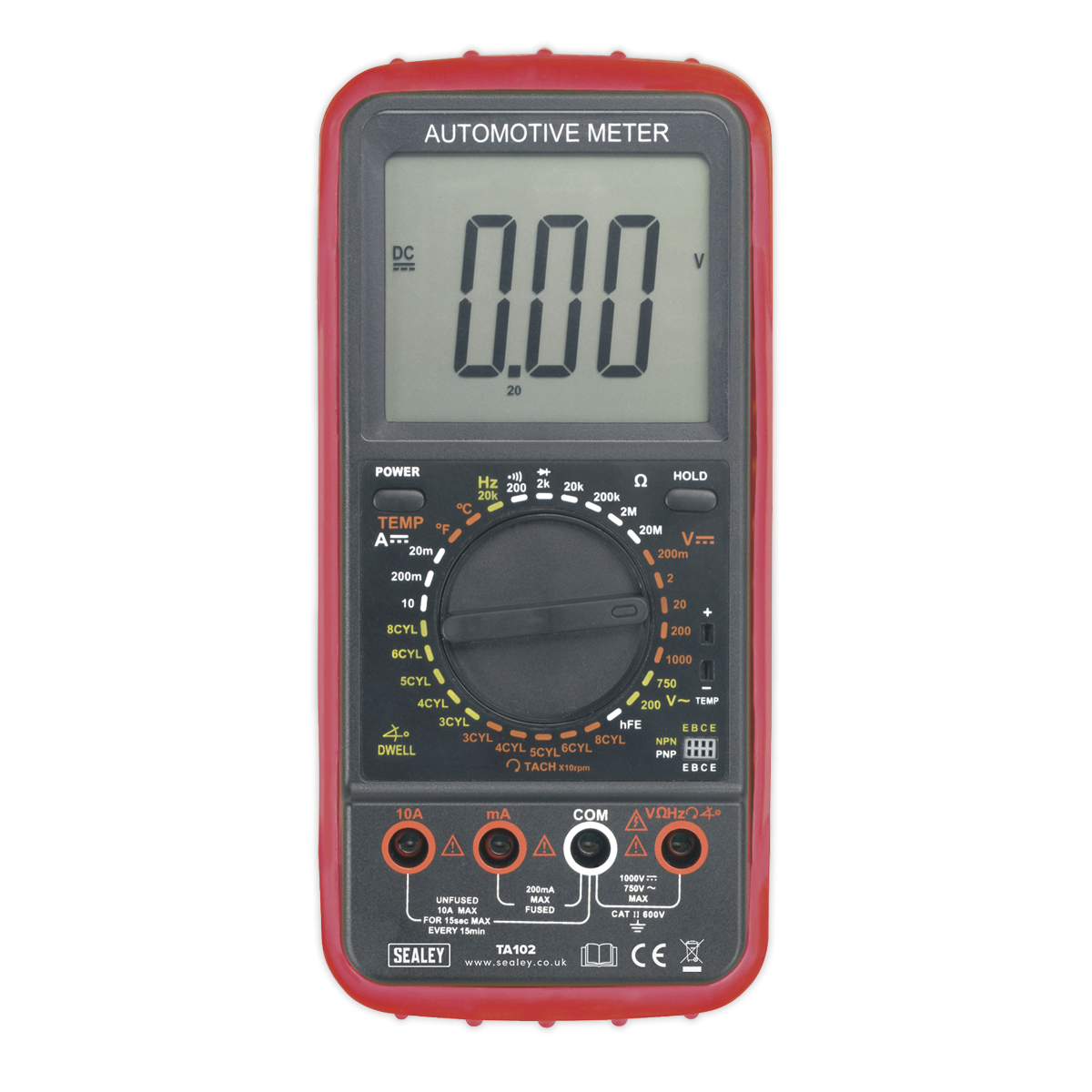

Sealey 11-Function Digital Automotive Multimeter TA102

Name: Sealey 11-Function Digital Automotive Multimeter TA102
SKU: SEALEY-TA102
Price: 69.98 GBP
Availability: InStock

£69.98 GBP

~~£73.14 GBP~~ £69.98 GBP

Reduced by £3.16 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

Durable case and integral stand suitable for the toughest workshop conditions. Large, high-contrast LCD display with 34mm high digital read-out. Includes over-range indication, auto-zeroing, data-hold, auto-polarity, auto-power-off and low battery display functions. Supplied with capped test probes and K-type thermocouple.

• Durable case and integral stand suitable for the toughest workshop conditions.
• Large, high-contrast LCD display with 34mm high digital read-out.
• Includes over-range indication, auto-zeroing, data-hold, auto-polarity, auto-power-off and low battery display functions.

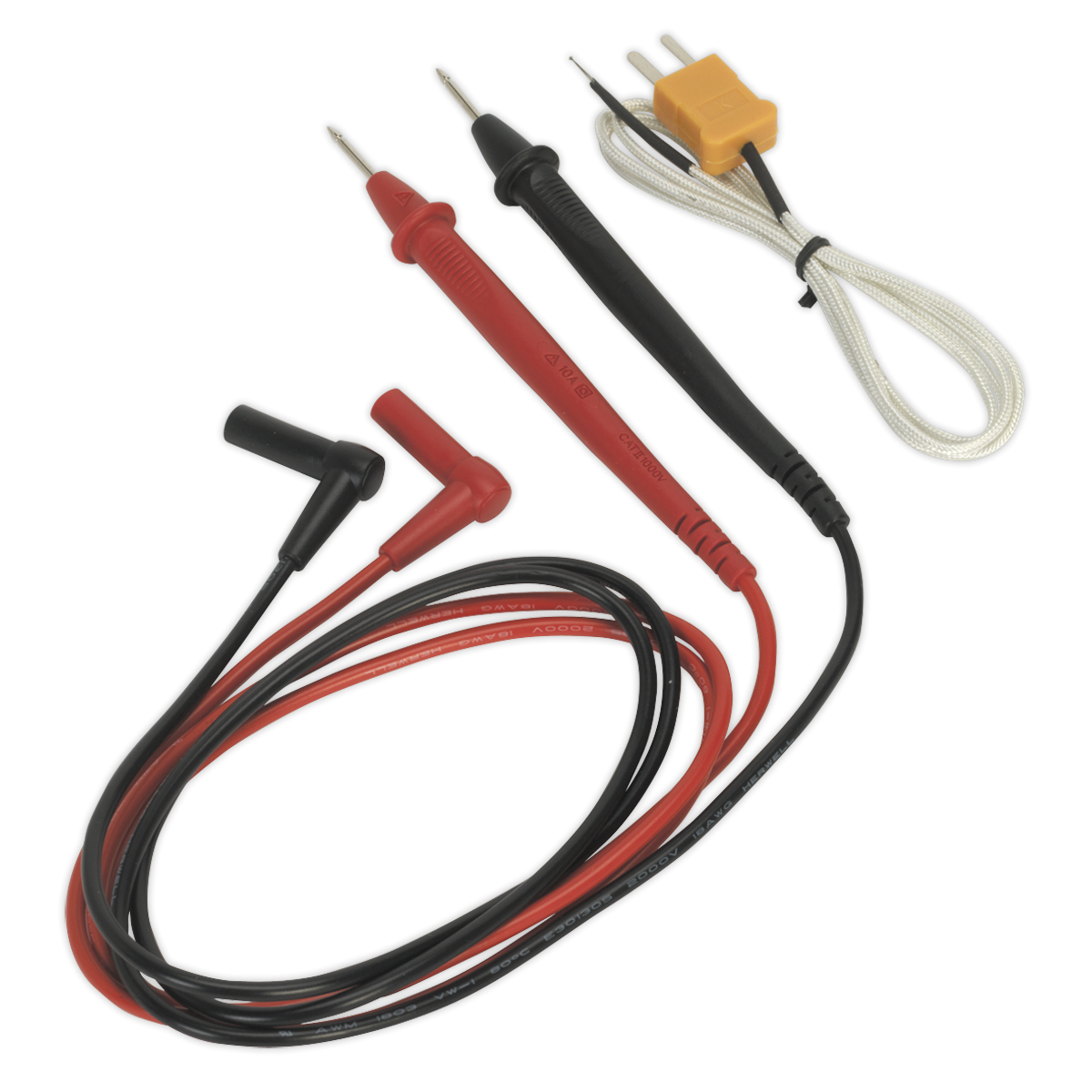

• Supplied with capped test probes and K-type thermocouple.

Specifications

Model No	TA102
Brand:	Sealey
Nett Weight:	495g
Tach (rpm):	3/4/5/6/8Cyl 180-10000 (x10)rpm
Dwell:	3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
AC Voltage:	200-750V
DC Voltage:	200mV, 2V, 20V, 200V, 1000V
AC Current:	No
DC Current:	20mA, 200mA, 10A
Capacitance:	No
Frequency:	20kHz
Duty Cycle:	No
Pulse Width:	No
Resistance:	200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ
Continuity:	<30Ω

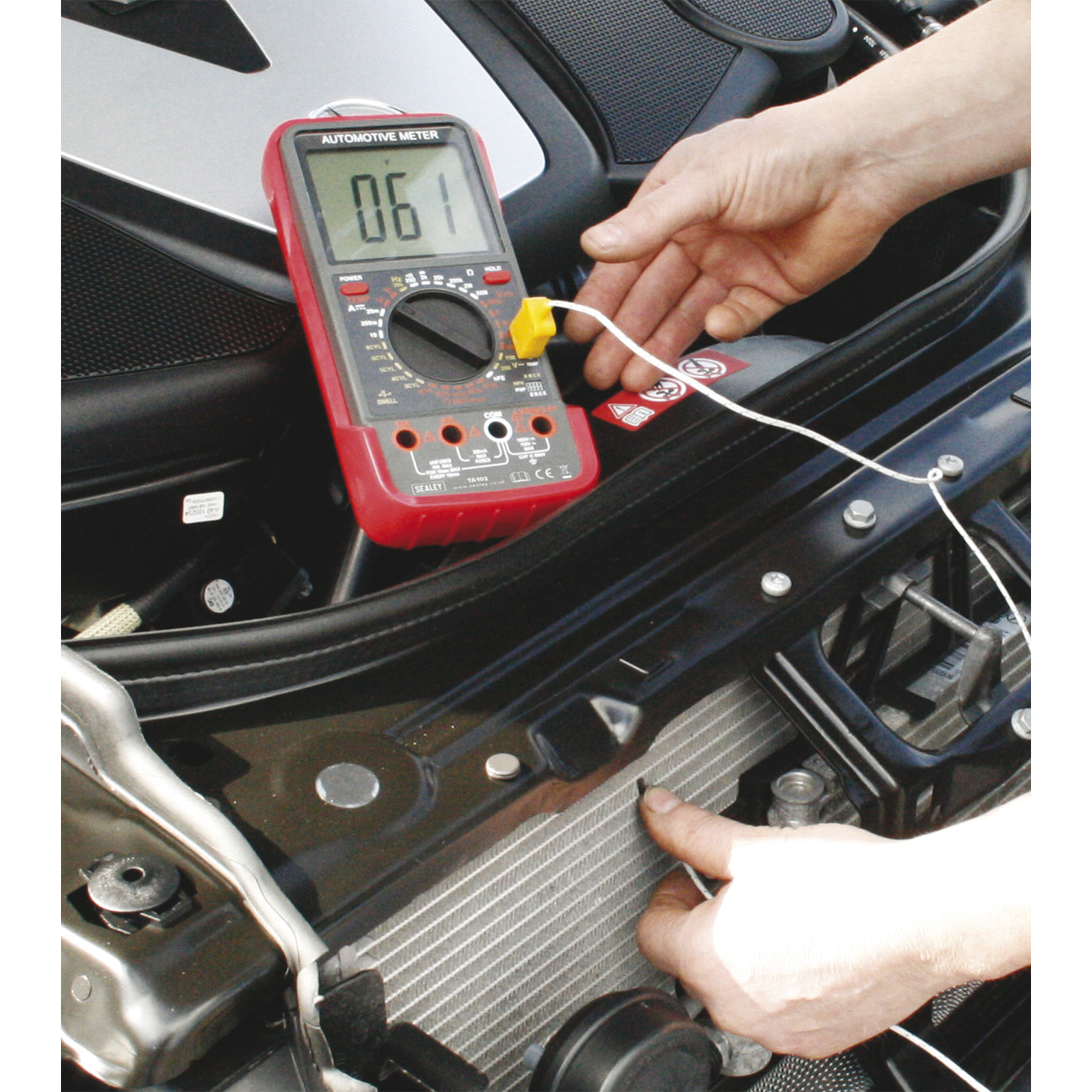

Temperature:	-20 to +750°C/-4 to +1382°F
IR Temperature:	No
Diode Check:	Yes (Typical Test Current 1mA)
Transistor Test (hFE):	Vce=3V, Ib=10µA
Back Light:	No
Bar Graph Display:	No
Display Hold:	Yes
Auto-Ranging:	No
Inductive Coupler:	No
PC Interface:	No
Digits Height:	34mm
Auto Power Off:	Yes
Low Battery Indicator:	Yes
Batteries (supplied):	9V (PP3)
Hi-Impact Case:	Yes
Size (L x W x D):	200 x 97 x 48mm
Weight:	495g
