Sealey 12-Function Digital Automotive Multimeter TA101

Name: Sealey 12-Function Digital Automotive Multimeter TA101
SKU: SEALEY-TA101
Price: 78.4 GBP
Availability: InStock

£78.40 GBP

~~£93.54 GBP~~ £78.40 GBP

Reduced Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Durable case and integral stand suitable for the toughest workshop conditions. Large, high-contrast LCD display with 18mm high digital read-out and analogue bar graph. Includes auto-ranging, data-hold, auto-polarity, auto-power-off and low battery display functions. Bar graph simplifies lambda sensor testing. Supplied with capped test probes and K-type thermocouple.

• Durable case and integral stand suitable for the toughest workshop conditions.
• Large, high-contrast LCD display with 18mm high digital read-out and analogue bar graph.
• Includes auto-ranging, data-hold, auto-polarity, auto-power-off and low battery display functions.
• Bar graph simplifies lambda sensor testing.

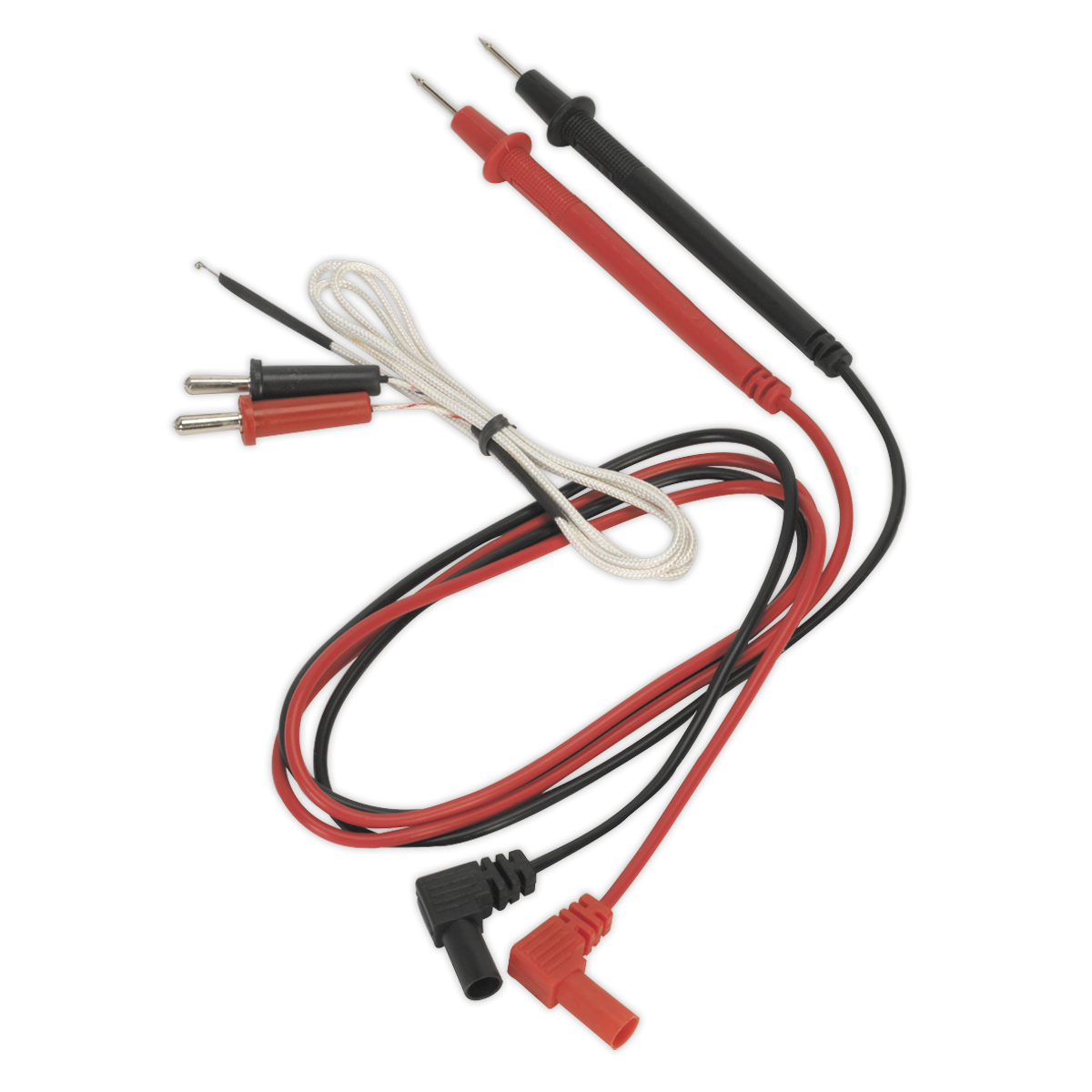

• Supplied with capped test probes and K-type thermocouple.

Specifications

Model No	TA101
Brand:	Sealey
Nett Weight:	400g
Tach (rpm):	0-3260 (x1)rpm, 0-3260(x10)rpm
Dwell:	2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
AC Voltage:	326mV, 3.26V, 32.6V, 326V, 600V (Auto-Ranging)
DC Voltage:	326mV, 3.26V, 32.6V, 326V, 600V (Auto-Ranging)
AC Current:	326µA, 3260µA, 32.6mA, 326mA, 10A (Auto-Ranging for µA & mA)
DC Current:	326µA, 3260µA, 32.6mA, 326mA, 10A (Auto-Ranging for µA & mA)
Capacitance:	No
Frequency:	320Hz, 3200Hz, 32kHz (Manual Range)
Duty Cycle:	0.1-99.9%
Pulse Width:	No
Resistance:	326Ω, 3.26kΩ, 32.6kΩ, 326kΩ, 3.26MΩ, 32.6MΩ (Auto-Ranging)
Continuity:	<50Ω
Temperature:	-20 to +750°C/-4 to +1400°F
IR Temperature:	No
Diode Check:	Yes (Typical Test Current 1mA)
Transistor Test:	No
Back Light:	No
Bar Graph Display:	Yes
Display Hold:	Yes
Auto-Ranging:	Yes
Inductive Coupler:	No
PC Interface:	No
Digits Height:	18mm
Auto-Power-Off:	Yes
Low Battery Indicator:	Yes
Batteries (supplied):	9V (PP3)
Hi-Impact Case:	Yes
Size (L x W x D):	200 x 93 x 50mm
Weight:	400g
