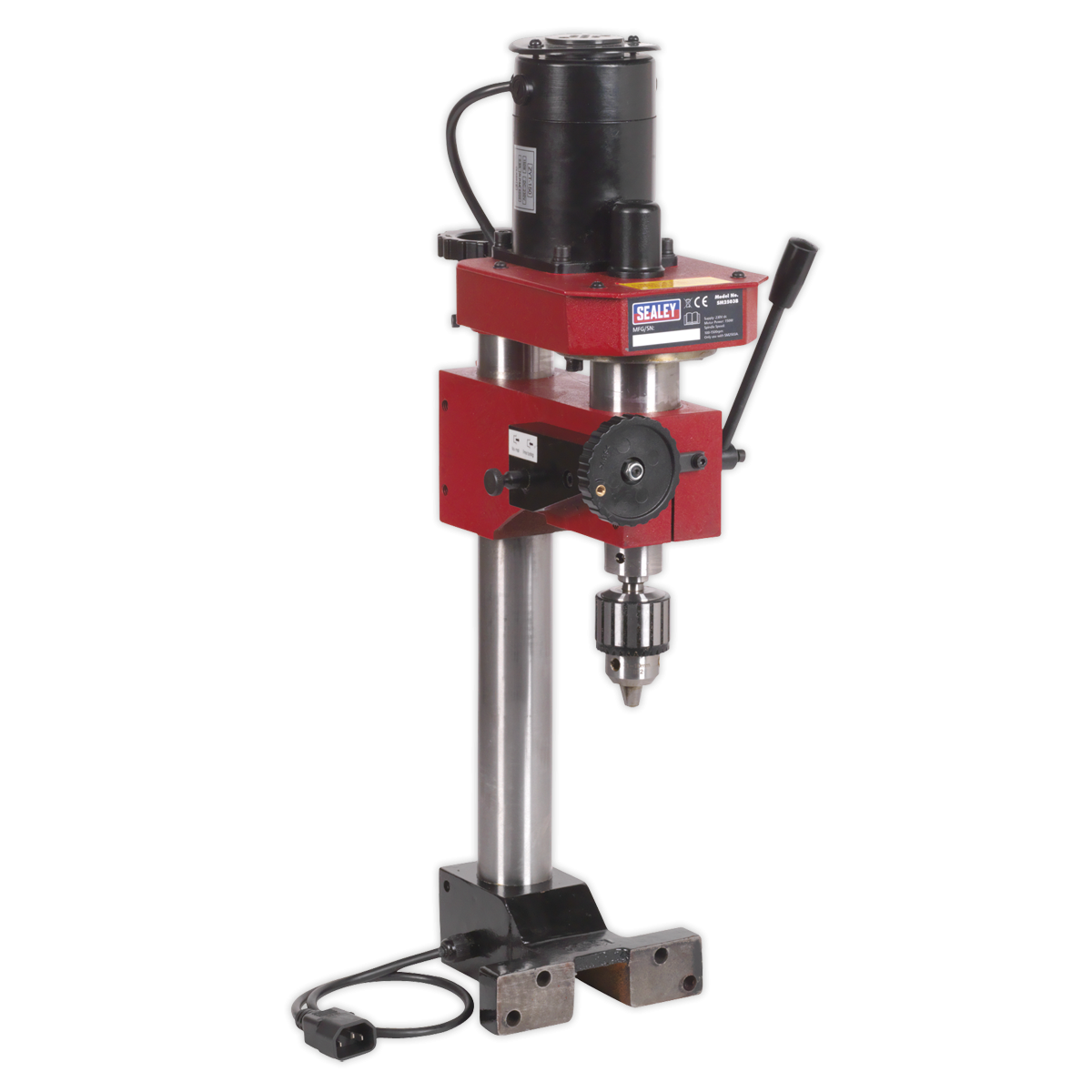

Sealey Drill Head for Mini Lathe SM2503A SM2503B

Name: Sealey Drill Head for Mini Lathe SM2503A SM2503B
SKU: SEALEY-SM2503B
Price: 478.84 GBP
Availability: InStock

£478.84 GBP

~~£599.94 GBP~~ £478.84 GBP

Reduced by £121.10 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

Transforms Model No. SM2503A Metalworking Mini Lathe into a lathe/mill drill combination. Easily retrofitted, this drill head offers the flexibility to handle most materials. This space efficient, versatile lathe mill/drill machine features a 150W motor.

• Transforms Model No. SM2503A Metalworking Mini Lathe into a Lathe/Mill Drill combination.
• Easily retrofitted.
• Offers the flexibility to handle most materials.
• Features 150W motor.
• Drilling/Milling Spindle Speed/Travel: 100-1500rpm/30mm.
• Maximum Drilling/Milling Capacity: 10mm.
• Creates space efficient versatile lathe mill/drill machine.

Specifications

Model No	SM2503B
Brand:	Sealey
Distance from Spindle Centre to Column:	100mm
Distance from Spindle to Table:	180mm
Drilling/Milling Spindle Speed:	100-1300rpm
Drilling/Milling Spindle Travel:	30mm
Maximum Drilling/Milling Capacity:	10mm
Motor Power:	150W - 230V
Nett Weight:	14kg
Spindle Taper:	MT2
T-Slot:	8mm
