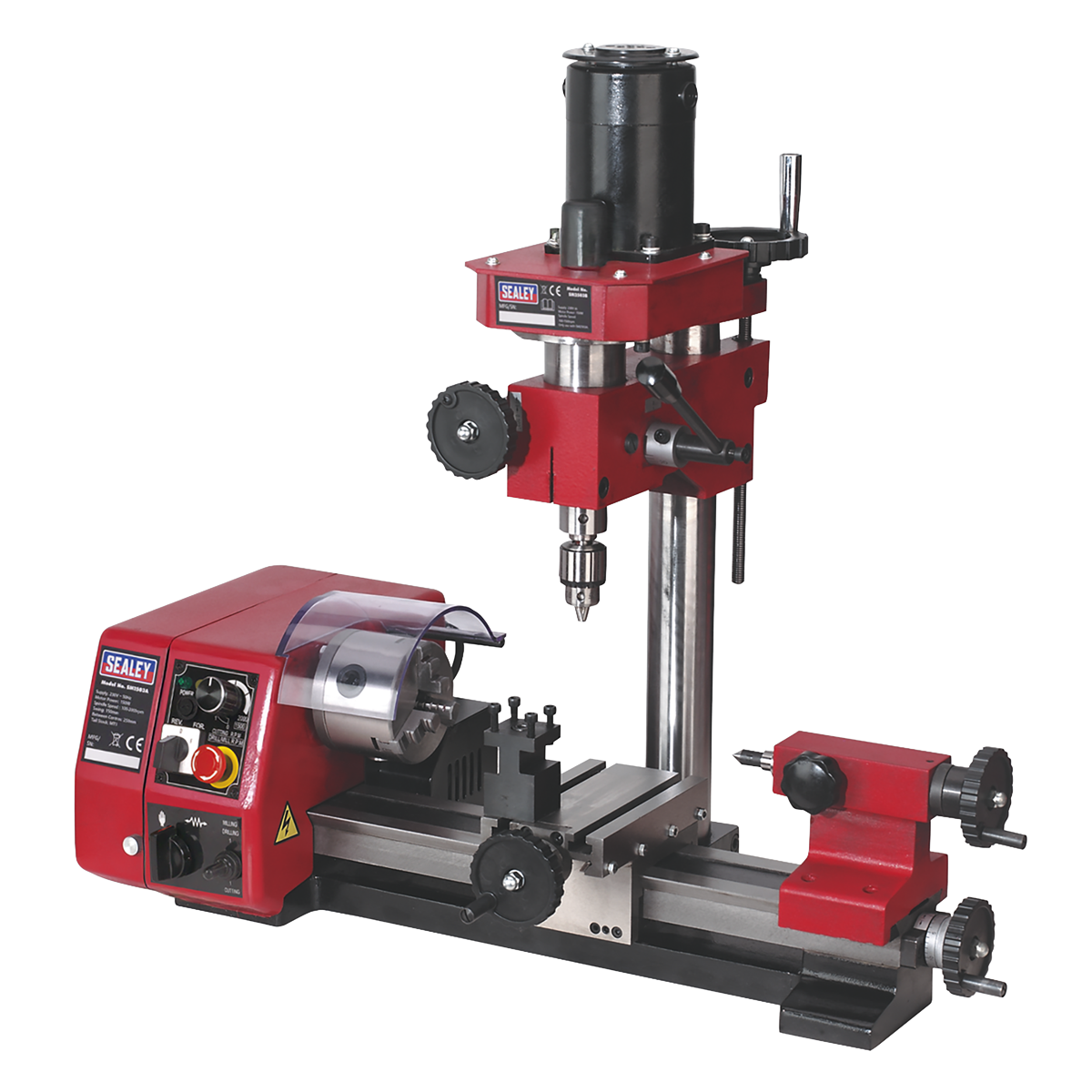

Sealey Mini Lathe & Drilling Machine SM2503

Sealey Mini Lathe & Drilling Machine SM2503

£1,462.10 GBP
£1,655.94 GBP £1,462.10 GBP
Reduced Sold out
Taxes included. Shipping calculated at checkout.
Manufacturer 1 year
Bench mounting multifunction mini drill, mill and lathe with variable speed giving flexibility to handle most materials. Features two 150W motors, one to operate the drill/mill and the other to power the lathe. The lathe cutting feed can be power driven or advanced manually. Thread cutting may also be undertaken with the optional thread cutting kit. Supplied with Metric graduated scales and all necessary tools required for setting and adjusting. An optional stand is available, order Model No. SM3002ST.

• Bench mounting multifunction mini drill, mill and lathe with variable speed giving flexibility to handle most materials.
• Features two 150W motors, one to operate the drill/mill and the other to power the lathe.
• The lathe cutting feed can be power driven or advanced manually.
• Thread cutting may also be undertaken with the optional thread cutting kit.
• Supplied with Metric graduated scales and all necessary tools required for setting and adjusting.

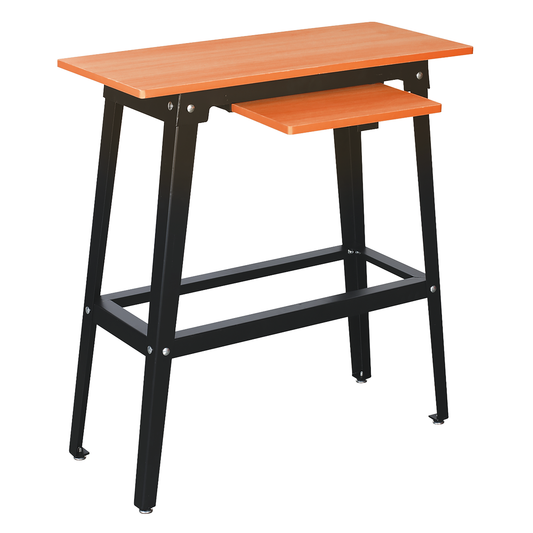

• An optional stand is available, order Model No. SM3002ST.

Specifications

Model No SM2503
Brand: Sealey
Nett Weight: 39.2kg
Specification - Cutting:
Swing Over Bed: 140mm
Distance Between Centres: 250mm
Spindle Hole Taper: MT2
Cross Slide Travel: 61mm
Tailstock Taper: MT1
Spindle Speed (Variable): 100-2000rpm
Range of Metric Threads: 5 Pitches (0.5-1.25mm)
Specification - Drilling:
Maximum Drilling/Milling Capacity: 10mm
Drilling/Milling Spindle Travel: 30mm
Drilling/Milling Spindle Speed: 100-1300rpm
T-Slot: 8mm
Distance from Spindle to Table: 180mm
Distance from Spindle Centre to Column: 100mm
Motor Power: 2 x 150W - 230V
Weight: 39.2kg

Documents

Instructions View/Download
Parts Diagrams View/Download
