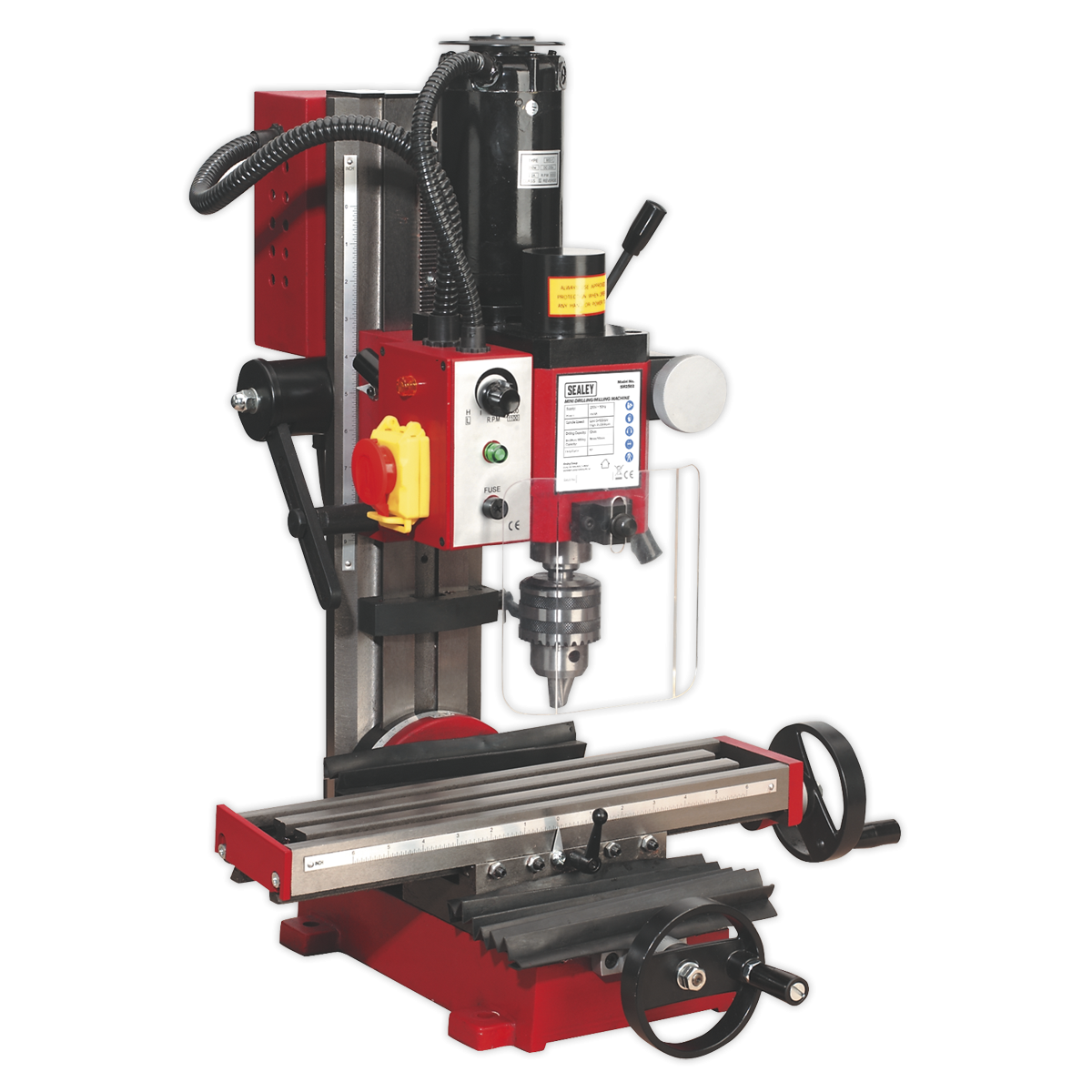

Sealey Mini Drilling & Milling Machine SM2502

Name: Sealey Mini Drilling & Milling Machine SM2502
SKU: SEALEY-SM2502
Price: 1190.6 GBP
Availability: InStock

£1,190.60 GBP

~~£1,499.94 GBP~~ £1,190.60 GBP

Reduced by £309.34 Sold out

Taxes included (if delivering outside the UK, UK VAT has been removed however import duties may be charged before delivery.). Shipping calculated at checkout.

Quantity

Bench mounting mini drilling/milling machine with the flexibility to handle most materials. Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and metric graduated compound scales. The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical. Supplied with 13mm chuck accessory kit for adjusting and setting. An optional stand is available, order Model No. SM3002ST.

• Bench mounting mini drilling/milling machine with the flexibility to handle most materials.
• Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and metric graduated compound scales.

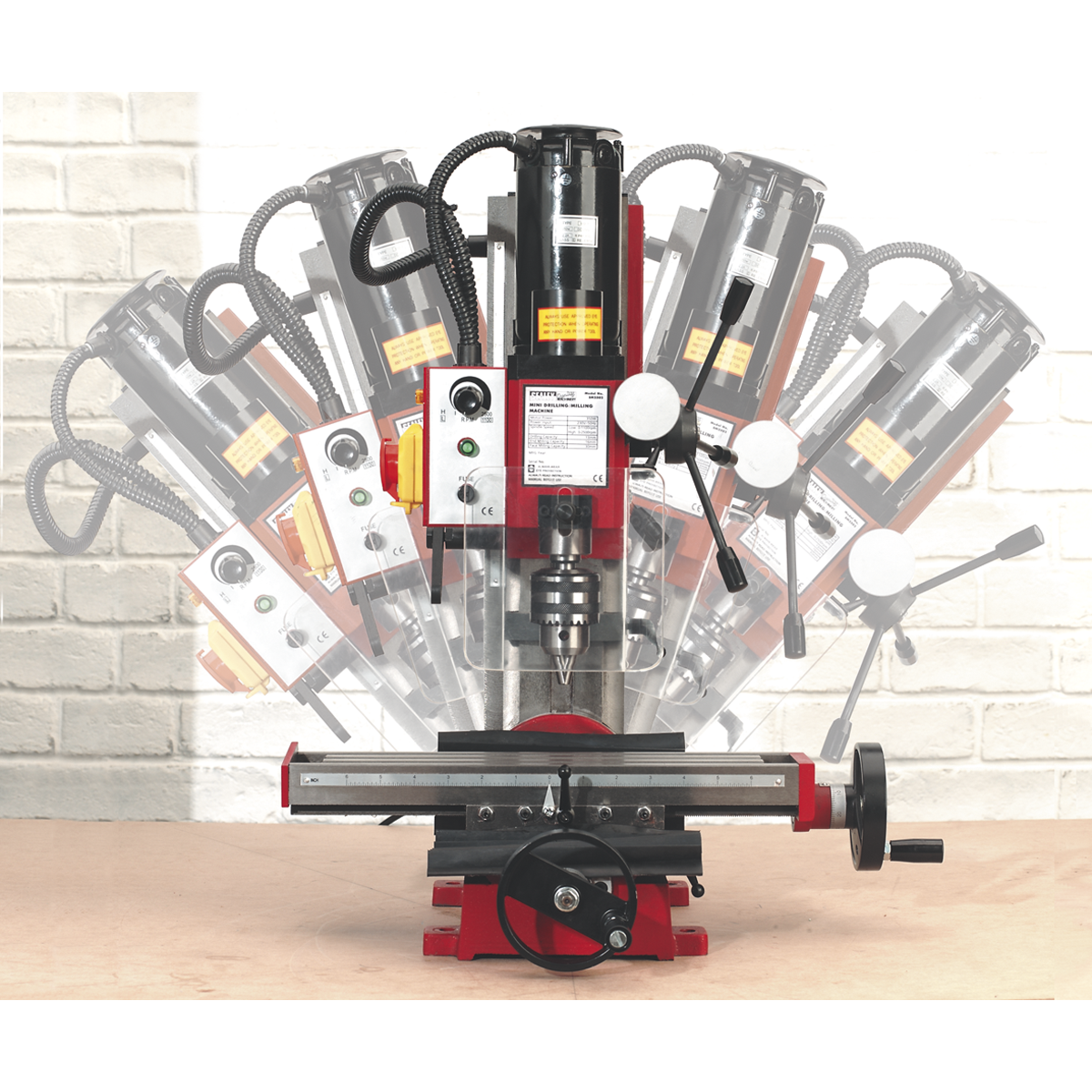

• The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical.
• Supplied with 13mm chuck accessory kit for adjusting and setting.

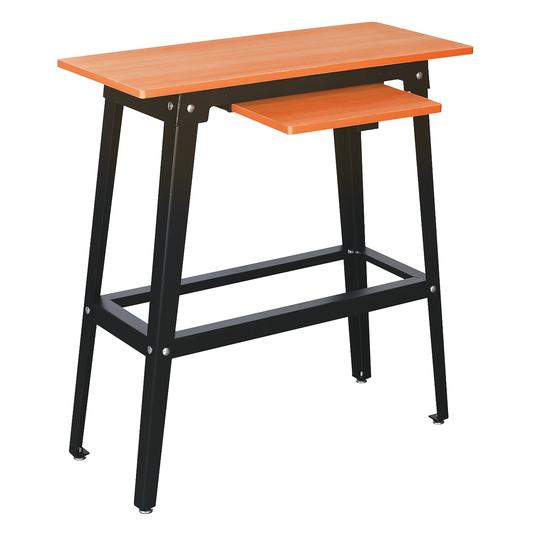

• An optional stand is available, order Model No. SM3002ST.

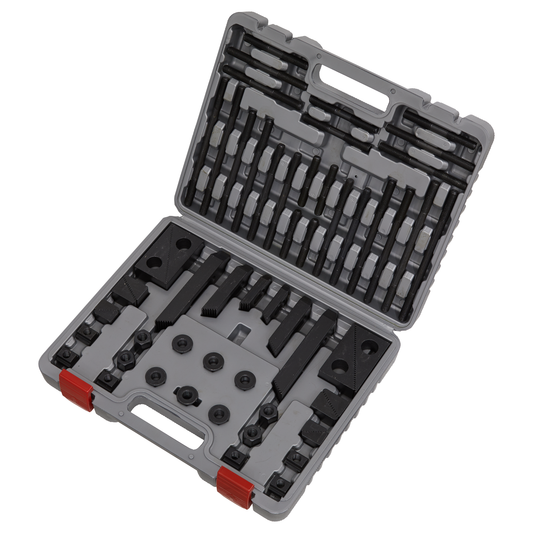

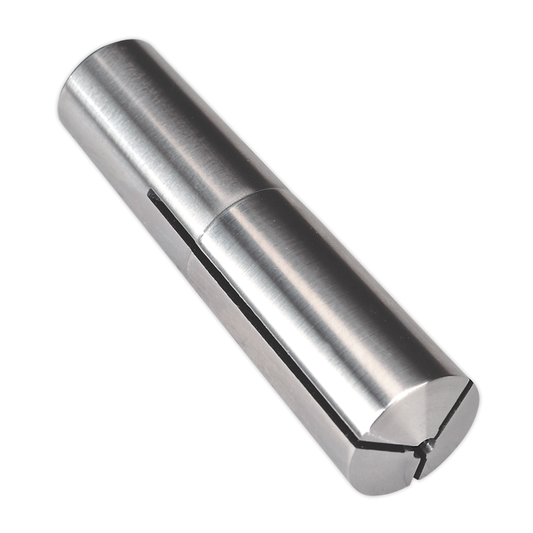

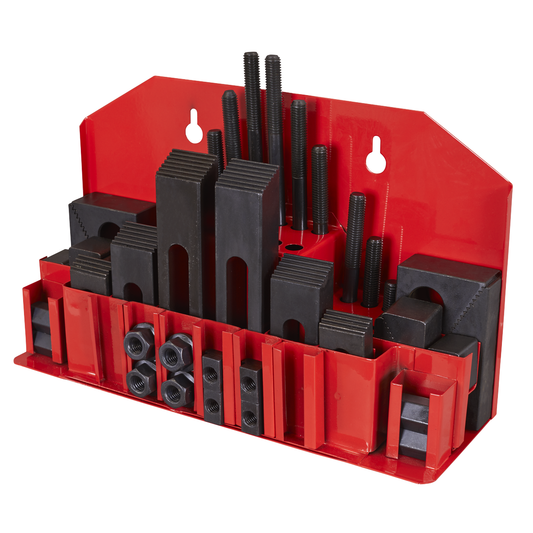

• A comprehensive range of accessories also available.

Specifications

Model No	SM2502
Brand:	Sealey
Cross Axis:	100mm
Drilling Capacity (Chuck Size):	13mm
End Mill Capacity:	16mm
Face Mill Capacity:	30mm
Headstock Travel:	180mm
Longitudinal Axis:	220mm
Motor Power:	350W
Nett Weight:	68kg
Spindle Nose Taper:	MT3
Spindle Speed - High Range:	0-2500rpm
Spindle Speed - Low Range:	0-1100rpm
Spindle Tilt Angle:	±45°
Supply:	230V
T-Slot:	12mm
