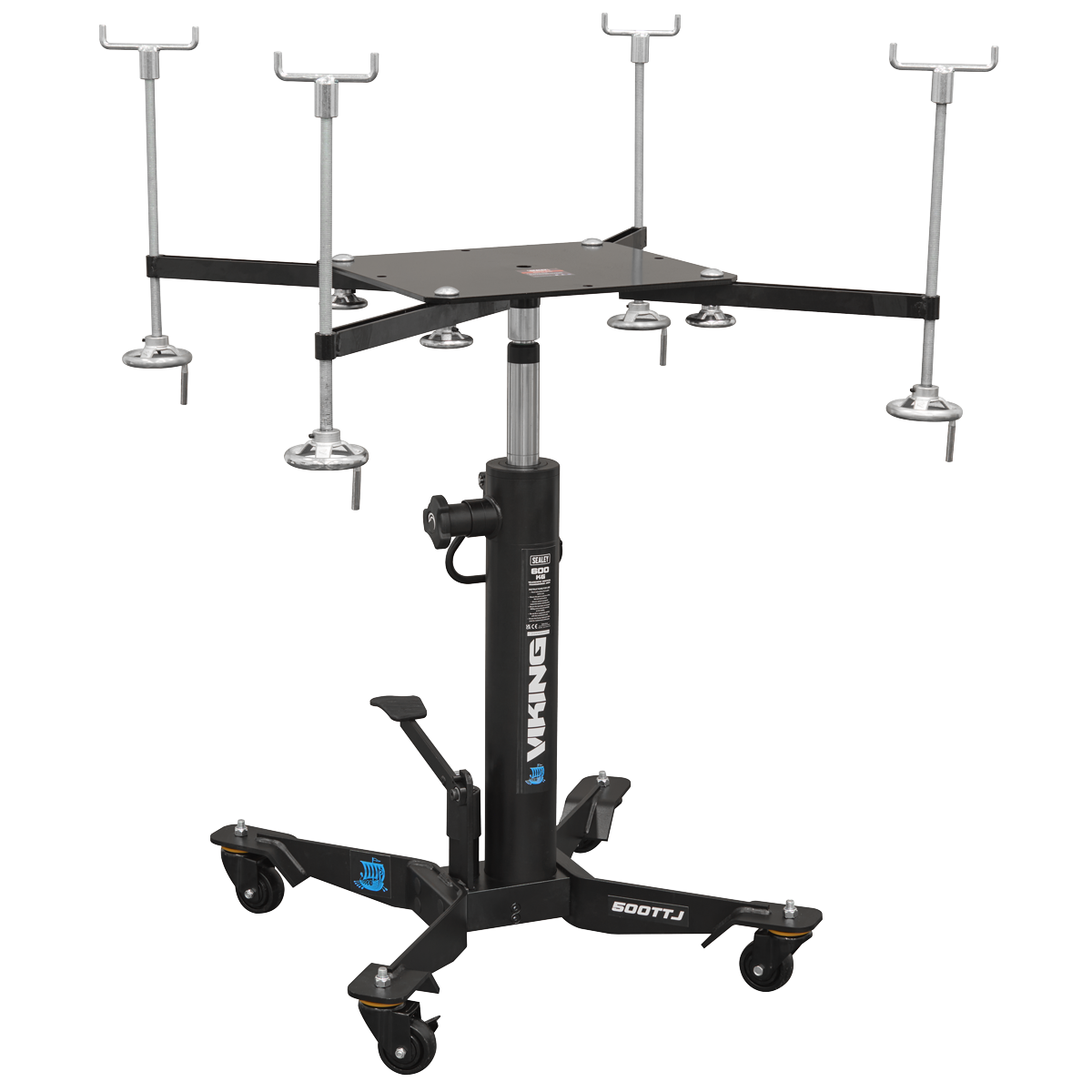

Sealey Subframe Cradle and 500kg Transmission Jack Combo SFC500COMBO

Name: Sealey Subframe Cradle and 500kg Transmission Jack Combo SFC500COMBO
SKU: SEALEY-SFC500COMBO
Price: 1187.32 GBP
Availability: InStock

£1,187.32 GBP

~~£1,499.94 GBP~~ £1,187.32 GBP

Reduced by £312.62 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

Package Includes: 500TTJ - 0.5 Tonne Vertical Telescopic Transmission Jack. SFC01 - Subframe/Engine Load Adaptor for TTJ Transmission Jacks. These items are heavy. Extra assistance must be provided at the delivery point to help safe delivery.

• TELESCOPIC RAM - A two-stage ram reduces the clearance.
• HIGH SPEED LIFT - Quick lift, when unladen, reducing the foot pumps required to meet the load. But when laden slows to give control and accuracy.
• FOOT PEDAL OPERATION - Keeping hands free for fixings and adjustments.
• SAFE - Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.
• HIGHLY MANOEUVRABLE - Large, smooth running castors, make positioning quick and easy.

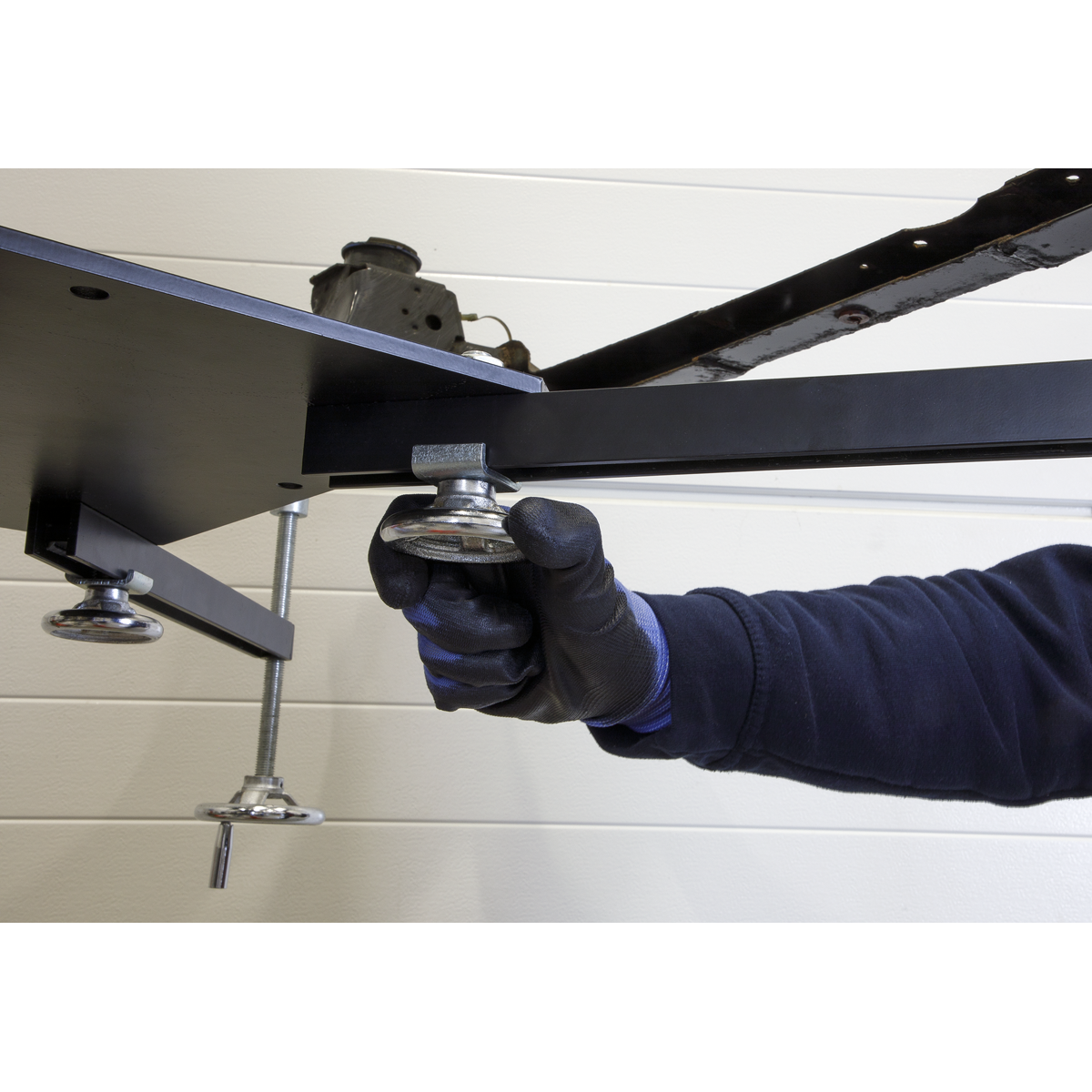

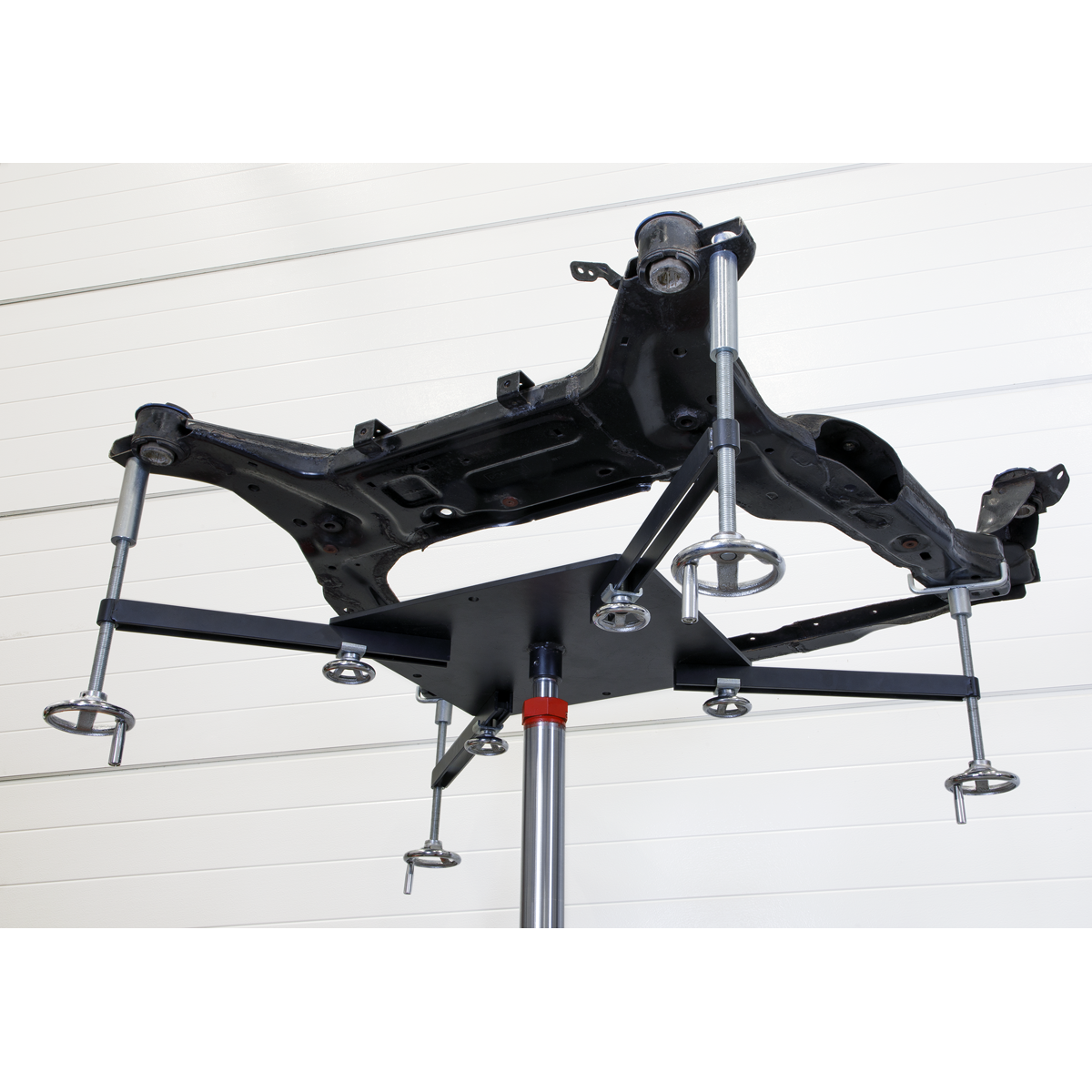

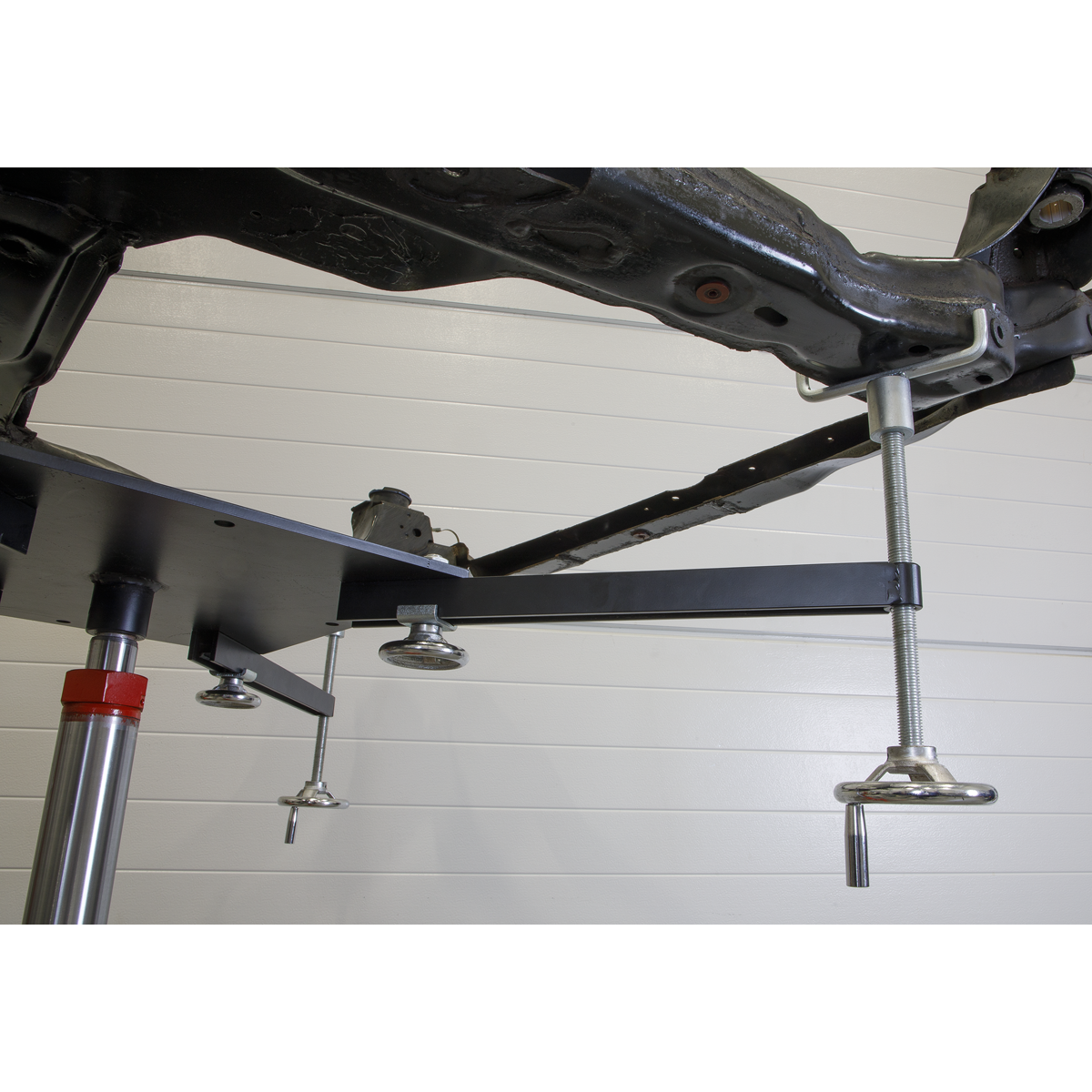

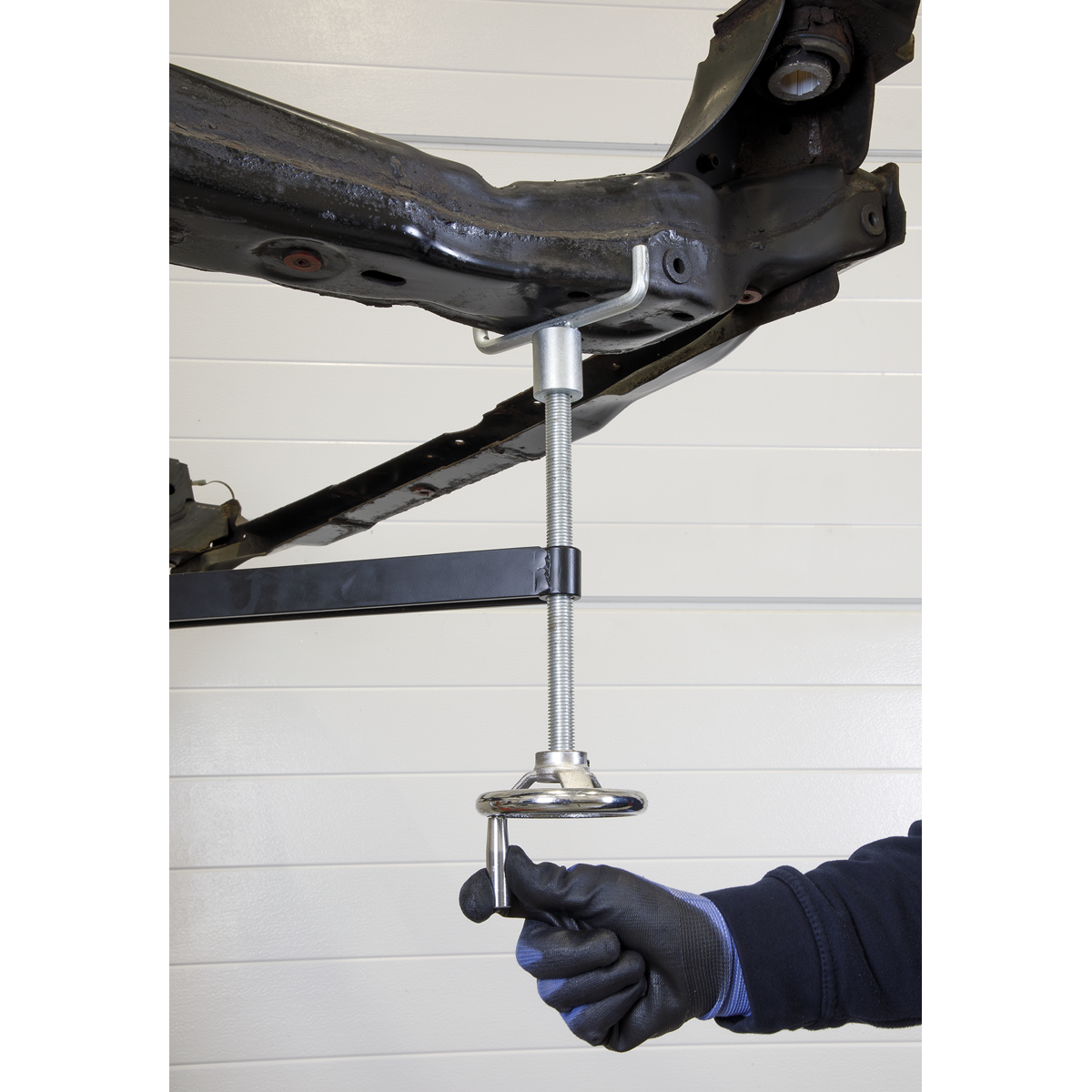

• VERSATILE ADAPTOR - Fully adjustable Subframe/Engine support and supplied with various designs of fittings to suit different applications.
• WILL ASSIST - In the removal and fitting of complete engine assemblies, rear axles, gearboxes, fuel tanks, exhaust systems and other awkward loads.
• LABOUR SAVING DESIGN - Allows many jobs to be carried out by one person.
• EASY ASSEMBLY - The adaptor can be fitted and removed from the transmission jack with ease as required.

Specifications

Model No	SFC500COMBO
Base Size:	1000 x 1000mm
Brand:	Sealey
Capacity:	500TTJ - 500kg and SFC01 - 450kg
Fixed/Adjustable Saddle:	Adjustable
Maximum Saddle Height:	1875mm
Minimum Saddle Height:	890mm
Nett Weight:	95.5kg
Optional Accessories:	N/A
Pump Strokes to Maximum Height:	N/A
Ram Extensions:	2
Saddle Adjustment - Left-to-Right:	65mm
Saddle Tilt - Backward:	22°
Saddle Tilt - Forward:	28°
