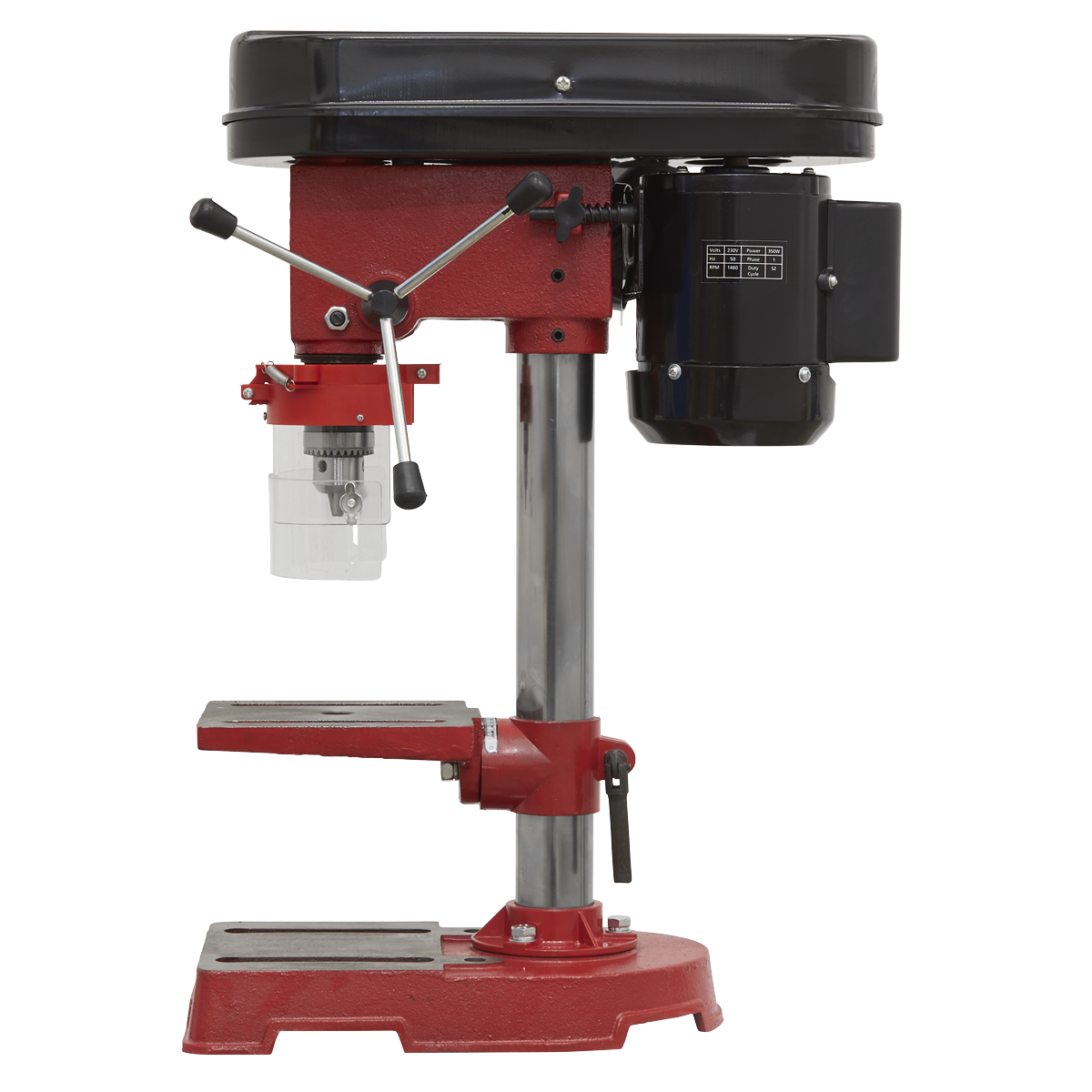

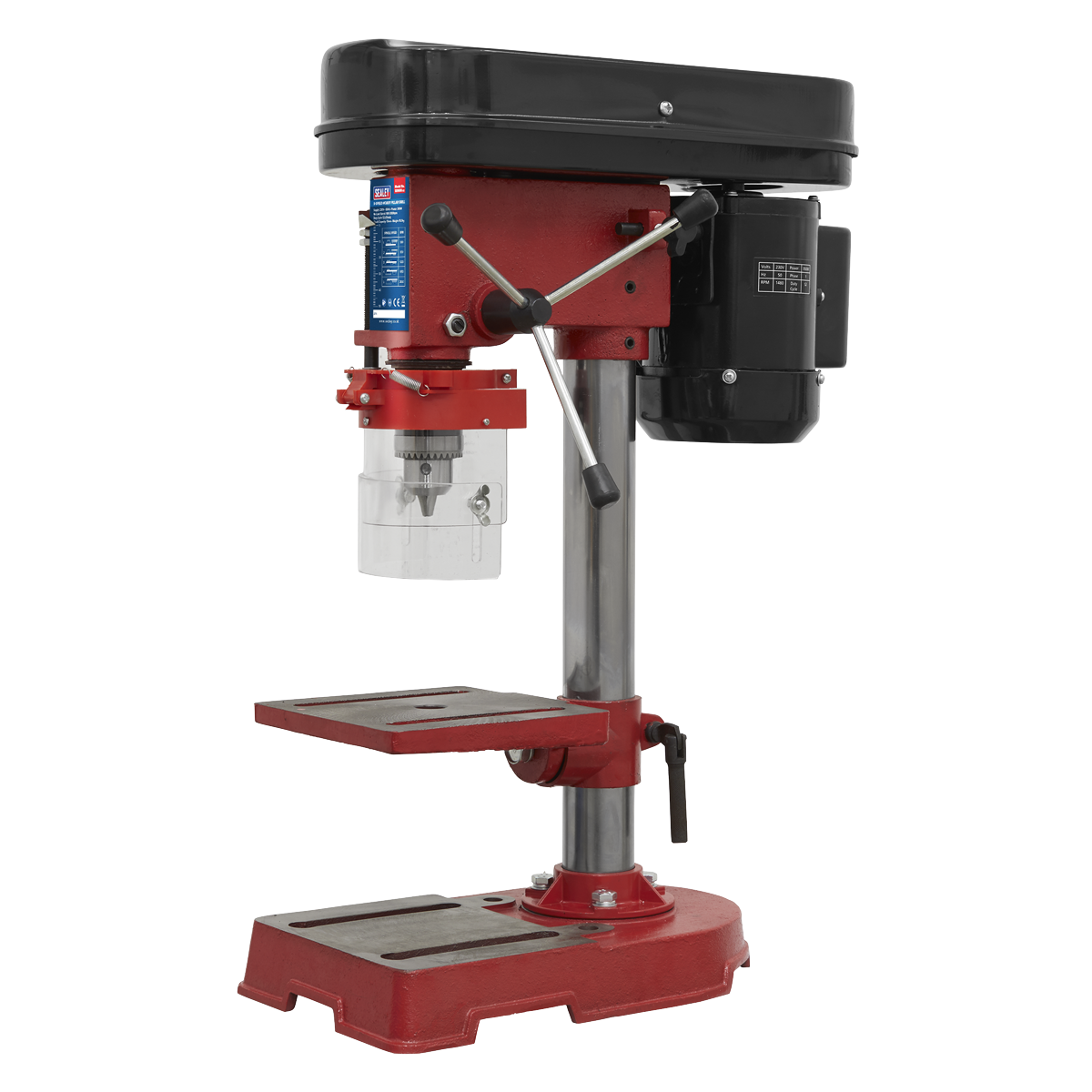

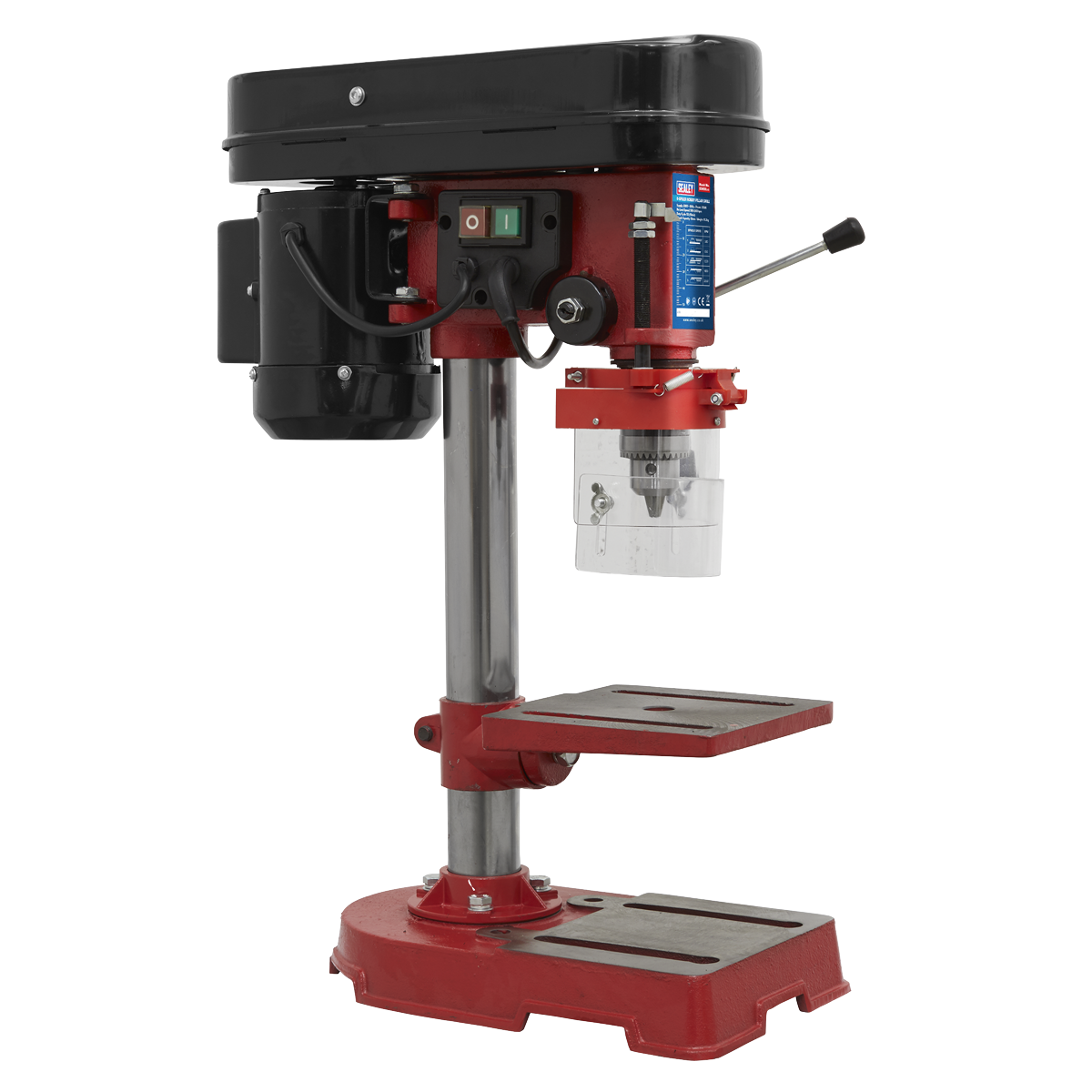

Sealey Bench Mounting Pillar Drill 5-Speed 350W/230V SDM30

Name: Sealey Bench Mounting Pillar Drill 5-Speed 350W/230V SDM30
SKU: SEALEY-SDM30
Price: 143.4 GBP
Availability: InStock

£143.40 GBP

~~£155.94 GBP~~ £143.40 GBP

Reduced by £12.54 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

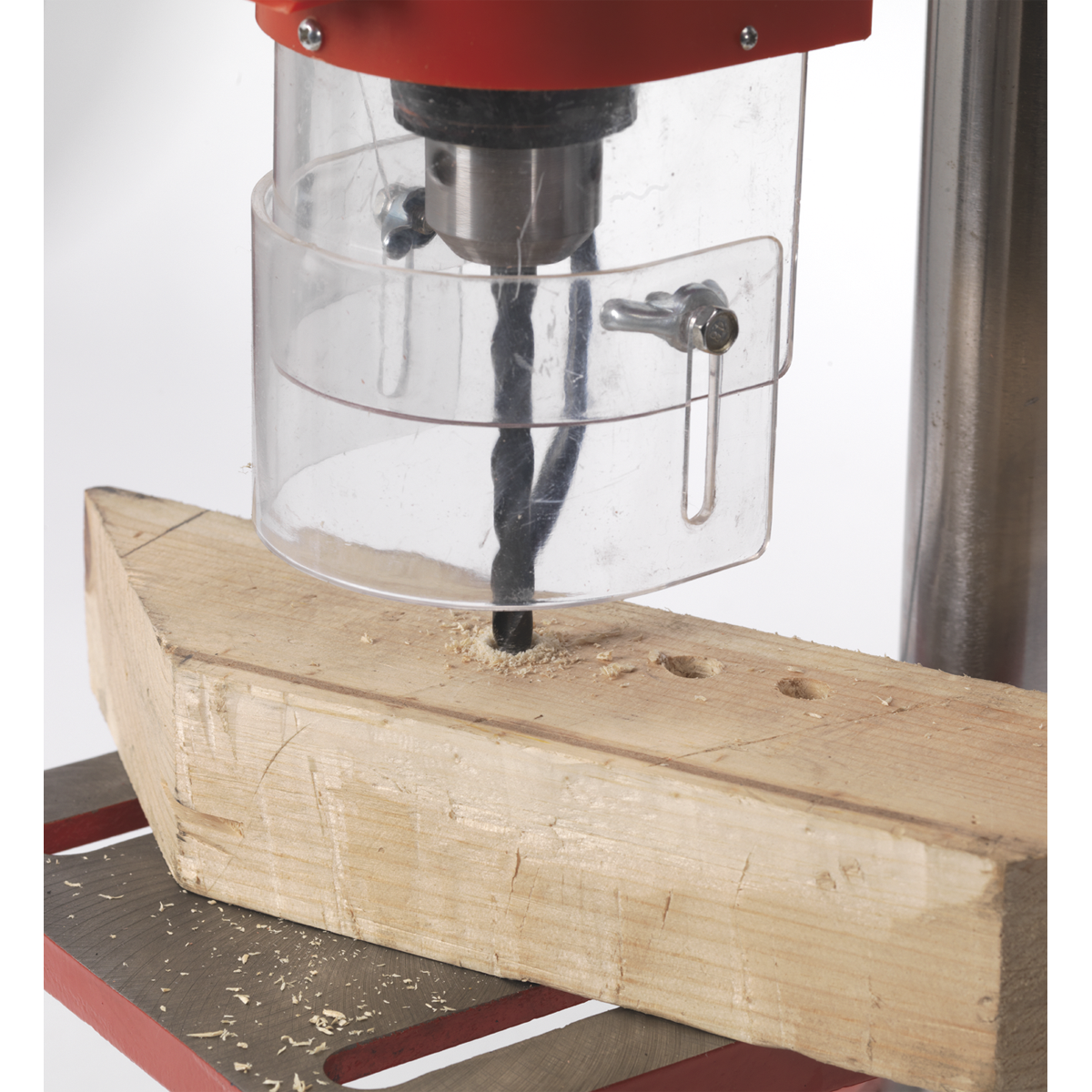

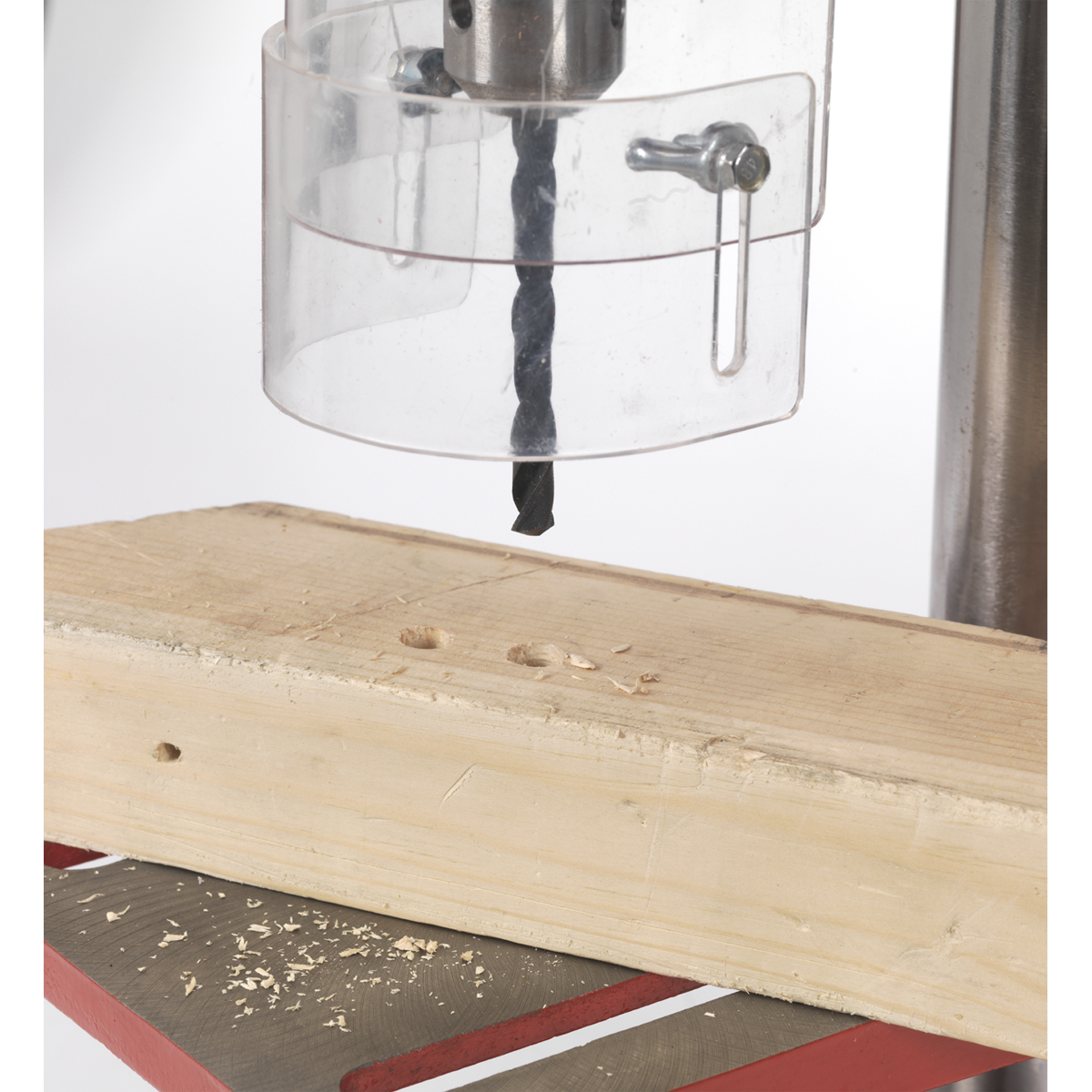

Compact bench drill powerful enough to cut through wood, plastic and metal. Easy to operate, smooth and quiet in operation. 5-Speed settings between 580 and 2650rpm. Safety is ensured by protection guard, no-volt safety switch and access to drive belt is denied during operation by mechanical protection.

• One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.

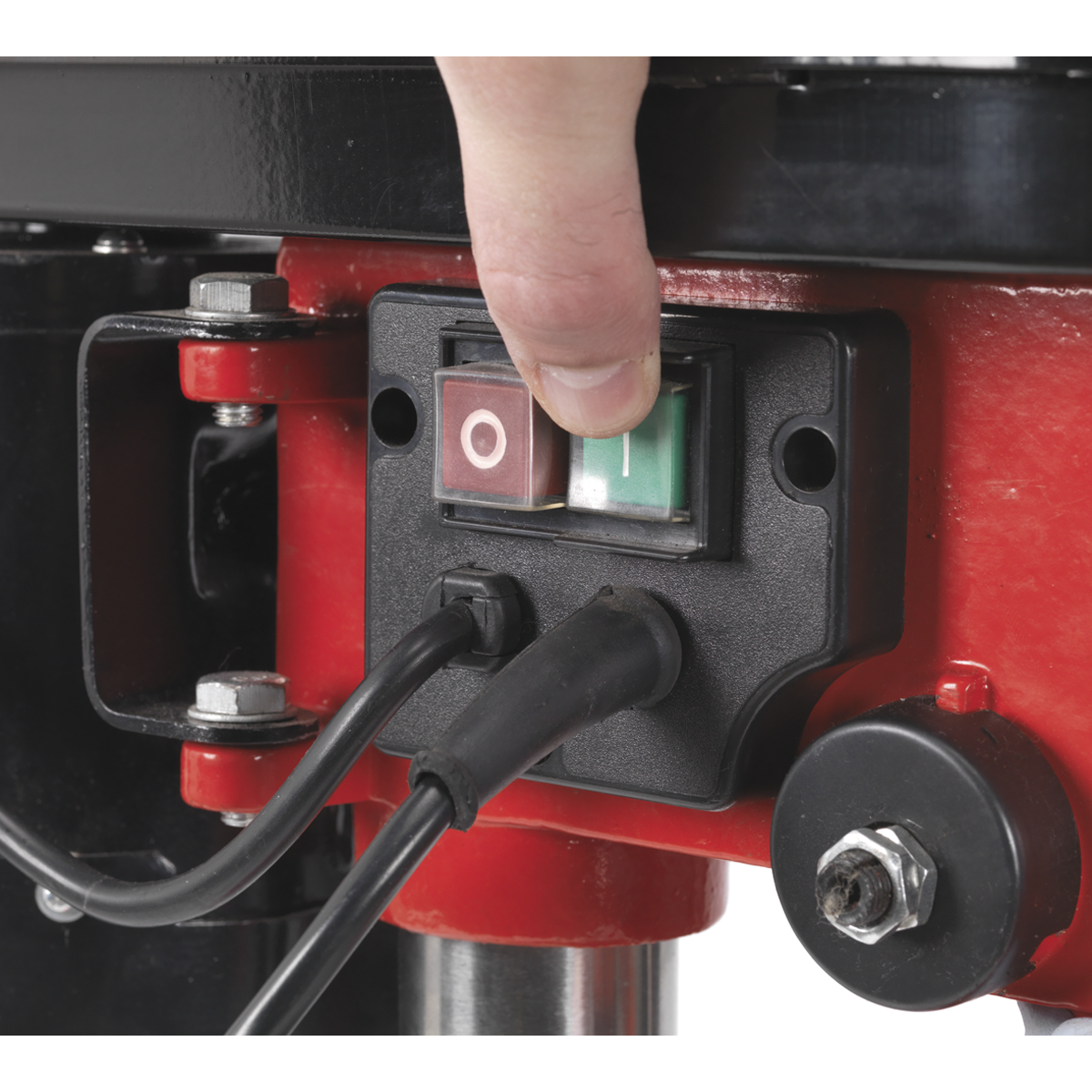

• Safety devices fitted include a no-volt release switch, allowing insurance company approval for use in educational establishments.
• Model No. GDM50B and up have Morse taper spindle housings for accepting taper shank drill bits.

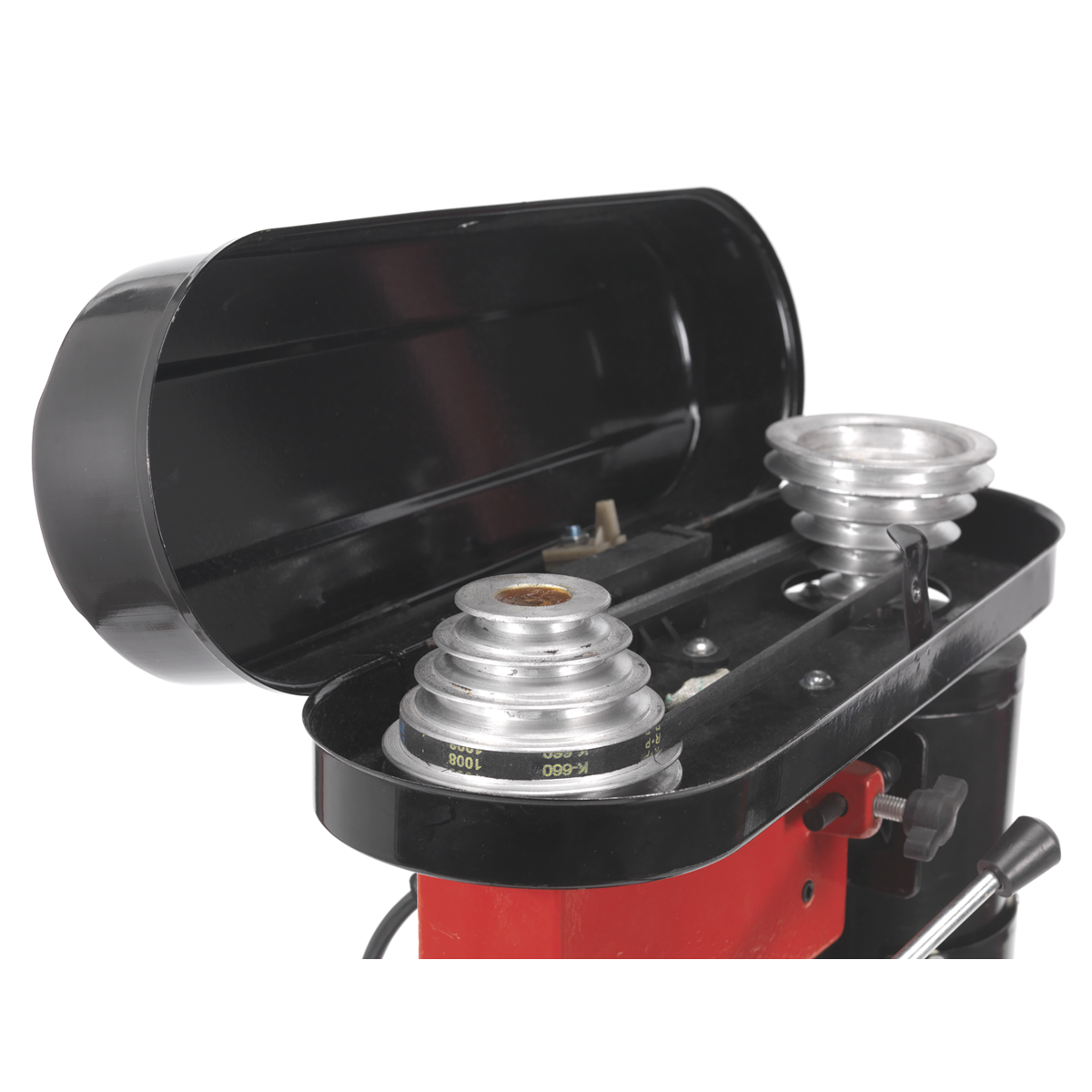

• All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.

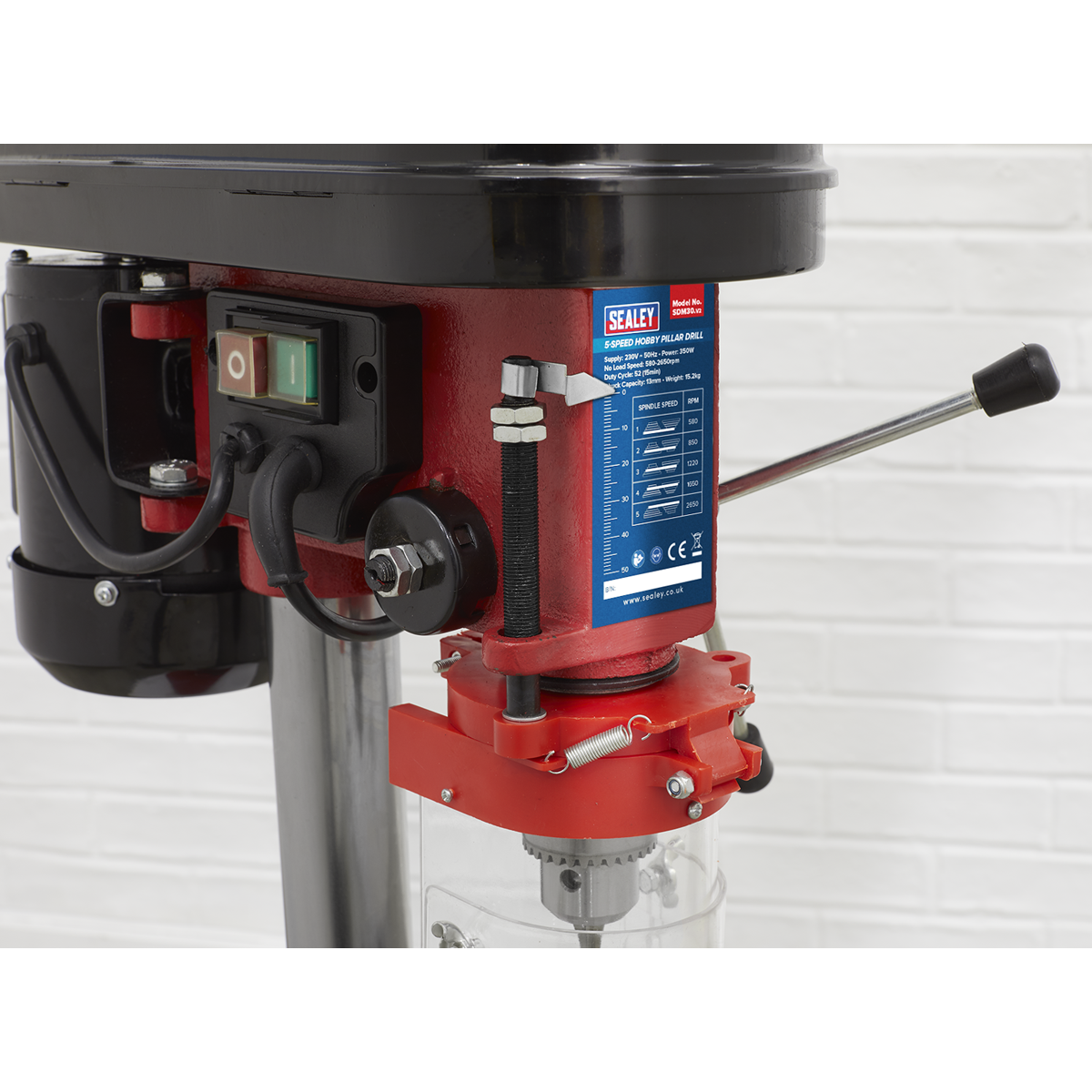

• All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
• Mortise attachments are available for all Model No's GDM120B - GDM200F inclusive.
• 13mm(1/2") Capacity chuck.
• 5-Speed settings between 580 and 2650rpm.
• Height: 580mm.
• Chuck to Column: 104mm.
• Motor Power: 185W, Input Power: 350W.
• Column Diameter: Ø46mm.
• Spindle Travel: 50mm.
• Weight: 15.2kg.

Specifications

Model No	SDM30
Base Size:	200 x 310mm
Brand:	Sealey
Collar Diameter:	Ø40mm
Column Diameter:	Ø46mm
Drilling Capacity (Chuck Size):	13mm
Maximum Distance Spindle to Base:	290mm
Maximum Distance Spindle to Table:	200mm
Motor Power (Start):	185W(350W)
Nett Weight:	11kg
Number of Speeds:	5
Overall Height:	580mm
Speed Range:	580-2650rpm
Spindle Centre to Column:	104mm
Spindle Nose Taper:	MT2
Spindle Travel:	50mm
Supply:	230V
Swing:	208mm
Working Base Surface Size:	138 x 180mm
Working Table Surface Size:	158 x 160mm
