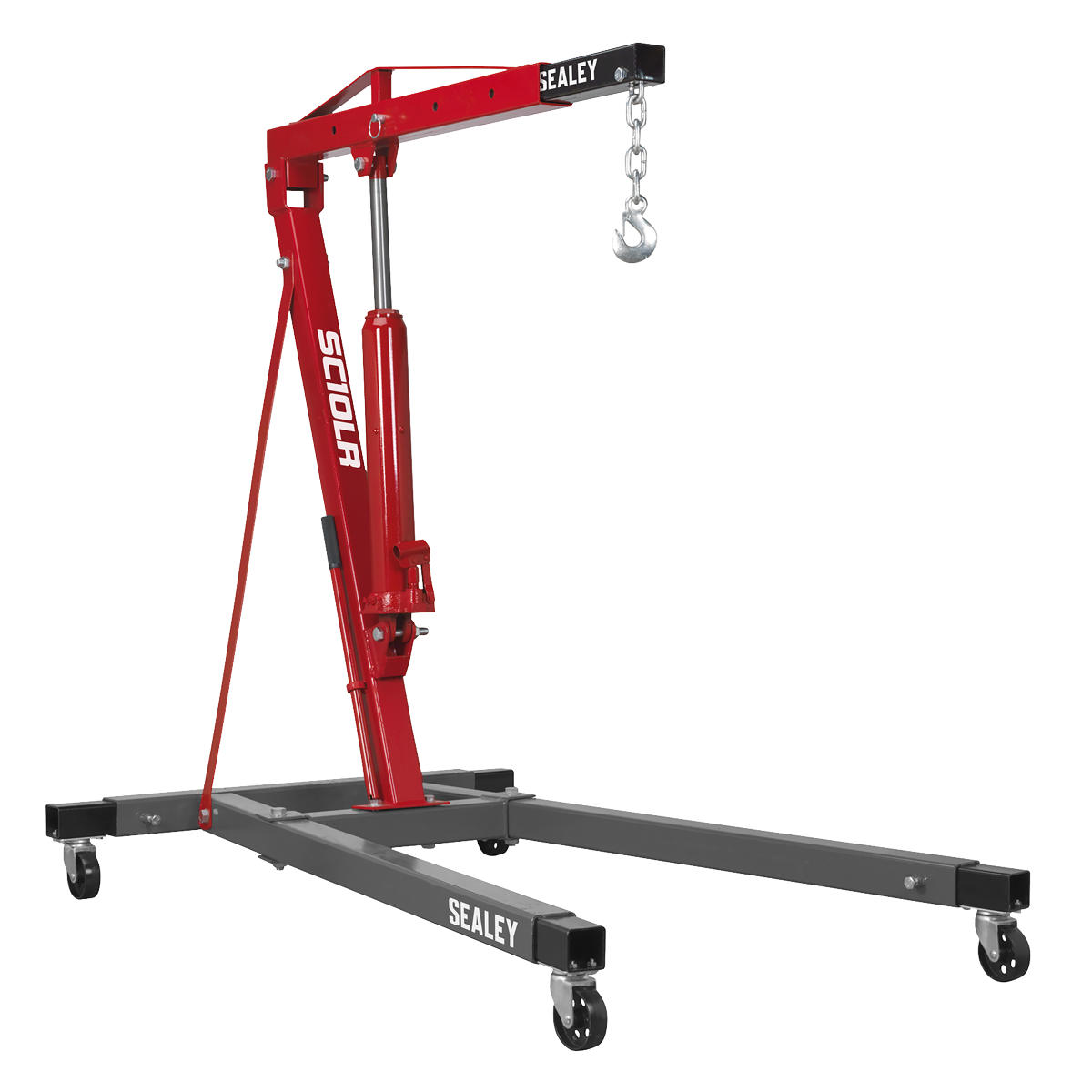

Sealey Long Reach Engine Crane with Extendable Legs 1 Tonne SC10LR

Name: Sealey Long Reach Engine Crane with Extendable Legs 1 Tonne SC10LR
SKU: SEALEY-SC10LR
Price: 406.61 GBP
Availability: InStock

£406.61 GBP

~~£539.94 GBP~~ £406.61 GBP

Reduced by £133.33 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

PROMOTION SALE!

Heavy-duty front and rear castors are on extendable legs to give improved stability, particularly when operating at maximum jib extension of 1447mm. Side pump for easy access and to maintain sight of the load being lifted. Removeable handle. Folding design for easy transportation and storing.

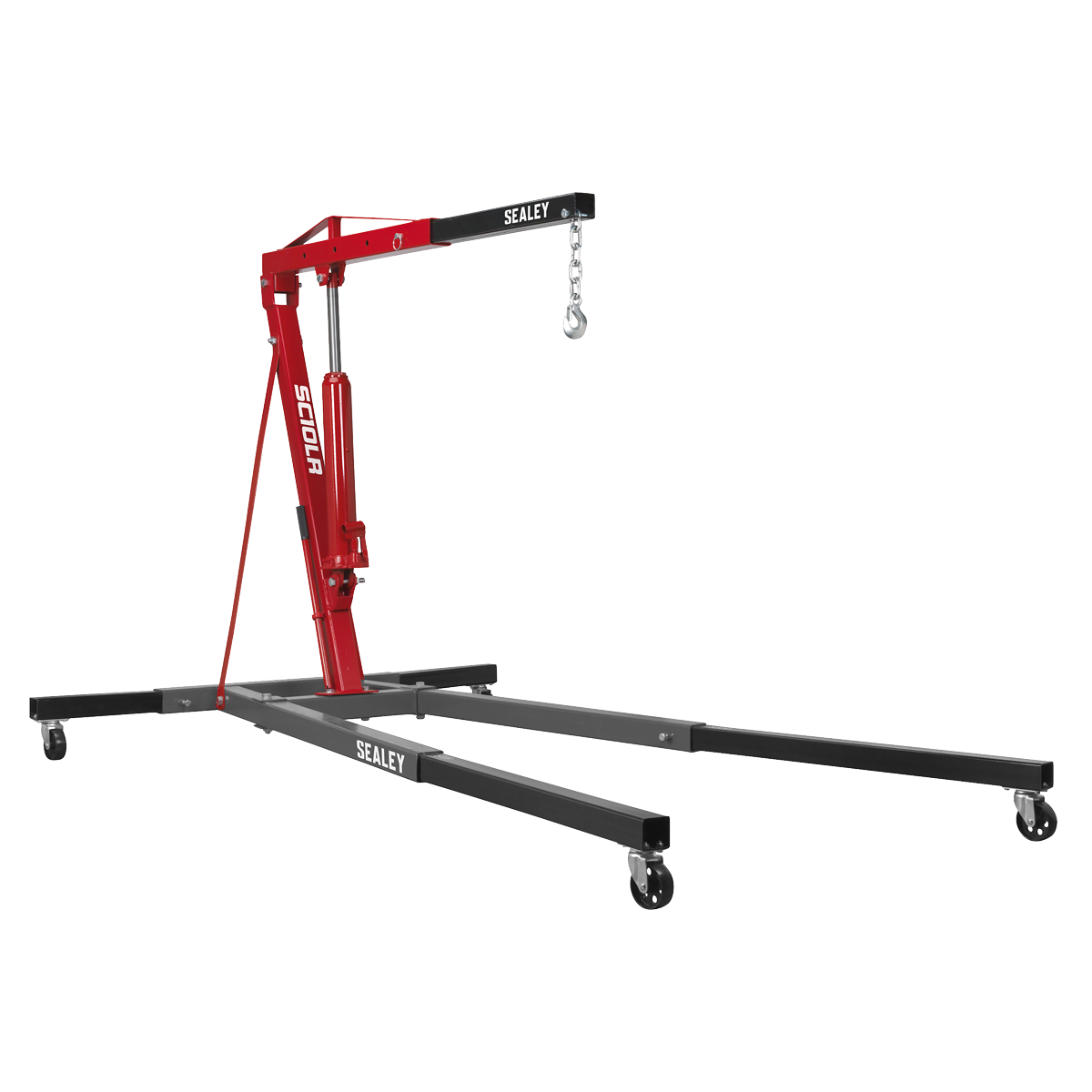

• LONG REACH - Heavy-duty front and rear castors are on extendable legs to give improved stability, particularly when operating at maximum jib extension of 1447mm.
• SUSTAIN VIEW - Side pump for easy access and to maintain sight of the load being lifted. Removeable handle.
• FOLDABLE - Folding design for easy transportation and storing.
• EASY ASSEMBLY - Delivered in knock-down form for reduced freight cost.
• NOTE FOR DELIVERY - This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specifications

Model No	SC10LR
Brand:	Sealey
Height Jib Down:	1446mm
Height of Frame:	180mm
Length Legs Extended:	1600mm
Length of Jib Position 1:	937mm
Length of Jib Position 2:	1107mm
Length of Jib Position 3:	1277mm
Length of Jib Position 4:	1447mm
Length of Jib Position 5:	n/a
Length:	1450mm
Lifting Capacity in Position 1:	1000kg
Lifting Capacity in Position 2:	750kg
Lifting Capacity in Position 3:	500kg
Lifting Capacity in Position 4:	250kg
Lifting Capacity in Position 5:	n/a
Max. Lift Ht at Jib Position 1:	1750mm
Max. Lift Ht at Jib Position 2:	1850mm
Max. Lift Ht at Jib Position 3:	1950mm
Max. Lift Ht at Jib Position 4:	2050mm
Max. Lift Ht at Jib Position 5:	n/a
Nett Weight:	81.5kg
Rear Width:	860/1160mm
Standard Leg Length:	1450mm
Extended Leg Length:	1590mm
Extendable Distance:	140mm
Width Front Frame:	690-720mm
Width Inside Front Frame:	381/605mm
