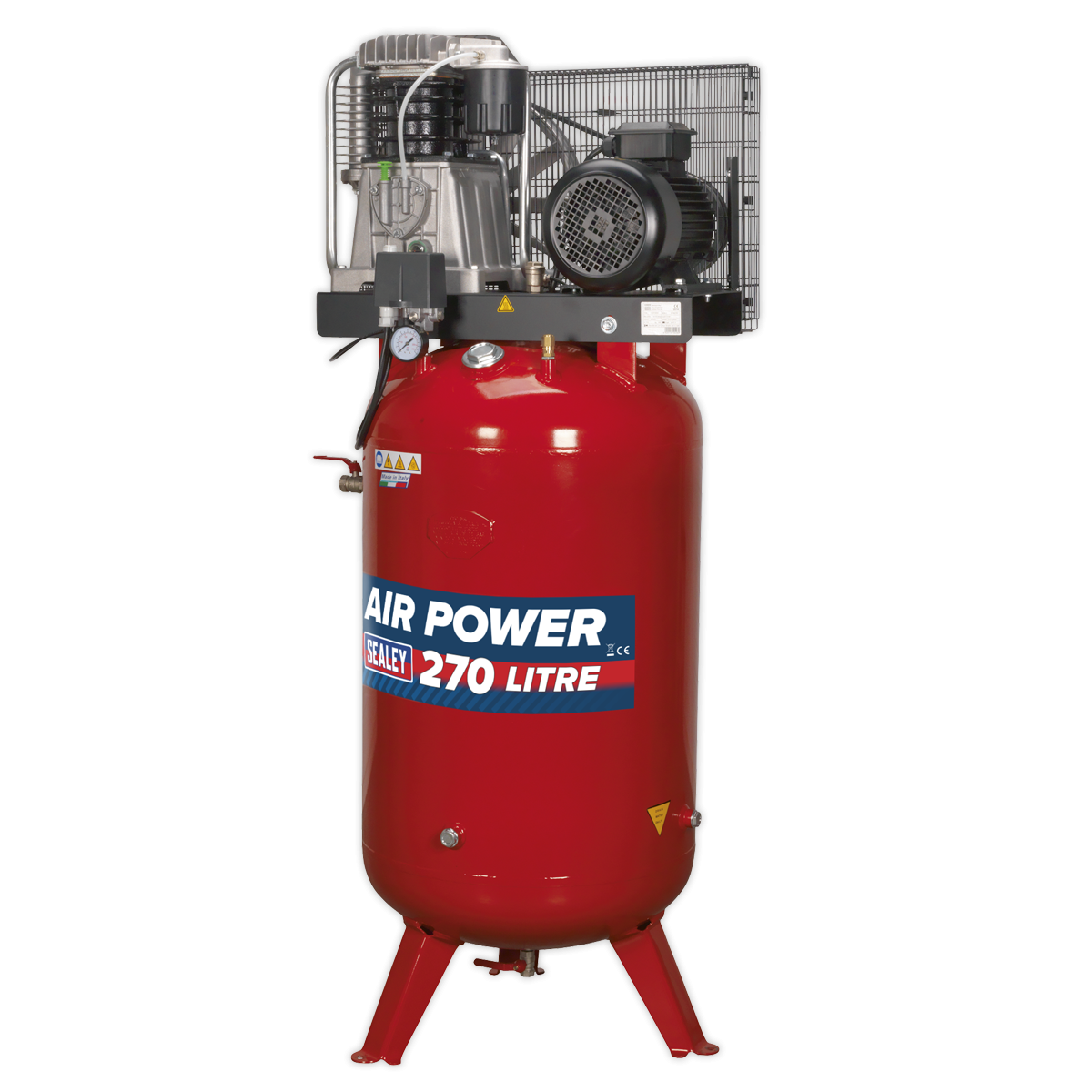

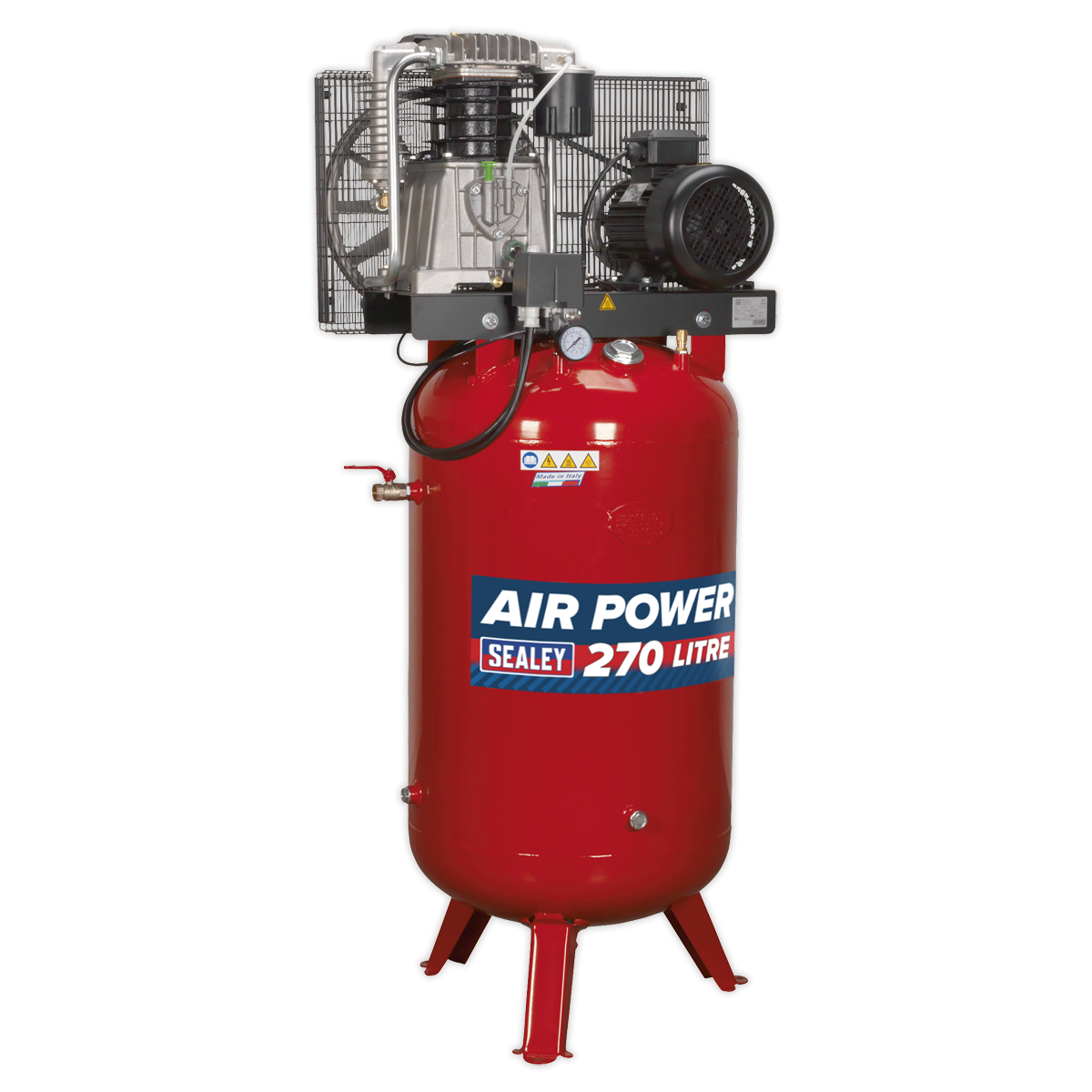

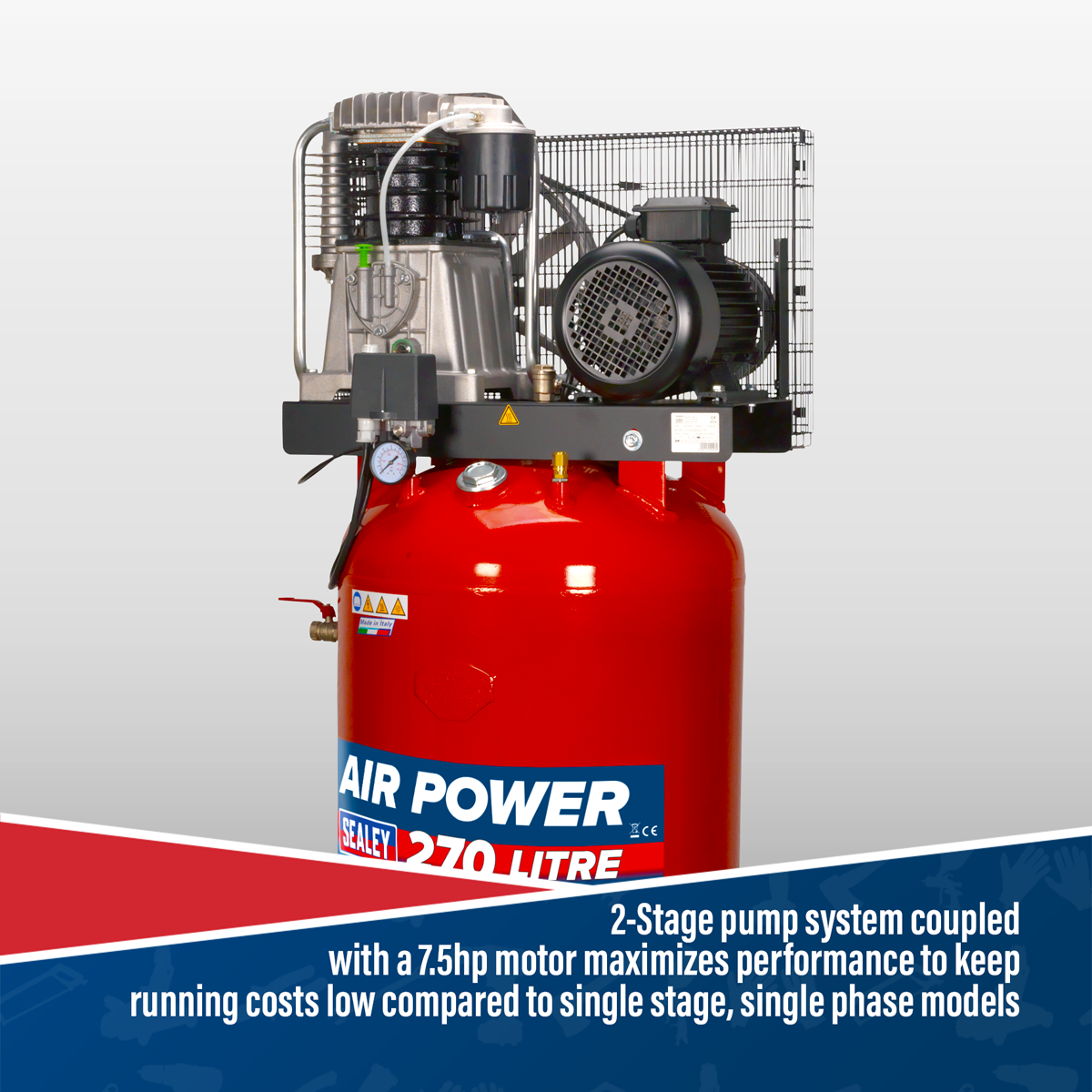

Sealey 270L Vertical Belt Drive Air Compressor with Cast Cylinders 7.5hp 2-Stage SACV52775B

Name: Sealey 270L Vertical Belt Drive Air Compressor with Cast Cylinders 7.5hp 2-Stage SACV52775B
SKU: SEALEY-SACV52775B
Price: 3333.96 GBP
Availability: InStock

£3,333.96 GBP

~~£3,719.94 GBP~~ £3,333.96 GBP

Reduced by £385.98 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

Heavy-duty 3-phase compressor suitable for the professional workshop. 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.

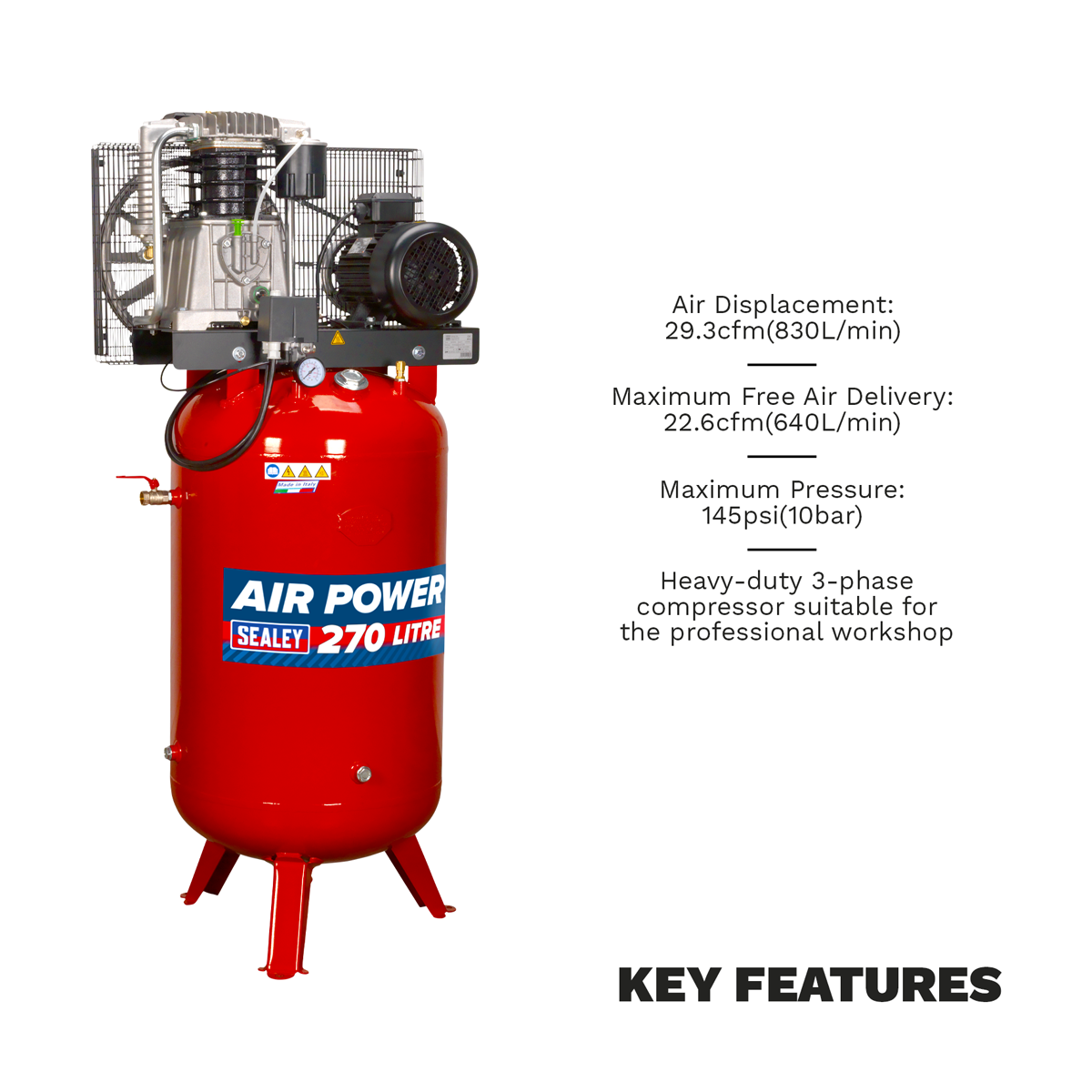

• Air Displacement: 29.3cfm(830L/min).
• Maximum Free Air Delivery: 22.6cfm(640L/min).
• Maximum Pressure: 145psi(10bar).
• Heavy-duty 3-phase compressor suitable for the professional workshop.
• 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models.

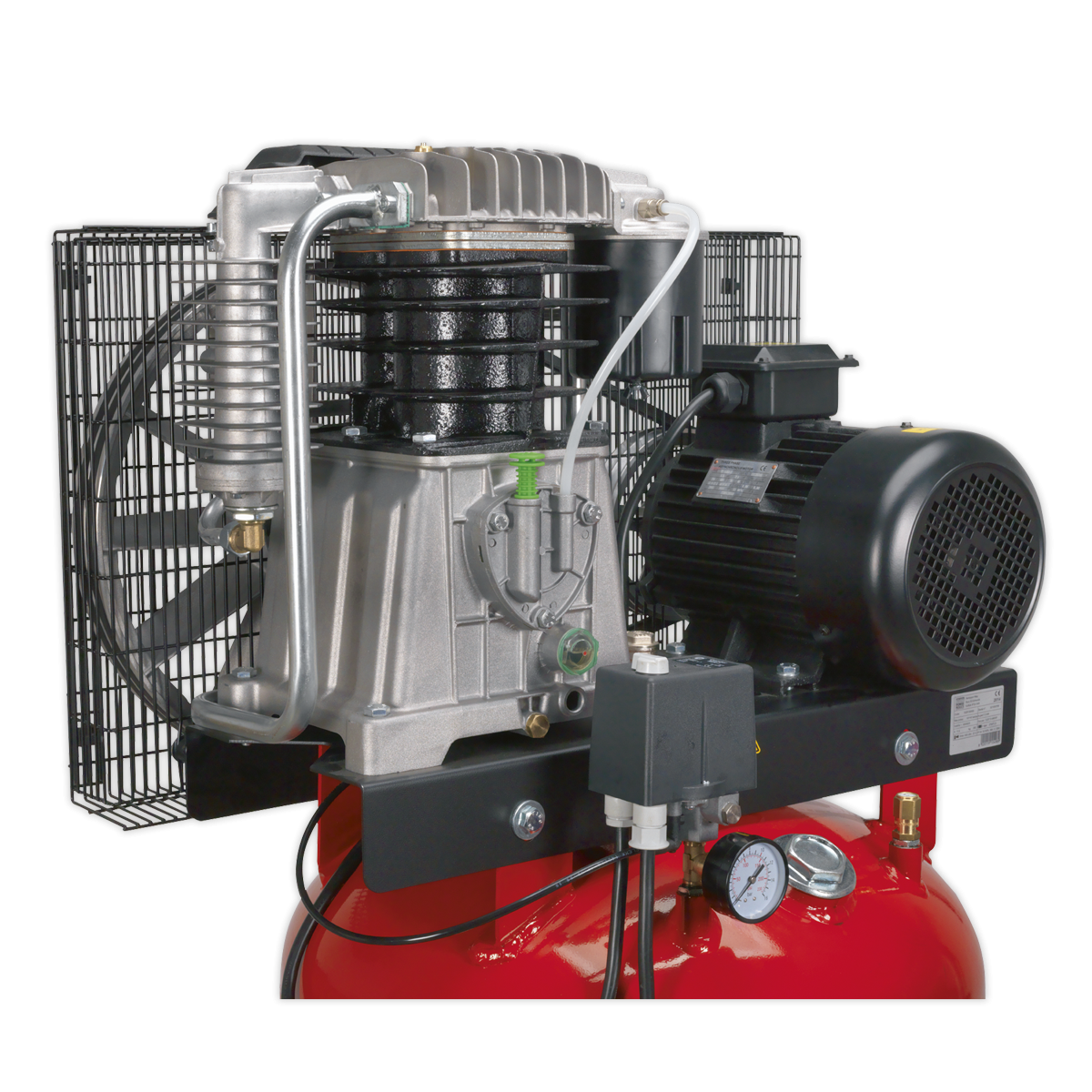

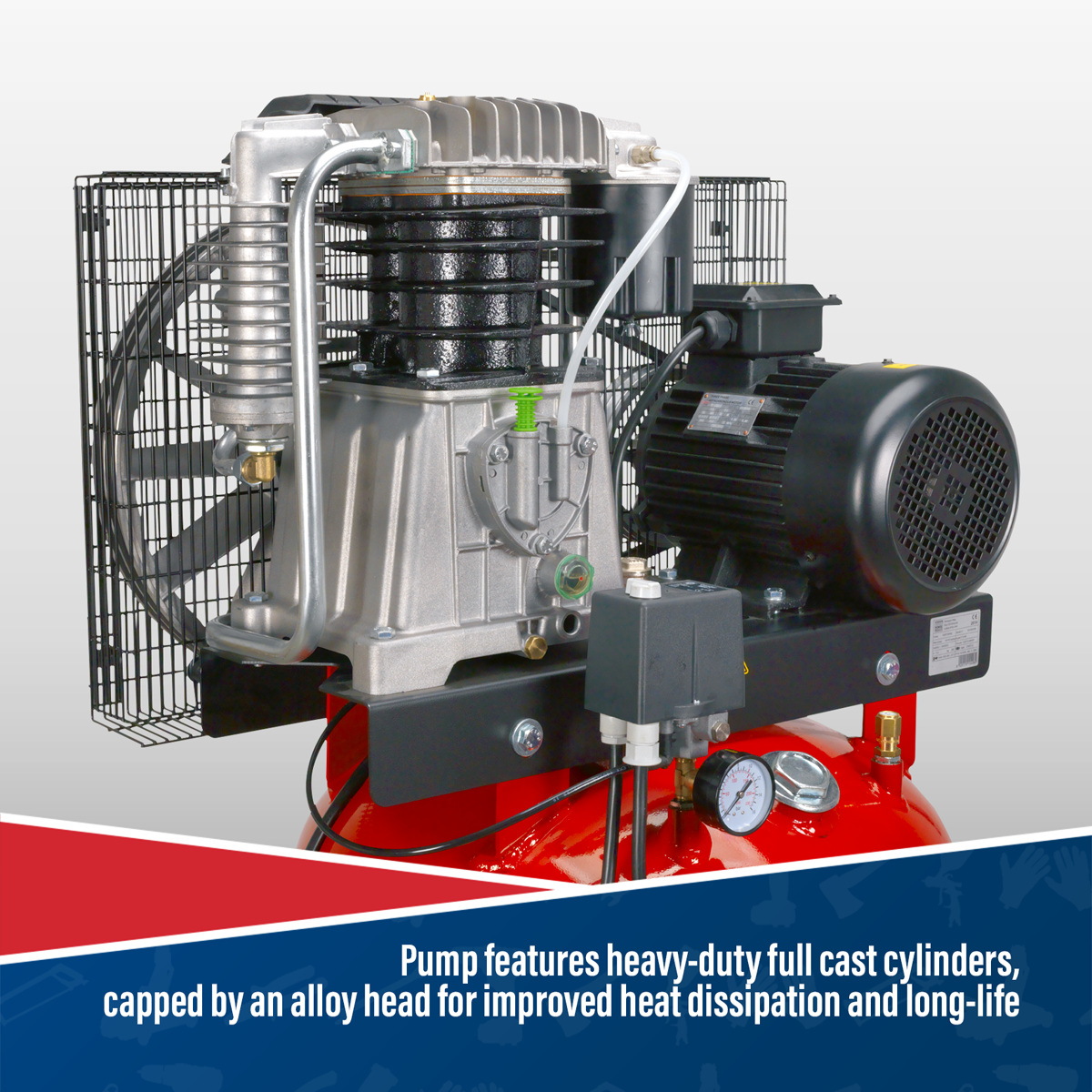

• Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.

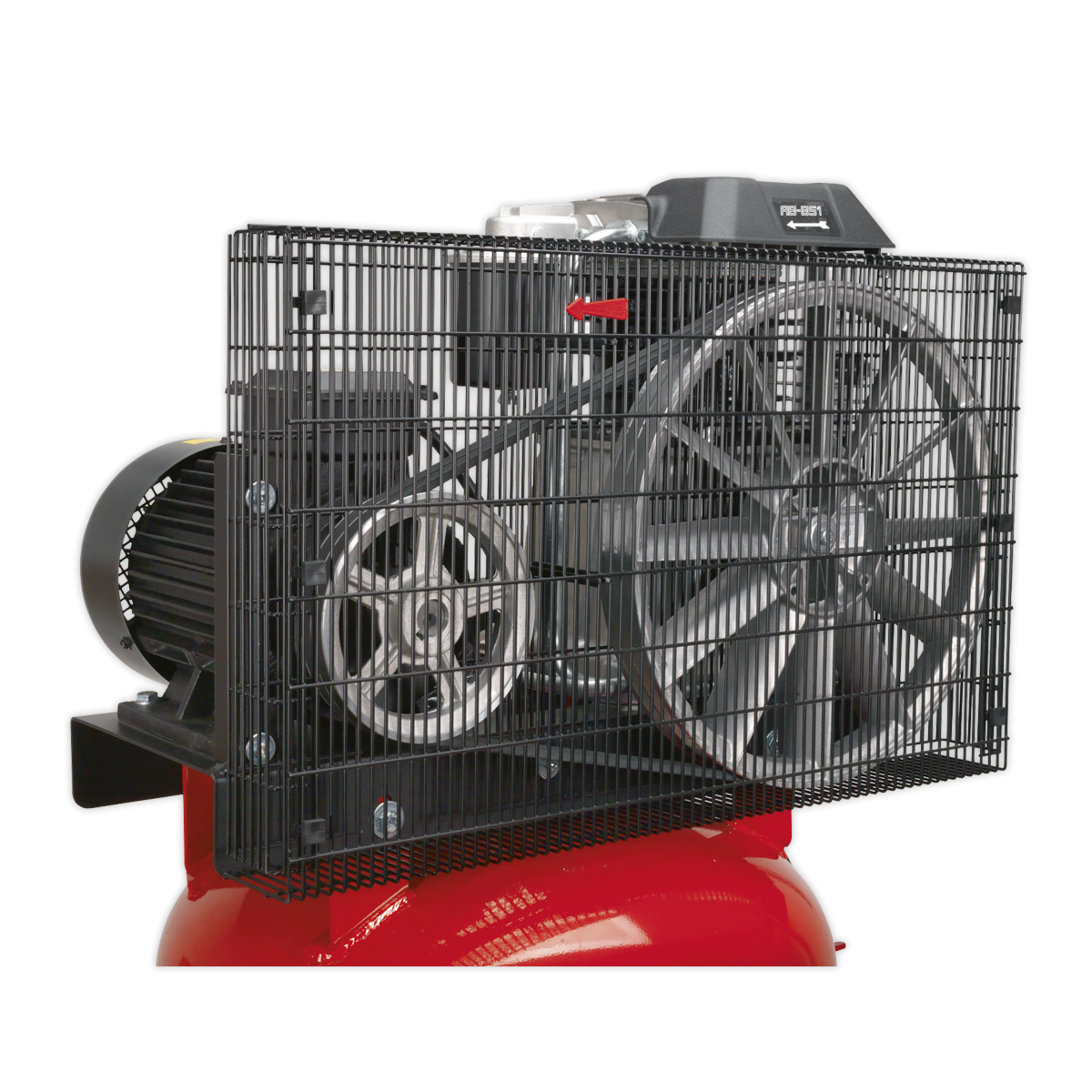

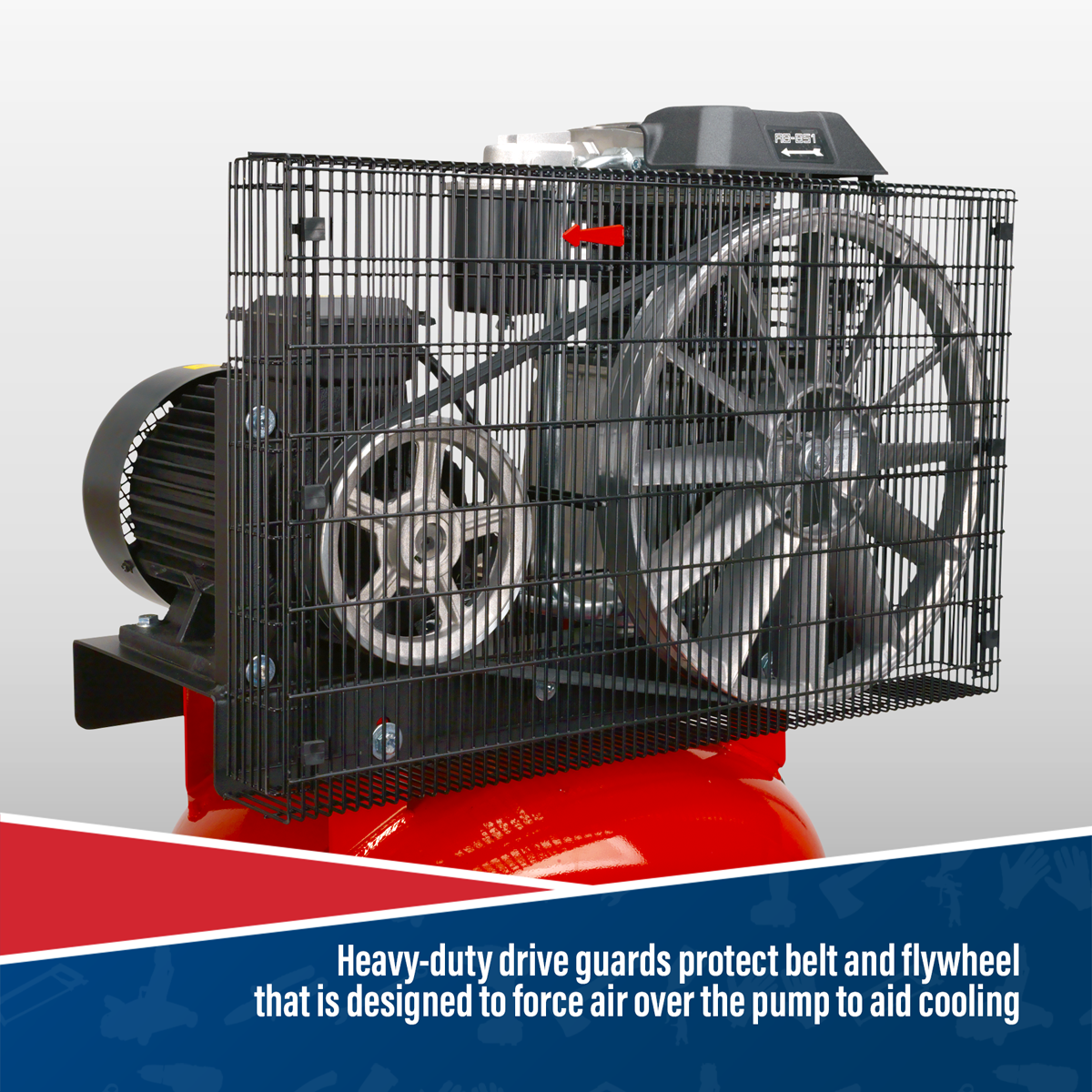

• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specifications

Model No	SACV52775B
Air Displacement cfm(L/min):	29.3(830)
Brand:	Sealey
Maximum Free Air Delivery cfm(L/min):	22.6(640)
Maximum Pressure:	145psi(10bar)
Minimum Rated Supply:	32A
Motor Output:	7.5hp
Nett Weight:	164kg
Oil Capacity:	1.57L
Outlet:	3/4"BSP Female Tap
Phase:	3ph
Receiver Capacity:	270L
Size (W x D x H):	1200 x 800 x 2100mm
Speed:	1280rpm
Supply:	400V/32A
