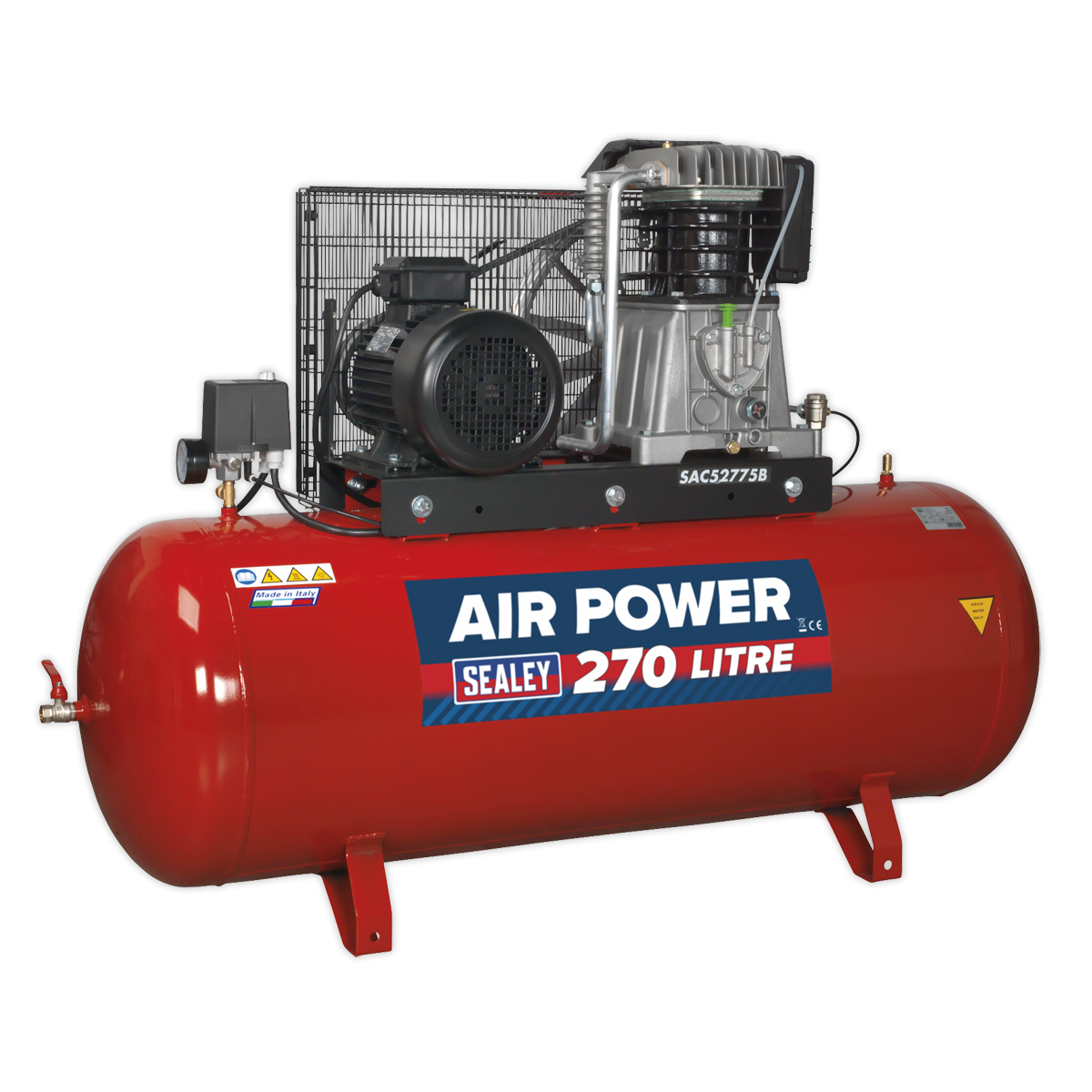

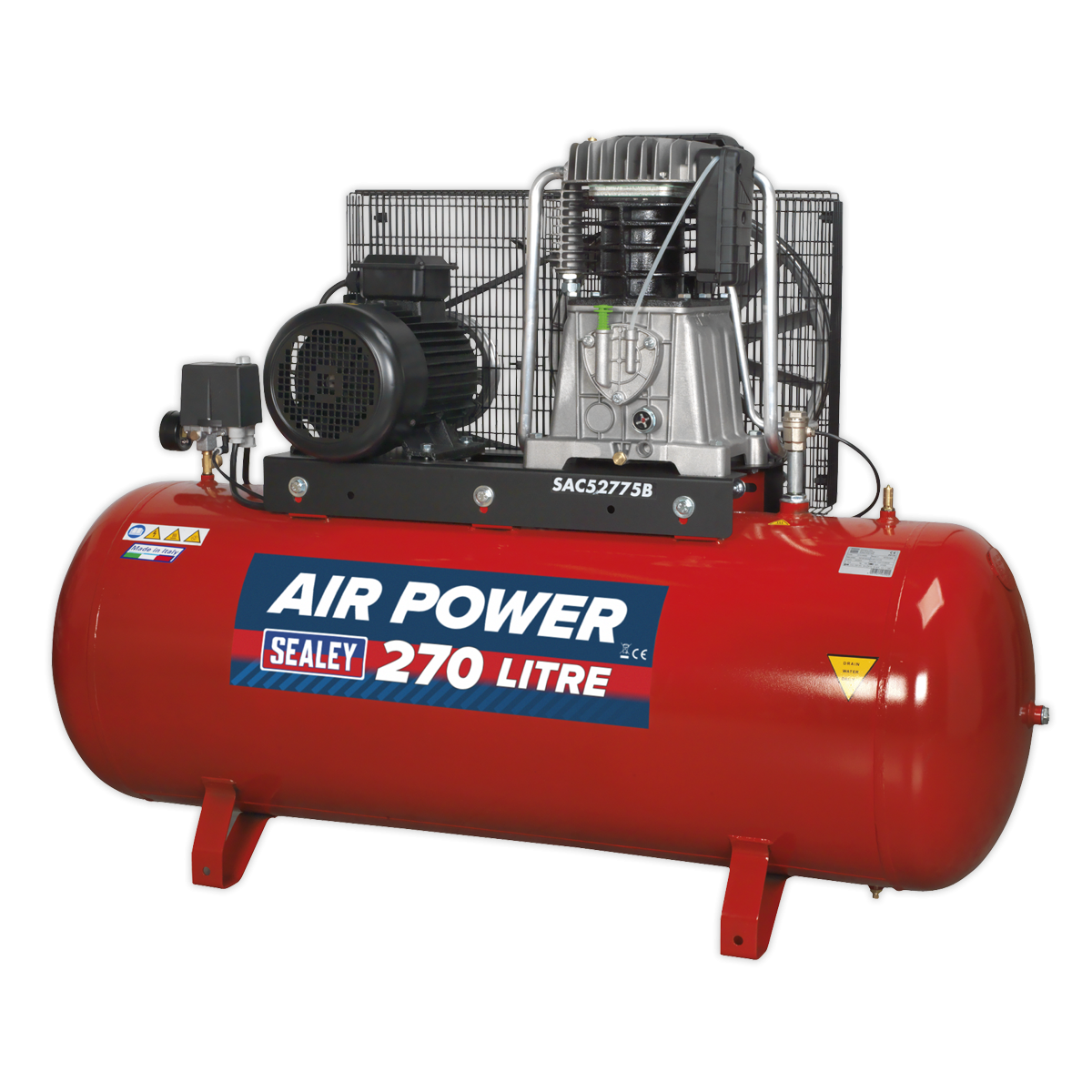

Sealey 270L Belt Drive Air Compressor with Cast Cylinders 7.5hp 2-Stage SAC52775B

Name: Sealey 270L Belt Drive Air Compressor with Cast Cylinders 7.5hp 2-Stage SAC52775B
SKU: SEALEY-SAC52775B
Price: 2536.91 GBP
Availability: InStock

£2,536.91 GBP

~~£2,939.94 GBP~~ £2,536.91 GBP

Reduced by £403.03 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

Heavy-duty 3-phase compressor suitable for the professional workshop. 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase model. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates and operating/maintenance manual.

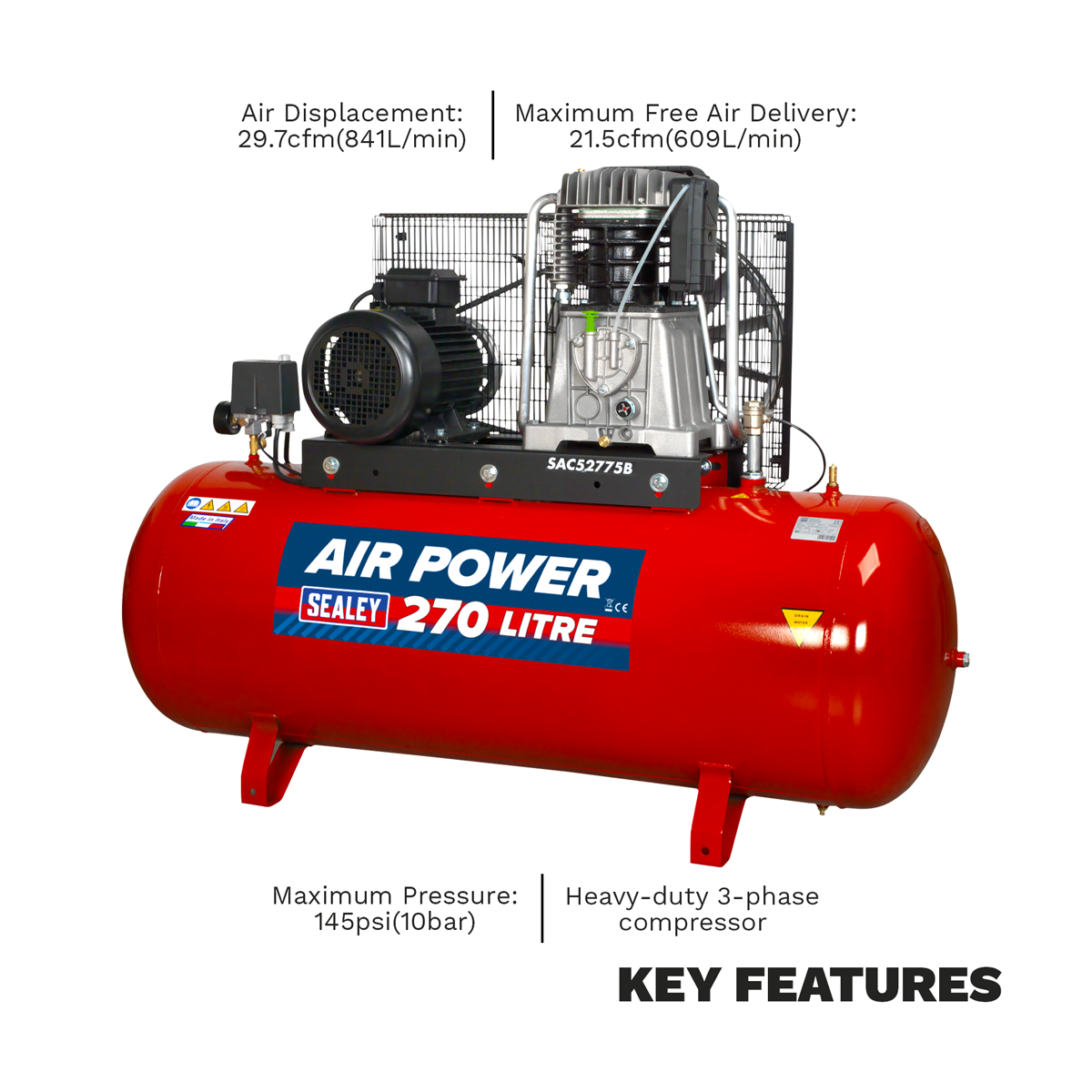

• Air Displacement: 29.7cfm(841L/min).
• Maximum Free Air Delivery: 21.5cfm(609L/min).
• Maximum Pressure: 145psi(10bar).
• Heavy-duty 3-phase compressor suitable for the professional workshop.

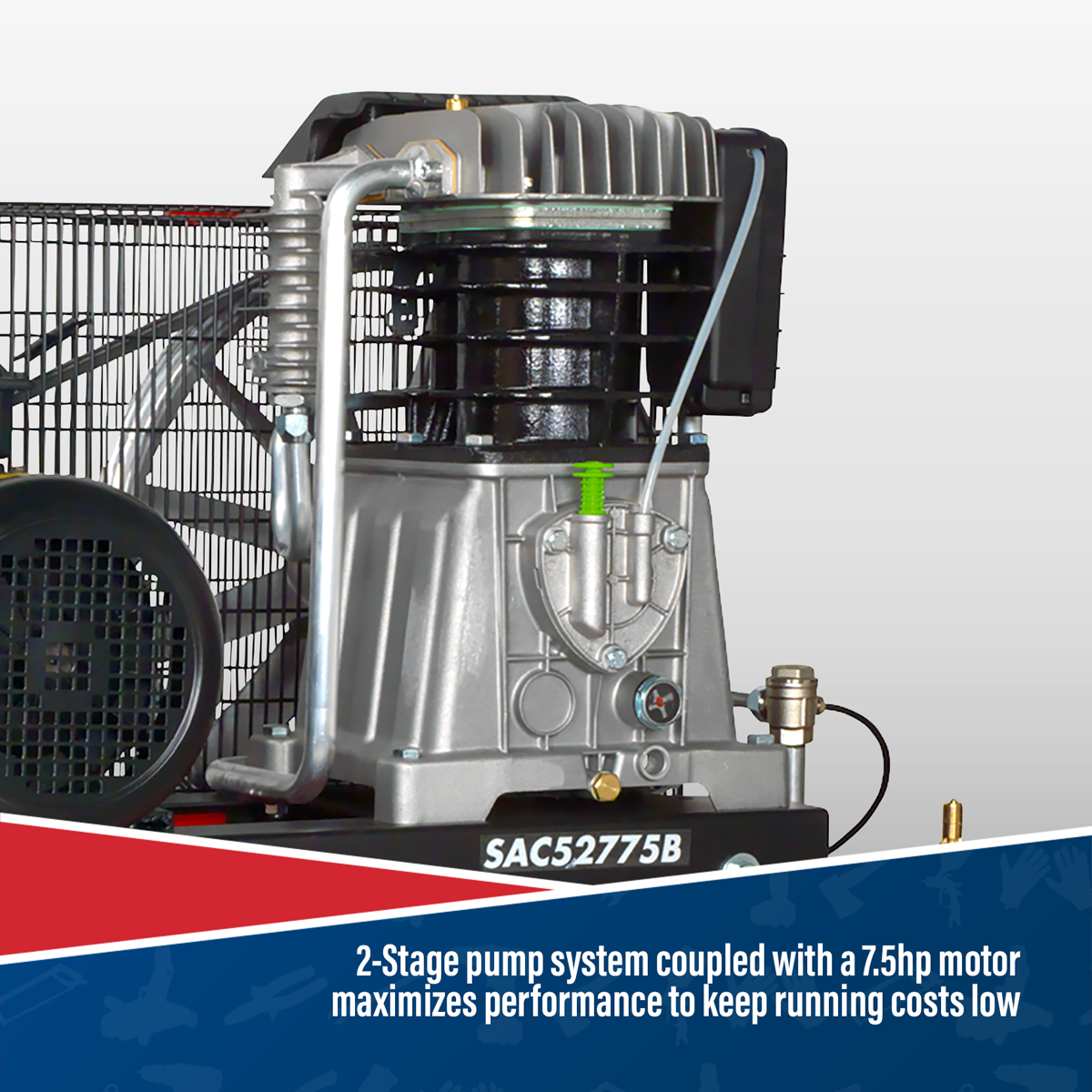

• 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase model.
• Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.

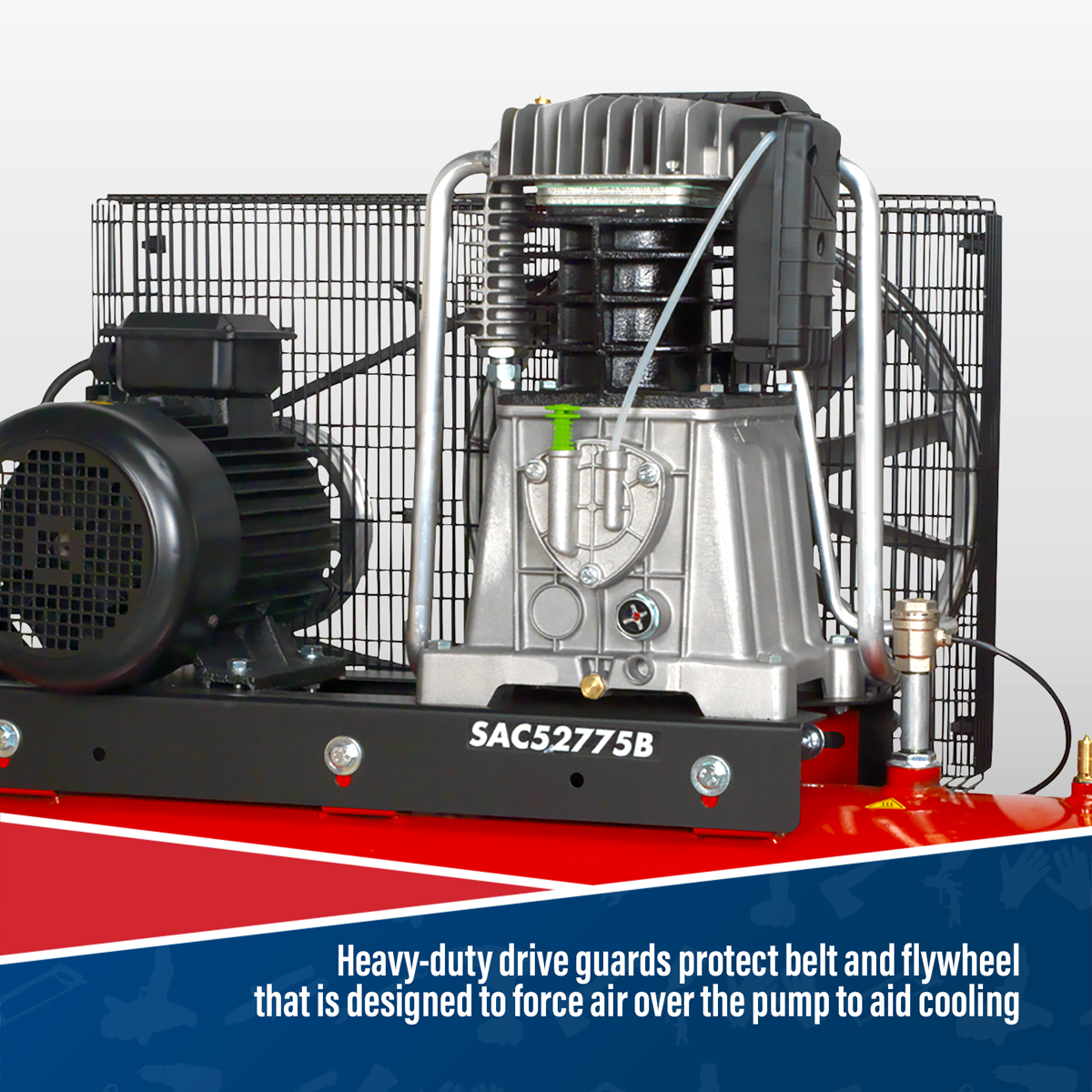

• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
• Supplied with full CE certification, test certificates and operating/maintenance manual.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specifications

Model No	SAC52775B
Air Displacement cfm(L/min):	29.7(841)
Brand:	Sealey
Maximum Free Air Delivery cfm(L/min):	21.5(609)
Maximum Pressure:	145psi(10bar)
Minimum Rated Supply:	32A
Motor Output:	7.5hp
Nett Weight:	143kg
Oil Capacity:	1.57L
Outlet:	1/2"BSP Female Tap
Phase:	3ph
Receiver Capacity:	270L
Size (W x D x H):	1550 x 510 x 1070mm
Speed:	1280rpm
Supply:	400V/32A
