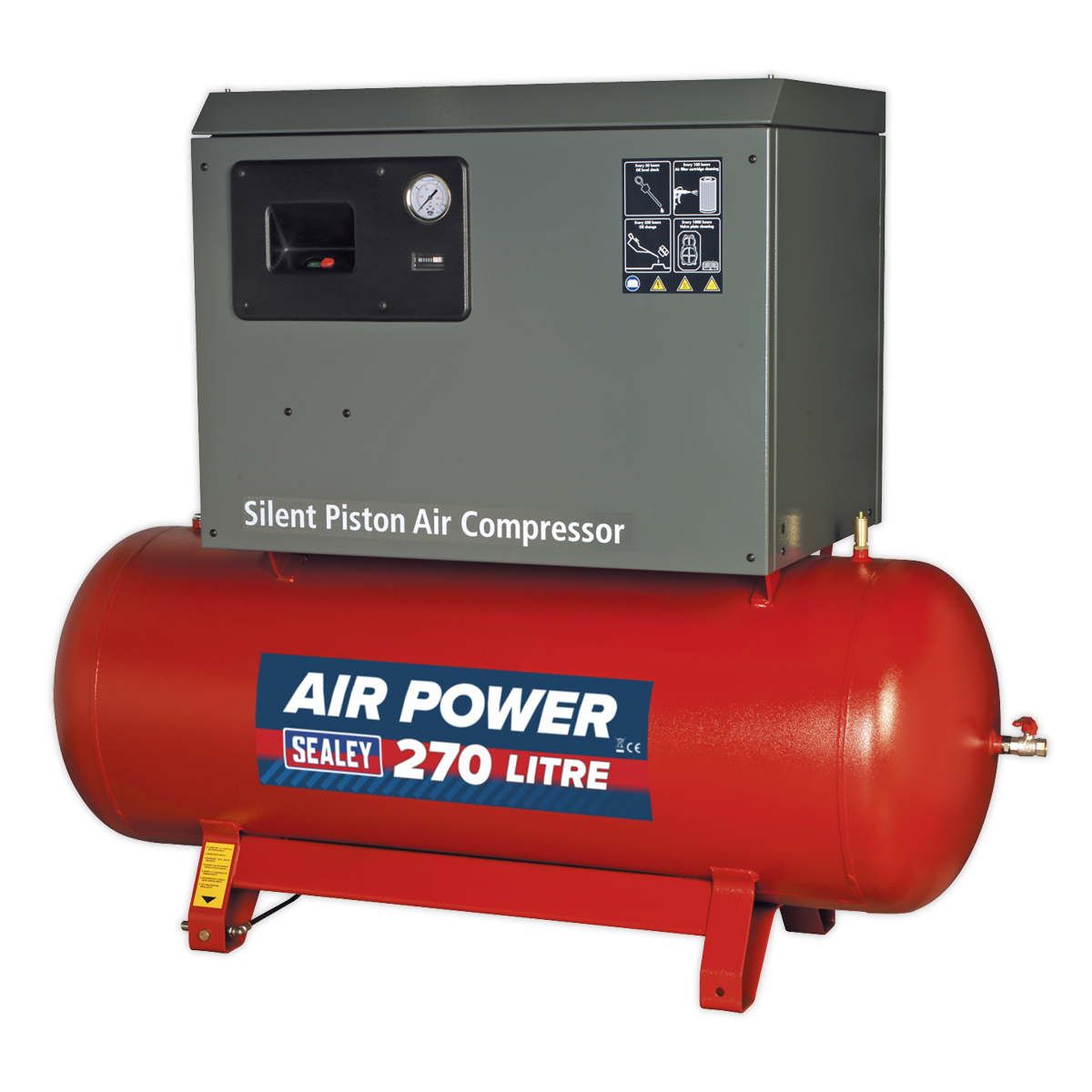

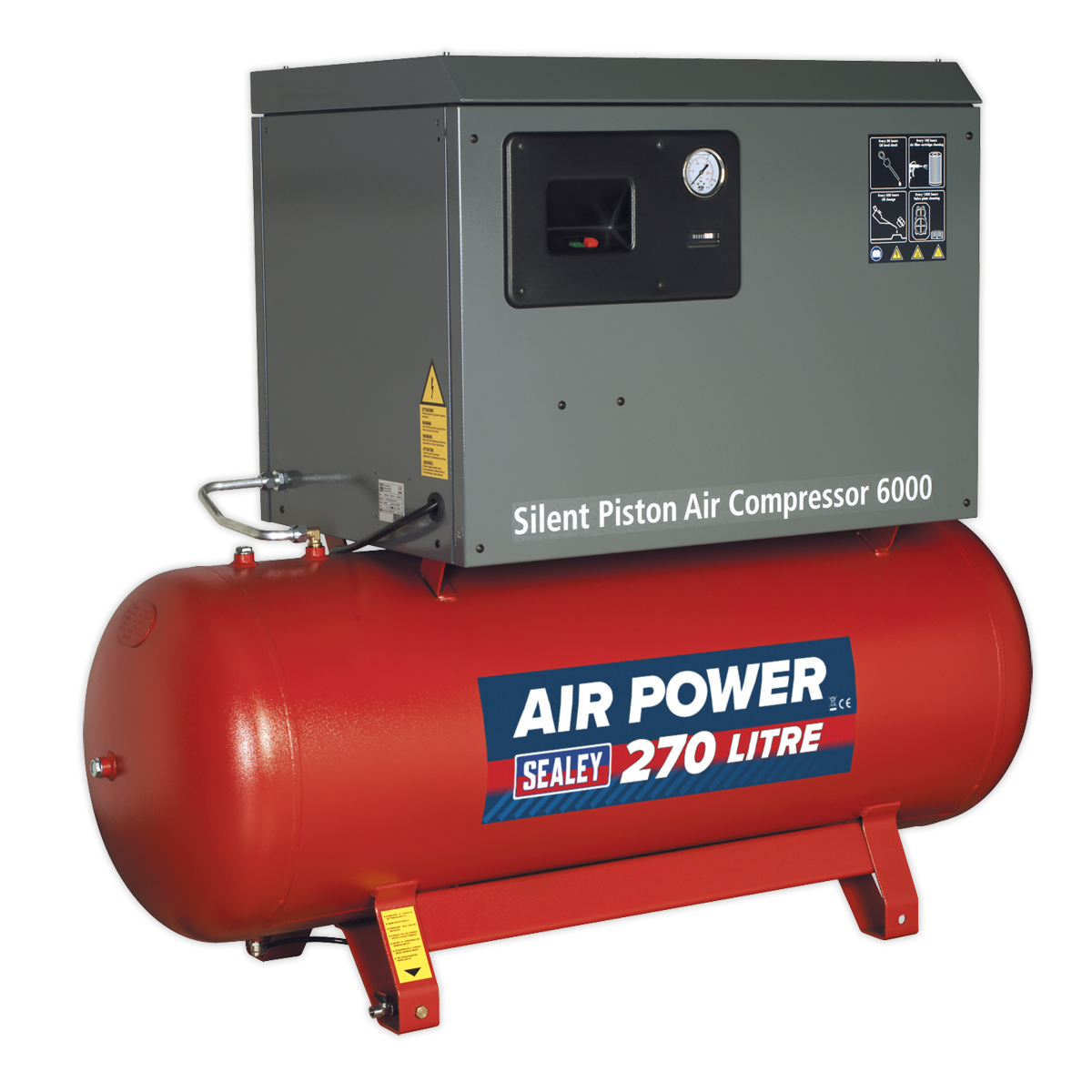

Sealey SAC42755BLN 270L Low Noise Belt Drive Air Compressor with Cast Cylinders 5.5hp 2-Stage

Sealey SAC42755BLN 270L Low Noise Belt Drive Air Compressor with Cast Cylinders 5.5hp 2-Stage

Regular price £4,184.23 GBP
Regular price £4,679.94 GBP Sale price £4,184.23 GBP
Reduced Sold out
Taxes included. Shipping calculated at checkout.
Heavy-duty low noise compressor suitable for garage, bodyshop and industrial applications. Fitted with cast iron cylinder head enabling slower revving and improved pump life. Fully enclosed, insulated design gives quiet running at just 69dB(A) (at 1m) and protects vital components from damage. Features fully automatic pressure cut-out switch and tank pressure gauge. Heavy-duty 3-phase electric motor with soft start feature. Control box features tachometer for monitoring use and optimizing service times.

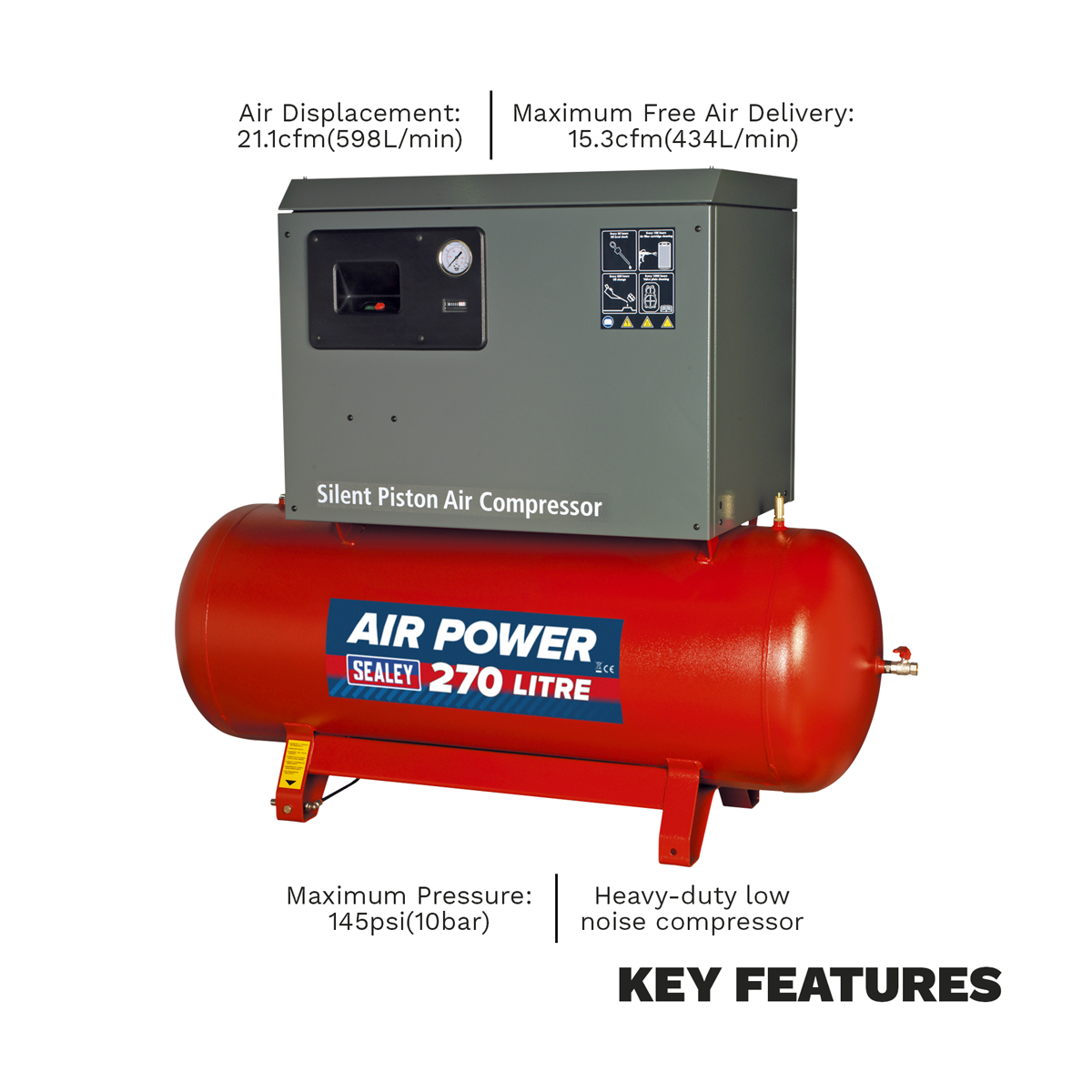

• Air Displacement: 21.1cfm(598L/min).
• Maximum Free Air Delivery: 15.3cfm(434L/min).
• Maximum Pressure: 145psi(10bar).
• Heavy-duty low noise compressor suitable for garage, bodyshop and industrial applications.
• Fitted with cast iron cylinder head enabling slower revving and improved pump life.

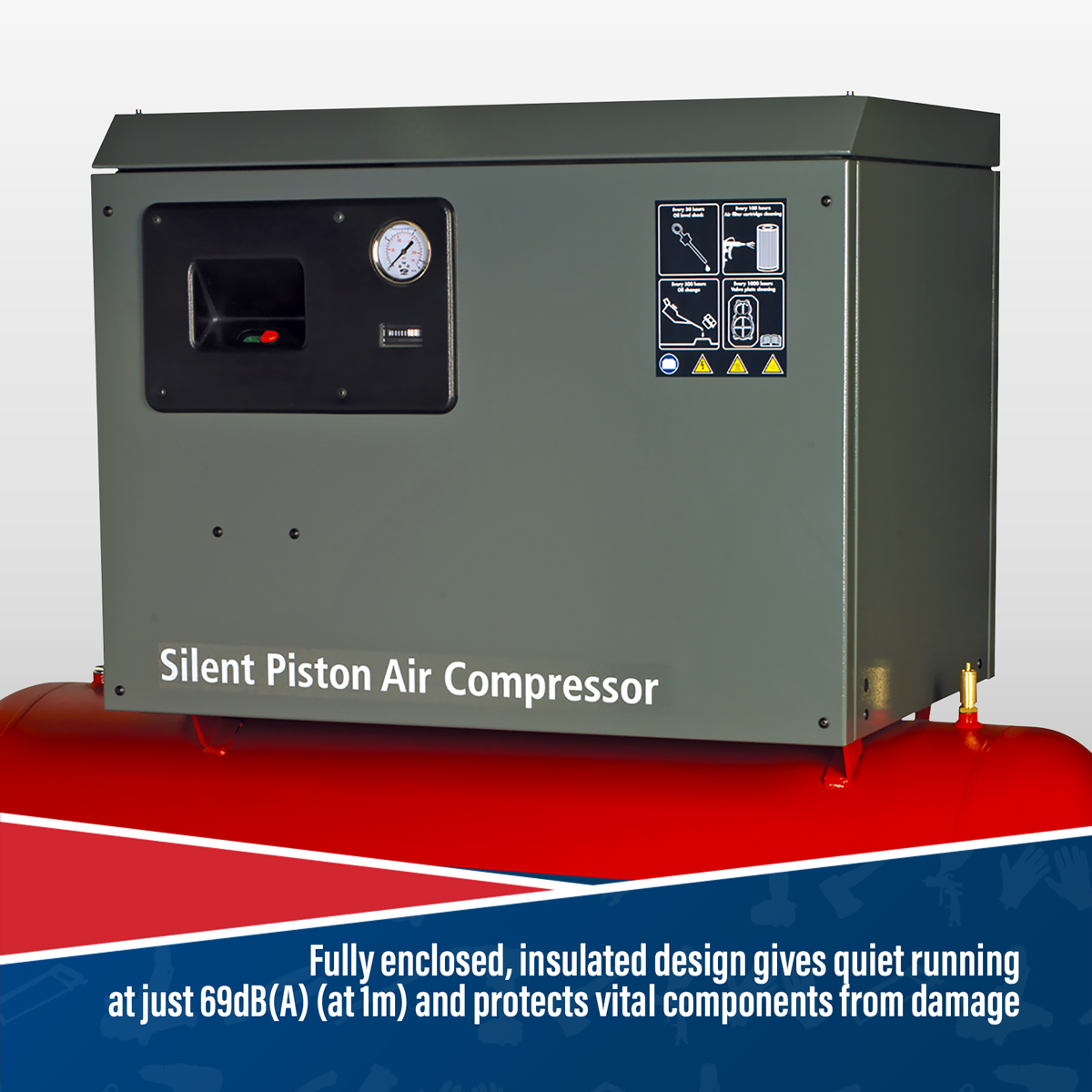

• Fully enclosed, insulated design gives quiet running at just 69dB(A) (at 1m) and protects vital components from damage.

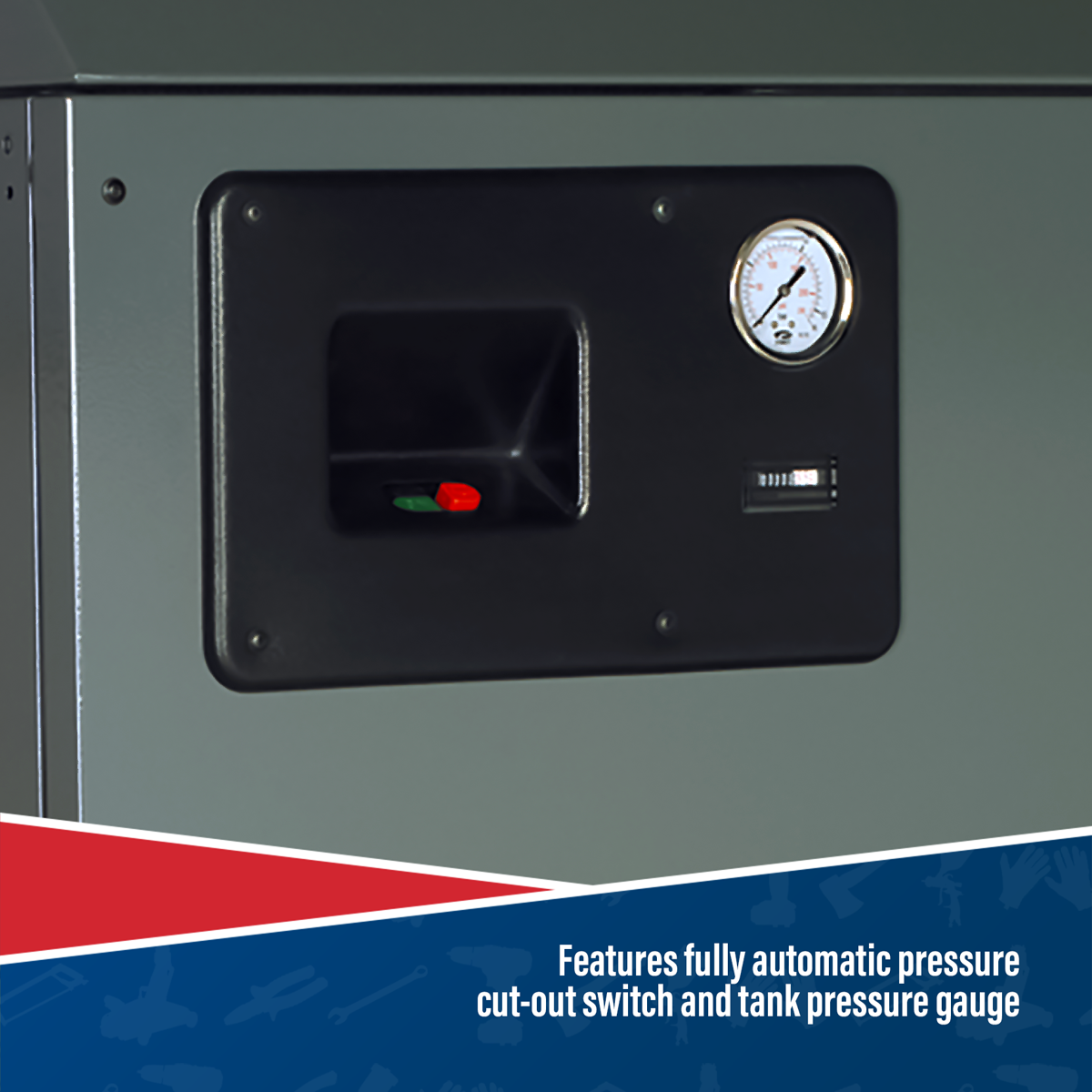

• Features fully automatic pressure cut-out switch and tank pressure gauge.
• Heavy-duty 3-phase electric motor with soft start feature.

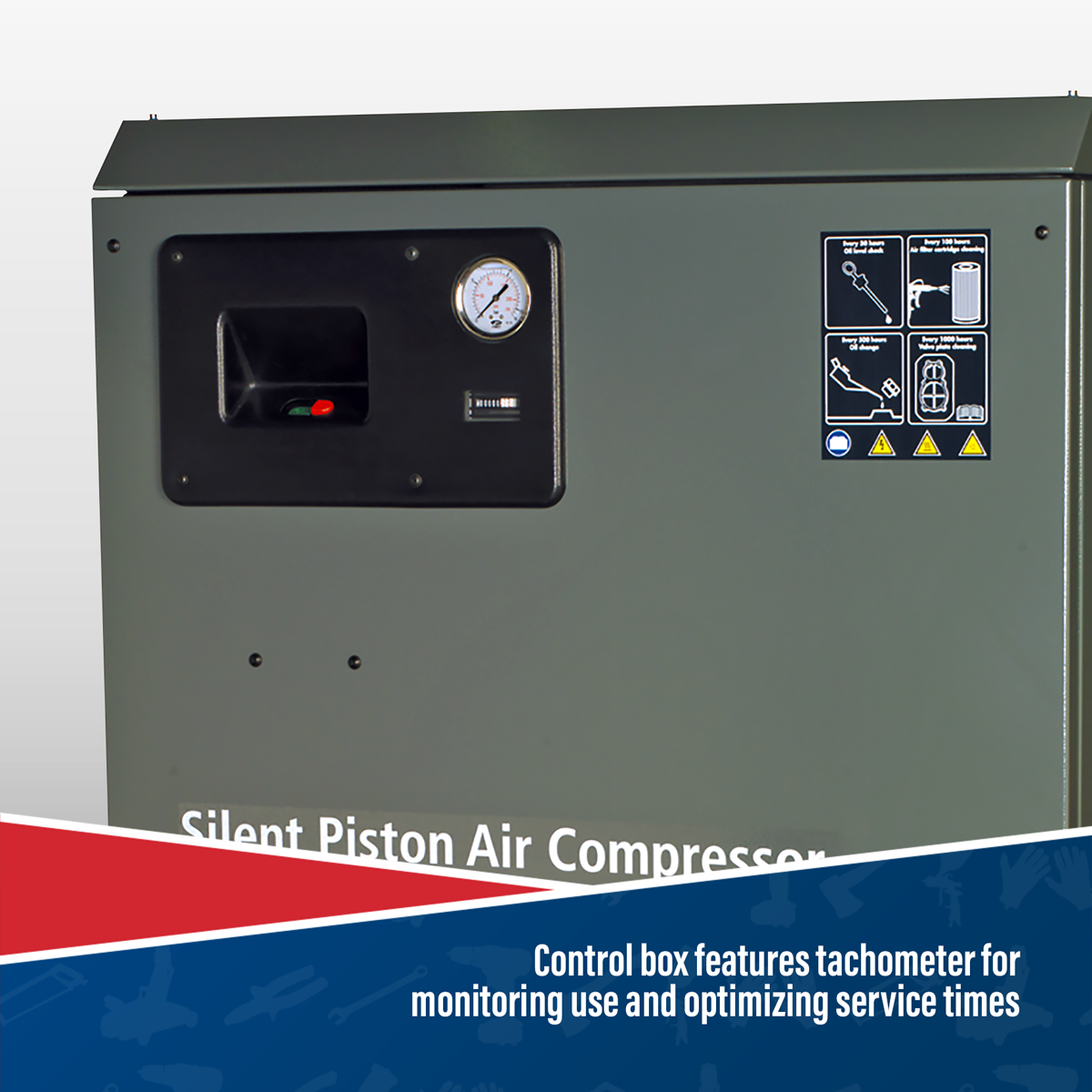

• Control box features tachometer for monitoring use and optimizing service times.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specifications

Model No SAC42755BLN
Air Displacement cfm(L/min): 21.1(598)
Brand: Sealey
Maximum Free Air Delivery cfm(L/min): 15.3(434)
Maximum Pressure: 145psi(10bar)
Minimum Rated Supply: 32A
Motor Output: 5.5hp
Nett Weight: 198kg
Noise Level: 69dB(A)
Oil Capacity: 1.2L
Outlet: 1/2"BSP Female Tap
Phase: 3ph
Receiver Capacity: 270L
Motor Output: 5.5hp
Supply: 400V
Phase: 3ph
Minimum Rated Supply: 32A
Speed: 1516rpm
Noise Level: 69dB(A)
Air Displacement cfm(L/min): 21.1(598)
Maximum Free Air Delivery 15.3(434)
Maximum Pressure: 145psi(10bar)
Receiver Capacity: 270L
Outlet: 1/2" BSP Female Tap

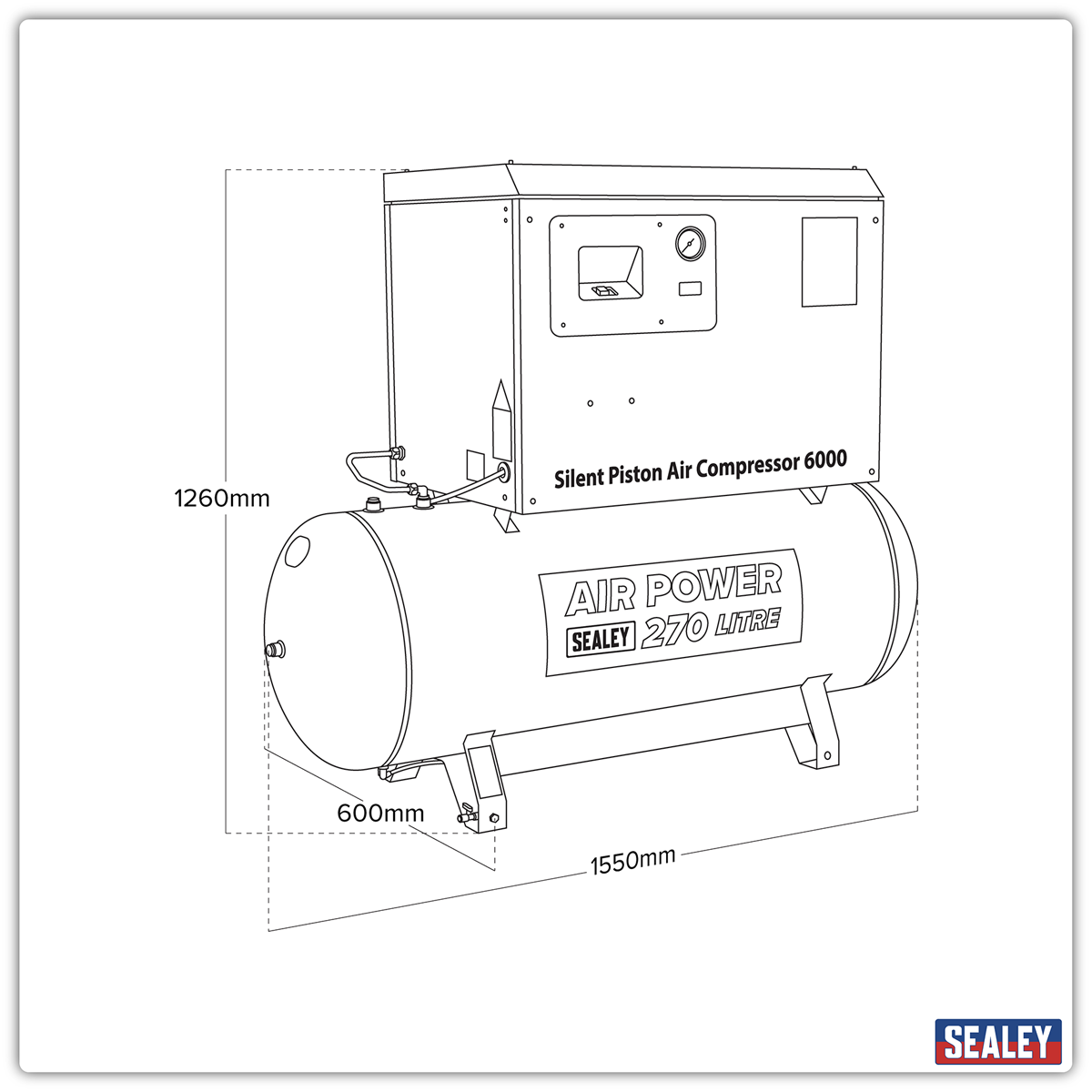

Size (W x D x H): 1550 x 600 x 1260mm
Weight: 198kg
Size (W x D x H): 1550 x 600 x 1260mm
Speed: 1516rpm
Supply: 400V

Documents

Instructions View/Download
Material Safety Data Sheet View/Download
Parts Diagrams View/Download
