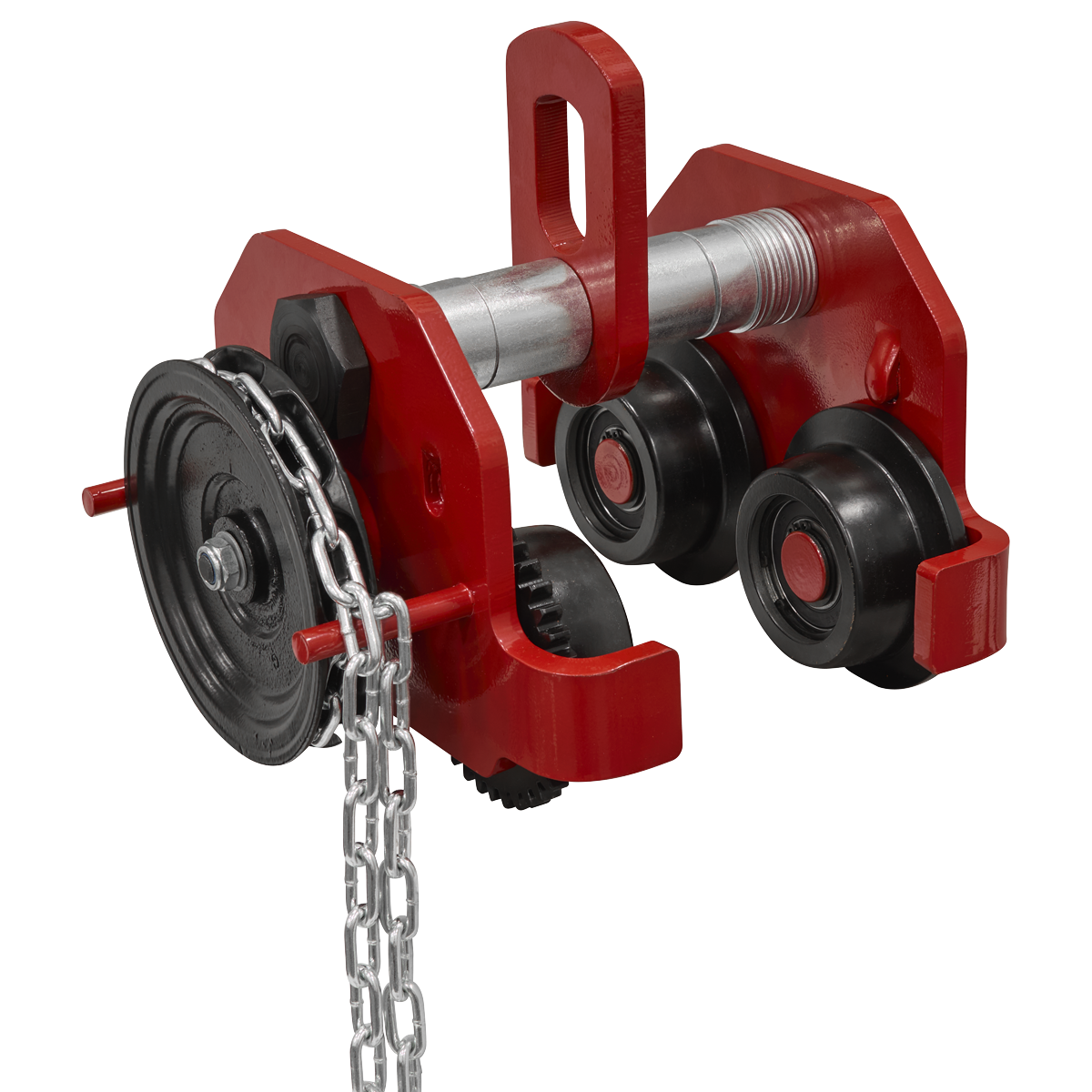

Sealey Geared Trolley 3 Tonne PT3000G

Name: Sealey Geared Trolley 3 Tonne PT3000G
SKU: SEALEY-PT3000G
Price: 231.8 GBP
Availability: InStock

£231.80 GBP

~~£251.94 GBP~~ £231.80 GBP

Reduced by £20.14 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

Suitable for use with our lever hoists or chain blocks. Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling. Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer. Four evenly spaced wheels help to make the unit move smoothly along the load bearer.

• COMPATIBLE - Suitable for use with our lever hoists or chain blocks.

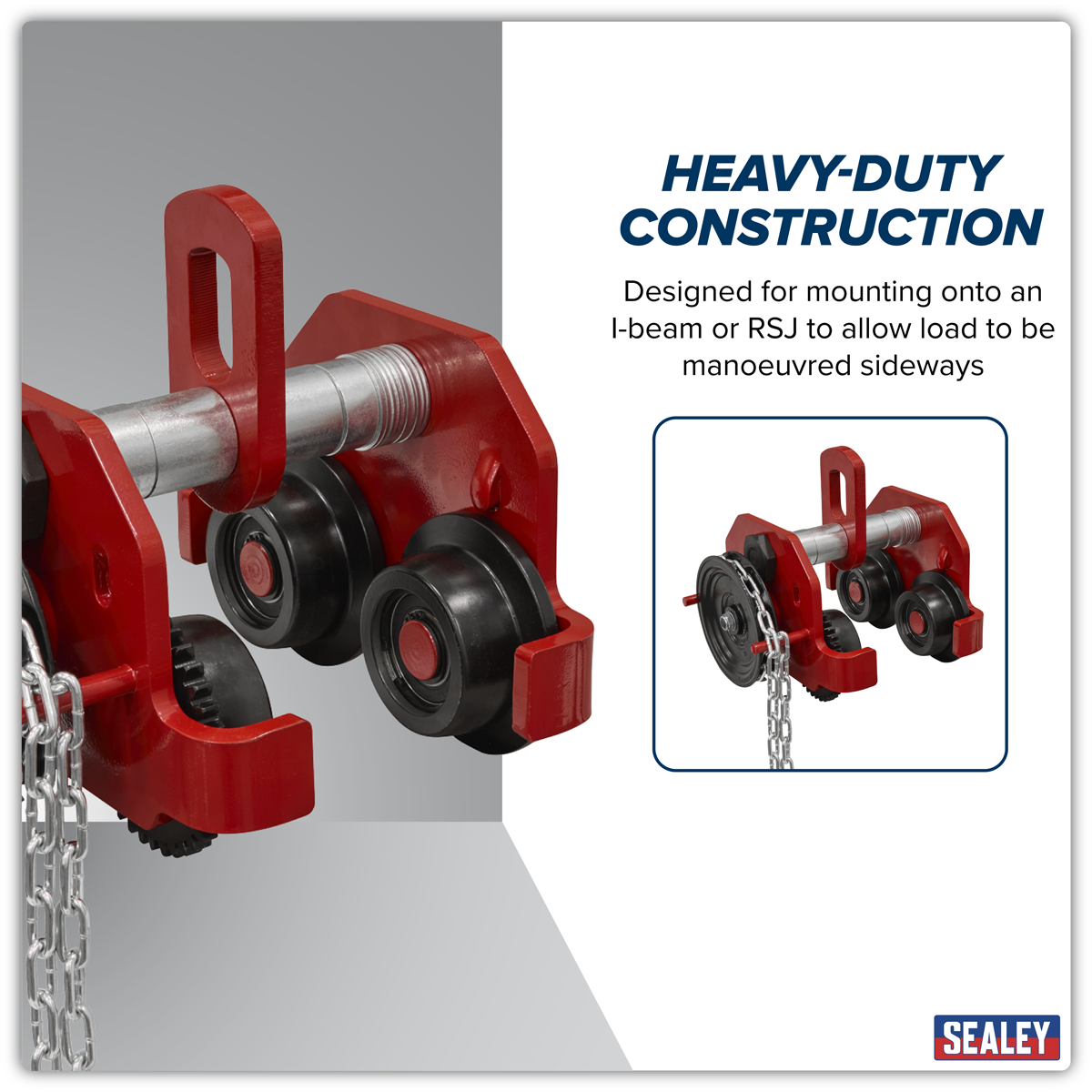

• APPLICATION - Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
• LABOUR-FREE MOVEMENT - Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling.
• WHEEL PROTECTION - Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
• SMOOTH MOVEMENTS - Four evenly spaced wheels help to make the unit move smoothly along the load bearer.

Specifications

Model No	PT3000G
Brand:	Sealey
Nett Weight:	23.5kg
Capacity:	3000kg
Track Width Adjustable Range:	88-168mm
Minimum Curve Radius:	1500mm
A:	300mm
B:	250mm
C:	180mm
D:	120mm
E:	153mm
Weight:	23.5kg
Minimum Standard I-Beam Dimensions (D x W x Web):	200 x 100 x 7mm
Maximum Distance Between Spans:	2700mm
Maximum Standard I-Beam Dimensions (D x W x Web):	850 x 150 x 9mm
Maximum Distance Between Spans:	4500mm
Refer to catalogue for diagram:
