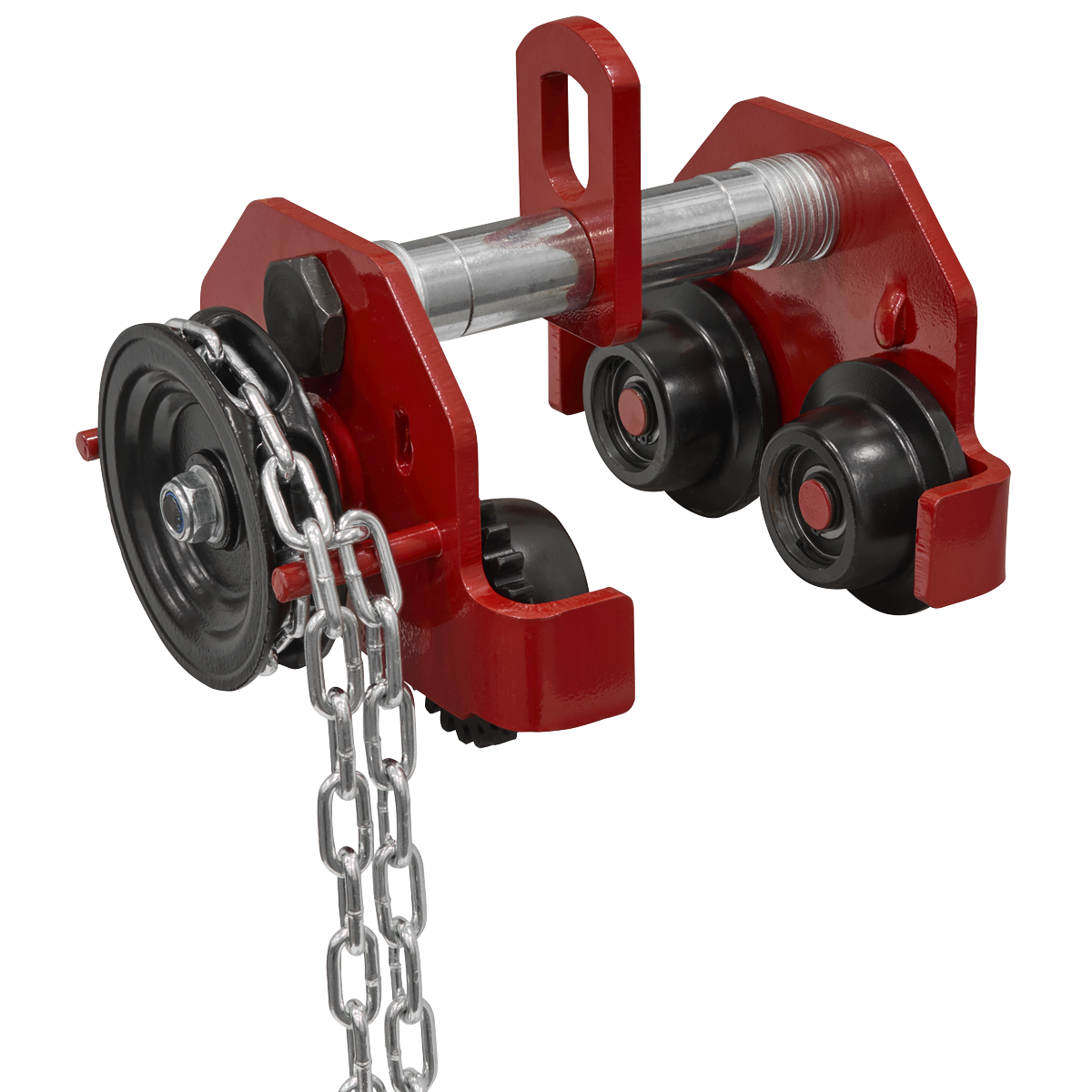

    Sealey Geared Trolley 1 Tonne PT1000G

    Sealey Geared Trolley 1 Tonne PT1000G

    £179.71 GBP
    £215.94 GBP £179.71 GBP
    Reduced Sold out
    Taxes included. Shipping calculated at checkout.
    Suitable for use with our lever hoists or chain blocks. Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling. Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

    • Suitable for use with our lever hoists or chain blocks.
    • Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
    • Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling.
    • Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

    Specifications

    Model No PT1000G
    Brand: Sealey
    Nett Weight: 17kg
    Capacity: 1000kg
    Track Width Adjustable Range: 64-140mm
    Minimum Curve Radius: 1000mm
    A: 255mm
    B: 205mm
    C: 135mm
    D: 104mm
    E: 128mm
    Weight: 17kg
    Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
    Minimum Distance Between Spans: 2500mm
    Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
    Maximum Distance Between Spans: 6000mm
    Refer to catalogue for diagram.:
