Sealey Plasma Inverter 40A with Compressor PP40PLUS

Name: Sealey Plasma Inverter 40A with Compressor PP40PLUS
SKU: SEALEY-PP40PLUS
Price: 1059.56 GBP
Availability: InStock

£1,059.56 GBP

~~£1,199.94 GBP~~ £1,059.56 GBP

Reduced Sold out

Taxes included. Shipping calculated at checkout.

Quantity

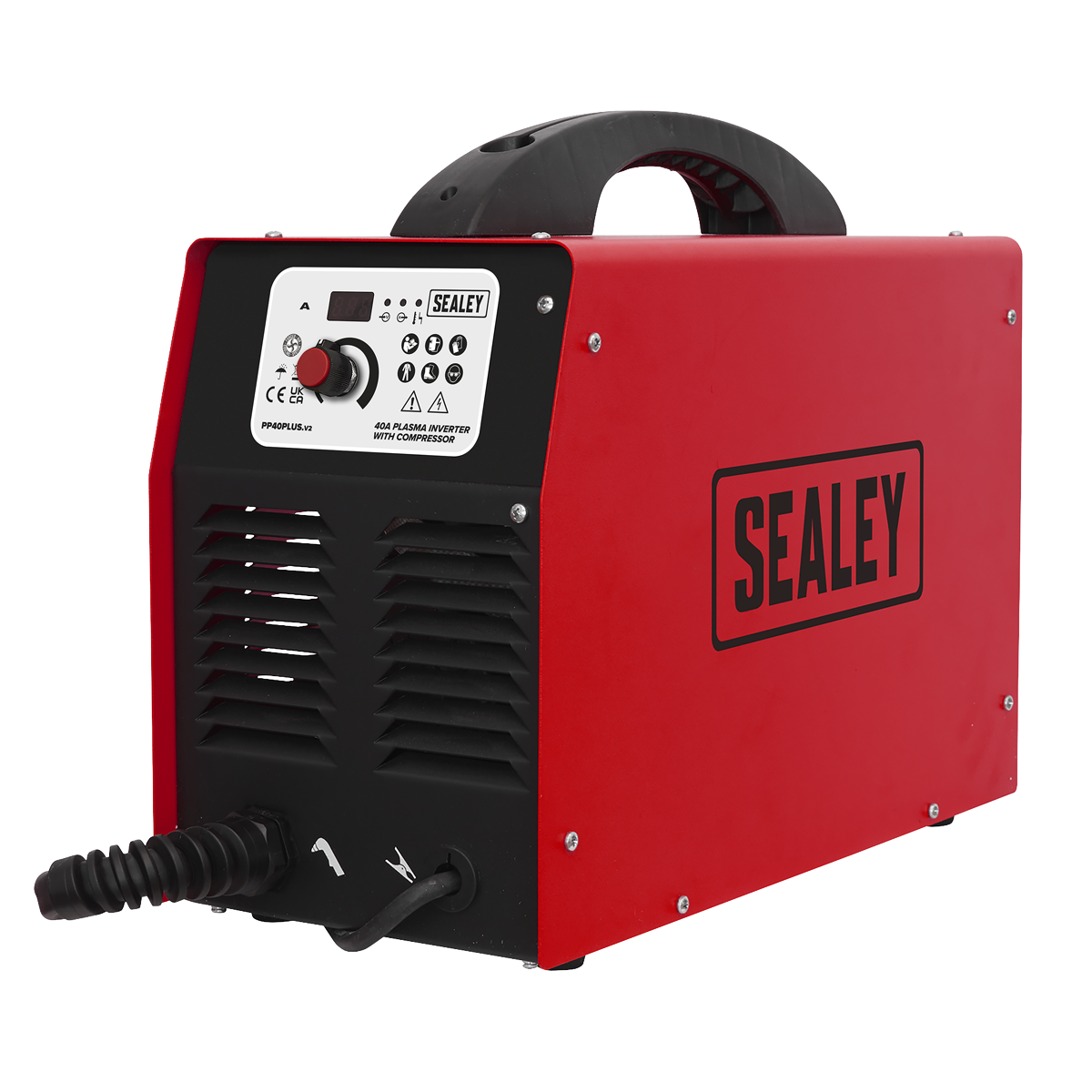

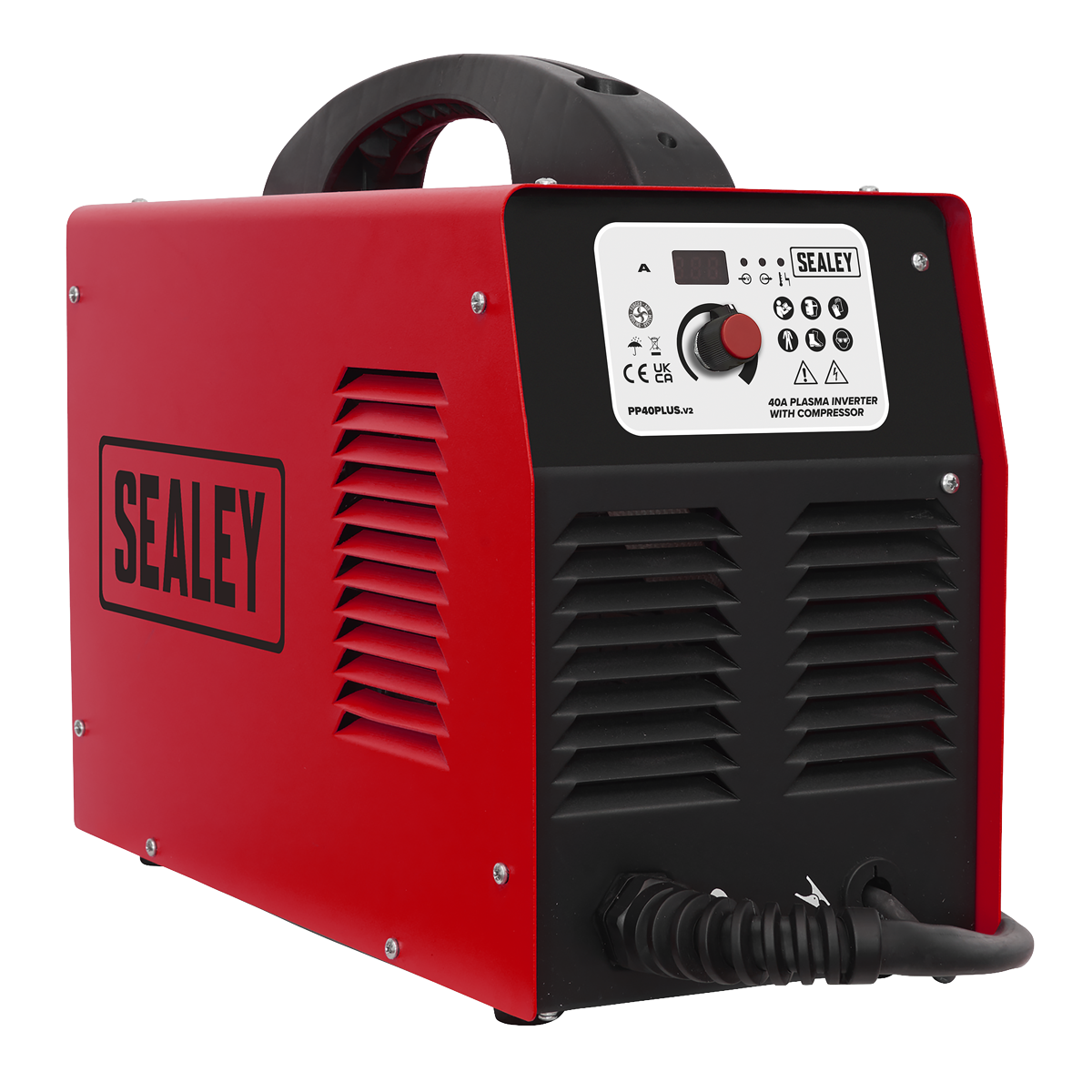

Features an integral compressor yet still lightweight weighing only 18.5kg. Inverter power supply fitted with plasma cutter control circuitry. With built-in 4m plasma torch, earth cable and 4m gas hose. Features an LED display for the current output and dial adjustment from 15-40A. Three indication lights show voltage input, amps output and thermal overload. Uses air to strike arc making it suitable for use near electrical equipment. Ideal for cutting steel, stainless steel, galvanized steel, aluminium, copper and brass.

• INTERNAL COMPRESSOR - Features an integral compressor reducing the need for a secondary unit yet still lightweight weighing only 18.5kg.
• IGBT INVERTER – Inverter power supply fitted with plasma cutter control circuitry.

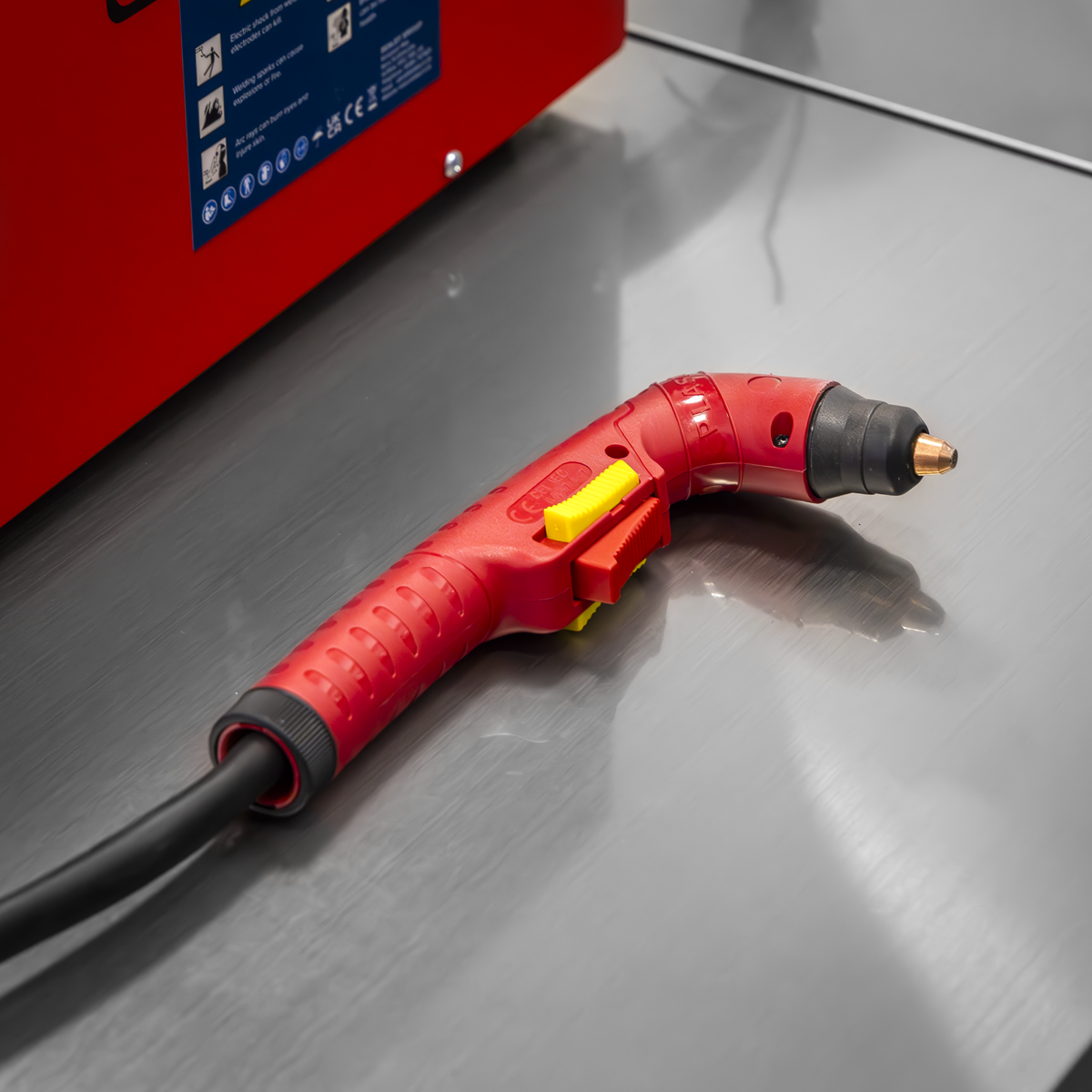

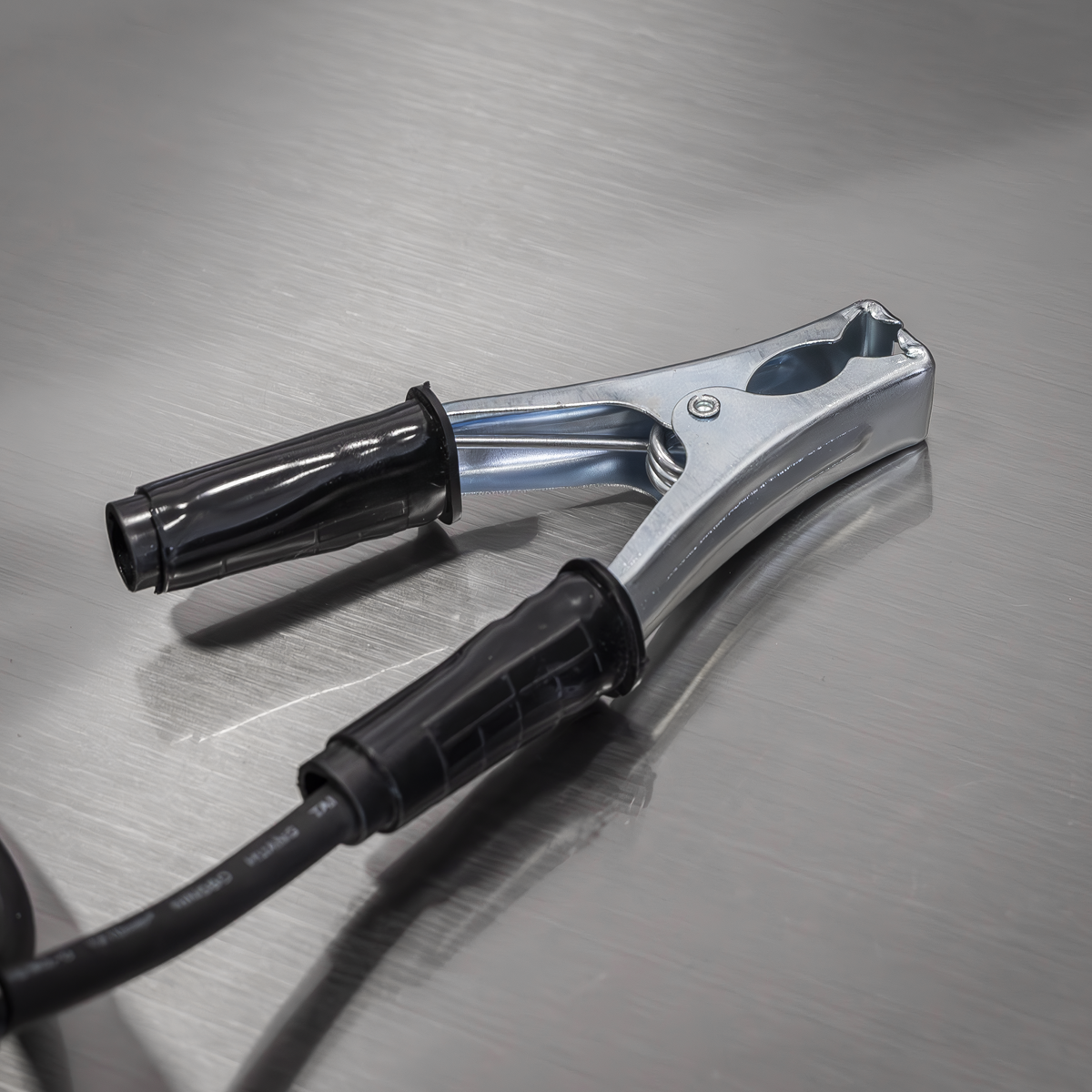

• SUPPLIED WITH- Supplied with built-in 4m plasma torch, earth cable and 4m gas hose.

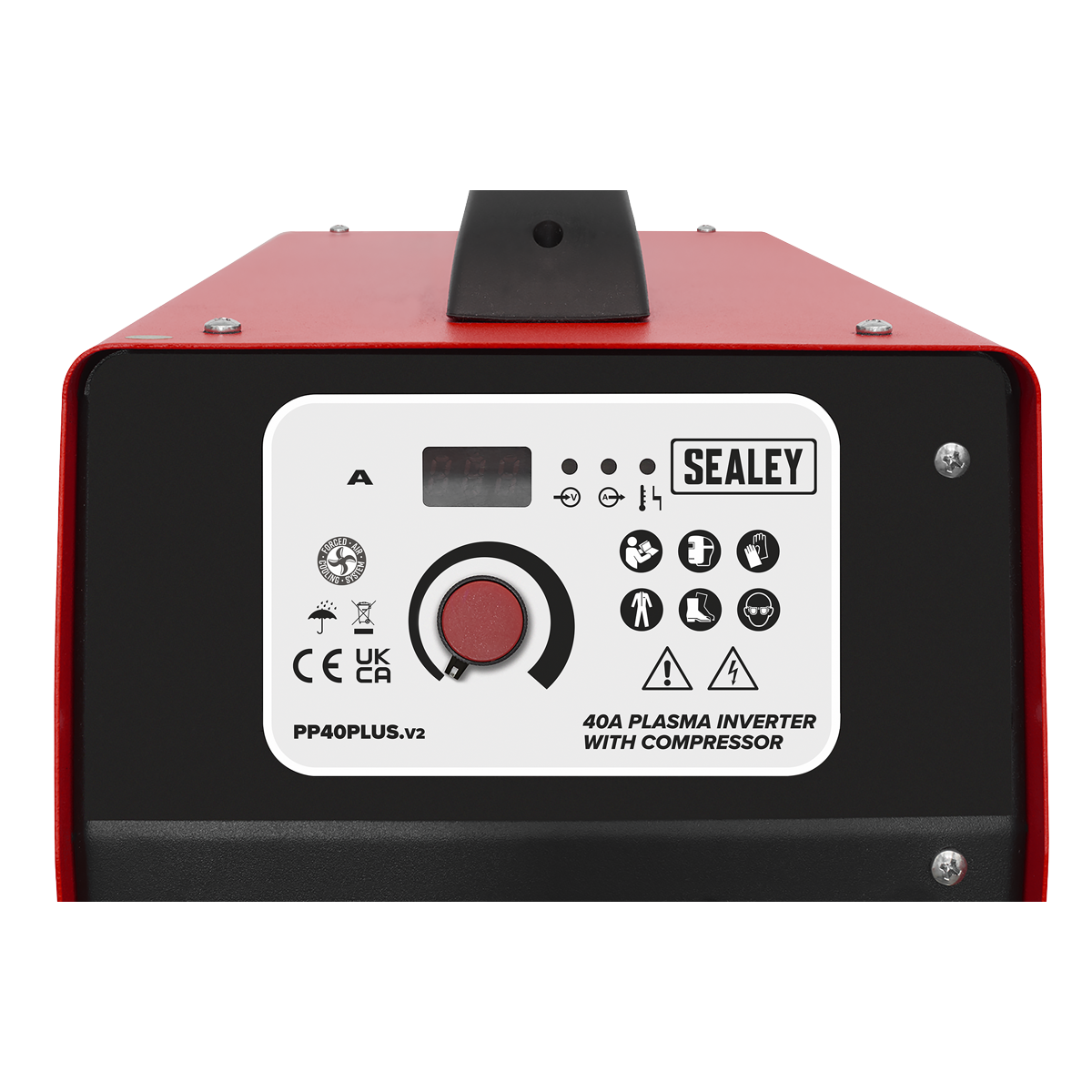

• CLEAR LED DISPLAY – Easy to read LED display to show the current output and dial adjustment from 15-40A.
• CAN BE USED NEAR ELECTRICAL EQUIPMENT - Uses air to strike arc making it suitable for use near electrical equipment.
• SUITABLE FOR MOST METALS - Ideal for cutting steel, stainless, galvanized steel, aluminium, copper and brass.

Specifications

Model No	PP40PLUS
Brand:	Sealey
Nett Weight:	18.5kg
Power Output:	15-40A
Duty Cycle:	20% @ 40A 30% @ 35A , 60% @ 25A
Max Cutting Thickness:	10mm
Air Requirements:	Integral Compressor.
Air Pressure:	N/A
Absorbed Power:	6.9kw
Supply:	230V
Insualtion:	F
Protection:	IP21S
Nett Weight:	18.5kg
Accessories:	Yes
Replacement Consumables:
Electrode, Short (Pack of 5):	PP40PLUS.E (x5)
Nozzle, Short (Pack of 5):	PP40PLUS.N (x5)
Diffuser (Pack of 5):	PP40PLUS.D (x5)
Safety Cap (Pack of 2):	PP40PLUS.SC (x2)
Note:	*To achieve maximum power a 32A supply may be required.
