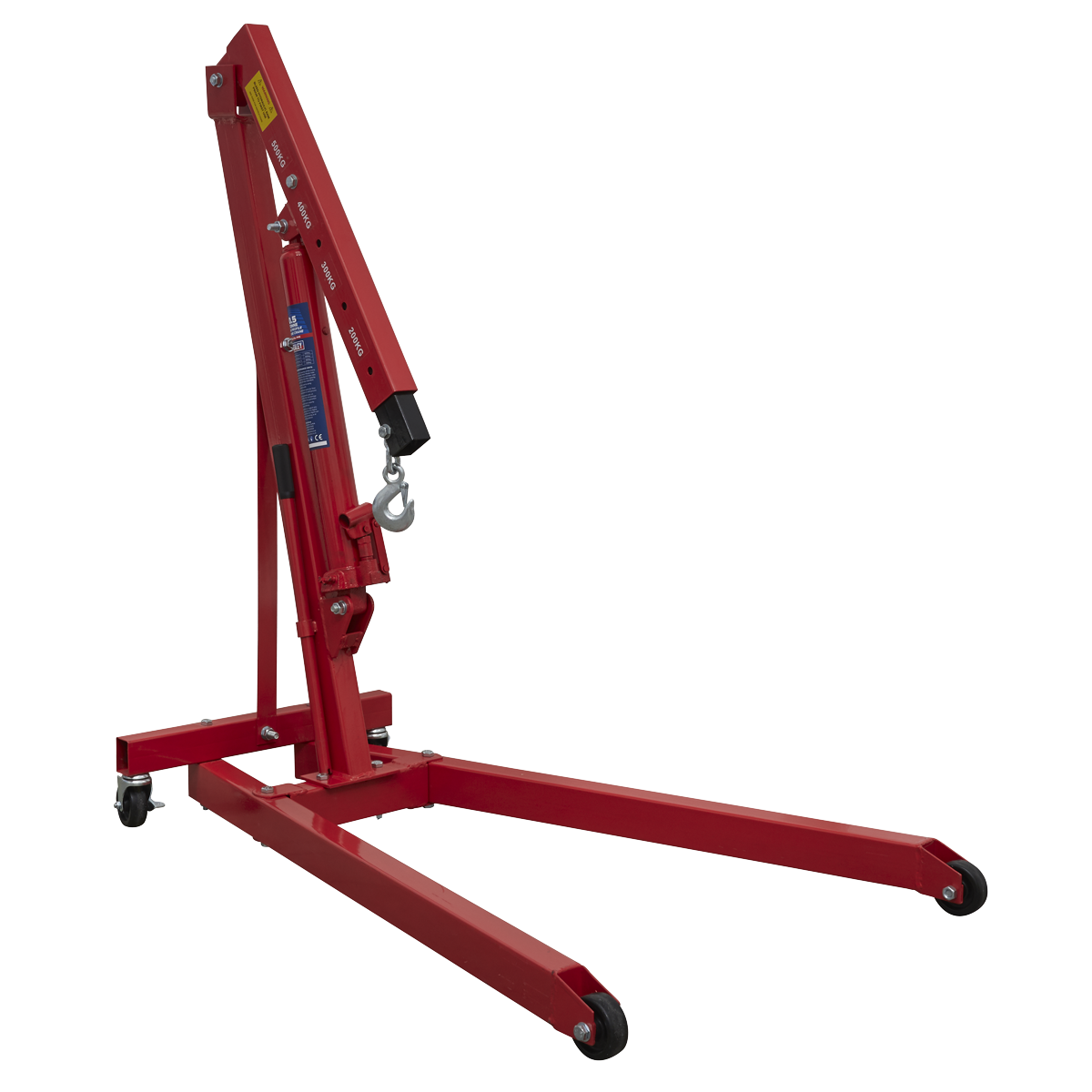

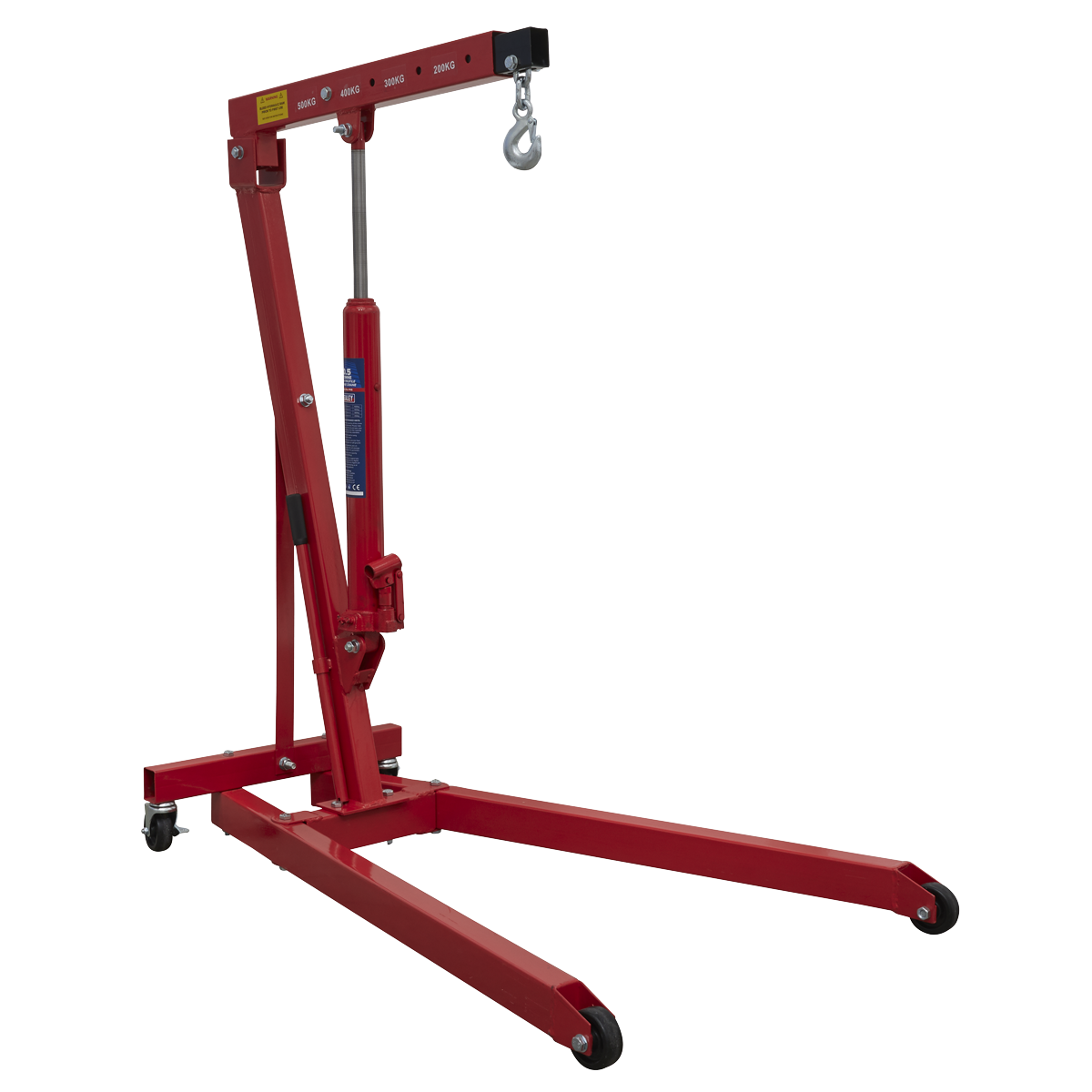

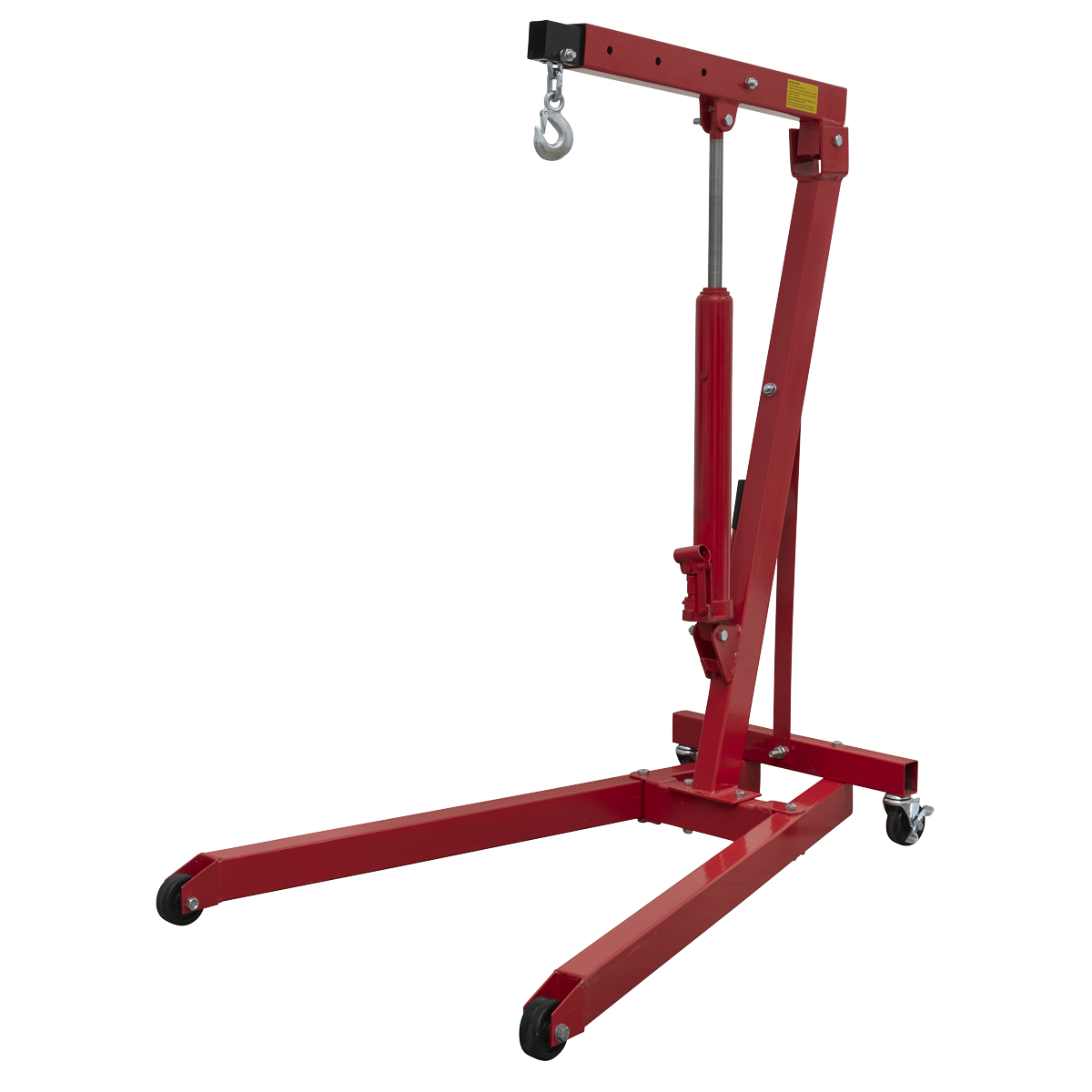

Sealey Low Profile Engine Crane 0.5 Tonne PH5

Name: Sealey Low Profile Engine Crane 0.5 Tonne PH5
SKU: SEALEY-PH5
Price: 177.22 GBP
Availability: InStock

£177.22 GBP

~~£239.94 GBP~~ £177.22 GBP

Reduced by £62.72 Sold out

Taxes included (if delivering outside the UK, UK VAT has been removed however import duties may be charged before delivery.). Shipping calculated at checkout.

Quantity

Currently out of stock, please contact us for ETA

Low entry engine crane with a height of only 100mm at the wheels. Weighs only 37kg so is extremely lightweight and manoeuvrable. Heavy-duty castors and pump access from side, for safe handling of loads. Delivered in knock-down form, some self-assembly required.

• Low entry engine crane with a height of only 100mm at the wheels.
• Weighs only 37kg so is extremely lightweight and manoeuvrable.

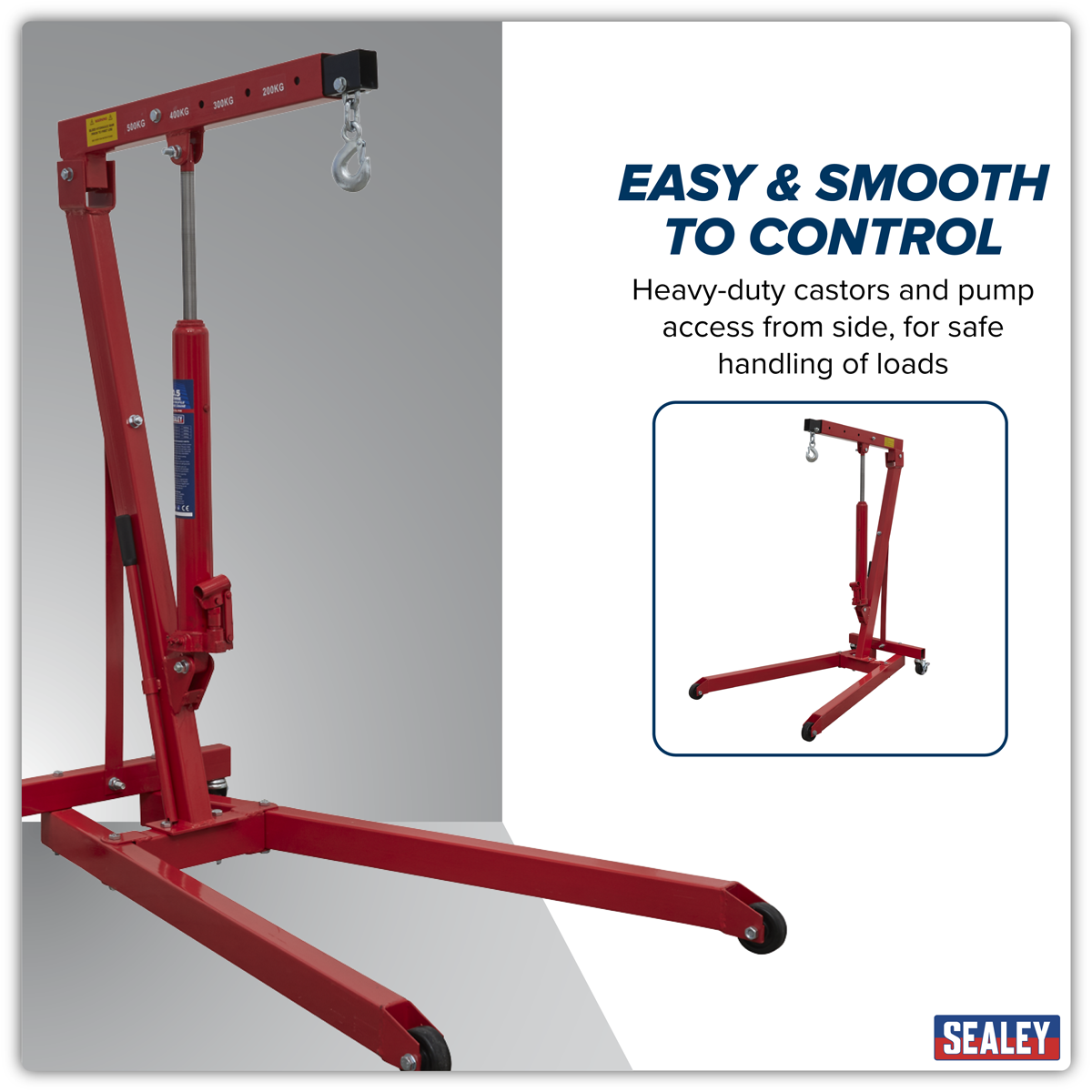

• Heavy-duty castors and pump access from side, for safe handling of loads.
• Delivered in knock-down form, some self-assembly required.

Specifications

Model No	PH5
Brand:	Sealey
Height Jib Down:	1330mm
Height Legs Folded:	n/a
Height of Frame:	100mm
Length Legs Extended:	n/a
Length of Jib Position 1:	750mm
Length of Jib Position 2:	860mm
Length of Jib Position 3:	980mm
Length of Jib Position 4:	1100mm
Length of Jib Position 5:	n/a
Length:	1210mm
Lifting Capacity in Position 1:	500kg
Lifting Capacity in Position 2:	400kg
Lifting Capacity in Position 3:	300kg
Lifting Capacity in Position 4:	200kg
Lifting Capacity in Position 5:	n/a
Max. Lift Ht at Jib Position 1:	1950mm
Max. Lift Ht at Jib Position 2:	2050mm
Max. Lift Ht at Jib Position 3:	2150mm
Max. Lift Ht at Jib Position 4:	2250mm
Max. Lift Ht at Jib Position 5:	n/a
Nett Weight:	37kg
Rear Width:	550mm
Width Front Frame:	800mm
Width Inside Front Frame:	700mm
