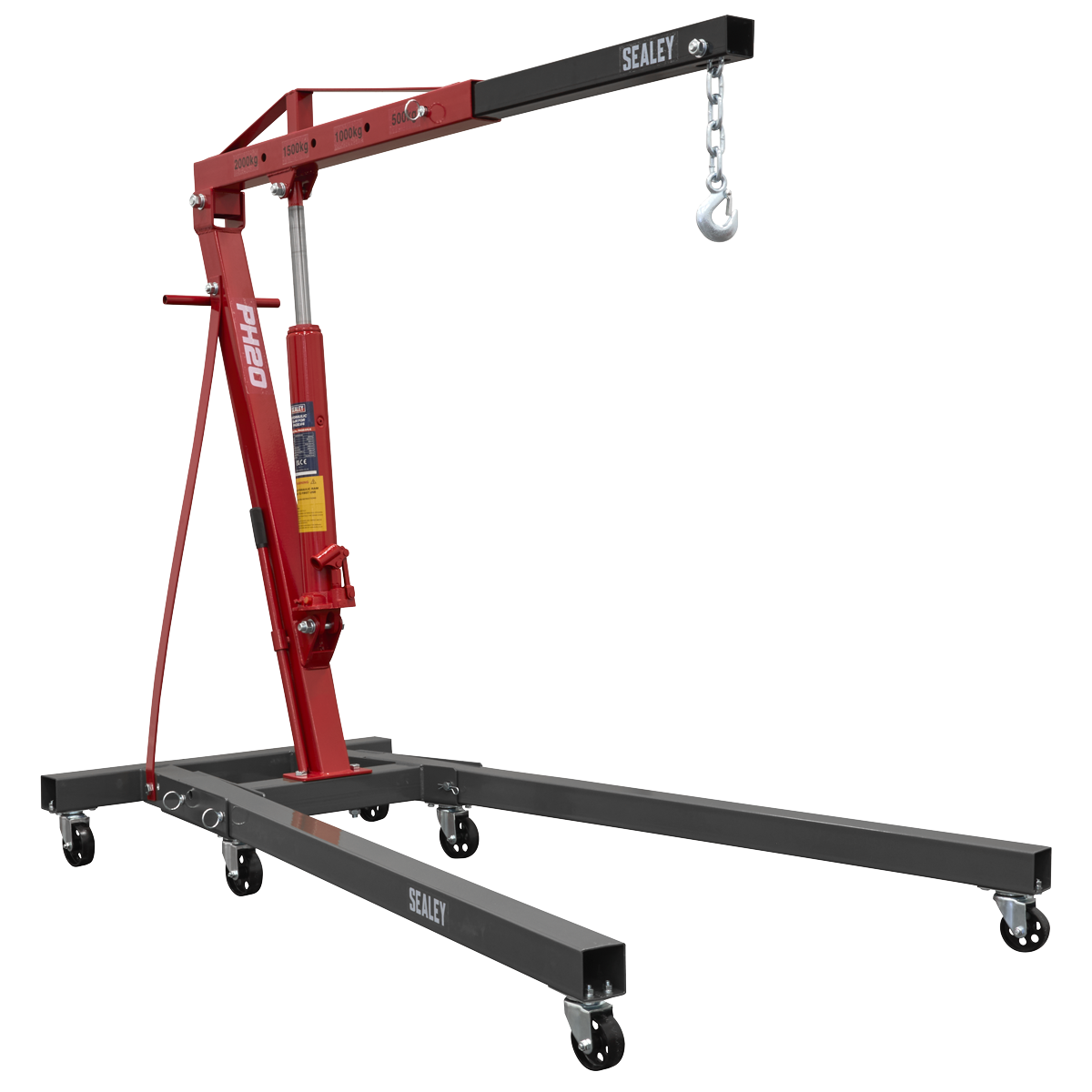

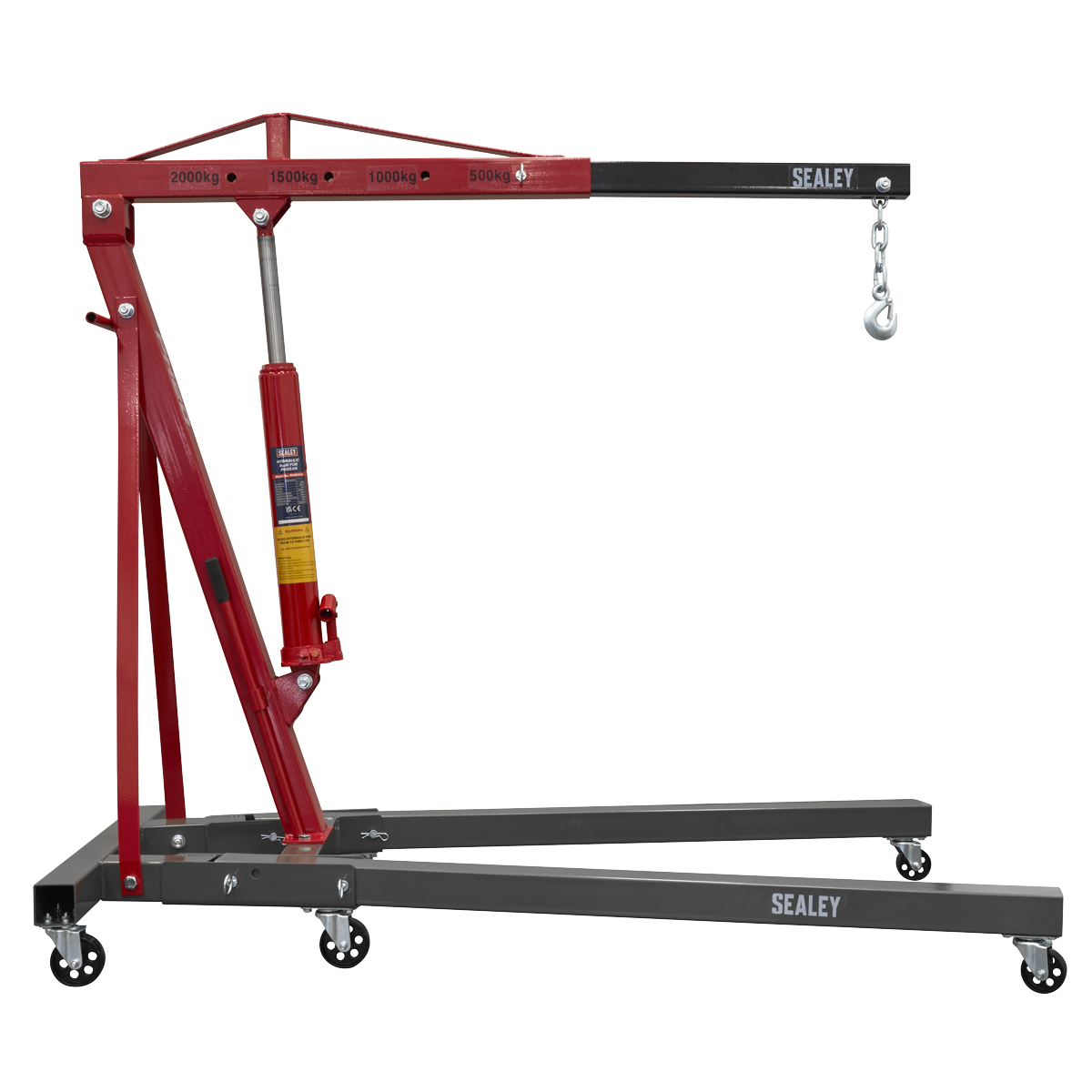

    Sealey Folding Engine Crane 2 Tonne PH20

    Sealey Folding Engine Crane 2 Tonne PH20

    £502.85 GBP
    £599.94 GBP £502.85 GBP
    Reduced Sold out
    Taxes included. Shipping calculated at checkout.

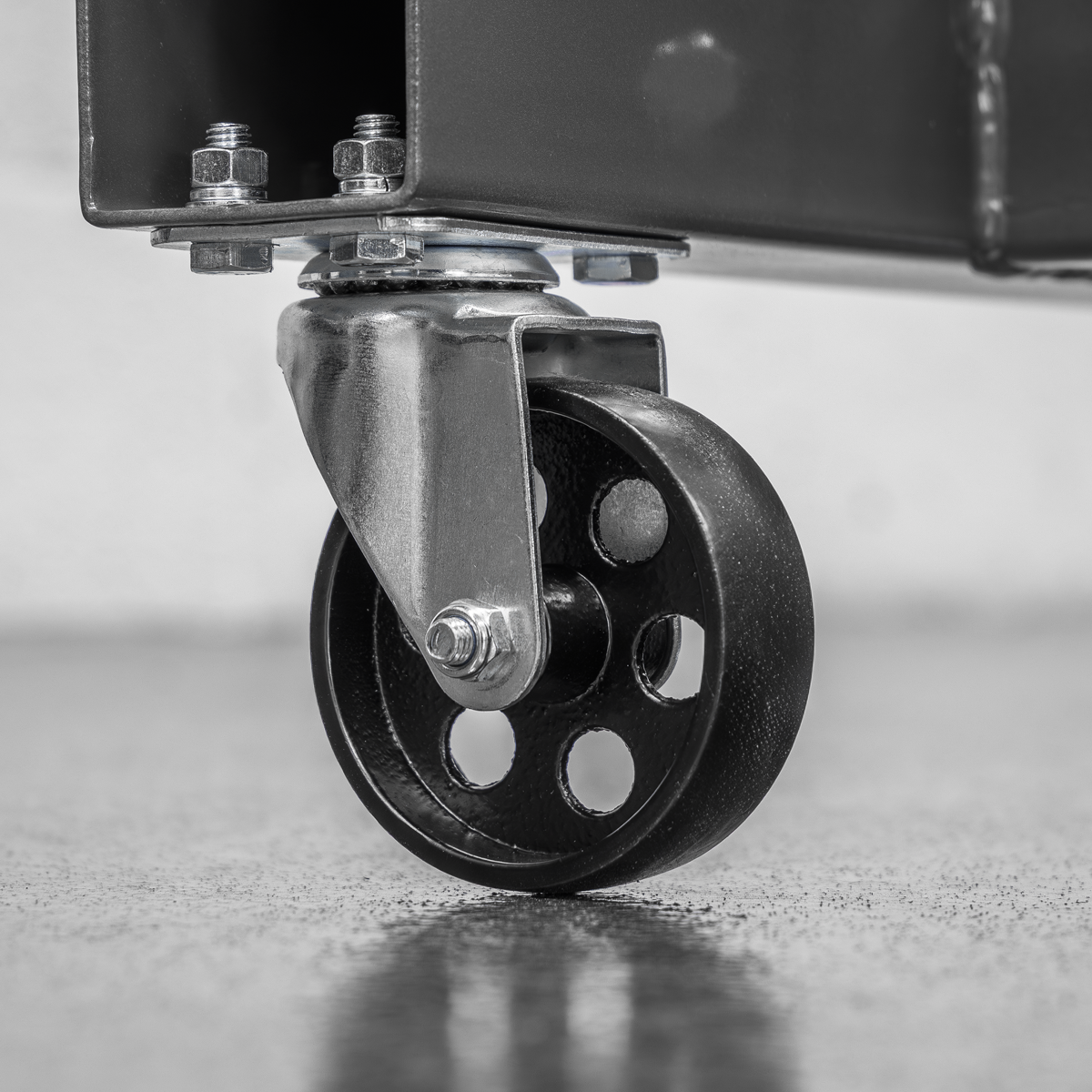

    2 tonne folding crane - economy model. Folds for easy storage, freeing valuable workshop space when not in use. Heavy-duty castors. Weighs only 77kg and is perfect for mobile or workshop use. Pump access from side. Delivered in knock-down form for reduced freight cost. Some self-assembly required.

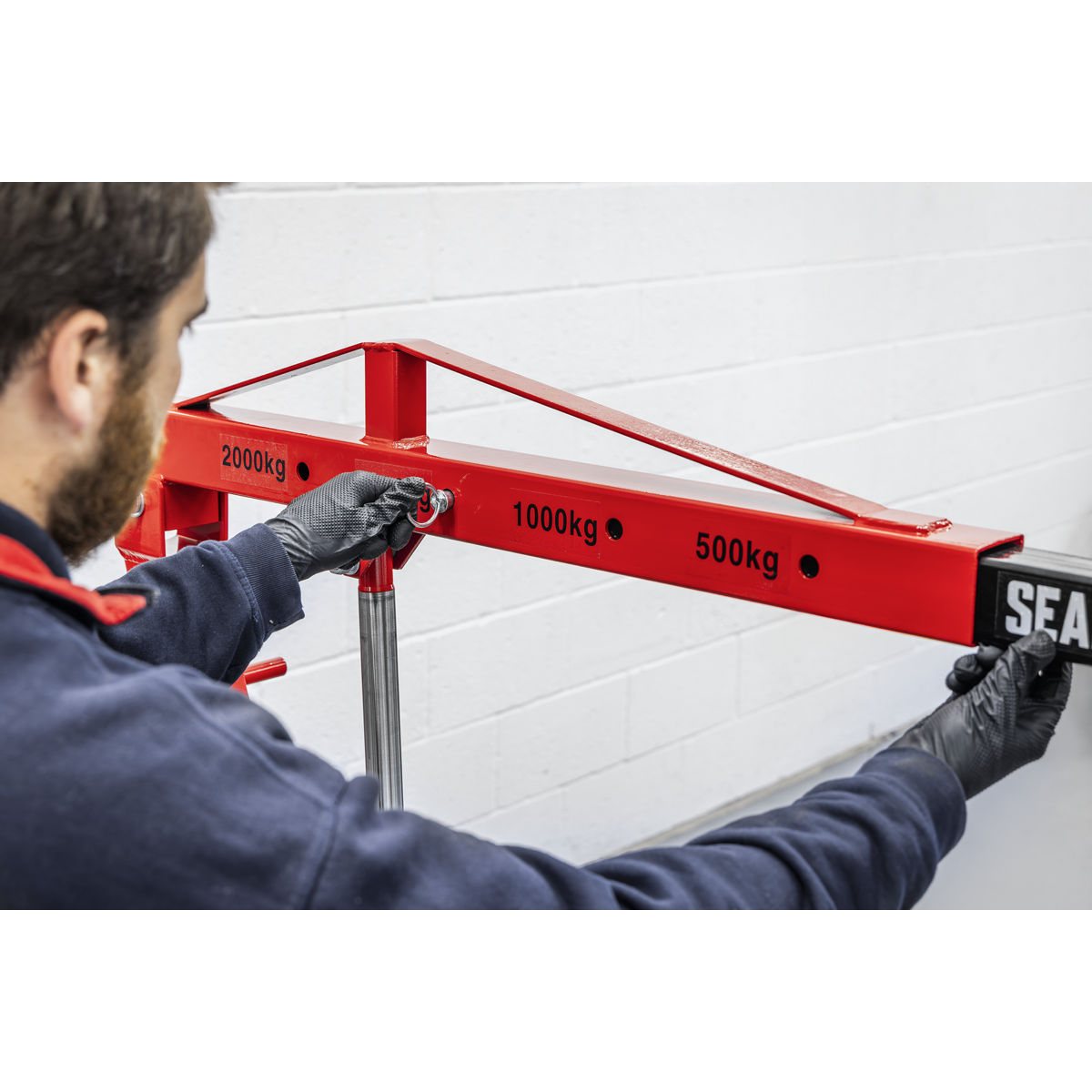

    • Lifts 2000kg at 930mm jib extension.

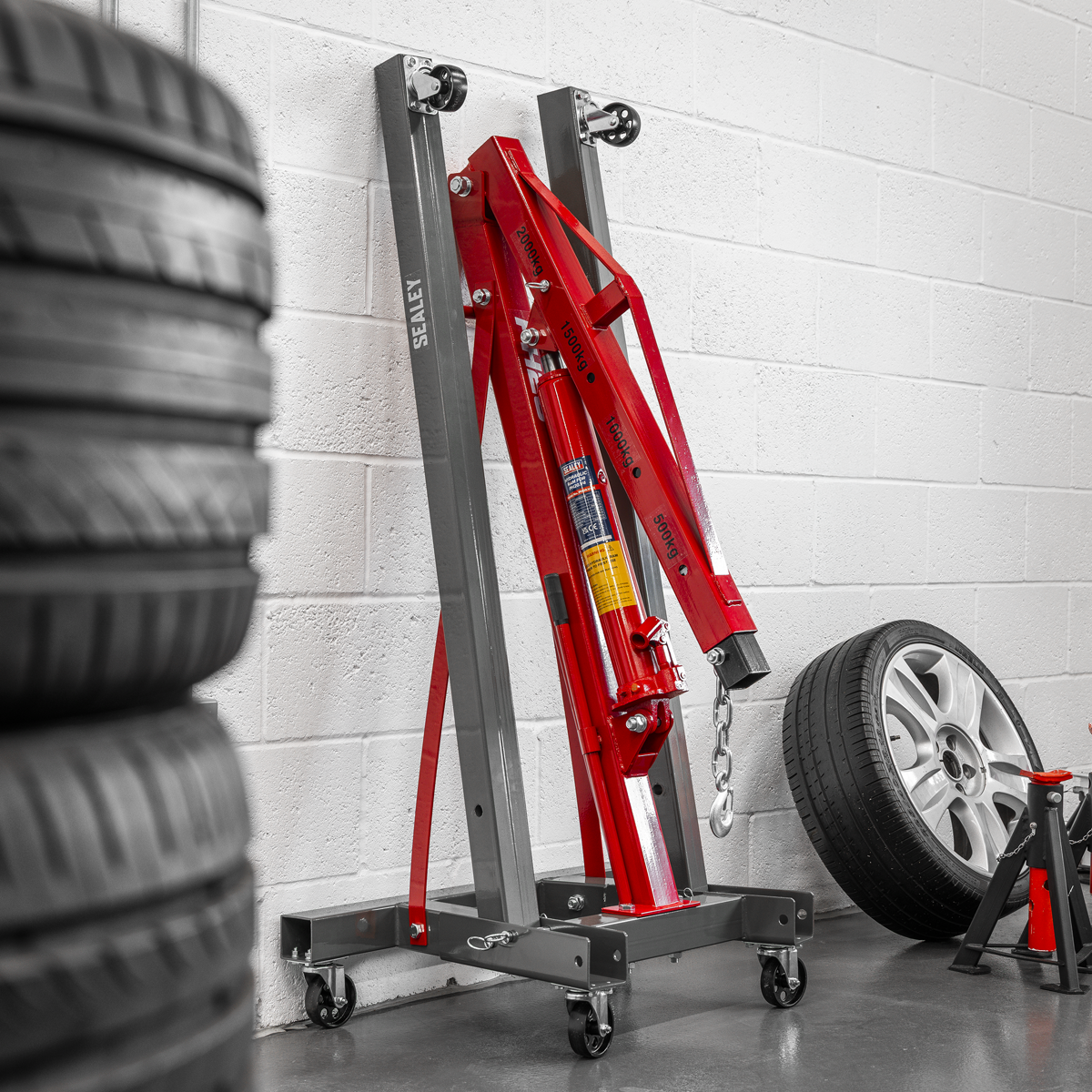

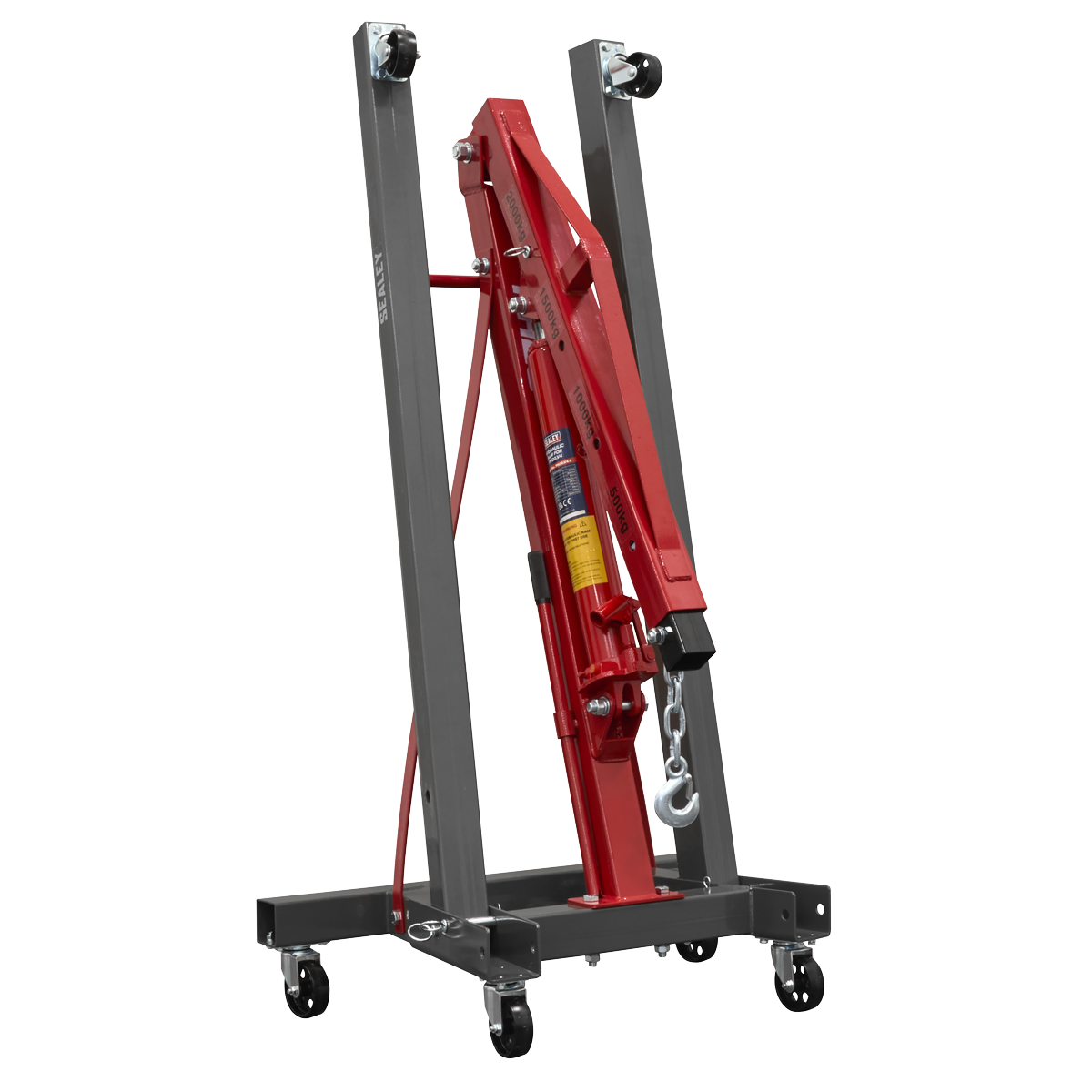

    • Folds for easy storage, freeing valuable workshop space when not in use.

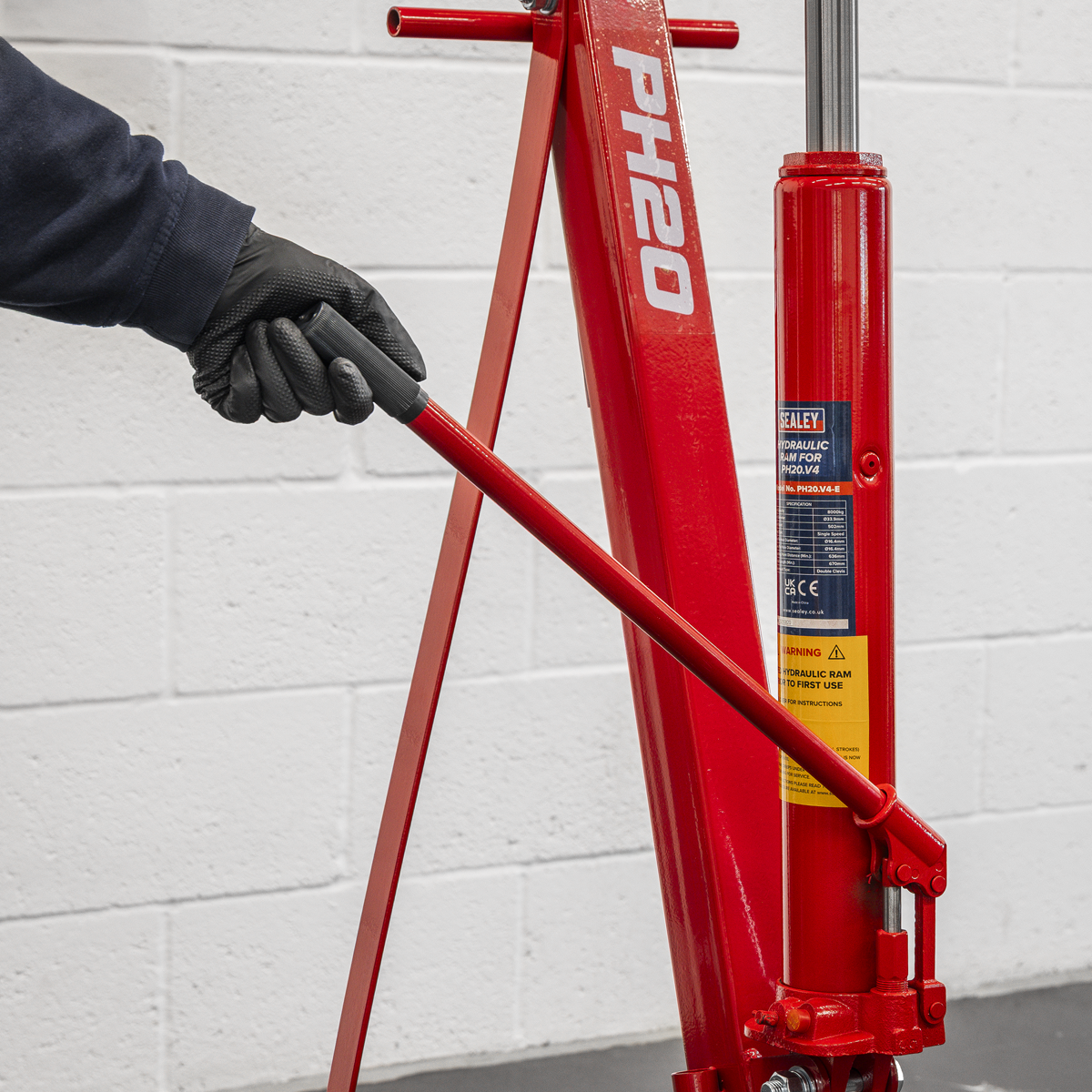

    • Bottle jack type hydraulic unit for economy.
    • Some self-assembly required.
    • This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

    Specifications

    Model No PH20
    Brand: Sealey
    Height Jib Down: 1440mm
    Height Legs Folded: 1540mm
    Height of Frame: 195mm
    Length Legs Extended: n/a
    Length of Jib Position 1: 930mm
    Length of Jib Position 2: 1110mm
    Length of Jib Position 3: 1200mm
    Length of Jib Position 4: 1460mm
    Length of Jib Position 5: n/a
    Length: 1750mm
    Lifting Capacity in Position 1: 2000kg
    Lifting Capacity in Position 2: 1500kg
    Lifting Capacity in Position 3: 1000kg
    Lifting Capacity in Position 4: 500kg
    Lifting Capacity in Position 5: n/a
    Max. Lift Ht at Jib Position 1: 2060mm
    Max. Lift Ht at Jib Position 2: 2190mm
    Max. Lift Ht at Jib Position 3: 2330mm
    Max. Lift Ht at Jib Position 4: 2490mm
    Max. Lift Ht at Jib Position 5: n/a
    Nett Weight: 77kg
    Rear Width: 850mm
    Width Front Frame: 1055mm
    Width Inside Front Frame: 915mm
