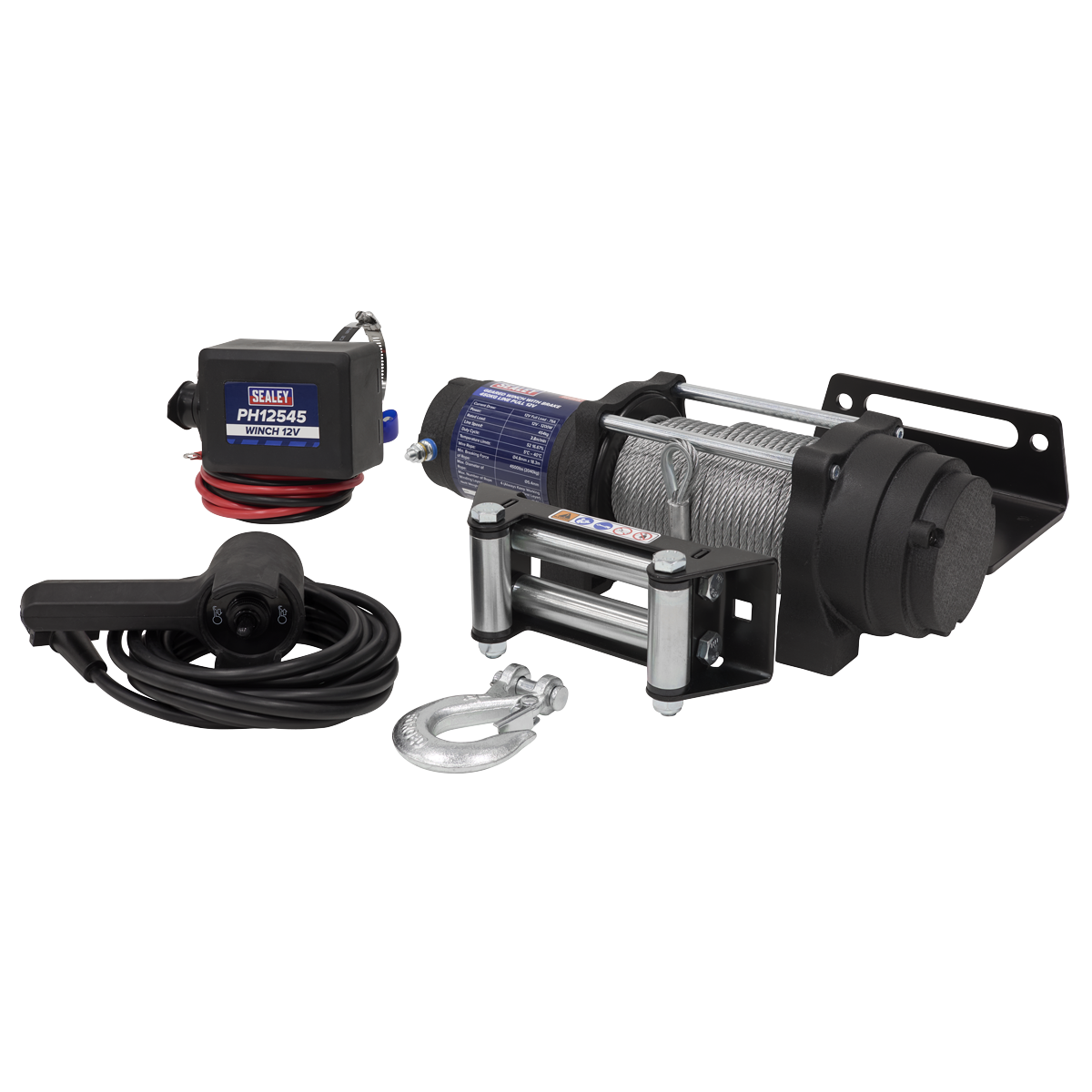

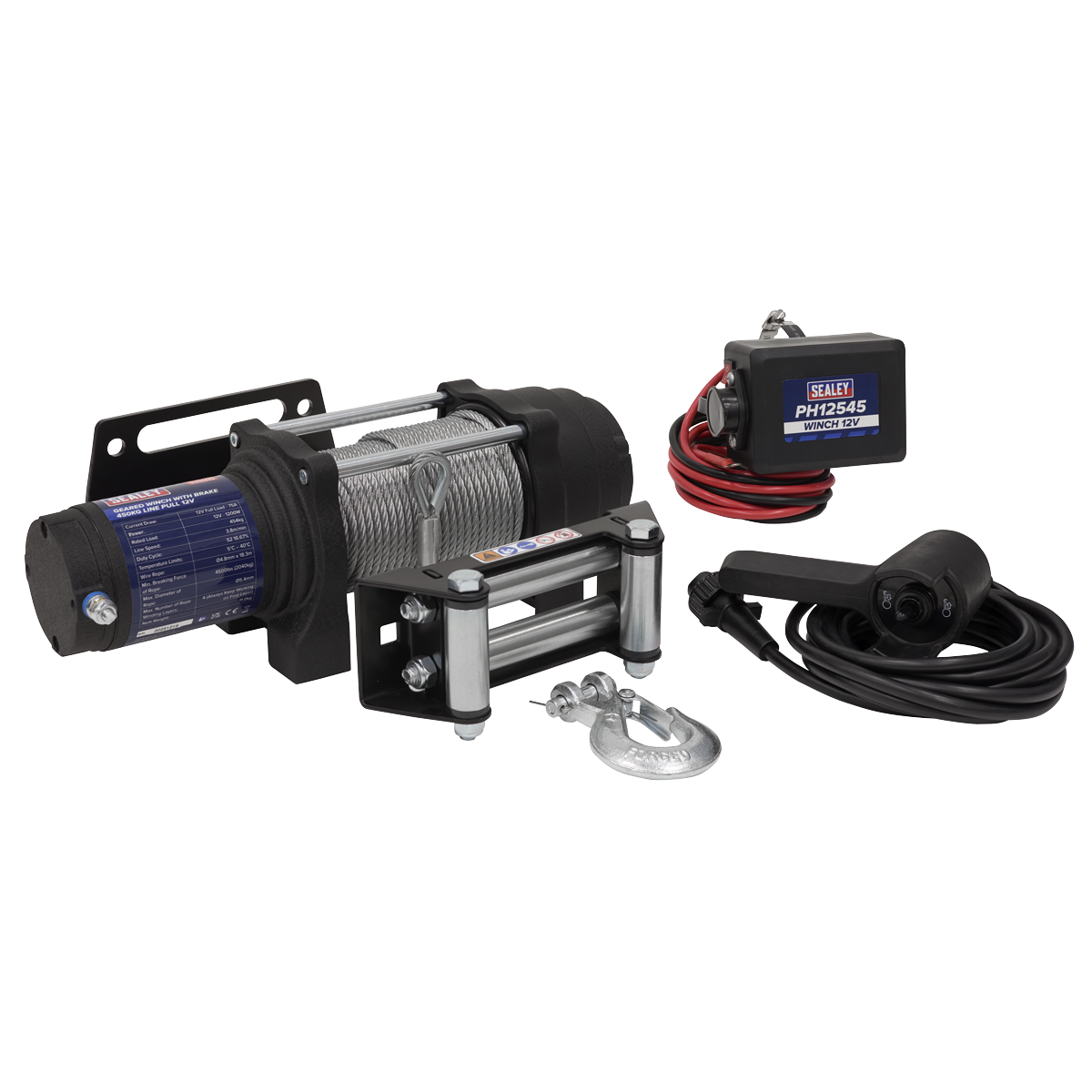

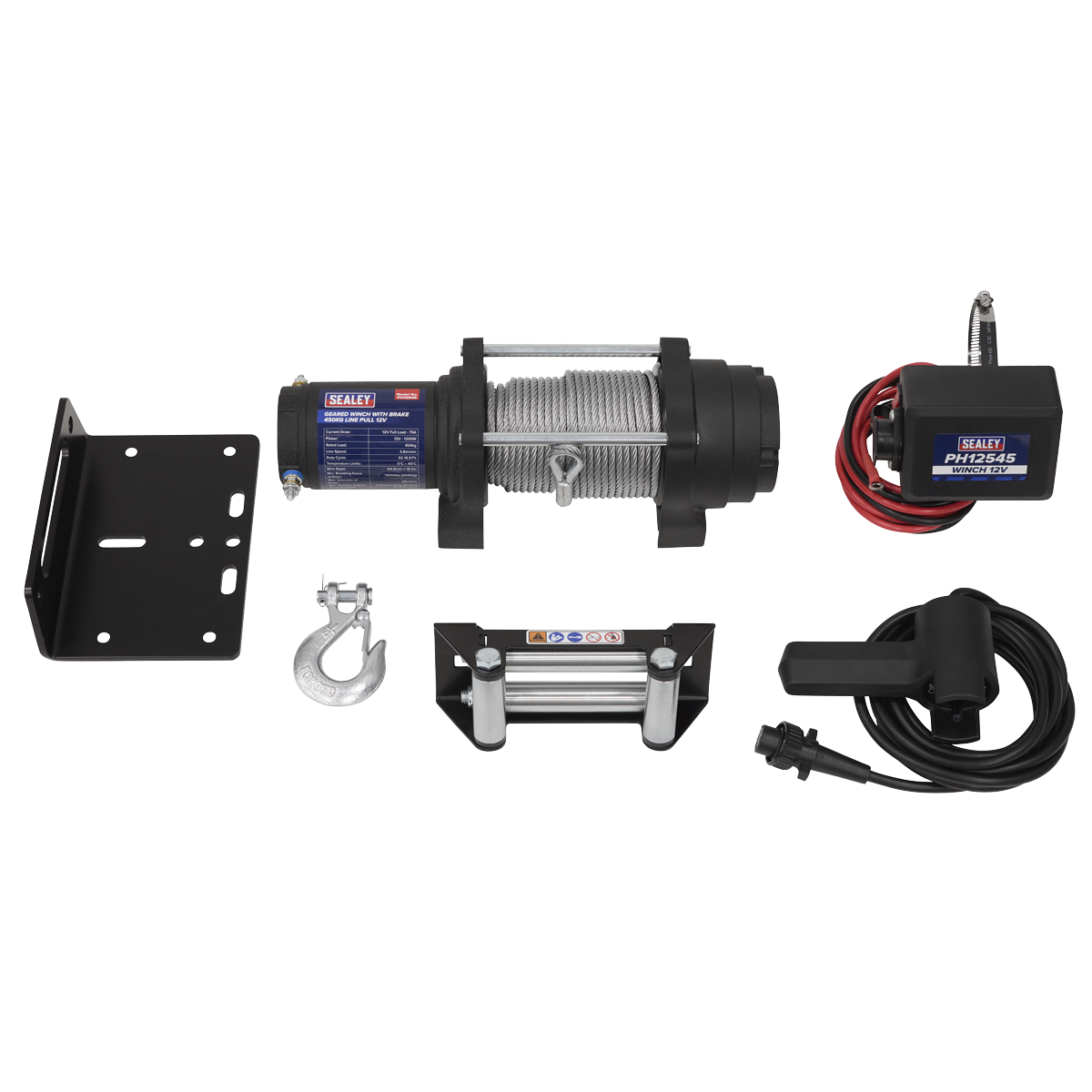

Sealey Geared Winch with Brake 450kg Line Pull 12V PH12545

Name: Sealey Geared Winch with Brake 450kg Line Pull 12V PH12545
SKU: SEALEY-PH12545
Price: 394.18 GBP
Availability: InStock

£394.18 GBP

~~£479.94 GBP~~ £394.18 GBP

Reduced by £85.76 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

Steel drum is reinforced to make the product strong and durable. Rated IP68 weatherproof this winch will withstand any weather conditions. 3-Stage planetary gear train increased pull generated. 2-Brake system with a mechanical cone brake and a permanent motor dynamic brake work together to keep the load stable and protect the user.

• REINFORCED - Steel drum is reinforced to make the product strong and durable.
• WEATHERPROOF - Rated IP68 this winch will withstand any weather conditions.
• 3-STAGE PLANETARY GEARS - Increased pull generated by the gear train.
• 2-BRAKE SYSTEM - Mechanical cone brake and a permanent motor dynamic brake work together to keep the load stable and protect the user.
• WIRE LENGTH - 18m.
• MOTOR - Permanent magnet motor 12V - 1.6HP/1.2KW.
• MAXIMUM WEIGHT - 450kg(1000lbs).

Specifications

Model No	PH12545
Brand:	Sealey
Current Draw:	12V Full Load - 75A
Gear Ratio:	140:1
*Line Pull:**	454kg 1000lbs
*Line Speed:**	Full Load - 3.8m/min
Motor Power:	12V - 1200W
Nett Weight:	11kg
Rated Capacity:	454kg 1000lbs
Specification:
Min. Breaking Rope Force:	4500lbs (2040kg)
Max. Rope Diameter:	Ø5.4mm
Max. No. of Rope Winding Layers:	4 (Always Keep Working on First Layer)
Wire Rope Diameter:	Ø4.8mm
Wire Rope Length:	18.3m
