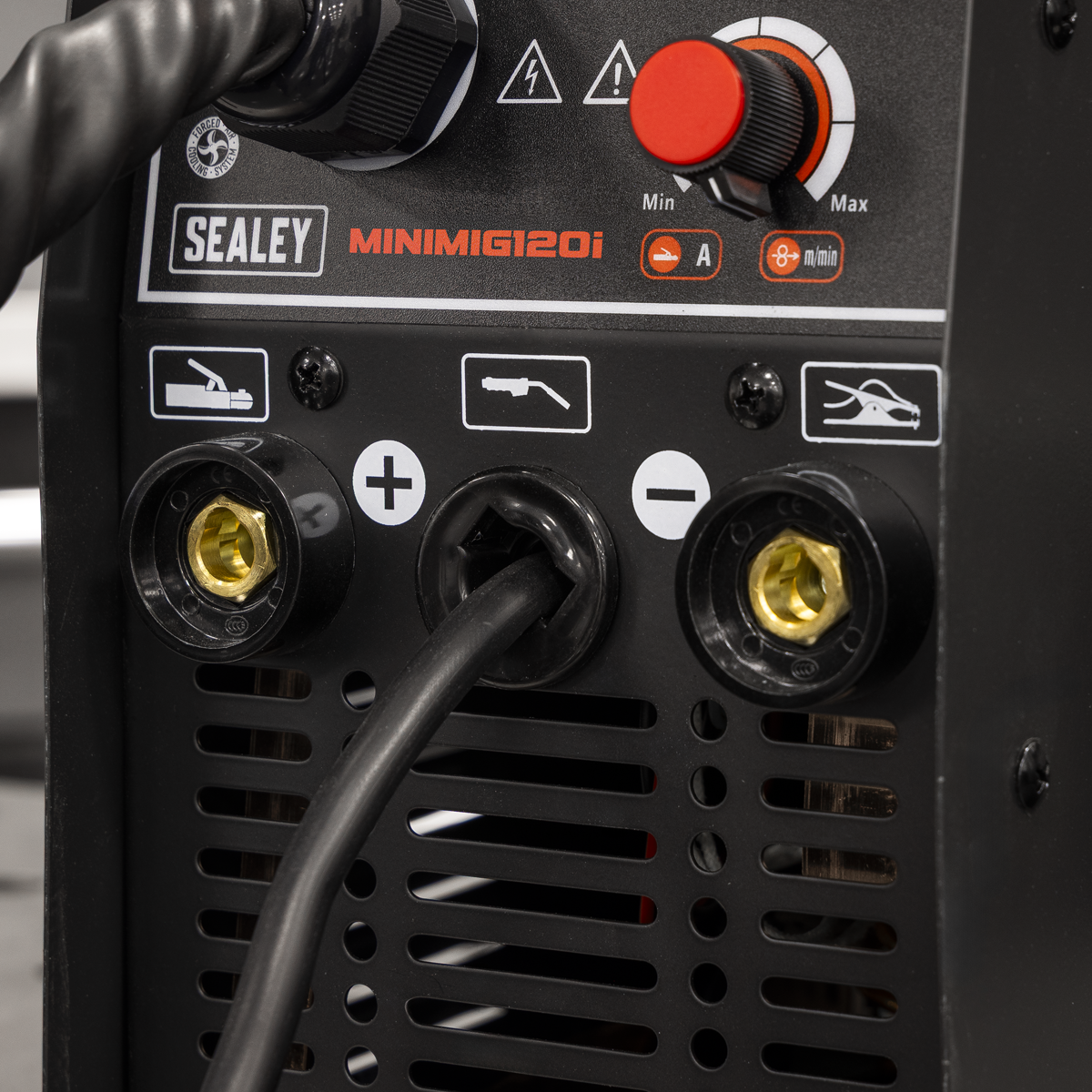

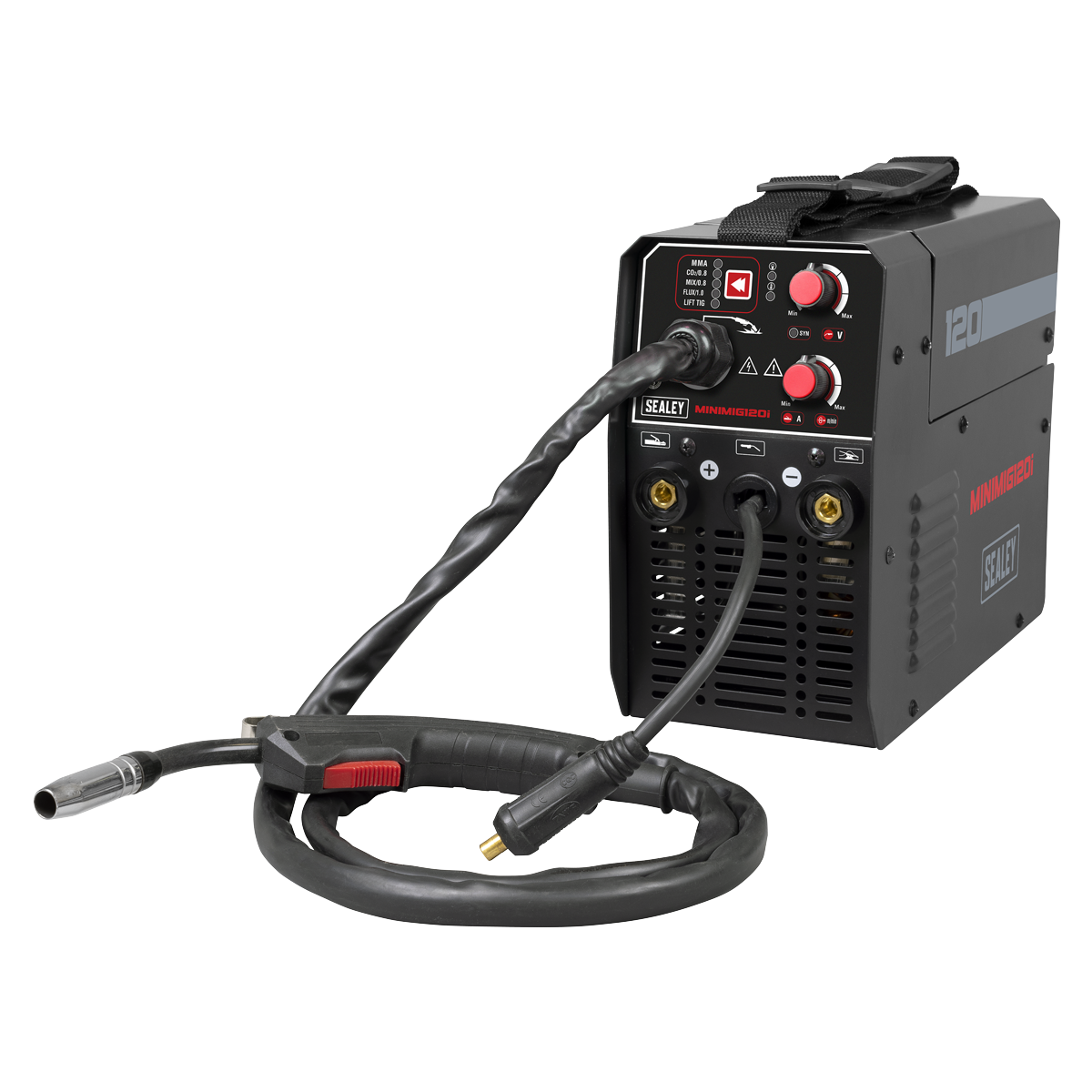

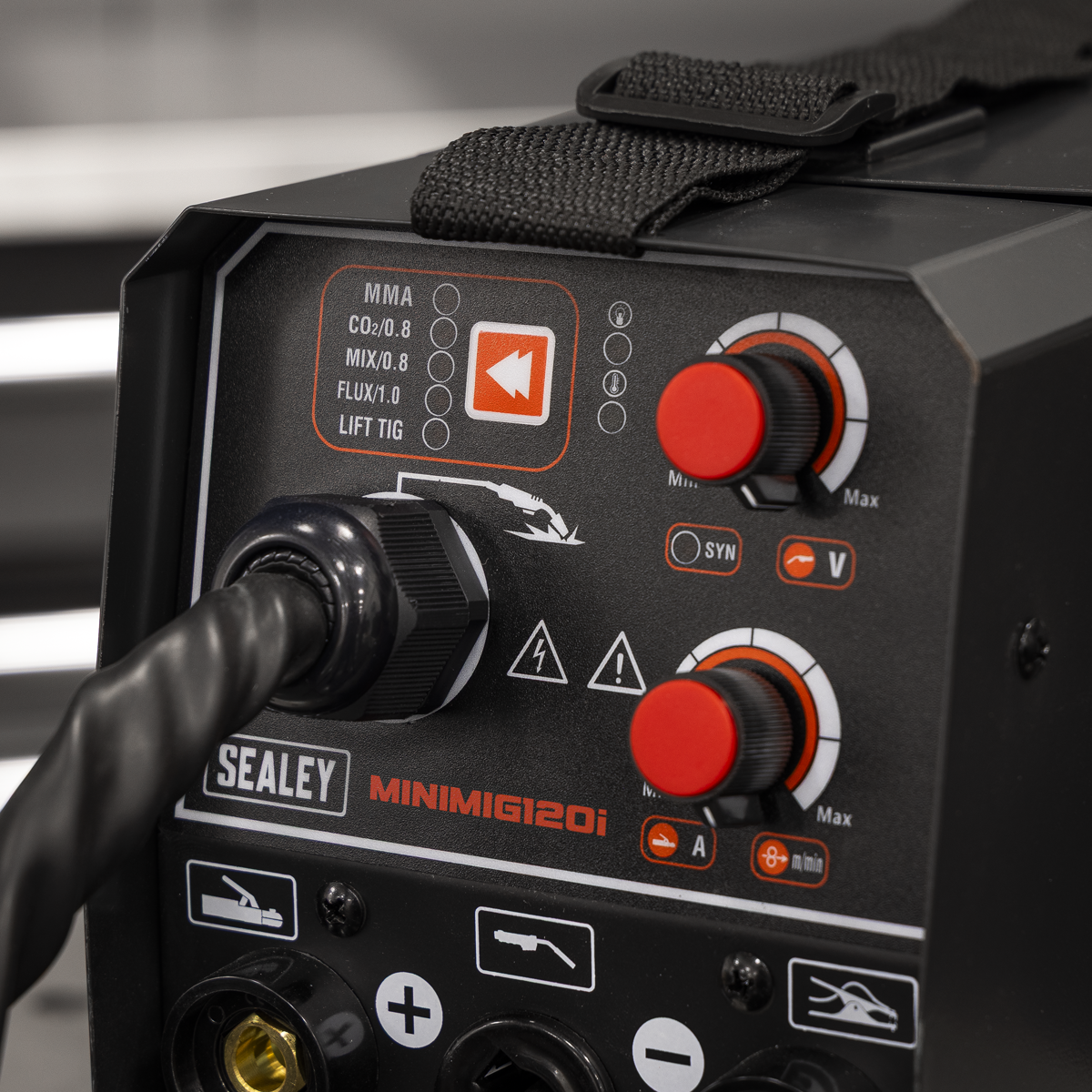

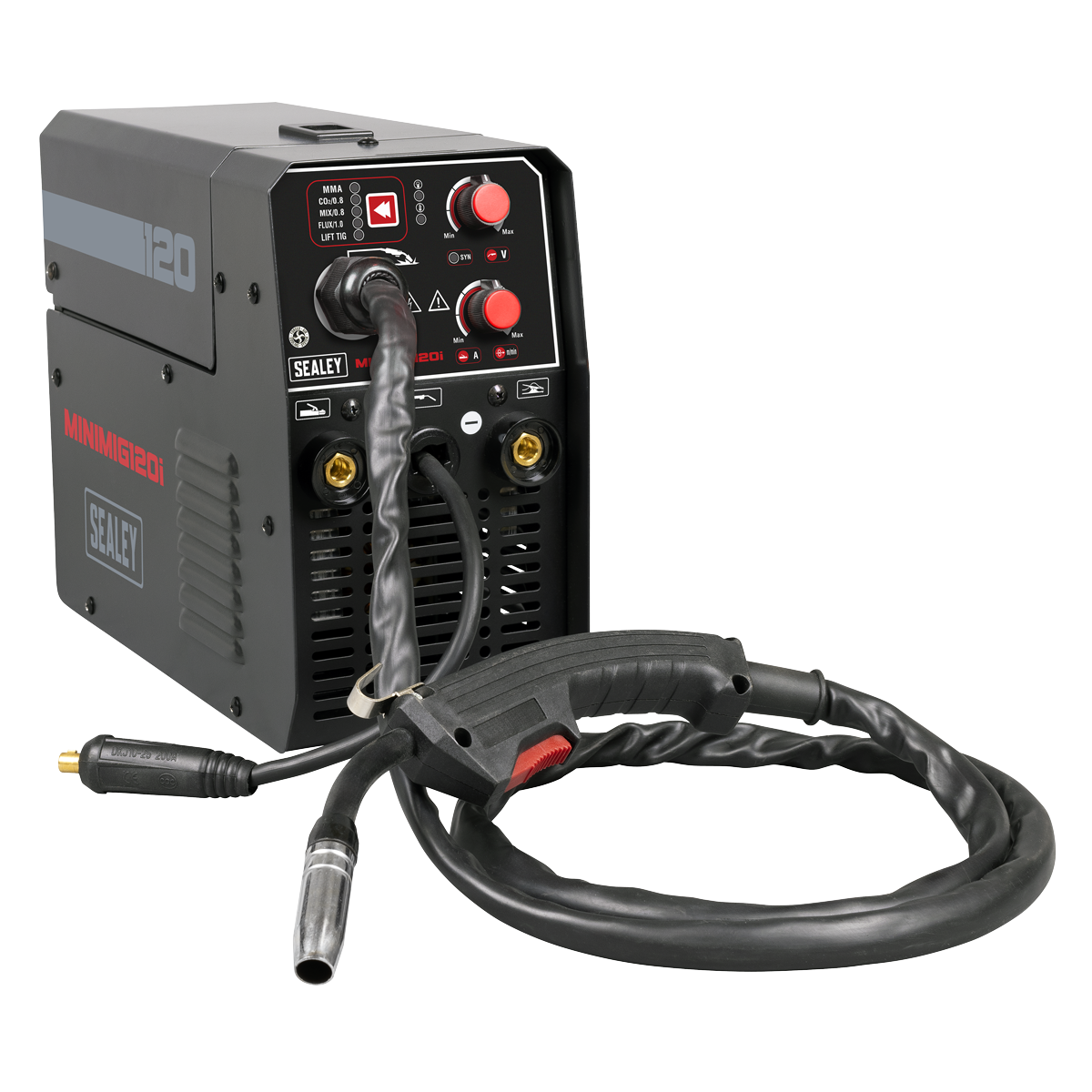

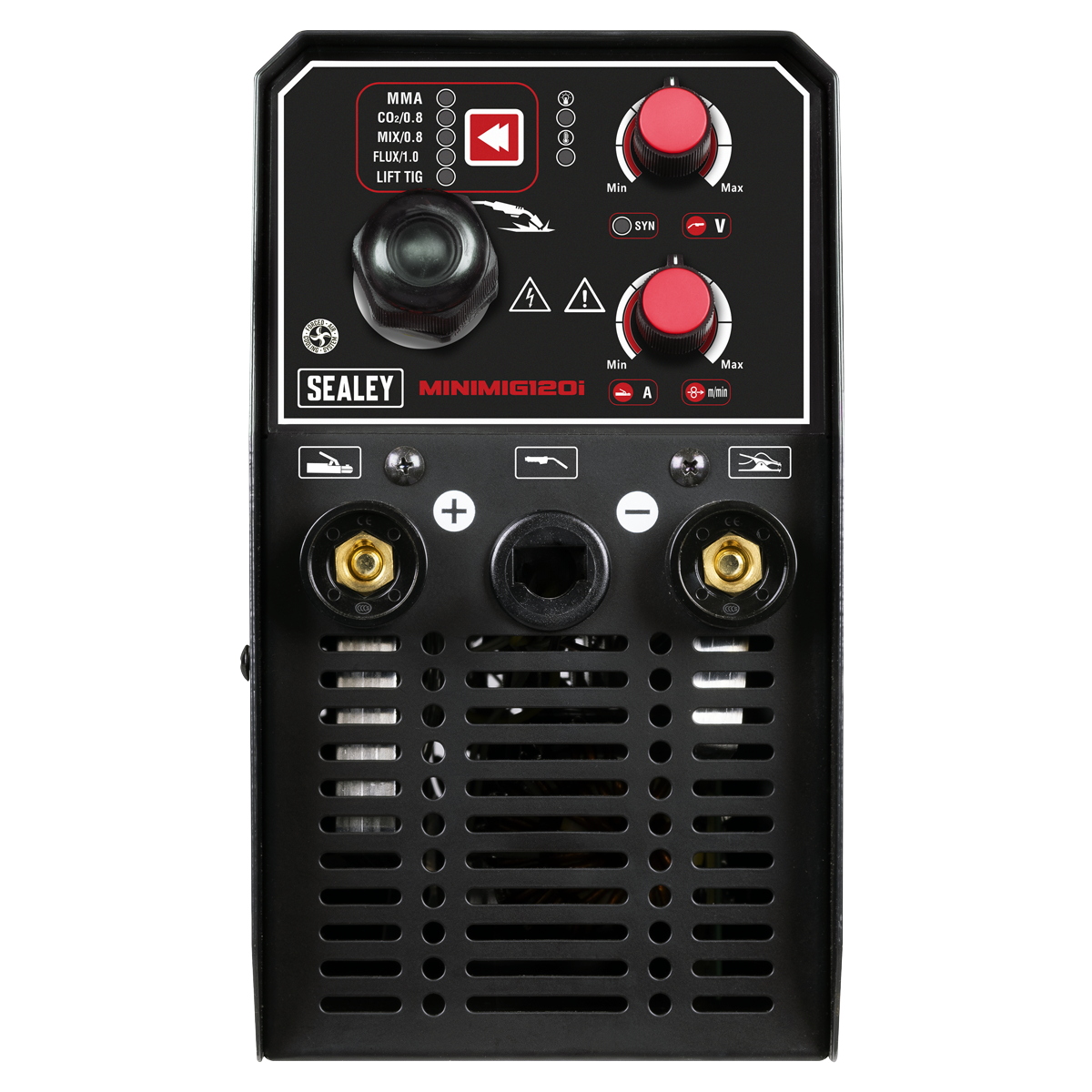

Sealey MIG/TIG & MMA (ARC/STICK) Inverter Welder 120A 230V MINIMIG120i

Name: Sealey MIG/TIG & MMA (ARC/STICK) Inverter Welder 120A 230V MINIMIG120i
SKU: SEALEY-MINIMIG120i
Price: 144.0 GBP
Availability: InStock

£144.00 GBP

~~£191.94 GBP~~ £144.00 GBP

Reduced by £47.94 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

PROMOTION SALE!

IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 120A. Multi-functional welder combining MIG/TIG and MMA applications into a single compact unit, ideal for workshops, garages, bodyshops, and mobile technicians. Ultra-compact unit, weighing only 6.9kg, features a carry strap for portability, allowing easy transport to job sites. Featuring hot start, anti-stick, forced air cooling and thermal cut out protection. Unit can MIG weld using 1kg Ø0.8/0.9/1mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø3.2mm electrode. Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.

• IGBT INVERTER TECHNOLOGY - IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 120A.
• 3 IN 1 FUNCTION - Multi-functional welder combining MIG/TIG and MMA applications into a single compact unit, ideal for workshops, garages, bodyshops, and mobile technicians.
• HIGHLY PORTABLE - Ultra-compact unit, weighing only 6.9kg, features a carry strap for portability, allowing easy transport to job sites.
• FEATURING - Hot start, anti-stick, forced air cooling and thermal cut out protection.
• WELDING CAPABILITY - Unit can MIG weld using 1kg Ø0.8/0.9/1mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø3.2mm electrode.

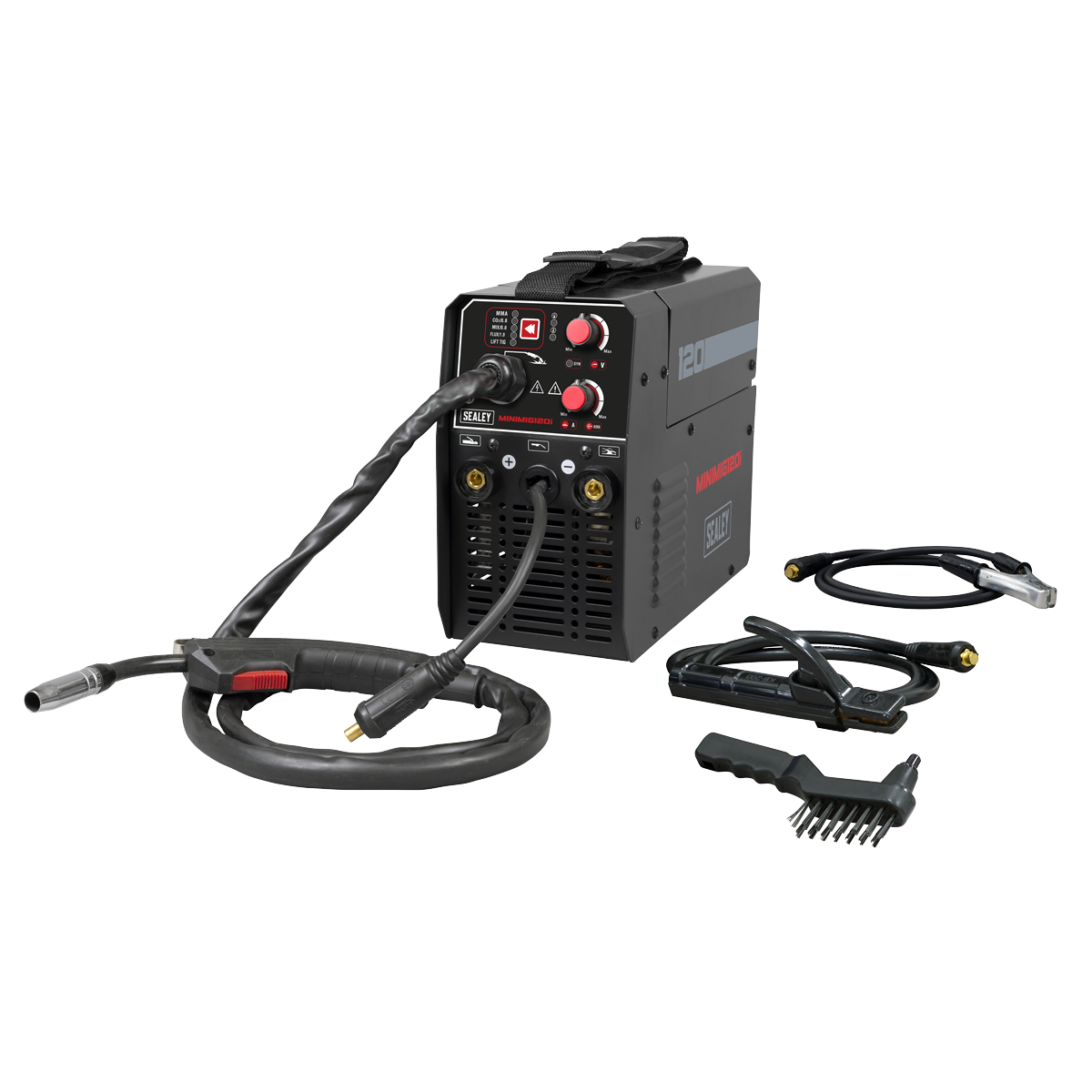

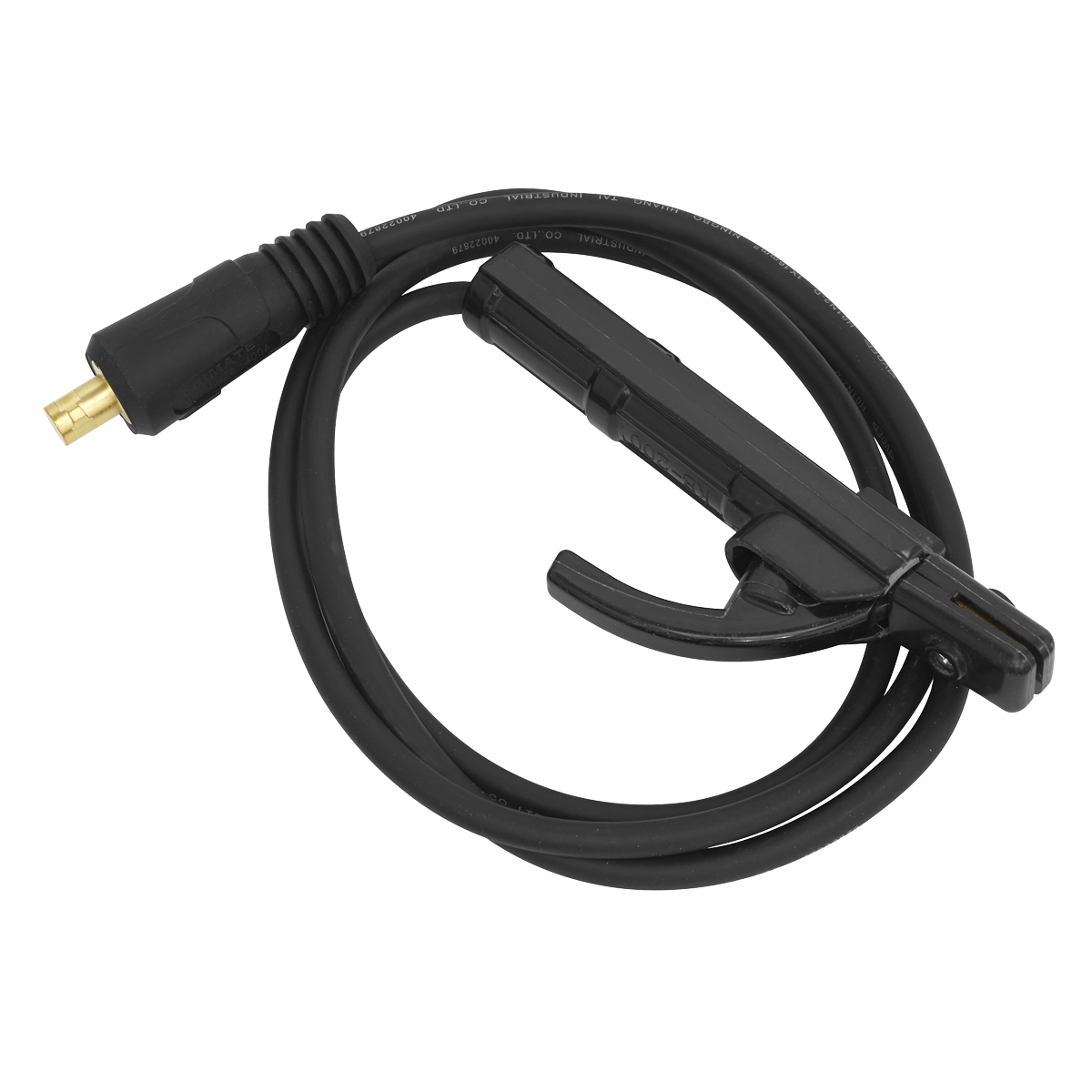

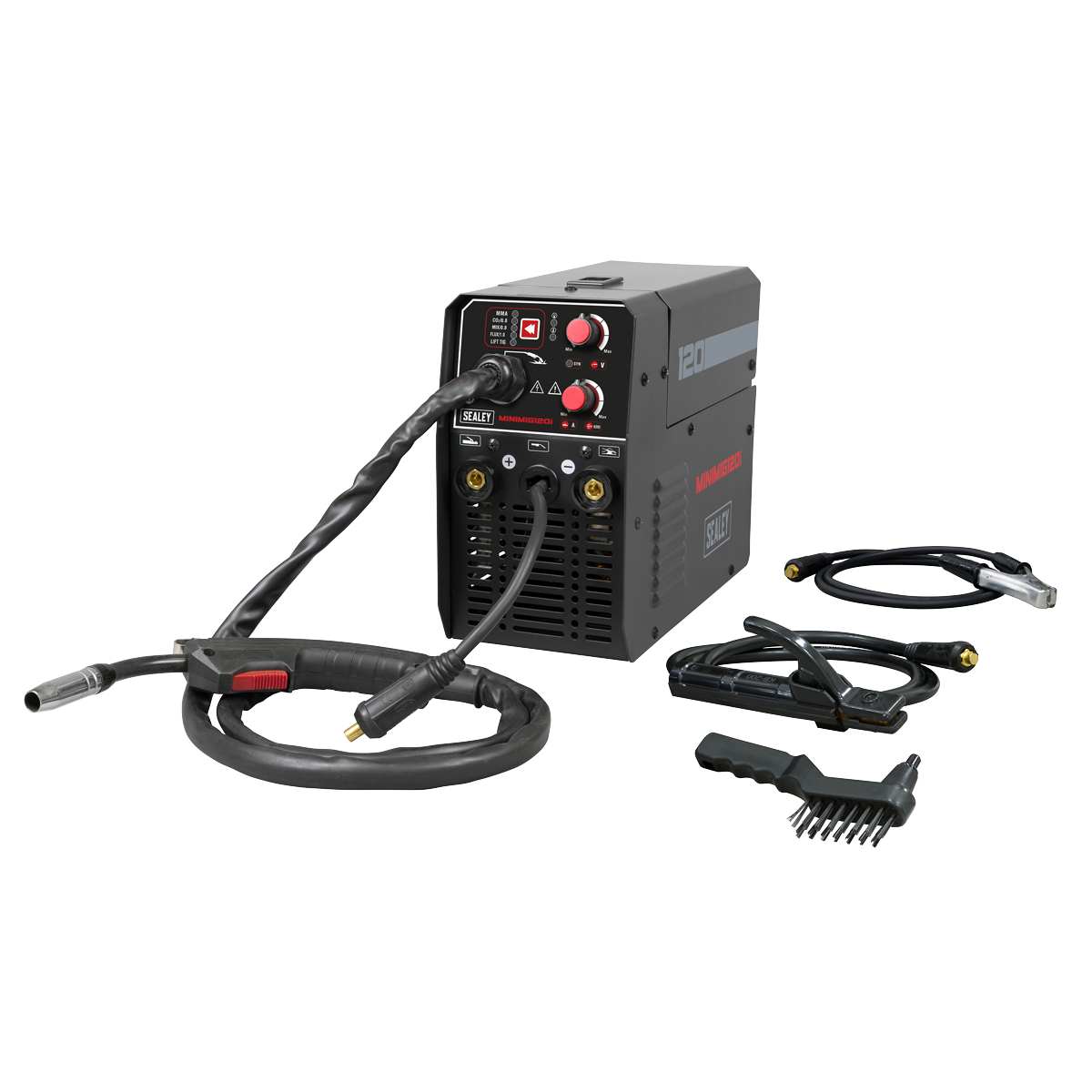

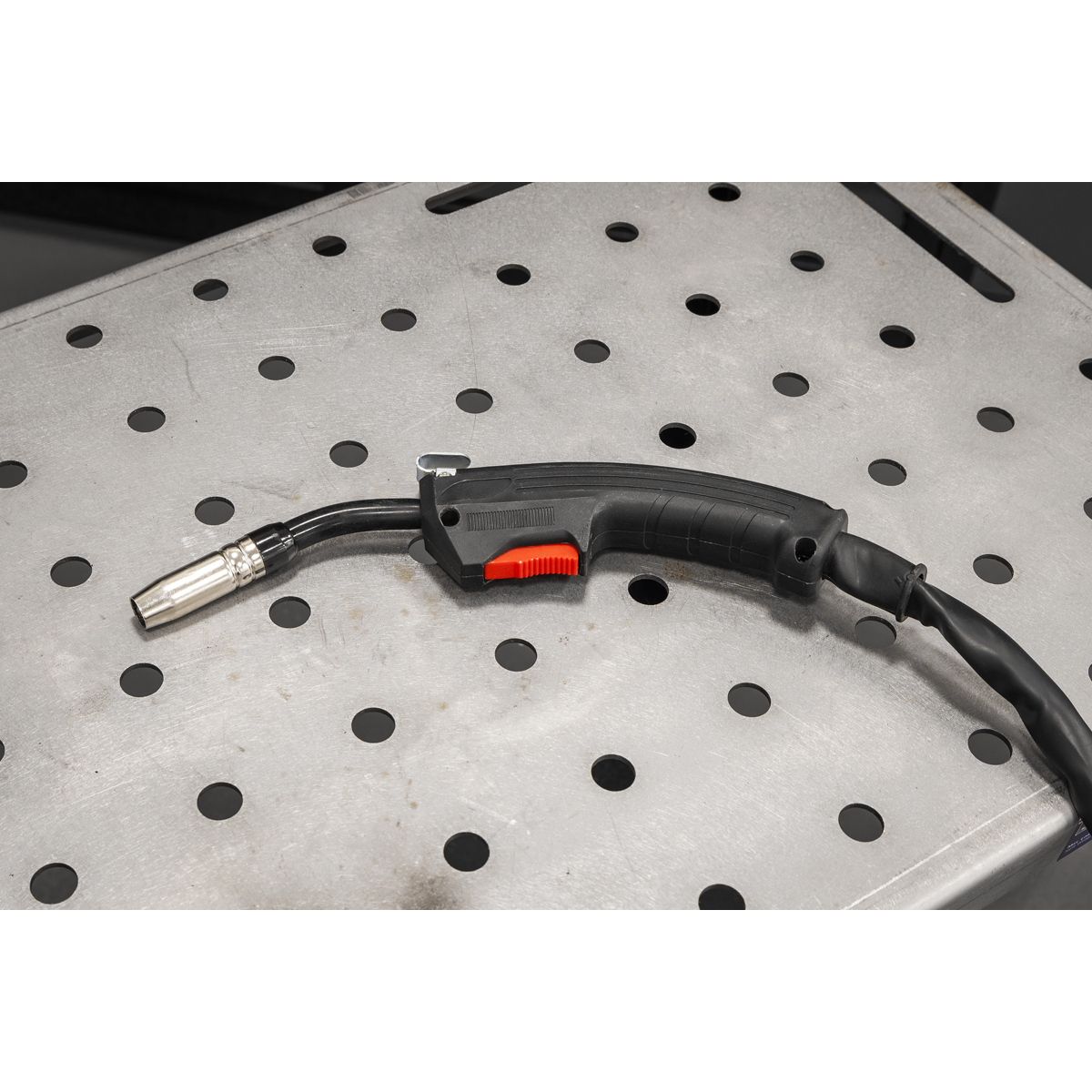

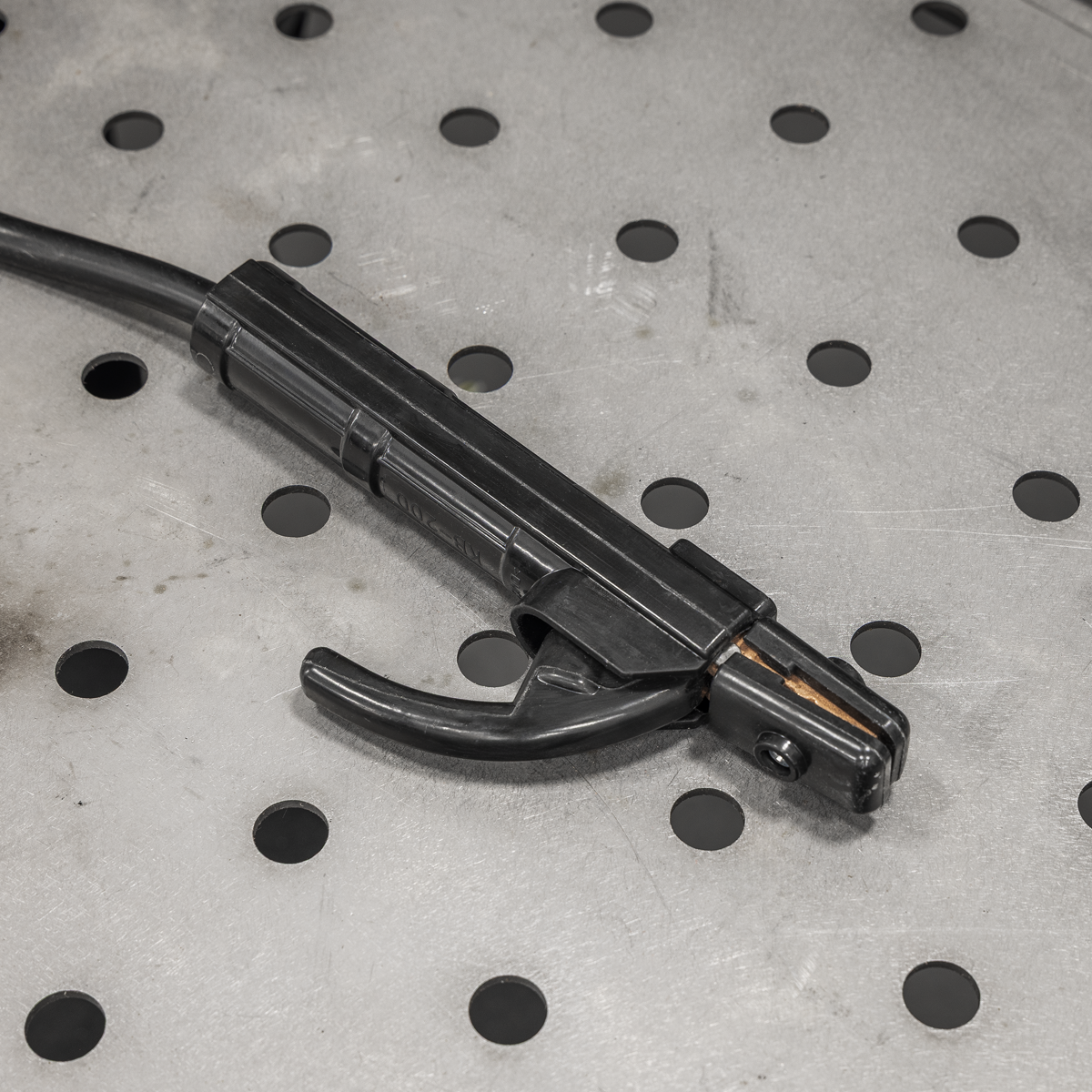

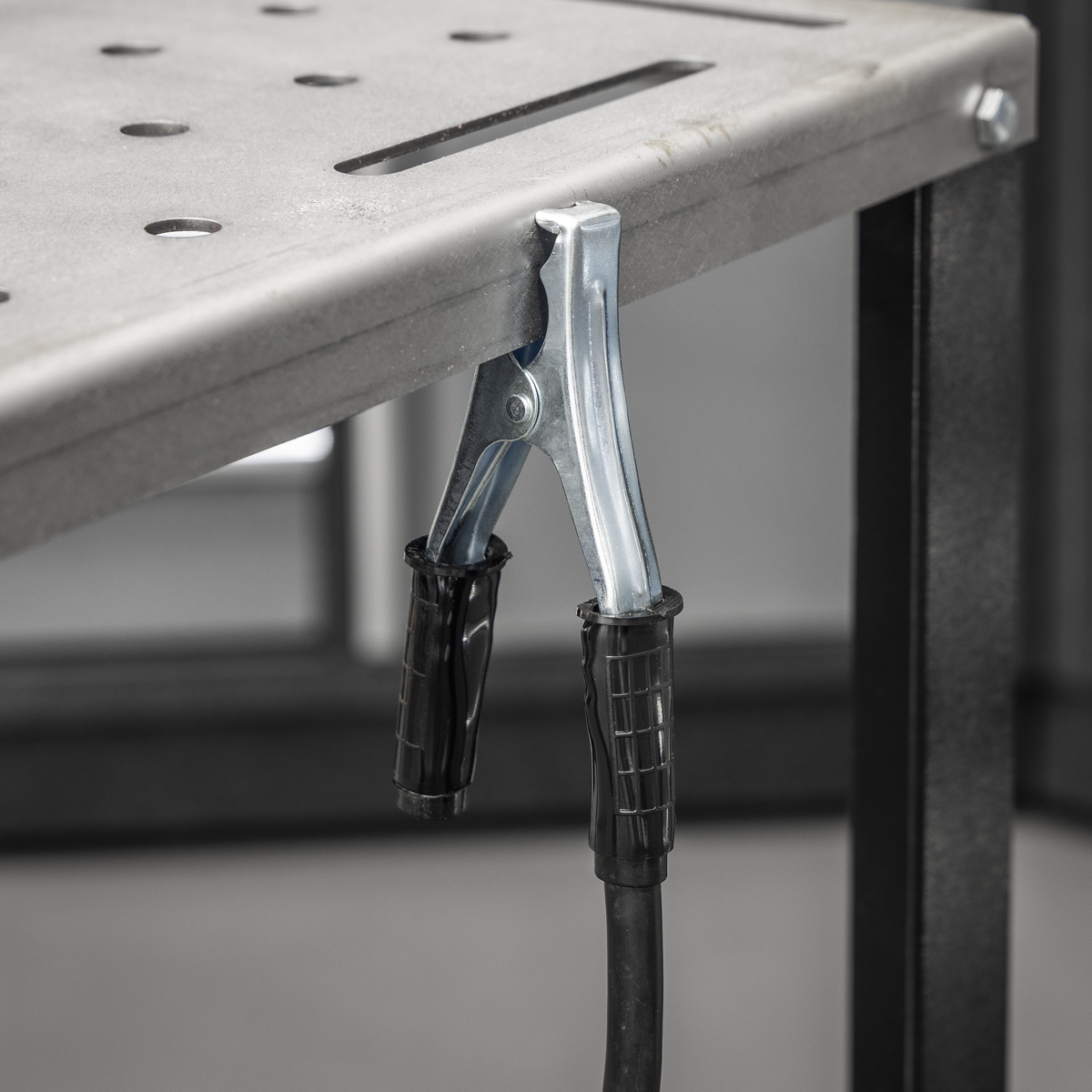

• SUPPLIED WITH - Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.
• DUTY CYCLE – MIG - 60% @ 120A, TIG - 60% @ 120A, MMA/ARC - 60% @ 120A.

Specifications

Model No	MINIMIG120i
Brand:	Sealey
Nett Weight:	6.9kg
Welding Current:	10-120A
Duty Cycle MIG:	60% @ 120A, 100% @ 76A
Duty Cycle MMA/ARC:	60% @ 120A, 100% @ 76A
Duty Cycle TIG:	60% @ 120A, 100% @ 76A

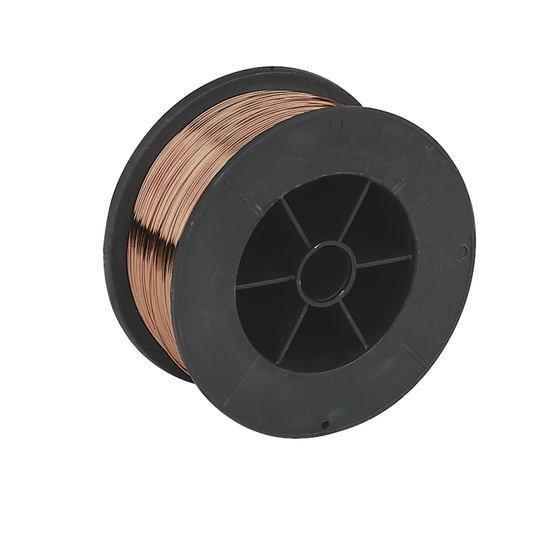

Wire Capacity:	1kg Ø0.8/0.9/1.0mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire,
Electrode Capacity:	1.6-3.2mm
Absorbed Power:	4.4kW
Supply:	230V 16A*
Insualtion Class:	H
IP Rating:	IP21S
Note*	To achieve maximum power a 16A supply may be required.
