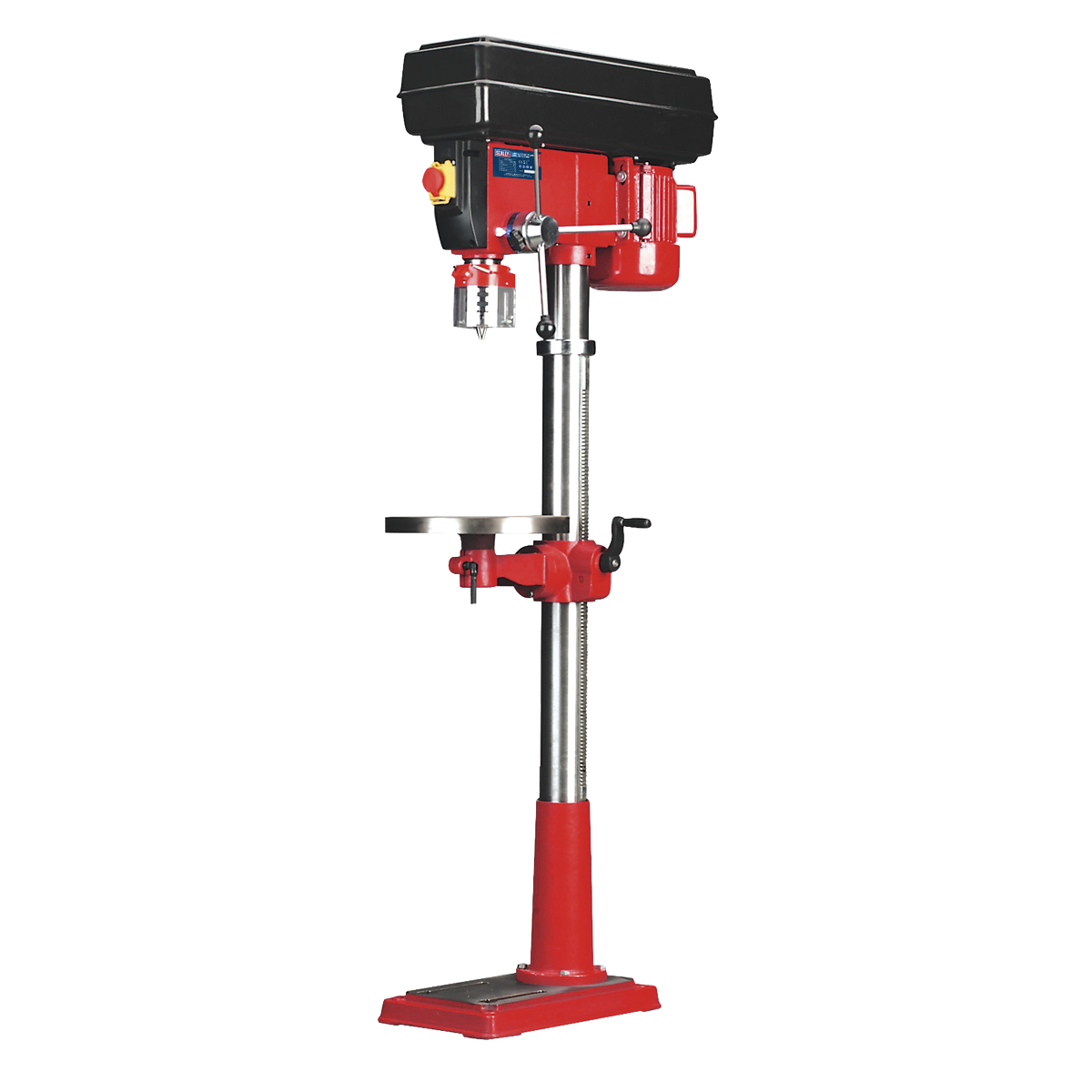

Sealey Floor Standing Pillar Drill Variable Speed 650W/230V GDM200F/VS

Name: Sealey Floor Standing Pillar Drill Variable Speed 650W/230V GDM200F/VS
SKU: SEALEY-GDM200F/VS
Price: 752.36 GBP
Availability: InStock

£752.36 GBP

~~£851.94 GBP~~ £752.36 GBP

Reduced Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Variable speed model allows stepless control of drilling speed between minimum and maximum enabling finer control of finish and tolerance. The belt transmission uses two spring tensioned cone pulleys, the diameters of which can be adjusted by moving a centre idle pulley with the speed adjustment control lever. Safety devices fitted include a no-volt release switch, allowing insurance company approval for use in educational establishments. Supplied with chuck guard. Mortise attachment available, order Model No. MA10.

• Variable speed model allows stepless control of drilling speed between minimum and maximum enabling finer control of finish and tolerance.

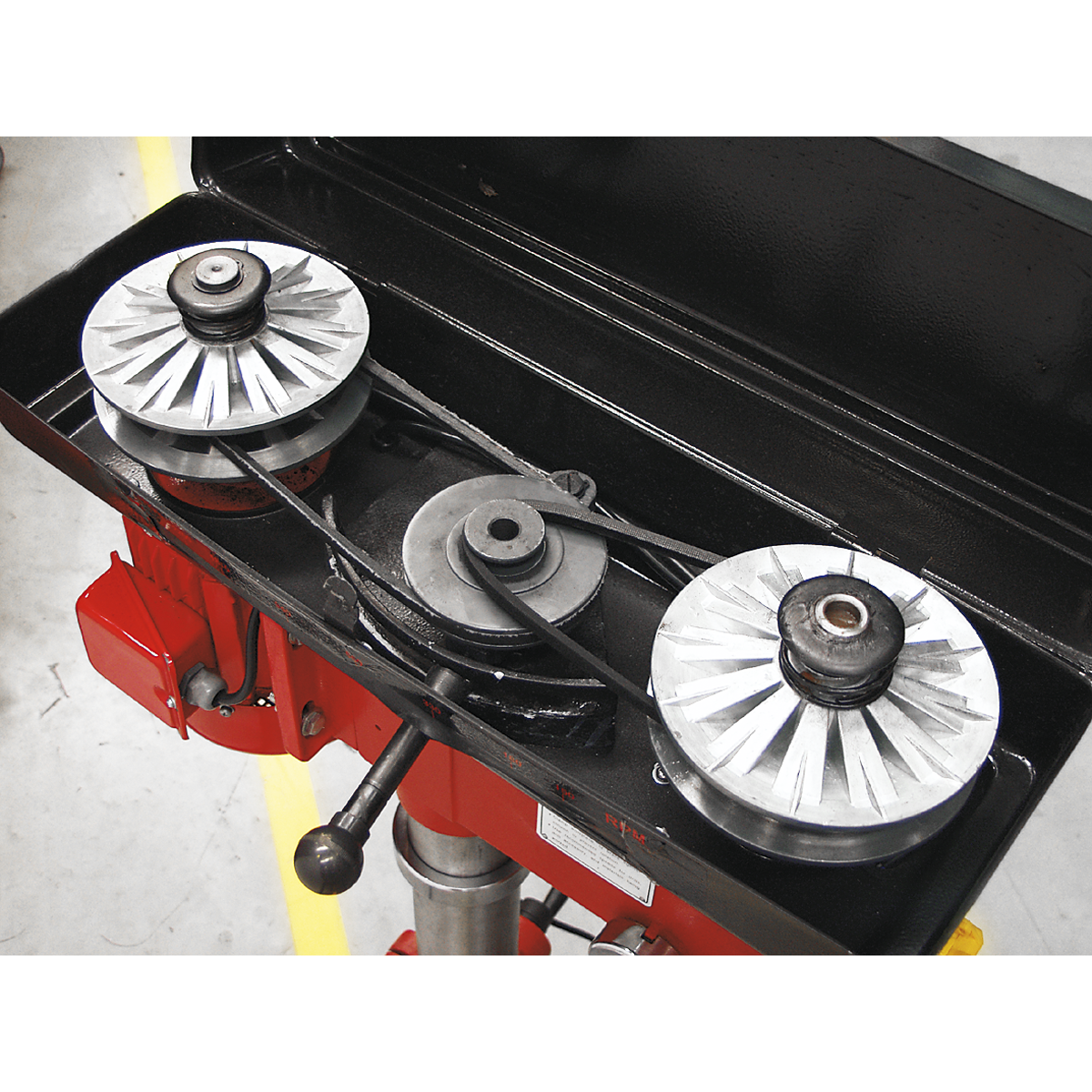

• The belt transmission uses two spring tensioned cone pulleys, the diameter of which can be adjusted by moving a centre idle pulley with the speed adjustment control lever.
• Safety devices fitted include a no-volt release switch, allowing insurance company approval for use in educational establishments.
• Supplied with chuck guard.

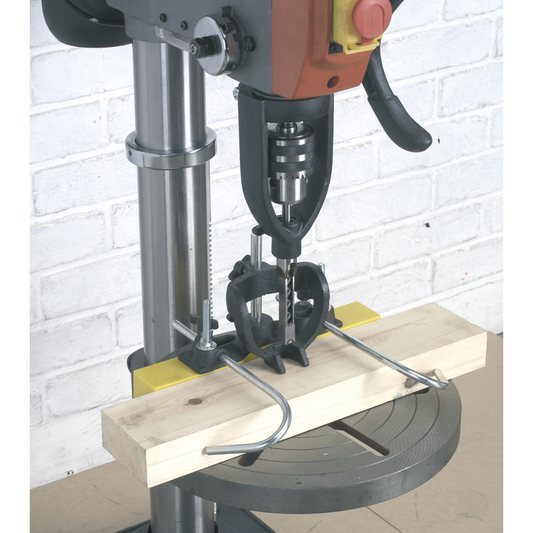

• Mortise attachment available, order Model No. MA10.
• 16mm(5/8") Capacity chuck No. 2MT.
• Height: 1630mm.
• Spindle Centre to Column: 178mm.
• Motor Power: 450W, Input Power: 650W.
• Column Diameter: 80mm.
• Spindle Travel: 80mm.
• Weight: 71kg.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specifications

Model No	GDM200F/VS
Base Size:	460 x 275mm
Brand:	Sealey
Collar Diameter:	Ø60mm
Column Diameter:	Ø80mm
Drilling Capacity (Chuck Size):	16mm
Maximum Distance Spindle to Base:	1170mm
Maximum Distance Spindle to Table:	730mm
Motor Power (Start):	450W(650W)
Nett Weight:	71kg
Number of Speeds:	Variable
Optional Accessories:	GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height:	1630mm
Speed Range:	150-2300rpm
Spindle Centre to Column:	178mm
Spindle Nose Taper:	MT2
Spindle Travel:	80mm
Supply:	230V
Swing:	356mm
Working Base Surface Size:	200 x 220mm
Working Table Surface Size:	Ø310mm
