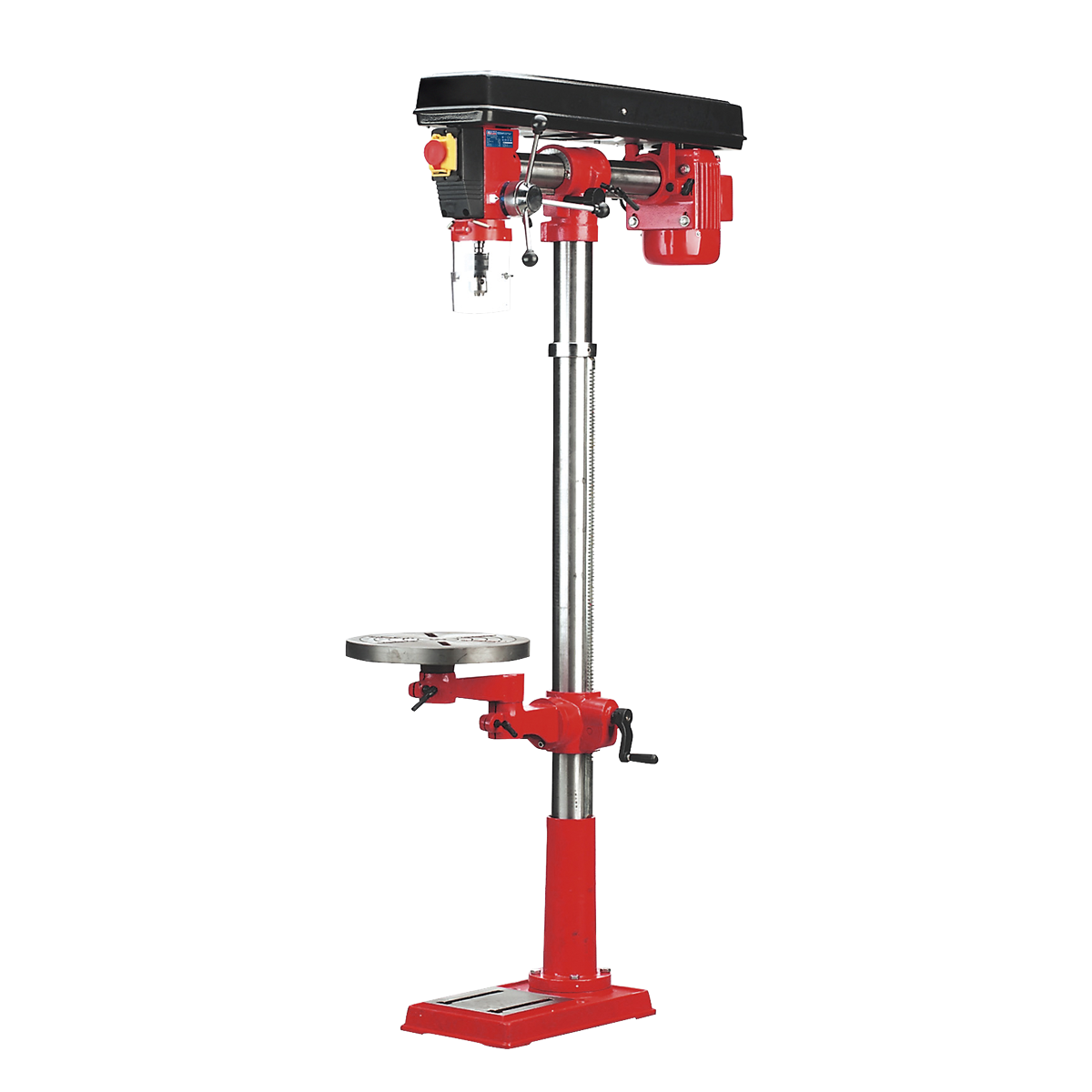

Sealey Floor Standing Radial Pillar Drill 5-Speed 550W/230V GDM1630FR

Name: Sealey Floor Standing Radial Pillar Drill 5-Speed 550W/230V GDM1630FR
SKU: SEALEY-GDM1630FR
Price: 545.81 GBP
Availability: InStock

£545.81 GBP

~~£617.94 GBP~~ £545.81 GBP

Reduced Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Heavy-duty construction. Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch. Radial feature allows off-table drilling and angle drilling. Features a maximum throat depth of 420mm. Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit. Mortise attachment available, order Model No. MA10. Also available as floor standing type - Model No. GDM1630FR.

• Heavy-duty construction.
• Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.

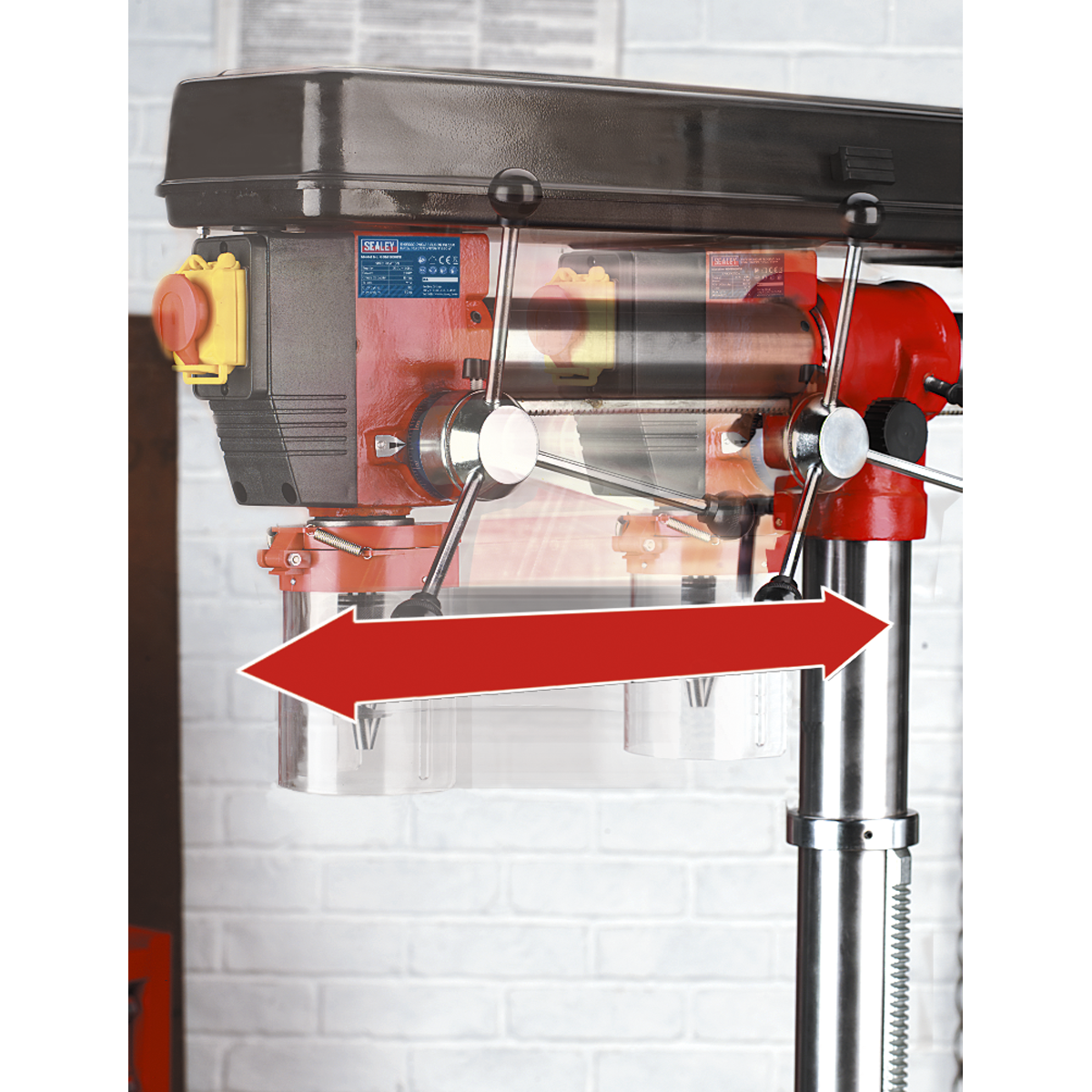

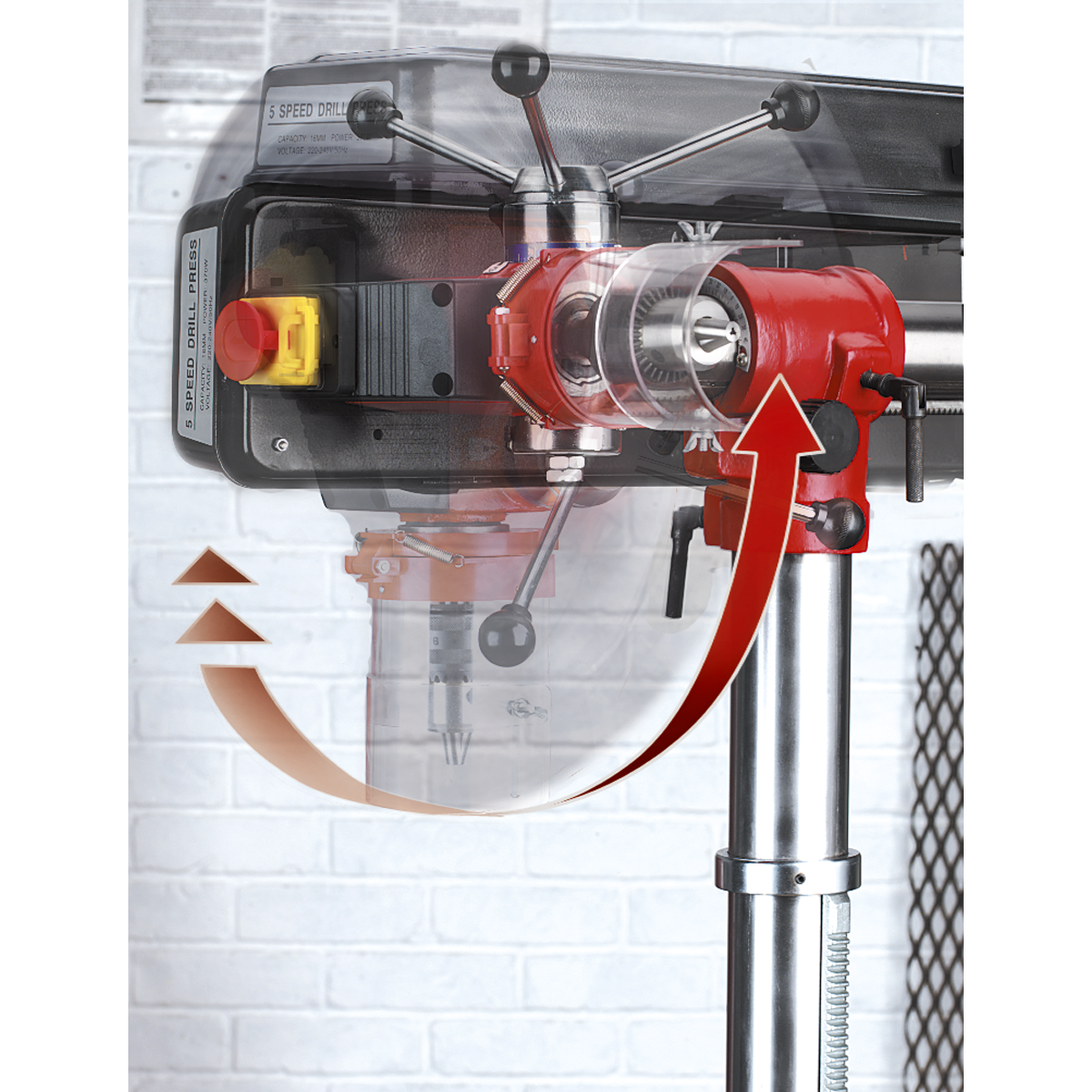

• Radial feature allows off-table drilling and angle drilling.
• Features a maximum throat depth of 420mm.

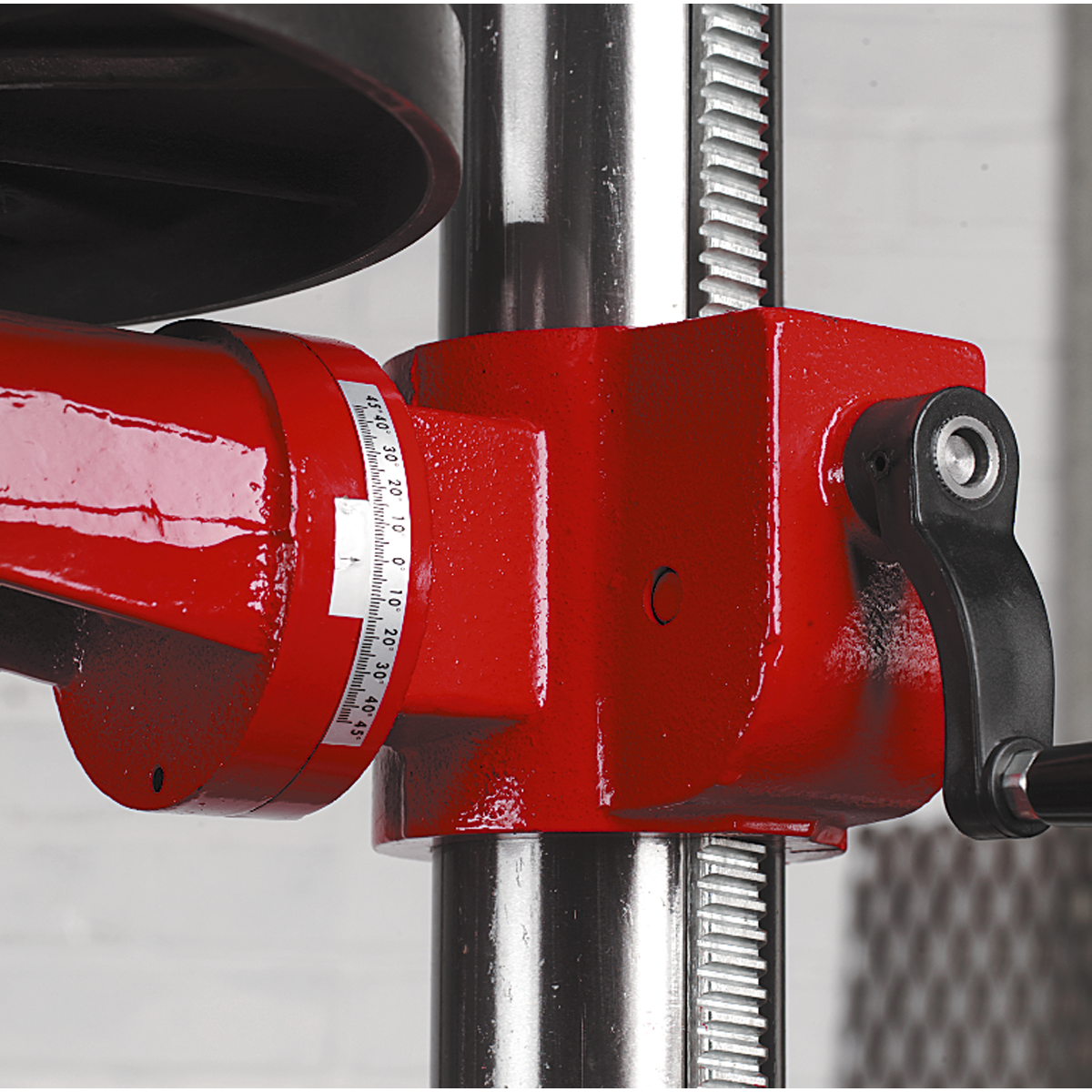

• Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
• Also available as bench mounting type - GDM790BR.
• Mortise attachment available, order Model No. MA10.
• 16mm(5/8") Capacity chuck, MT2.
• Height: 1620mm.
• Spindle Centre to Column - Max: 420mm.
• Motor Power: 550W.
• Column Diameter: 70mm.
• Spindle Travel: 80mm.
• Weight: 59kg.

Specifications

Model No	GDM1630FR
Base Size:	420 x 250mm
Brand:	Sealey
Collar Diameter:	Ø60mm
Column Diameter:	Ø70mm
Drilling Capacity (Chuck Size):	16mm
Maximum Distance Spindle to Base:	1280mm
Maximum Distance Spindle to Table:	830mm
Motor Power:	550W
Nett Weight:	59kg
Number of Speeds:	5
Optional Accessories:	GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height:	1620mm
Radial Arm Travel:	285mm
Speed Range:	500-2450rpm
Spindle Centre to Column:	420mm
Spindle Nose Taper:	MT2
Spindle Travel:	80mm
Supply:	230V
Swing:	840mm
Working Base Surface Size:	210 x 190mm
Working Table Surface Size:	Ø310mm
