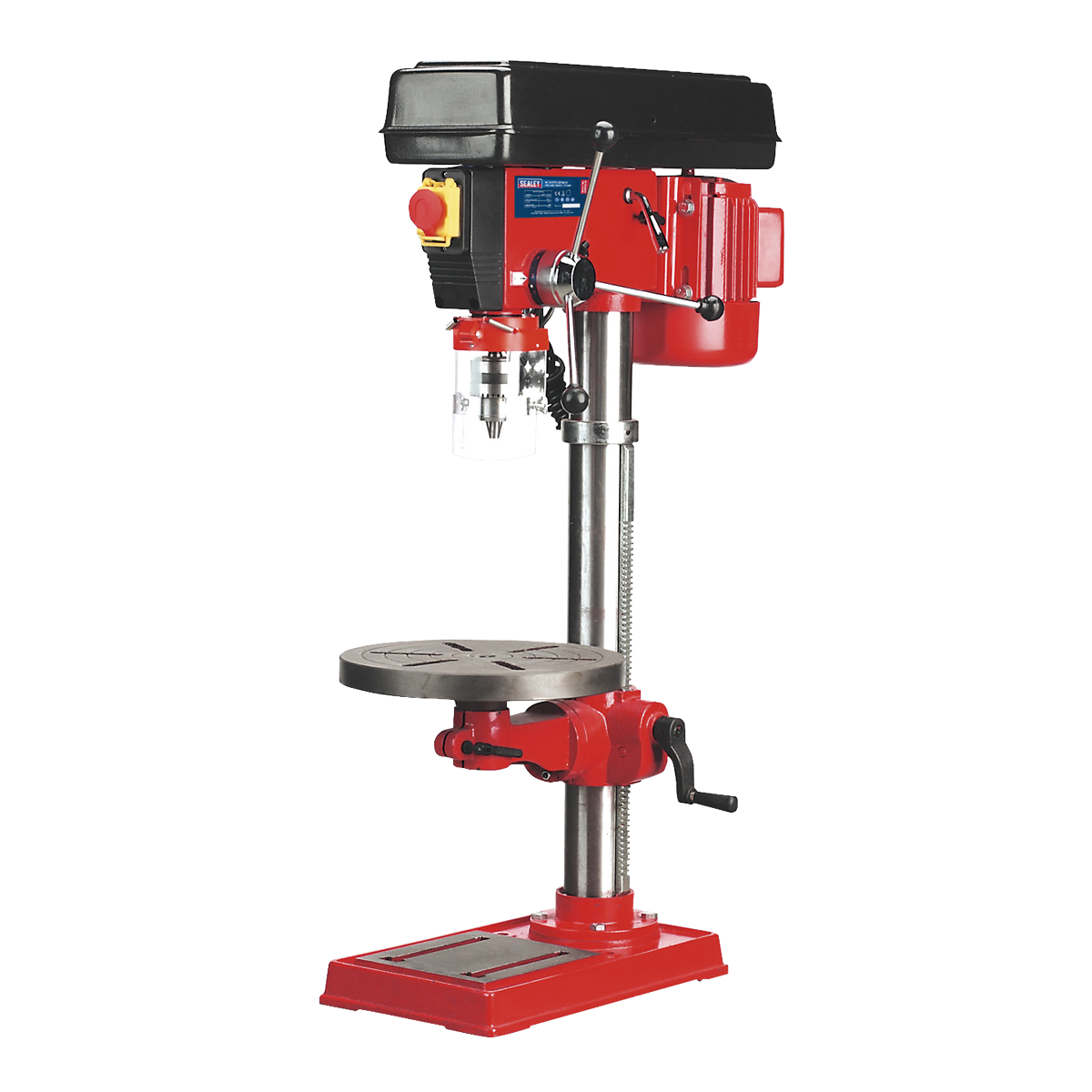

Sealey Bench Mounting Pillar Drill 16-Speed 550W/230V GDM120B

Name: Sealey Bench Mounting Pillar Drill 16-Speed 550W/230V GDM120B
SKU: SEALEY-GDM120B
Price: 392.21 GBP
Availability: InStock

£392.21 GBP

~~£443.94 GBP~~ £392.21 GBP

Reduced Sold out

Taxes included. Shipping calculated at checkout.

Quantity

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments. Access to drive belts is denied during operation by mechanical protection. Mortise attachment available, order Model No. MA10.

• One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
• Meets Safety of Machinery (Safety) Directives 1992 (and amendments).
• Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments.
• Model No. GDM50B and up have Morse taper spindle housings for taking taper shank drill bits.
• All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
• All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
• Mortise attachment available, order Model No. MA10.
• 16mm(5/8") Capacity chuck, MT2.
• Height: 960mm.
• Spindle Centre to Column: 165mm.
• Motor Power: 350W, Input Power: 550W.
• Column Diameter: 70mm.
• Spindle Travel: 80mm.
• Weight: 47kg.

Specifications

Model No	GDM120B
Base Size:	420 x 250mm
Brand:	Sealey
Collar Diameter:	60mm
Column Diameter:	70mm
Drilling Capacity (Chuck Size):	16mm
Maximum Distance Spindle to Base:	600mm
Maximum Distance Spindle to Table:	410mm
Motor Power (Start):	350W(550W)
Nett Weight:	47kg
Number of Speeds:	16
Optional Accessories:	GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height:	960mm
Speed Range:	210-3340rpm
Spindle Centre to Column:	165mm
Spindle Nose Taper:	MT2
Spindle Travel:	80mm
Supply:	230V
Swing:	330mm
Working Base Surface Size:	210 x 190mm
Working Table Surface Size:	Ø310mm
