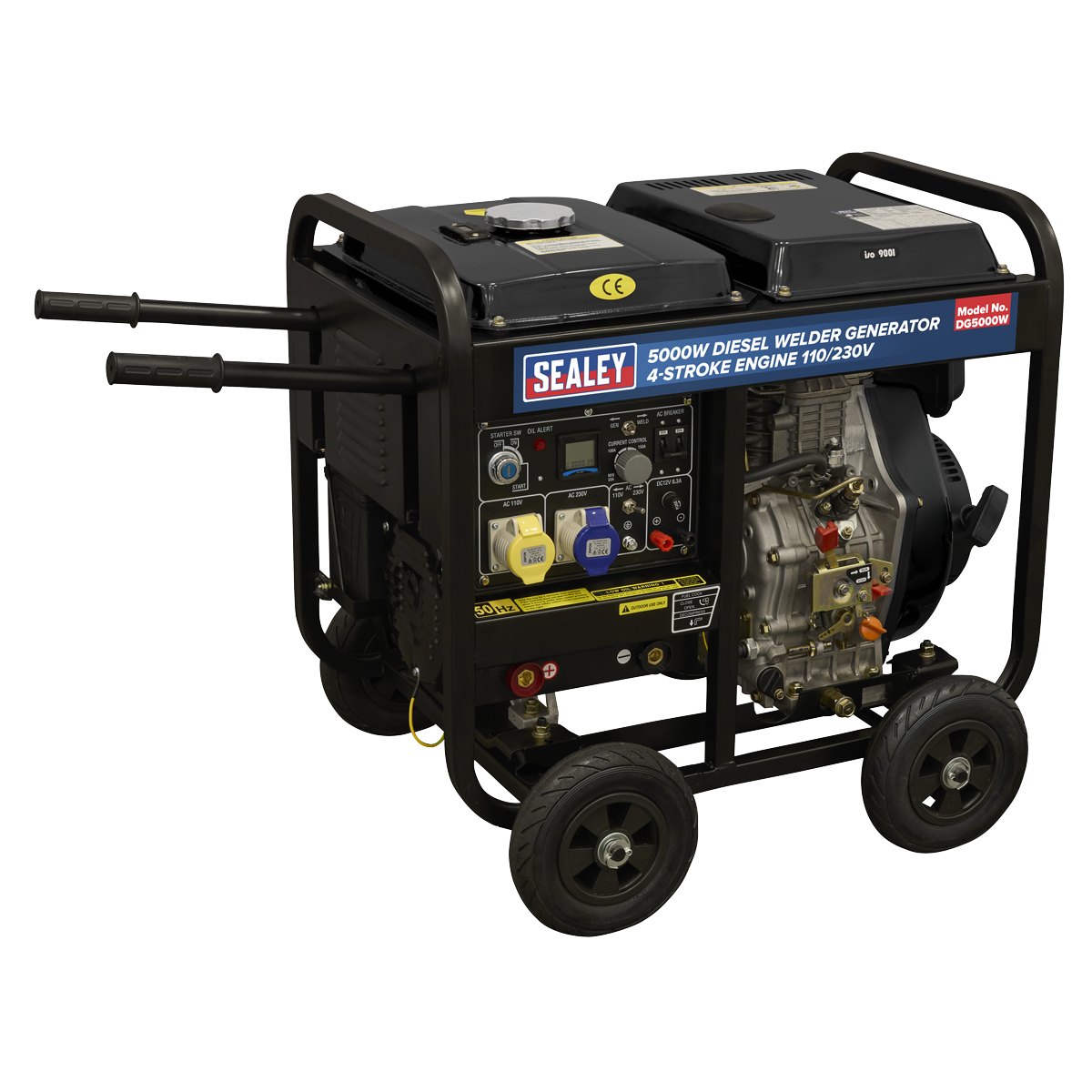

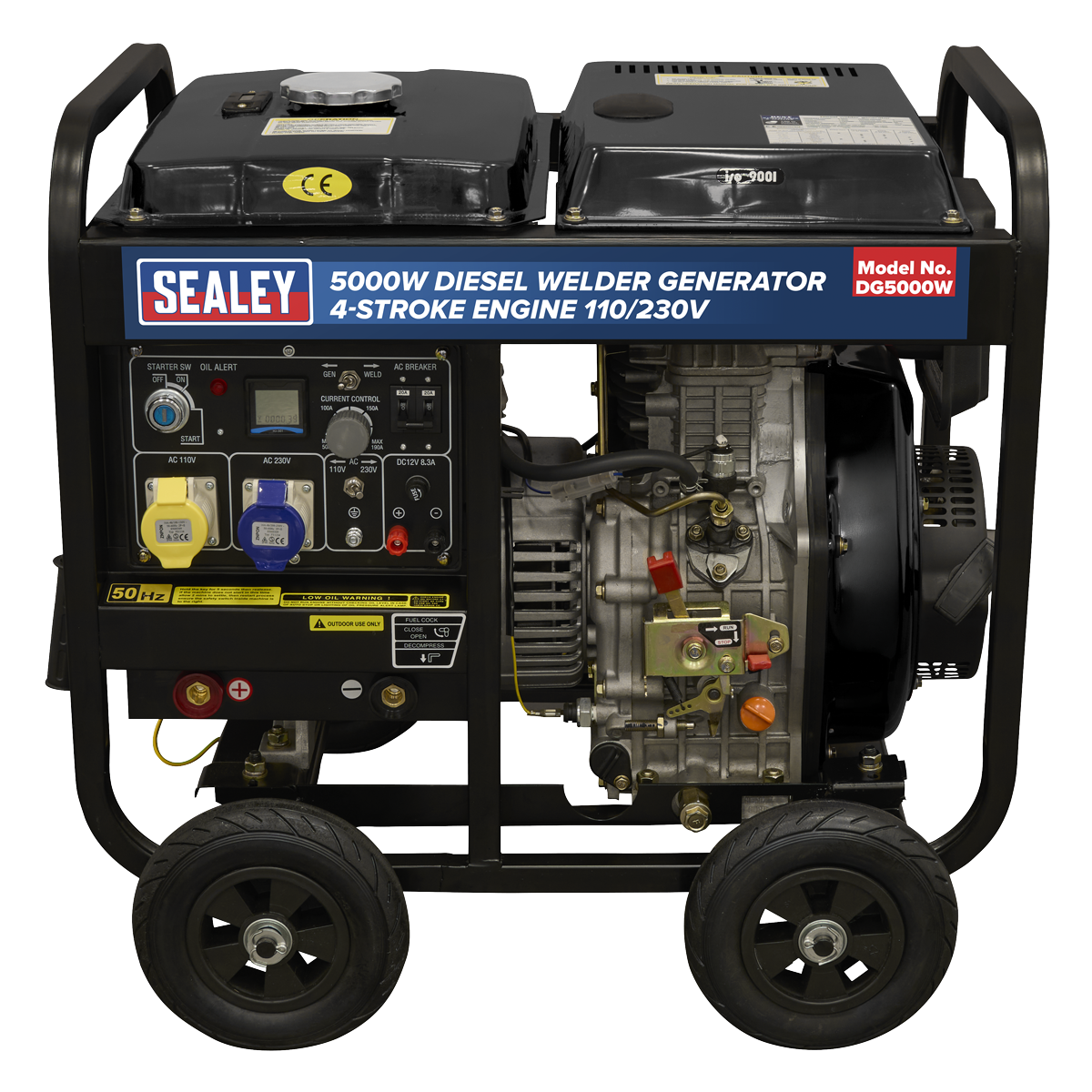

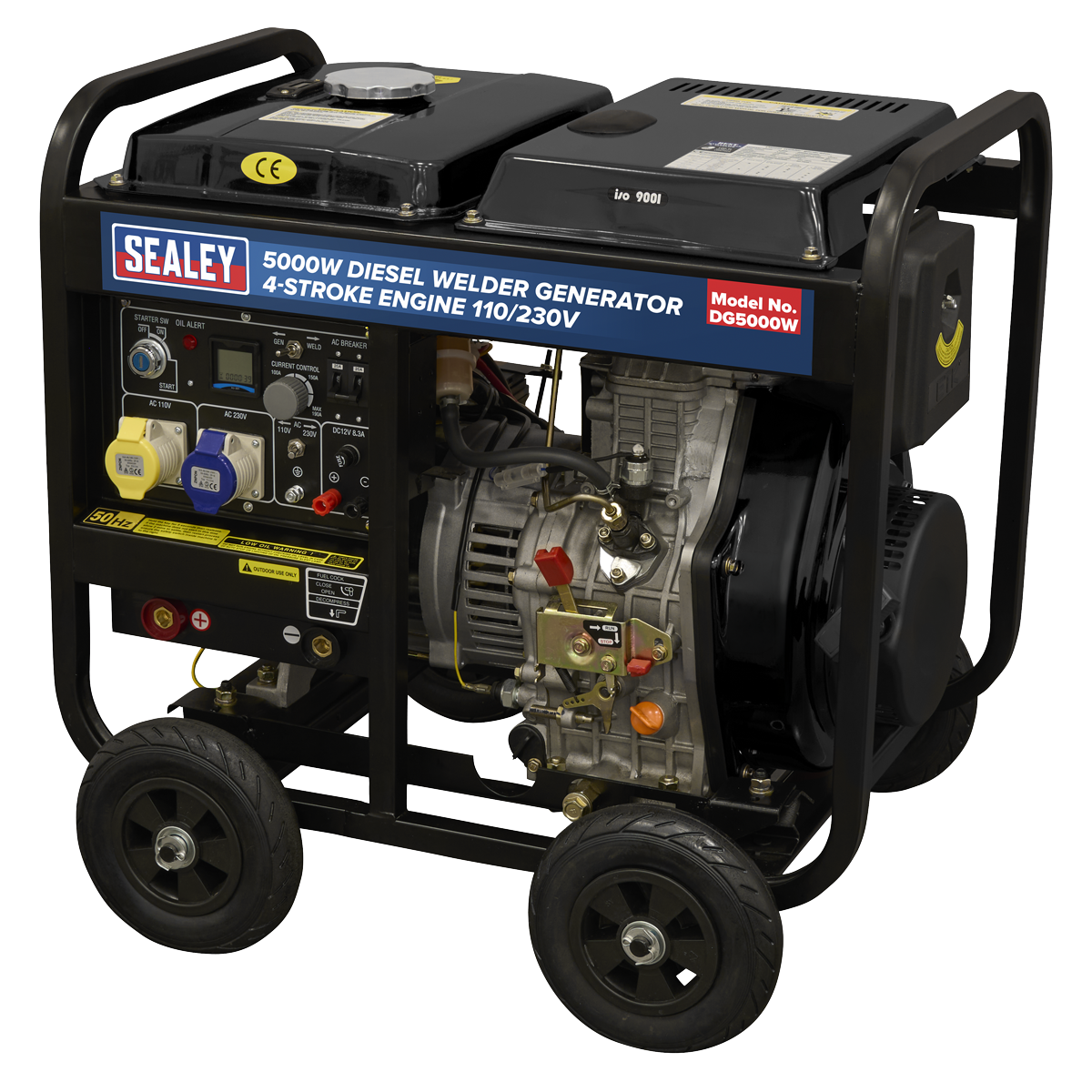

Sealey 5000W Diesel Welder Generator 4-Stroke Engine 110/230V DG5000W

Name: Sealey 5000W Diesel Welder Generator 4-Stroke Engine 110/230V DG5000W
SKU: SEALEY-DG5000W
Price: 1586.48 GBP
Availability: InStock

£1,586.48 GBP

~~£1,799.94 GBP~~ £1,586.48 GBP

Reduced by £213.46 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

Currently out of stock, please contact us for ETA

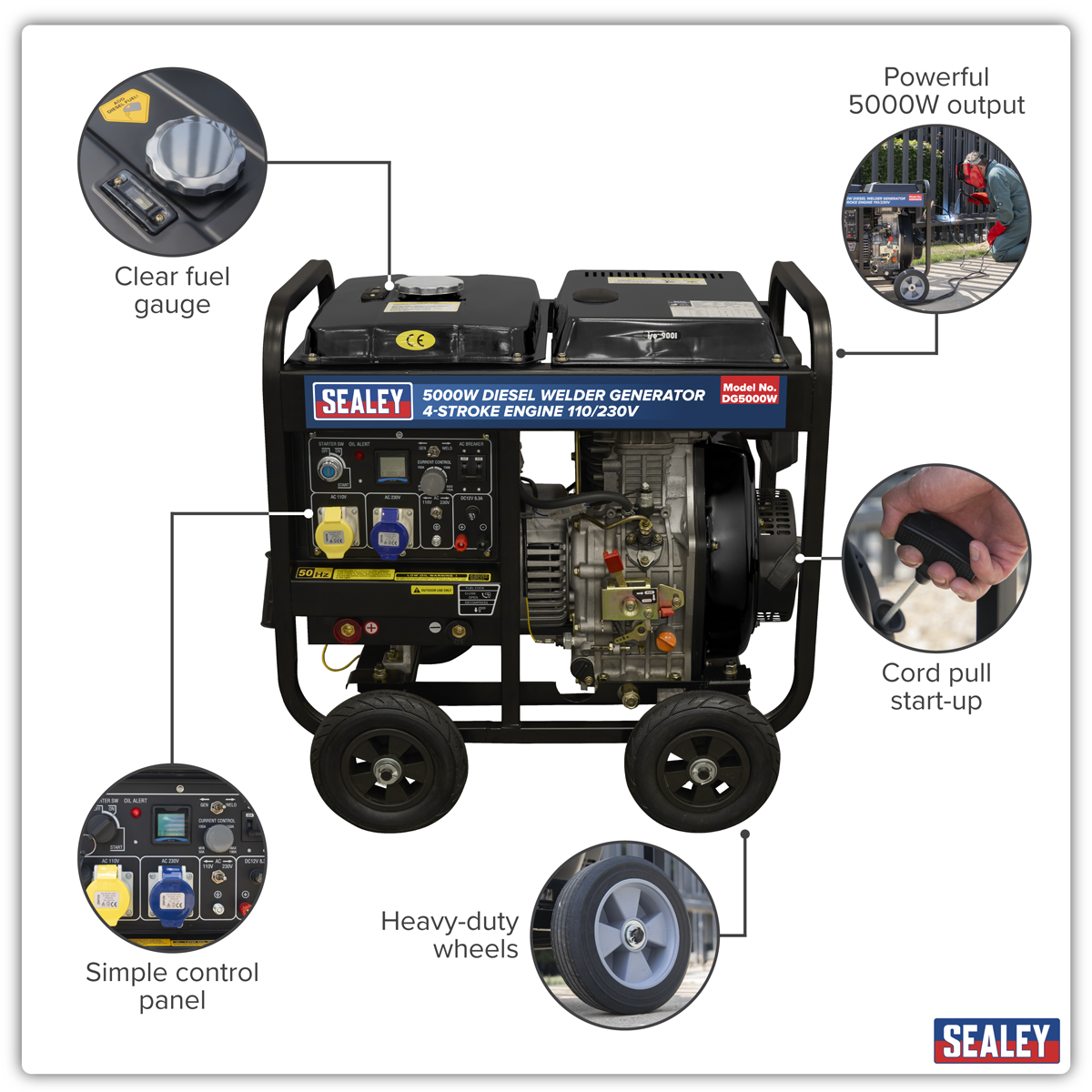

Supplies both 110V and 230V AC for flexible power options on-site. Built-in electric welding capability with adjustable current ranges from 80–180A, suitable for electrodes from Ø2.5-4mm. Driven by a 418cc single-cylinder, 4-stroke diesel engine delivering 5.0kW. Manual recoil start and key start function. 15L fuel tank allows extended operation without frequent refuelling. Rugged frame with two pull handles and four wheels for easy transportation around the worksite. Perfect for construction, agricultural, and industrial applications. Supplied with two Keys, 2.8m electrode holder and 2.8m earth clamp.

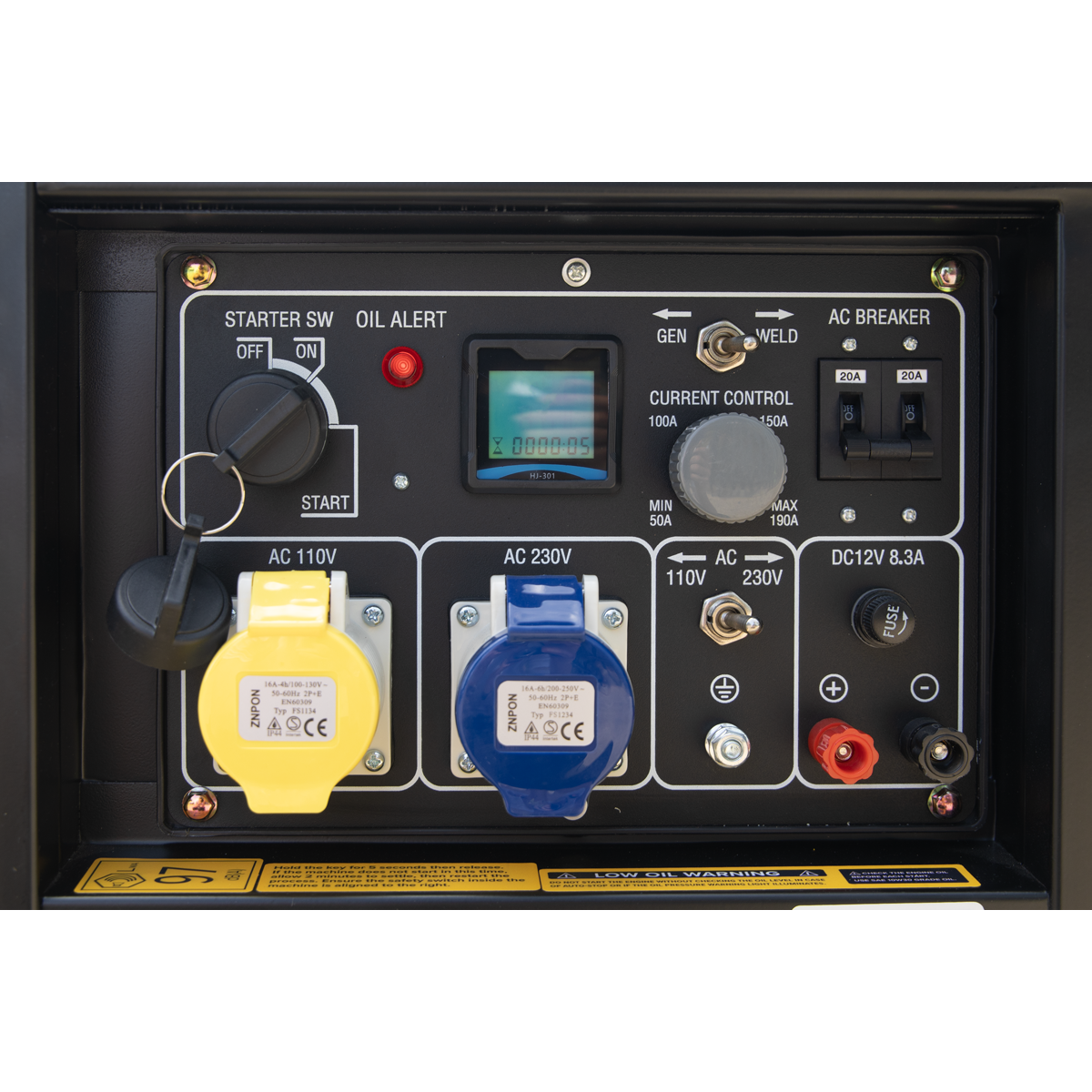

• DUAL VOLTAGE OUTPUT – Supplies both 110V and 230V AC for flexible power options on-site.

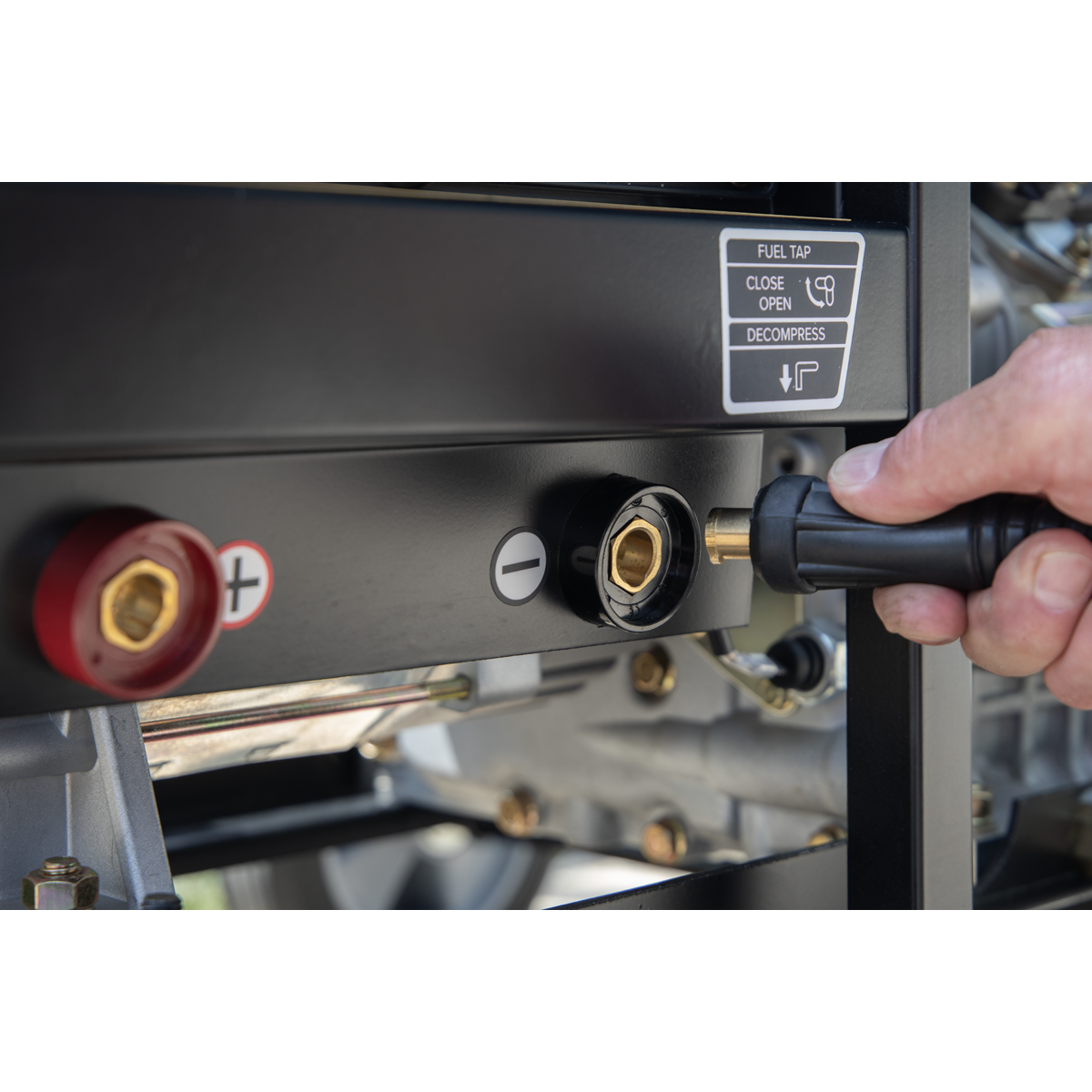

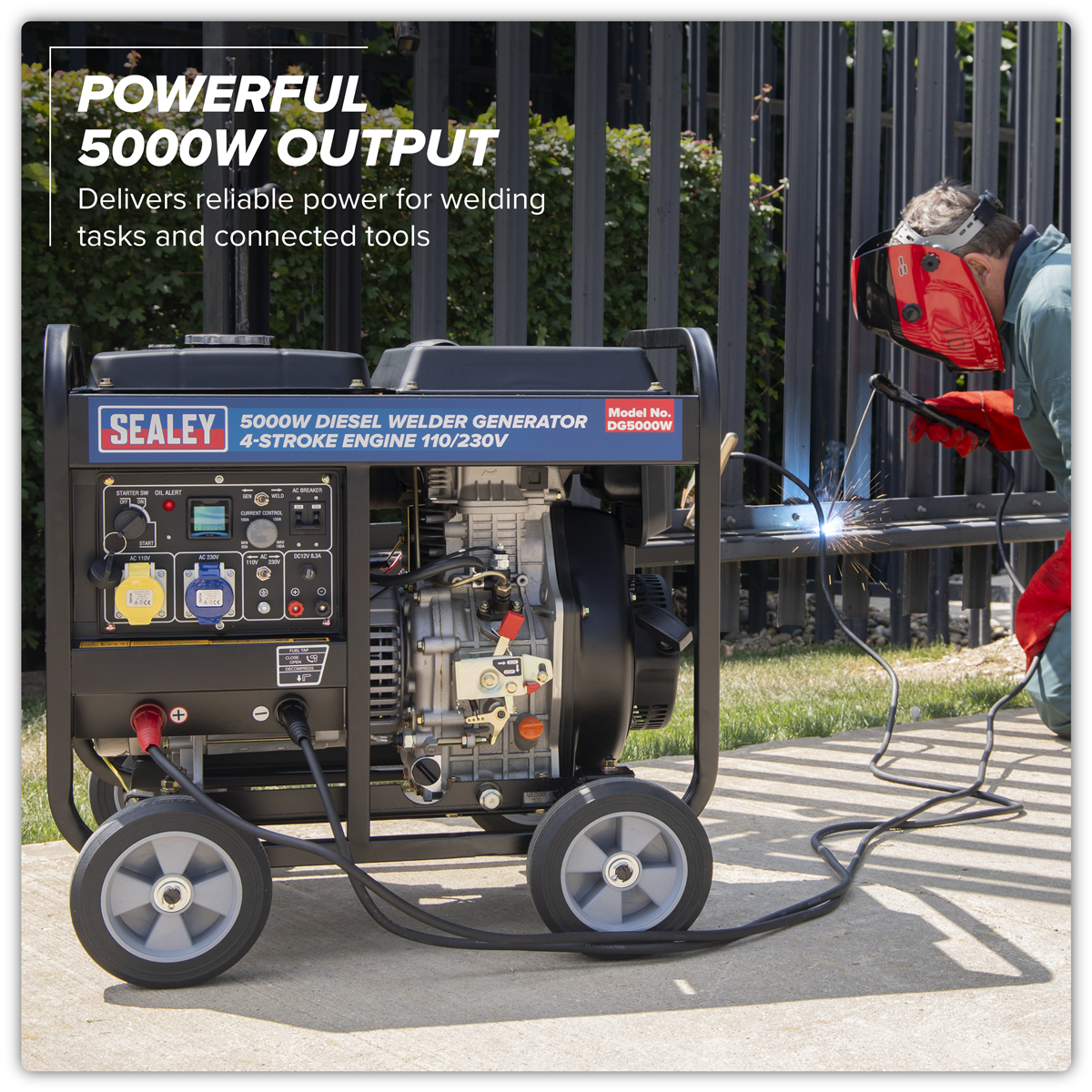

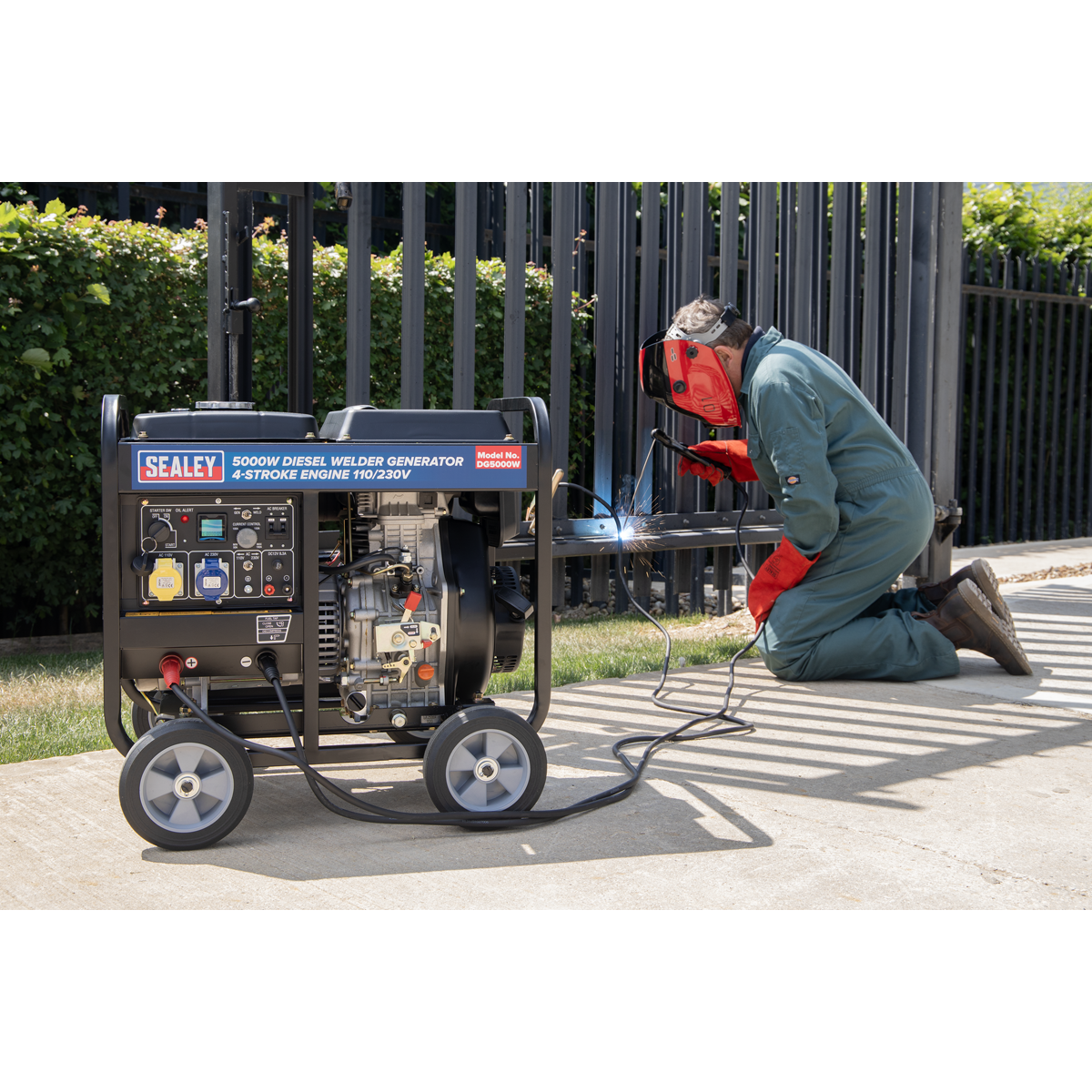

• WELDER FUNCTION – Built-in electric welding capability with adjustable current ranges from 80–180A.

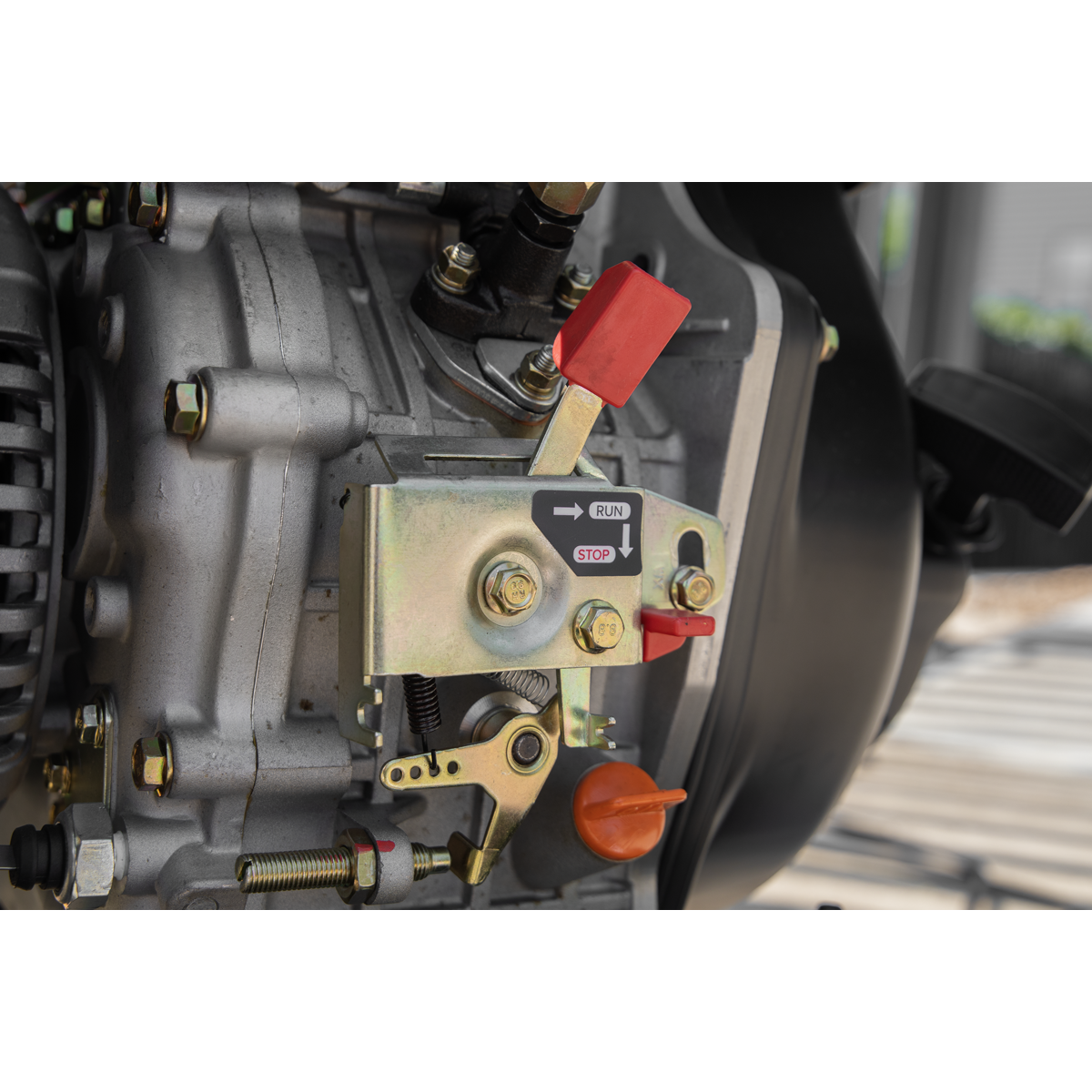

• DIESEL ENGINE POWER – Driven by a 418cc single-cylinder, 4-stroke diesel engine delivering 5.0kW.

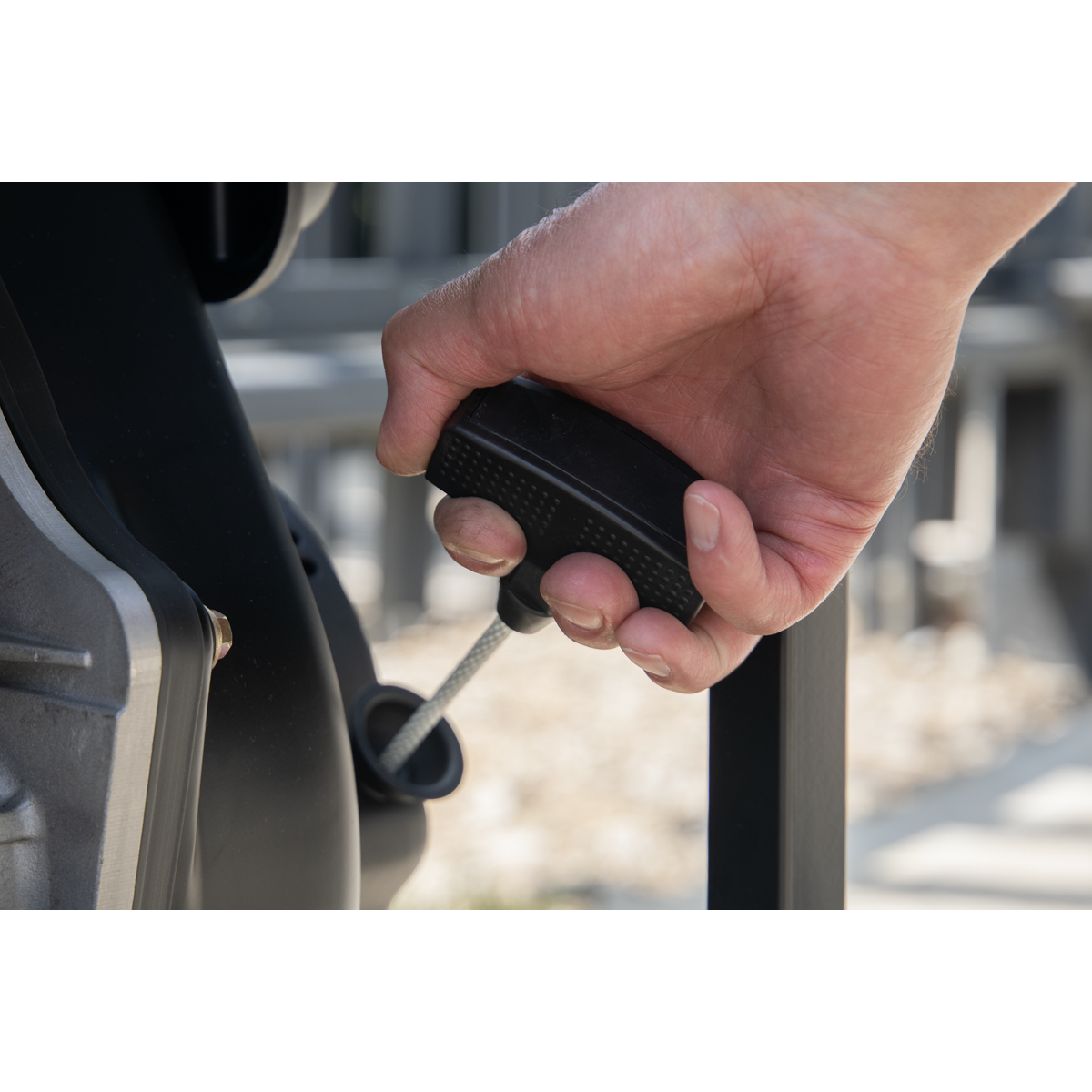

• RECOIL & KEY START – Manual recoil start, and Key Start Function.

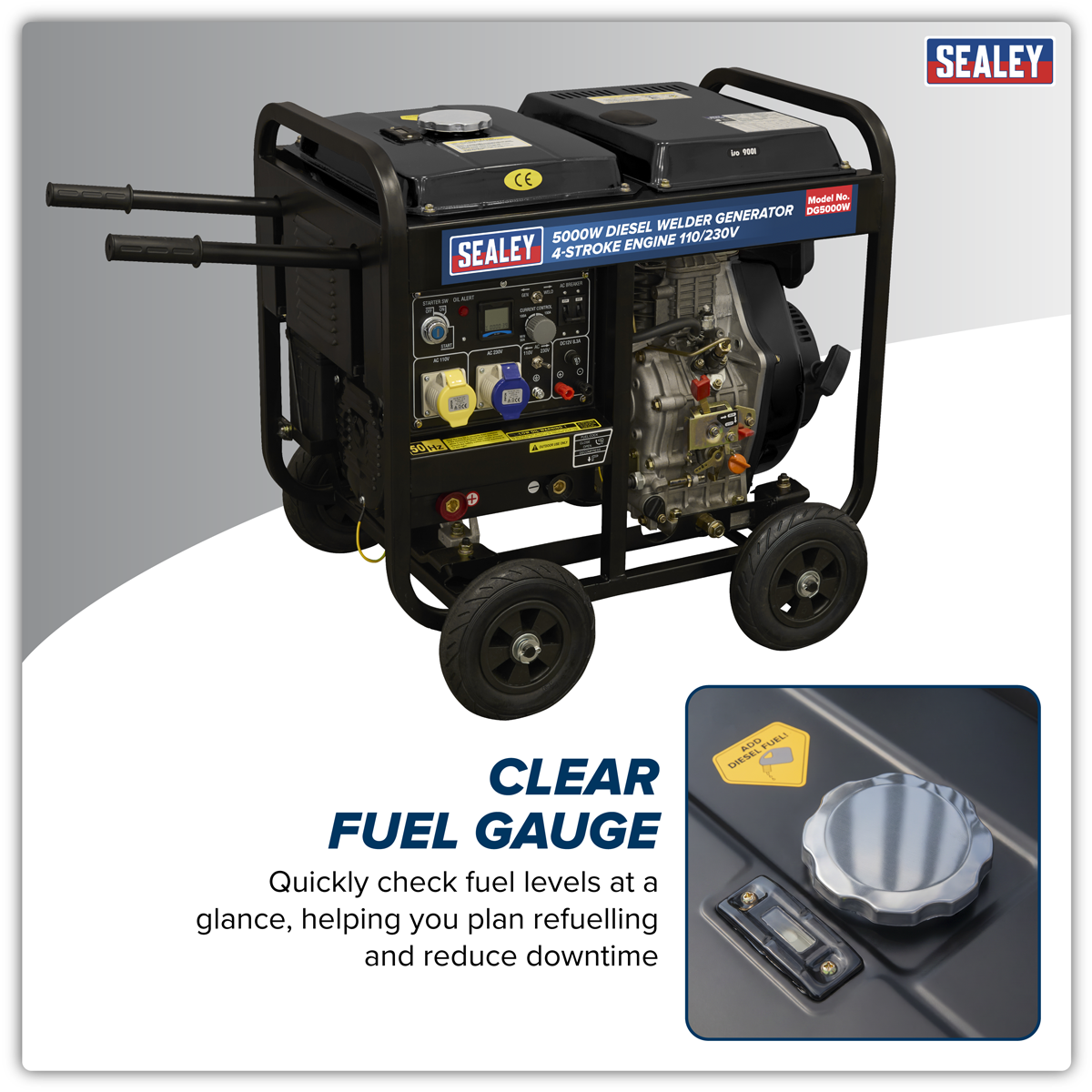

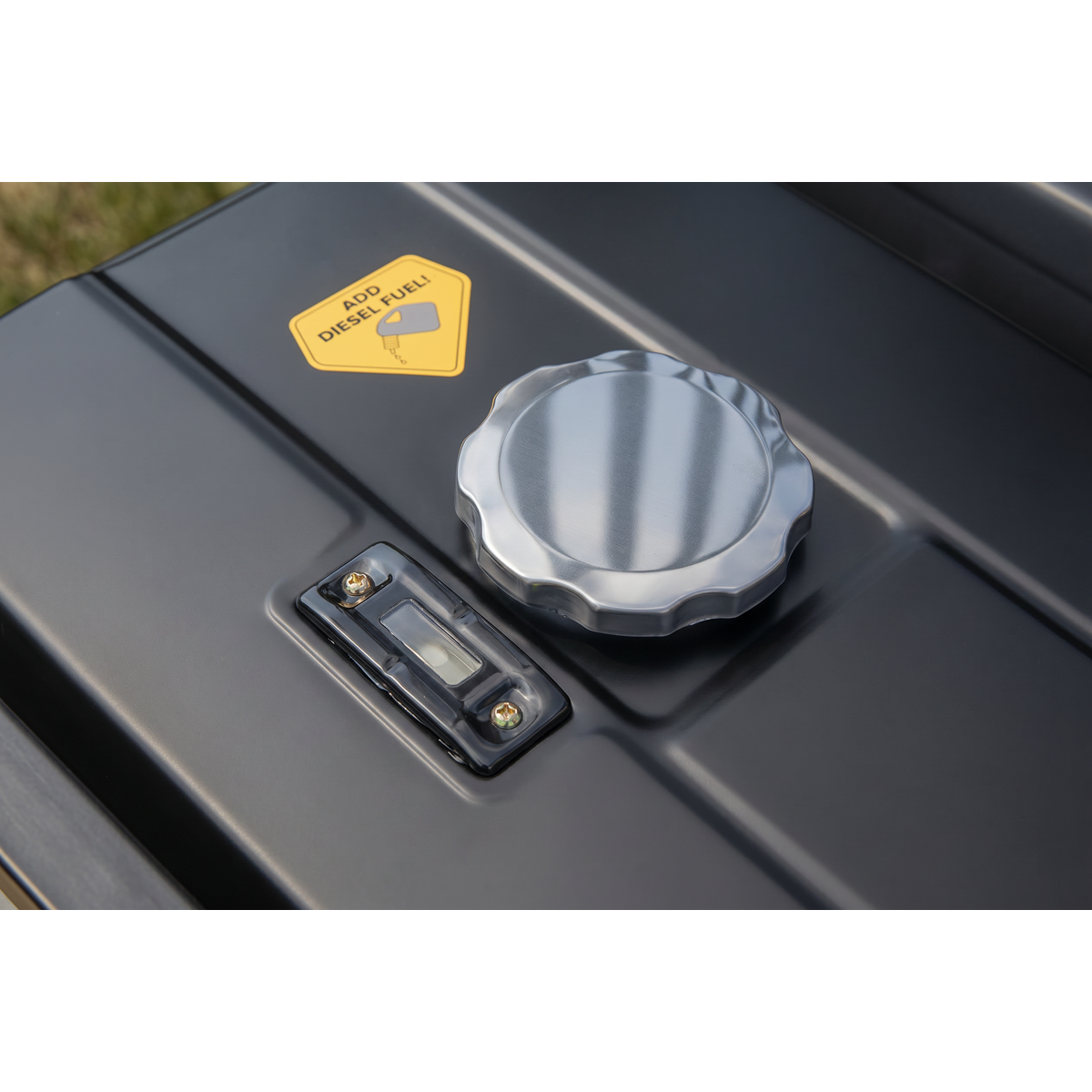

• LARGE FUEL TANK – 15L capacity allows extended operation without frequent refuelling.
• WELDING CAPACITY – Rated for 80–180A welding current and suitable for electrodes from Ø2.5-4mm.

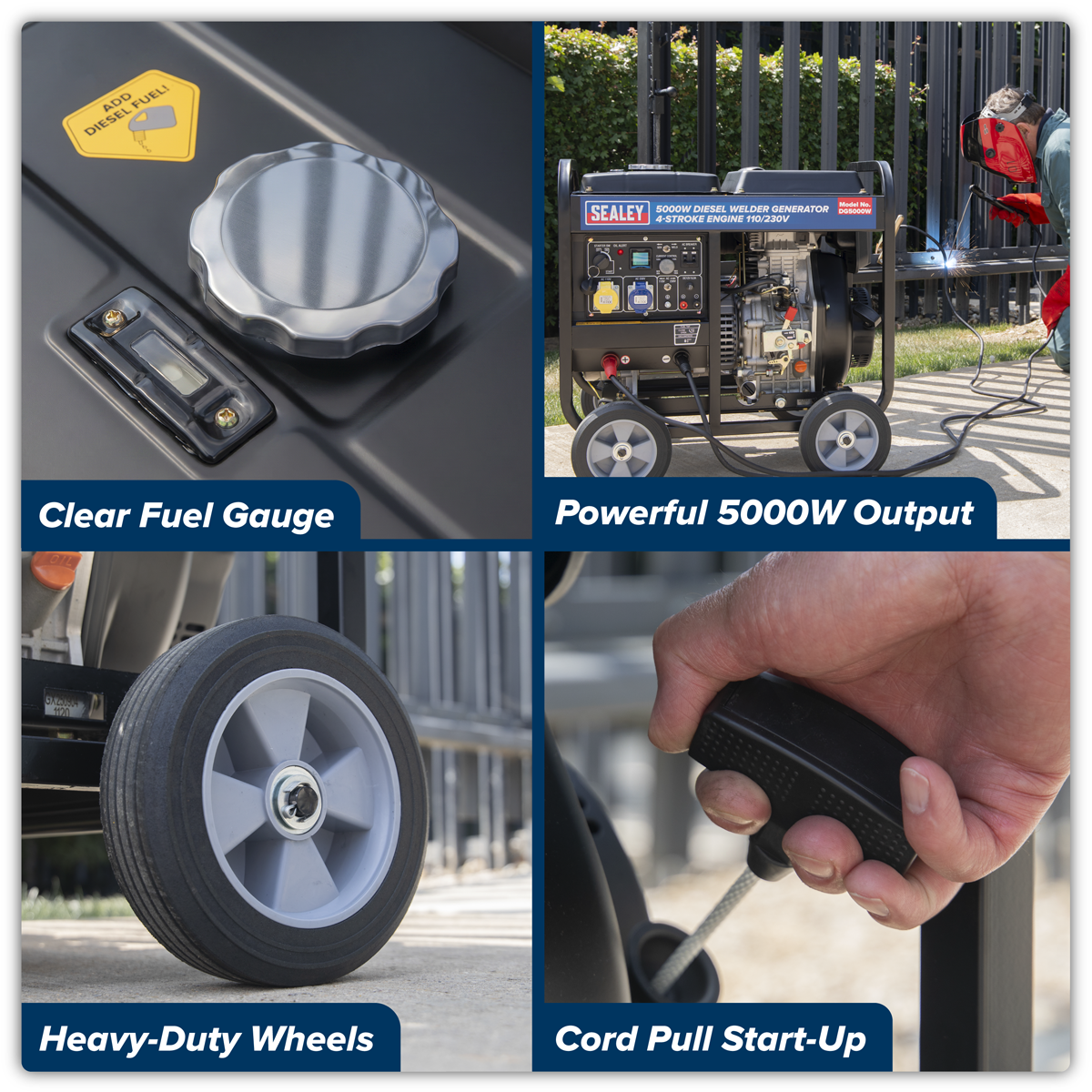

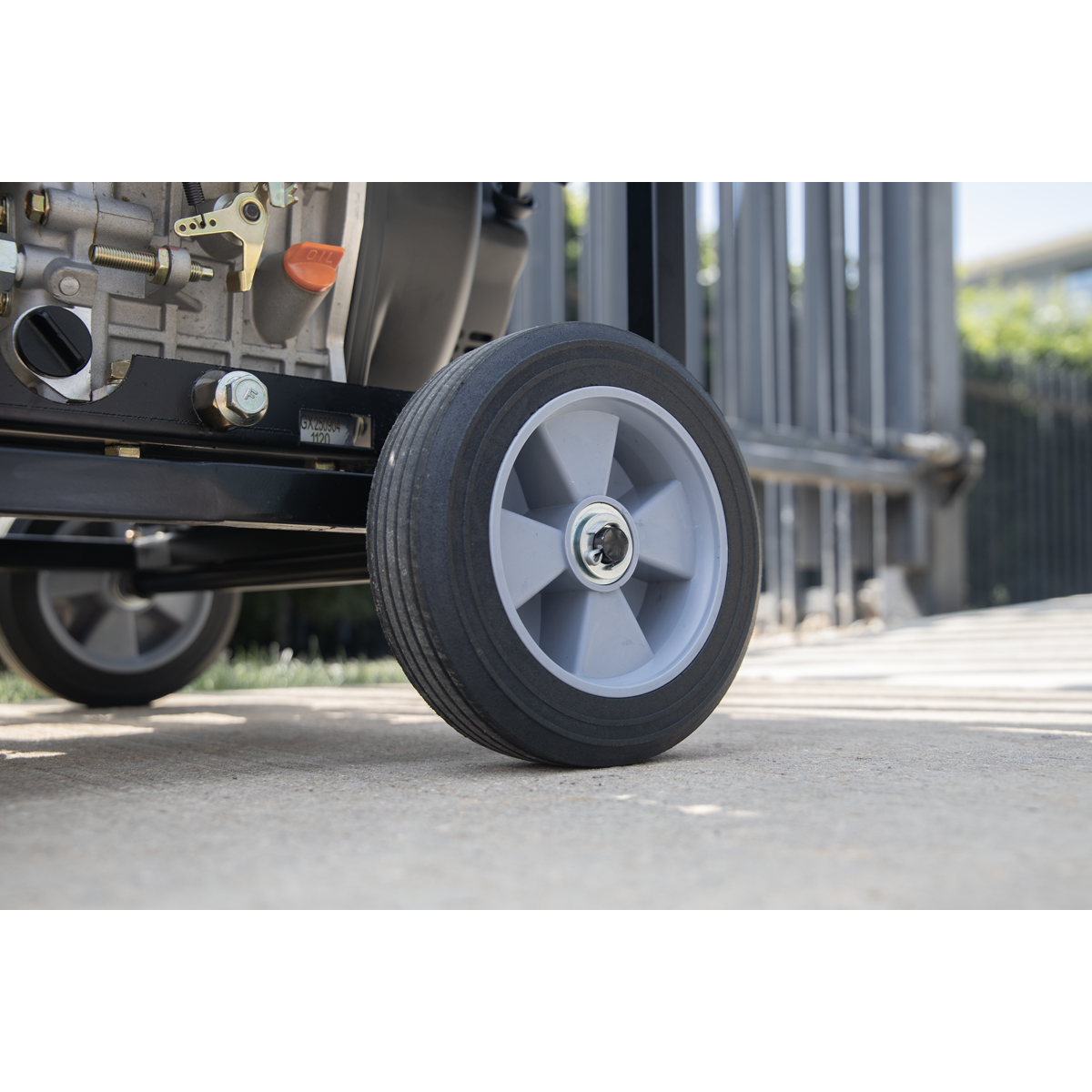

• COMPACT & PORTABLE – Rugged frame with two pull handles and four wheels for easy transportation around the worksite.
• IDEAL FOR REMOTE WORK – Perfect for construction, agricultural, and industrial applications.

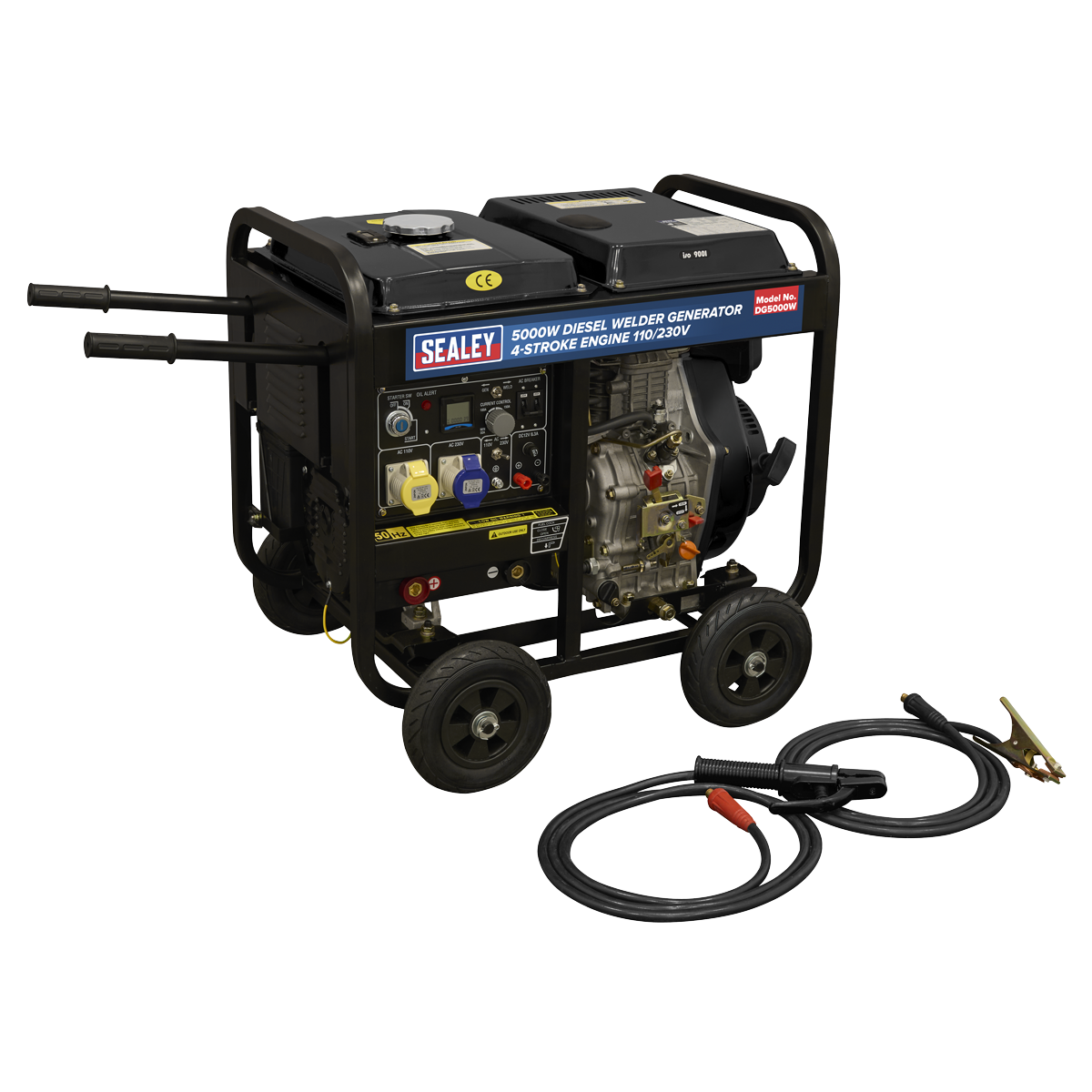

• SUPPLIED WITH – Two Keys, 2.8m electrode holder and 2.8m earth clamp.

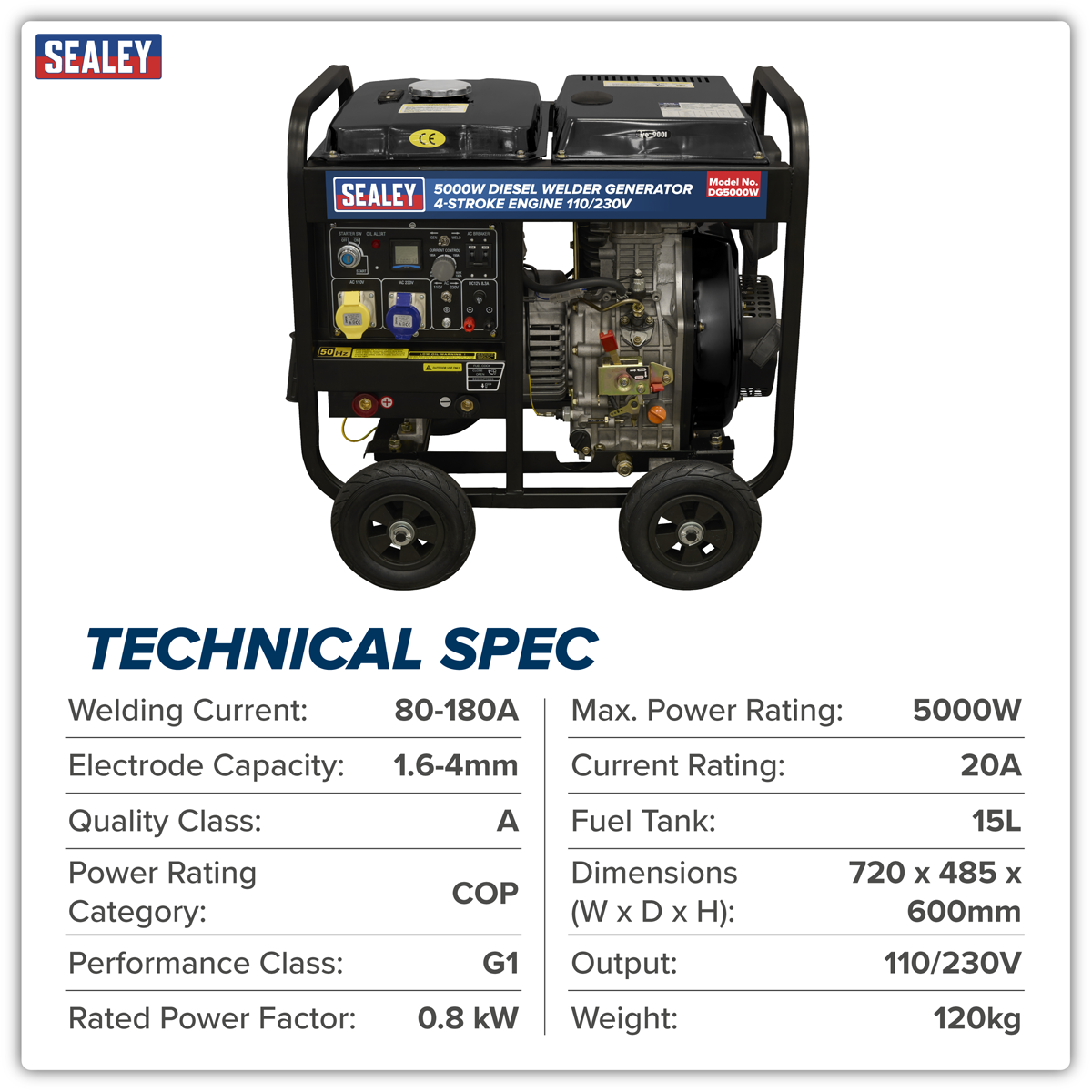

Specifications

Model No	DG5000W
Brand:	Sealey
Continuous Power Rating:	4600W
Current Rating:	20A
Dimensions (W x D x H):	720 x 485 x 600mm
Fuel Tank:	15L
Fuel:	Diesel
IP Rating:	IP23
Maximum Power Rating:	5000W
Maximum Running Time:	12hrs
Motor Power:	5.7kw/3600rpm
Motor Type:	4-Stoke Diesel
Nett Weight:	120kg
Noise Rating:	97dB(A)
Oil Capacity:	1.65L
Output:	110/230V
Welding Current:	80-180A
Electrode Capacity:	1.6-4mm
Quality Class	A
Power Rating Category	COP
Performance Class	G1
Rated Power Factor	(COS ∮) 0.8 kW
