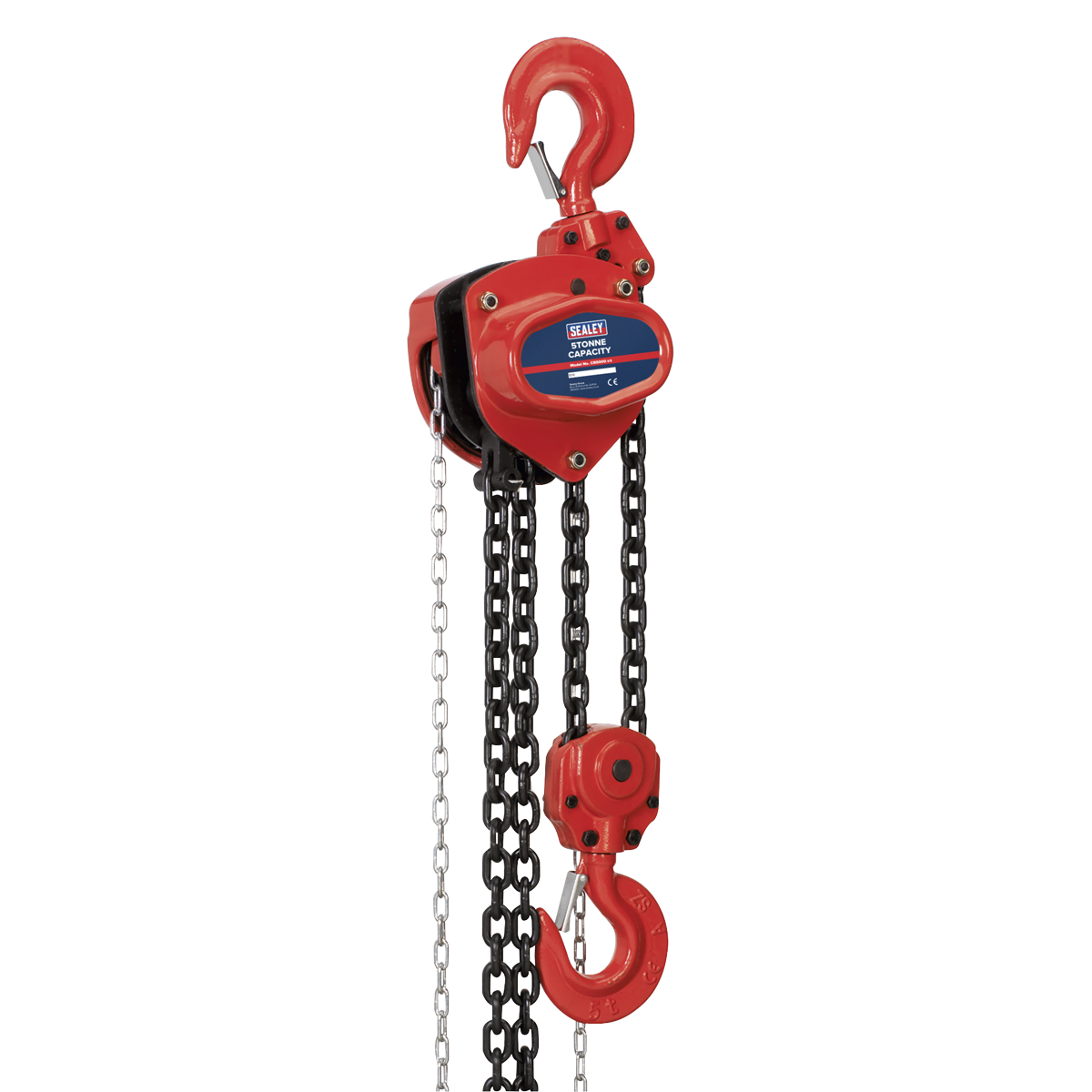

Sealey CB5000 3m Chain Block 5 Tonne

Sealey CB5000 3m Chain Block 5 Tonne

Regular price £261.00 GBP
Regular price £335.94 GBP Sale price £261.00 GBP
Reduced Sold out
Taxes included. Shipping calculated at checkout.
Fitted with heat treated and ground, triple-spur geared shaft and pinion. Also includes mechanical load brake for extra safety. All chains are manufactured from hardened alloy material and load hooks feature safety latches. Compact gear housing allows use where headroom is limited.

• Fitted with heat treated and ground, triple-spur geared shaft and pinion.
• Also includes mechanical load brake for extra safety.
• All chains are manufactured from hardened alloy material and load hooks feature safety latches.
• Compact gear housing allows use where headroom is limited.

Specifications

Model No CB5000
Brand: Sealey
Capacity: 5000kg
Head Room: 588mm
Hook Aperture: 50mm
Load Chain Diameter: Ø10mm
Maximum Hook Capacity Ø: 65mm
Nett Weight: 43kg
Pulling Effort: 42.22kgf
Safe Working Load: 5000kg
Size (W x D): 186 x 253mm
Standard Lift: 3m
Test Load: 7500kg

Documents

Instructions View/Download
Parts Diagrams View/Download
View full details
