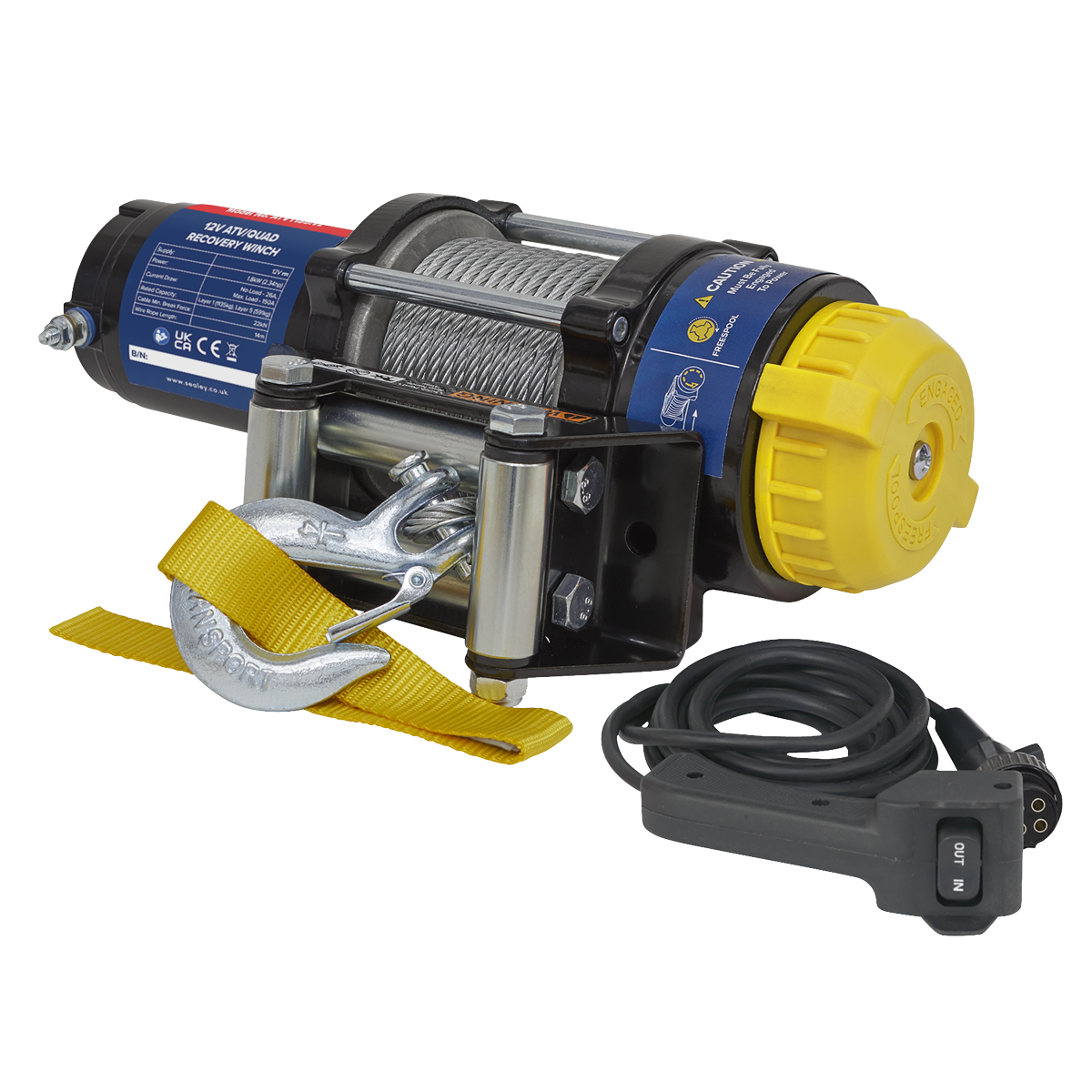

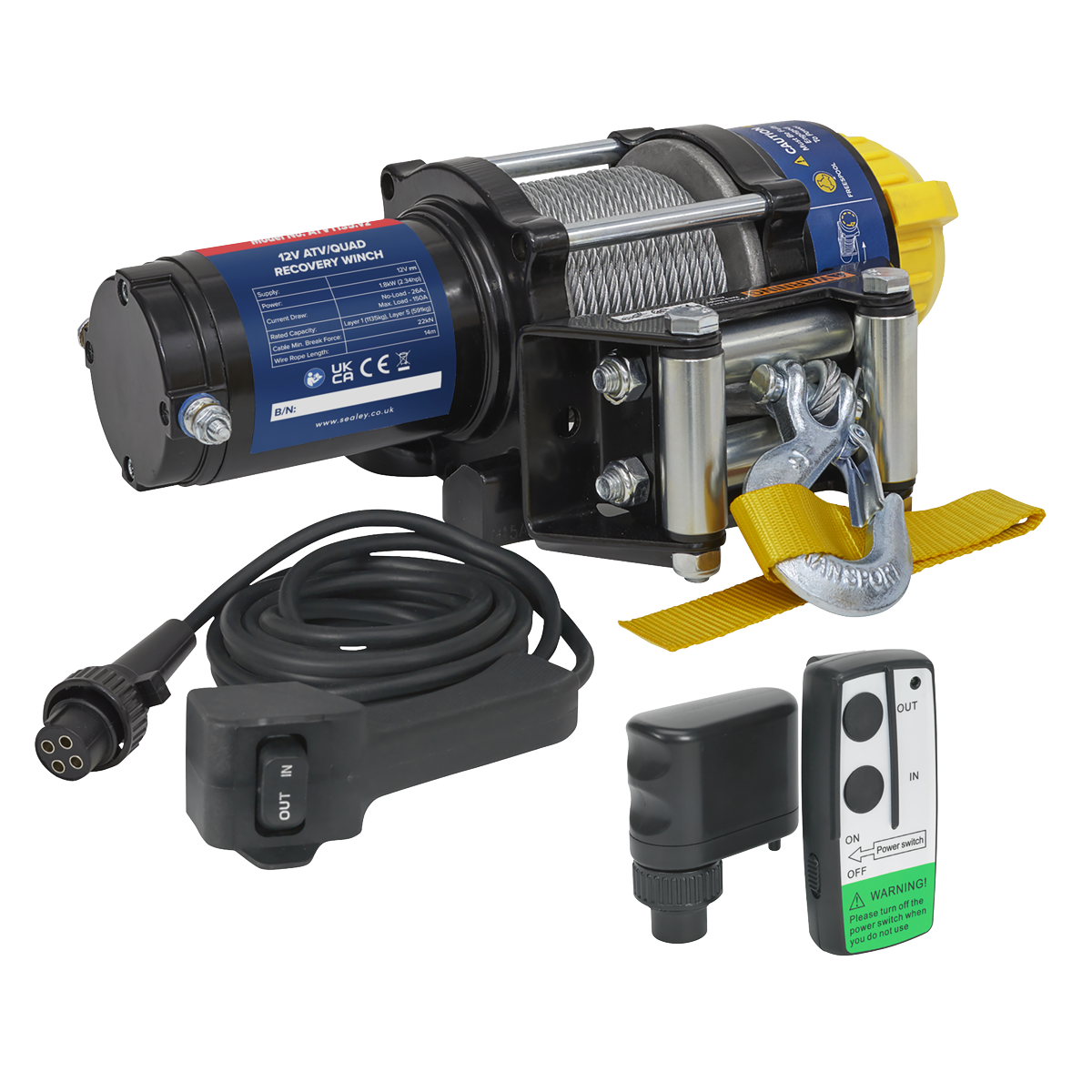

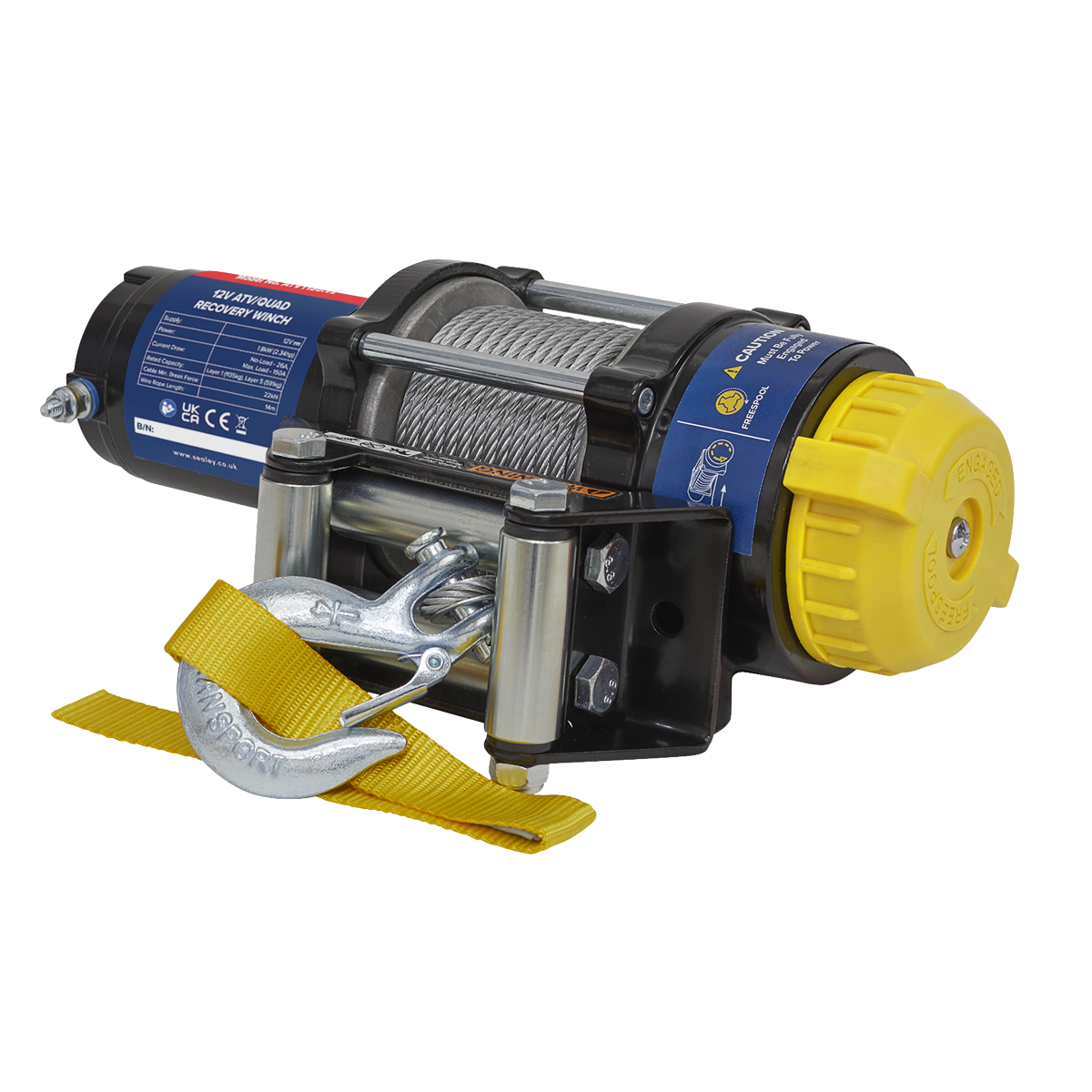

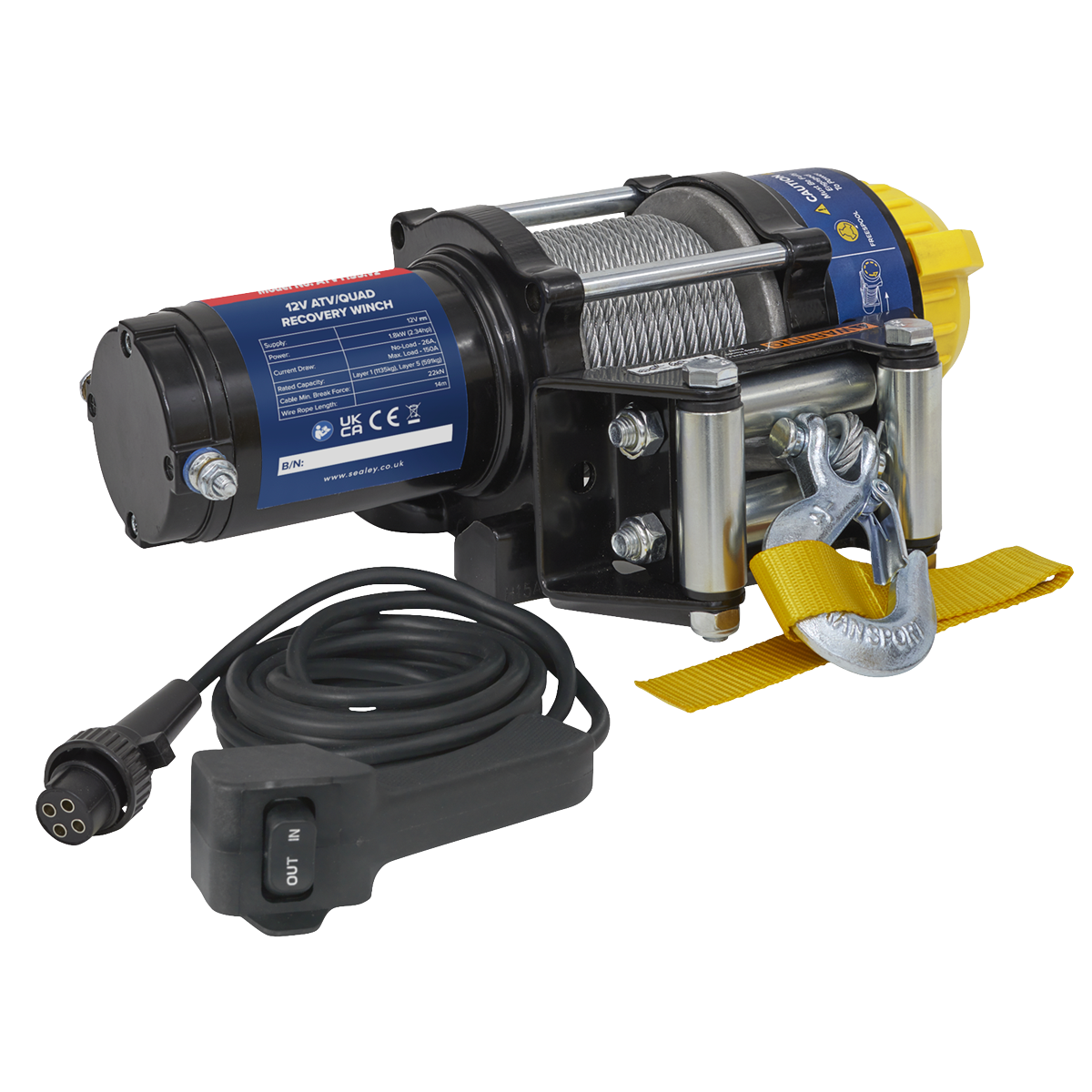

Suitable for ATV and quad bike mounting, this high-speed winch offers a combination of performance with durability. Designed and built with the toughest jobs in mind. High power 12V DC motor with permanent magnet gives first class pulling power. Heavy-duty all-weather housing. 3-Stage planetary gears. Patented unique automatic spring brake, reliable in full load operation. Sliding ring gear clutch. High quality wire rope feeds through 4-way roller fairlead. IP67 rated motor and gearbox.

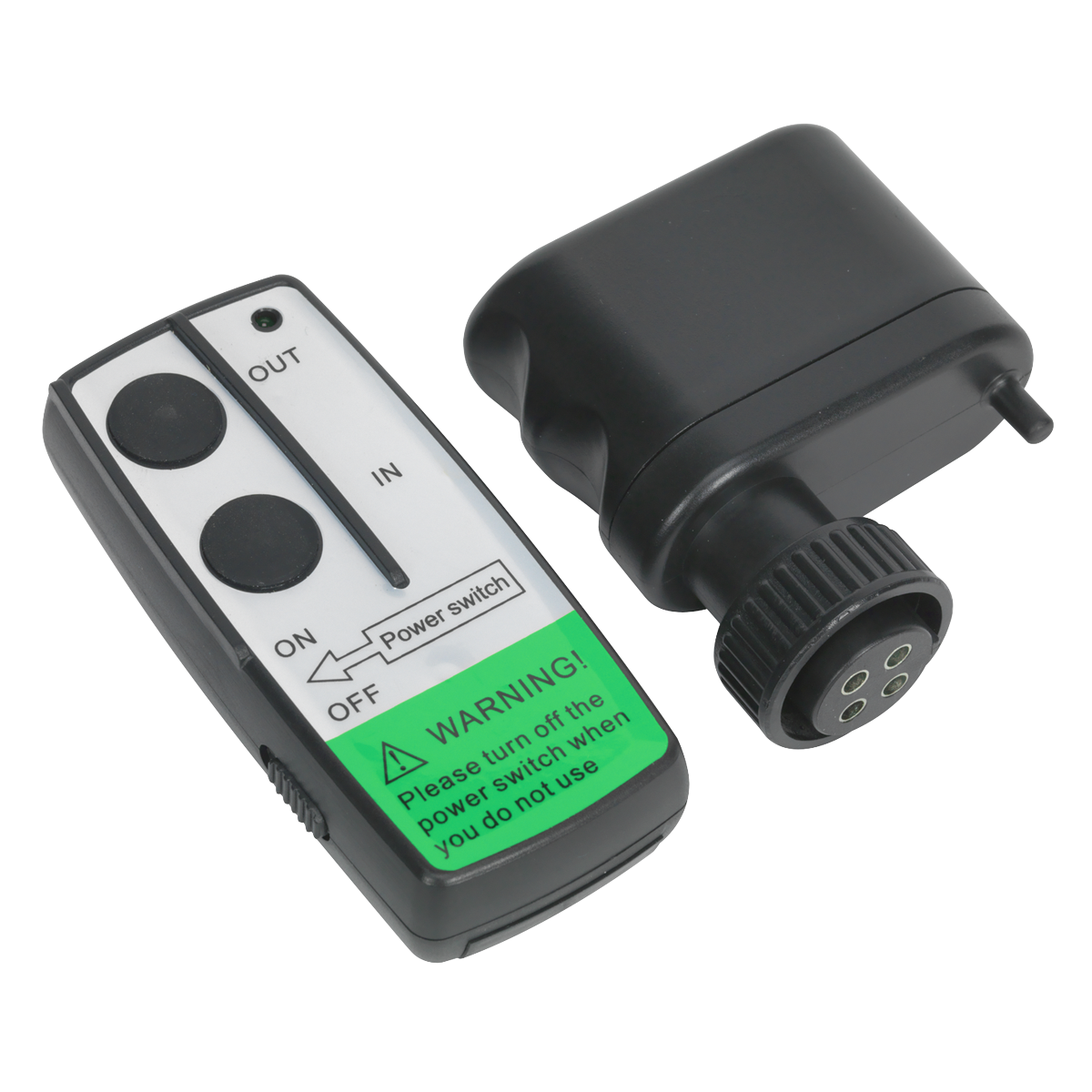

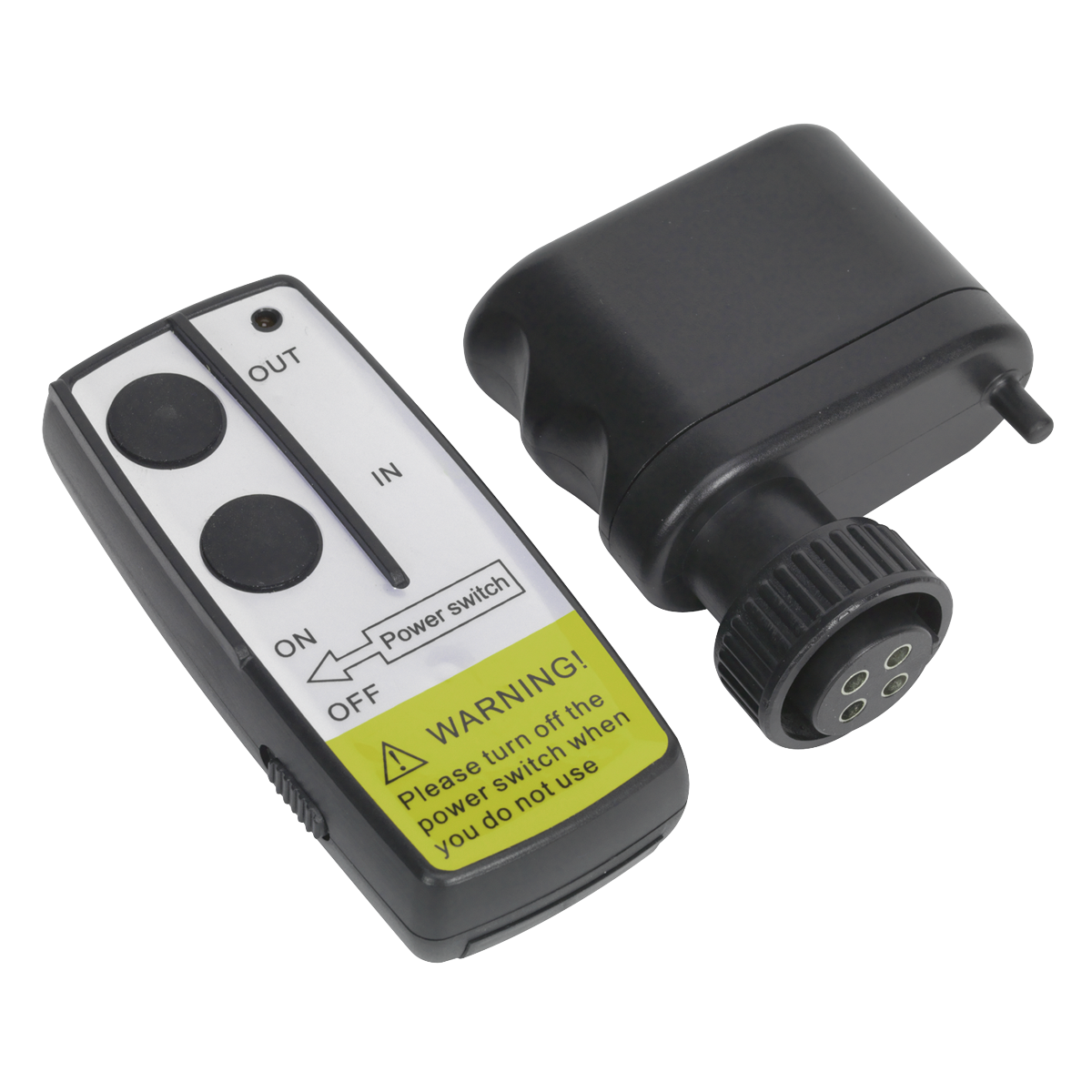

• FAST - Suitable for ATV and quad bike mounting, this high-speed winch offers a combination of performance and durability. • UNIVERSAL - Wireless remote control has a 4-pin plug-and-play receiver that works with all makes of winch. • SAFE - Allows the operator to stand well clear or sit in the cab (provided no restrictions). • STRONG - High quality wire rope feeds through 4-way roller fairlead. • 3 YEAR GUARANTEE*.
Specifications
Model No
ATV1135KIT
Brand:
Sealey
Cable Minimum Brake Force:
22kN
Consumable Parts:
ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
Current Draw:
No-Load - 26A, Maximum Load - 150A
Gear Ratio:
180:1
Line Pull*:
1135kg(2500lb)
Line Speed*:
No-Load - 4.8m/min, Maximum Load - 1.6m/min
Motor Power:
1.8kW(2.34hp)
Nett Weight:
11.9kg
Note:
*Performance quoted at first layer of cable on drum
