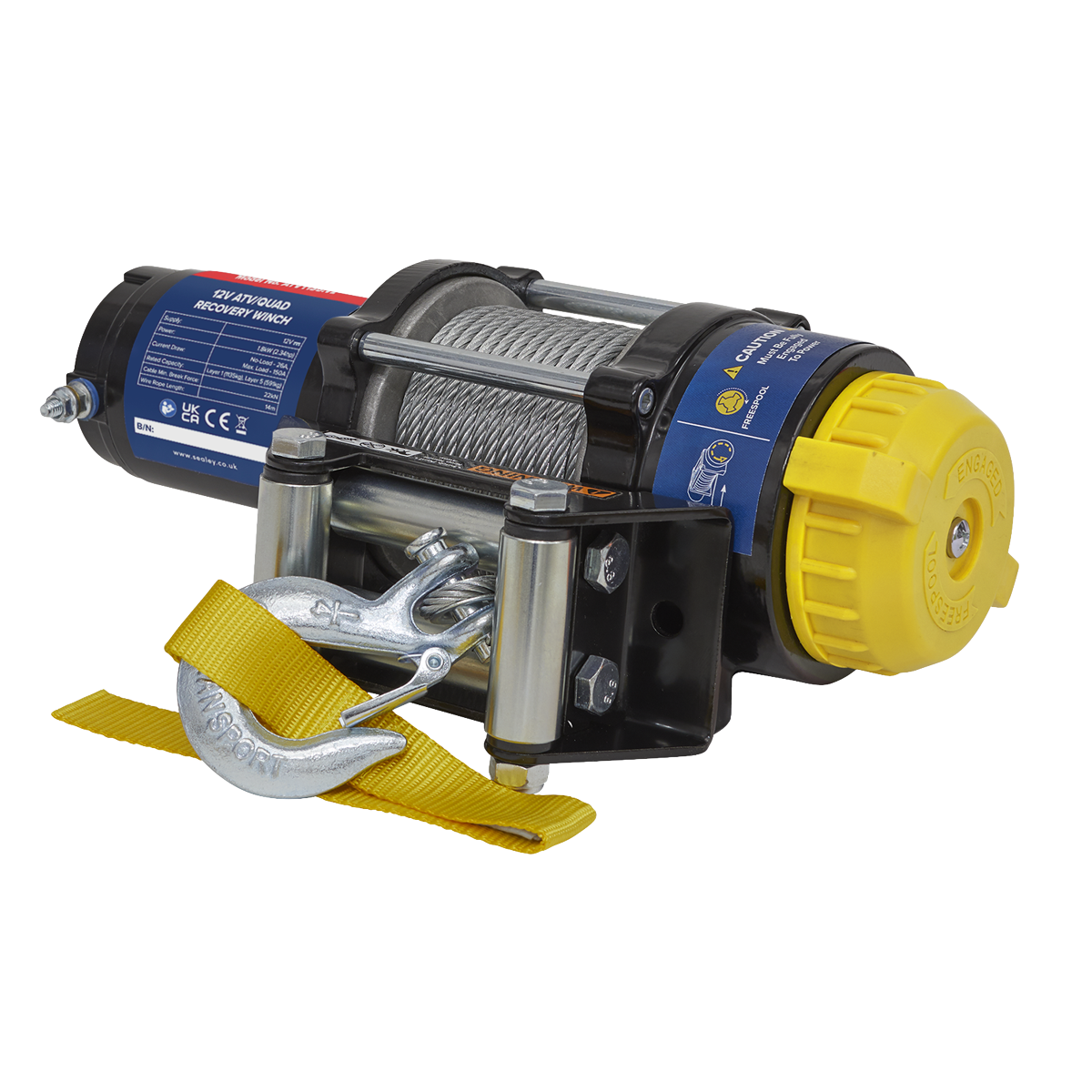

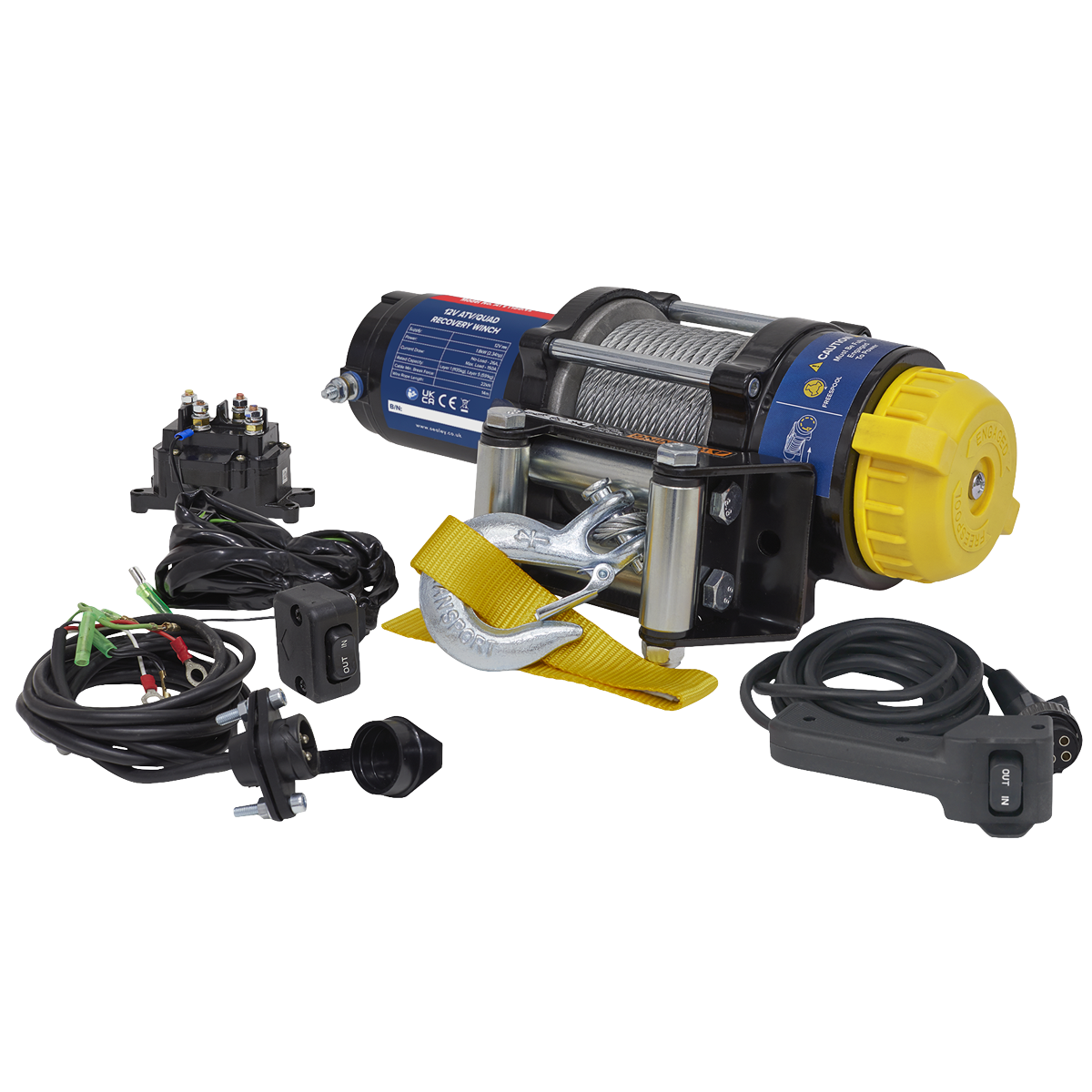

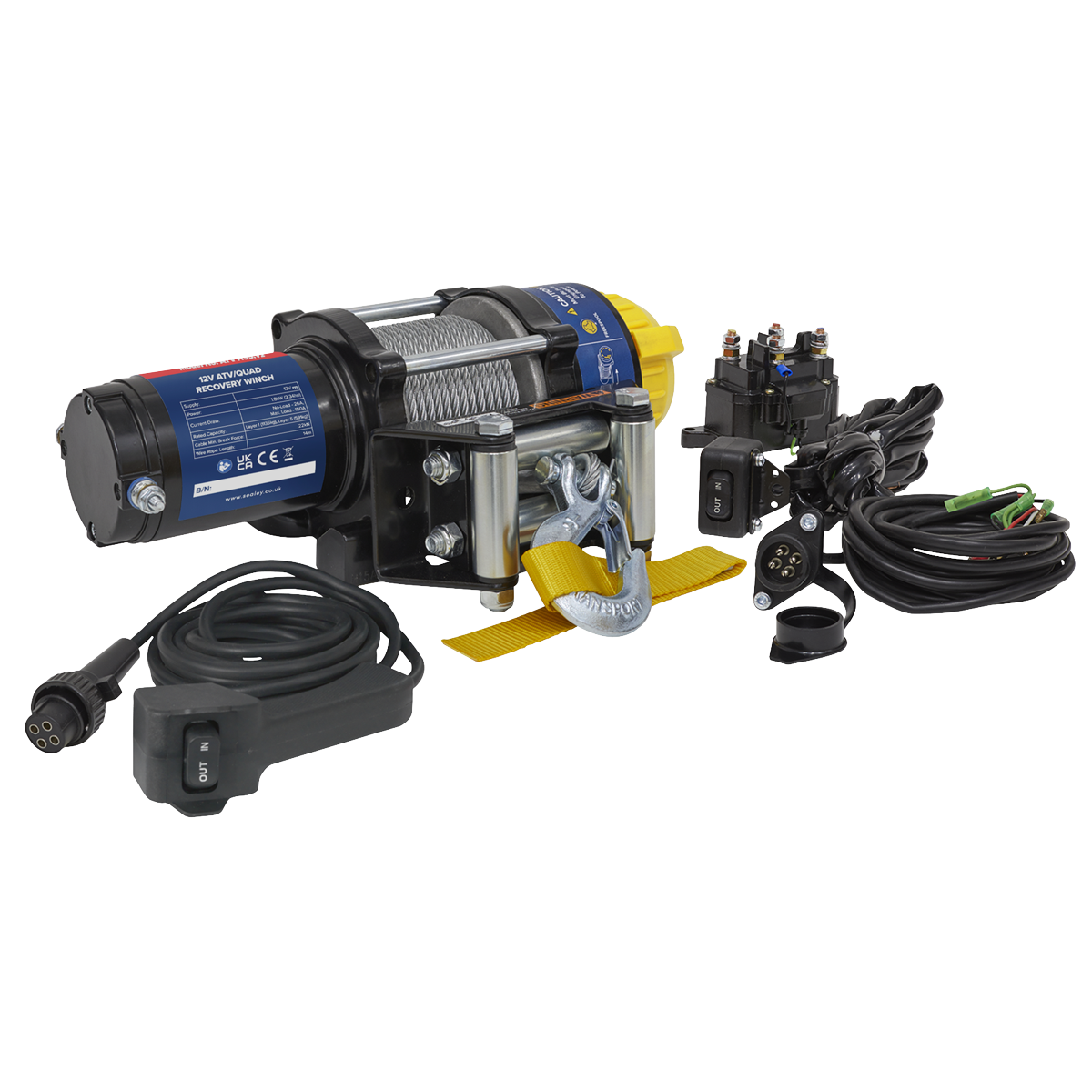

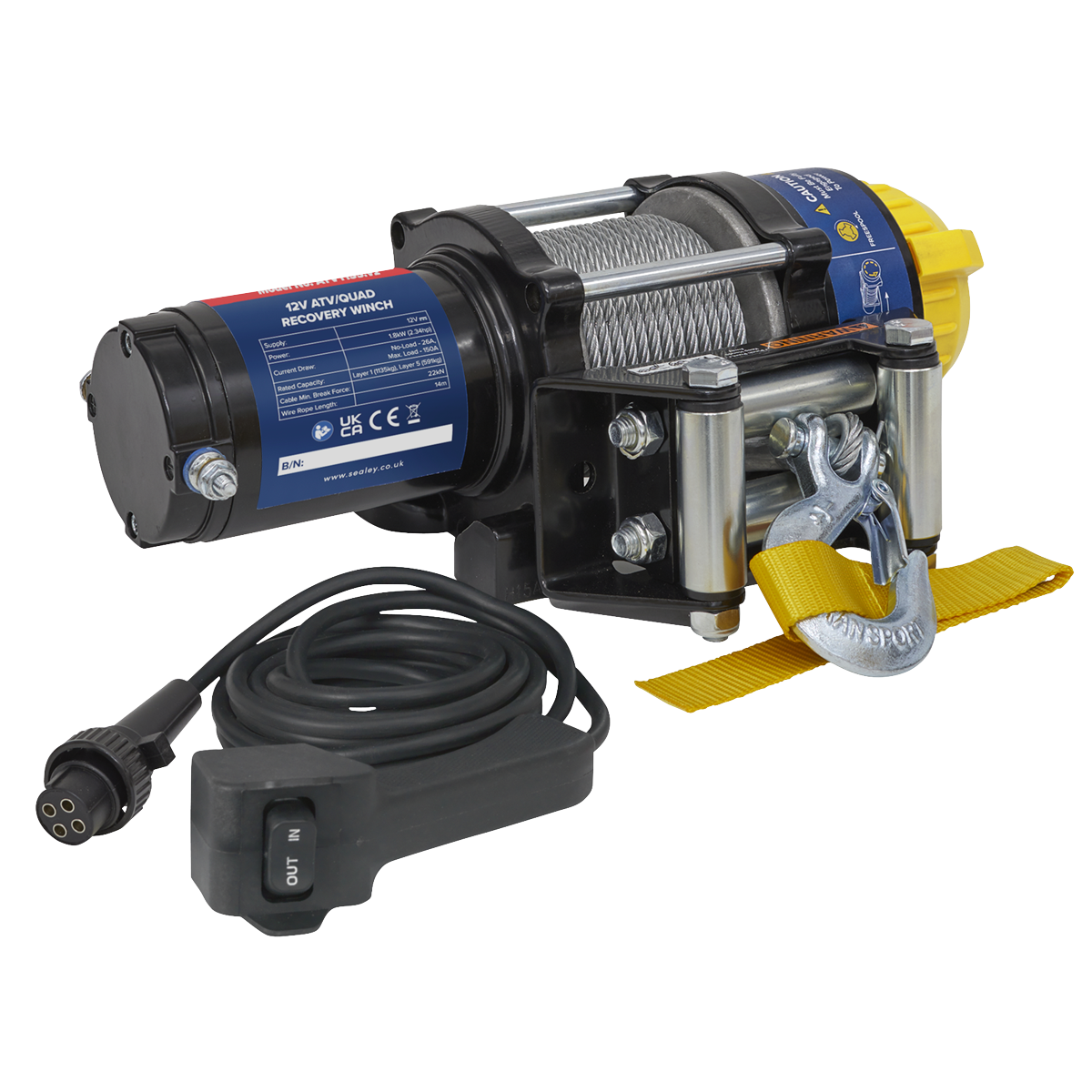

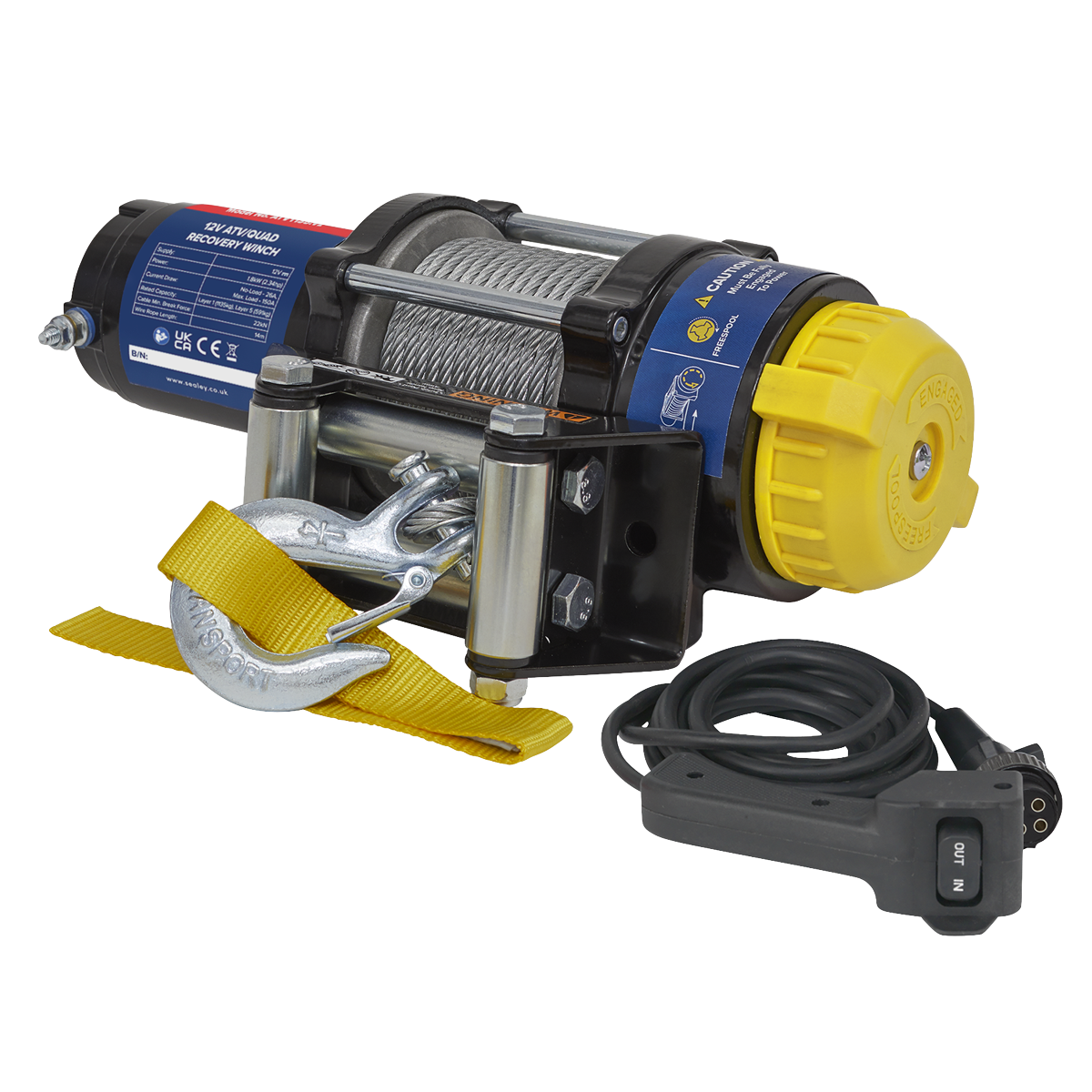

Sealey ATV/Quad Recovery Winch 1135kg (2500lb) Line Pull 12V ATV1135

Name: Sealey ATV/Quad Recovery Winch 1135kg (2500lb) Line Pull 12V ATV1135
SKU: SEALEY-ATV1135
Price: 235.8 GBP
Availability: InStock

£235.80 GBP

~~£311.94 GBP~~ £235.80 GBP

Reduced by £76.14 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

PROMOTION SALE!

Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability. Designed and built with the toughest jobs in mind. High power 1.8kW (2.34hp) 12V DC permanent magnet type motor gives first class pulling power. Heavy-duty all-weather housing. 3-Stage planetary gears. Patented unique automatic spring brake, reliable in full load operation. Sliding ring gear clutch. High quality wire rope feeds through 4-way roller fairlead. IP67 rated motor and gearbox.

• Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability.
• Designed and built with the toughest jobs in mind.
• High power 1.8kW (2.34hp) 12V DC permanent magnet type motor gives first class pulling power.
• Heavy-duty all-weather housing.
• 3-Stage planetary gears.
• Patented unique automatic spring brake, reliable in full load operation.
• Sliding ring gear clutch
• High quality wire rope feeds through 4-way roller fairlead.
• IP67 rated motor and gearbox.
• Gear Ratio: 180:1.

Specifications

Model No	ATV1135
Brand:	Sealey
Cable Minimum Brake Force:	22kN
Consumable Parts:	ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
Current Draw:	No-Load - 26A, Maximum Load - 150A
Gear Ratio:	180:1
*Line Pull:**	1135kg(2500lb)
*Line Speed:**	No-Load - 4.8m/min, Maximum Load - 1.6m/min
Motor Power:	1.8kW(2.34hp)
Nett Weight:	11.8kg
Note:	*Performance quoted at first layer of cable on drum
Rated Capacity:	Layer 1: 1135kg, Layer 5: 591kg
Supply:	12V
Wire Rope Diameter:	4.8mm
Wire Rope Length:	14m
