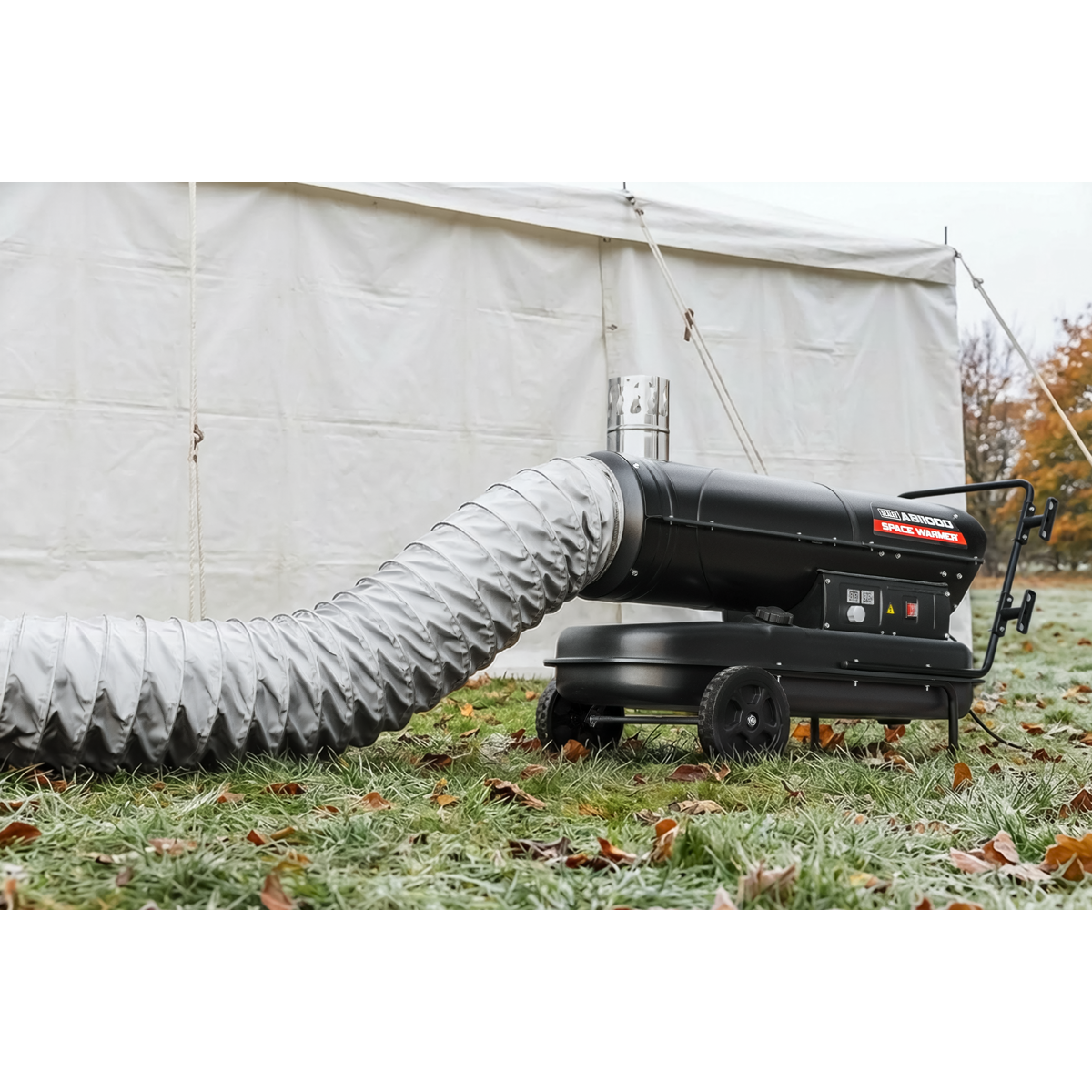

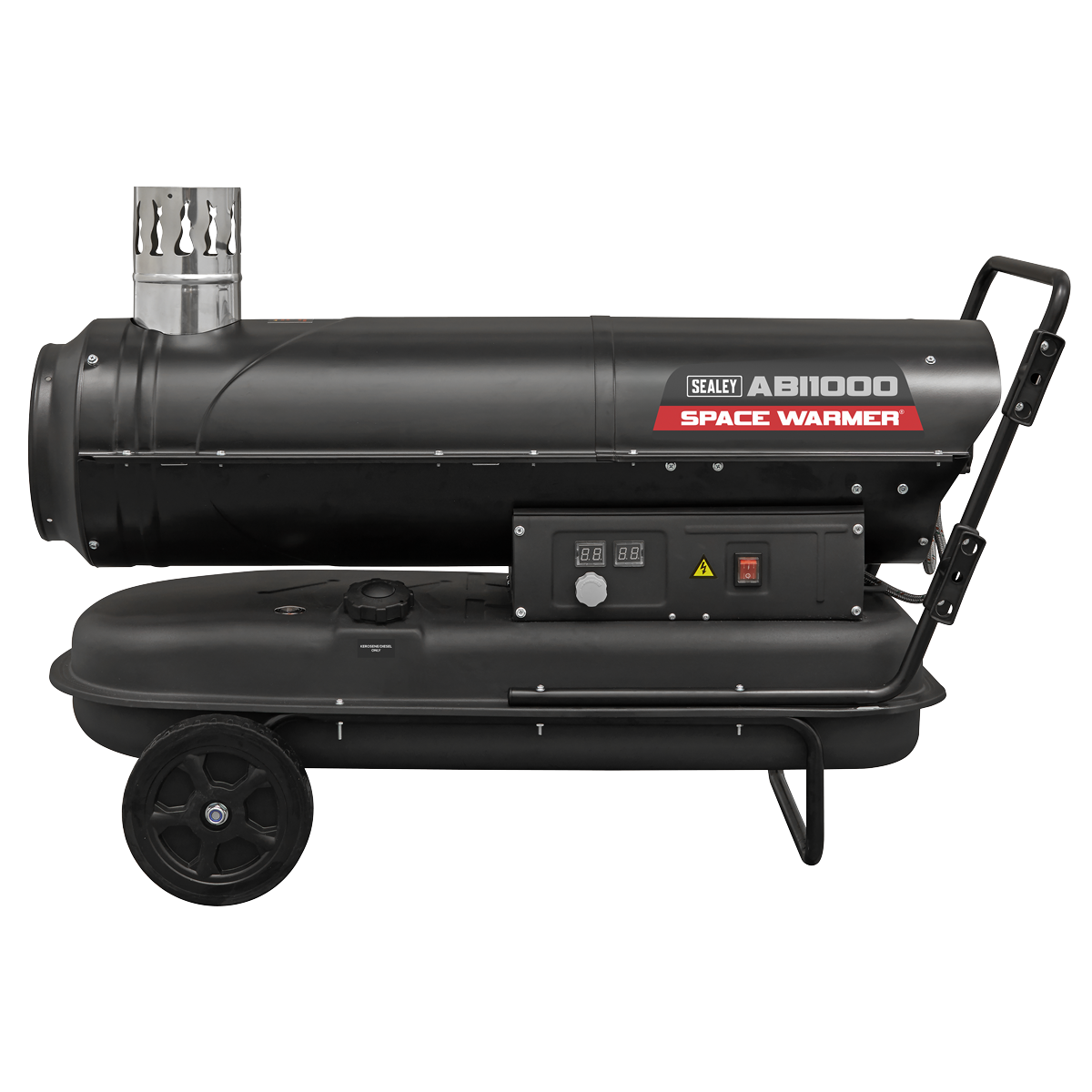

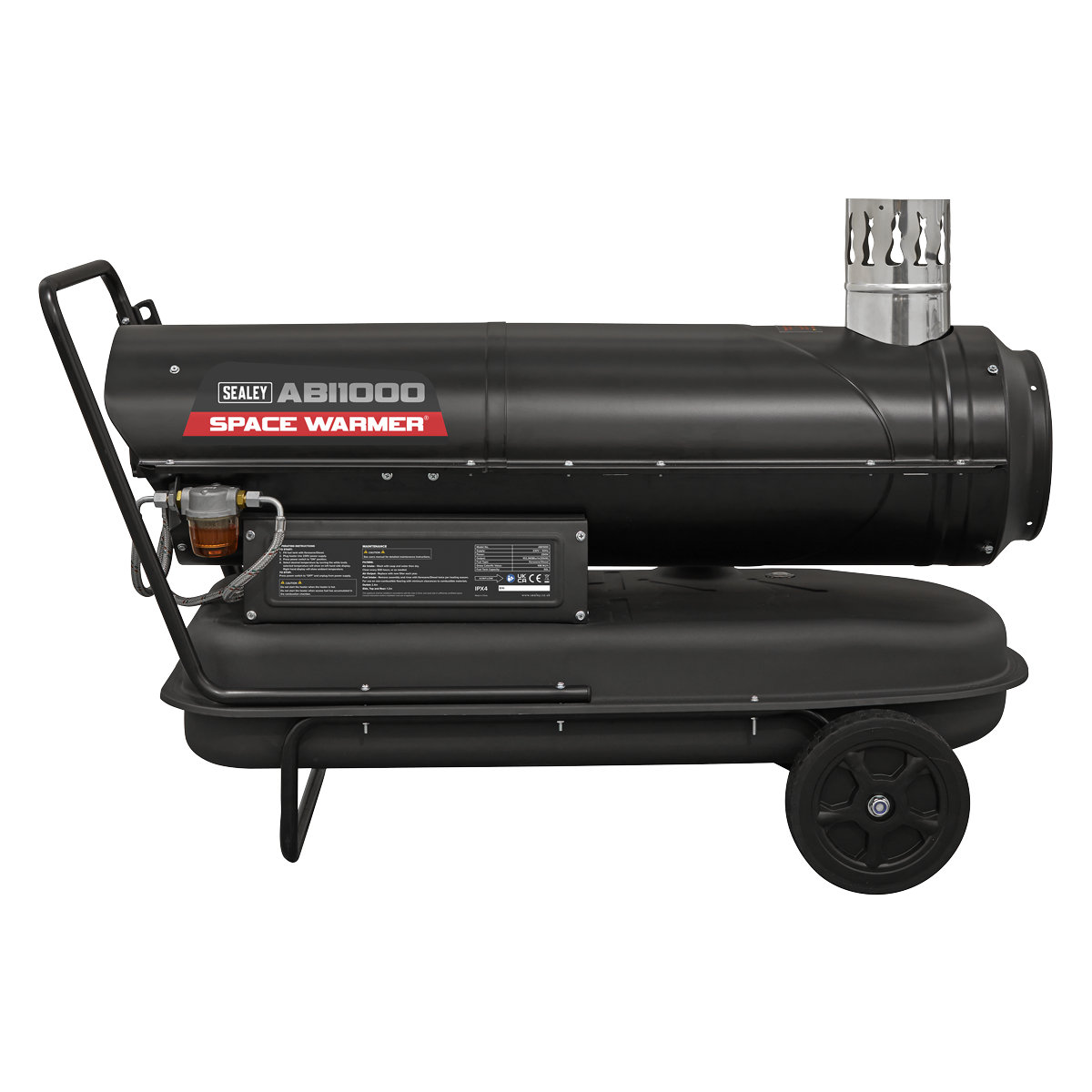

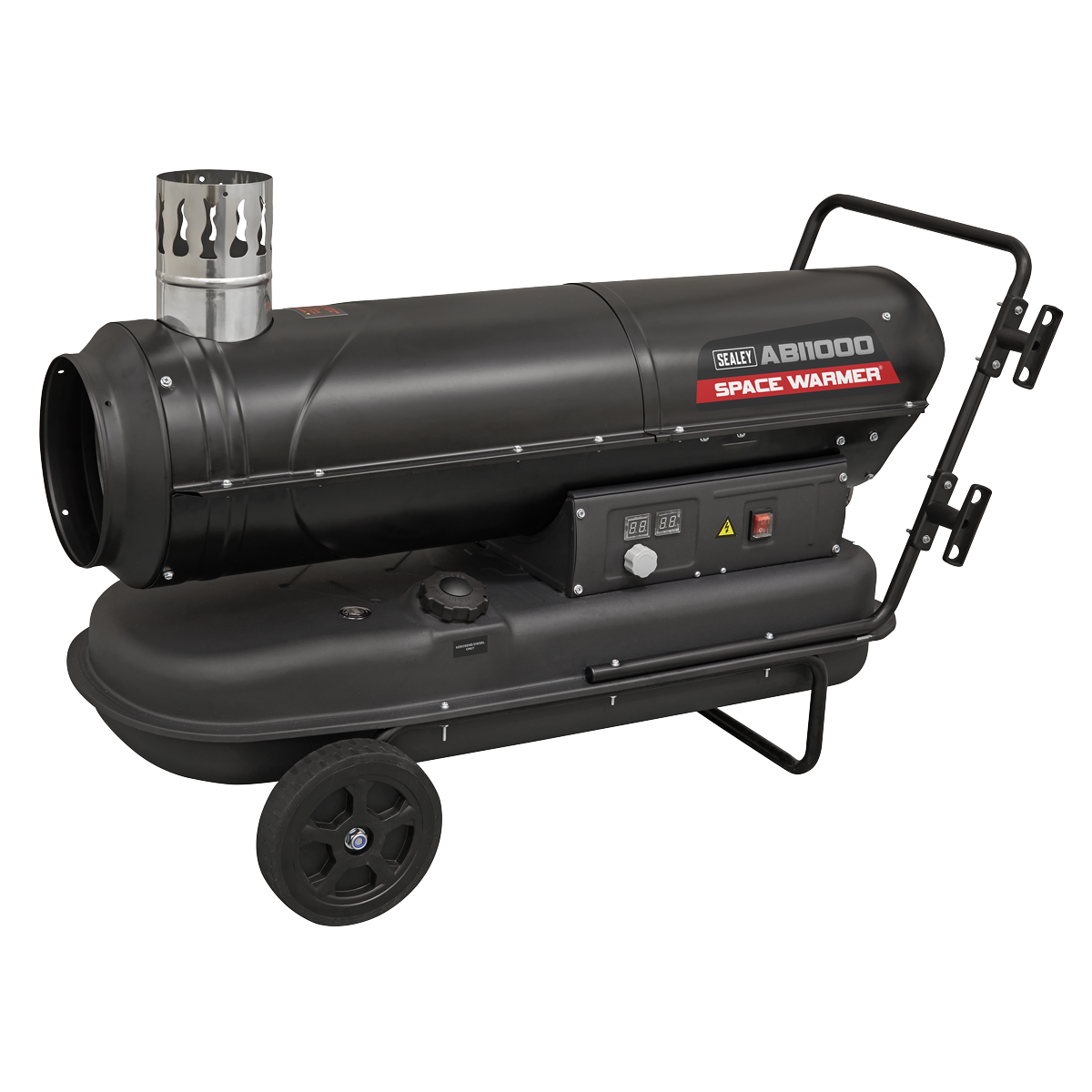

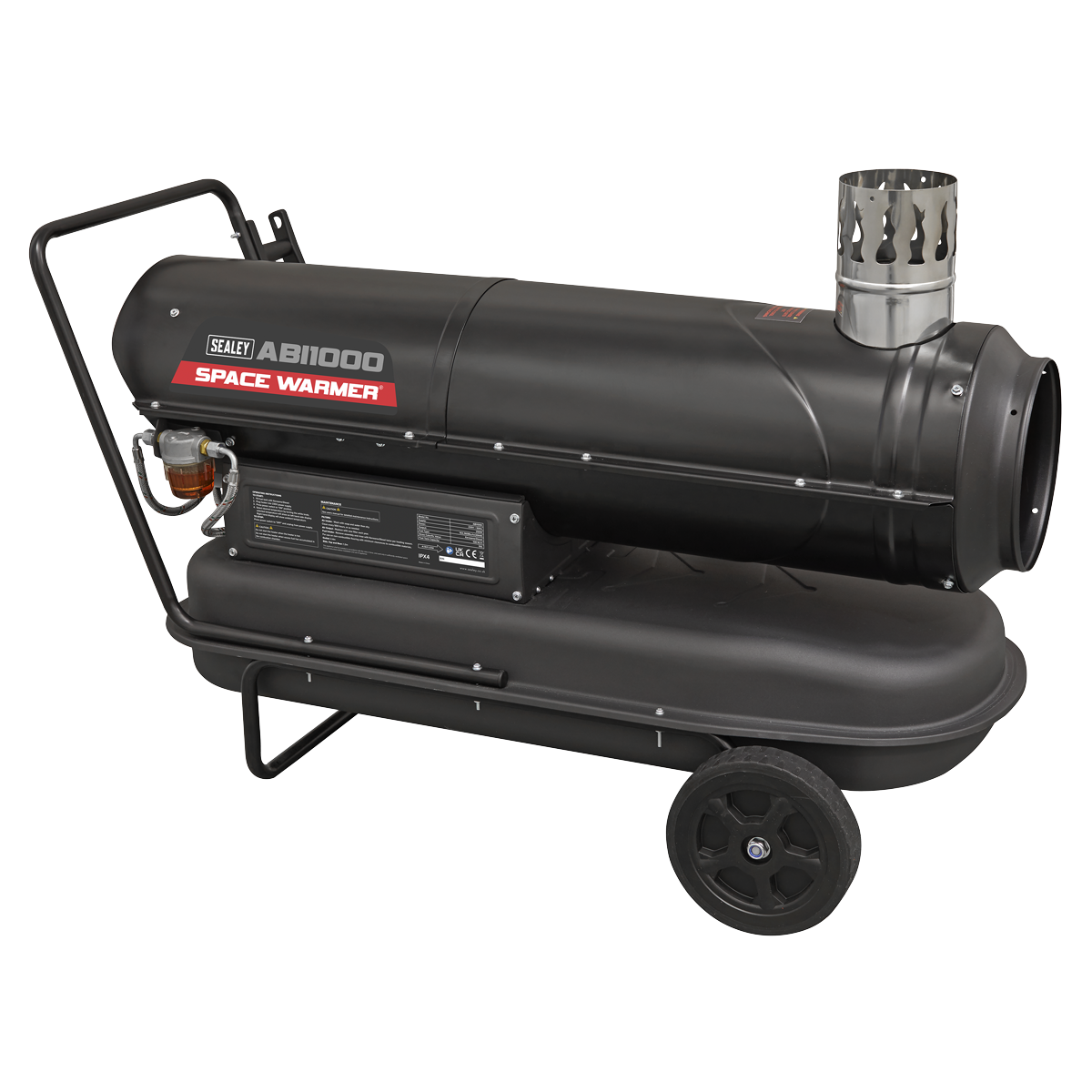

Indirect fired heaters are sophisticated, reliable, and highly efficient heaters. Ideal for places where there’s limited ventilation, or where people are present, as they deliver huge volumes of clean, dry, fume free heat safely and economically. The Sealey 102,000Btu/hr Indirect Space Warmer® has a 30kW heat output ideal for heating marquees, events, halls, workshops, warehouses, construction sites and more. Combustion by-products are exhausted out of the top of the heater through the flue. Ducting is available, Model No. ABI1000AK1 sold separately. With a thermostat control it allows you to set a required ambient temperature and maintain it. The thermostat will switch the heater on and off as required to maintain the set ambient temperature, this saves fuel and adds extra convenience. The indirect heater includes a stainless-steel combustion chamber with fan cooling, built-in flame sensor, Danfoss pump, electronic flame control and electronic control panel which ensures reliable performance. Fitted with a flame-out device which cuts the fuel supply when the flame is inadvertently extinguished or if the fuel has run out, ensuring maximum safety. Suitable for use with Kerosene or Diesel. Large wheels and a handle make the heater easy to transport, position and re-position where required on site.
• HEAT OUTPUT - 30KW/102,000Btu/hr ideal for heating marquees, events, halls, workshops, warehouses, construction sites and more.
• 100% HOT CLEAN AIR - Heater blows out 100% clean, fume-free warm air, so it is safe for heating indoor and poorly ventilated spaces.

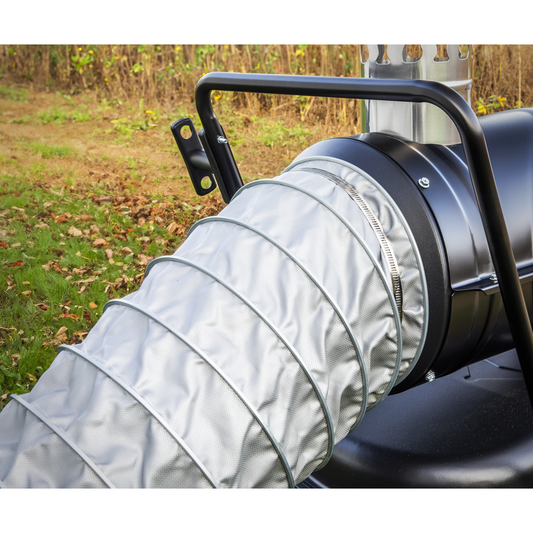

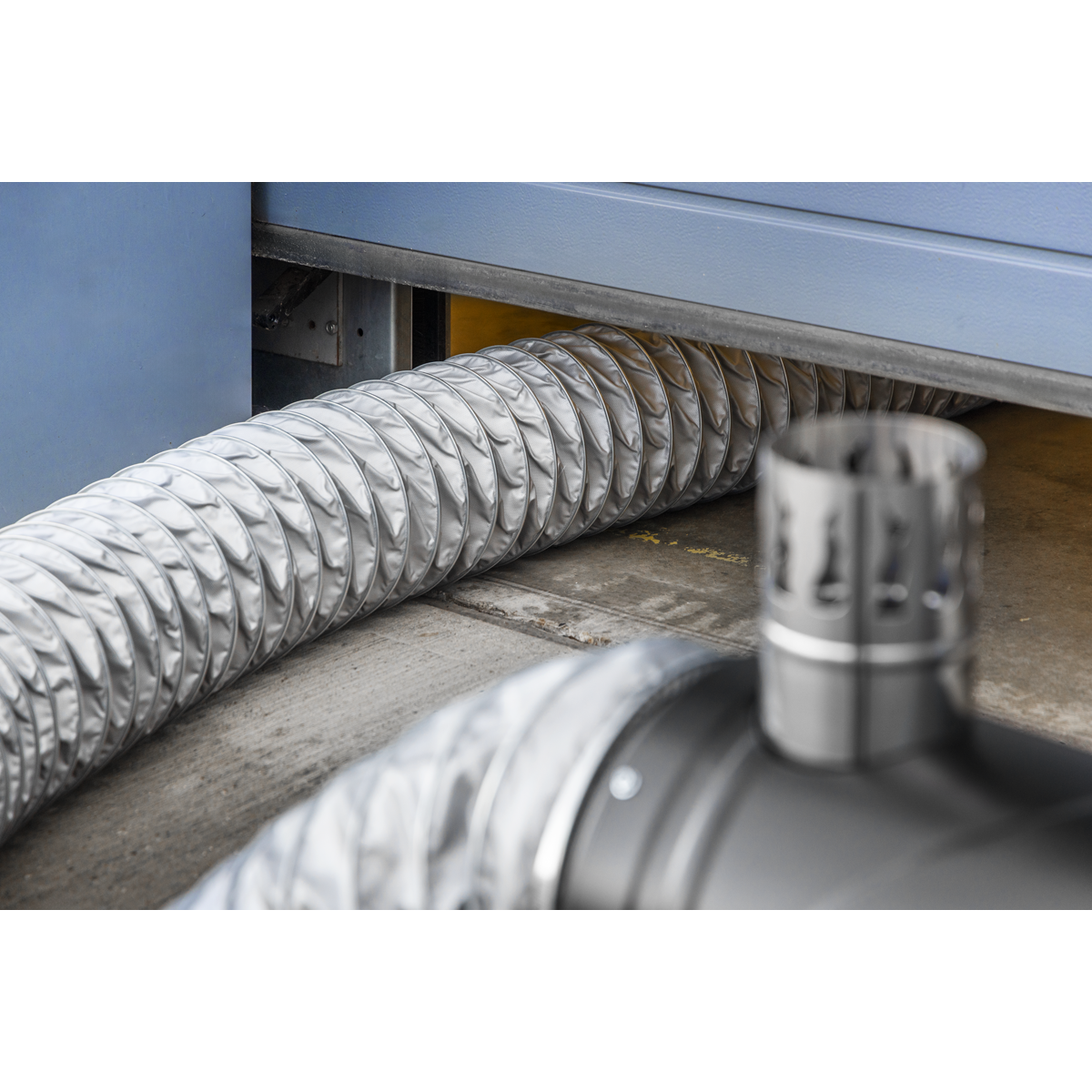

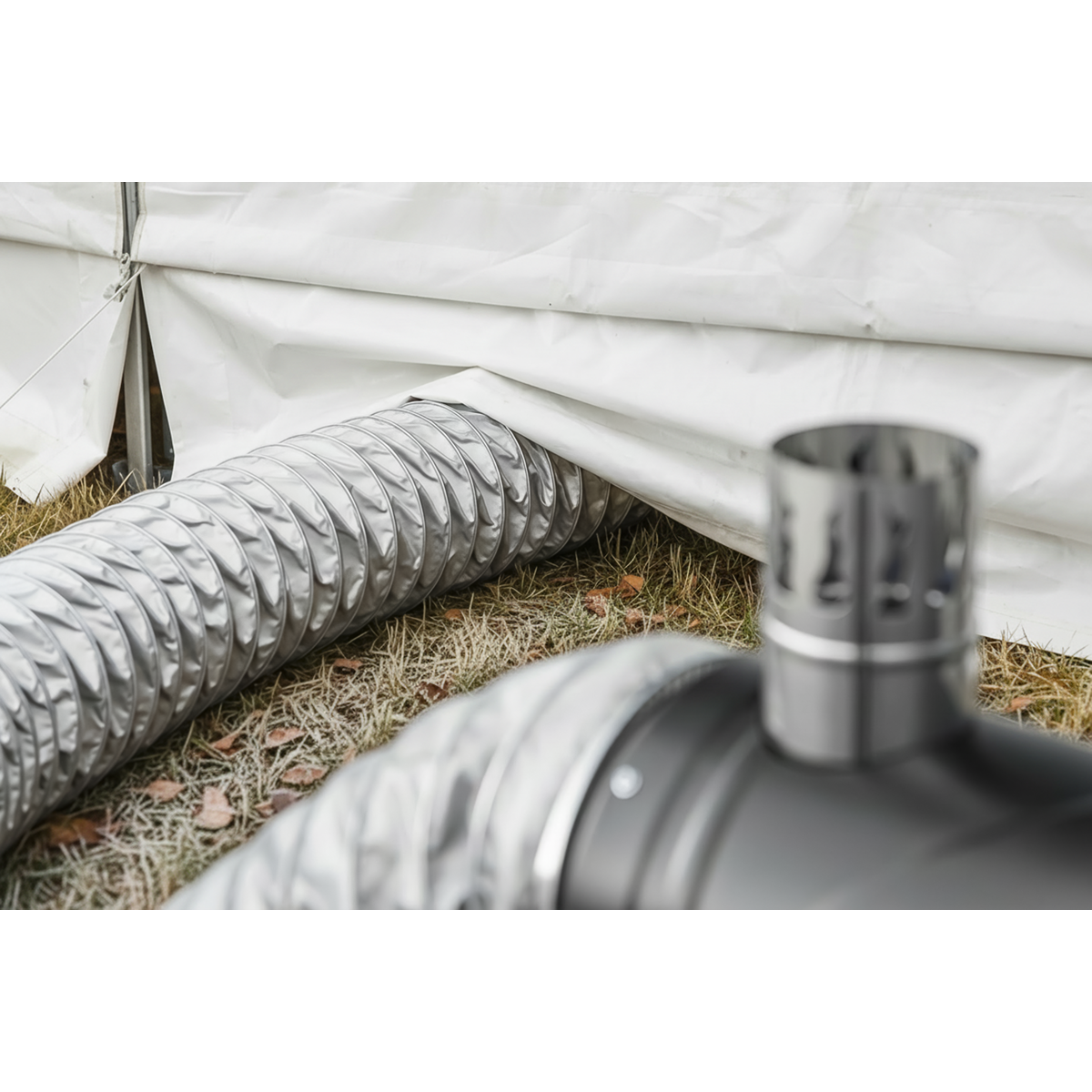

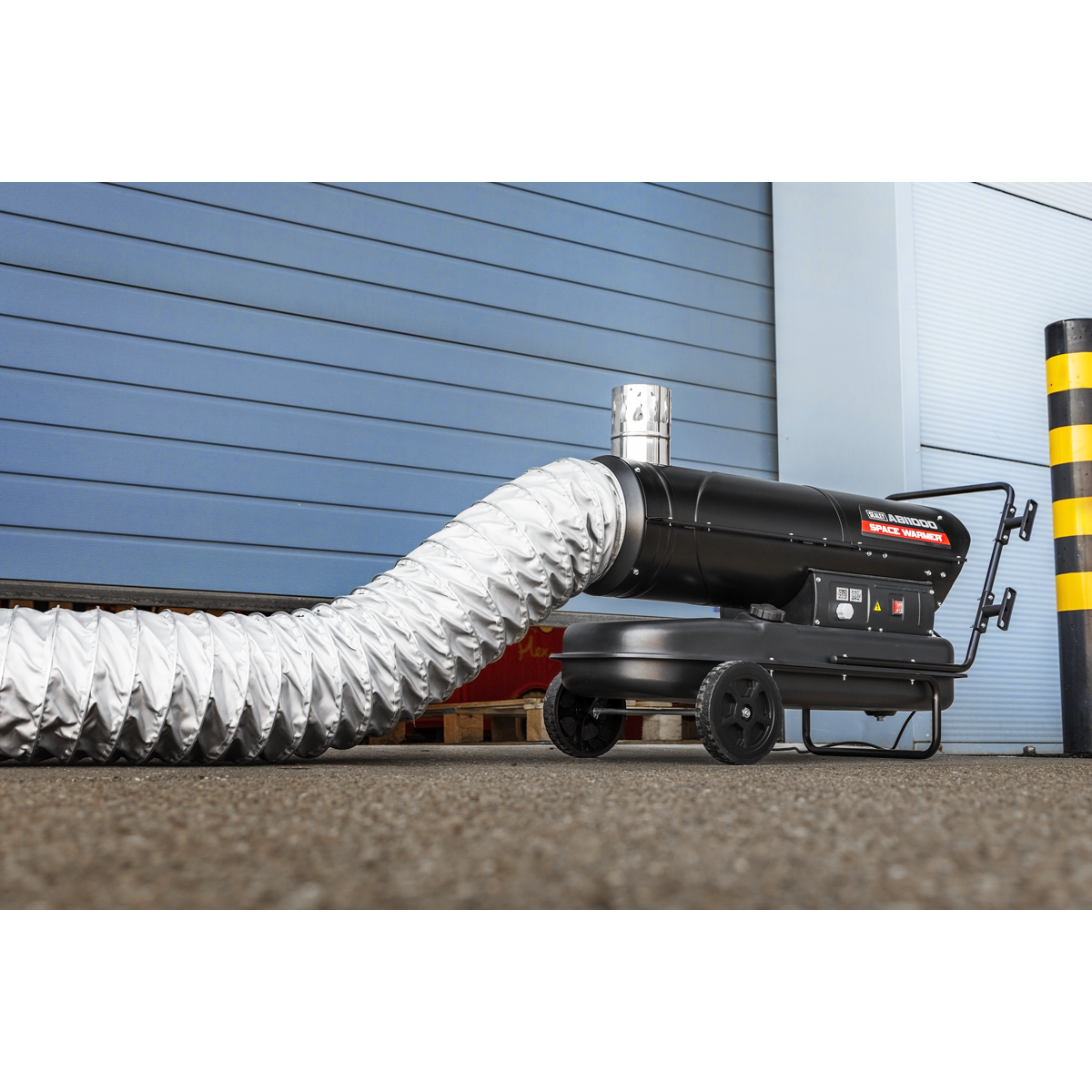

• FLUE EXHAUST - Combustion by-products are exhausted out of the top of the heater. Sections of ducting are available separately, Model No. ABI1000AK1.

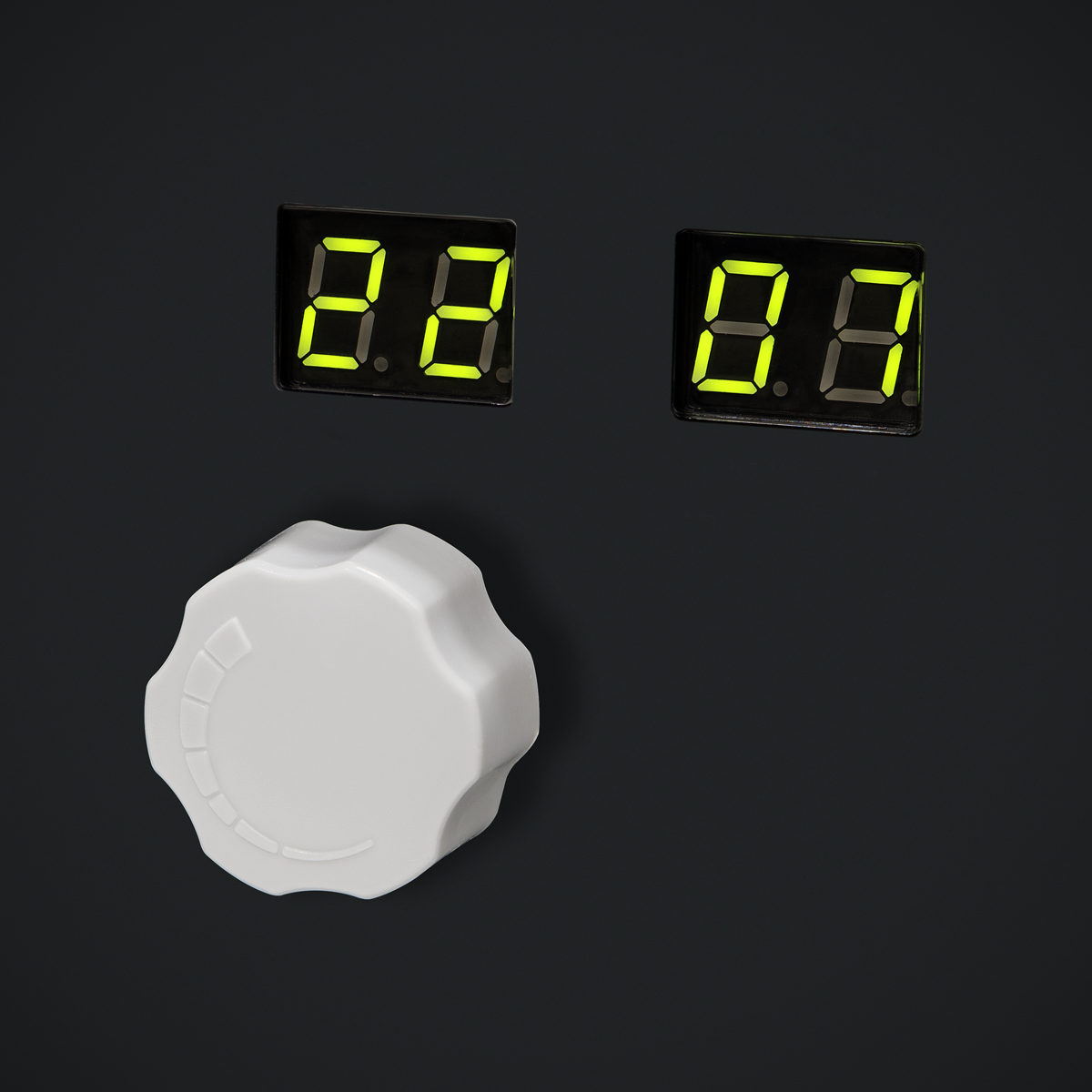

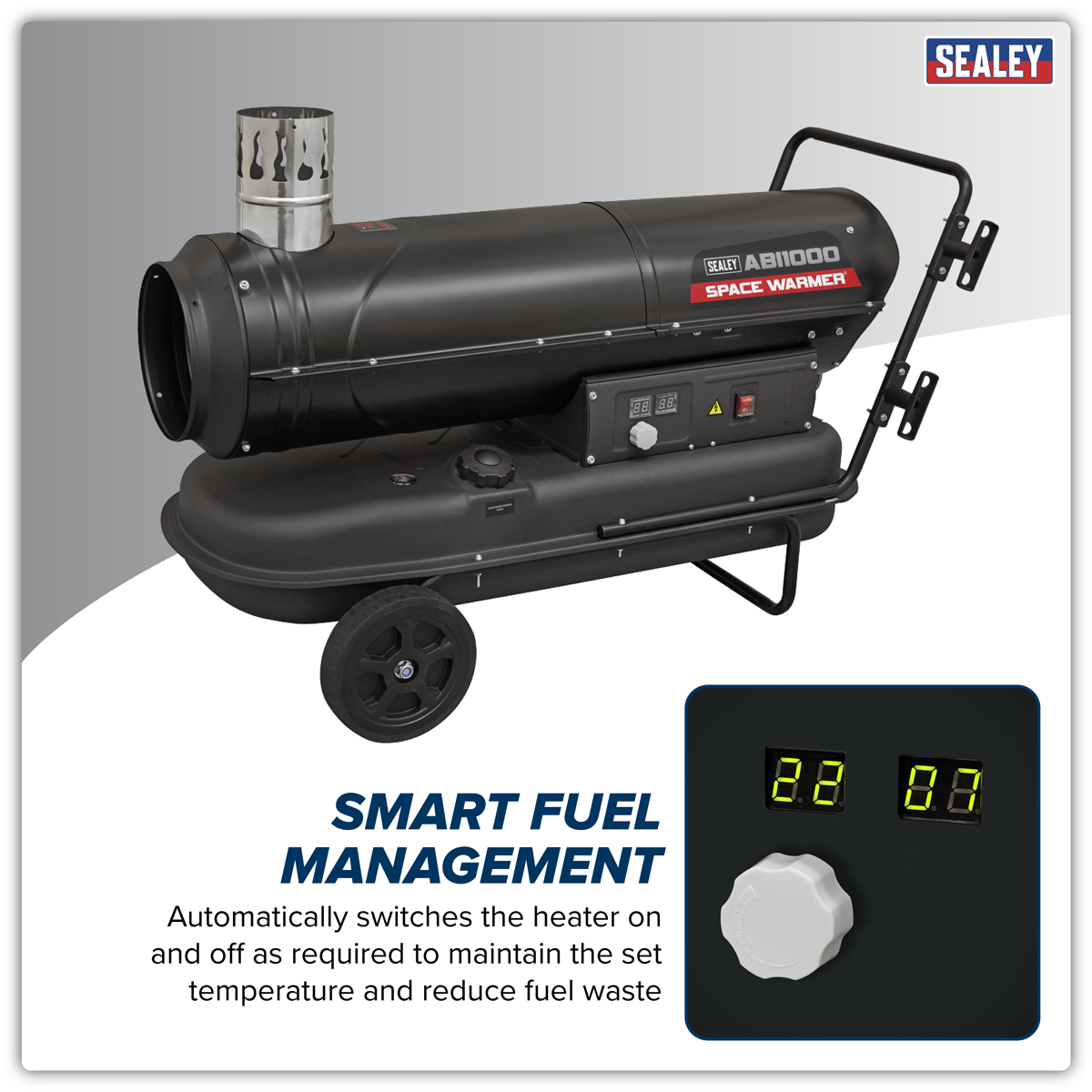

• THERMOSTAT - Allows you to set a required ambient temperature within the space as well as measuring actual ambient temperature. The thermostat will switch the heater on and off as required in order to maintain the set temperature. This saves fuel and adds extra convenience.
• ROBUST DESIGN - Built to perform in challenging areas.
• HIGH QUALITY FEATURES - Includes a stainless steel combustion chamber with fan cooling, built-in flame sensor, Danfoss pump, electronic flame control and electronic control.

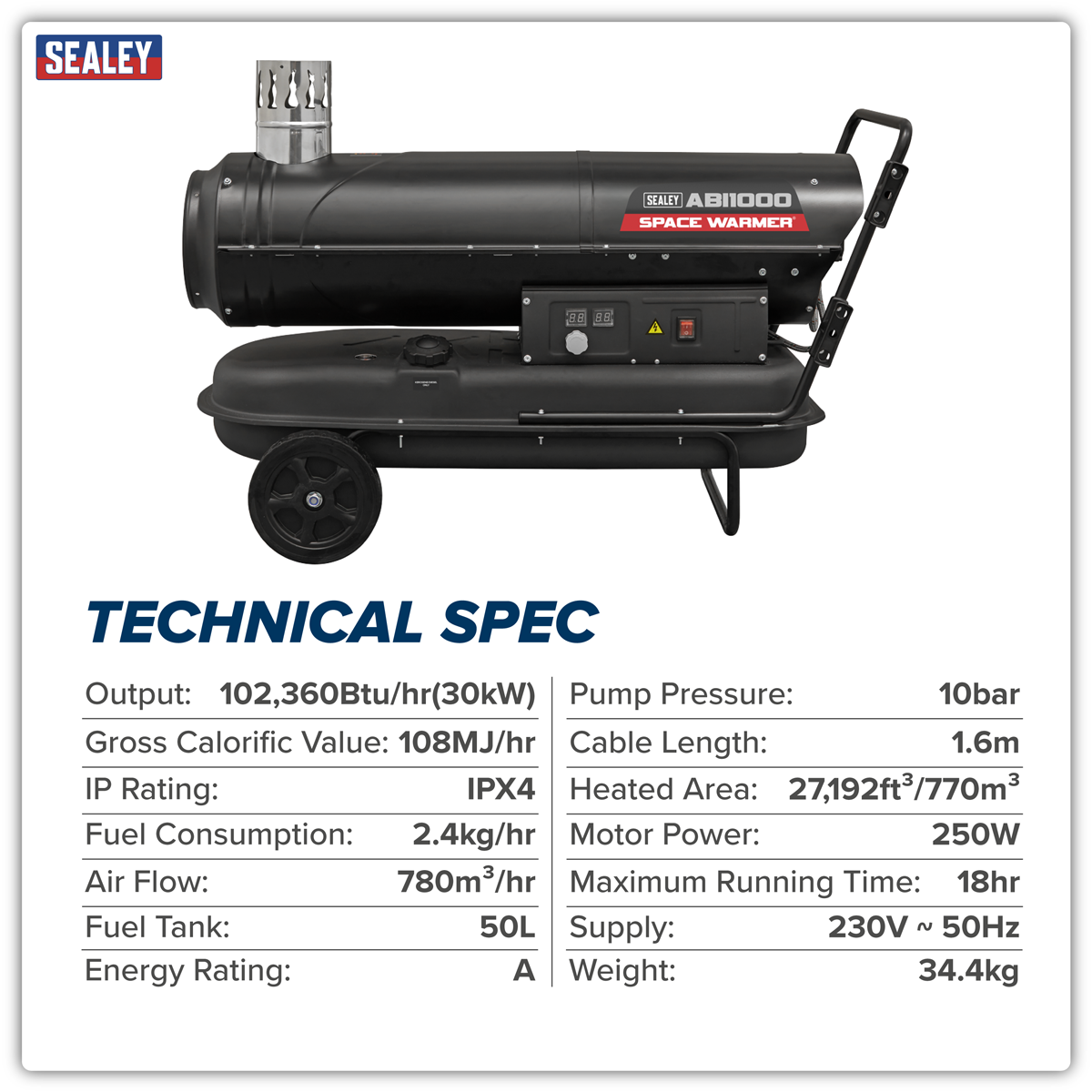

Specifications
| Model No |
ABI1000 |
| Airflow: |
780m³/hr |
| Automatic Shut-Off: |
Yes |
| Brand: |
Sealey |
| Energy Rating: |
A |
| Fuel Tank: |
50L |
| Fuel: |
Kerosene/Diesel |
| Heated Area: |
220-350 m2 (682cfm) |
| Motor Power: |
250W |
| Nett Weight: |
34.40kg |
| Output: |
102,360Btu/hr(30kW) |
| Running Time per Filling (Maximum): |
18hrs |
| Heat Output: |
30kW |
| Nominal Heat Input: |
30kW |
|
|
| Gross Calorific Value: |
108 MJ/h |
| IP Rating: |
IPX4 |
| Fuel Consumption: |
2.4kg/h |
| Air Flow: |
780 m3/h |
| Fuel Tank: |
50L |
| Pump Pressure: |
10 Bar |
| Cable Length: |
1.6m |
| Supply: |
230V ~ 50Hz |
| Transport Wheels: |
Yes |
