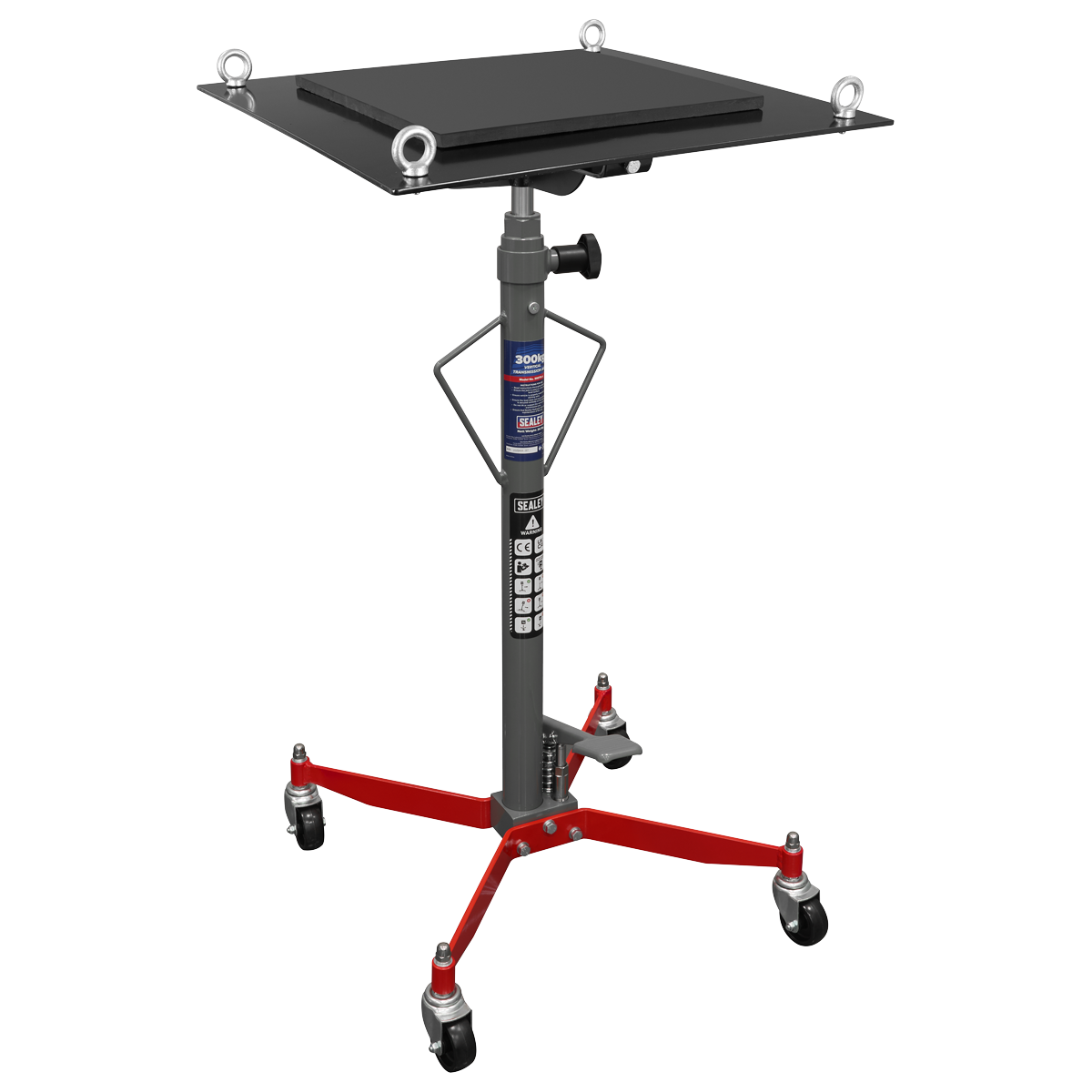

Sealey 300TR Vertical Transmission Jack 300kg

Manufactured to exacting standards, strong construction for durability and suitable for general workshop applications. Spring loaded dead man's safety release control reduces the risk of inadvertent lowering. 2-Way hydraulic unit ensures that the saddle lowers at a controlled speed at all times, even without load. Extra-large castors allow for increased manoeuvrability. Hydraulic unit larger than the economy models for improved performance and durability. Can be fitted with optional Adjustable Gearbox Support - check specification in table.

• Manufactured to exacting standards, strong construction for durability and suitable for general workshop applications.
• Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.
• 2-Way hydraulic unit ensures that the saddle lowers at a controlled speed at all times, even without load.
• Extra-large castors allow for increased manoeuvrability.
• Hydraulic unit larger than the economy models for improved performance and durability.

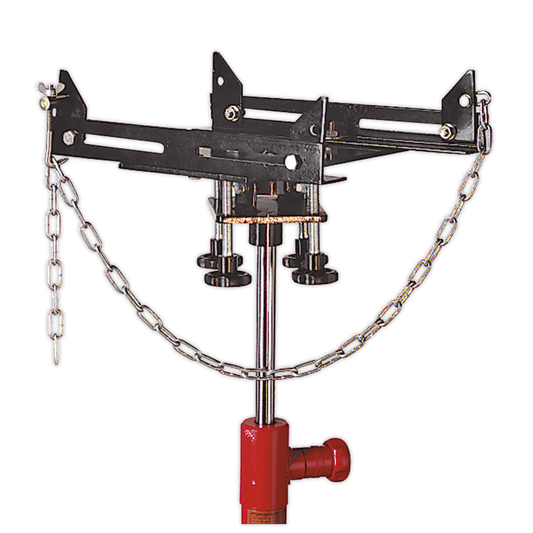

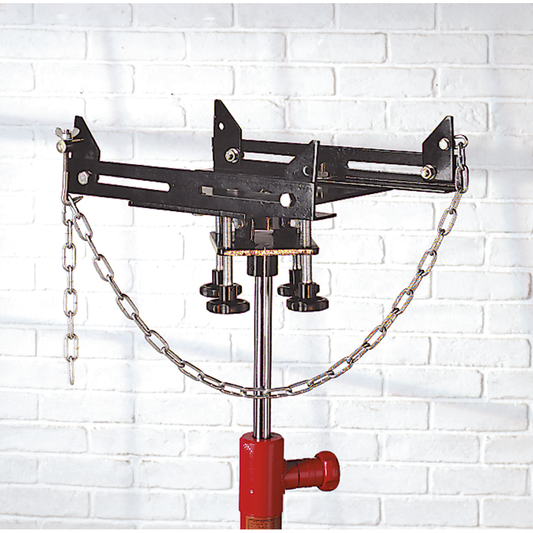

• Can be fitted with Model No. ADT3 - Adjustable Gearbox Support.

Specifications

Model No	300TR
Base Size:	560 x 570mm
Brand:	Sealey
Capacity:	300kg
Fixed/Adjustable Saddle:	Fixed
Maximum Saddle Height:	1940mm
Minimum Saddle Height:	1120mm
Nett Weight:	26kg
Optional Accessories:	ADT3 - Adjustable Gearbox Support
Pump Strokes to Maximum Height:	n/a
Ram Extensions:	1
